arxiv: 2604.12264 · v1 · submitted 2026-04-14 · ❄️ cond-mat.mes-hall · cond-mat.mtrl-sci· cond-mat.other· physics.app-ph

Polymer-free van der Waals assembly of 2D material heterostructures using muscovite crystals

Ian Babich , Timofey M. Savilov , Natalia A. Mamchik , Kristina Vaklinova , Nansi Zhou , Denis S. Baranov , Dmitrii A. Litvinov , Virgil Gavriliuc
show 9 more authors
Yue Yuan Amoz Chua Kenji Watanabe Takashi Taniguchi Mario Lanza Maciej Koperski Kostya S. Novoselov Alexey I. Berdyugin Makars \v{S}i\v{s}kins
This is my paper

Pith reviewed 2026-05-10 16:06 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall cond-mat.mtrl-scicond-mat.otherphysics.app-ph
keywords van der Waals heterostructures2D materialsmuscovite micapolymer-free transfertemperature-controlled adhesiondeterministic assemblyclean interfaces
0
0 comments X

The pith

Thin muscovite crystals enable temperature-controlled, polymer-free assembly of clean 2D van der Waals heterostructures.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a transfer technique that uses thin muscovite mica flakes to pick up, stack, and release 2D material layers. Temperature changes modulate the adhesion strength between the mica and the 2D sheets, allowing deterministic handling without any polymer layers. Because mica is crystalline and inorganic, the resulting interfaces remain free of organic residues and built-in strain. The method supports complex stacks such as those containing exposed conductors, moiré patterns, and suspended membranes, and integrates directly with standard fabrication steps.

Core claim

Temperature control over adhesion to muscovite mica permits deterministic pick-up, stacking, and release of 2D materials, producing heterostructures whose interfaces stay atomically clean and unstrained because the carrier is itself a crystalline inorganic solid rather than an organic polymer.

What carries the argument

Temperature-tunable adhesion between thin muscovite mica crystals and 2D material surfaces, which provides reversible attachment and detachment without polymers.

If this is right

  • Heterostructures containing exposed conductive layers can be assembled without contamination.
  • Moiré superlattices can be formed with atomically pristine interfaces.
  • Suspended 2D membranes can be created and handled deterministically.
  • Existing fabrication workflows remain unchanged because the process uses only temperature as the control variable.
  • The deterministic character of the adhesion steps opens a route toward automated robotic assembly.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same temperature-adhesion principle might be tested on other layered inorganic crystals to broaden the range of carrier materials.
  • Strain suppression could improve carrier mobility in devices built from the resulting stacks.
  • Scaling the flake size and temperature uniformity would be needed to move from laboratory proof to wafer-scale production.
  • Direct comparison of interface cleanliness via tunneling spectroscopy between mica-transferred and polymer-transferred samples would quantify the cleanliness gain.

Load-bearing premise

Adhesion between mica and 2D layers can be toggled reliably by temperature alone across material combinations without introducing defects, strain, or residues.

What would settle it

Detection of polymer-like residues or measurable strain in an interface assembled and released using the mica method, or inability to release a layer at the temperature where release is claimed to occur.

Figures

Figures reproduced from arXiv: 2604.12264 by Alexey I. Berdyugin, Amoz Chua, Denis S. Baranov, Dmitrii A. Litvinov, Ian Babich, Kenji Watanabe, Kostya S. Novoselov, Kristina Vaklinova, Maciej Koperski, Makars \v{S}i\v{s}kins, Mario Lanza, Nansi Zhou, Natalia A. Mamchik, Takashi Taniguchi, Timofey M. Savilov, Virgil Gavriliuc, Yue Yuan.

Figure 1
Figure 1. Figure 1: FIG. 1. Standard working procedures for mica-assisted heterostructure assembly. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Examples of typical heterostructures assembled [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Examples of twisted layer heterostructures assembled using mica-assisted methods. [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Low-temperature magneto-transport characterization of the heterostructures assembled using mica-assisted methods. [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

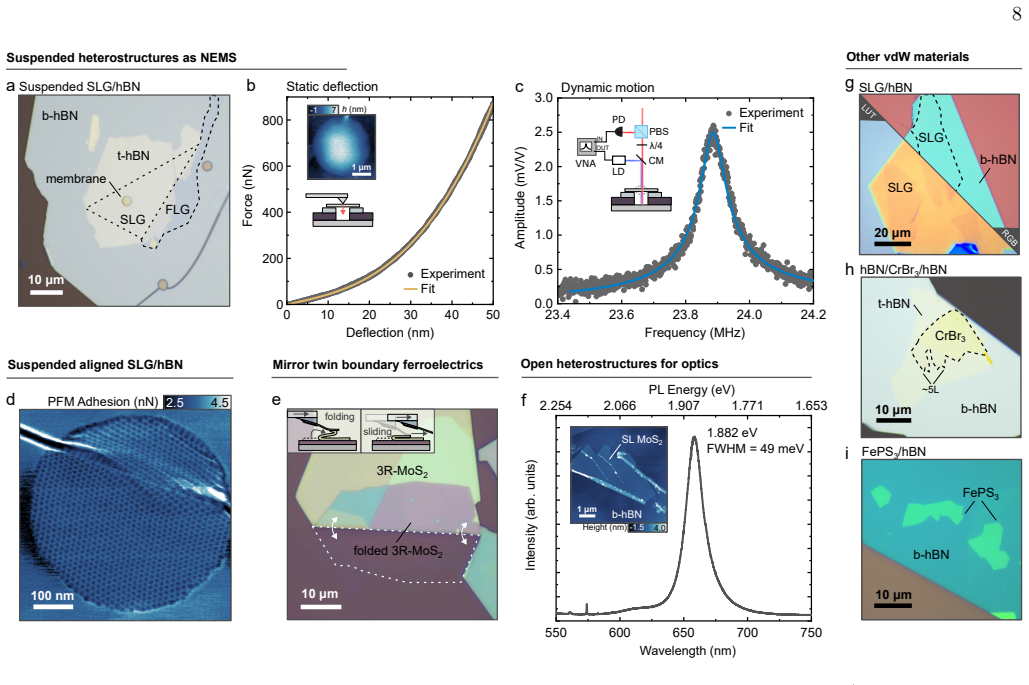

Figure 5. Figure 5: FIG. 5. Further examples of mica-assembled functional devices. [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
read the original abstract

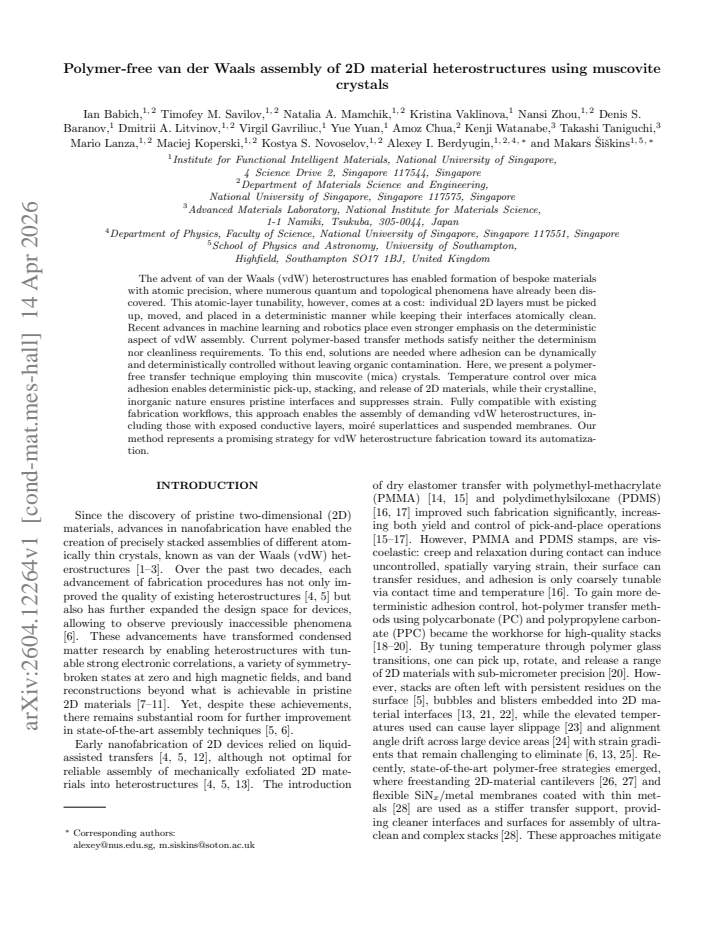

The advent of van der Waals (vdW) heterostructures has enabled formation of bespoke materials with atomic precision, where numerous quantum and topological phenomena have already been discovered. This atomic-layer tunability, however, comes at a cost: individual 2D layers must be picked up, moved, and placed in a deterministic manner while keeping their interfaces atomically clean. Recent advances in machine learning and robotics place even stronger emphasis on the deterministic aspect of vdW assembly. Current polymer-based transfer methods satisfy neither the determinism nor cleanliness requirements. To this end, solutions are needed where adhesion can be dynamically and deterministically controlled without leaving organic contamination. Here, we present a polymer free transfer technique employing thin muscovite (mica) crystals. Temperature control over mica adhesion enables deterministic pick-up, stacking, and release of 2D materials, while their crystalline, inorganic nature ensures pristine interfaces and suppresses strain. Fully compatible with existing fabrication workflows, this approach enables the assembly of demanding vdW heterostructures, including those with exposed conductive layers, moir\'e superlattices and suspended membranes. Our method represents a promising strategy for vdW heterostructure fabrication toward its automatization.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The manuscript introduces a polymer-free van der Waals assembly method for 2D material heterostructures that uses thin muscovite mica crystals. Temperature is used to control mica adhesion for deterministic pick-up, stacking, and release of layers, with the crystalline inorganic nature of mica claimed to ensure atomically clean interfaces, suppress strain, and enable complex structures including those with exposed conductive layers, moiré superlattices, and suspended membranes. The technique is presented as compatible with existing workflows and a step toward automation.

Significance. If the temperature-controlled adhesion mechanism proves reliable and the interface quality claims hold under quantitative scrutiny, the work could offer a meaningful advance over polymer-based transfer methods by eliminating organic residues and improving determinism in vdW heterostructure fabrication, which is relevant for high-quality quantum devices and scalable assembly in condensed-matter research.

major comments (3)
  1. [Abstract] Abstract: The central claim that 'temperature control over mica adhesion enables deterministic pick-up, stacking, and release' is not accompanied by any quantitative support such as adhesion force vs. temperature curves, success-rate statistics over repeated trials for different 2D material pairs, or error analysis; without these, the determinism and reproducibility cannot be evaluated beyond assertion.
  2. [Abstract] Abstract: Claims of 'pristine interfaces' and 'suppresses strain' rest on the inorganic nature of mica but lack post-assembly metrics (AFM roughness, Raman strain shifts, or transport data) or direct comparisons to polymer methods; this makes it impossible to verify the asserted cleanliness and strain advantages for demanding structures like exposed conductors or moiré layers.
  3. [Abstract] The description provides no material-specific validation or thresholds for the adhesion toggle across combinations, nor discussion of potential sensitivities to humidity, pressure, or thermal mismatch; these omissions leave the assumption that the process remains deterministic for arbitrary heterostructures untested in the presented evidence.
minor comments (1)
  1. [Abstract] The abstract refers to 'thin muscovite (mica) crystals' without specifying typical thicknesses or preparation protocols; adding this detail in the methods section would improve reproducibility.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their careful reading of our manuscript and for the constructive comments, which help clarify how to better present the strengths and limitations of the mica-based transfer technique. We respond to each major comment below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim that 'temperature control over mica adhesion enables deterministic pick-up, stacking, and release' is not accompanied by any quantitative support such as adhesion force vs. temperature curves, success-rate statistics over repeated trials for different 2D material pairs, or error analysis; without these, the determinism and reproducibility cannot be evaluated beyond assertion.

    Authors: The abstract is a high-level summary; the main text and figures demonstrate repeated deterministic transfers across multiple 2D material combinations. We agree that explicit quantitative metrics would strengthen the claim. In the revision we will add a table of success rates (with error estimates) compiled from our experimental trials for different material pairs. Direct adhesion-force versus temperature curves are not part of the present study, which instead reports practical transfer outcomes; we will expand the methods section to list the precise temperature thresholds used for each material. revision: partial

  2. Referee: [Abstract] Abstract: Claims of 'pristine interfaces' and 'suppresses strain' rest on the inorganic nature of mica but lack post-assembly metrics (AFM roughness, Raman strain shifts, or transport data) or direct comparisons to polymer methods; this makes it impossible to verify the asserted cleanliness and strain advantages for demanding structures like exposed conductors or moiré layers.

    Authors: The manuscript already presents AFM, Raman, and transport data on the assembled structures (including exposed conductors and moiré superlattices) to support interface quality. We will revise the abstract to reference these characterizations explicitly and add a short comparison paragraph in the discussion that includes AFM roughness values and Raman shift data relative to polymer-transferred controls from our own experiments. revision: yes

  3. Referee: [Abstract] The description provides no material-specific validation or thresholds for the adhesion toggle across combinations, nor discussion of potential sensitivities to humidity, pressure, or thermal mismatch; these omissions leave the assumption that the process remains deterministic for arbitrary heterostructures untested in the presented evidence.

    Authors: The methods section specifies the temperature set-points employed for the material combinations shown. We agree that a broader discussion of environmental sensitivities is warranted. We will insert a dedicated paragraph in the revised discussion that outlines the observed temperature thresholds for the demonstrated pairs and addresses potential influences of humidity, ambient pressure, and thermal expansion mismatch, based on our controlled experimental conditions and the known properties of muscovite. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental fabrication technique with no derivation chain

full rationale

The paper presents a physical fabrication method using temperature-controlled mica adhesion for 2D material transfer. No equations, fitted parameters, mathematical derivations, or load-bearing self-citations appear in the provided text or abstract. All claims rest on empirical demonstration rather than any step that reduces by construction to its own inputs. This is the expected outcome for a purely experimental methods paper.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The central claim rests on the empirical observation that mica adhesion varies controllably with temperature and that inorganic mica leaves no organic contamination; no free parameters, axioms, or invented entities are introduced beyond standard materials-science assumptions about surface adhesion.
