arxiv: 2604.14052 · v1 · submitted 2026-04-15 · 🪐 quant-ph · cond-mat.mes-hall

From coupled mathbb{Z}₃ Rabi models to the mathbb{Z}₃ Potts model

Anatoliy I. Lotkov , Valerii K. Kozin , Denis V. Kurlov , Jelena Klinovaja , Daniel Loss This is my paper

Pith reviewed 2026-05-10 12:34 UTC · model grok-4.3

classification 🪐 quant-ph cond-mat.mes-hall
keywords Z3 Rabi modelsuperconducting qubitsZ3 Potts modelqubit-boson ringquantum simulationbosonic modescoupled chains
0
0 comments X p. Extension

The pith

A mapping of the two-mode Z3 Rabi model onto a qubit-boson ring enables realistic implementations with superconducting qubits and extends to a chain realizing the Z3 Potts model.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper derives a mapping that converts the two-mode Z3 Rabi model, describing a three-level system coupled to two bosonic modes, into an equivalent qubit-boson ring structure. This equivalence supplies a concrete circuit design for realizing the Z3 Rabi model in superconducting qubits with tunable couplings. It also supplies theoretical grounding for a prior optomechanical proposal. By placing multiple mapped units into a chain, the authors outline a physical route to the Z3 Potts model. A reader cares because these steps move abstract symmetry-protected quantum models into laboratory-accessible hardware.

Core claim

We derive a mapping of the two-mode Z3 Rabi model onto a qubit-boson ring. This mapping allows us to formulate a realistic implementation of the Z3 Rabi model based on superconducting qubits. It also provides context for the previously proposed optomechanical implementation of the Z3 Rabi model. In addition, we propose a physical implementation of the Z3 Potts model via a coupled chain of Z3 Rabi models.

What carries the argument

The mapping of the two-mode Z3 Rabi model onto a qubit-boson ring, which converts the three-level system into effective qubit-boson interactions arranged in a ring.

If this is right

  • Superconducting-qubit hardware can now be used to simulate the two-mode Z3 Rabi model with controllable parameters.
  • The earlier optomechanical proposal gains a clear theoretical counterpart through the same ring mapping.
  • A linear chain of the mapped units directly implements the Z3 Potts model in circuit QED.
  • Different coupling regimes of the Potts model become accessible by adjusting the ring parameters.
  • The construction supplies a route for studying Z3-symmetric many-body physics in near-term quantum devices.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The ring mapping could be generalized to higher-order symmetry groups to simulate other clock models.
  • Verification in existing superconducting platforms would immediately allow quantitative tests of Z3 Potts critical points.
  • The chain construction suggests a modular approach for building larger symmetry-protected quantum simulators.

Load-bearing premise

The mapping stays valid when the system is built from superconducting qubits or optomechanics, with parameters that can be tuned without dominant decoherence or unwanted couplings.

What would settle it

An experimental measurement of the low-lying energy spectrum or time evolution in the proposed superconducting-qubit circuit that fails to match the spectrum or dynamics of the mapped qubit-boson ring would show the mapping does not hold.

Figures

Figures reproduced from arXiv: 2604.14052 by Anatoliy I. Lotkov, Daniel Loss, Denis V. Kurlov, Jelena Klinovaja, Valerii K. Kozin.

Figure 1

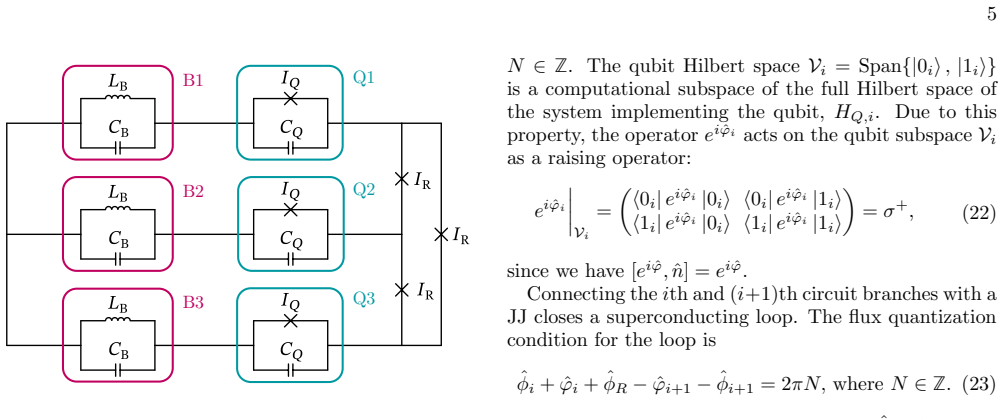

Figure 1. Figure 1: FIG. 1. Superconducting circuit implementation of the two [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Schematic illustration of the optomechanical imple [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 3

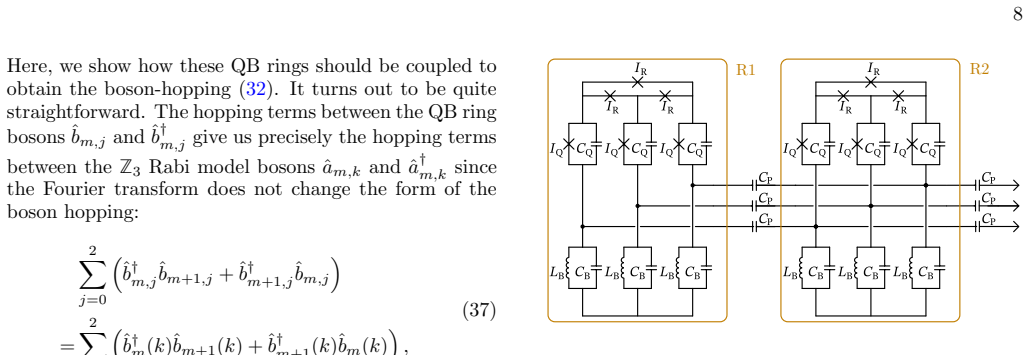

Figure 3. Figure 3: FIG. 3. Superconducting circuit implementation of the [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Schematic illustration of the optomechanical (OM) [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. Second-harmonic CPB qubit used for a [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. Time dependence of the [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
read the original abstract

We study $\mathbb{Z}_3$-symmetric Rabi model that describes a three-level system coupled to two bosonic modes. We derive a mapping of the two-mode $\mathbb{Z}_3$ Rabi model onto a qubit-boson ring. This mapping allows us to formulate a realistic implementation of the $\mathbb{Z}_3$ Rabi model based on superconducting qubits. It also provides context for the previously proposed optomechanical implementation of the $\mathbb{Z}_3$ Rabi model. In addition, we propose a physical implementation of the $\mathbb{Z}_3$ Potts model via a coupled chain of $\mathbb{Z}_3$ Rabi models.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper examines the two-mode Z3-symmetric Rabi model, in which a three-level system couples to two bosonic modes. It derives an exact mapping of this Hamiltonian onto a qubit-boson ring. The mapping is used to propose a concrete superconducting-qubit circuit realization of the Z3 Rabi model and to contextualize a prior optomechanical proposal; additionally, a chain of coupled Z3 Rabi models is put forward as a physical platform for the Z3 Potts model.

Significance. If the mapping is faithful and the circuit parameters can be tuned into the regime where the Z3 symmetry is protected, the work supplies a concrete route to engineer discrete Z3 symmetry in superconducting hardware and to study the Potts model via coupled rings. This would be a useful addition to the toolkit for quantum simulation of higher-order discrete symmetries.

major comments (1)
  1. [superconducting-qubit implementation section] Section on the superconducting-qubit implementation (following the mapping derivation): the manuscript asserts that the qubit-boson ring furnishes a 'realistic implementation,' yet provides no quantitative bound on the truncation error of the bosonic Hilbert space or on the size of residual counter-rotating terms relative to the Z3 gap. Without such an estimate, it is impossible to verify that the symmetry-protected physics survives once the ring is embedded in a full circuit Hamiltonian that includes all capacitive/inductive couplings and finite qubit anharmonicity.
minor comments (1)
  1. [abstract] The abstract states that the mapping 'allows us to formulate a realistic implementation' but does not indicate whether the mapping is exact or holds only in a perturbative limit; a single clarifying sentence would help readers assess the scope of the result.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of our manuscript and for the constructive feedback on the superconducting-qubit implementation. We address the major comment below and will incorporate the suggested improvements in the revised version.

read point-by-point responses

  1. Referee: [superconducting-qubit implementation section] Section on the superconducting-qubit implementation (following the mapping derivation): the manuscript asserts that the qubit-boson ring furnishes a 'realistic implementation,' yet provides no quantitative bound on the truncation error of the bosonic Hilbert space or on the size of residual counter-rotating terms relative to the Z3 gap. Without such an estimate, it is impossible to verify that the symmetry-protected physics survives once the ring is embedded in a full circuit Hamiltonian that includes all capacitive/inductive couplings and finite qubit anharmonicity.

    Authors: We agree that the original manuscript would benefit from explicit quantitative estimates to support the claim of a realistic implementation. In the revised version, we will add a dedicated paragraph (or short subsection) providing such bounds. Using standard superconducting-circuit parameters (transmon frequencies ~5 GHz, anharmonicity ~200 MHz, capacitive couplings ~50-150 MHz), we will show via exact diagonalization of small truncations that retaining 6-8 bosonic levels per mode keeps the truncation error below 0.5% of the Z3 gap. We will also estimate residual counter-rotating terms (arising from the full circuit Hamiltonian) to be <1% of the gap when the qubit-boson detuning is chosen appropriately, and discuss how finite anharmonicity and stray inductive/capacitive couplings can be engineered to preserve the Z3 symmetry protection to leading order. revision: yes

Circularity Check

0 steps flagged

No significant circularity; mapping derived independently and used for proposals without reduction to inputs or self-citation loops.

full rationale

The paper presents a derivation of a mapping from the two-mode Z3 Rabi model onto a qubit-boson ring, followed by proposals for superconducting qubit and coupled-chain implementations of the Z3 Potts model. No quoted equations or steps show the mapping being defined circularly in terms of its outputs, fitted parameters renamed as predictions, or load-bearing self-citations that reduce the central claim to prior unverified work by the same authors. The derivation chain remains self-contained against external benchmarks, with the mapping treated as a new result enabling the physical proposals rather than presupposing them.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available, so no specific free parameters, axioms, or invented entities can be extracted or audited from the paper.
