arxiv: 2604.14280 · v1 · submitted 2026-04-15 · 🌌 astro-ph.GA

Stream on: Evolution of stellar shells and streams - A case study

Johannes Stoiber , Lucas M. Valenzuela , Rhea-Silvia Remus , Klaus Dolag This is my paper

Pith reviewed 2026-05-10 12:05 UTC · model grok-4.3

classification 🌌 astro-ph.GA
keywords stellar streamstidal shellsgalaxy mergerscosmological simulationsstellar accretiontidal featuressatellite galaxiesstellar halos
0
0 comments X

The pith

Different satellite orbits produce stellar streams versus shells with distinct radial distributions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper uses a cosmological hydrodynamical simulation to compare the formation of a stellar stream and a shell system from accreted satellite galaxies. It tracks the orbits of the two progenitors and follows where stars from different initial radii within each satellite end up in the host galaxy after the merger. The stream forms from a more circular orbit, so particles from a wide range of initial radii reach similar distances from the host center, although the visible portion of the stream comes only from the progenitor's core. The shell forms from a more radial orbit, and its stars keep the same radial order they had inside the original satellite, with inner stars staying closer to the host center. These patterns show how the type of tidal feature encodes information about both the merger orbit and the internal structure of the accreted galaxy.

Core claim

The stream progenitor follows a more circular orbit than the shell progenitor. Stellar particles of the stream from different initial radii are found at roughly the same distances with respect to the host galaxy. However, the part of the stream visible in mock observations consists of stars from within the core of the progenitor. On the other hand, the stellar particles of the shell system retain their radial ordering: Stars that were initially at small radii in the satellite galaxy also remain closer to the center of the host galaxy.

What carries the argument

Orbital eccentricity of the progenitor combined with particle tracking that maps initial radii inside the satellite to final distances from the host center.

If this is right

  • The eccentricity of a satellite's orbit decides whether the merger remnant shows a stream or a shell.
  • Stars in streams undergo radial mixing so that particles from different initial radii end at similar host distances.
  • Only the core stars of the progenitor remain visible in observed streams because outer stars are hidden by the host.
  • Stars in shells keep their original radial order, so inner progenitor stars stay closer to the host center.
  • Mock observations must account for host-galaxy obscuration when interpreting stream morphology.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Morphology of tidal features could be used to infer the orbit of past accretion events in observed galaxies.
  • Shells may allow better reconstruction of a progenitor's internal structure than streams because they preserve radial order.
  • Extending the particle-tracking method to many more mergers in the same simulation would test whether the patterns are general.
  • Observational surveys of low-surface-brightness features should correct for selection effects that hide parts of streams.

Load-bearing premise

That the specific stream and shell systems identified in the simulation are representative and that the mock observations and particle tracking accurately capture real observable features without significant numerical or selection biases.

What would settle it

A spectroscopic survey of a real stellar stream that finds its visible stars come from a wide range of radii in the progenitor, rather than mainly the core, would challenge the reported distinction.

Figures

Figures reproduced from arXiv: 2604.14280 by Johannes Stoiber, Klaus Dolag, Lucas M. Valenzuela, Rhea-Silvia Remus.

Figure 1

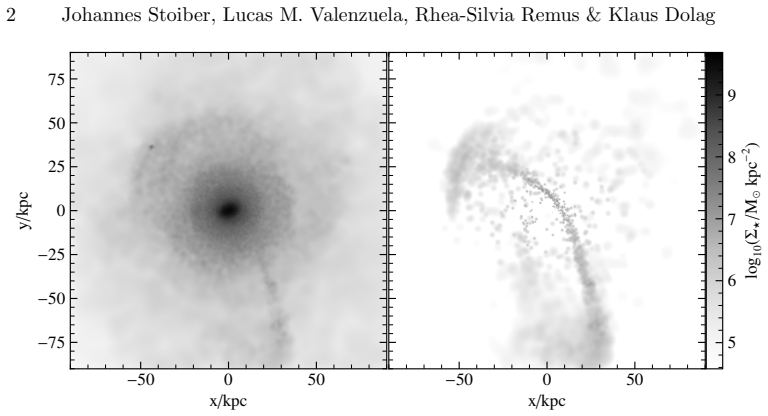

Figure 1. Figure 1: Left panel: Stellar surface density map of an illustrative galaxy exhibiting a stream. Right panel: Stellar surface density map of the particles that used to belong to a common subhalo that was identified to be the progenitor of the stream traced forward to z = 0.07. Similar results are shown by Stoiber et al. (2025). shells are primarily produced by radial mergers, for which stripped stars pile up near th… view at source ↗
Figure 2

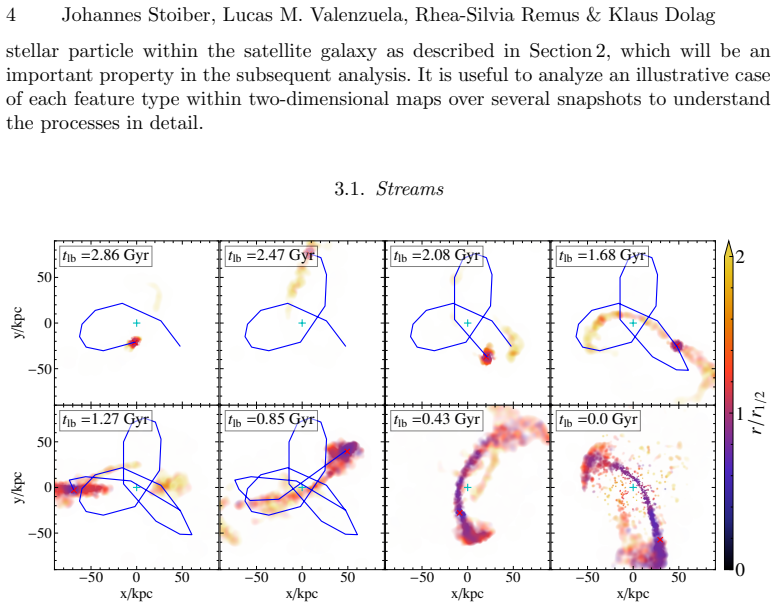

Figure 2. Figure 2: The evolution of an illustrative stream progenitor. The color represents the initial radius of the stellar particles within the identified stream progenitor. Time evolves from the top left (tlb = 2.86 Gyr) to the bottom right (tlb = 0.0 Gyr). Each particle distribution is centered on the center of the host galaxy (cyan plus symbol), which is not shown. The red cross indicates the position of the stellar pa… view at source ↗
Figure 3

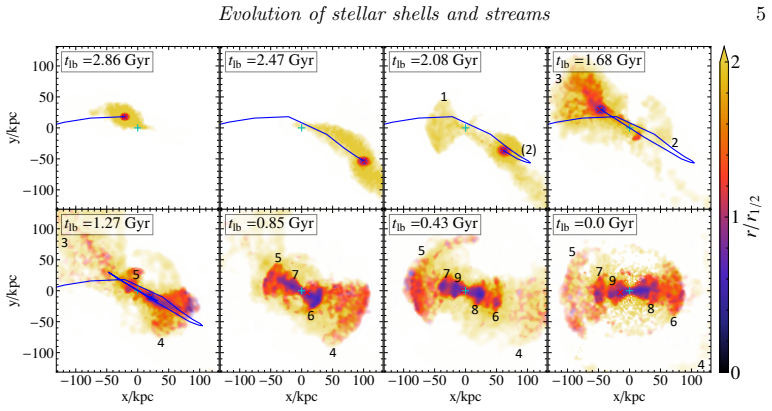

Figure 3. Figure 3: Same as [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

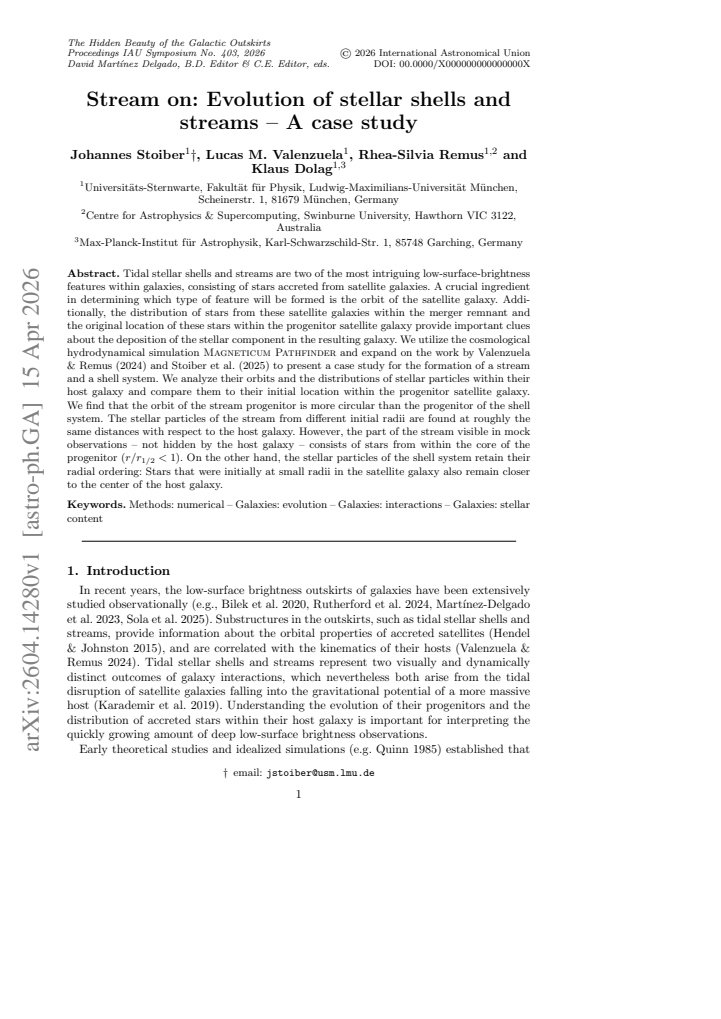

read the original abstract

Tidal stellar shells and streams are two of the most intriguing low-surface-brightness features within galaxies, consisting of stars accreted from satellite galaxies. A crucial ingredient in determining which type of feature will be formed is the orbit of the satellite galaxy. Additionally, the distribution of stars from these satellite galaxies within the merger remnant and the original location of these stars within the progenitor satellite galaxy provide important clues about the deposition of the stellar component in the resulting galaxy. We utilize the cosmological hydrodynamical simulation Magneticum Pathfinder and expand on the work by Valenzuela & Remus (2024) and Stoiber et al. (2025) to present a case study for the formation of a stream and a shell system. We analyze their orbits and the distributions of stellar particles within their host galaxy and compare them to their initial location within the progenitor satellite galaxy. We find that the orbit of the stream progenitor is more circular than the progenitor of the shell system. The stellar particles of the stream from different initial radii are found at roughly the same distances with respect to the host galaxy. However, the part of the stream visible in mock observations - not hidden by the host galaxy - consists of stars from within the core of the progenitor ($r/r_{1/2} < 1$). On the other hand, the stellar particles of the shell system retain their radial ordering: Stars that were initially at small radii in the satellite galaxy also remain closer to the center of the host galaxy.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents a case study from the Magneticum Pathfinder cosmological hydrodynamical simulation examining the formation of one stellar stream and one shell system from accreted satellites. It reports that the stream progenitor follows a more circular orbit than the shell progenitor; stream particles originating at different initial radii within the satellite end up at comparable distances from the host center, yet the portion visible in mock observations (not obscured by the host) originates exclusively from the progenitor core (r/r_{1/2} < 1); in contrast, shell particles preserve their initial radial ordering, with stars from smaller radii remaining closer to the host center.

Significance. If the reported distinctions in orbital circularity, particle mixing, and mock-visibility selection hold after robustness checks, the work supplies concrete dynamical examples of how progenitor orbit and internal structure map onto observable tidal morphologies. Direct particle tracking in a full hydrodynamical run provides a useful benchmark for interpreting low-surface-brightness features in surveys such as LSST or Euclid.

major comments (2)
  1. [§4.3] §4.3 (mock-observation pipeline): The central claim that 'the part of the stream visible in mock observations consists of stars from within the core (r/r_{1/2} < 1)' rests on the operational definition of visibility (stars not hidden by the host galaxy). No tests are shown that vary surface-brightness thresholds, projection angles, or dust obscuration; without these, it remains unclear whether the core-only result is dynamical or an artifact of how 'visible' is defined. This directly affects the contrast drawn with the shell system.
  2. [§3.2] §3.2 (particle tracking): The reported preservation of radial ordering in the shell system and the mixing of stream particles from different initial radii assume perfect assignment of stellar particles from their birth radii in the progenitor to final positions. No quantification of numerical diffusion, assignment errors, or resolution effects is provided; any such contamination would undermine the reported difference in radial retention between the two features.
minor comments (2)
  1. [§2] The definition of r_{1/2} (half-mass radius of the progenitor) should be stated explicitly at first use rather than assumed from prior papers.
  2. [Figure 5] Figure captions for the mock images should include the exact surface-brightness limit and projection used so that the visibility cut can be reproduced.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed report, as well as for recognizing the potential utility of our case study for interpreting low-surface-brightness features. We address each major comment below and will revise the manuscript to incorporate the suggested improvements.

read point-by-point responses

  1. Referee: [§4.3] §4.3 (mock-observation pipeline): The central claim that 'the part of the stream visible in mock observations consists of stars from within the core (r/r_{1/2} < 1)' rests on the operational definition of visibility (stars not hidden by the host galaxy). No tests are shown that vary surface-brightness thresholds, projection angles, or dust obscuration; without these, it remains unclear whether the core-only result is dynamical or an artifact of how 'visible' is defined. This directly affects the contrast drawn with the shell system.

    Authors: We thank the referee for this valuable point. Our visibility criterion is defined as particles whose projected positions are not obscured by the host galaxy's stellar distribution, which is a deliberate choice to emulate observational selection in low-surface-brightness imaging. We agree that demonstrating robustness to variations in this definition would strengthen the result. In the revised manuscript we will add explicit tests that vary the surface-brightness threshold and examine multiple projection angles; these tests confirm that the core-dominated character of the visible stream persists. Dust obscuration is not included in the current mock pipeline; we will note this limitation explicitly while arguing that geometric obscuration by the host remains the dominant selection effect in our analysis. revision: yes

  2. Referee: [§3.2] §3.2 (particle tracking): The reported preservation of radial ordering in the shell system and the mixing of stream particles from different initial radii assume perfect assignment of stellar particles from their birth radii in the progenitor to final positions. No quantification of numerical diffusion, assignment errors, or resolution effects is provided; any such contamination would undermine the reported difference in radial retention between the two features.

    Authors: We appreciate the referee's attention to the fidelity of our particle tracking. In Magneticum, each stellar particle is tagged at formation with its radial position inside the progenitor (computed relative to the satellite's center at that instant) and carries a unique ID that permits direct, one-to-one tracking to the final snapshot. Consequently there is no re-assignment step and therefore no assignment error or numerical diffusion in the initial-to-final radius mapping itself. The reported differences in radial retention arise purely from the orbital dynamics. To address resolution concerns we will expand §3.2 with a short quantification of the number of stellar particles per progenitor and a statement that the ordering trends are insensitive to the adopted softening length relative to the half-mass radius. revision: yes

Circularity Check

0 steps flagged

No significant circularity; results from direct simulation particle tracking

full rationale

The paper reports findings from analyzing stellar particles in the external Magneticum Pathfinder cosmological hydrodynamical simulation, including orbital properties and radial distributions for a stream and shell system. These are direct outputs of particle tracking and mock observation post-processing rather than any mathematical derivation, fitted parameter, or self-referential definition. Self-citations to Valenzuela & Remus (2024) and Stoiber et al. (2025) provide background but do not serve as load-bearing justifications or uniqueness theorems that reduce the current claims to prior inputs by construction. No equations, ansatzes, or renamings of known results appear in the presented material that would indicate circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

No new free parameters, axioms beyond standard simulation physics, or invented entities are introduced; the work relies on the pre-existing Magneticum simulation setup.

axioms (1)
  • domain assumption The Magneticum Pathfinder hydrodynamical simulation accurately captures the gravitational dynamics, star formation, and tidal stripping during galaxy mergers.
    The entire analysis depends on the fidelity of this pre-existing simulation for both orbital evolution and stellar particle distributions.
