Cornering MeV-GeV Axions and Dark Photons with LDMX

Sarah Gaiser , Alessandro Russo , Philip Schuster

Authors on Pith no claims yet

Pith reviewed 2026-05-10 12:35 UTC · model grok-4.3

classification ✦ hep-ph hep-exhep-th

keywords axionsdark photonsLDMXMeV-GeV mass rangelight dark matterdisplaced decaysfixed-target experiment

0 comments

The pith

LDMX can close the sub-100 MeV blind spot for axions and dark photons through near-target tracking.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines how the Light Dark Matter eXperiment can detect or constrain axion-like particles, the QCD axion, and dark photons with masses between a few MeV and a few GeV. These particles are motivated by dark matter models and solutions to the strong CP problem, yet experiments have left a gap in the sub-100 MeV window where lifetimes are too long for prompt collider searches and too short for beam-dump limits. The authors estimate that LDMX's clean production environment combined with its ability to track charged particles near the target would allow it to reach into this range. If the required reconstruction performance is met, the experiment would rule out or discover large parts of the remaining parameter space for these light mediators.

Core claim

With reasonable charged track and momentum reconstruction capabilities, LDMX could close much of the low-mass blind spot for axions and dark photons by detecting their decays in the region between the target and the electromagnetic calorimeter.

What carries the argument

Near-target tracking of displaced charged tracks from long-lived particle decays produced in the LDMX target.

If this is right

Large regions of parameter space for light dark matter mediators would become inaccessible to future experiments if LDMX reports no signal.
Models in which the QCD axion or axion-like particles solve the strong CP problem would face new constraints at masses below 100 MeV.
Dark photon searches would gain sensitivity to mixing angles previously unreachable by either collider or beam-dump methods.
The same tracking approach could be applied to other long-lived particles produced in electron-beam fixed-target setups.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Success at LDMX would motivate dedicated displaced-vertex upgrades at similar electron-beam facilities to target the same mass window.
Non-observation would tighten the link between light mediators and viable thermal dark matter production mechanisms.
The technique could be extended to search for other feebly interacting particles whose decay lengths fall in the meter-scale range.

Load-bearing premise

LDMX will achieve sufficient charged track and momentum reconstruction performance, and that production rates and backgrounds can be modeled accurately without full detector simulation.

What would settle it

A full detector simulation or actual data run showing that background rejection or tracking efficiency falls short of the level needed to exclude the relevant parameter space below 100 MeV.

Figures

Figures reproduced from arXiv: 2604.14285 by Alessandro Russo, Philip Schuster, Sarah Gaiser.

**Figure 2.** Figure 2: Top: Bethe–Heitler trident. Bottom: Radiative tri [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

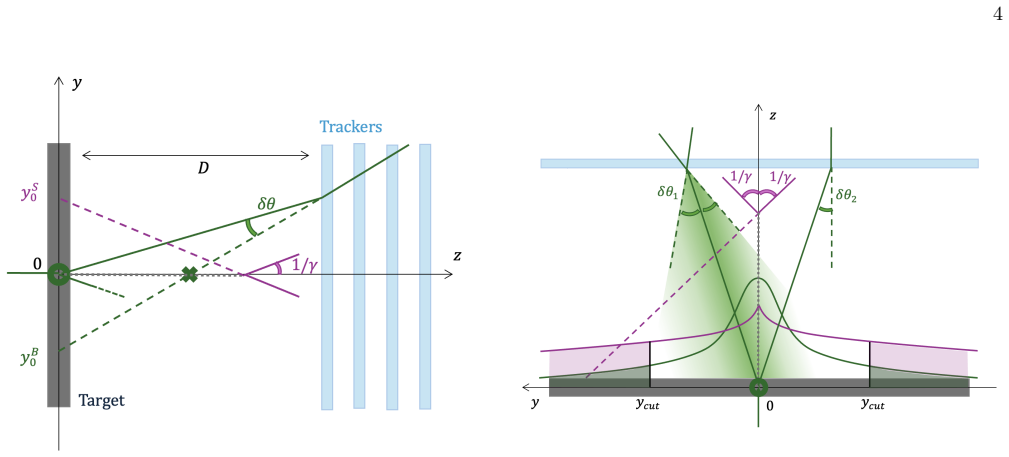

**Figure 3.** Figure 3: Schematic layout of an LDMX-like experiment. The electron beam collides with the target (gray, made of tungsten [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

**Figure 4.** Figure 4: Modeled background distributions in y B 0 (left) and invariant mass (right). For the y B 0 distribution, the orange curve (extending up to y B 0 = 2.5 µm) describes the region of the background where the impact parameter y0 is dominated by a Gaussian Moli`ere multiple-scattering component, while the blue curve represents the power-law tail arising from Rutherford scattering. The transition value y0 = 2.5 µ… view at source ↗

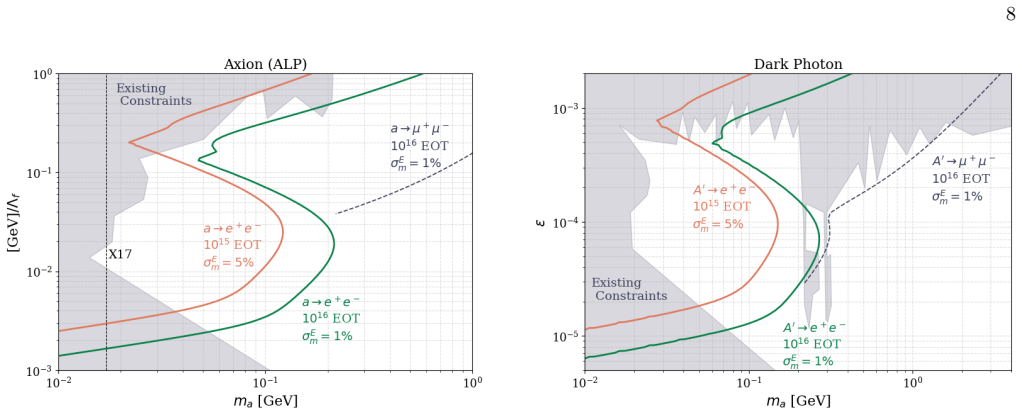

**Figure 5.** Figure 5: In both plots (axion on the left and dark photon on the right), two experimental scenarios are considered, and the [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗

read the original abstract

Axion-like particles (ALPs), the QCD axion, and dark photons in the MeV-GeV mass range are motivated by various dark matter models and the strong CP problem, and are ubiquitous in extensions of the Standard Model. A long-standing blind spot for experimental searches is the sub-100 MeV mass range, where the particle lifetime is too long to be constrained by prompt-decay collider searches yet too short to be reached by beam-dump experiments. We investigate and estimate the sensitivity of the Light Dark Matter eXperiment (LDMX) to such axions and dark photons, motivated by the clean environment in which these particles can be produced and by the near-target tracking capabilities of LDMX. With reasonable charged track and momentum reconstruction capabilities, we find that LDMX could close much of this low-mass blind spot for axions and dark photons.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

LDMX could reach the sub-100 MeV blind spot for ALPs and dark photons if its tracking works, but the paper gives only qualitative estimates without simulations or numbers.

read the letter

This paper projects that the LDMX experiment might close much of the experimental gap for axion-like particles and dark photons below 100 MeV, where lifetimes sit between prompt-decay collider limits and beam-dump reach. It draws on standard motivations from dark matter models and the strong CP problem, then points to LDMX's clean production environment and near-target tracking as the key advantages. That framing is straightforward and useful for anyone already following LDMX plans. The new element is the specific claim that reasonable charged-track and momentum reconstruction would let LDMX cover a sizable chunk of the remaining parameter space. The authors do not introduce new physics or a novel framework; they apply an existing experimental concept to a known blind spot. The main limitation is that the sensitivity estimate stays at the level of qualitative reasoning. The abstract mentions no detector simulation, no background rates, no efficiency curves, and no error bars. Everything rests on the unquantified assumption of 'reasonable' reconstruction performance. If actual resolution or background rejection falls short, the projected coverage shrinks or vanishes. This is a common feature of early sensitivity papers, but it makes the central result provisional rather than demonstrated. The work is aimed at dark-sector phenomenologists and experimentalists planning or reviewing LDMX runs. A reader who wants a concise reminder of the opportunity and the relevant mass window will get value from it. I would send it to peer review because the underlying idea is worth checking and the gap it targets is real. Referees can ask for the missing quantitative details on tracking and backgrounds without the paper needing a full overhaul.

Referee Report

2 major / 2 minor

Summary. The manuscript estimates the sensitivity of the LDMX experiment to axion-like particles (ALPs), the QCD axion, and dark photons in the MeV-GeV mass range. It focuses on the sub-100 MeV region, a long-standing blind spot where lifetimes are too long for prompt-decay collider searches yet too short for beam-dump experiments, and argues that LDMX's clean production environment and near-target tracking can close much of this gap assuming reasonable charged-track and momentum reconstruction capabilities.

Significance. If the projections are borne out, the result would meaningfully extend the reach of light dark-sector searches by repurposing LDMX's design for ALPs and dark photons, addressing motivated parameter space tied to dark matter models and the strong CP problem. The work correctly identifies an experimental niche but its impact hinges on the robustness of the unquantified assumptions.

major comments (2)

[Abstract] Abstract and sensitivity estimates: the central claim that LDMX 'could close much of this low-mass blind spot' rests on qualitative projections of production rates, signal efficiencies, and background rejection without detailed derivations, error bars, or Monte Carlo results. This is load-bearing because the coverage disappears if reconstruction performance falls below the implicit threshold needed to separate long-lived decays from beam-related backgrounds.
[Sensitivity projections] Tracking and reconstruction assumptions: the repeated qualifier 'with reasonable charged track and momentum reconstruction capabilities' is never translated into quantitative benchmarks (e.g., momentum resolution, tracking efficiency, or vertex resolution) or validated against a detector simulation. Without these numbers the projected exclusion contours cannot be reproduced or stress-tested.

minor comments (2)

[Introduction] The manuscript would benefit from explicit comparison plots overlaying the projected LDMX reach on existing limits from beam dumps, colliders, and astrophysics to make the 'blind spot' visually precise.
[General] Notation for ALP-photon coupling and dark-photon kinetic mixing should be standardized early and used consistently when quoting production cross sections.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments on our manuscript. The feedback has prompted us to strengthen the quantitative basis of our sensitivity projections while preserving the paper's focus as an estimate of LDMX's potential reach.

read point-by-point responses

Referee: [Abstract] Abstract and sensitivity estimates: the central claim that LDMX 'could close much of this low-mass blind spot' rests on qualitative projections of production rates, signal efficiencies, and background rejection without detailed derivations, error bars, or Monte Carlo results. This is load-bearing because the coverage disappears if reconstruction performance falls below the implicit threshold needed to separate long-lived decays from beam-related backgrounds.

Authors: We agree that the original presentation relied on order-of-magnitude estimates. In the revised manuscript we have expanded Sections 3 and 4 with explicit approximate derivations for ALP and dark-photon production rates (bremsstrahlung and meson-decay channels), signal efficiencies based on geometric acceptance and decay length, and background rejection via missing-momentum and track-multiplicity cuts. Approximate uncertainty bands reflecting variations in reconstruction performance are now shown on the exclusion contours. A full Monte Carlo simulation with detailed beam-related backgrounds lies beyond the scope of this work, which is intended to identify the relevant parameter space and motivate dedicated experimental studies. revision: partial
Referee: [Sensitivity projections] Tracking and reconstruction assumptions: the repeated qualifier 'with reasonable charged track and momentum reconstruction capabilities' is never translated into quantitative benchmarks (e.g., momentum resolution, tracking efficiency, or vertex resolution) or validated against a detector simulation. Without these numbers the projected exclusion contours cannot be reproduced or stress-tested.

Authors: We have removed the vague qualifier and replaced it with explicit benchmarks drawn from the LDMX design documents: momentum resolution Δp/p ≲ 5 % for tracks above 50 MeV, tracking efficiency ≳ 85 % for particles originating near the target, and vertex resolution sufficient to localize decays within a few cm. These values are now stated in the text together with a short discussion of how the reach changes if they are not met. A supplementary sensitivity curve illustrating degraded performance has been added so that the contours can be reproduced and stress-tested by readers. revision: yes

Circularity Check

0 steps flagged

No circularity: sensitivity projection uses standard calculations and stated assumptions

full rationale

The paper's central result is a forward sensitivity estimate for LDMX based on production cross-sections, decay kinematics, and assumed detector performance parameters (e.g., track reconstruction efficiency). These inputs are drawn from external particle physics models and experimental design specifications rather than being fitted to or defined by the projected reach itself. No equation reduces a 'prediction' to a self-referential fit, no uniqueness theorem is imported via self-citation, and no ansatz is smuggled in. The claim is explicitly conditional on 'reasonable' capabilities, which are not derived from the result. This is a standard projection exercise with no load-bearing circular steps.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The claim rests on standard assumptions about ALP and dark photon production/decay in extensions of the Standard Model plus unquantified detector performance; no free parameters or new entities are explicitly introduced in the abstract.

axioms (2)

domain assumption ALPs, QCD axion, and dark photons exist in MeV-GeV range with couplings motivated by dark matter models and strong CP problem.
Invoked in the opening motivation for the search.
domain assumption LDMX provides a clean environment with near-target tracking suitable for detecting long-lived particles.
Central to the sensitivity argument.
