arxiv: 2604.14421 · v1 · submitted 2026-04-15 · 💻 cs.RO

BIEVR-LIO: Robust LiDAR-Inertial Odometry through Bump-Image-Enhanced Voxel Maps

Patrick Pfreundschuh , Turcan Tuna , Cedric Le Gentil , Roland Siegwart , Cesar Cadena , Helen Oleynikova This is my paper

Pith reviewed 2026-05-10 12:35 UTC · model grok-4.3

classification 💻 cs.RO
keywords LiDAR-Inertial OdometryVoxel MapsHeight ImagesPoint Cloud RegistrationRobust OdometryMobile RobotsSLAMElevation Mapping
0
0 comments X

The pith

BIEVR-LIO stores map surfaces as voxel-wise oriented height images to enable direct registration and robust LiDAR-Inertial Odometry in low-texture environments.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a map representation that encodes surfaces inside voxels as compact oriented height images. This format supports direct point-to-map registration without first extracting planes or other primitives, and it allows efficient incremental updates. A second contribution is a sampling strategy that selects points only from regions the current map identifies as geometrically informative. Experiments show the combination keeps odometry accurate in well-structured scenes and prevents divergence in sparse or degenerate environments where earlier LIO systems lose track. The same fine-grained surface data also feeds directly into downstream tasks such as elevation mapping for locomotion.

Core claim

By representing local surfaces as high-resolution, voxel-wise oriented height images, BIEVR-LIO performs registration directly on the stored imagery while maintaining fast map updates; a map-informed sampler then restricts registration effort to the most constraining geometry, yielding state-of-the-art accuracy where conventional LiDAR-inertial methods diverge.

What carries the argument

Bump-Image-Enhanced Voxel Maps: voxel-wise oriented height images that serve as the direct input to the registration optimizer.

If this is right

  • Registration cost drops because sampling focuses on informative voxels rather than the entire point cloud.
  • Map updates remain efficient even at high voxel resolution because each voxel stores only a compact height image.
  • The same representation supplies elevation maps for locomotion planning without extra processing.
  • Performance gains appear across different LiDAR sensors and robot platforms in both indoor and outdoor tests.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same height-image voxels could be used as input features for learning-based loop closure or place recognition.
  • Because the representation avoids explicit plane fitting, it may extend more easily to non-planar or curved surfaces than traditional surfel or plane-based maps.
  • Real-time implementations on embedded hardware become more feasible once global high-resolution sampling is replaced by the informed sampler.

Load-bearing premise

The oriented height images inside each voxel retain sufficient geometric information to constrain the registration optimizer even when surrounding surfaces lack strong texture or distinct features.

What would settle it

Run the system on a sequence containing large planar or low-curvature regions where the height-image voxels become nearly constant; if the optimizer still converges to the correct pose while baseline LIO methods diverge, the claim holds.

Figures

Figures reproduced from arXiv: 2604.14421 by Cedric Le Gentil, Cesar Cadena, Helen Oleynikova, Patrick Pfreundschuh, Roland Siegwart, Turcan Tuna.

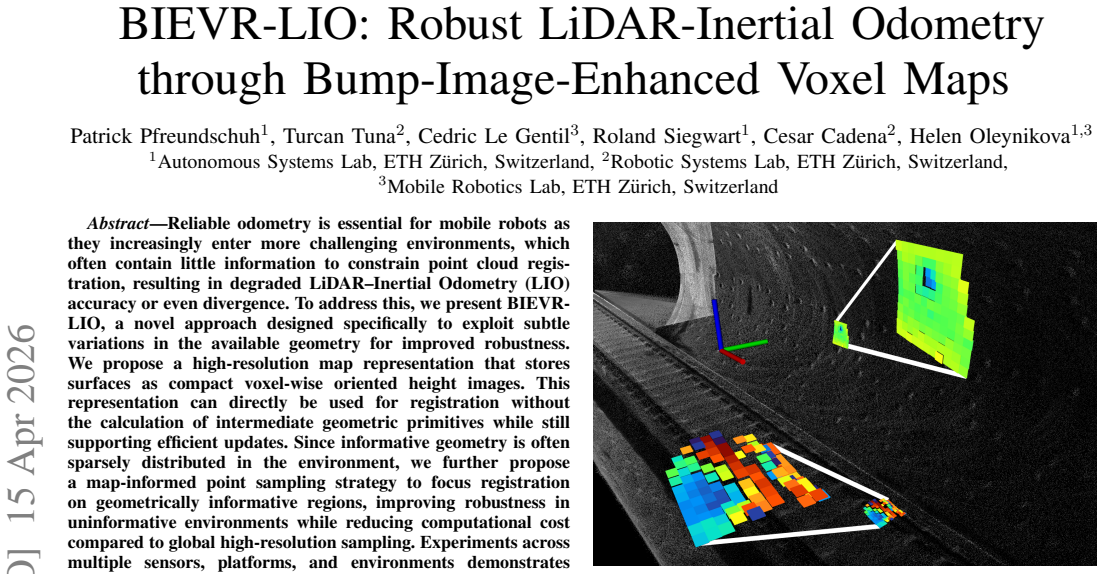

Figure 1
Figure 1. Figure 1: BIEVR-LIO achieves robust odometry in a tunnel through registration [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

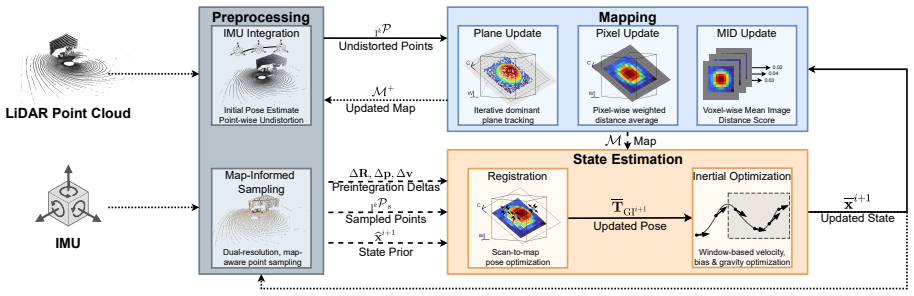

Figure 2
Figure 2. Figure 2: Overview of the proposed BIEVR-LIO system. Lines indicate information flow before ( [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

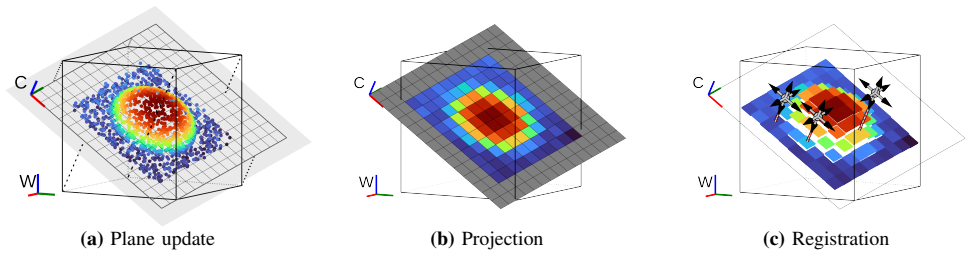

Figure 3
Figure 3. Figure 3: Map update and registration. (a) A dominant plane is iteratively updated. The image size is determined by projecting voxel corners onto this plane. Points are coloured based on plane distance. (b) Points are projected to pixels, and pixel values are updated based on height above the plane. (c) During registration, we minimize height residuals between pixel values and input points (gray). Arrows indicate th… view at source ↗

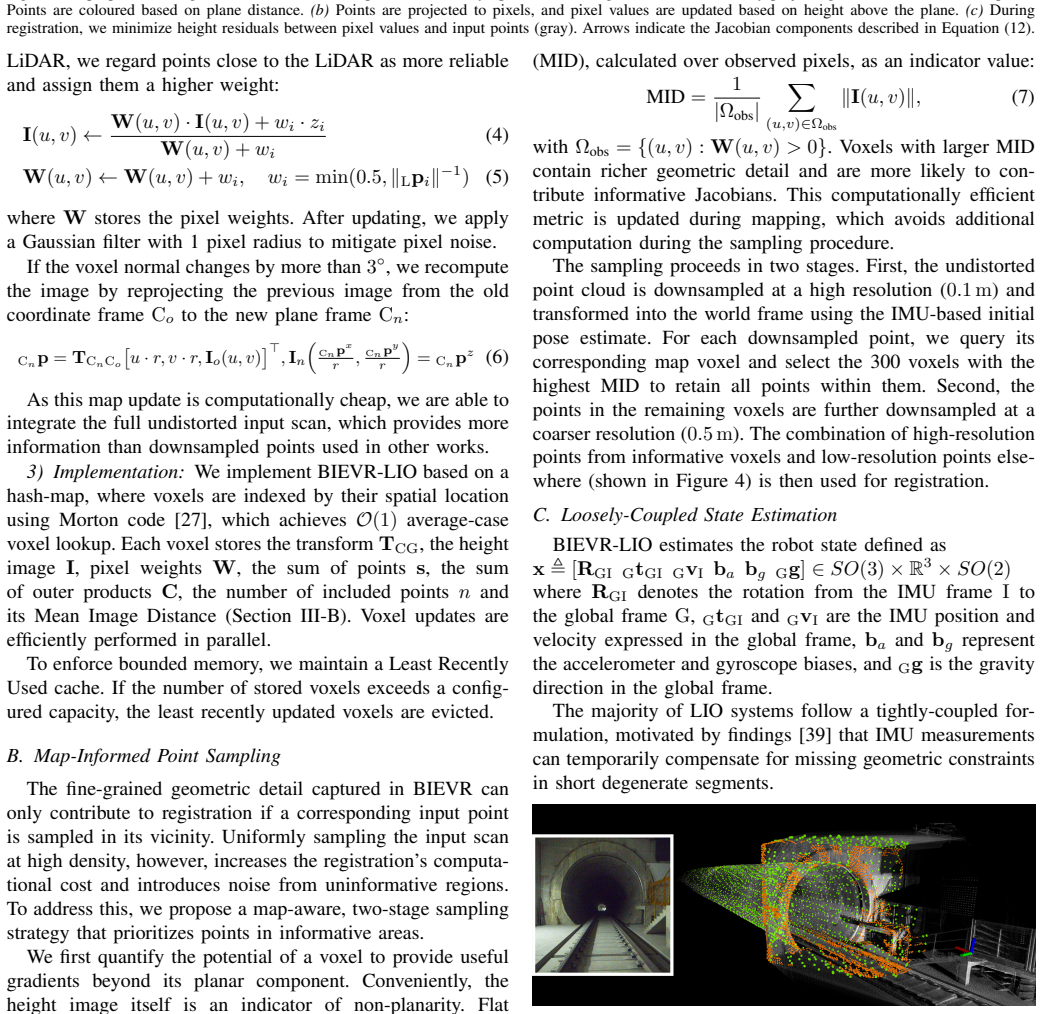

Figure 4
Figure 4. Figure 4: Point sampling in Shield1. Gray points show an accumulated point map. Based on the MID metric, dense points (orange) are sampled in salient regions such as tunnel entrance corners and the track bed, while sparse points (green) are sampled in less informative regions such as the ceiling and floor [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗

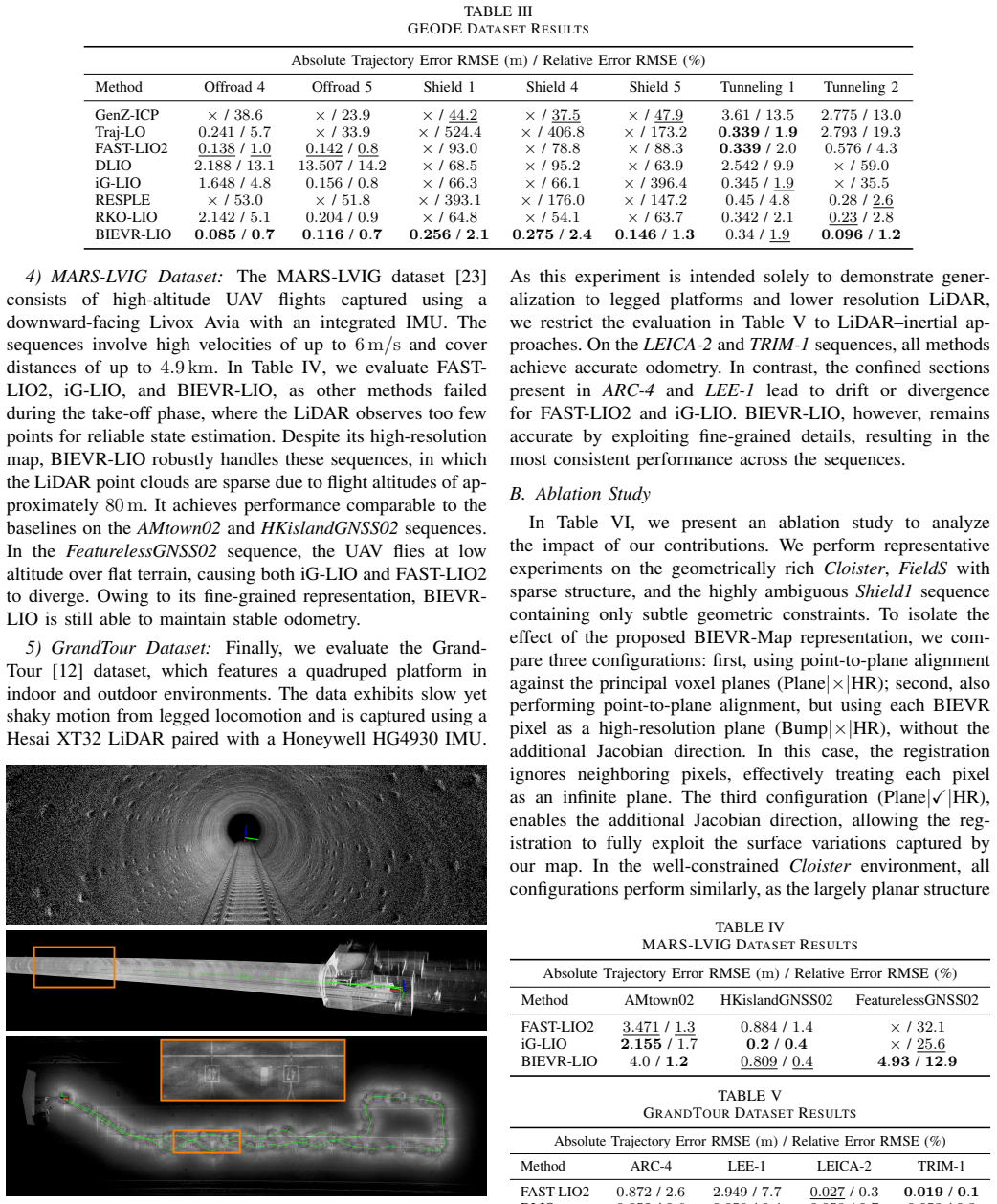

Figure 5
Figure 5. Figure 5: Resulting point cloud maps. Top: Inside view of the Shield1 sequence in Middle. The accumulated points clearly visualize the railbed and the cutouts in the tunnel wall. Middle: Despite the challenging geometry, the map displays no visible drift after the 700 m trajectory. Bottom: After a loop around the RunwayS, the ground markings remain crisp, illustrating the pose accuracy. As this experiment is intende… view at source ↗

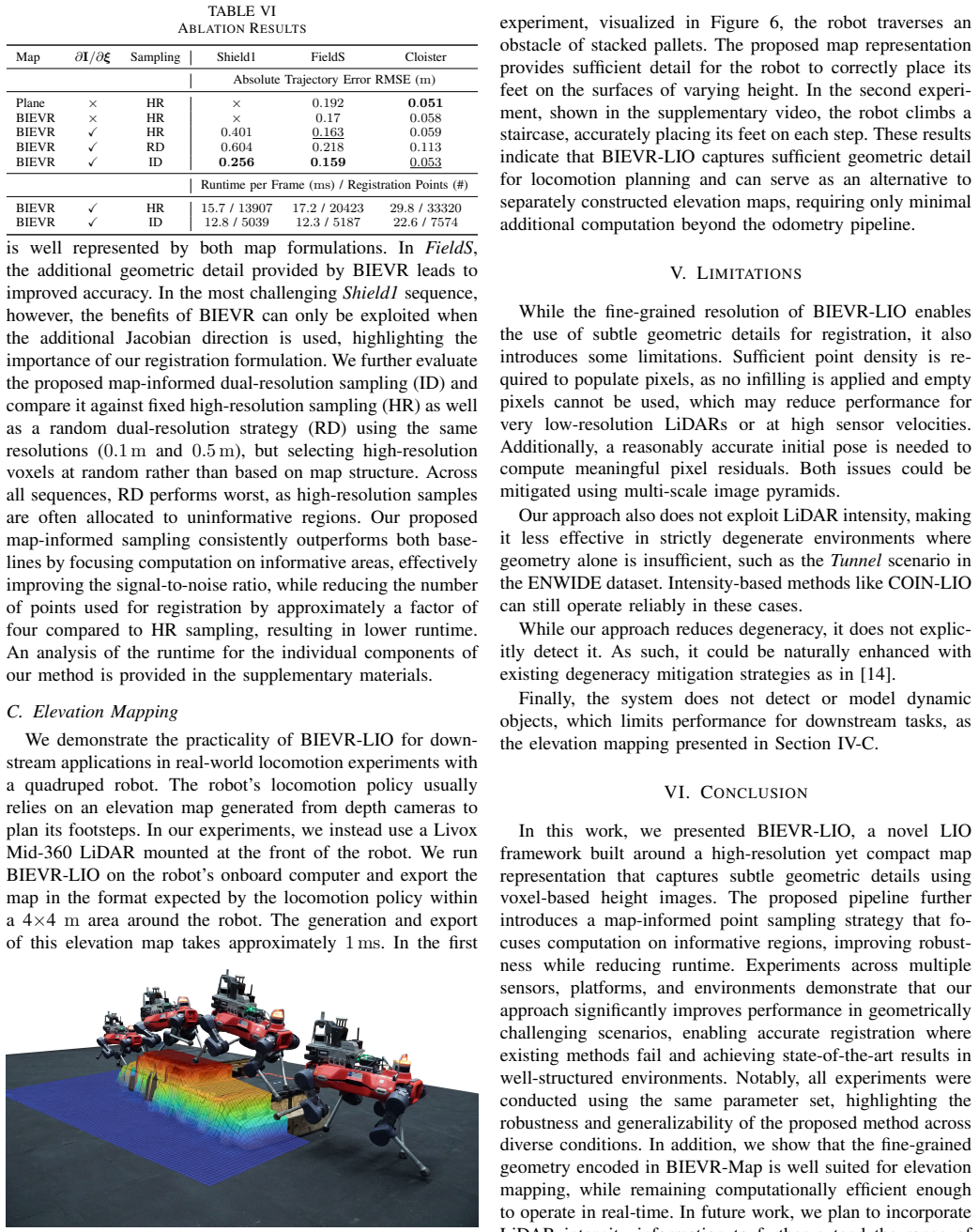

Figure 6
Figure 6. Figure 6: Locomotion planning based on BIEVR-LIO. The robot successfully [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗

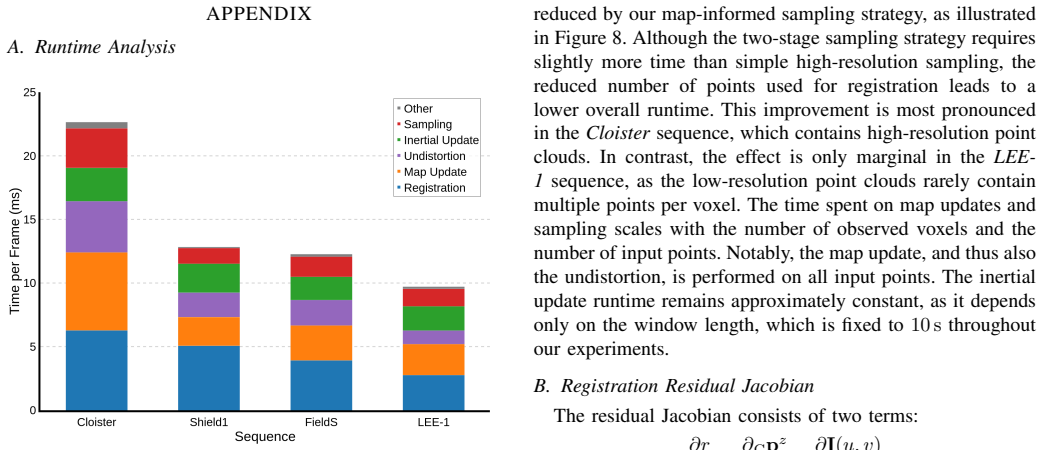

Figure 7
Figure 7. Figure 7: Runtime breakdown of BIEVR-LIO [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗

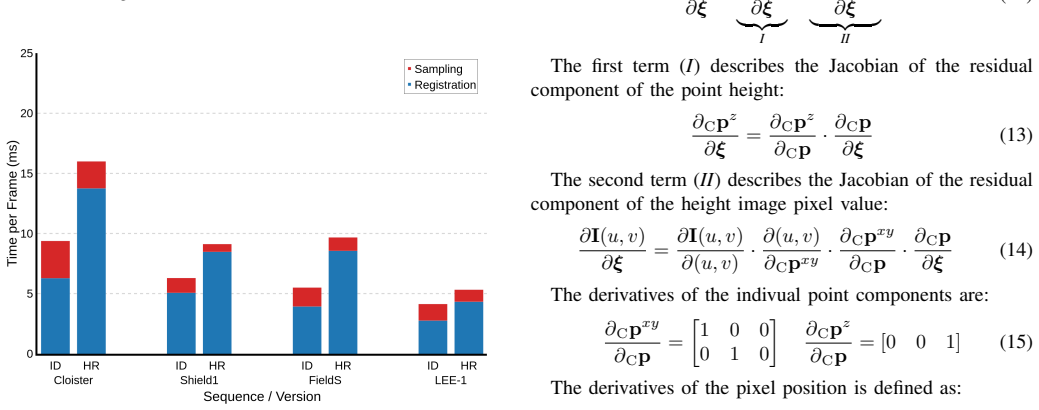

Figure 8
Figure 8. Figure 8: Runtime comparison between the proposed Informed Dual-Resolution [PITH_FULL_IMAGE:figures/full_fig_p011_8.png] view at source ↗
read the original abstract

Reliable odometry is essential for mobile robots as they increasingly enter more challenging environments, which often contain little information to constrain point cloud registration, resulting in degraded LiDAR-Inertial Odometry (LIO) accuracy or even divergence. To address this, we present BIEVR-LIO, a novel approach designed specifically to exploit subtle variations in the available geometry for improved robustness. We propose a high-resolution map representation that stores surfaces as compact voxel-wise oriented height images. This representation can directly be used for registration without the calculation of intermediate geometric primitives while still supporting efficient updates. Since informative geometry is often sparsely distributed in the environment, we further propose a map-informed point sampling strategy to focus registration on geometrically informative regions, improving robustness in uninformative environments while reducing computational cost compared to global high-resolution sampling. Experiments across multiple sensors, platforms, and environments demonstrates state-of-the-art performance in well-constrained scenes and substantial improvements in challenging scenarios where baseline methods diverge. Additionally, we demonstrate that the fine-grained geometry captured by BIEVR-LIO can be used for downstream tasks such as elevation mapping for robot locomotion.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper introduces BIEVR-LIO, a LiDAR-inertial odometry system that represents the environment via high-resolution voxel maps storing surfaces as compact voxel-wise oriented height images. These images are used directly for point-to-image registration without intermediate geometric primitives (planes or normals), paired with a map-informed sampling strategy that selects points according to local height variance to focus computation on informative regions. The central claims are state-of-the-art accuracy in well-constrained scenes, substantial robustness gains (preventing divergence) in low-texture or sparse-geometry environments, computational efficiency relative to global high-resolution sampling, and utility of the fine-grained map for downstream tasks such as elevation mapping.

Significance. If the robustness claims hold, the method would address a practically important failure mode of existing LIO pipelines in degenerate environments. The voxel-wise height-image representation offers a potentially efficient middle ground between dense point-cloud maps and sparse geometric primitives, and the map-informed sampling could reduce compute while improving constraint quality. The downstream elevation-mapping demonstration is a useful illustration of map utility beyond pure odometry.

major comments (3)
  1. [§3.2, Eqs. (7)–(9)] §3.2 and Eqs. (7)–(9): the registration cost is defined as a direct point-to-oriented-height-image residual that inherits the same structure as prior voxel-based methods; no derivation or conditioning analysis is supplied to show that the image gradients remain sufficiently independent when surface variation inside a voxel is minimal, which is the precise regime the robustness claim targets.
  2. [§4.3] §4.3: the map-informed sampling selects points using local height variance, yet the paper provides neither a formal argument nor empirical Hessian-conditioning checks demonstrating that this variance metric itself remains reliable under the low-texture conditions where baseline methods diverge; if the variance signal is weak, both the robustness and efficiency claims rest on an unverified heuristic.
  3. [Results / Experiments] Results section (experiments across sensors/platforms): while the abstract asserts “substantial improvements … where baseline methods diverge,” the manuscript does not report per-sequence degeneracy indicators (e.g., minimum eigenvalue of the information matrix or explicit divergence counts) that would allow readers to verify that the claimed gains are attributable to the height-image representation rather than to other implementation details.
minor comments (2)
  1. [§3.1–3.2] Notation for the oriented height image (height value plus surface normal) is introduced in §3.1 but the exact encoding (e.g., whether the normal is stored per pixel or per voxel) is not restated when the residual is defined in §3.2, making the cost function harder to follow.
  2. [Figures 3–5] Figure captions for the voxel-map visualizations do not indicate the voxel resolution or the number of height samples per voxel, which are central parameters for reproducing the efficiency claims.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We address each major comment point by point below. Where the suggestions strengthen the manuscript, we have incorporated revisions as noted.

read point-by-point responses

  1. Referee: [§3.2, Eqs. (7)–(9)] §3.2 and Eqs. (7)–(9): the registration cost is defined as a direct point-to-oriented-height-image residual that inherits the same structure as prior voxel-based methods; no derivation or conditioning analysis is supplied to show that the image gradients remain sufficiently independent when surface variation inside a voxel is minimal, which is the precise regime the robustness claim targets.

    Authors: We thank the referee for this observation. The oriented height images are designed to encode sub-voxel surface details directly, which differentiates the residual from standard voxel-based approaches that rely on aggregated primitives. Nevertheless, we agree that an explicit derivation and conditioning analysis would better support the robustness claims in low-variation regimes. In the revised manuscript, we will add a step-by-step derivation of the residual in Eqs. (7)–(9) together with a Hessian-based analysis demonstrating gradient independence, including numerical examples from degenerate sequences. revision: yes

  2. Referee: [§4.3] §4.3: the map-informed sampling selects points using local height variance, yet the paper provides neither a formal argument nor empirical Hessian-conditioning checks demonstrating that this variance metric itself remains reliable under the low-texture conditions where baseline methods diverge; if the variance signal is weak, both the robustness and efficiency claims rest on an unverified heuristic.

    Authors: We appreciate the referee highlighting the need for verification of the sampling criterion. The local height variance is computed directly from the oriented images to identify regions with measurable geometric structure. To address the concern rigorously, the revised manuscript will include a formal argument linking variance to registration information content, supported by empirical Hessian eigenvalue distributions computed on sampled versus unsampled points in the low-texture sequences where baselines diverge. revision: yes

  3. Referee: [Results / Experiments] Results section (experiments across sensors/platforms): while the abstract asserts “substantial improvements … where baseline methods diverge,” the manuscript does not report per-sequence degeneracy indicators (e.g., minimum eigenvalue of the information matrix or explicit divergence counts) that would allow readers to verify that the claimed gains are attributable to the height-image representation rather than to other implementation details.

    Authors: We agree that explicit per-sequence degeneracy metrics would improve verifiability. In the revised manuscript, we will augment the results section with tables reporting, for each sequence, the minimum eigenvalue of the information matrix for BIEVR-LIO and all baselines, together with explicit counts of divergence events. These additions will directly attribute the observed robustness gains to the proposed voxel-wise height-image representation and map-informed sampling. revision: yes

Circularity Check

0 steps flagged

No circularity detected; claims rest on experimental validation of a proposed representation

full rationale

The paper proposes a voxel-wise oriented height image map representation and map-informed sampling for LiDAR-inertial odometry, with state-of-the-art performance claims grounded in cross-platform experiments rather than any closed-form derivation or first-principles prediction. No equations reduce to tautological inputs by construction, no fitted parameters are relabeled as predictions, and no load-bearing uniqueness theorems or ansatzes are imported via self-citation. The method description builds on prior voxel approaches but introduces independent elements (oriented height images, variance-based sampling) that are directly tested against baselines, keeping the derivation chain self-contained and externally falsifiable.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The abstract does not introduce mathematical axioms, free parameters, or new physical entities. The central claims rest on engineering assumptions about map representation efficiency and registration convergence that are not formalized.
