arxiv: 2604.15359 · v1 · submitted 2026-04-12 · 💻 cs.AR · cs.LG· cs.SE

AutoFlows++: Hierarchical Message Flow Mining for System on Chip Designs

Bardia Nadimi , Hao Zheng This is my paper

Pith reviewed 2026-05-10 15:31 UTC · model grok-4.3

classification 💻 cs.AR cs.LGcs.SE
keywords message flow miningSoC verificationcommunication traceshierarchical miningtrace analysisfunctional verificationGEM5 simulation
0
0 comments X

The pith

AutoFlows++ mines message flows hierarchically from SoC communication traces by first extracting local patterns then composing global flows.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents AutoFlows++ as a two-stage framework for extracting communication specifications from traces in complex SoC designs. Local mining pulls simple patterns from traces at individual component interfaces. Global mining then combines these into higher-level flows that span multiple components. This hierarchical approach aims to handle interleaving and ambiguity better than existing methods, leading to more accurate results on both synthetic and simulated SoC traces from GEM5.

Core claim

AutoFlows++ is a design-architecture-guided hierarchical framework that performs local mining of simple communication patterns from individual interfaces followed by global mining to compose higher-level flows across multiple components, achieving significantly improved flow extraction accuracy compared to prior approaches on synthetic and GEM5-generated traces.

What carries the argument

The two-stage hierarchical mining process guided by design architecture, with local pattern extraction followed by global composition of flows.

If this is right

  • Provides concise communication specifications useful for functional verification of SoC designs.
  • Supports performance analysis by revealing actual communication behaviors across components.
  • Facilitates post-silicon debugging with more accurate extraction from real traces.
  • Avoids the explosion of candidate flows that occurs in prior methods on interleaved data.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method could apply to traces from physical hardware if architecture details remain accessible.
  • Similar local-to-global composition might help in mining patterns from other interleaved event logs such as network traffic or software execution.
  • Without the architecture guidance, accuracy may drop in fully black-box systems lacking component interface definitions.

Load-bearing premise

That local patterns extracted from individual interfaces can be reliably composed into accurate global flows without missing causal relationships or generating an unmanageable number of candidates.

What would settle it

A comparison on a new complex SoC trace with known ground-truth flows where AutoFlows++ produces incorrect or incomplete global flows compared to the ground truth.

Figures

Figures reproduced from arXiv: 2604.15359 by Bardia Nadimi, Hao Zheng.

Figure 1
Figure 1. Figure 1: (a) Simplified SoC architecture example, (b) Message [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

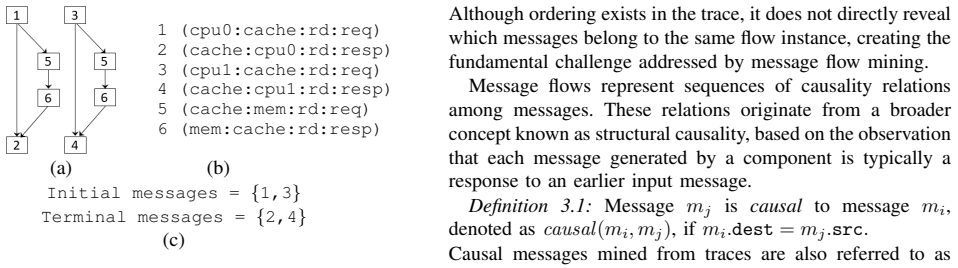

Figure 2
Figure 2. Figure 2: (a) Graph representation of CPU downstream flows [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

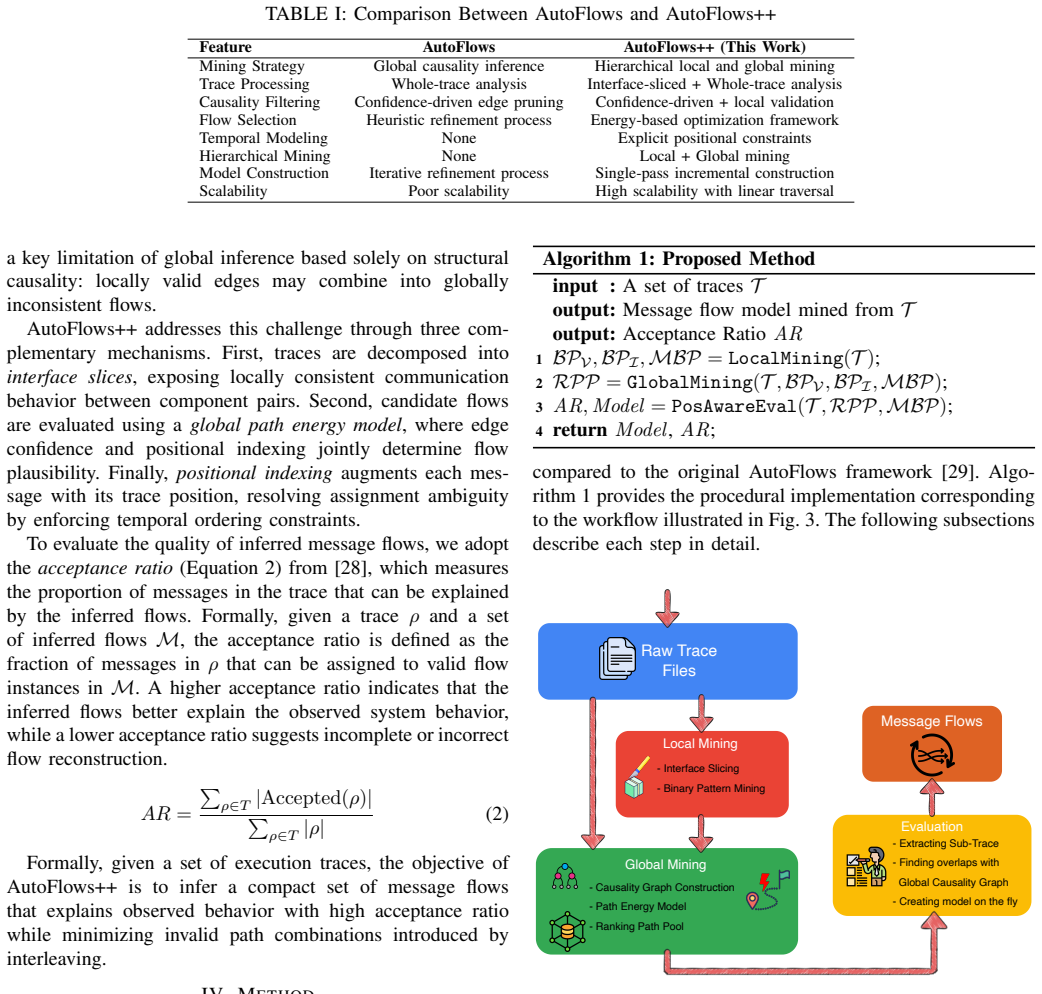

Figure 3
Figure 3. Figure 3: illustrates the overall workflow of the proposed AutoFlows++ framework. The method takes as input a set of system communication traces and begins with a local mining stage, which extracts binary patterns (BPs) from interface￾sliced traces to capture localized interaction dependencies among system components. It then proceeds to a global mining stage, where a global causality graph is constructed and a path… view at source ↗

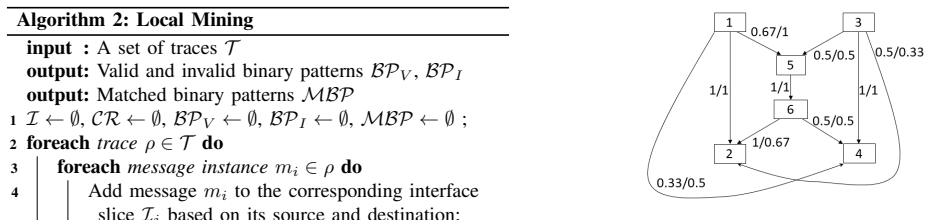

Figure 4
Figure 4. Figure 4: Causality graph from trace (1): edges marked with [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Sub-causality graphs for the example trace 5. [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: (a) GEM5 Full-System (FS) design. (b) GEM5 System [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Counts of instances of the mined message sequences of different lengths using the AutoFlows++, AutoFlows, and AutoModel method [PITH_FULL_IMAGE:figures/full_fig_p012_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: (a) A flow mined from the GEM5 threads trace. (b) GEM5 documentation’s memory write miss sequence. (c) Two flows mined from [PITH_FULL_IMAGE:figures/full_fig_p012_8.png] view at source ↗
read the original abstract

Understanding communication behavior in modern system-on-chip (SoC) designs is critical for functional verification, performance analysis, and post-silicon debugging. Communication traces capture message exchanges among system components and provide valuable insights into system behavior. However, deriving concise communication specifications from such traces remains challenging due to interleaved instances of communication flows, and ambiguous causal relationships among messages. Existing mining approaches often struggle with scalability and ambiguity when traces contain complex interleaving of message patterns across multiple components. These conditions often lead to an explosion in the number of candidate flows and inaccurate extraction of communication behaviors. This paper presents AutoFlows++, a design-architecture-guided hierarchical framework for mining message flows from communication traces of complex SoC designs. AutoFlows++ operates in two stages: local mining followed by global mining. In the local mining stage, simple communication patterns are extracted from traces observed at individual communication interfaces between components. In the global mining stage, these local patterns are composed to identify higher-level message flows that characterize communication behavior across multiple components. Experimental results on both synthetic traces and traces generated from SoC models in GEM5 demonstrate that AutoFlows++ significantly improves flow extraction accuracy compared with prior approaches, highlighting its effectiveness for practical SoC validation tasks.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces AutoFlows++, a design-architecture-guided hierarchical framework for mining message flows from SoC communication traces. It operates in two stages: local mining extracts simple patterns from individual component interfaces, while global mining composes these into higher-level flows across multiple components. The central claim is that this approach significantly improves flow extraction accuracy over prior methods, as demonstrated on synthetic traces and GEM5-generated SoC traces.

Significance. If the empirical claims hold with proper validation, the work could meaningfully advance automated analysis tools for SoC functional verification, performance evaluation, and post-silicon debugging by addressing interleaving and causality challenges in communication traces. The hierarchical local-to-global structure offers a plausible path to scalability, and the use of architecture guidance is a reasonable design choice. However, the current lack of detailed quantitative evidence and unresolved questions around global composition limit its assessed impact.

major comments (2)
  1. [Experimental evaluation] Experimental evaluation section: The abstract asserts significant accuracy improvements on synthetic and GEM5 traces, yet no quantitative metrics (e.g., precision/recall/F1), baseline algorithm descriptions, trace counts, statistical tests, or analysis of post-hoc parameter choices are supplied. This absence directly undermines evaluation of the central empirical claim.
  2. [Global mining stage (Section 4)] Global mining stage (Section 4): The composition of local interface patterns into global flows is described at a high level using architecture guidance, but provides no explicit mechanisms (e.g., timing windows, message IDs, or causality rules) for resolving ambiguous ordering and interleaving across components. This is load-bearing for the reported gains, as the skeptic concern about missed cross-component links or candidate explosion remains unaddressed.
minor comments (2)
  1. [Abstract] The abstract would be strengthened by including at least one concrete accuracy metric or baseline name to ground the superiority claim.
  2. [Method description] Notation for local vs. global patterns could be clarified with a small example diagram or pseudocode snippet early in the method description.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback on our manuscript. We appreciate the identification of areas where additional clarity and evidence are needed to strengthen the presentation of AutoFlows++. We address each major comment below and commit to revisions that directly respond to the concerns.

read point-by-point responses

  1. Referee: [Experimental evaluation] Experimental evaluation section: The abstract asserts significant accuracy improvements on synthetic and GEM5 traces, yet no quantitative metrics (e.g., precision/recall/F1), baseline algorithm descriptions, trace counts, statistical tests, or analysis of post-hoc parameter choices are supplied. This absence directly undermines evaluation of the central empirical claim.

    Authors: We agree that the experimental evaluation section requires substantial expansion to properly support the accuracy claims. In the revised manuscript, we will add quantitative results including precision, recall, and F1 scores for flow extraction on the synthetic traces and GEM5-generated SoC traces. We will describe the baseline algorithms in detail, specify the number and characteristics of traces evaluated, report statistical tests (such as paired t-tests with p-values) to confirm significance of improvements, and include sensitivity analysis for key parameters. These changes will enable a rigorous assessment of the empirical contributions. revision: yes

  2. Referee: [Global mining stage (Section 4)] Global mining stage (Section 4): The composition of local interface patterns into global flows is described at a high level using architecture guidance, but provides no explicit mechanisms (e.g., timing windows, message IDs, or causality rules) for resolving ambiguous ordering and interleaving across components. This is load-bearing for the reported gains, as the skeptic concern about missed cross-component links or candidate explosion remains unaddressed.

    Authors: We acknowledge that the current description of the global mining stage is high-level and does not fully specify the resolution mechanisms. In the revision, we will expand Section 4 with explicit details on how architecture guidance is operationalized: timing windows derived from component latency specifications in the design, message ID matching to link local patterns across interfaces, and causality rules extracted from the SoC architecture to enforce valid ordering and prune invalid compositions. This will directly address potential issues of missed cross-component links and candidate explosion, clarifying the load-bearing aspects of the hierarchical approach. revision: yes

Circularity Check

0 steps flagged

No circularity in algorithmic framework or empirical claims

full rationale

The paper presents a two-stage algorithmic framework (local pattern mining at interfaces followed by global composition of flows) without any equations, derivations, fitted parameters, or 'predictions' that reduce to inputs by construction. Claims of improved accuracy rest on experimental results using synthetic traces and GEM5-generated SoC traces, which constitute independent validation rather than self-referential fitting. No self-citations are invoked as load-bearing uniqueness theorems or ansatzes. The contribution is a new hierarchical mining procedure whose correctness is assessed externally via trace experiments, making the derivation self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities are referenced in the abstract.
