Hole concentrations in doped gray {\alpha}-Sn on InSb and CdTe measured with infrared ellipsometry

Aaron N. Engel; Atlantis K. Moses; Carlos A. Armenta; Christopher J. Palmstr{\o}m; Haley B. Woolf; Jaden R. Love; Jan Hrabovsky; Stefan Zollner

arxiv: 2604.15553 · v1 · submitted 2026-04-16 · ❄️ cond-mat.mtrl-sci

Hole concentrations in doped gray {α}-Sn on InSb and CdTe measured with infrared ellipsometry

Jaden R. Love , Carlos A. Armenta , Atlantis K. Moses , Haley B. Woolf , Jan Hrabovsky , Stefan Zollner , Aaron N. Engel , Christopher J. Palmstr{\o}m This is my paper

Pith reviewed 2026-05-10 10:09 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci

keywords gray tinalpha-Snellipsometryinfrared spectroscopyhole concentrationf-sum ruleband inversiondoping

0 comments

The pith

Infrared ellipsometry extracts heavy hole concentration in α-Sn from the integrated strength of the 0.45 eV absorption peak.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates a method to determine the heavy hole concentration in thin gray tin layers as a function of temperature using infrared ellipsometry. Layers are grown on InSb substrates with surface preparations that induce either n-type or p-type doping through ion diffusion. Spectra show a strong peak at 0.45 eV from transitions between the inverted Γ7- valence band and the Γ8+ heavy hole band. The Thomas-Reiche-Kuhn f-sum rule converts the peak's oscillator strength into carrier density values. These densities match degenerate Fermi-Dirac statistics for nearly intrinsic samples, with deviations explained by substrate-induced doping.

Core claim

α-Sn layers of 30 nm thickness grown by molecular beam epitaxy on InSb (001) substrates display doping dependent on substrate surface preparation. Fourier-transform infrared ellipsometry determines the dielectric function between 0.03 and 0.8 eV at temperatures from 10 to 300 K. The inverted band structure produces a prominent absorption peak at 0.45 eV corresponding to transitions from the Γ7- to the Γ8+ valence bands. The integrated oscillator strength of this peak, interpreted through the Thomas-Reiche-Kuhn f-sum rule, directly yields the heavy hole concentration. For samples with minimal doping this concentration follows predictions from degenerate Fermi-Dirac statistics, while larger or

What carries the argument

Application of the Thomas-Reiche-Kuhn f-sum rule to the oscillator strength of the 0.45 eV inter-valence-band absorption peak observed in the ellipsometric dielectric function.

Load-bearing premise

The observed absorption peak at 0.45 eV originates exclusively from transitions between the inverted Γ7- valence band and the Γ8+ heavy hole valence band with negligible interference from other optical processes.

What would settle it

If independent measurements of hole concentration such as Hall effect fail to match the values calculated from the integrated peak strength at matching temperatures, the validity of applying the f-sum rule here would be questioned.

Figures

Figures reproduced from arXiv: 2604.15553 by Aaron N. Engel, Atlantis K. Moses, Carlos A. Armenta, Christopher J. Palmstr{\o}m, Haley B. Woolf, Jaden R. Love, Jan Hrabovsky, Stefan Zollner.

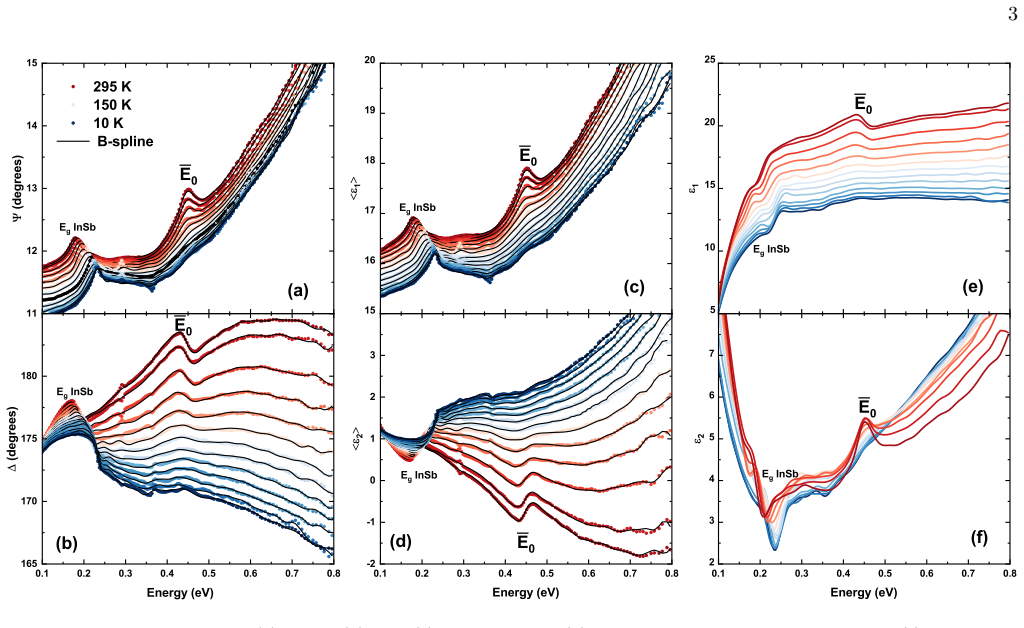

**Figure 2.** Figure 2: FIG. 2. Ellipsometric angles [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

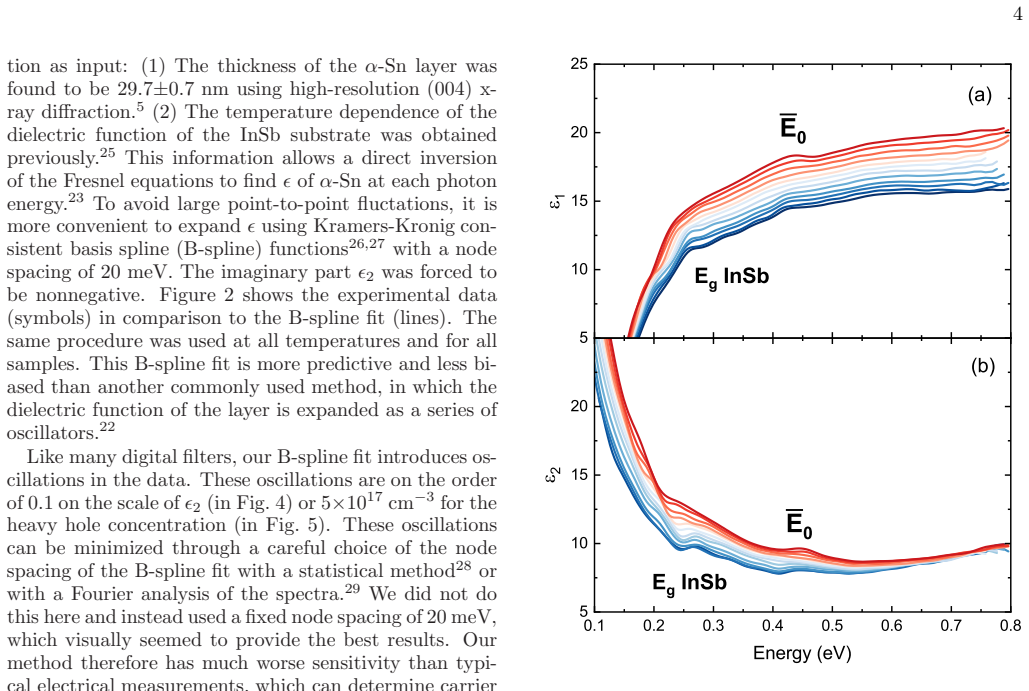

**Figure 3.** Figure 3: FIG. 3. Real (a) and imaginary (b) parts of the dielectric [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

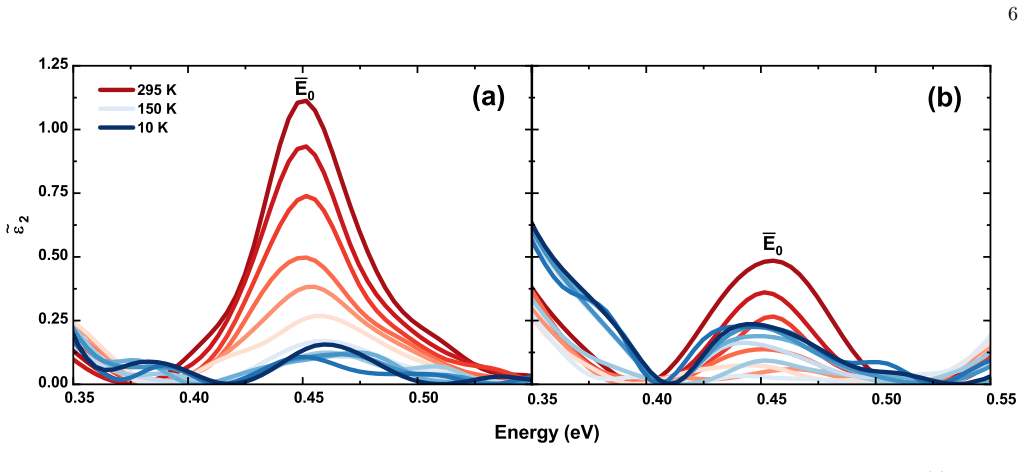

**Figure 4.** Figure 4: FIG. 4. Imaginary part of the dielectric function [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

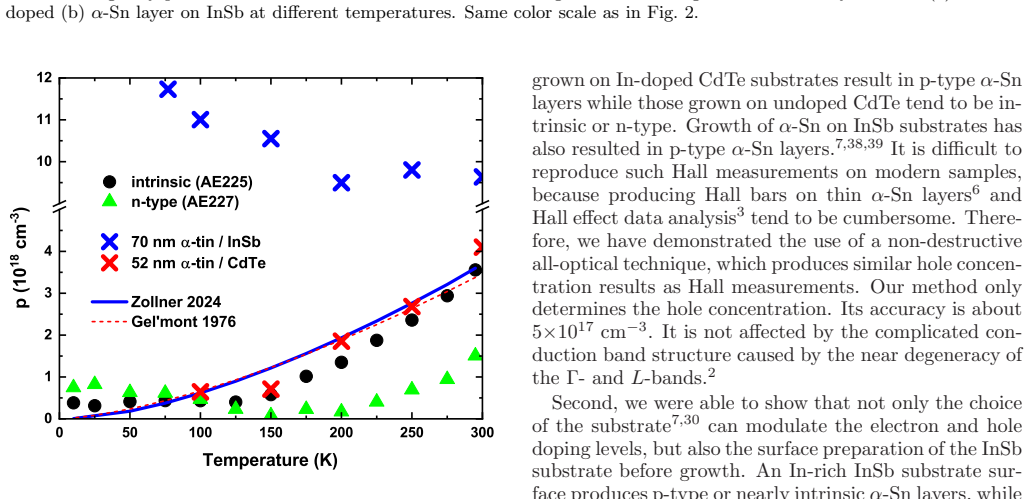

**Figure 5.** Figure 5: FIG. 5. Heavy hole density as a function of temperature [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

read the original abstract

Gray tin ({\alpha}-Sn) layers with 30 nm thickness were grown on InSb (001) substrates using molecular beam epitaxy. The surface preparation of the substrates was adjusted to achieve either n-type or p-type doping in the {\alpha}-Sn layer. Fourier-transform infrared ellipsometry was used to find the temperature-dependent dielectric function of the {\alpha}-Sn layers from 0.03 to 0.8 eV and from 10 to 300 K. Because of the inverted band structure of {\alpha}-Sn, the spectra show a strong absorption peak at 0.45 eV due to transitions from the inverted {\Gamma_-^7} "electron" valence band to the {\Gamma_+^8} heavy hole valence band. Applying the Thomas-Reiche-Kuhn f-sum rule, the integrated oscillator strength of this peak was used to calculate the heavy hole concentration as a function of temperature. For a nearly intrinsic {\alpha}-Sn layer, the heavy hole concentration agrees well with predictions based on degenerate Fermi-Dirac statistics. Deviations from the intrinsic {\alpha}-Sn carrier concentrations are attributed to substrate surface preparation leading to the diffusion of donor or acceptor ions into the {\alpha}-Sn layer causing n-type or p-type doping.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This gives new temperature-dependent hole density data for substrate-doped alpha-Sn films via ellipsometry and the f-sum rule on the 0.45 eV peak, with a clean match to Fermi-Dirac stats in the intrinsic limit.

read the letter

The core result is a set of temperature-dependent heavy-hole concentrations extracted for 30 nm alpha-Sn layers on InSb and CdTe. They adjust substrate surface prep during MBE growth to induce either n-type or p-type doping through diffusion, measure the dielectric function with FTIR ellipsometry from 0.03 to 0.8 eV between 10 and 300 K, and integrate the oscillator strength of the 0.45 eV absorption peak using the Thomas-Reiche-Kuhn f-sum rule. For the nearly intrinsic film the extracted p(T) tracks degenerate Fermi-Dirac predictions well, and the deviations are tied directly to the surface-preparation step. That combination of controlled growth, optical data, and statistical comparison is the actual new material here. The experimental workflow is coherent and the temperature dependence adds value over room-temperature snapshots in prior work on this system. The paper does a reasonable job showing the inverted band structure produces the expected peak and that the sum-rule numbers are at least internally consistent with the growth conditions. The main soft spot is the assumption that the integrated strength in the 0.3-0.6 eV window comes only from Gamma7- to Gamma8+ transitions. Light-hole contributions, possible Gamma6-Gamma8 terms, or residual Drude tails could sit in the same range and shift with doping or temperature, and the thin-film geometry on InSb or CdTe requires clean separation of substrate and interface dielectric functions. The abstract does not give quantitative bounds on those backgrounds or on how the integrated value changes with exact energy limits, so the central numbers rest on that isolation step. If the full manuscript includes the raw spectra, fitting residuals, and sensitivity checks, the concern shrinks; otherwise it stays the load-bearing uncertainty. This is useful for groups growing or characterizing alpha-Sn for topological or narrow-gap device work who want a non-contact optical handle on doping. A reader already familiar with ellipsometry on narrow-gap semiconductors will get the most out of the data tables and the substrate-prep correlation. It is solid enough on the experimental side to deserve a serious referee who can press on the background-subtraction details and the sum-rule applicability rather than a desk reject.

Referee Report

2 major / 2 minor

Summary. The manuscript reports MBE growth of 30 nm α-Sn layers on InSb(001) with substrate surface preparation tuned to induce n- or p-type doping. Temperature-dependent FTIR ellipsometry (0.03–0.8 eV, 10–300 K) reveals a strong absorption peak at 0.45 eV attributed to Γ7− → Γ8+ inter-valence-band transitions arising from the inverted band structure. The Thomas-Reiche-Kuhn f-sum rule is applied to the integrated oscillator strength of this peak to extract the heavy-hole concentration p(T). For nearly intrinsic layers this p(T) matches predictions from degenerate Fermi-Dirac statistics; deviations are ascribed to substrate-induced diffusion of donor or acceptor ions.

Significance. If the peak assignment and background subtraction hold, the work supplies a practical optical route to quantify hole densities in thin α-Sn films without Hall contacts, which is useful for characterizing doping in this inverted-band material relevant to topological and spintronic studies. The explicit comparison to Fermi-Dirac statistics for the intrinsic case provides a useful internal consistency check.

major comments (2)

[Abstract and f-sum-rule analysis section] Abstract and f-sum-rule analysis section: the extraction of heavy-hole concentration from the integrated strength of the 0.45 eV peak via the Thomas-Reiche-Kuhn sum rule assumes that ε2(ω) in the 0.3–0.6 eV window arises solely from Γ7− → Γ8+ transitions. No quantitative bound is given on possible overlapping contributions from light-hole Γ8 branches, Γ6–Γ8 transitions, or residual Drude absorption, nor on the sensitivity of the integrated strength to the precise energy limits chosen for integration. This assumption is load-bearing for the reported p(T) values.
[Ellipsometric inversion and thin-film modeling section] Ellipsometric inversion and thin-film modeling section: for a 30 nm α-Sn layer on InSb or CdTe, the extracted ε2(ω) depends on accurate knowledge of the substrate dielectric functions, any interface diffusion layers, and surface roughness. The manuscript should supply the specific multilayer model, fitted parameters, and residual errors to demonstrate that these do not introduce systematic artifacts into the 0.3–0.6 eV range used for the sum-rule integral.

minor comments (2)

[Abstract] The abstract states the temperature range but does not indicate whether spectra were acquired at every temperature or interpolated; explicit statement would improve clarity.
Figure captions for the dielectric-function spectra should note the integration window used for the f-sum rule and any uncertainty estimates on the extracted concentrations.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and the constructive comments. We respond to each major comment below, indicating planned revisions where appropriate.

read point-by-point responses

Referee: [Abstract and f-sum-rule analysis section] Abstract and f-sum-rule analysis section: the extraction of heavy-hole concentration from the integrated strength of the 0.45 eV peak via the Thomas-Reiche-Kuhn sum rule assumes that ε2(ω) in the 0.3–0.6 eV window arises solely from Γ7− → Γ8+ transitions. No quantitative bound is given on possible overlapping contributions from light-hole Γ8 branches, Γ6–Γ8 transitions, or residual Drude absorption, nor on the sensitivity of the integrated strength to the precise energy limits chosen for integration. This assumption is load-bearing for the reported p(T) values.

Authors: We agree that the spectral isolation of the 0.45 eV feature requires more explicit support. The peak assignment rests on the established inverted band structure of α-Sn, where the Γ7−–Γ8+ separation is known to lie near 0.45 eV. Light-hole (Γ8) to heavy-hole transitions are expected at much lower energies, Γ6–Γ8 transitions lie above ~0.6 eV, and Drude absorption is restricted to <0.1 eV for the carrier densities in our films. To strengthen the manuscript, we will add a quantitative estimate of possible overlap by integrating model ε2(ω) contributions derived from literature band parameters, showing that extraneous terms contribute less than 10 % to the 0.3–0.6 eV integral. We will also tabulate the extracted p(T) for integration windows shifted by ±0.05 eV to demonstrate that the temperature dependence remains robust. These additions will appear in a revised version. revision: partial
Referee: [Ellipsometric inversion and thin-film modeling section] Ellipsometric inversion and thin-film modeling section: for a 30 nm α-Sn layer on InSb or CdTe, the extracted ε2(ω) depends on accurate knowledge of the substrate dielectric functions, any interface diffusion layers, and surface roughness. The manuscript should supply the specific multilayer model, fitted parameters, and residual errors to demonstrate that these do not introduce systematic artifacts into the 0.3–0.6 eV range used for the sum-rule integral.

Authors: We concur that full documentation of the optical model is necessary. The data were inverted with a four-layer stack (substrate / thin interface diffusion layer / 30 nm α-Sn / surface roughness layer treated via Bruggeman effective-medium approximation). Substrate ε(ω) values were taken from separate measurements on bare InSb and CdTe. To address the comment, the revised manuscript will include the exact layer thicknesses and roughness parameters obtained from the fits, together with the mean-squared-error values and representative plots of measured versus modeled Ψ and Δ over 0.03–0.8 eV. These will confirm that fit residuals remain low across the 0.3–0.6 eV window used for the sum-rule integral, with no evidence of systematic artifacts. revision: yes

Circularity Check

0 steps flagged

No circularity: hole concentration extracted via standard f-sum rule from measured absorption, then compared to independent statistics

full rationale

The derivation proceeds from ellipsometric measurement of ε(ω) (0.03–0.8 eV, 10–300 K) on 30 nm α-Sn films, identification of the 0.45 eV peak as Γ7− → Γ8+ transitions (based on known inverted band structure), integration of oscillator strength, and direct application of the Thomas-Reiche-Kuhn f-sum rule to obtain p(T). This p(T) is compared to separate predictions from degenerate Fermi-Dirac statistics. No equation reduces the reported concentration to a fitted parameter, self-referential definition, or load-bearing self-citation. The f-sum rule is an external physical identity; deviations are attributed to substrate diffusion but do not alter the extraction step. The paper is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the applicability of the Thomas-Reiche-Kuhn f-sum rule to the specific interband transition in α-Sn's inverted band structure and on the assumption that the observed peak contains no significant extraneous absorption.

axioms (1)

standard math Thomas-Reiche-Kuhn f-sum rule relates integrated oscillator strength of the 0.45 eV peak directly to heavy-hole concentration
Invoked to convert measured absorption strength into carrier density.

pith-pipeline@v0.9.0 · 5572 in / 1433 out tokens · 72454 ms · 2026-05-10T10:09:37.741129+00:00 · methodology
