arxiv: 2604.15612 · v1 · submitted 2026-04-17 · 💻 cs.RO · cs.CV

GaussianFlow SLAM: Monocular Gaussian Splatting SLAM Guided by GaussianFlow

Dong-Uk Seo , Jinwoo Jeon , Eungchang Mason Lee , Hyun Myung This is my paper

Pith reviewed 2026-05-10 08:51 UTC · model grok-4.3

classification 💻 cs.RO cs.CV
keywords slamgaussianflowmonocularaccuracycuesflowgaussiangaussians
0
0 comments X

The pith

GaussianFlow SLAM aligns projected Gaussian motion with optical flow to regularize monocular 3D Gaussian splatting SLAM, yielding better map quality and pose accuracy than prior methods.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Monocular SLAM tries to build 3D maps and track camera movement using only one camera, but it often struggles because a single image lacks direct depth information. This can cause the map to have wrong shapes or the camera position estimates to drift. Gaussian splatting represents scenes as many small 3D blobs that can render photo-realistic views, but without extra cues it can settle into bad solutions. The new method computes how those blobs would move when the camera moves, calls this GaussianFlow, and forces it to match the optical flow seen in the video. This adds a geometry signal that helps both the map and the poses stay consistent. They also add rules to add or remove blobs based on error measures to keep the map clean. Tests on standard datasets show better pictures and more accurate tracking than other recent systems.

Core claim

Experiments conducted on public datasets demonstrate that our method achieves superior rendering quality and tracking accuracy compared with state-of-the-art algorithms.

Load-bearing premise

That aligning the projected motion of Gaussians (GaussianFlow) with optical flow provides consistent structural cues sufficient to regularize both map reconstruction and pose estimation and avoid local minima in monocular settings.

Figures

Figures reproduced from arXiv: 2604.15612 by Dong-Uk Seo, Eungchang Mason Lee, Hyun Myung, Jinwoo Jeon.

Figure 1
Figure 1. Figure 1: Illustration of GaussianFlow SLAM process. Our method leverages [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: (a) The overall framework of GaussianFlow SLAM. Each of the three modules highlighted by the dashed box performs a recurrent update process [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Visualization of per-Gaussian error types for the rendered image from [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

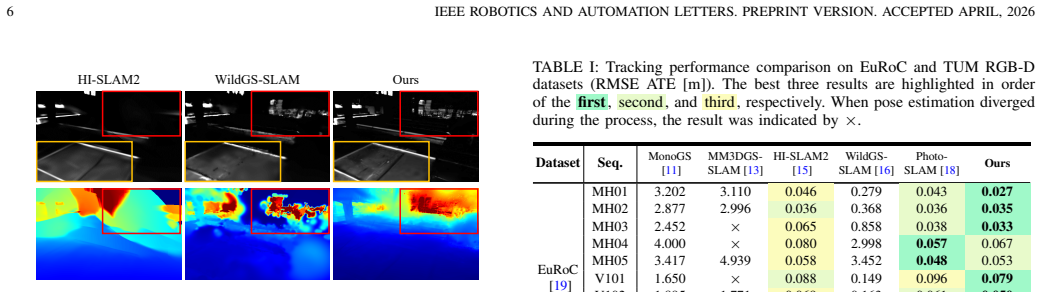

Figure 4
Figure 4. Figure 4: Comparison of rendered images and rasterized depths for a challenging [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

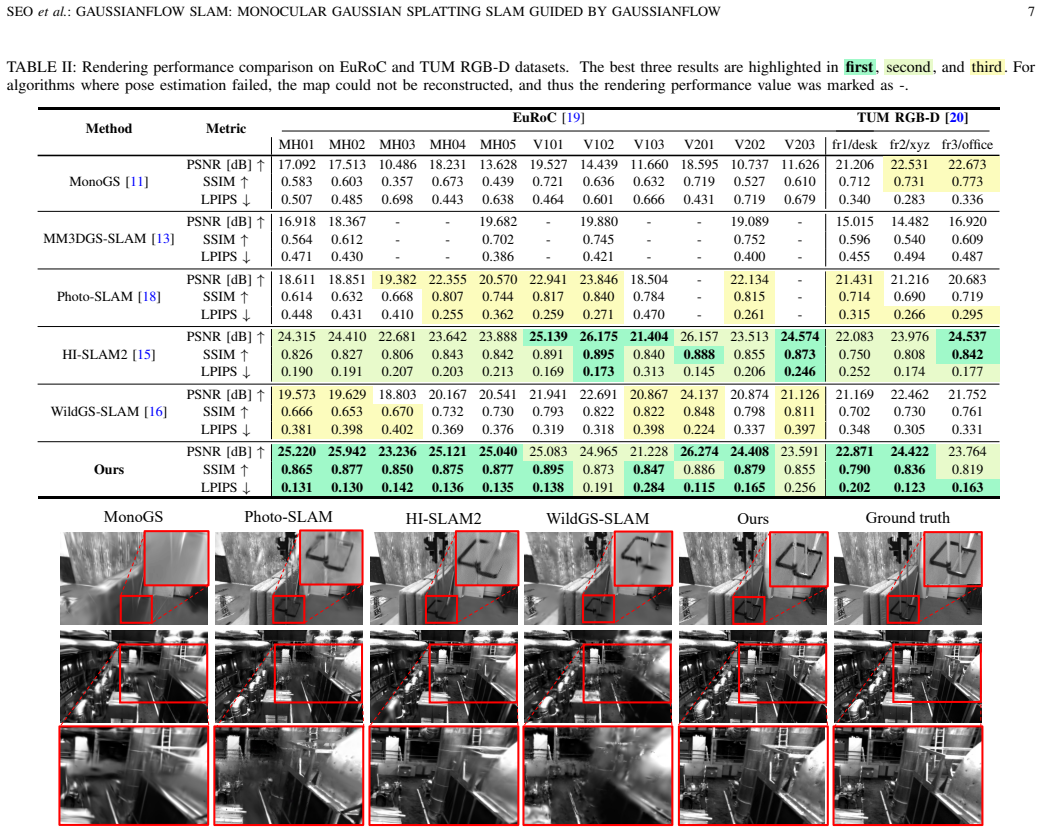

Figure 5
Figure 5. Figure 5: Qualitative comparison on the EuRoC dataset. By exploiting optical flow for geometric learning, our approach preserves fine object boundaries and [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
read the original abstract

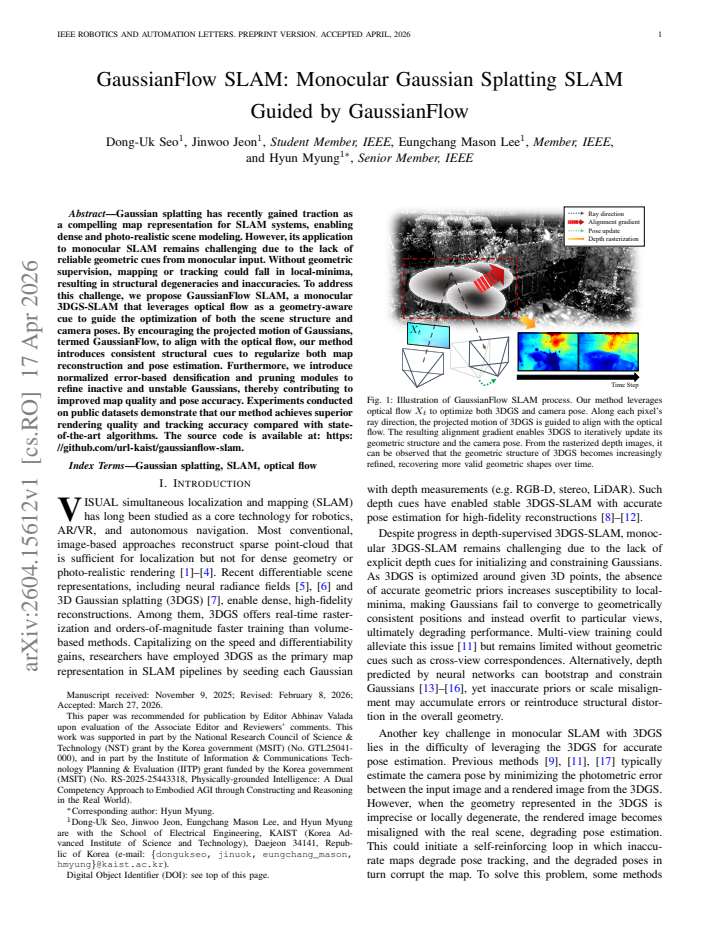

Gaussian splatting has recently gained traction as a compelling map representation for SLAM systems, enabling dense and photo-realistic scene modeling. However, its application to monocular SLAM remains challenging due to the lack of reliable geometric cues from monocular input. Without geometric supervision, mapping or tracking could fall in local-minima, resulting in structural degeneracies and inaccuracies. To address this challenge, we propose GaussianFlow SLAM, a monocular 3DGS-SLAM that leverages optical flow as a geometry-aware cue to guide the optimization of both the scene structure and camera poses. By encouraging the projected motion of Gaussians, termed GaussianFlow, to align with the optical flow, our method introduces consistent structural cues to regularize both map reconstruction and pose estimation. Furthermore, we introduce normalized error-based densification and pruning modules to refine inactive and unstable Gaussians, thereby contributing to improved map quality and pose accuracy. Experiments conducted on public datasets demonstrate that our method achieves superior rendering quality and tracking accuracy compared with state-of-the-art algorithms. The source code is available at: https://github.com/url-kaist/gaussianflow-slam.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 1 invented entities

The approach rests on standard assumptions from Gaussian splatting and optical flow literature plus two new modules whose internal parameters are not detailed in the abstract; no explicit free parameters, axioms, or invented entities beyond the term GaussianFlow are visible.

invented entities (1)
  • GaussianFlow no independent evidence
    purpose: Projected motion of Gaussians used as a geometry-aware cue to align with optical flow
    Term coined in the paper to represent the motion signal that regularizes optimization; no independent evidence outside the method is provided.

pith-pipeline@v0.9.0 · 5510 in / 1227 out tokens · 38764 ms · 2026-05-10T08:51:46.838207+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

41 extracted references · 41 canonical work pages

  1. [1]

    VINS-Mono: A robust and versatile monocular visual-inertial state estimator,

    T. Qin, P. Li, and S. Shen, “VINS-Mono: A robust and versatile monocular visual-inertial state estimator,”IEEE Trans. Robot., vol. 34, no. 4, pp. 1004–1020, 2018

    work page 2018

  2. [2]

    ORB-SLAM3: An accurate open-source library for visual, visual–inertial, and multi-map SLAM,

    C. Campos, R. Elvira, J. J. G. Rodr ´ıguez, J. M. Montiel, and J. D. Tard´os, “ORB-SLAM3: An accurate open-source library for visual, visual–inertial, and multi-map SLAM,”IEEE Trans. Robot., vol. 37, no. 6, pp. 1874–1890, 2021

    work page 2021

  3. [3]

    UV-SLAM: Unconstrained line-based SLAM using vanishing points for structural mapping,

    H. Lim, J. Jeon, and H. Myung, “UV-SLAM: Unconstrained line-based SLAM using vanishing points for structural mapping,”IEEE Robot. Automat. Lett., vol. 7, no. 2, pp. 1518–1525, 2022

    work page 2022

  4. [4]

    Direct sparse odometry,

    J. Engel, V . Koltun, and D. Cremers, “Direct sparse odometry,”IEEE Trans. Pattern Anal. Mach. Intell., vol. 40, no. 3, pp. 611–625, 2017

    work page 2017

  5. [5]

    NeRF: Representing scenes as neural radiance fields for view synthesis,

    B. Mildenhall, P. P. Srinivasan, M. Tancik, J. T. Barron, R. Ramamoorthi, and R. Ng, “NeRF: Representing scenes as neural radiance fields for view synthesis,”Commun. ACM, vol. 65, no. 1, pp. 99–106, 2021

    work page 2021

  6. [6]

    Mip-NeRF 360: Unbounded anti-aliased neural radiance fields,

    J. T. Barron, B. Mildenhall, D. Verbin, P. P. Srinivasan, and P. Hedman, “Mip-NeRF 360: Unbounded anti-aliased neural radiance fields,” in Proc. IEEE/CVF Conf. Comput. Vis. Pattern Recognit., 2022, pp. 5470– 5479

    work page 2022

  7. [7]

    3D Gaussian splatting for real-time radiance field rendering

    B. Kerbl, G. Kopanas, T. Leimk ¨uhler, and G. Drettakis, “3D Gaussian splatting for real-time radiance field rendering.”ACM Trans. Graph., vol. 42, no. 4, pp. 1–14, 2023

    work page 2023

  8. [8]

    SplaTAM: Splat track & map 3D Gaussians for dense RGB-D SLAM,

    N. Keetha, J. Karhade, K. M. Jatavallabhula, G. Yang, S. Scherer, D. Ramanan, and J. Luiten, “SplaTAM: Splat track & map 3D Gaussians for dense RGB-D SLAM,” inProc. IEEE/CVF Conf. Comput. Vis. Pattern Recognit., 2024, pp. 21 357–21 366

    work page 2024

  9. [9]

    GS- SLAM: Dense visual SLAM with 3D Gaussian splatting,

    C. Yan, D. Qu, D. Xu, B. Zhao, Z. Wang, D. Wang, and X. Li, “GS- SLAM: Dense visual SLAM with 3D Gaussian splatting,” inProc. IEEE/CVF Conf. Comput. Vis. Pattern Recognit., 2024, pp. 19 595– 19 604

    work page 2024

  10. [10]

    RTG- SLAM: Real-time 3D reconstruction at scale using Gaussian splatting,

    Z. Peng, T. Shao, Y . Liu, J. Zhou, Y . Yang, J. Wang, and K. Zhou, “RTG- SLAM: Real-time 3D reconstruction at scale using Gaussian splatting,” inProc. ACM SIGGRAPH, 2024, pp. 1–11

    work page 2024

  11. [11]

    Gaussian splat- ting SLAM,

    H. Matsuki, R. Murai, P. H. J. Kelly, and A. J. Davison, “Gaussian splat- ting SLAM,” inProc. IEEE/CVF Conf. Comput. Vis. Pattern Recognit., 2024, pp. 18 039–18 048

    work page 2024

  12. [12]

    Gaussian-LIC: Photo-realistic LiDAR-inertial-camera SLAM with 3D Gaussian splatting,

    X. Lang, L. Li, H. Zhang, F. Xiong, M. Xu, Y . Liu, X. Zuo, and J. Lv, “Gaussian-LIC: Photo-realistic LiDAR-inertial-camera SLAM with 3D Gaussian splatting,” inProc. IEEE/CVF Conf. Comput. Vis. Pattern Recognit., 2024, pp. 8500–8507

    work page 2024

  13. [13]

    MM3DGS-SLAM: Multi-modal 3D Gaussian splatting for SLAM using vision, depth, and inertial measurements,

    L. C. Sun, N. P. Bhatt, J. C. Liu, Z. Fan, Z. Wang, T. E. Humphreys, and U. Topcu, “MM3DGS-SLAM: Multi-modal 3D Gaussian splatting for SLAM using vision, depth, and inertial measurements,” inProc. IEEE/RSJ Int. Conf. Intell. Robot. Syst., 2024, pp. 10 159–10 166

    work page 2024

  14. [14]

    RGB-only Gaussian splatting SLAM for unbounded outdoor scenes,

    S. Yu, C. Cheng, Y . Zhou, X. Yang, and H. Wang, “RGB-only Gaussian splatting SLAM for unbounded outdoor scenes,” inProc. IEEE Int. Conf. Robot. Automat., 2025

    work page 2025

  15. [15]

    HI-SLAM2: Geometry-aware Gaussian SLAM for fast monocular scene reconstruction,

    W. Zhang, Q. Cheng, D. Skuddis, N. Zeller, D. Cremers, and N. Haala, “HI-SLAM2: Geometry-aware Gaussian SLAM for fast monocular scene reconstruction,”IEEE Trans. Robot., vol. 41, pp. 6478–6493, 2025

    work page 2025

  16. [16]

    WildGS- SLAM: Monocular Gaussian splatting SLAM in dynamic environments,

    J. Zheng, Z. Zhu, V . Bieri, M. Pollefeys, S. Peng, and A. Iro, “WildGS- SLAM: Monocular Gaussian splatting SLAM in dynamic environments,” inProc. IEEE/CVF Conf. Comput. Vis. Pattern Recognit., 2025, pp. 11 461–11 471

    work page 2025

  17. [17]

    Look Gauss, No Pose: Novel view synthesis using Gaussian splatting without accurate pose initialization,

    C. Schmidt, J. Piekenbrinck, and B. Leibe, “Look Gauss, No Pose: Novel view synthesis using Gaussian splatting without accurate pose initialization,” inProc. IEEE/RSJ Int. Conf. Intell. Robot. Syst., 2024, pp. 8732–8739

    work page 2024

  18. [18]

    Photo-SLAM: Real-time simultaneous localization and photorealistic mapping for monocular, stereo, and RGB-D cameras,

    H. Huang, L. Li, C. Hui, and S.-K. Yeung, “Photo-SLAM: Real-time simultaneous localization and photorealistic mapping for monocular, stereo, and RGB-D cameras,” inProc. IEEE/CVF Conf. Comput. Vis. Pattern Recognit., 2024, pp. 21 584–21 593

    work page 2024

  19. [19]

    The EuRoC micro aerial vehicle datasets,

    M. Burri, J. Nikolic, P. Gohl, T. Schneider, J. Rehder, S. Omari, M. W. Achtelik, and R. Siegwart, “The EuRoC micro aerial vehicle datasets,” Int. J. Robot. Res., vol. 35, no. 10, pp. 1157–1163, 2016

    work page 2016

  20. [20]

    A benchmark for the evaluation of RGB-D SLAM systems,

    J. Sturm, N. Engelhard, F. Endres, W. Burgard, and D. Cremers, “A benchmark for the evaluation of RGB-D SLAM systems,” inProc. IEEE/RSJ Int. Conf. Intell. Robot. Syst., 2012, pp. 573–580

    work page 2012

  21. [21]

    NICE-SLAM: Neural implicit scalable encoding for SLAM,

    Z. Zhu, S. Peng, V . Larsson, W. Xu, H. Bao, Z. Cui, M. R. Oswald, and M. Pollefeys, “NICE-SLAM: Neural implicit scalable encoding for SLAM,” inProc. IEEE/CVF Conf. Comput. Vis. Pattern Recognit., 2022, pp. 12 786–12 796

    work page 2022

  22. [22]

    NICER-SLAM: Neural implicit scene encoding for RGB SLAM,

    Z. Zhu, S. Peng, V . Larsson, Z. Cui, M. R. Oswald, A. Geiger, and M. Pollefeys, “NICER-SLAM: Neural implicit scene encoding for RGB SLAM,” inProc. IEEE Int. Conf. 3D Vis., 2024, pp. 42–52

    work page 2024

  23. [23]

    NeRF-SLAM: Real-time dense monocular SLAM with neural radiance fields,

    A. Rosinol, J. J. Leonard, and L. Carlone, “NeRF-SLAM: Real-time dense monocular SLAM with neural radiance fields,” inProc. IEEE/RSJ Int. Conf. Intell. Robot. Syst., 2023, pp. 3437–3444

    work page 2023

  24. [24]

    OpenVINS: A research platform for visual-inertial estimation,

    P. Geneva, K. Eckenhoff, W. Lee, Y . Yang, and G. Huang, “OpenVINS: A research platform for visual-inertial estimation,” inProc. IEEE Int. Conf. Robot. Automat., 2020, pp. 4666–4672

    work page 2020

  25. [25]

    An iterative image registration technique with an application to stereo vision,

    B. D. Lucas and T. Kanade, “An iterative image registration technique with an application to stereo vision,” inProc. Int. Joint Conf. Artif. Intell., 1981, pp. 674–679

    work page 1981

  26. [26]

    TartanVO: A generalizable learning- based VO,

    W. Wang, Y . Hu, and S. Scherer, “TartanVO: A generalizable learning- based VO,” inProc. Conf. Robot Learn., 2021, pp. 1761–1772

    work page 2021

  27. [27]

    VOLDOR: Visual odometry from log- logistic dense optical flow residuals,

    Z. Min, Y . Yang, and E. Dunn, “VOLDOR: Visual odometry from log- logistic dense optical flow residuals,” inProc. IEEE/CVF Conf. Comput. Vis. Pattern Recognit., 2020, pp. 4898–4909

    work page 2020

  28. [28]

    DROID-SLAM: Deep visual SLAM for monocu- lar, stereo, and RGB-D cameras,

    Z. Teed and J. Deng, “DROID-SLAM: Deep visual SLAM for monocu- lar, stereo, and RGB-D cameras,”Adv. Neural Inf. Process. Syst., vol. 34, pp. 16 558–16 569, 2021

    work page 2021

  29. [29]

    Deep patch visual odometry,

    Z. Teed, L. Lipson, and J. Deng, “Deep patch visual odometry,”Adv. Neural Inf. Process. Syst., vol. 36, pp. 39 033–39 051, 2023

    work page 2023

  30. [30]

    RAFT: Recurrent all-pairs field transforms for optical flow,

    Z. Teed and J. Deng, “RAFT: Recurrent all-pairs field transforms for optical flow,” inProc. Eur. Conf. Comput. Vis., 2020, pp. 402–419

    work page 2020

  31. [31]

    Gaussianflow: Splatting gaussian dynamics for 4d content creation.arXiv preprint arXiv:2403.12365,

    Q. Gao, Q. Xu, Z. Cao, B. Mildenhall, W. Ma, L. Chen, D. Tang, and U. Neumann, “GaussianFlow: Splatting Gaussian dynamics for 4D content creation,”arXiv preprint arXiv:2403.12365, 2024

    work page arXiv 2024

  32. [32]

    MotionGS: Exploring explicit motion guidance for deformable 3D Gaussian splatting,

    R. Zhu, Y . Liang, H. Chang, J. Deng, J. Lu, W. Yang, T. Zhang, and Y . Zhang, “MotionGS: Exploring explicit motion guidance for deformable 3D Gaussian splatting,”Adv. Neural Inf. Process. Syst., vol. 37, pp. 101 790–101 817, 2024

    work page 2024

  33. [33]

    Gaussian-Flow: 4D reconstruction with dynamic 3D Gaussian particle,

    Y . Lin, Z. Dai, S. Zhu, and Y . Yao, “Gaussian-Flow: 4D reconstruction with dynamic 3D Gaussian particle,” inProc. IEEE/CVF Conf. Comput. Vis. Pattern Recognit., 2024, pp. 21 136–21 145

    work page 2024

  34. [34]

    HUGS: Holistic urban 3D scene understanding via Gaussian splatting,

    H. Zhou, J. Shao, L. Xu, D. Bai, W. Qiu, B. Liu, Y . Wang, A. Geiger, and Y . Liao, “HUGS: Holistic urban 3D scene understanding via Gaussian splatting,” inProc. IEEE/CVF Conf. Comput. Vis. Pattern Recognit., 2024, pp. 21 336–21 345

    work page 2024

  35. [35]

    PyTorch: An imperative style, high-performance deep learning library,

    A. Paszke, S. Gross, F. Massa, A. Lerer, J. Bradbury, G. Chanan, T. Killeen, Z. Lin, N. Gimelshein, L. Antiga,et al., “PyTorch: An imperative style, high-performance deep learning library,”Adv. Neural Inf. Process. Syst., vol. 32, pp. 8024–8035, 2019

    work page 2019

  36. [36]

    Closed-form expres- sions of the eigen decomposition of2×2and3×3Hermitian matrices,

    C.-A. Deledalle, L. Denis, S. Tabti, and F. Tupin, “Closed-form expres- sions of the eigen decomposition of2×2and3×3Hermitian matrices,” Ph.D. dissertation, Universit ´e de Lyon, 2017

    work page 2017

  37. [37]

    A micro lie theory for state estimation in robotics,

    J. Sola, J. Deray, and D. Atchuthan, “A micro Lie theory for state estimation in robotics,”arXiv preprint arXiv:1812.01537, 2018

    work page arXiv 2018

  38. [38]

    Bun- dle adjustment - a modern synthesis,

    B. Triggs, P. F. McLauchlan, R. I. Hartley, and A. W. Fitzgibbon, “Bun- dle adjustment - a modern synthesis,” inProc. International workshop on vision algorithms, 1999, pp. 298–372

    work page 1999

  39. [39]

    4D-rotor Gaussian splatting: Towards efficient novel view synthesis for dynamic scenes,

    Y . Duan, F. Wei, Q. Dai, Y . He, W. Chen, and B. Chen, “4D-rotor Gaussian splatting: Towards efficient novel view synthesis for dynamic scenes,” inProc. ACM SIGGRAPH, 2024, pp. 1–11

    work page 2024

  40. [40]

    Revising densification in Gaussian splatting,

    S. Rota Bul `o, L. Porzi, and P. Kontschieder, “Revising densification in Gaussian splatting,” inProc. Eur. Conf. Comput. Vis.Springer, 2024, pp. 347–362

    work page 2024

  41. [41]

    Dgs-slam: Gaussian splatting slam in dynamic environment,

    M. Kong, J. Lee, S. Lee, and E. Kim, “DGS-SLAM: Gaussian splatting SLAM in dynamic environment,”arXiv preprint arXiv:2411.10722, 2024

    work page arXiv 2024
