A Structure-Preserving Graph Neural Solver for Parametric Hyperbolic Conservation Laws

Jiamin Jiang , Shanglin Lv , Jingrun Chen
Authors on Pith no claims yet

Pith reviewed 2026-05-10 08:03 UTC · model grok-4.3

classification ⚛️ physics.comp-ph cs.LGcs.NAmath.NA
keywords graph neural networkshyperbolic conservation lawsstructure-preserving solversparametric flowssupersonic benchmarksnumerical methodsmachine learning surrogatesshock capturing
0
0 comments X

The pith

A graph neural network solver for hyperbolic conservation laws preserves local conservation and upwinding by learning reconstruction-and-flux operators from classical numerical principles.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a graph neural solver that treats the network as a learned reconstruction-and-flux operator rather than a direct state updater. This structure draws on high-order space-time prediction ideas to keep updates conservative and upwind-biased even when time steps are large. The approach targets parametric studies of flows with shocks and discontinuities, where repeated simulations are needed but full-resolution classical methods remain costly. If the preservation properties hold, the solver can deliver stable long-horizon predictions across changes in geometry, initial conditions, and flow regimes while running much faster than traditional codes.

Core claim

The central claim is that recasting message-passing graph neural networks as high-order space-time predictors inside a reconstruction-and-flux framework produces an interpretable solver that inherently respects local conservation and upwinding. When tested on supersonic flow benchmarks that span wide parametric variations, the resulting updates remain stable and accurate over long rollouts, outperform both surrogate baselines and low-order discretizations, and run orders of magnitude faster than high-resolution classical simulations.

What carries the argument

The learned reconstruction-and-flux operator, implemented by recasting graph message passing as high-order space-time predictors, which computes conservative cell updates while respecting upwind directions on an unstructured graph of the flow field.

If this is right

  • The solver maintains superior long-horizon rollout stability and accuracy relative to strong neural surrogate baselines.
  • It outperforms low-order classical discretizations on the same flow problems.
  • It delivers orders-of-magnitude runtime reductions compared with high-resolution traditional simulations.
  • It remains reliable when geometry, initial and boundary conditions, and flow regimes vary over wide ranges.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same operator design could support repeated-query tasks such as design optimization or uncertainty propagation where classical codes are too slow.
  • Because the updates stay conservative by construction, the method may reduce reliance on post-hoc projection steps that many learned PDE solvers require.
  • The graph-based formulation opens a route to adaptive or moving meshes without retraining the core operator.

Load-bearing premise

That designing the graph neural network as a reconstruction-and-flux operator will automatically enforce local conservation, upwinding, and stability across broad parametric changes without extra constraints or corrections.

What would settle it

A long-horizon rollout on a supersonic benchmark case that produces measurable violation of discrete conservation or develops non-physical oscillations after many steps would disprove the claim of inherent structure preservation.

Figures

Figures reproduced from arXiv: 2604.15617 by Jiamin Jiang, Jingrun Chen, Shanglin Lv.

Figure 1
Figure 1. Figure 1: Schematic illustration of the mesh ingredients and numerical flux in the Godunov framework. [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

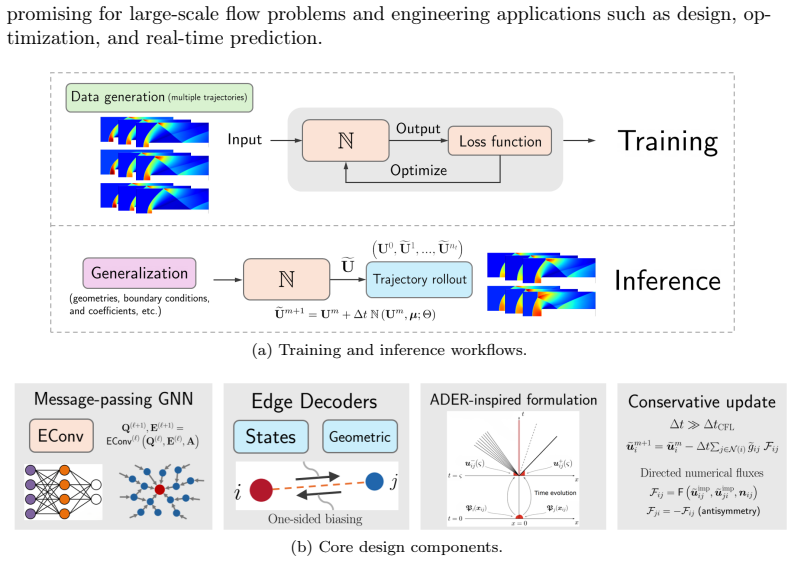

Figure 2. Figure 2: Overview of the proposed structure-preserving graph neural solver for interpretable modeling of [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3

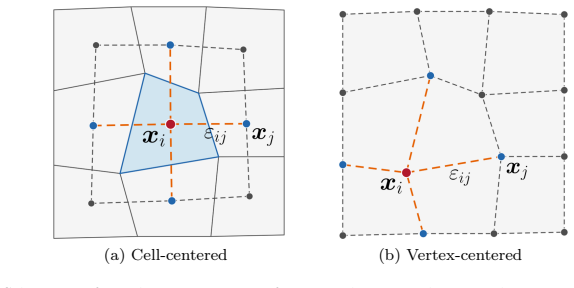

Figure 3. Figure 3: Schematic of graph representations for a simulation mesh. Dots denote nodes, and dashed [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Schematics of neural reconstruction process via message-passing GNN as a counterpart to [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗
Figure 5

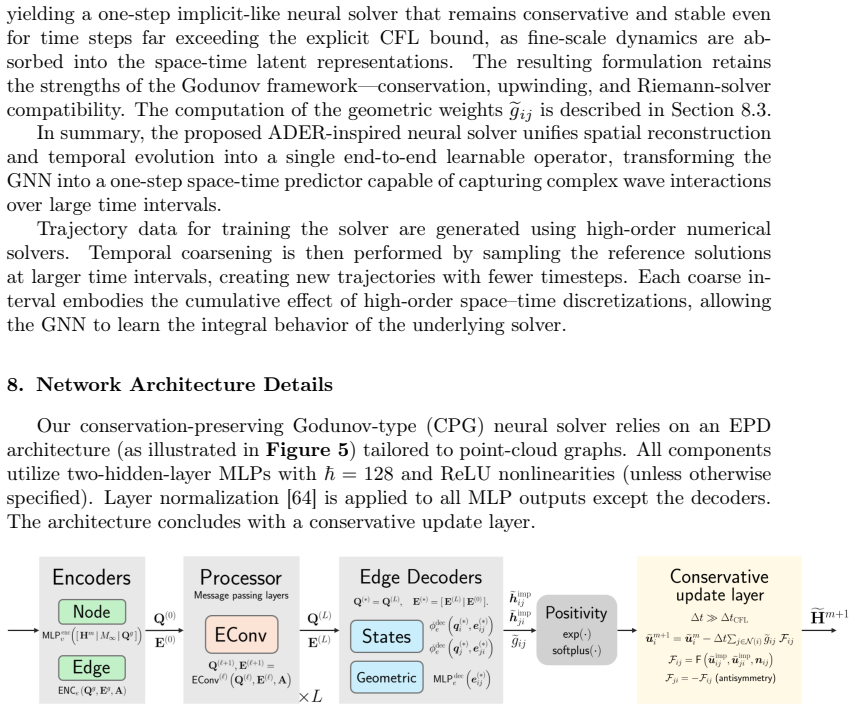

Figure 5. Figure 5: Schematic of the forward pass through the proposed EPD architecture (CPGNet). [PITH_FULL_IMAGE:figures/full_fig_p014_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Example DGSEM simulation mesh (top) and the associated point cloud (bottom) for the [PITH_FULL_IMAGE:figures/full_fig_p018_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Mean RMSE over all test cases vs. time steps under the two training strategies. [PITH_FULL_IMAGE:figures/full_fig_p021_7.png] view at source ↗
Figure 8

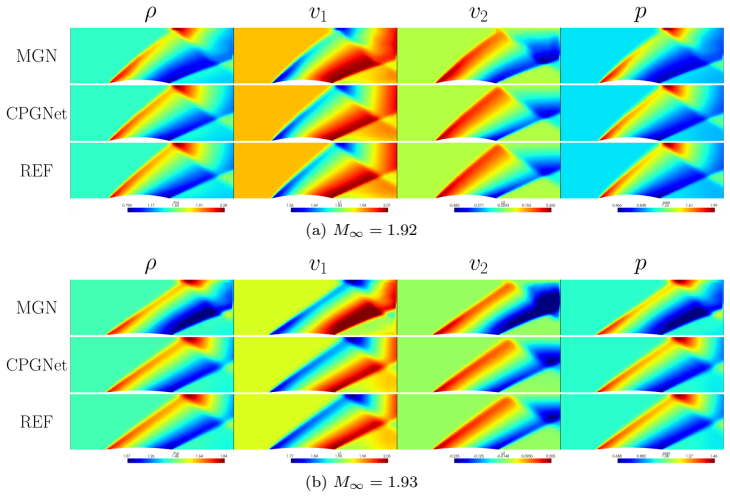

Figure 8. Figure 8: Solution fields of two representative cases in the Supersonic Bump dataset (generated with the [PITH_FULL_IMAGE:figures/full_fig_p023_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Density and pressure fields of representative cases in the Supersonic Bump dataset (generated [PITH_FULL_IMAGE:figures/full_fig_p023_9.png] view at source ↗
Figure 10

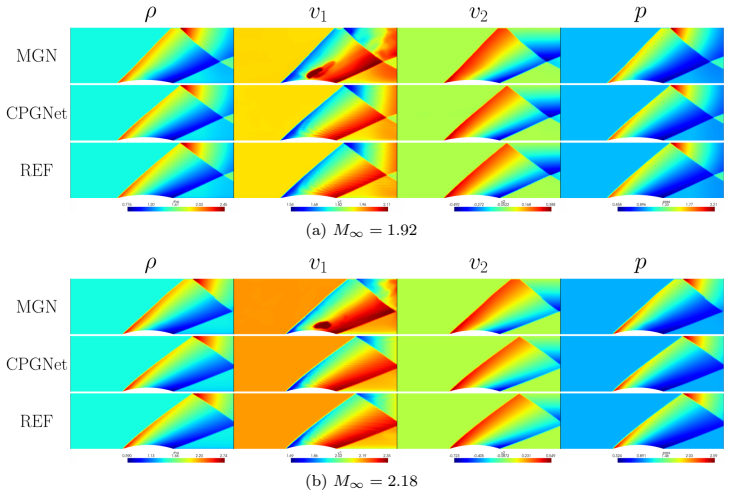

Figure 10. Figure 10: Solution fields of two representative cases in the Supersonic Bump dataset (generated with [PITH_FULL_IMAGE:figures/full_fig_p024_10.png] view at source ↗
Figure 11

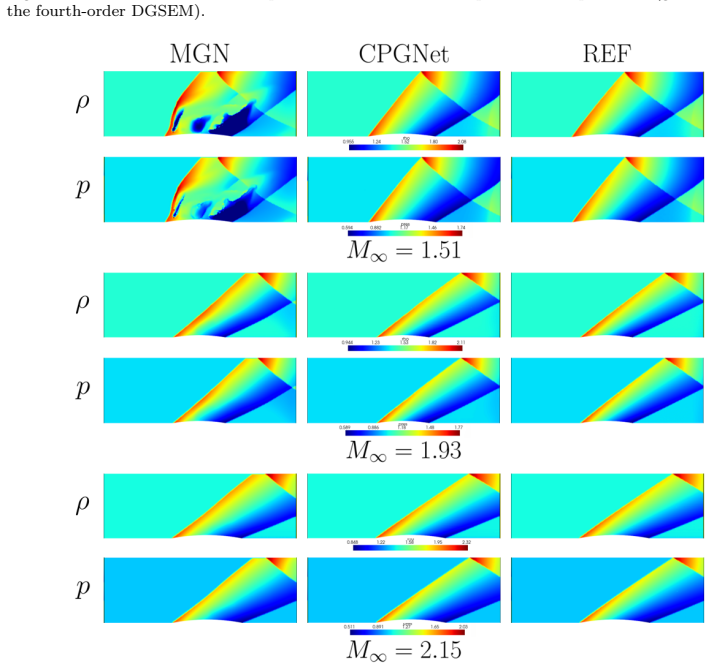

Figure 11. Figure 11: Density and pressure fields of representative cases in the Supersonic Bump dataset (generated [PITH_FULL_IMAGE:figures/full_fig_p024_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Solution fields of two representative cases in the Forward Step dataset. [PITH_FULL_IMAGE:figures/full_fig_p025_12.png] view at source ↗
Figure 13

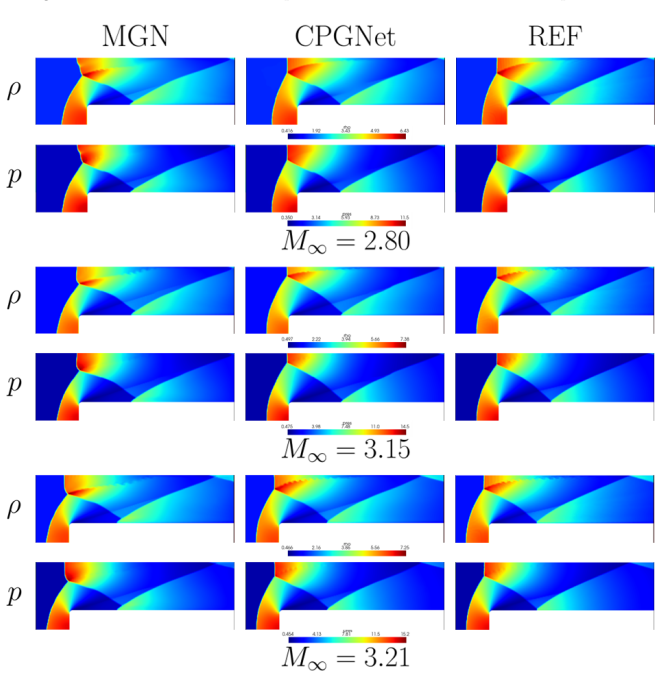

Figure 13. Figure 13: Density and pressure fields of representative cases in the Forward Step dataset. [PITH_FULL_IMAGE:figures/full_fig_p025_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Comparison of solution fields across DGSEM polynomial degrees and graph neural solver for [PITH_FULL_IMAGE:figures/full_fig_p026_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: Solution fields of two representative cases in the Diffraction dataset. [PITH_FULL_IMAGE:figures/full_fig_p028_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: Density and pressure fields of representative cases in the Diffraction dataset. [PITH_FULL_IMAGE:figures/full_fig_p028_16.png] view at source ↗
Figure 17

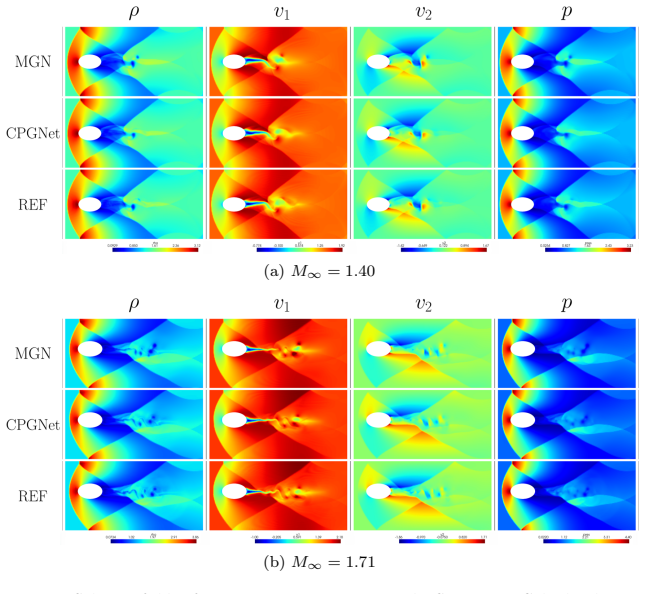

Figure 17. Figure 17: Solution fields of two representative cases in the Supersonic Cylinder dataset. [PITH_FULL_IMAGE:figures/full_fig_p029_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: Density and pressure fields of representative cases in the Supersonic Cylinder dataset. [PITH_FULL_IMAGE:figures/full_fig_p029_18.png] view at source ↗
read the original abstract

Hyperbolic conservation laws govern a wide range of transport-driven dynamics featuring shocks, contact discontinuities, and complex wave interactions, posing distinct challenges for deep-learning-based surrogate modeling. While classical numerical methods provide robust and physically admissible solutions, their computational cost restricts applicability in many-query tasks such as parametric studies and design optimization. Conversely, existing neural surrogates offer rapid inference but often fail to respect intrinsic PDE structures, leading to non-physical artifacts, rollout instability, and poor generalization. We present an interpretable, structure-preserving graph neural solver that bridges classical numerical principles with graph neural networks (GNNs). The network is designed as a learned reconstruction-and-flux operator rather than a black-box state updater, thereby inherently preserving key properties such as local conservation and upwinding. Inspired by Arbitrary high-order DERivatives schemes, we further recast message-passing GNNs as high-order space-time predictors, enabling conservative and stable neural updates with large time steps. Evaluation is performed on challenging supersonic flow benchmarks spanning broad parametric variations in geometry, initial/boundary conditions, and flow regimes. The neural solver achieves superior long-horizon rollout stability and accuracy compared with strong surrogate baselines, outperforms low-order discretizations, and delivers orders-of-magnitude runtime speedups over high-resolution simulations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces a graph neural network (GNN) designed as a learned reconstruction-and-flux operator for parametric hyperbolic conservation laws. Recast via ADER-inspired high-order space-time predictors, the architecture is claimed to inherently enforce local conservation and upwinding. On supersonic flow benchmarks spanning variations in geometry, initial/boundary conditions, and regimes, the solver is reported to deliver superior long-horizon rollout stability and accuracy versus strong surrogate baselines, to outperform low-order discretizations, and to achieve orders-of-magnitude speedups relative to high-resolution simulations.

Significance. If the structure-preservation claims are substantiated, the work could meaningfully advance reliable neural surrogates for conservation laws in many-query settings by combining classical numerical principles with GNN message passing. The emphasis on interpretable, physics-aligned operators addresses a recognized weakness of black-box neural PDE solvers.

major comments (2)
  1. [Abstract and §3] Abstract and §3 (method): the assertion that the GNN 'inherently preserving key properties such as local conservation and upwinding' is load-bearing for the long-horizon stability claim, yet the manuscript supplies no explicit verification that interface fluxes are antisymmetric or that net flux into each control volume equals the state update to machine precision. A concrete demonstration (e.g., conservation-error plots or a short proof that the learned predictors enforce discrete conservation by construction) is required; without it the advantage over black-box baselines remains unproven.
  2. [§4] §4 (experiments): the reported superiority in stability and accuracy is presented without error bars, ablation studies isolating the reconstruction-and-flux versus ADER-predictor components, or direct quantification of conservation drift over rollouts. These omissions make it impossible to assess whether the architecture truly mitigates the parametric instability issues highlighted in the introduction.
minor comments (2)
  1. [Figures] Figure captions and axis labels in the rollout visualizations should explicitly state the time horizon and the norm used for error computation.
  2. [Introduction] The introduction would benefit from a concise table contrasting the proposed operator with prior GNN-PDE and structure-preserving neural methods.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback and for recognizing the potential significance of combining classical numerical principles with GNNs for hyperbolic conservation laws. We address each major comment point by point below, providing clarifications on the architecture and committing to revisions that strengthen the evidence for the claims.

read point-by-point responses

  1. Referee: [Abstract and §3] Abstract and §3 (method): the assertion that the GNN 'inherently preserving key properties such as local conservation and upwinding' is load-bearing for the long-horizon stability claim, yet the manuscript supplies no explicit verification that interface fluxes are antisymmetric or that net flux into each control volume equals the state update to machine precision. A concrete demonstration (e.g., conservation-error plots or a short proof that the learned predictors enforce discrete conservation by construction) is required; without it the advantage over black-box baselines remains unproven.

    Authors: We thank the referee for this important observation. The architecture is explicitly designed as a learned reconstruction-and-flux operator: message passing between adjacent nodes computes interface fluxes that are antisymmetric by construction (the flux contribution from node i to j is the negation of that from j to i), and the state update for each control volume is exactly the discrete divergence of these fluxes, mirroring a finite-volume scheme. The ADER-inspired high-order space-time predictors further ensure that the local updates remain conservative. While this follows directly from the formulation in §3, we acknowledge that the original manuscript did not include explicit numerical verification or a concise proof sketch. In the revised version we will add both: a brief derivation showing discrete conservation by construction and conservation-error plots (L1 drift of total conserved quantities) over long-horizon rollouts on the supersonic benchmarks. These additions will make the advantage over black-box baselines explicit. revision: yes

  2. Referee: [§4] §4 (experiments): the reported superiority in stability and accuracy is presented without error bars, ablation studies isolating the reconstruction-and-flux versus ADER-predictor components, or direct quantification of conservation drift over rollouts. These omissions make it impossible to assess whether the architecture truly mitigates the parametric instability issues highlighted in the introduction.

    Authors: We agree that additional statistical controls and component-wise ablations would improve the experimental section. In the revised manuscript we will augment §4 with: (i) error bars obtained from five independent training runs using different random seeds for all reported metrics; (ii) ablation studies that isolate the reconstruction-and-flux operator (by comparing against a non-antisymmetric message-passing variant) and the ADER predictor (by comparing against a first-order Euler update); and (iii) direct quantification of conservation drift via plots of total mass, momentum, and energy errors over rollout horizons across the parametric variations. These revisions will provide clearer evidence that the structure-preserving design addresses the instability issues raised in the introduction. revision: yes

Circularity Check

0 steps flagged

No circularity: design claims rest on explicit architectural choices rather than self-referential definitions or fitted inputs

full rationale

The paper presents its GNN as a learned reconstruction-and-flux operator explicitly inspired by ADER schemes and classical conservation principles, with preservation of local conservation and upwinding asserted as a direct consequence of that design choice rather than derived from any fitted quantity or prior self-citation. No equations or sections in the provided text reduce a claimed prediction or stability result back to the same fitted parameters by construction; the evaluation on parametric supersonic benchmarks is independent of the model definition. This is a standard non-circular bridging paper whose central claims remain falsifiable against external numerical baselines.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard domain assumptions from numerical PDE methods and GNN architectures; no free parameters, new axioms, or invented entities are introduced or fitted in the abstract description.

axioms (1)
  • domain assumption Classical finite-volume and ADER schemes preserve local conservation and upwinding when using reconstruction and flux operators.
    Invoked to justify the GNN design as inherently structure-preserving.
