arxiv: 2604.15981 · v1 · submitted 2026-04-17 · ❄️ cond-mat.mtrl-sci · cond-mat.supr-con

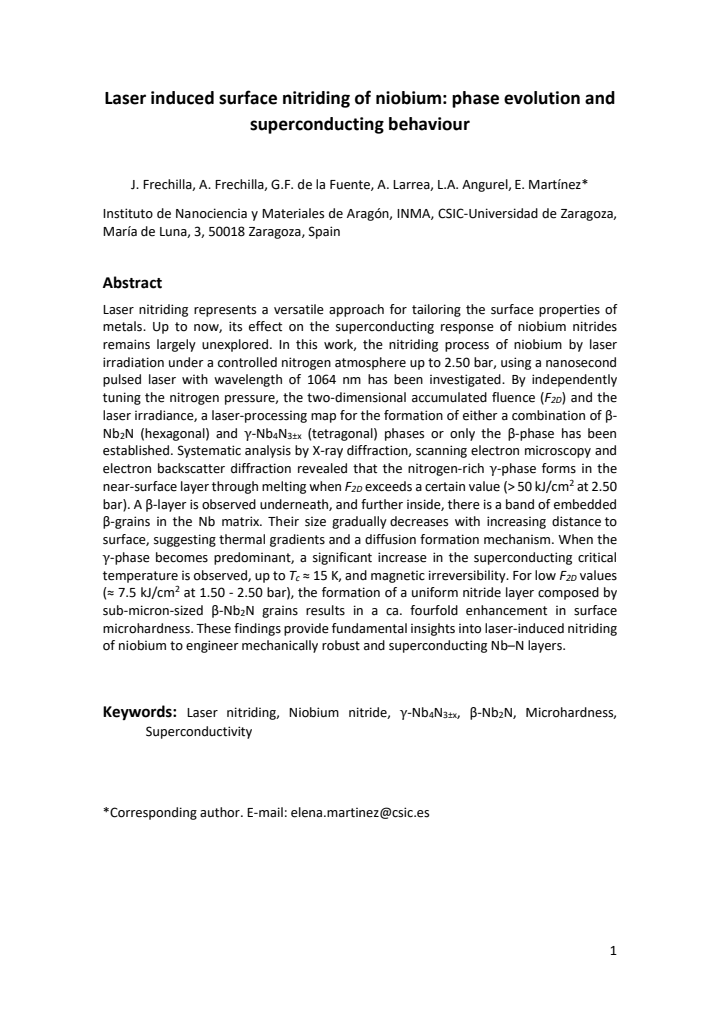

Laser induced surface nitriding of niobium: phase evolution and superconducting behaviour

J. Frechilla , A. Frechilla , G.F. de la Fuente , A. Larrea , L.A. Angurel , E. Mart\'inez This is my paper

Pith reviewed 2026-05-10 08:44 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci cond-mat.supr-con
keywords betalaserniobiumnitridingphasesuperconductingsurfaceformation
0
0 comments X

The pith

Laser nitriding of niobium produces controllable beta-Nb2N and gamma-Nb4N3 phases that deliver fourfold surface hardness gains at low fluence and raise superconducting critical temperature to 15 K when gamma phase dominates.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Laser nitriding uses a powerful laser beam to heat the surface of niobium metal while it sits in a chamber filled with nitrogen gas. The laser energy causes nitrogen atoms to react with the niobium, forming thin layers of niobium nitride compounds right on the surface. By changing the gas pressure, how much laser energy hits the surface over time, and the intensity of the laser pulses, the researchers created a map showing which conditions produce different types of nitride layers. At higher energy levels, a nitrogen-rich phase called gamma-Nb4N3 forms near the top surface after the material melts. Below that, a different phase called beta-Nb2N appears, and even deeper, small grains of beta phase sit inside the original niobium metal. The size of these grains gets smaller farther from the surface, pointing to how heat and atoms moving around create the layers. When the gamma phase covers most of the surface, the material starts to show superconductivity at temperatures up to 15 Kelvin, which is higher than usual for some niobium compounds, along with stronger resistance to magnetic fields. At lower energy settings, a smooth layer of tiny beta phase grains makes the surface about four times harder to scratch or dent. This work shows how laser processing can be tuned to create custom surface layers that combine good mechanical strength with useful superconducting behavior.

Core claim

When the γ-phase becomes predominant, a significant increase in the superconducting critical temperature is observed, up to Tc ≈ 15 K, and magnetic irreversibility. For low F2D values (≈ 7.5 kJ/cm² at 1.50-2.50 bar), the formation of a uniform nitride layer composed of sub-micron-sized β-Nb2N grains results in a ca. fourfold enhancement in surface microhardness.

Load-bearing premise

The assumption that XRD patterns alone unambiguously identify the β-Nb2N and γ-Nb4N3±x phases and that the observed grain-size gradient is caused solely by thermal gradients and diffusion without contributions from plasma chemistry or rapid quenching effects.

Figures

Figures reproduced from arXiv: 2604.15981 by A. Frechilla, A. Larrea, E. Mart\'inez, G.F. de la Fuente, J. Frechilla, L.A. Angurel.

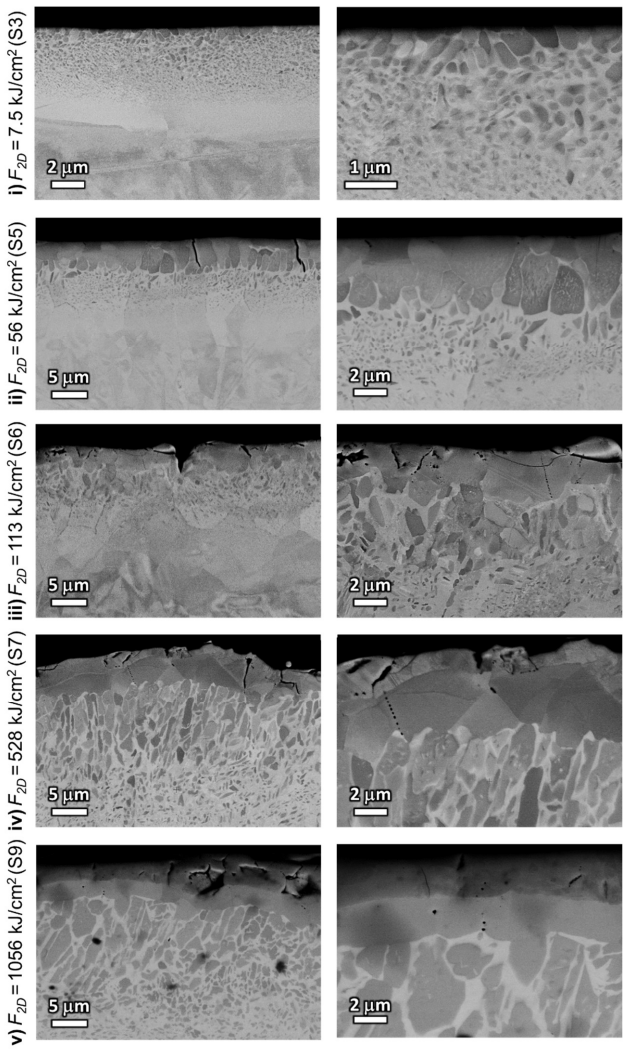

Figure 3
Figure 3. Figure 3: FESEM (AsB) images of the polished cross-sections of laser-nitrided niobium samples processed at different conditions (see table 1), taken at two different magnifications. Note that images of sample S3 are presented at a higher magnification to allow clearer visualization of the nitride layer. A detailed analysis of the distribution of the laser-generated nitrides was performed by EBSD experiments on polis… view at source ↗

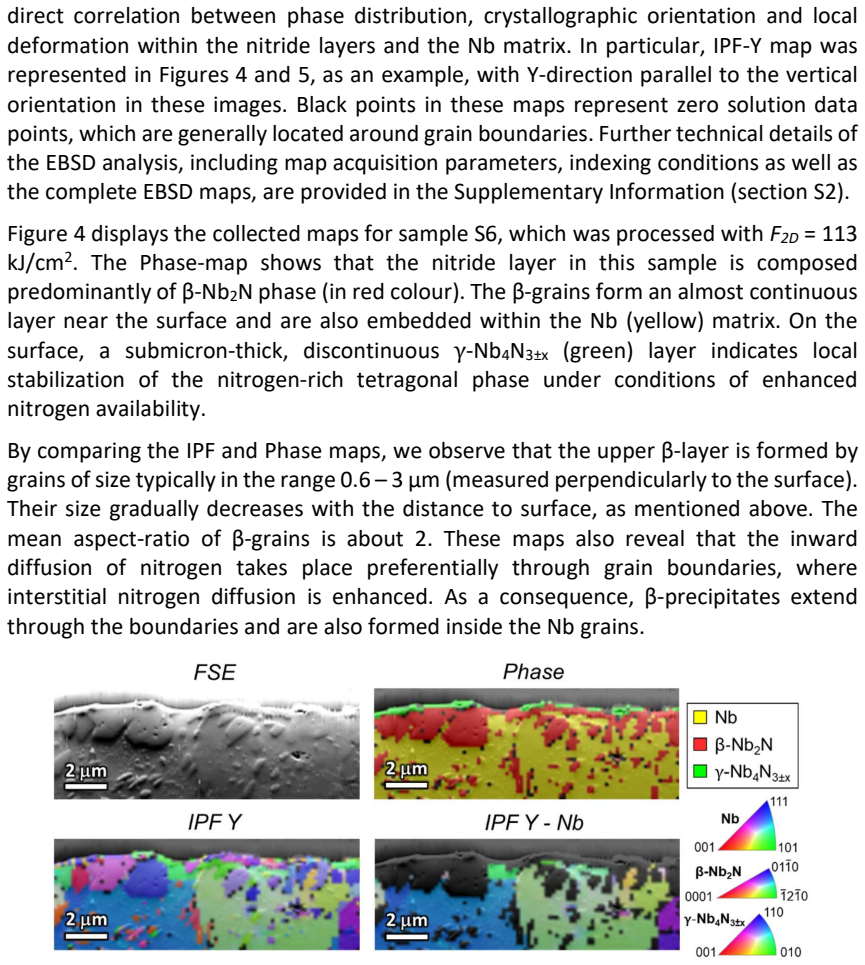

Figure 4
Figure 4. Figure 4: displays the collected maps for sample S6, which was processed with F2D = 113 kJ/cm2 . The Phase-map shows that the nitride layer in this sample is composed predominantly of β-Nb2N phase (in red colour). The β-grains form an almost continuous layer near the surface and are also embedded within the Nb (yellow) matrix. On the surface, a submicron-thick, discontinuous γ-Nb4N3±x (green) layer indicates local s… view at source ↗

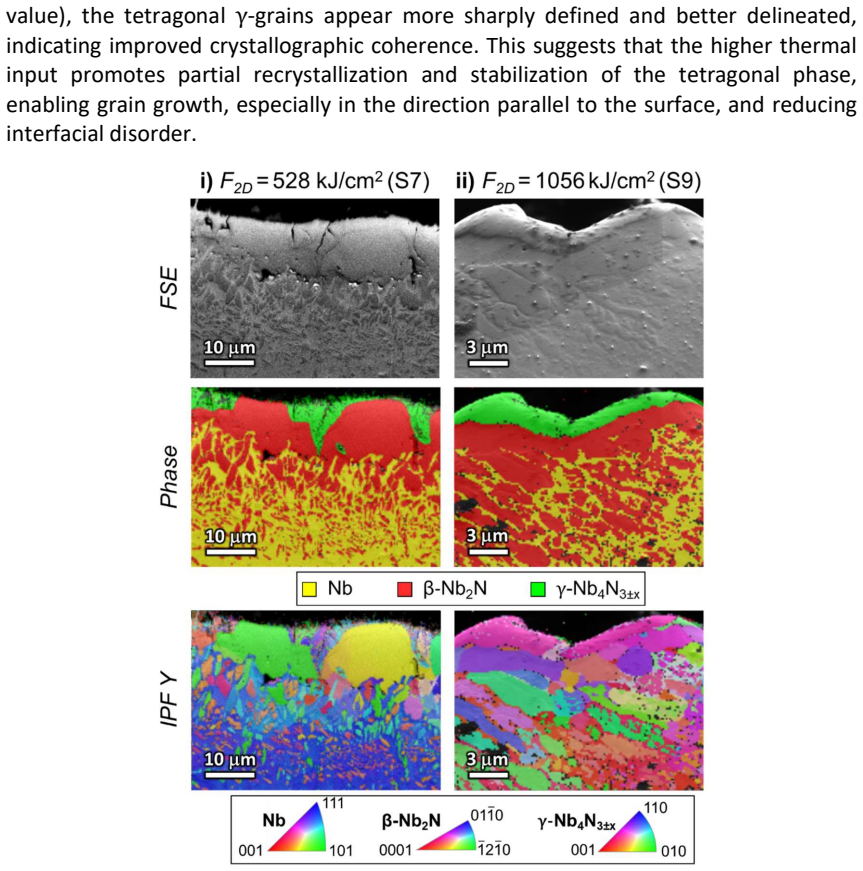

Figure 5
Figure 5. Figure 5: EBSD maps –FSE, Phase and IPF-Y, from top to bottom– of polished cross-sections of samples i) S7 and ii) S9. EBSD analysis confirms the absence of the cubic δ-NbN1-x phase in all these samples. As already mentioned in section 3.1, this is indicative of nitrogen deficiency at the surface for the temperature/pressure conditions used in the present work [41]. The formation of the -phase at temperatures near … view at source ↗

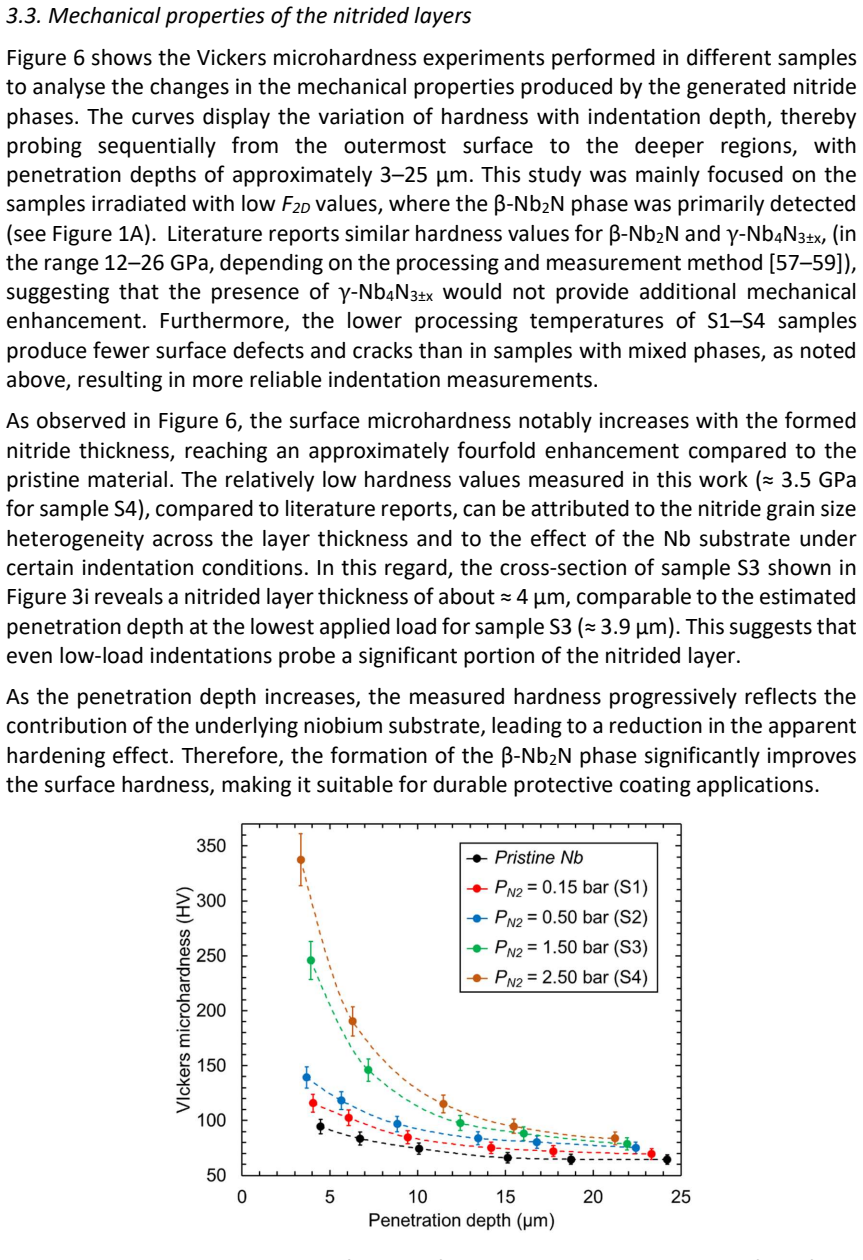

Figure 6
Figure 6. Figure 6: shows the Vickers microhardness experiments performed in different samples to analyse the changes in the mechanical properties produced by the generated nitride phases. The curves display the variation of hardness with indentation depth, thereby probing sequentially from the outermost surface to the deeper regions, with penetration depths of approximately 3–25 µm. This study was mainly focused on the sampl… view at source ↗

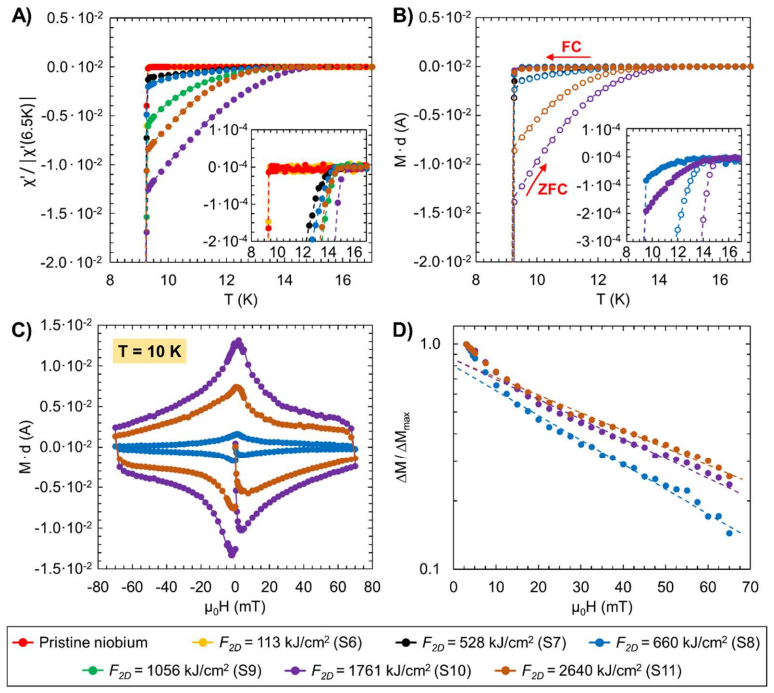

Figure 7
Figure 7. Figure 7: Superconducting properties measured on 2a x 2a processed samples at temperatures higher than Tc,Nb: A) AC susceptibility (in-phase component). B) ZFC–FC magnetization measurements (open-full symbols), plotted as M·d ≡ m/(2a) 2 , under an applied field of 2 mT (see text). C) Magnetization hysteresis loops, M(μ0H)·d , measured at 10 K and D) corresponding ΔM/ΔMmax calculated from C). The discontinuous lines … view at source ↗

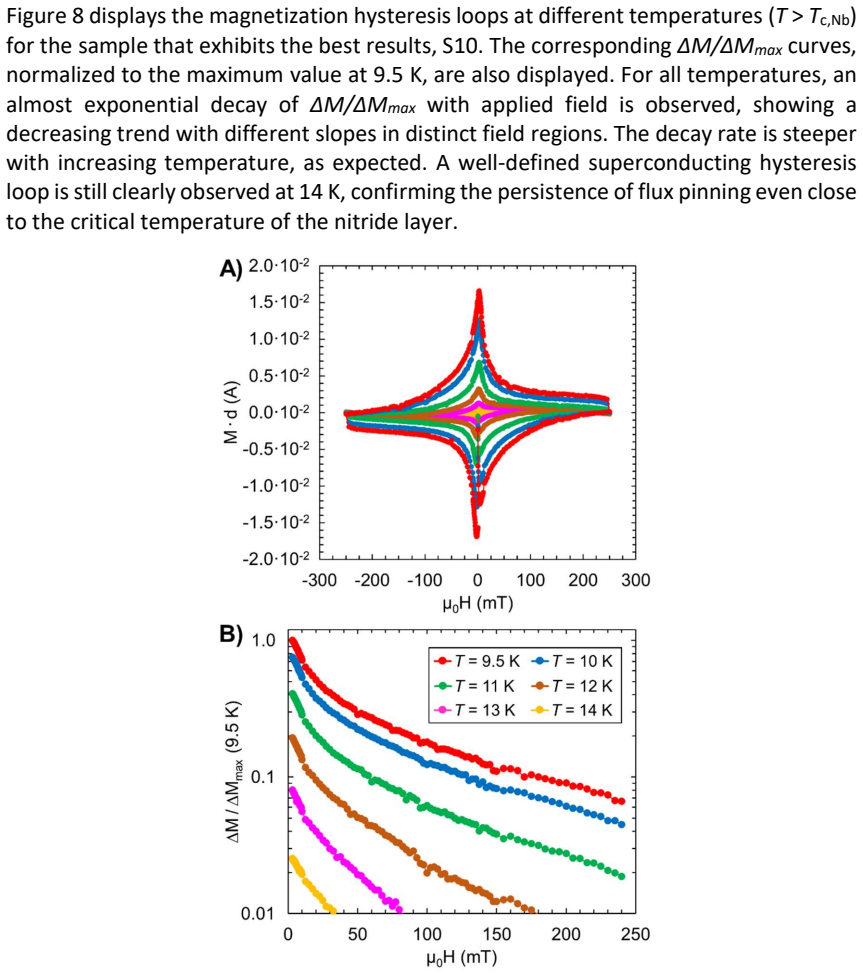

Figure 8
Figure 8. Figure 8: displays the magnetization hysteresis loops at different temperatures (T > Tc,Nb) for the sample that exhibits the best results, S10. The corresponding ΔM/ΔMmax curves, normalized to the maximum value at 9.5 K, are also displayed. For all temperatures, an almost exponential decay of ΔM/ΔMmax with applied field is observed, showing a decreasing trend with different slopes in distinct field regions. The deca… view at source ↗
read the original abstract

Laser nitriding represents a versatile approach for tailoring the surface properties of metals. Up to now, its effect on the superconducting response of niobium nitrides remains largely unexplored. In this work, the nitriding process of niobium by laser irradiation under a controlled nitrogen atmosphere up to 2.50 bar, using a nanosecond pulsed laser with wavelength of 1064 nm has been investigated. By independently tuning the nitrogen pressure, the two-dimensional accumulated fluence ($F_{2D}$) and the laser irradiance, a laser-processing map for the formation of either a combination of $\beta$-Nb$_2$N (hexagonal) and $\gamma$-Nb$_4$N$_{3\pm x}$ (tetragonal) phases or only the $\beta$-phase has been established. Systematic analysis by X-ray diffraction, scanning electron microscopy and electron backscatter diffraction revealed that the nitrogen-rich $\gamma$-phase forms in the near-surface layer through melting when $F_{2D}$ exceeds a certain value ($> 50 \,\mathrm{kJ/cm^2}$ at 2.50 bar). A $\beta$-layer is observed underneath, and further inside, there is a band of embedded $\beta$-grains in the Nb matrix. Their size gradually decreases with increasing distance to surface, suggesting thermal gradients and a diffusion formation mechanism. When the $\gamma$-phase becomes predominant, a significant increase in the superconducting critical temperature is observed, up to $T_c \approx 15\,\mathrm{K}$, and magnetic irreversibility. For low $F_{2D}$ values ($\approx 7.5 \,\mathrm{kJ/cm^2}$ at 1.50-2.50 bar), the formation of a uniform nitride layer composed of sub-micron-sized $\beta$-Nb$_2$N grains results in a ca. fourfold enhancement in surface microhardness. These findings provide fundamental insights into laser-induced nitriding of niobium to engineer mechanically robust and superconducting Nb-N layers.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript reports an experimental investigation of laser-induced nitriding of niobium under controlled nitrogen pressures (up to 2.5 bar) using a 1064 nm nanosecond pulsed laser. By varying nitrogen pressure, two-dimensional accumulated fluence F_{2D}, and irradiance, the authors establish a processing map showing formation of β-Nb₂N (hexagonal) alone or in combination with γ-Nb₄N_{3±x} (tetragonal). XRD, SEM, and EBSD characterization indicate that the nitrogen-rich γ-phase forms in the near-surface layer via melting above ~50 kJ/cm² at 2.5 bar, with a β-layer beneath and embedded β-grains deeper in the Nb matrix whose size decreases with depth. When γ-phase predominates, Tc rises to ~15 K with magnetic irreversibility; at low F_{2D} (~7.5 kJ/cm²), a uniform sub-micron β-Nb₂N layer yields ~4× surface microhardness increase.

Significance. If the phase–property correlations are robustly established, the work offers a practical laser-processing route to create Nb-N surface layers combining enhanced superconductivity (Tc up to 15 K) and mechanical hardness, relevant for superconducting RF cavities, coatings, or hybrid devices. The multi-technique tracking of microstructure and the fluence/pressure map constitute useful empirical guidance.

major comments (3)
  1. [Results (XRD and superconductivity subsections)] Results section (XRD analysis and phase-evolution discussion): The assignment of γ-Nb₄N_{3±x} predominance above ~50 kJ/cm² rests on qualitative inspection of XRD peak positions and intensities without Rietveld refinement, quantitative phase fractions, or intensity-ratio calibration. In the Nb-N system, β and γ reflections can overlap or shift with stoichiometry; absent orthogonal confirmation (e.g., XPS N stoichiometry or TEM), the claim that γ-phase predominance directly produces the Tc increase to ~15 K and irreversibility remains unsupported.
  2. [Abstract and superconductivity characterization] Abstract and superconductivity results: No error bars are reported on the Tc values, and the extraction method (onset, midpoint, or zero-resistance criterion) is not specified. These omissions are load-bearing for the central claim of a “significant increase” to Tc ≈ 15 K when γ-phase becomes predominant.
  3. [Discussion] Discussion of microstructure: The grain-size gradient is attributed solely to thermal gradients and diffusion, yet no experimental test or argument excludes contributions from plasma chemistry or rapid-quenching kinetics. This weakens the mechanistic interpretation even if the phase–Tc correlation is addressed.
minor comments (2)
  1. [Methods / Results] The definition and units of F_{2D} are introduced only in the abstract; a clear definition with units should appear in the methods or first results paragraph.
  2. [Figure captions] Figure captions for SEM/EBSD images should explicitly state the fluence, pressure, and depth for each panel to allow direct correlation with the processing map.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments, which have helped us identify areas where the manuscript can be strengthened. We address each major comment below and outline the revisions we will make.

read point-by-point responses

  1. Referee: Results section (XRD analysis and phase-evolution discussion): The assignment of γ-Nb₄N_{3±x} predominance above ~50 kJ/cm² rests on qualitative inspection of XRD peak positions and intensities without Rietveld refinement, quantitative phase fractions, or intensity-ratio calibration. In the Nb-N system, β and γ reflections can overlap or shift with stoichiometry; absent orthogonal confirmation (e.g., XPS N stoichiometry or TEM), the claim that γ-phase predominance directly produces the Tc increase to ~15 K and irreversibility remains unsupported.

    Authors: We agree that Rietveld refinement would provide stronger quantitative support for the phase fractions. In the revised manuscript we will add Rietveld analysis of the XRD patterns to extract phase fractions as a function of fluence and pressure, confirming the transition to γ-Nb₄N_{3±x} predominance above ~50 kJ/cm² at 2.5 bar. We will also include intensity-ratio calibration where possible. While XPS and TEM were not performed in this study, the combination of XRD peak matching, SEM cross-sections showing the near-surface layer, and EBSD phase mapping already provides orthogonal microstructural evidence for the γ-phase location. The Tc increase to ~15 K is observed precisely when the processing map indicates γ predominance; we will rephrase the text to state that the correlation is supported by the fluence threshold rather than claiming direct causation from phase fraction alone. revision: yes

  2. Referee: Abstract and superconductivity results: No error bars are reported on the Tc values, and the extraction method (onset, midpoint, or zero-resistance criterion) is not specified. These omissions are load-bearing for the central claim of a “significant increase” to Tc ≈ 15 K when γ-phase becomes predominant.

    Authors: We accept this criticism. In the revised version we will specify that Tc is determined using the onset criterion (10% of the normal-state resistance drop) and will report error bars derived from repeated measurements on multiple samples. The abstract will be updated accordingly to reflect the revised presentation of the Tc data while retaining the observed increase to approximately 15 K under γ-dominant conditions. revision: yes

  3. Referee: Discussion of microstructure: The grain-size gradient is attributed solely to thermal gradients and diffusion, yet no experimental test or argument excludes contributions from plasma chemistry or rapid-quenching kinetics. This weakens the mechanistic interpretation even if the phase–Tc correlation is addressed.

    Authors: We will expand the discussion to acknowledge that plasma chemistry and rapid-quenching effects cannot be entirely ruled out with the present data. However, the observed monotonic decrease in β-grain size with depth correlates directly with the expected thermal gradient from the laser-melted surface, and the grain-size trend persists across different nitrogen pressures where plasma conditions vary. We will add a brief paragraph noting these alternative mechanisms as possible secondary contributions while maintaining that thermal diffusion remains the dominant explanation supported by the depth-dependent EBSD observations and fluence dependence. revision: partial

Circularity Check

0 steps flagged

No circularity: purely experimental observations without derived predictions or self-referential definitions

full rationale

This is a purely experimental materials-science study. The authors perform laser nitriding under controlled conditions, characterize phases and microstructures via XRD, SEM, and EBSD, and report direct measurements of Tc (up to ~15 K) and microhardness enhancement. No equations, models, fitted parameters, or 'predictions' are presented that reduce by construction to author-defined inputs. Phase identification and property correlations rest on standard empirical techniques and direct observation; the processing map is established from experimental outcomes rather than any self-referential derivation. No load-bearing self-citations or ansatzes appear in the provided text.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

No free parameters or invented entities are introduced. The work rests on two standard domain assumptions in materials science.

axioms (2)
  • domain assumption X-ray diffraction patterns can be used to unambiguously identify β-Nb2N (hexagonal) and γ-Nb4N3±x (tetragonal) phases
    Invoked when the authors assign phases from XRD data without additional verification methods mentioned in the abstract.
  • domain assumption The observed decrease in β-grain size with depth is caused by thermal gradients and diffusion
    Stated as the suggested formation mechanism for the embedded-grain band.

pith-pipeline@v0.9.0 · 5700 in / 1740 out tokens · 68934 ms · 2026-05-10T08:44:22.309500+00:00 · methodology
