Strain-induced modification of spin-optical dynamics in silicon vacancy centers for integrated quantum technologies

Maximilian Hollendonner , Fedor Dzmitryevich Hrunski , Daniel Scheller , Kim Ullerich , Shravan Kumar Parthasarathy , Wolfgang Knolle , Maximilian Schober , Mirjam Neubauer
show 3 more authors
Durga Bhaktavatsala Rao Dasari Michel Bockstedte Roland Nagy
This is my paper

Pith reviewed 2026-05-10 08:40 UTC · model grok-4.3

classification 🪐 quant-ph
keywords silicon vacancy centersstrain effectsmetastable statesspin-optical dynamicsphoton emissionsilicon carbidequantum technologiesoptical pulse sequences
0
0 comments X

The pith

Strain reduces transition rates from the lowest metastable state to the ground state quartet in silicon vacancy centers, leading to decreased photon emission.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper examines how lattice strain alters the spin and optical behavior of silicon vacancy centers in 4H silicon carbide, a material suited for scalable quantum devices. The authors combine custom optical pulse sequences with an effective spin-3/2 strain model to separate the contributions of axial and transverse strain to the dynamics of the metastable states. They show that strain lowers the rates at which the lowest metastable state decays into the ground state quartet. This change directly reduces the number of photons emitted by the centers. The result matters because real integrated devices will contain strain from fabrication and packaging, and the optical output governs how reliably these centers can perform initialization and readout tasks.

Core claim

By designing fully optical pulse sequences and incorporating the effective spin-3/2 strain Hamiltonian into the analysis, the work isolates axial and transverse strain contributions to the metastable state dynamics. The central result is that strain significantly reduces the transition rates from the energetically lowest metastable state to the ground state quartet, leading to decreased photon emission. First-principles calculations support the observed modification and supply guidance for operating these centers in realistic, strain-containing environments.

What carries the argument

Effective spin-3/2 strain Hamiltonian together with designed optical pulse sequences that isolate axial and transverse strain effects on metastable state transition rates.

If this is right

  • Photon emission rates from silicon vacancy centers will be lower in any strained device environment.
  • Initialization fidelity and state lifetimes in quantum protocols will vary with local strain levels.
  • Device fabrication and integration steps must include strain control or compensation to maintain consistent optical performance.
  • First-principles calculations can be used to forecast strain-induced changes in similar defect centers.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Strain could be deliberately introduced or patterned during fabrication to tune emission rates for specific quantum sensing or communication tasks.
  • The same strain dependence may appear in other semiconductor defect centers, suggesting a general design rule for integrated quantum hardware.
  • Calibration routines that map local strain to optical output could improve the yield and reliability of large-scale VSi-based chips.

Load-bearing premise

The optical pulse sequences and effective spin-3/2 strain Hamiltonian accurately isolate axial and transverse strain contributions to the metastable state dynamics without confounding effects from other interactions or experimental artifacts.

What would settle it

Measuring the transition rates or photon counts from the lowest metastable state in VSi centers subjected to independently calibrated and varied strain, and finding no reduction in those rates, would refute the claimed modification.

Figures

Figures reproduced from arXiv: 2604.16194 by Daniel Scheller, Durga Bhaktavatsala Rao Dasari, Fedor Dzmitryevich Hrunski, Kim Ullerich, Maximilian Hollendonner, Maximilian Schober, Michel Bockstedte, Mirjam Neubauer, Roland Nagy, Shravan Kumar Parthasarathy, Wolfgang Knolle.

Figure 2

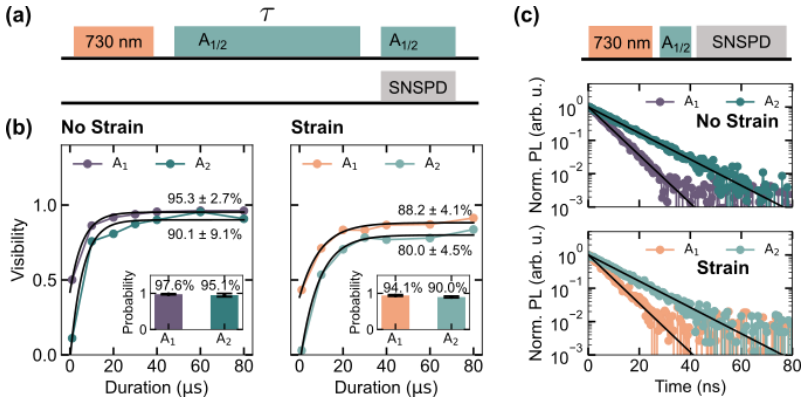

Figure 2. Figure 2: (a) Pulse sequence for ground state visibility measurements. The ground state population is inferred purely optically by an initial 730 nm laser pulse to ensure the correct charge state. The visibility after resonant illumination along A1/2 for duration 𝜏 is inferred by probing the 𝑚𝑠 = ± 1 2 , ± 3 2 populations with a second laser pulse. Comparison of the detected photoluminescence yields the visibility w… view at source ↗
Figure 4
Figure 4. Figure 4: (a) Resonant spin depletion. First, the system is initialized into a ground state steady-state through the 730 nm (50 𝜇𝑊) laser, applied for 40 𝜇𝑠. After a short delay of 2 𝜇𝑠, the VSi is pumped into |𝑔, ±3/2⟩ (|𝑔, ±1/2⟩) by illuminating with A1 (A2) for 40 𝜇𝑠 at powers from 5 nW to 30 nW. Purple (green) are measurements without (with) strain. Through fitting the Lindblad master equation on our data, we de… view at source ↗
Figure 5

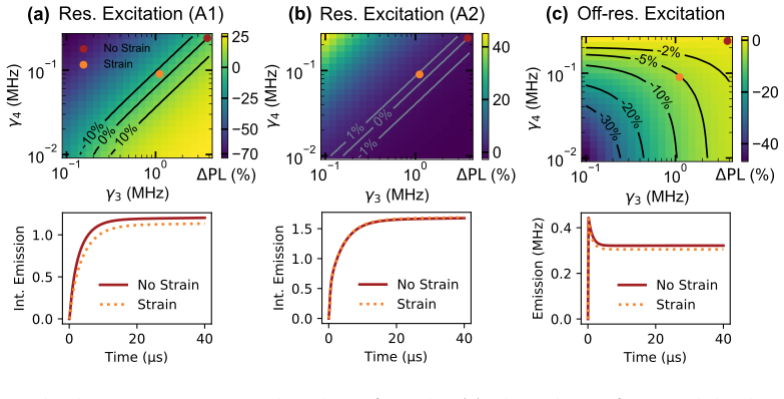

Figure 5. Figure 5: Simulated VSi emission properties in dependence of 𝛾3 and 𝛾4. (a) Relative change of integrated photoluminescence emission upon 40 µs long resonant excitation along A1, with respect to the photoluminescence as obtained for the unstrained color center. Lower plot: Simulated integrated emission of both color centers for durations from 0 − 40 𝜇𝑠. (b) Same simulation as in (a), except that resonant excitation … view at source ↗
read the original abstract

Silicon vacancy (VSi) centers in 4H silicon carbide have emerged as a highly promising platform for semiconductor-based quantum technologies, combining excellent spin and optical properties with an industrial-grade, CMOS-compatible material. As these defects are increasingly integrated into practical quantum devices, they inevitably encounter lattice strain. However, while the impact of strain is well documented for other solid-state defects like NV centers in diamond, its specific influence on key VSi spin dynamics such as initialization fidelity and state lifetimes remain largely unexplored. In this work, we address this critical gap by designing fully optical pulse sequences and incorporating the effective spin-3/2 strain Hamiltonian into our analysis. This combined approach allows us to isolate both axial and transverse strain contributions and systematically characterize their effect on the metastable state transition rates. Specifically, we reveal that strain significantly reduces the transition rates from the energetically lowest metastable state to the ground state quartet, leading to decreased photon emission. Supported by first-principles calculations, our findings provide a deeper understanding of VSi spin-strain dynamics, yielding crucial insights for the robust deployment of these centers in realistic, strain-prone environments.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript investigates the effects of lattice strain on the spin-optical dynamics of silicon vacancy (VSi) centers in 4H-SiC. The authors design fully optical pulse sequences and incorporate an effective spin-3/2 strain Hamiltonian to isolate axial and transverse strain contributions to the transition rates involving the metastable state. They report that strain significantly reduces the transition rates from the energetically lowest metastable state to the ground state quartet, resulting in decreased photon emission, with supporting first-principles calculations. The work aims to provide insights for deploying these centers in realistic, strain-prone quantum devices.

Significance. If the central result holds, the findings would be significant for advancing VSi centers toward practical integrated quantum technologies. These defects combine favorable spin and optical properties with CMOS compatibility, and clarifying strain effects on initialization fidelity and state lifetimes addresses a documented gap relative to better-studied systems such as NV centers. The optical-only control approach and ab initio support could inform device engineering where strain is unavoidable.

major comments (2)
  1. [Results] The central claim that strain reduces transition rates from the lowest metastable state is presented without quantitative values, error bars, or detailed fitting results from the pulse-sequence analysis or first-principles calculations, preventing verification of the magnitude and statistical significance of the reported effect.
  2. [Methods] The assumption that the effective spin-3/2 strain Hamiltonian combined with the designed optical pulse sequences isolates axial and transverse contributions without confounding interactions is not supported by explicit validation, cross-checks against the full Hamiltonian, or analysis of potential artifacts (see the section describing the pulse sequences and Hamiltonian incorporation).
minor comments (2)
  1. [Abstract] The abstract would benefit from including at least one specific numerical example of the reported rate reduction or the strain values considered to give readers immediate context.
  2. Notation for the strain components (axial vs. transverse) and metastable-state labels should be defined consistently in a table or early in the text to improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed review of our manuscript on strain effects in VSi centers. The comments identify opportunities to strengthen the quantitative presentation and methodological validation, and we address each point below with plans for revision.

read point-by-point responses

  1. Referee: [Results] The central claim that strain reduces transition rates from the lowest metastable state is presented without quantitative values, error bars, or detailed fitting results from the pulse-sequence analysis or first-principles calculations, preventing verification of the magnitude and statistical significance of the reported effect.

    Authors: We agree that the manuscript would benefit from explicit quantitative reporting to allow verification. In the revised version, we will add the extracted transition rate values (with error bars) obtained from fits to the optical pulse sequence data, as well as the corresponding numerical results from the first-principles calculations including any reported uncertainties. These additions will quantify the reduction in rates from the lowest metastable state and enable assessment of the effect size and significance. revision: yes

  2. Referee: [Methods] The assumption that the effective spin-3/2 strain Hamiltonian combined with the designed optical pulse sequences isolates axial and transverse contributions without confounding interactions is not supported by explicit validation, cross-checks against the full Hamiltonian, or analysis of potential artifacts (see the section describing the pulse sequences and Hamiltonian incorporation).

    Authors: The optical pulse sequences were designed to address specific transitions while the effective spin-3/2 Hamiltonian approximates the dominant strain-induced shifts for the metastable and ground states. To provide the requested validation, the revised manuscript will include direct comparisons of results obtained with the effective Hamiltonian versus simulations using the full spin Hamiltonian, together with an analysis of possible artifacts from pulse timing or strain mixing. This will explicitly demonstrate the isolation of axial and transverse contributions. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The paper's central claim—that strain reduces transition rates from the lowest metastable state—is obtained by incorporating a standard effective spin-3/2 strain Hamiltonian (a field-established tool) together with first-principles calculations and custom optical pulse sequences. These elements are applied to isolate axial and transverse strain effects on metastable-state dynamics; the resulting reduction in photon emission is an output of that analysis rather than a quantity defined in terms of itself or recovered by construction from fitted parameters. No self-definitional loops, fitted-input predictions, load-bearing self-citations, or ansatz smuggling appear in the derivation chain. The work therefore remains externally benchmarkable against independent Hamiltonian models and ab-initio methods.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The analysis relies on the standard effective spin-3/2 Hamiltonian for strain coupling in defect centers plus first-principles electronic-structure calculations; no new entities are postulated.

free parameters (1)
  • axial and transverse strain components
    Values incorporated into the effective Hamiltonian to isolate directional contributions; likely determined from experiment or simulation.
axioms (1)
  • domain assumption The effective spin-3/2 strain Hamiltonian accurately captures the interaction of lattice strain with the VSi electronic states.
    Invoked to analyze and interpret the optical dynamics data.
