A High-Accuracy Optical Music Recognition Method Based on Bottleneck Residual Convolutions

Junwen Ma , Huhu Xue , Xingyuan Zhao , and Weicheng Fu This is my paper

Pith reviewed 2026-05-10 18:46 UTC · model grok-4.3

classification 💻 cs.CV cs.LGcs.SDeess.AS
keywords optical music recognitionresidual convolutional networksbidirectional GRUconnectionist temporal classificationend-to-end sequence recognitionmusic score transcription
0
0 comments X

The pith

Combining residual bottleneck convolutions with BiGRU enables end-to-end optical music recognition with sub-1% symbol error rates on standard benchmarks.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops an end-to-end system for turning images of music scores into symbolic notation. It uses a CNN built from residual bottleneck blocks and multi-scale dilated convolutions to pull out both local symbol shapes and broader staff structures. These features go into a bidirectional GRU that learns the order of notes and symbols. Training relies on CTC loss, which removes the need for manual alignment of symbols to image positions. The approach reaches very low error rates on two public datasets of printed music, suggesting it could speed up digitizing large archives of scores.

Core claim

The proposed framework extracts features using a ResNet-v2-style network with residual bottleneck blocks and multi-scale dilated convolutions, then models temporal dependencies with BiGRU, trained end-to-end via CTC loss. This yields sequence error rates of 7.52% and 8.11% on Camera-PrIMuS and PrIMuS, respectively, along with symbol error rates below 0.5% and note accuracies above 99%.

What carries the argument

Residual bottleneck convolution blocks combined with multi-scale dilated convolutions in a CNN front-end feeding a BiGRU sequence model, trained with CTC loss.

If this is right

  • The model can transcribe music scores without requiring explicit alignment annotations during training.
  • It maintains high computational efficiency with average training time of 1.74 seconds per epoch.
  • Fine-grained error analysis shows effectiveness across pitch, type, and note recognition.
  • The same architecture works on both Camera-PrIMuS and PrIMuS datasets with comparable performance.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the feature encoding generalizes, this could extend to handwritten scores or more complex polyphonic music without major redesign.
  • The efficiency suggests it could be applied to real-time or large-scale batch processing of historical music collections.
  • Performance on noisy or degraded scans remains untested and could be a next step.

Load-bearing premise

The residual bottleneck convolutions plus BiGRU will encode musical symbol features well enough to generalize to unseen score images without overfitting to the training distributions.

What would settle it

Running the model on a new dataset of music scores with different fonts, layouts, or image qualities and observing whether the symbol error rate remains below 1%.

Figures

Figures reproduced from arXiv: 2604.16446 by and Weicheng Fu, Huhu Xue, Junwen Ma, Xingyuan Zhao.

Figure 1
Figure 1. Figure 1: Architecture of the proposed end-to-end Optical Music Recognition model based on bottleneck residual convolution and BiGRU. The model consists [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

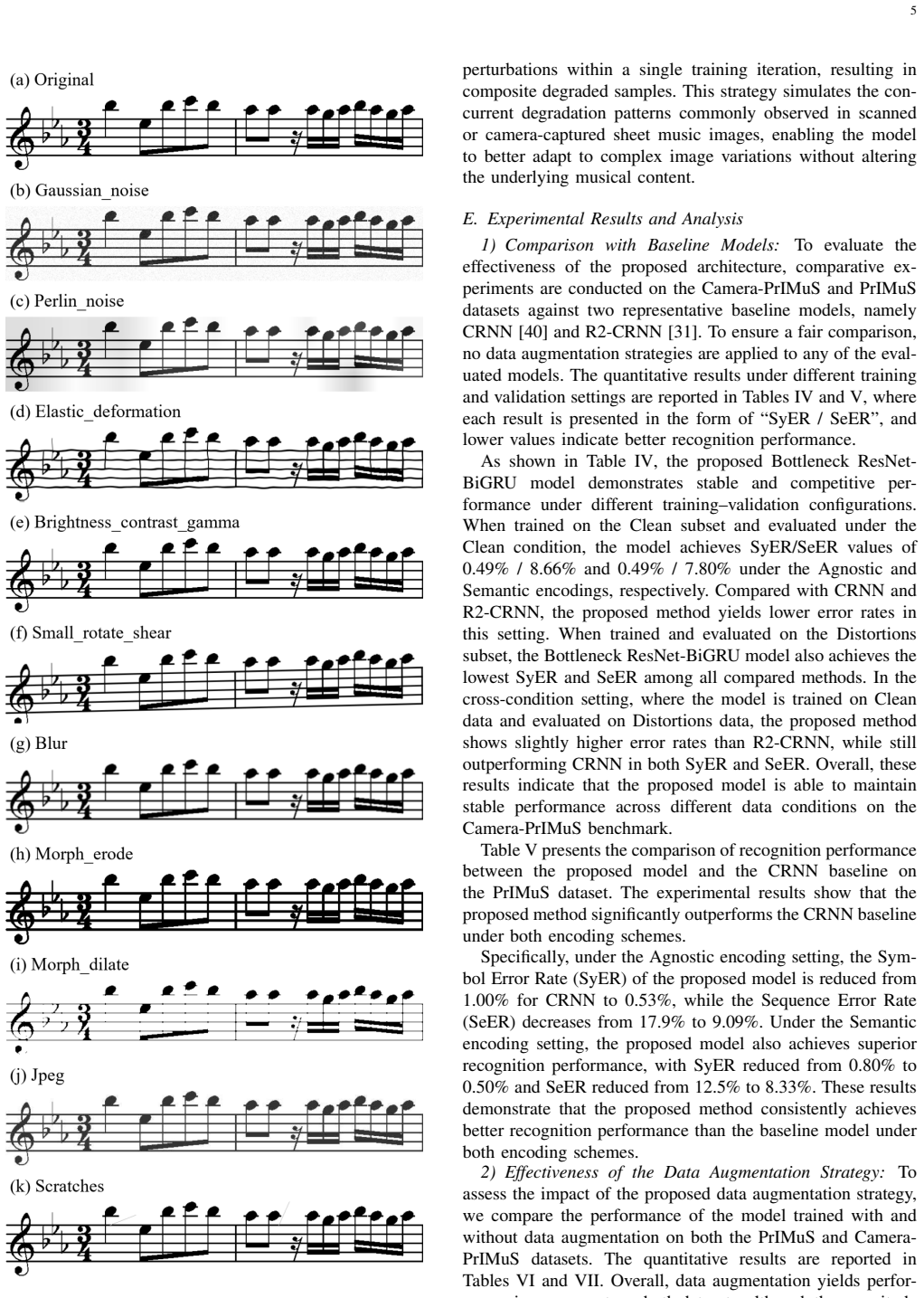

Figure 2. Figure 2: Comparison between the original music score image and its augmented [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
read the original abstract

Optical Music Recognition (OMR) aims to convert printed or handwritten music score images into editable symbolic representations. This paper presents an end-to-end OMR framework that combines residual bottleneck convolutions with bidirectional gated recurrent unit (BiGRU)-based sequence modeling. A convolutional neural network with ResNet-v2-style residual bottleneck blocks and multi-scale dilated convolutions is used to extract features that encode both fine-grained symbol details and global staff-line structures. The extracted feature sequences are then fed into a BiGRU network to model temporal dependencies among musical symbols. The model is trained using the Connectionist Temporal Classification loss, enabling end-to-end prediction without explicit alignment annotations. Experimental results on the Camera-PrIMuS and PrIMuS datasets demonstrate the effectiveness of the proposed framework. On Camera-PrIMuS, the proposed method achieves a sequence error rate (SeER) of $7.52\%$ and a symbol error rate (SyER) of $0.45\%$, with pitch, type, and note accuracies of $99.33\%$, $99.60\%$, and $99.28\%$, respectively. The average training time is 1.74~s per epoch, demonstrating high computational efficiency while maintaining strong recognition performance. On PrIMuS, the method achieves a SeER of $8.11\%$ and a SyER of $0.49\%$, with pitch, type, and note accuracies of $99.27\%$, $99.58\%$, and $99.21\%$, respectively. A fine-grained error analysis further confirms the effectiveness of the proposed model.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes an end-to-end Optical Music Recognition (OMR) framework that employs a CNN built from ResNet-v2-style residual bottleneck blocks augmented with multi-scale dilated convolutions to extract features encoding both local symbol details and global staff structures, followed by a BiGRU for temporal sequence modeling. The model is trained with CTC loss to avoid explicit alignment annotations. It reports concrete performance on the Camera-PrIMuS dataset (SeER 7.52%, SyER 0.45%, pitch/type/note accuracies 99.33%/99.60%/99.28%) and PrIMuS dataset (SeER 8.11%, SyER 0.49%, accuracies 99.27%/99.58%/99.21%), plus average training time of 1.74 s/epoch and a fine-grained error analysis.

Significance. If substantiated by comparisons, the reported error rates and computational efficiency could indicate a practical advance in OMR by showing that bottleneck residuals plus dilated convolutions and BiGRU can deliver high symbol-level accuracy without alignment supervision. The end-to-end CTC training and fine-grained error breakdown are positive elements that align with standard practices in sequence recognition. However, the lack of controls currently prevents determining whether these numbers reflect architectural superiority or other factors.

major comments (3)
  1. [Experimental Results] Experimental Results section: The headline metrics (SeER 7.52% and SyER 0.45% on Camera-PrIMuS; pitch/type/note accuracies >99%) are presented without any quantitative baseline comparisons to prior OMR systems (e.g., CRNN, other ResNet variants, or attention models) on identical dataset splits. This omission directly undermines the central claim that the bottleneck residual convolutions and BiGRU supply superior feature encoding.
  2. [Experimental Results] Experimental Results section: No ablation experiments are reported that isolate the contribution of the multi-scale dilated convolutions, the residual bottleneck blocks, or the BiGRU component. Without these controls, the attribution of the low error rates and high accuracies to the proposed architecture remains unverified.
  3. [Model and Training] Model and Training description: Hyperparameter settings, learning-rate schedule, data splits, and any statistical significance tests for the reported metrics are absent. These details are load-bearing for reproducing and assessing the claimed performance and efficiency (1.74 s/epoch).
minor comments (2)
  1. [Abstract] The abstract introduces SeER and SyER without a brief definition or reference to their standard formulation in OMR literature.
  2. [Figures and Tables] Figure captions and table headers could more explicitly link visual results to the quantitative error rates and accuracy breakdowns.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive feedback and the recommendation for major revision. We agree that strengthening the experimental section with baselines, ablations, and reproducibility details will better support our claims, and we will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Experimental Results] Experimental Results section: The headline metrics (SeER 7.52% and SyER 0.45% on Camera-PrIMuS; pitch/type/note accuracies >99%) are presented without any quantitative baseline comparisons to prior OMR systems (e.g., CRNN, other ResNet variants, or attention models) on identical dataset splits. This omission directly undermines the central claim that the bottleneck residual convolutions and BiGRU supply superior feature encoding.

    Authors: We agree that direct quantitative comparisons on identical splits are essential to substantiate the advantages of our architecture. In the revised manuscript, we will add comparisons to prior OMR systems including CRNN, other ResNet variants, and attention-based models using the same Camera-PrIMuS and PrIMuS dataset splits, allowing clear evaluation of the contributions from the residual bottleneck blocks and BiGRU. revision: yes

  2. Referee: [Experimental Results] Experimental Results section: No ablation experiments are reported that isolate the contribution of the multi-scale dilated convolutions, the residual bottleneck blocks, or the BiGRU component. Without these controls, the attribution of the low error rates and high accuracies to the proposed architecture remains unverified.

    Authors: We acknowledge that ablation studies are required to isolate component contributions. We will include ablation experiments in the revision that systematically evaluate variants with and without the multi-scale dilated convolutions, residual bottleneck blocks, and BiGRU, reporting the resulting changes in SeER, SyER, and accuracies on both datasets. revision: yes

  3. Referee: [Model and Training] Model and Training description: Hyperparameter settings, learning-rate schedule, data splits, and any statistical significance tests for the reported metrics are absent. These details are load-bearing for reproducing and assessing the claimed performance and efficiency (1.74 s/epoch).

    Authors: We will expand the Model and Training section in the revision to provide full hyperparameter settings, the learning-rate schedule, exact data splits, and statistical significance analysis (including means and standard deviations from multiple runs with different random seeds) to ensure full reproducibility and proper assessment of the reported metrics and efficiency. revision: yes

Circularity Check

0 steps flagged

No circularity: purely empirical model evaluation on external datasets

full rationale

The paper describes a CNN-BiGRU architecture (ResNet-v2 bottleneck blocks + multi-scale dilated convolutions + BiGRU + CTC loss) and reports direct performance metrics (SeER, SyER, pitch/type/note accuracies) on the public Camera-PrIMuS and PrIMuS datasets. No derivation chain exists; there are no equations, no fitted parameters renamed as predictions, no self-citations invoked as uniqueness theorems, and no ansatz or renaming of known results. The reported numbers are standard test-set outputs of a trained model and do not reduce to the inputs by construction. This is a normal non-circular empirical ML paper.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard deep learning assumptions about feature extraction and sequence modeling; no new entities are introduced and the performance numbers depend on empirical tuning rather than derivation.

free parameters (2)
  • Convolution kernel sizes, dilation rates, and channel dimensions
    Chosen to capture multi-scale staff and symbol features but specific values not provided in abstract.
  • BiGRU hidden size, number of layers, and learning rate schedule
    Hyperparameters for sequence modeling tuned for the task but not detailed.
axioms (2)
  • domain assumption CTC loss enables end-to-end training of sequence models without explicit alignment annotations
    Standard assumption in handwriting and speech recognition tasks applied here to music symbols.
  • standard math Residual bottleneck blocks improve gradient flow and feature extraction in deep CNNs for structured images
    Based on established ResNet-v2 literature.
