Positioning radiata pine branches requiring pruning by drone stereo vision

Yida Lin , Bing Xue , Mengjie Zhang , Sam Schofield , Richard Green
Authors on Pith no claims yet

Pith reviewed 2026-05-10 15:45 UTC · model grok-4.3

classification 💻 cs.CV
keywords drone stereo visionbranch detectionradiata pinepruning automationdepth estimationsegmentationforestry robotics
0
0 comments X

The pith

A drone stereo vision system can localize radiata pine branches for pruning using deep learning depth estimates.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops a drone-mounted stereo camera pipeline to detect radiata pine branches and compute their 3D positions for autonomous pruning support. The system segments branches with networks such as YOLOv8 and Mask R-CNN, estimates depth with both traditional and deep learning stereo matchers, and then triangulates branch centroids from the resulting masks and disparity maps. Qualitative tests on 71 custom stereo pairs taken at 1-2 meters show that deep learning disparity maps produce smoother depth values than the SGBM baseline. If the approach works at these ranges, it would let low-cost drones guide robotic pruners without constant human control. The work targets the practical problem of scaling branch removal in commercial pine forests where manual work is slow and hazardous.

Core claim

The paper shows that deep-learning stereo matching yields more coherent disparity maps than semi-global block matching on close-range images of pine branches, and that feeding these maps plus segmentation masks into a centroid triangulation step with median absolute deviation filtering produces usable branch distance estimates from inexpensive hardware.

What carries the argument

The centroid-based triangulation algorithm that merges branch segmentation masks with disparity maps and applies median absolute deviation outlier rejection to derive branch distances from stereo image pairs.

If this is right

  • Deep learning disparity estimation becomes the stronger choice over classic block matching for coherent depth in this forestry imaging setting.
  • Low-cost stereo cameras on drones can supply the positioning data needed to identify pruning targets at 1-2 m ranges.
  • Segmentation models trained on pine-specific data can isolate individual branches amid foliage for downstream triangulation.
  • The two-stage pipeline of segmentation followed by depth-aware triangulation offers a complete route from raw stereo images to metric branch locations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Pairing the output positions with a robotic cutter arm could produce drones that both locate and remove branches in one flight pass.
  • Scaling the method beyond 2 m or into denser canopies will likely need explicit handling of wind sway and variable lighting.
  • Quantitative accuracy checks against independent range sensors in real stands would be the next required step after the current visual comparisons.
  • The modest dataset size implies that pre-training on general stereo data is helpful but may still leave gaps when moving to other tree species or seasons.

Load-bearing premise

That smoother-looking disparity maps from deep learning on a small custom set of 71 close-range image pairs will deliver accurate enough 3D branch positions for real autonomous pruning operations outdoors.

What would settle it

A field trial that compares the system's computed branch distances against precise ground-truth laser measurements in an actual radiata pine plantation, where average errors larger than 10 cm at 1.5 m distance would show the method is not yet reliable for pruning guidance.

Figures

Figures reproduced from arXiv: 2604.16480 by Bing Xue, Mengjie Zhang, Richard Green, Sam Schofield, Yida Lin.

Figure 1
Figure 1. Figure 1: The drone, equipped with a ZED Mini camera for stereo vision and a robotic arm, autonomously detects and prunes branches of radiata pine. The ZED Mini camera enables the drone to accurately identify the branches, while the robotic arm precisely prunes them. 2 [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Triangulation using Two Cameras to Obtain the Depth Map. The point (ul , vl) represents the projection of point p(x, y, z) in three-dimensional space onto the image plane of the left camera, whereas point (ur, vr) corresponds to the projection of the same point onto the right camera’s image plane. The variable b denotes the baseline distance separating the left and right cameras [PITH_FULL_IMAGE:figures/f… view at source ↗
Figure 3
Figure 3. Figure 3: Triangulation using Two Cameras to Obtain the Depth Map. f represents the camera’s focal length. With the values of f, b (the baseline distance between the cameras), and the disparity of point p(x, y, z) between the left and right camera images, we can calculate the distance z from the pixel representing point p in space to the camera. 5 [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

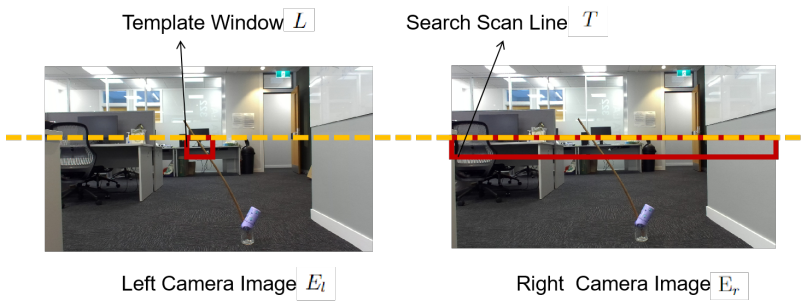

Figure 4. Figure 4: Block Matching illustration. L denotes the template window and T the search scan line. The left camera image El serves as the reference, and the corresponding pixel is located in Er. value at position (x, y) in the left image, and Er(x+d, y) represents the pixel intensity value at position (x+d, y) in the right image, where d is the disparity. These formulas are as follows. AD calculates the absolute inten… view at source ↗
Figure 5
Figure 5. Figure 5: SGBM disparity map generation pipeline: (a, b) original left and right images, (c, d) pre-processed images, (e) SGBM-generated disparity map, and (f) WLS-refined disparity map. 12 [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
Figure 6

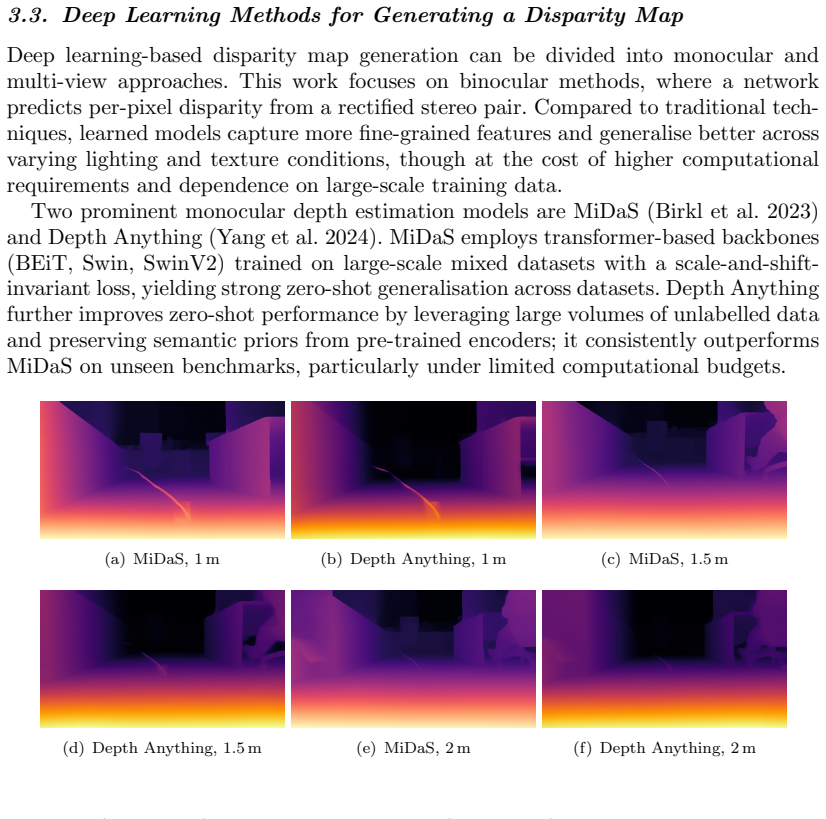

Figure 6. Figure 6: Comparison of depth maps generated by MiDaS and Depth Anything models at branch distances of 1m, 1.5m, and 2m from the camera We chose to use stereo depth estimation because it is generally more accurate than monocular depth estimation. Binocular depth estimation calculates the parallax be￾tween pixels by comparing two images taken from different angles to derive depth information, which provides a more ac… view at source ↗
Figure 7
Figure 7. Figure 7: Comparison of PSMNet Fine-tuning Results Across Different Pretrained Models and Training Epochs The visual comparison of disparity maps produced by each architecture on the same stereo input pair is presented below. 14 [PITH_FULL_IMAGE:figures/full_fig_p014_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Comparison of Stereo Matching Results Across Different Neural Network Models 3.4. Combination The remaining step is straightforward: combining branch detection with depth compu￾tation. Our goal is to detect the coordinates of points surrounding the branch, apply a triangulation-based method to locate points lying on the branch, and then retrieve the corresponding depth values from the disparity map. Anomal… view at source ↗
Figure 9
Figure 9. Figure 9: Illustration of the centroid-based branch localisation process: (a) predicted points surrounding the branch, (b) grouping the closest points into triangles, and (c) computing their centroids. MAD-based filtering is then applied: use MAD (Median Absolute Deviation) to remove depth values that deviate excessively from the median. MAD = median(|P ′′′ − median(P ′′′)|) (28) A point in P ′′′ is retained if its … view at source ↗
Figure 10
Figure 10. Figure 10: Branch depth detection results: (a) detected points overlaid on the depth map using the centroid method, and (b) the corresponding points displayed on the RGB image. 4. Results and Analysis This section demonstrates how the model obtained from YOLOv9e training can be used to generate depth maps using a combination of the traditional SGBM method as well as the NeRF technique based on the RAFT architecture … view at source ↗
Figure 11
Figure 11. Figure 11: Comparison of Depth Estimation Using SGBM and NeRF at Varying Distances 5. Future Work Future work encompasses three interrelated directions: expanding the data collection to include both indoor and outdoor environments, generating improved ground-truth depth maps through diverse datasets and methodologies, and exploring various neural network architectures to identify the most effective model. Completion… view at source ↗
Figure 12
Figure 12. Figure 12: Comparison of Depth Estimation Using SGBM and NeRF at Varying Distances With high-quality ground-truth depth maps in hand, model training can proceed along two paths: one involves directly training a neural network architecture purpose￾built for depth map estimation, while the other takes an indirect route through pre￾existing deep architectures adapted to the task. The overall workflow is illustrated in … view at source ↗
Figure 13
Figure 13. Figure 13: Training process of the depth map model Numerous methodologies for training depth maps have been proposed, along with a wide variety of neural network architectures. For instance, the architecture presented in the Group-wise Correlation Stereo Network research, detailed in the Appendix, ex￾emplifies one such approach. In the final stage of this project, various existing methods will be explored, and modif… view at source ↗
read the original abstract

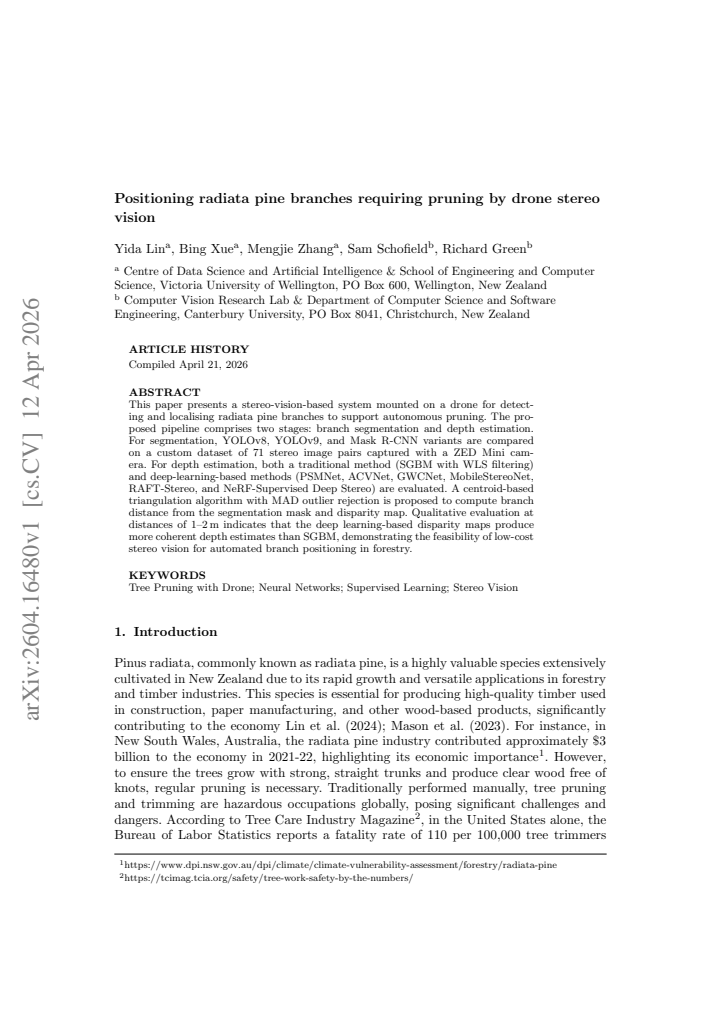

This paper presents a stereo-vision-based system mounted on a drone for detecting and localising radiata pine branches to support autonomous pruning. The proposed pipeline comprises two stages: branch segmentation and depth estimation. For segmentation, YOLOv8, YOLOv9, and Mask R-CNN variants are compared on a custom dataset of 71 stereo image pairs captured with a ZED Mini camera. For depth estimation, both a traditional method (SGBM with WLS filtering) and deep-learning-based methods (PSMNet, ACVNet, GWCNet, MobileStereoNet, RAFT-Stereo, and NeRF-Supervised Deep Stereo) are evaluated. A centroid-based triangulation algorithm with MAD outlier rejection is proposed to compute branch distance from the segmentation mask and disparity map. Qualitative evaluation at distances of 1-2 m indicates that the deep learning-based disparity maps produce more coherent depth estimates than SGBM, demonstrating the feasibility of low-cost stereo vision for automated branch positioning in forestry.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper presents a drone-mounted stereo vision pipeline for detecting and localizing radiata pine branches to enable autonomous pruning. It compares segmentation models (YOLOv8, YOLOv9, Mask R-CNN) on a custom 71-pair ZED Mini dataset and evaluates depth estimation via SGBM with WLS filtering against deep stereo networks (PSMNet, ACVNet, GWCNet, MobileStereoNet, RAFT-Stereo, NeRF-Supervised Deep Stereo). A centroid-based triangulation step with MAD outlier rejection computes 3-D branch positions. The central claim is that qualitative visual inspection at 1-2 m distances shows DL disparity maps yield more coherent depth estimates than SGBM, thereby demonstrating feasibility of low-cost stereo vision for forestry applications.

Significance. If the feasibility claim were supported by quantitative error metrics and field validation, the work would offer a practical contribution to agricultural robotics by adapting modern stereo matching networks to a new domain and releasing a custom branch dataset. The model comparisons and centroid triangulation approach are straightforward and could serve as a baseline for future drone-based pruning systems.

major comments (3)
  1. [Evaluation / Results section] The evaluation of depth estimation (likely §4) relies exclusively on qualitative visual comparison of disparity maps without any reported quantitative metrics such as endpoint error, bad-pixel percentage, or depth MAE against ground-truth distances. This directly undermines the claim that DL methods produce depth estimates suitable for reliable branch positioning.
  2. [Centroid-based triangulation subsection] The triangulation algorithm with MAD rejection (described in the pipeline) produces 3-D positions but supplies no error statistics, precision-recall for detected branches, or comparison against measured distances, leaving the accuracy of the final positioning step unquantified.
  3. [Dataset and experimental setup] The 71-pair dataset was captured indoors at controlled 1-2 m distances; the manuscript does not include any outdoor, wind-affected, or occluded canopy trials, so the generalization argument for real forestry pruning feasibility rests on an untested extrapolation.
minor comments (2)
  1. [Depth estimation methods] Clarify whether the NeRF-Supervised Deep Stereo implementation uses the exact architecture and training protocol from the cited reference or a custom adaptation.
  2. [Figures] Figure captions for disparity map comparisons should explicitly state the distance and lighting conditions of each example pair to aid reproducibility.

Simulated Author's Rebuttal

3 responses · 1 unresolved

We thank the referee for the constructive feedback on our manuscript. We address each major comment point by point below, providing honest responses based on the scope and data of the current work. Where appropriate, we indicate revisions to clarify limitations and strengthen the presentation.

read point-by-point responses

  1. Referee: [Evaluation / Results section] The evaluation of depth estimation (likely §4) relies exclusively on qualitative visual comparison of disparity maps without any reported quantitative metrics such as endpoint error, bad-pixel percentage, or depth MAE against ground-truth distances. This directly undermines the claim that DL methods produce depth estimates suitable for reliable branch positioning.

    Authors: We acknowledge that the depth estimation evaluation is limited to qualitative visual inspection of disparity map coherence at 1-2 m distances. No ground-truth depth data was collected in the indoor dataset, precluding quantitative metrics such as EPE or depth MAE. The manuscript's central claim is framed as a feasibility demonstration rather than a benchmarked accuracy study, with DL methods shown to avoid the fragmented noise patterns of SGBM. In revision we will add explicit discussion of this limitation in the results and conclusions sections, reframing the contribution as a proof-of-concept pipeline. revision: partial

  2. Referee: [Centroid-based triangulation subsection] The triangulation algorithm with MAD rejection (described in the pipeline) produces 3-D positions but supplies no error statistics, precision-recall for detected branches, or comparison against measured distances, leaving the accuracy of the final positioning step unquantified.

    Authors: The centroid-based triangulation with MAD outlier rejection is presented as a lightweight post-processing step to derive 3-D branch locations from masks and disparities. No independent ground-truth branch positions or distances were measured during data capture, so error statistics and precision-recall could not be computed. We will revise the relevant subsection to include a more detailed description of the method's assumptions and to explicitly note the lack of quantitative positioning validation as a current limitation. revision: partial

  3. Referee: [Dataset and experimental setup] The 71-pair dataset was captured indoors at controlled 1-2 m distances; the manuscript does not include any outdoor, wind-affected, or occluded canopy trials, so the generalization argument for real forestry pruning feasibility rests on an untested extrapolation.

    Authors: The indoor controlled capture was selected to establish baseline pipeline behavior without environmental variables. We agree that outdoor conditions, wind-induced motion, and canopy occlusions remain untested and that claims of forestry applicability are preliminary. In the revised manuscript we will update the dataset description, discussion, and future-work paragraphs to clearly state these scope limitations and the need for subsequent field trials. revision: yes

standing simulated objections not resolved
  • Quantitative depth and positioning error metrics, because no ground-truth depth or 3-D position measurements were collected in the 71-pair indoor dataset.

Circularity Check

0 steps flagged

No circularity: standard empirical evaluation of existing models on custom dataset

full rationale

The paper evaluates off-the-shelf segmentation (YOLOv8/9, Mask R-CNN) and stereo (PSMNet, RAFT-Stereo, etc.) models plus a simple centroid triangulation with MAD rejection on a new 71-pair ZED Mini dataset. All steps are direct application of published algorithms to fresh data followed by qualitative visual inspection; no parameters are fitted to the feasibility claim, no equations reduce to their own inputs by construction, and no self-citation chain supplies a uniqueness theorem or ansatz. The derivation is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper rests on the representativeness of its 71-pair custom dataset and the sufficiency of qualitative depth-map inspection; no new free parameters or invented entities are introduced.

axioms (1)
  • domain assumption The 71 stereo image pairs captured with a ZED Mini camera adequately represent the visual conditions encountered during actual pruning operations.
    All training and qualitative evaluation depend on this small custom collection without external validation sets.
