Evaluating Temporal and Structural Anomaly Detection Paradigms for DDoS Traffic

Yasmin Souza Lima , Rodrigo Moreira , Larissa F. Rodrigues Moreira , Tereza Cristina M. de B. Carvalho , Fl\'avio de Oliveira Silva This is my paper

Pith reviewed 2026-05-10 08:25 UTC · model grok-4.3

classification 💻 cs.LG cs.AI
keywords temporalstructuralanomalyddosdetectionfeaturesframeworktraffic
0
0 comments X

The pith

Structural features match or beat temporal ones for unsupervised DDoS detection, with the edge growing when traffic shows weak time dependence.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

DDoS attacks flood networks with junk traffic to knock services offline. Detecting them without labeled examples often uses anomaly detection on either time sequences of flows or the structural connections between them. The authors suggest running two quick checks first: lag-1 autocorrelation to see how much one time step predicts the next, and PCA to measure how much variance the main components capture. These decide whether to use temporal features, structural features, or fall back to a hybrid. Tests on two different datasets with Isolation Forest, One-Class SVM, and KMeans found structural features performed at least as well, and better when temporal patterns were weak.

Core claim

Experiments on two statistically distinct datasets with Isolation Forest, One-Class SVM, and KMeans show that structural features consistently match or outperform temporal ones, with the performance gap widening as temporal dependence weakens.

Load-bearing premise

That lag-1 autocorrelation and PCA cumulative explained variance are reliable and sufficient diagnostics to choose the feature space, and that reserving the hybrid option without empirical validation is acceptable.

Figures

Figures reproduced from arXiv: 2604.16575 by Fl\'avio de Oliveira Silva, Larissa F. Rodrigues Moreira, Rodrigo Moreira, Tereza Cristina M. de B. Carvalho, Yasmin Souza Lima.

Figure 1
Figure 1. Figure 1: Lightweight framework for prioritizing temporal or structural represen [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

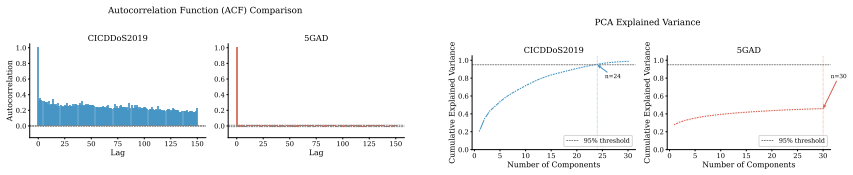

Figure 2. Figure 2: ACF of the aggre￾gated flow signal for CICD￾DoS2019 (left) and 5GAD (right). 0 5 10 15 20 25 30 Number of Components 0.0 0.2 0.4 0.6 0.8 1.0 Cumulative Explained Variance n=24 CICDDoS2019 95% threshold 0 5 10 15 20 25 30 Number of Components 0.0 0.2 0.4 0.6 0.8 1.0 Cumulative Explained Variance n=30 5GAD 95% threshold PCA Explained Variance [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
Figure 5

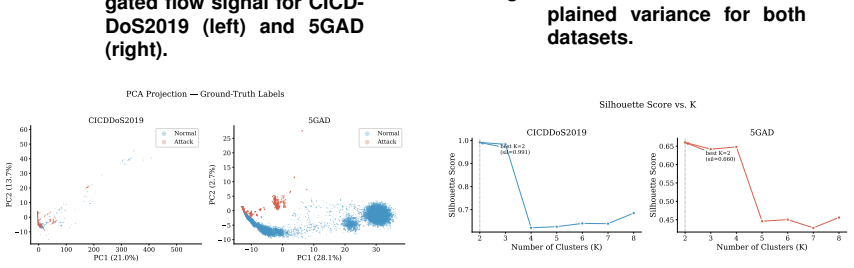

Figure 5. Figure 5: Silhouette Score as a function of K for both datasets. space achieves the best balance across metrics on both datasets. On CICDDoS2019, the best temporal method remains close, which aligns with the strong sequential dependence in [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6

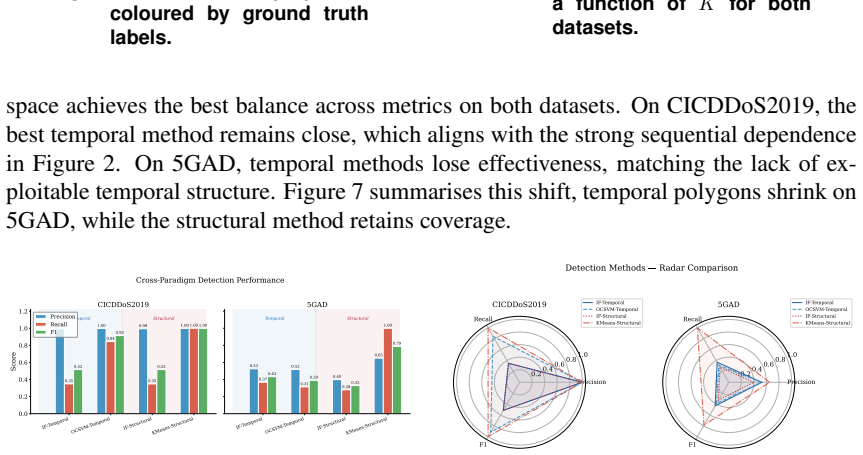

Figure 6. Figure 6: Detection performance for temporal and structural methods. Precision Recall F1 0.2 0.4 0.6 0.8 1.0 CICDDoS2019 IF-Temporal OCSVM-Temporal IF-Structural KMeans-Structural Precision Recall F1 0.2 0.4 0.6 0.8 1.0 5GAD IF-Temporal OCSVM-Temporal IF-Structural KMeans-Structural Detection Methods Radar Comparison [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 8

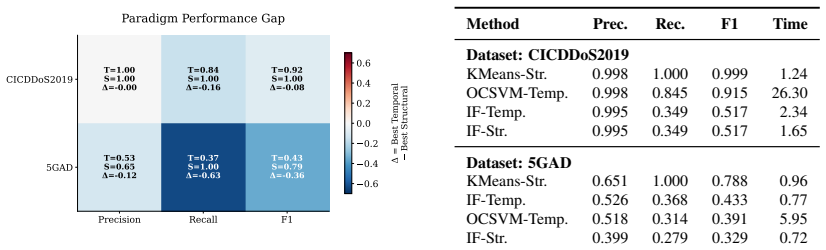

Figure 8. Figure 8: Paradigm performance gap, best temporal minus best structural. Method Prec. Rec. F1 Time Dataset: CICDDoS2019 KMeans-Str. 0.998 1.000 0.999 1.24 OCSVM-Temp. 0.998 0.845 0.915 26.30 IF-Temp. 0.995 0.349 0.517 2.34 IF-Str. 0.995 0.349 0.517 1.65 Dataset: 5GAD KMeans-Str. 0.651 1.000 0.788 0.96 IF-Temp. 0.526 0.368 0.433 0.77 OCSVM-Temp. 0.518 0.314 0.391 5.95 IF-Str. 0.399 0.279 0.329 0.72 [PITH_FULL_IMAGE:… view at source ↗
read the original abstract

Unsupervised anomaly detection is widely used to detect Distributed Denial-of-Service (DDoS) attacks in cloud-native 5G networks, yet most studies assume a fixed traffic representation, either temporal or structural, without validating which feature space best matches the data. We propose a lightweight decision framework that prioritizes temporal or structural features before training, using two diagnostics: lag-1 autocorrelation of an aggregated flow signal and PCA cumulative explained variance. When the probes are inconclusive, the framework reserves a hybrid option as a future fallback rather than an empirically validated branch. Experiments on two statistically distinct datasets with Isolation Forest, One-Class SVM, and KMeans show that structural features consistently match or outperform temporal ones, with the performance gap widening as temporal dependence weakens.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Circularity Check

0 steps flagged

No circularity detected in the derivation chain

full rationale

The paper defines a decision framework that first computes independent data diagnostics (lag-1 autocorrelation of aggregated flow and PCA cumulative explained variance) to select temporal versus structural feature spaces, then trains and evaluates standard unsupervised models (Isolation Forest, One-Class SVM, KMeans) on two distinct datasets. The selection step precedes training and is not derived from model outputs or fitted parameters; performance comparisons are reported after the choice is made. No equations reduce a claimed prediction to its own inputs by construction, no self-citation is load-bearing for the central claim, and no ansatz or uniqueness theorem is smuggled in. The derivation remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The claim rests on standard domain assumptions about unsupervised anomaly detection for DDoS plus the ad-hoc diagnostics introduced in the paper; no free parameters or new entities are introduced.

axioms (2)
  • domain assumption Unsupervised anomaly detection is widely used and appropriate for DDoS traffic in cloud-native 5G networks
    Stated directly in the opening sentence of the abstract as background.
  • ad hoc to paper Lag-1 autocorrelation and PCA cumulative explained variance are sufficient diagnostics to decide between temporal and structural feature spaces
    Introduced by the paper as the core of the decision framework.

pith-pipeline@v0.9.0 · 5441 in / 1246 out tokens · 39299 ms · 2026-05-10T08:25:58.254953+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

15 extracted references · 15 canonical work pages

  1. [1]

    Carrera, F., Dentamaro, V., Galantucci, S., Iannacone, A., Impedovo, D., and Pirlo, G. (2022). Combining unsupervised approaches for near real-time network traffic anomaly detection. Applied Sciences , 12(3)

    work page 2022

  2. [2]

    Coldwell, C., Conger, D., Goodell, E., Jacobson, B., Petersen, B., Spencer, D., Anderson, M., and Sgambati, M. (2022). Machine learning 5g attack detection in programmable logic. In 2022 IEEE Globecom Workshops (GC Wkshps) , pages 1365--1370

    work page 2022

  3. [3]

    Feng, Y., Cai, W., Yue, H., Xu, J., Lin, Y., Chen, J., and Hu, Z. (2022). An improved X-means and isolation forest based methodology for network traffic anomaly detection . PLOS ONE , 17(1):1--18

    work page 2022

  4. [4]

    Gartner, Inc. (2026). Gartner forecasts worldwide end‑user spending on information security to total \ 240 billion in 2026

    work page 2026

  5. [5]

    G., Tagliafico, S

    González, G. G., Tagliafico, S. M., Fernández, A., Sena, G. G., Acuña, J., and Casas, P. (2024). One model to find them all deep learning for multivariate time-series anomaly detection in mobile network data. IEEE Transactions on Network and Service Management , 21(2):1601--1616

    work page 2024

  6. [6]

    K., Kumar, M., Soni, A., Agarwal, D., and Saudagar, A

    Kumar, A., Kumar, A., Raja, R., Dewangan, A. K., Kumar, M., Soni, A., Agarwal, D., and Saudagar, A. K. J. (2025). Revolutionising anomaly detection: a hybrid framework for anomaly detection integrating isolation forest, autoencoder, and conv. lstm. Knowledge and Information Systems , 67(12):11903--11953

    work page 2025

  7. [7]

    S., Reshi, Z., and Marojevic, V

    Moore, J., Abdalla, A. S., Reshi, Z., and Marojevic, V. (2025). Anomaly detection and mitigation in o-ran networks using an lstm-rnn autoencoder and secure slicing. In MILCOM 2025 - 2025 IEEE Military Communications Conference (MILCOM) , pages 1--6

    work page 2025

  8. [8]

    F., and de Oliveira Silva , F

    Moreira, R., Rodrigues Moreira , L. F., and de Oliveira Silva , F. (2023). An intelligent network monitoring approach for online classification of Darknet traffic . Computers and Electrical Engineering , 110:108852

    work page 2023

  9. [9]

    Nguyen, C., Elmroth, E., and Bhuyan, M. (2025). Silent failures in stateless systems: Rethinking anomaly detection for serverless computing. In 2025 IEEE International Conference on Service-Oriented System Engineering (SOSE) , pages 8--19

    work page 2025

  10. [10]

    and Prabhavathi Neelakandan, R

    Prince, G. and Prabhavathi Neelakandan, R. (2026). Ai-driven analysis and mitigation of control-plane signaling anomalies in next-generation mobile networks. IEEE Access , 14:11129--11148

    work page 2026

  11. [11]

    H., Hakak, S., and Ghorbani, A

    Sharafaldin, I., Lashkari, A. H., Hakak, S., and Ghorbani, A. A. (2019). Developing realistic distributed denial of service (ddos) attack dataset and taxonomy. In 2019 International Carnahan Conference on Security Technology (ICCST) , pages 1--8

    work page 2019

  12. [12]

    Tan, Y., Liu, J., Li, Y., and Wang, J. (2025). Deep learning-based proactive anomaly detection for 5g core control plane network function interactions. IEEE Transactions on Cognitive Communications and Networking , 11(6):4210--4222

    work page 2025

  13. [13]

    Xu, H., Wang, Y., Jian, S., Liao, Q., Wang, Y., and Pang, G. (2024). Calibrated one-class classification for unsupervised time series anomaly detection. IEEE Transactions on Knowledge and Data Engineering , 36(11):5723--5736

    work page 2024

  14. [14]

    Zuo, Y., Wu, Y., Min, G., Huang, C., and Pei, K. (2020). An intelligent anomaly detection scheme for micro-services architectures with temporal and spatial data analysis. IEEE Transactions on Cognitive Communications and Networking , 6(2):548--561

    work page 2020

  15. [15]
