arxiv: 2604.16696 · v1 · submitted 2026-04-17 · 💻 cs.CV · cs.AI· eess.IV

Recognition: unknown

LOD-Net: Locality-Aware 3D Object Detection Using Multi-Scale Transformer Network

Mustaqeem Khan , Aidana Nurakhmetova , Wail Gueaieb , Abdulmotaleb El Saddik

Authors on Pith no claims yet

Pith reviewed 2026-05-10 08:27 UTC · model grok-4.3

classification 💻 cs.CV cs.AIeess.IV

keywords 3D object detectionpoint cloudstransformermulti-scale attentionScanNetv23DETRattention mechanism

0 comments

The pith

Integrating multi-scale attention into 3DETR improves 3D object detection mAP scores on ScanNetv2

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper introduces a Multi-Scale Attention mechanism to the 3DETR model for detecting objects in 3D point cloud data. The goal is to overcome the difficulties posed by sparse and unstructured input by capturing both fine local details and overall scene context. An upsampling step is added to produce higher resolution features that aid in identifying smaller objects. Tests on the ScanNetv2 dataset show gains of about 1 percent in mAP at 25 percent IoU and 4.78 percent at 50 percent IoU. The findings also stress that different model sizes need customized upsampling to work well. Readers might care because better 3D detection can lead to more reliable performance in real-world tasks involving spatial awareness.

Core claim

The authors establish that adding the Multi-Scale Attention (MSA) mechanism and an upsampling operation to the 3DETR architecture allows the network to generate high-resolution feature maps. This improves the capture of local geometry and global context in point clouds. As a result, object detection performance increases, with specific gains reported on the ScanNetv2 dataset. The analysis shows varying success depending on whether the base or the m variant of 3DETR is used.

What carries the argument

The Multi-Scale Attention (MSA) mechanism combined with upsampling, which produces high-resolution feature maps to enhance feature extraction in the 3DETR transformer network.

If this is right

The model detects smaller objects more reliably thanks to increased feature resolution.
Combining attention with hierarchical features strengthens overall 3D scene analysis.
Lightweight versions of the model show smaller gains unless upsampling is adjusted for them.
The method offers a way to boost transformer-based detectors without complete redesign.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

This technique could be tested on outdoor point cloud datasets to check broader applicability.
It may help in designing efficient models for edge devices in robotics.
The emphasis on model-specific adaptations points to a need for flexible attention modules in future architectures.

Load-bearing premise

The performance gains come from the MSA mechanism and upsampling operation rather than from unmentioned differences in how the models were trained or prepared.

What would settle it

Running the baseline 3DETR model using identical training settings and data as the proposed version, but without MSA or upsampling, and verifying whether the mAP improvements still appear.

Figures

Figures reproduced from arXiv: 2604.16696 by Abdulmotaleb El Saddik, Aidana Nurakhmetova, Mustaqeem Khan, Wail Gueaieb.

**Figure 1.** Figure 1: 3D point cloud processing methods Deep learning has driven significant advancements in 3D scene understanding over the past several years. Researchers worldwide have proposed novel architectures and techniques for tasks such as shape analysis, semantic segmentation, object alignment, grasp detection, and registration. Notable studies, including [9], [10], [11], have explored network designs and convolution… view at source ↗

**Figure 2.** Figure 2: The architecture of 3DETR model with multi-scale [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

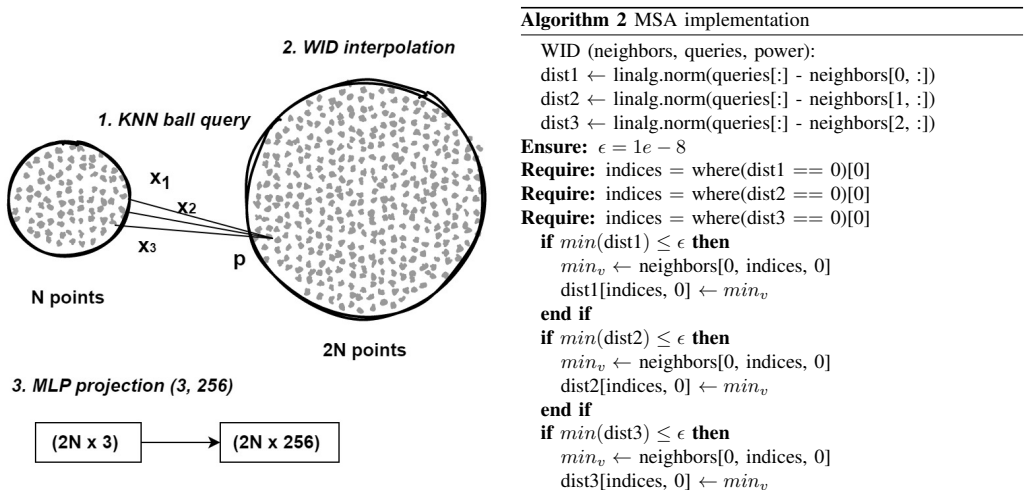

**Figure 3.** Figure 3: Upsampling procedure in the proposed multi-scale [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

**Figure 4.** Figure 4: Proposed MHA layer architecture [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

**Figure 5.** Figure 5: PointNet++ structure IV. EXPERIMENTAL VALIDATION The proposed network is evaluated on the ScanNetv2 dataset [32], which comprises highly detailed IoU listed in Table I, and 3D reconstructions of 1,513 indoor scenes across 18 object categories listed in Table II. In addition to the spatial coordinates (x, y, z), users can leverage color and height information as supplementary input features. The dataset pr… view at source ↗

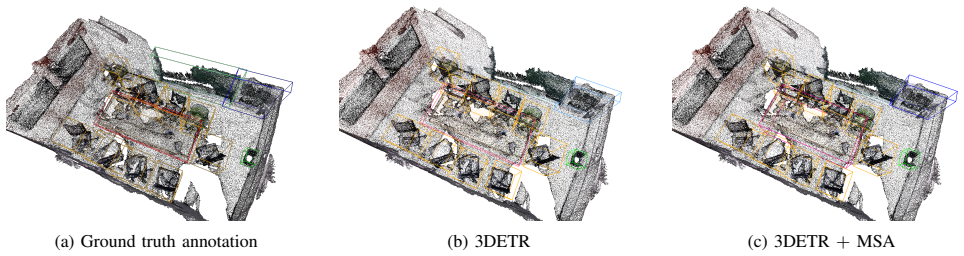

**Figure 6.** Figure 6: A sample output, where a door is misclassified as a bookshelf and a window is not detected in [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗

**Figure 7.** Figure 7: A sample output, where a garbage bin and one of the doors are not detected in [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗

read the original abstract

3D object detection in point cloud data remains a challenging task due to the sparsity and lack of global structure inherent in the input. In this work, we propose a novel Multi-Scale Attention (MSA) mechanism integrated into the 3DETR architecture to better capture both local geometry and global context. Our method introduces an upsampling operation that generates high-resolution feature maps, enabling the network to better detect smaller and semantically related objects. Experiments conducted on the ScanNetv2 dataset demonstrate that our 3DETR + MSA model improves detection performance, achieving a gain of almost 1% in mAP@25 and 4.78% in mAP@50 over the baseline. While applying MSA to the 3DETR-m variant shows limited improvement, our analysis reveals the importance of adapting the upsampling strategy for lightweight models. These results highlight the effectiveness of combining hierarchical feature extraction with attention mechanisms in enhancing 3D scene understanding.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper bolts a multi-scale attention module plus upsampling onto 3DETR and claims modest mAP lifts on ScanNetv2, but the abstract supplies no ablations or baseline controls so the attribution stays shaky.

read the letter

The paper takes the 3DETR transformer and adds a Multi-Scale Attention mechanism along with an upsampling step to produce higher-resolution features. The stated goal is to handle both local geometry and global context in sparse point clouds, with the hope of catching smaller objects better. On ScanNetv2 it reports gains of roughly 1% mAP@25 and 4.78% mAP@50 over the baseline, though the improvement shrinks on the lighter 3DETR-m variant and requires tweaks to the upsampling strategy.

Circularity Check

0 steps flagged

No circularity: empirical mAP gains on external benchmark with no self-referential derivations or fitted predictions.

full rationale

The paper proposes an MSA mechanism and upsampling added to the 3DETR architecture, then reports measured mAP improvements on the ScanNetv2 dataset. These are direct empirical outcomes from running the model on held-out test data, not quantities derived from equations that reduce to the model's own fitted parameters or definitions. No load-bearing self-citations, ansatzes smuggled via prior work, or uniqueness theorems appear in the abstract or description. The comparison to baseline is presented as an experimental result rather than a mathematical identity or renamed known pattern. This is a standard empirical ML paper with no detectable circular steps in its derivation chain.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

Abstract-only review provides insufficient detail to enumerate free parameters or invented entities beyond the high-level MSA description.

axioms (1)

domain assumption mAP@25 and mAP@50 are appropriate metrics for evaluating 3D object detection quality.
Implicit in the reported performance numbers.

invented entities (1)

Multi-Scale Attention (MSA) mechanism no independent evidence
purpose: Capture local geometry and global context via hierarchical feature extraction and upsampling.
Introduced in the abstract as the core novel component.

pith-pipeline@v0.9.0 · 5480 in / 1167 out tokens · 27706 ms · 2026-05-10T08:27:43.129779+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

32 extracted references · 4 canonical work pages

[1]

3D object detection and pose estimation from depth image for robotic bin picking,

H.-Y . Kuo, H.-R. Su, S.-H. Lai, and C.-C. Wu, “3D object detection and pose estimation from depth image for robotic bin picking,” in2014 IEEE International Conference on Automation Science and Engineering (CASE), 2014, pp. 1264–1269

2014
[2]

Edge and corner detection for unorganized 3D point clouds with application to robotic welding,

S. M. Ahmed, Y . Z. Tan, C. M. Chew, A. A. Ma- mun, and F. S. Wong, “Edge and corner detection for unorganized 3D point clouds with application to robotic welding,” in2018 IEEE/RSJ International Con- ference on Intelligent Robots and Systems (IROS), 2018, pp. 7350–7355

2018
[3]

3D object detection and recognition based on rgbd images for healthcare robot,

I. Birri, B. S. B. Dewantara, and D. Pramadihanto, “3D object detection and recognition based on rgbd images for healthcare robot,” in2021 International Electronics Symposium (IES), 2021, pp. 173–178

2021
[4]

Evaluation of kinect 3D sensor for healthcare imaging,

S. T. L. P ¨ohlmann, E. F. Harkness, C. J. Taylor, and S. M. Astley, “Evaluation of kinect 3D sensor for healthcare imaging,”Journal of Medical and Biological Engineering, vol. 36, no. 6, pp. 2199–4757, 2016

2016
[5]

Hybrid multistage fuzzy clustering system for medical data classification,

M. Abdullah, F. Al-Anzi, and S. Al-Sharhan, “Hybrid multistage fuzzy clustering system for medical data classification,” inInternational Conference on Comput- ing Sciences and Engineering (ICCSE), 2018, pp. 1–6

2018
[6]

A survey on 3D object de- tection methods for autonomous driving applications,

E. Arnold, O. Y . Al-Jarrah, M. Dianati, S. Fallah, D. Oxtoby, and A. Mouzakitis, “A survey on 3D object de- tection methods for autonomous driving applications,” IEEE Transactions on Intelligent Transportation Sys- tems, vol. 20, no. 10, pp. 3782–3795, 2019

2019
[7]

Edge assisted real- time object detection for mobile augmented reality,

L. Liu, H. Li, and M. Gruteser, “Edge assisted real- time object detection for mobile augmented reality,” in The 25th Annual International Conference on Mobile Computing and Networking, ser. MobiCom ’19, Los Cabos, Mexico: Association for Computing Machinery, 2019

2019
[8]

C. R. Qi, L. Yi, H. Su, and L. J. Guibas,Pointnet++: Deep hierarchical feature learning on point sets in a metric space, 2017

2017
[9]

Y . Wang, Y . Sun, Z. Liu, S. E. Sarma, M. M. Bronstein, and J. M. Solomon,Dynamic graph cnn for learning on point clouds, 2018

2018
[10]

Y . Li, R. Bu, M. Sun, W. Wu, X. Di, and B. Chen, Pointcnn: Convolution onX-transformed points, 2018. arXiv: 1801.07791[cs.CV]

work page arXiv 2018
[11]

Jiang, Y

M. Jiang, Y . Wu, T. Zhao, Z. Zhao, and C. Lu, PointSIFT: A SIFT-like network module for 3D point cloud semantic segmentation, 2018. arXiv: 1807.00652 [cs.CV]

work page arXiv 2018
[12]

A. Zeng, S. Song, M. Nießner, M. Fisher, J. Xiao, and T. Funkhouser,3DMatch: Learning local geometric descriptors from RGB-D reconstructions, 2017. arXiv: 1603.08182[cs.CV]

work page arXiv 2017
[13]

Avetisyan, M

A. Avetisyan, M. Dahnert, A. Dai, M. Savva, A. X. Chang, and M. Nießner,Scan2CAD: Learning CAD model alignment in RGB-D scans, 2018. arXiv: 1811. 11187[cs.CV]

2018
[14]

A. Xiao, J. Huang, D. Guan, X. Zhang, and S. Lu, Unsupervised point cloud representation learning with deep neural networks: A survey, 2022

2022
[15]

Notice of violation of ieee publication principles: Recent ad- vances in 3D object detection in the era of deep neural networks: A survey,

M. M. Rahman, Y . Tan, J. Xue, and K. Lu, “Notice of violation of ieee publication principles: Recent ad- vances in 3D object detection in the era of deep neural networks: A survey,”IEEE Transactions on Image Pro- cessing, vol. 29, pp. 2947–2962, 2020

2020
[16]

A. Xiao, X. Zhang, L. Shao, and S. Lu,A survey of label-efficient deep learning for 3D point clouds, 2023. arXiv: 2305.19812[cs.CV]

work page arXiv 2023
[17]

Misra, R

I. Misra, R. Girdhar, and A. Joulin,An end-to-end transformer model for 3D object detection, 2021

2021
[18]

J. Choe, C. Park, F. Rameau, J. Park, and I. S. Kweon, Pointmixer: Mlp-mixer for point cloud understanding, 2021

2021
[19]

Engelmann, M

F. Engelmann, M. Bokeloh, A. Fathi, B. Leibe, and M. Nießner,3D-MPA: Multi proposal aggregation for 3D semantic instance segmentation, 2020

2020
[20]

Cheng, L

B. Cheng, L. Sheng, S. Shi, M. Yang, and D. Xu,Back- tracing representative points for voting-based 3D object detection in point clouds, 2021

2021
[21]

X. Chen, H. Ma, J. Wan, B. Li, and T. Xia,Multi-view 3D object detection network for autonomous driving, 2016

2016
[22]

Rukhovich, A

D. Rukhovich, A. V orontsova, and A. Konushin, FCAF3D: Fully convolutional anchor-free 3D object detection, 2021

2021
[23]

J. Gwak, C. Choy, and S. Savarese,Generative sparse detection networks for 3D single-shot object detection, 2020

2020
[24]

PCT: Point cloud transformer,

M.-H. Guo, J.-X. Cai, Z.-N. Liu, T.-J. Mu, R. R. Martin, and S.-M. Hu, “PCT: Point cloud transformer,” Computational Visual Media, vol. 7, no. 2, pp. 187–199, Apr. 2021

2021
[25]

H. Zhao, L. Jiang, J. Jia, P. Torr, and V . Koltun,Point transformer, 2020

2020
[26]

X. Pan, Z. Xia, S. Song, L. E. Li, and G. Huang,3D object detection with pointformer, 2020

2020
[27]

C. He, R. Li, S. Li, and L. Zhang,Voxel set transformer: A set-to-set approach to 3D object detection from point clouds, 2022

2022
[28]

Zhang, H

C. Zhang, H. Wan, X. Shen, and Z. Wu,Pvt: Point-voxel transformer for point cloud learning, 2021

2021
[29]

Patchformer: An efficient point transformer with patch attention,

C. Zhang, H. Wan, X. Shen, and Z. Wu, “Patchformer: An efficient point transformer with patch attention,” in Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), Jun. 2022, pp. 11 799–11 808

2022
[30]

Z. Liu, Z. Zhang, Y . Cao, H. Hu, and X. Tong,Group- free 3D object detection via transformers, 2021

2021
[31]

Vaswani et al.,Attention is all you need, 2017

A. Vaswani et al.,Attention is all you need, 2017

2017
[32]

A. Dai, D. Ritchie, M. Bokeloh, S. Reed, J. Sturm, and M. Nießner,ScanComplete: Large-scale scene comple- tion and semantic segmentation for 3D scans, 2017

2017
