arxiv: 2604.16903 · v1 · submitted 2026-04-18 · 💻 cs.RO

Recognition: unknown

Leveraging VR Robot Games to Facilitate Data Collection for Embodied Intelligence Tasks

Yihan Zhang , Ziyun Huang , Linqi Ye

Authors on Pith no claims yet

Pith reviewed 2026-05-10 06:36 UTC · model grok-4.3

classification 💻 cs.RO

keywords virtual realitydata collectionembodied intelligenceroboticsUnityprocedural generationhumanoid controlpick and place

0 comments

The pith

A Unity-based VR game framework collects broad robot demonstration data through procedural scenes, VR control, and automatic logging.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a gamified data collection system in Unity that combines procedural scene generation, VR-based humanoid robot control, automatic task evaluation, and trajectory logging to gather interaction data for embodied intelligence tasks. A trash pick-and-place prototype validates the workflow, showing that the resulting demonstrations cover a wide state-action space and that higher task difficulty produces more intense motions and greater arm workspace exploration. This matters because conventional ways to obtain such robot data are costly and limited in accessibility. The authors conclude that game-oriented virtual environments offer an effective and extensible alternative for scaling up embodied data collection.

Core claim

The central claim is that a Unity-based VR framework integrating procedural scene generation, VR humanoid control, automatic evaluation, and trajectory logging serves as an effective and extensible solution for embodied data collection, validated by a trash pick-and-place prototype where collected demonstrations exhibit broad state-action coverage and where increasing difficulty correlates with higher motion intensity plus more extensive workspace exploration.

What carries the argument

The gamified Unity framework that combines procedural scene generation with VR-based humanoid robot control, automatic task evaluation, and trajectory logging to produce robot demonstrations.

Load-bearing premise

That demonstrations collected via VR in virtual environments will be representative enough to train real-world embodied intelligence systems effectively.

What would settle it

Train an embodied policy on the VR-collected demonstrations and measure its real-world task success rate against an identical policy trained on matched real-robot demonstrations.

Figures

Figures reproduced from arXiv: 2604.16903 by Linqi Ye, Yihan Zhang, Ziyun Huang.

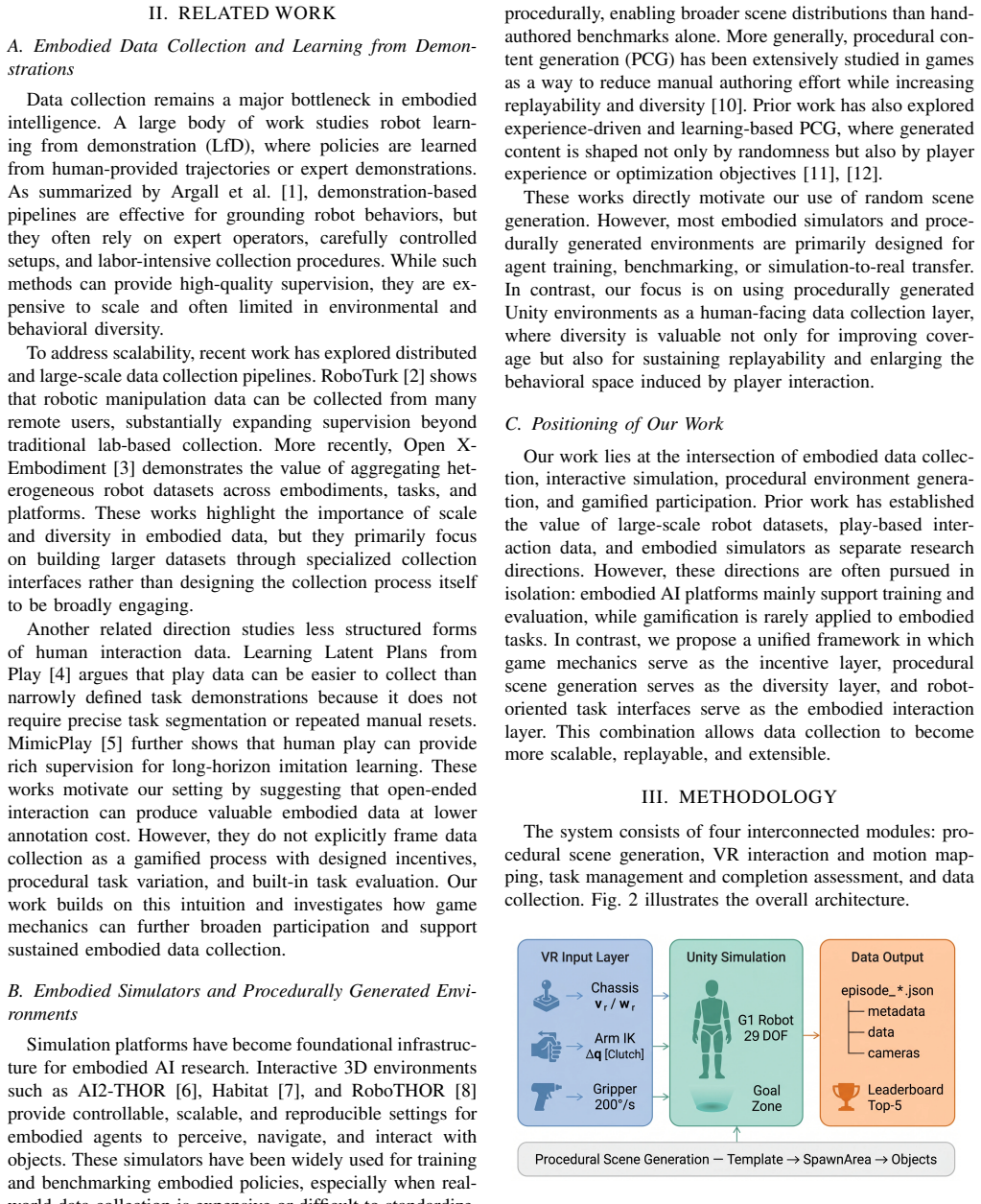

**Figure 2.** Figure 2: Overall system architecture. Procedural scene generation populates [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

**Figure 3.** Figure 3: A screenshot of the generated scene To generate diverse indoor task environments at low manual cost, we adopt a simple rule-based method to place objects automatically. a room layout is picked at random from a set of ready-made templates each of which contains SpawnArea regions that specify allowed object categories (objectType) and a maximum object count (maxObjects). Within these constraints, the scene i… view at source ↗

**Figure 5.** Figure 5: VR controller input mapping. Left thumbstick controls chassis [PITH_FULL_IMAGE:figures/full_fig_p003_5.png] view at source ↗

**Figure 6.** Figure 6: The goal zone is equipped with a collider; when [PITH_FULL_IMAGE:figures/full_fig_p003_6.png] view at source ↗

**Figure 6.** Figure 6: Episode state machine. Each episode starts with scene initialization, [PITH_FULL_IMAGE:figures/full_fig_p004_6.png] view at source ↗

**Figure 8.** Figure 8: Right arm end-effector IK position coverage in the XY plane (active [PITH_FULL_IMAGE:figures/full_fig_p004_8.png] view at source ↗

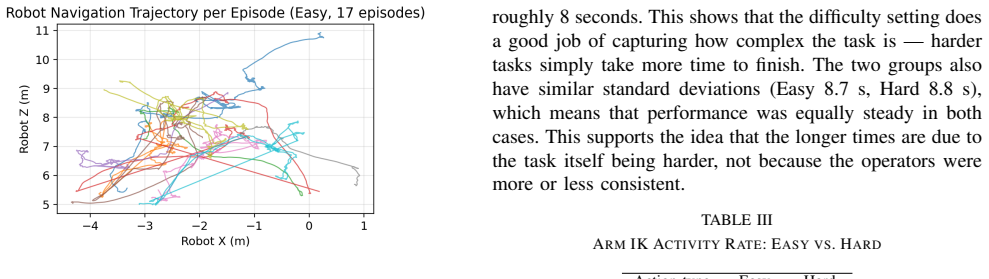

**Figure 9.** Figure 9: Robot navigation trajectories across all 17 episodes. Each colored [PITH_FULL_IMAGE:figures/full_fig_p005_9.png] view at source ↗

**Figure 10.** Figure 10: Easy vs. Hard comparison: game screenshots. [PITH_FULL_IMAGE:figures/full_fig_p005_10.png] view at source ↗

read the original abstract

Collecting embodied interaction data at scale remains costly and difficult due to the limited accessibility of conventional interfaces. We present a gamified data collection framework based on Unity that combines procedural scene generation, VR-based humanoid robot control, automatic task evaluation, and trajectory logging. A trash pick-and-place task prototype is developed to validate the full workflow.Experimental results indicate that the collected demonstrations exhibit broad coverage of the state-action space, and that increasing task difficulty leads to higher motion intensity as well as more extensive exploration of the arm's workspace. The proposed framework demonstrates that game-oriented virtual environments can serve as an effective and extensible solution for embodied data collection.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript presents a Unity-based gamified VR framework for collecting embodied interaction data, incorporating procedural scene generation, VR humanoid robot control, automatic task evaluation, and trajectory logging. It validates the workflow via a trash pick-and-place prototype and reports that the resulting demonstrations show broad state-action space coverage while higher task difficulty correlates with increased motion intensity and greater arm workspace exploration. The central claim is that game-oriented virtual environments constitute an effective and extensible solution for embodied data collection.

Significance. The framework addresses a genuine bottleneck in robotics by leveraging accessible VR and game-engine tools to scale data collection beyond physical robot access. If the collected trajectories prove transferable, the approach could enable larger, more diverse datasets for training embodied agents at lower cost. The prototype successfully demonstrates end-to-end workflow feasibility, including automatic evaluation.

major comments (3)

[Abstract] Abstract: the statements that demonstrations 'exhibit broad coverage of the state-action space' and that 'increasing task difficulty leads to higher motion intensity as well as more extensive exploration' are presented without quantitative metrics (e.g., coverage percentages, entropy measures), error bars, statistical tests, or comparisons to non-VR baselines, leaving the experimental support for effectiveness weakly grounded.
[Experimental Results] Experimental Results section: no imitation learning, reinforcement learning, or policy training experiments are reported that use the logged trajectories, nor any sim-to-real transfer tests on physical hardware; without such downstream validation the claim that the data is useful for 'embodied intelligence tasks' remains untested.
[Conclusion] Conclusion: the assertion that the framework 'demonstrates that game-oriented virtual environments can serve as an effective and extensible solution' is not supported by evidence that the collected data improves model performance or transfers beyond the simulation, which is load-bearing for the paper's central contribution.

minor comments (2)

[Experimental Results] The manuscript would benefit from a table or figure quantifying state-action coverage (e.g., histograms or diversity scores) rather than qualitative description alone.
[Methods] Details on VR-to-robot kinematic mapping, physics parameters, and logging format should be expanded to support reproducibility by other groups.

Simulated Author's Rebuttal

3 responses · 1 unresolved

We thank the referee for the constructive and detailed feedback. We address each major comment point by point below, indicating planned revisions where appropriate. Our responses focus on clarifying the manuscript's scope while strengthening the presentation of results.

read point-by-point responses

Referee: [Abstract] Abstract: the statements that demonstrations 'exhibit broad coverage of the state-action space' and that 'increasing task difficulty leads to higher motion intensity as well as more extensive exploration' are presented without quantitative metrics (e.g., coverage percentages, entropy measures), error bars, statistical tests, or comparisons to non-VR baselines, leaving the experimental support for effectiveness weakly grounded.

Authors: We acknowledge that the abstract and results section rely on visualizations of state-action distributions and workspace plots rather than explicit scalar metrics such as coverage percentages or entropy. The Experimental Results section does include quantitative elements in the form of aggregated motion intensity values and workspace volume statistics across difficulty levels. To address the concern, we will add explicit coverage metrics (e.g., normalized state-space occupancy) and entropy calculations in a revised version, along with error bars where applicable. Direct comparisons to non-VR baselines were outside the paper's focus on demonstrating the VR framework, but we can note this limitation more explicitly. revision: partial
Referee: [Experimental Results] Experimental Results section: no imitation learning, reinforcement learning, or policy training experiments are reported that use the logged trajectories, nor any sim-to-real transfer tests on physical hardware; without such downstream validation the claim that the data is useful for 'embodied intelligence tasks' remains untested.

Authors: The manuscript's Experimental Results section is deliberately scoped to validating the end-to-end data collection workflow and characterizing the resulting trajectories (coverage, intensity, exploration). We agree that downstream tasks such as imitation learning or sim-to-real transfer would provide stronger evidence of utility for embodied intelligence. However, performing and reporting such experiments would constitute a substantial extension beyond the current contribution, which centers on the collection framework itself. The data properties reported support the potential for these uses, but we do not claim to have validated them here. revision: no
Referee: [Conclusion] Conclusion: the assertion that the framework 'demonstrates that game-oriented virtual environments can serve as an effective and extensible solution' is not supported by evidence that the collected data improves model performance or transfers beyond the simulation, which is load-bearing for the paper's central contribution.

Authors: The conclusion is grounded in the demonstrated feasibility of the full pipeline (procedural generation, VR control, automatic evaluation, and logging) and the observed data characteristics indicating broad coverage and scalability. We will revise the conclusion to more precisely delineate what has been shown versus what remains for future work, avoiding any implication of proven model performance gains or sim-to-real transfer. revision: partial

standing simulated objections not resolved

Performing and reporting imitation learning, reinforcement learning, or sim-to-real transfer experiments, as these require new experimental work outside the scope of the submitted manuscript.

Circularity Check

0 steps flagged

No circularity: claims rest on independent prototype experiments

full rationale

The paper introduces a Unity-based VR framework for embodied data collection and evaluates it via a single pick-and-place prototype. Experimental results measure state-action coverage and motion intensity directly from logged trajectories; these are independent observations, not fitted parameters or predictions that reduce to the framework definition by construction. No mathematical derivations, ansatzes, uniqueness theorems, or self-citations appear as load-bearing steps. The central claim of effectiveness is supported (or not) by the reported simulation metrics rather than by tautological redefinition of inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is a systems and prototype paper with no mathematical content. No free parameters, axioms, or invented entities are introduced or fitted.

pith-pipeline@v0.9.0 · 5399 in / 1106 out tokens · 37225 ms · 2026-05-10T06:36:34.005646+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

13 extracted references · 2 canonical work pages · 1 internal anchor

[1]

A survey of robot learning from demonstration,

B. D. Argall, S. Chernova, M. Veloso, and B. Browning, “A survey of robot learning from demonstration,”Robotics and Autonomous Systems, vol. 57, no. 5, pp. 469–483, 2009

2009
[2]

Scaling robot supervision to hundreds of hours with roboturk: Robotic manipulation dataset through human reasoning and dexterity,

A. Mandlekar, J. Booher, M. Spero, A. Tung, A. Gupta, Y . Zhu, A. Garg, S. Savarese, and L. Fei-Fei, “Scaling robot supervision to hundreds of hours with roboturk: Robotic manipulation dataset through human reasoning and dexterity,” in2019 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), 2019, pp. 1048– 1055

2019
[3]

Open x-embodiment: Robotic learning datasets and rt-x models: Open x- embodiment collaboration 0,

A. O’Neill, A. Rehman, A. Maddukuri, A. Gupta, A. Padalkar, A. Lee, A. Pooley, A. Gupta, A. Mandlekar, A. Jainet al., “Open x-embodiment: Robotic learning datasets and rt-x models: Open x- embodiment collaboration 0,” in2024 IEEE International Conference on Robotics and Automation (ICRA). IEEE, 2024, pp. 6892–6903

2024
[4]

Lynch, M

C. Lynch, M. Khansari, T. Xiao, V . Kumar, J. Tompson, S. Levine, and P. Sermanet, “Learning latent plans from play,”CoRR, vol. abs/1903.01973, 2019

work page arXiv 1903
[5]

MimicPlay: Long-horizon imitation learning by watching human play,

C. Wang, L. Fan, J. Sun, R. Zhang, L. Fei-Fei, D. Xu, Y . Zhu, and A. Anandkumar, “MimicPlay: Long-horizon imitation learning by watching human play,” 2023

2023
[6]

AI2-THOR: An Interactive 3D Environment for Visual AI

E. Kolve, R. Mottaghi, D. Gordon, Y . Zhu, A. Gupta, and A. Farhadi, “AI2-THOR: an interactive 3d environment for visual AI,”CoRR, vol. abs/1712.05474, 2017

work page internal anchor Pith review arXiv 2017
[7]

Habitat: A platform for embodied ai research,

M. Savva, A. Kadian, O. Maksymets, Y . Zhao, E. Wijmans, B. Jain, J. Straub, J. Liu, V . Koltun, J. Malik, D. Parikh, and D. Batra, “Habitat: A platform for embodied ai research,” in2019 IEEE/CVF International Conference on Computer Vision (ICCV), 2019, pp. 9338–9346

2019
[8]

Robothor: An open simulation-to-real embodied ai platform,

M. Deitke, W. Han, A. Herrasti, A. Kembhavi, E. Kolve, R. Mottaghi, J. Salvador, D. Schwenk, E. VanderBilt, M. Wallingford, L. Weihs, M. Yatskar, and A. Farhadi, “Robothor: An open simulation-to-real embodied ai platform,” in2020 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), 2020, pp. 3161–3171

2020
[9]

Procthor: Large- scale embodied ai using procedural generation,

M. Deitke, E. VanderBilt, A. Herrasti, L. Weihs, K. Ehsani, J. Salvador, W. Han, E. Kolve, A. Kembhavi, and R. Mottaghi, “Procthor: Large- scale embodied ai using procedural generation,” inAdvances in Neural Information Processing Systems, S. Koyejo, S. Mohamed, A. Agarwal, D. Belgrave, K. Cho, and A. Oh, Eds., vol. 35. Curran Associates, Inc., 2022, pp. ...

2022
[10]

Procedural content generation for games: A survey,

M. Hendrikx, S. Meijer, J. Van Der Velden, and A. Iosup, “Procedural content generation for games: A survey,”ACM Trans. Multimedia Comput. Commun. Appl., vol. 9, no. 1, Feb. 2013

2013
[11]

Experience-driven procedural content generation,

G. N. Yannakakis and J. Togelius, “Experience-driven procedural content generation,”IEEE Transactions on Affective Computing, vol. 2, no. 3, pp. 147–161, 2011

2011
[12]

PCGRL: Proce- dural content generation via reinforcement learning,

A. Khalifa, P. Bontrager, S. Earle, and J. Togelius, “PCGRL: Proce- dural content generation via reinforcement learning,”Proceedings of the AAAI Conference on Artificial Intelligence and Interactive Digital Entertainment, vol. 16, no. 1, pp. 95–101, 2020

2020
[13]

Gewu playground: an open-source robot simulation platform for embodied intelligence research,

L. Ye, B. Xing, B. Liang, L. Jiang, and Y . Yan, “Gewu playground: an open-source robot simulation platform for embodied intelligence research,”Science China Technological Sciences, 2 2026

2026
