arxiv: 2604.17365 · v2 · submitted 2026-04-19 · ❄️ cond-mat.mtrl-sci · cond-mat.str-el· quant-ph

Recognition: unknown

G-type antiferromagnetic structure in Rb1-xV2Te2O

Wu Xie (1 , 2) , Changchao Liu (3) , Fayuan Zhang (4) , Zhenhong Tan (1 , Wenhai Ji (1 , Nan Zhao (1 , Lingxiang Bao (1

show 23 more authors

Dong Zhang (1 Feiran Shen (1 Lunhua He (1 5) Hao Wang (1 Rong Du (1 Guanghan Cao (3) Chaoyu Chen (6) Ping Miao (1 2) ((1) Spallation Neutron Source Science Center Dongguan P. R. China (2) Institute of High Energy Physics Chinese Academy of Sciences Beijing P. R. China (3) School of Physics Zhejiang University Hangzhou China (4) Quantum Science Center of Guangdong-Hong Kong-Macao Greater Bay Area Shenzhen China (5) Beijing National Laboratory for Condensed Matter Physics Institute of Physics China (6) Songshan Lake Materials Laboratory China)

Authors on Pith no claims yet

Pith reviewed 2026-05-10 05:57 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci cond-mat.str-elquant-ph

keywords altermagnetismG-type antiferromagnetismneutron powder diffractionmagnetic structureRb1-xV2Te2Otransition temperaturelayered material

0 comments

The pith

Neutron powder diffraction reveals a G-type antiferromagnetic structure in Rb1-xV2Te2O below 337 K, contrary to theoretical expectations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper uses neutron powder diffraction to examine the magnetic order in the layered altermagnet candidate Rb1-xV2Te2O. It identifies a G-type antiferromagnetic structure that forms below a transition temperature of 337 K. This ordering differs from the spin arrangement predicted by earlier theory. A sympathetic reader would care because the result supplies the first direct experimental map of the spin directions in this material, which can guide revised models of its altermagnetic properties and its prospects for practical use.

Core claim

The neutron powder diffraction investigations on Rb1-xV2Te2O show a G-type antiferromagnetic structure below the transition temperature of 337 K. The result is different from the original theoretical expectation, which might lead to new insights on the physics of this altermagnet candidate.

What carries the argument

Neutron powder diffraction pattern indexing that matches magnetic Bragg peaks to a G-type antiferromagnetic arrangement on the vanadium sites.

If this is right

Theoretical descriptions of the material's altermagnetism must incorporate the G-type order rather than the previously expected structure.
Spin-resolved spectroscopy and microscopy data on the same compound should be reinterpreted using the actual magnetic arrangement.
Assessment of room-temperature altermagnetic behavior now depends on confirming that the G-type state remains stable under the reported conditions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Single-crystal neutron measurements could determine the precise orientation of the vanadium moments and any lattice coupling.
Similar compounds in the vanadium telluride oxide family could be checked to see whether G-type order is common across the series.
Doping-dependent studies might test whether the transition temperature and structure type change with the Rb deficiency parameter x.

Load-bearing premise

The observed diffraction pattern arises solely from a G-type antiferromagnetic structure with no significant impurity phases, structural disorder, or competing magnetic models.

What would settle it

A neutron diffraction scan below 337 K that shows magnetic peak positions or intensity ratios inconsistent with G-type ordering.

Figures

Figures reproduced from arXiv: 2604.17365 by 2), 2) ((1) Spallation Neutron Source Science Center, 5), Beijing, Changchao Liu (3), Chaoyu Chen (6), China), China (4) Quantum Science Center of Guangdong-Hong Kong-Macao Greater Bay Area, China (5) Beijing National Laboratory for Condensed Matter Physics, China (6) Songshan Lake Materials Laboratory, Chinese Academy of Sciences, Dongguan, Dong Zhang (1, Fayuan Zhang (4), Feiran Shen (1, Guanghan Cao (3), Hangzhou, Hao Wang (1, Institute of Physics, Lingxiang Bao (1, Lunhua He (1, Nan Zhao (1, Ping Miao (1, P. R. China (2) Institute of High Energy Physics, P. R. China (3) School of Physics, Rong Du (1, Shenzhen, Wenhai Ji (1, Wu Xie (1, Zhejiang University, Zhenhong Tan (1.

**Figure 3.** Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

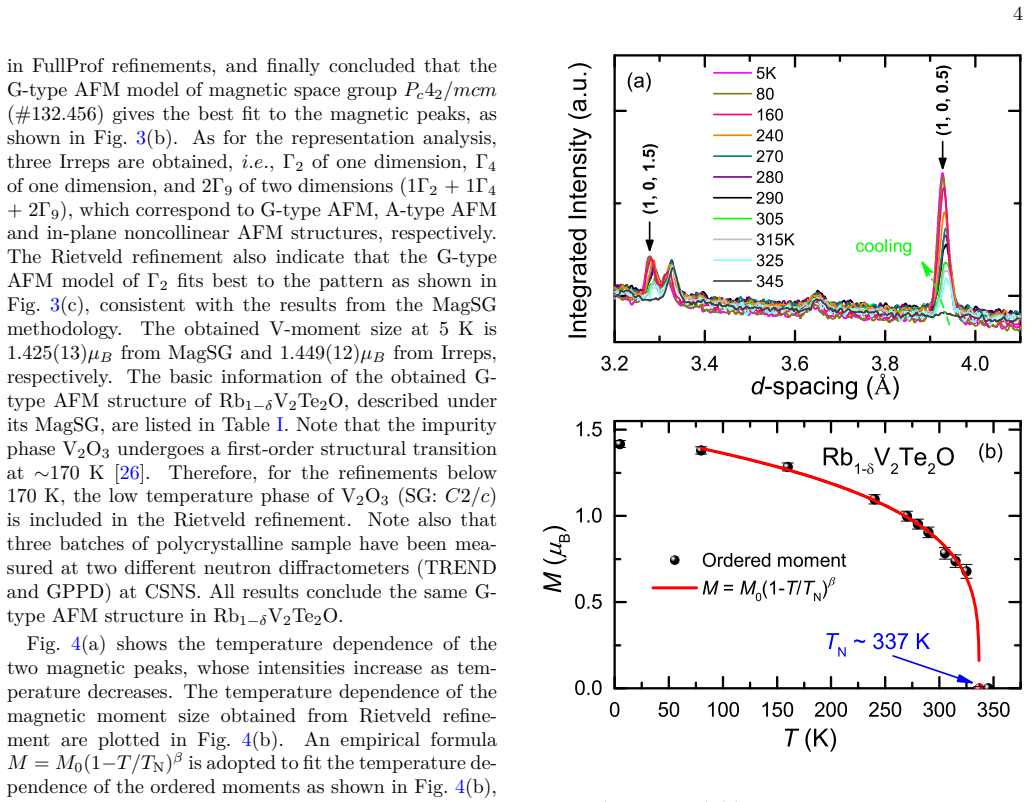

**Figure 4.** Figure 4: (a) shows the temperature dependence of the two magnetic peaks, whose intensities increase as temperature decreases. The temperature dependence of the magnetic moment size obtained from Rietveld refinement are plotted in [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗

read the original abstract

Altermagnetism, known for its non-relativistic spin-split band structures with yet compensated moments, is being intensively investigated. Discovering new altermagnetic materials with characteristics suitable for practical use remains an important ongoing task. Recently a metallic room-temperature altermagnet candidate Rb1-xV2Te2O with a layered structure and d-wave spin symmetry has been reported based on experimental results from the spin-resolved photoemission spectroscopy and scanning tunnelling microscopy/spectroscopy (STM/STS) measurements. Here we report neutron powder diffraction (NPD) investigations on the magnetic structure of Rb1-xV2Te2O, which shows a G-type antiferromagnetic structure below the transition temperature of 337 K. The result is different from the original theoretical expectation, which might lead to new insights on the physics of this altermagnet candidate.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

NPD data assigns G-type AFM to Rb1-xV2Te2O below 337 K, contradicting prior altermagnet expectations, but the fit's uniqueness is not yet demonstrated.

read the letter

The central result is a neutron powder diffraction measurement that indexes the magnetic order in Rb1-xV2Te2O as G-type antiferromagnetic below 337 K. This directly conflicts with the d-wave altermagnetic symmetry inferred from the cited photoemission and STM work, so the paper supplies a new experimental constraint on the actual spin arrangement in this layered candidate. That is the useful part: it is the first reported NPD on the magnetic structure of this specific compound, and the temperature dependence appears to pin the transition cleanly. For readers tracking altermagnetism in vanadates or related tellurides, the finding forces a re-examination of how the observed order fits (or does not fit) the expected symmetry. The experimental approach itself is standard and the claim is falsifiable in principle. The soft spot is exactly the one flagged in the stress-test note. Powder patterns for compensated antiferromagnets in non-stoichiometric layered materials can often be fit by more than one propagation vector or moment direction, and the abstract supplies no Rietveld statistics, no comparison to A-type or other symmetry-allowed models, and no explicit check on impurity or vacancy-related scattering. Without those, it is hard to judge whether G-type is uniquely required or simply one acceptable description. The non-stoichiometry (Rb1-x) adds another layer where disorder could broaden or shift peaks, yet that is not addressed in the summary. This work is for condensed-matter groups focused on altermagnets or neutron studies of layered quantum materials; a specialist reader can extract the new ordering vector and temperature even if the full refinement details are still needed. It is worth sending to peer review because the measurement is new and the discrepancy with prior claims is substantive, but the referees will almost certainly ask for the alternative-model comparisons and goodness-of-fit numbers before acceptance.

Referee Report

3 major / 2 minor

Summary. The manuscript reports neutron powder diffraction (NPD) investigations on the layered altermagnet candidate Rb_{1-x}V_2Te_2O, which reveal a G-type antiferromagnetic structure below a transition temperature of 337 K. This experimental finding differs from the original theoretical expectation based on prior spin-resolved photoemission and STM/STS measurements.

Significance. If the G-type assignment holds with demonstrated uniqueness, the result would be significant for altermagnetism research by supplying direct experimental input on the compensated magnetic order in a metallic layered material with d-wave spin symmetry, helping reconcile discrepancies between theory and experiment and informing models of spin-split bands.

major comments (3)

[NPD results section] NPD results section: The assignment of a unique G-type antiferromagnetic structure lacks any reported Rietveld refinement statistics (R_wp, χ²) or explicit comparisons to alternative compensated AF models (e.g., A-type or symmetry-allowed spin orientations) that could produce similar Bragg positions in powder data for this non-stoichiometric compound.
[Temperature-dependent NPD analysis] Temperature-dependent NPD analysis: The transition temperature of 337 K is stated without details on its extraction, such as magnetic peak intensity versus temperature plots, fitting procedures, or error estimates from the data.
[Sample and data quality discussion] Sample and data quality discussion: No analysis addresses possible impurity phases or structural disorder from Rb vacancies that could contribute to the observed NPD pattern or affect magnetic peak indexing and structure uniqueness.

minor comments (2)

[Abstract] The abstract could concisely mention the key NPD evidence (e.g., magnetic peak indexing) supporting the G-type structure.
[Figures] Figure captions and text should clarify the propagation vector and moment directions used for the G-type model.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the careful and constructive review of our manuscript. The comments have helped us improve the clarity and rigor of the NPD analysis. We have revised the manuscript to incorporate the requested details on refinement statistics, temperature-dependent data, and sample characterization. Our point-by-point responses follow.

read point-by-point responses

Referee: [NPD results section] NPD results section: The assignment of a unique G-type antiferromagnetic structure lacks any reported Rietveld refinement statistics (R_wp, χ²) or explicit comparisons to alternative compensated AF models (e.g., A-type or symmetry-allowed spin orientations) that could produce similar Bragg positions in powder data for this non-stoichiometric compound.

Authors: We agree that reporting the refinement statistics and comparisons to alternative models is essential to support the uniqueness of the G-type assignment. In the revised manuscript, we now include the Rietveld refinement statistics (R_wp and χ²) for the G-type model. We have also added explicit comparisons to A-type antiferromagnetism and other symmetry-allowed spin configurations permitted by the space group, showing that the G-type structure yields the lowest residuals and best accounts for the observed magnetic Bragg peaks. A table summarizing the refinement parameters for each model is included in the NPD results section. revision: yes
Referee: [Temperature-dependent NPD analysis] Temperature-dependent NPD analysis: The transition temperature of 337 K is stated without details on its extraction, such as magnetic peak intensity versus temperature plots, fitting procedures, or error estimates from the data.

Authors: We appreciate the request for additional methodological details. The transition temperature was obtained from the temperature evolution of the integrated intensity of the magnetic Bragg peaks. In the revised manuscript, we have added a figure displaying the magnetic peak intensity as a function of temperature. We describe the fitting procedure (power-law behavior near the transition) used to extract Tc and include the associated uncertainty. These elements are now presented in the temperature-dependent NPD analysis section. revision: yes
Referee: [Sample and data quality discussion] Sample and data quality discussion: No analysis addresses possible impurity phases or structural disorder from Rb vacancies that could contribute to the observed NPD pattern or affect magnetic peak indexing and structure uniqueness.

Authors: We thank the referee for this important point. The sample purity was verified by laboratory X-ray diffraction before the NPD experiment, with no impurity phases detected above the detection limit. In the revised manuscript, we have added a discussion of possible impurity contributions and the effects of Rb non-stoichiometry. We note that Rb vacancies cause minor peak broadening in the nuclear structure but do not generate additional scattering that could be mistaken for the observed magnetic order. The NPD pattern is fully accounted for by the main phase plus the G-type magnetic structure, with disorder incorporated into the structural model. This addresses concerns about data quality and indexing. revision: yes

Circularity Check

0 steps flagged

No circularity: direct experimental NPD structure determination

full rationale

The paper's central claim rests on neutron powder diffraction data indexing a G-type antiferromagnetic structure below 337 K, presented as an experimental observation differing from prior theoretical expectations. No derivation chain, parameter fitting to self-defined quantities, or load-bearing self-citation reduces the result to its own inputs by construction. The magnetic structure assignment is obtained via standard Rietveld refinement of observed Bragg peaks against candidate models, without the paper redefining the G-type configuration in terms of its own fitted outputs or invoking uniqueness theorems from the authors' prior work. This is a standard experimental report with independent data support.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the interpretation of NPD Bragg peaks as arising from a G-type antiferromagnetic arrangement of vanadium moments. No free parameters, ad-hoc axioms, or new entities are explicitly introduced in the abstract.

axioms (1)

standard math Neutron diffraction intensities from magnetic structures can be calculated from the Fourier transform of the spin arrangement and compared to observed Bragg peaks.
Standard formalism in magnetic crystallography.

pith-pipeline@v0.9.0 · 5633 in / 1313 out tokens · 50961 ms · 2026-05-10T05:57:00.433816+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

27 extracted references · 4 canonical work pages · 1 internal anchor

[1]

ˇSmejkal, R

L. ˇSmejkal, R. Gonz ´ alez-Hern´ andez, T. Jungwirth, J. Sinova, Crystal time-reversal symmetry breaking and spontaneous Hall effect in collinear antiferromagnets, Sci. Adv. 6, eaaz8809 (2020)

2020
[2]

H. Y. Ma, M. Hu, N. Li, J. Liu, W. Yao, J. F. Jia, and J. Liu, Multifunctional antiferromagnetic materials with giant piezomagnetism and noncollinear spin current, Nat. Commun. 12(1), 2846 (2021)

2021
[3]

Gonz ´ alez-Hern´ andez, L

R. Gonz ´ alez-Hern´ andez, L. ˇSmejkal, K. V ´ yborn´ y, Y. Yahagi, J. Sinova, T. Jungwirth, and J. ˇZelezn´ y, Ef- ficient electrical spin splitter based on nonrelativis- tic collinear antiferromagnetism, Phys. Rev. Lett. 126, 127701 (2021)

2021
[4]

ˇSmejkal, J

L. ˇSmejkal, J. Sinova, and T. Jungwirth, Beyond Con- ventional Ferromagnetism and Antiferromagnetism: A Phase with Nonrelativistic Spin and Crystal Rotation Symmetry, Phys. Rev. X 12, 031042 (2022)

2022
[5]

Z. Feng, X. Zhou, L. ˇSmejkal, L. Wu, Z. Zhu, H. Guo, R. Gonz ´ alez-Hern´ andez, X. Wang, H. Yan, P. Qin, X. Zhang, H. Wu, H. Chen, Z. Meng, L. Liu, Z. Xia, J. Sinova, T. Jungwirth, and Z. Liu, An anomalous Hall effect in altermagnetic ruthenium dioxide, Nature Elec- tronics 5, 735 (2022)

2022
[6]

H. Bai, L. Han, X. Y. Feng, Y. J. Zhou, R. X. Su, Q. Wang, L. Y. Liao, W. X. Zhu, X. Z. Chen, F. Pan, X. L. Fan, and C. Song, Observation of Spin Splitting Torque in a Collinear Antiferromagnet RuO 2, Phys. Rev. Lett. 128, 197202 (2022)

2022
[7]

Krempask ´ y, L

J. Krempask ´ y, L. ˇSmejkal, S. W. D’Souza, M. Hajlaoui, G. Springholz, K. Uh ´iˇ vrov´ a, F. Alarab, P. C. Constanti- nou, V. Strocov, D. Usanov, W. R. Pudelko, R. Gonz ´ alez- Hern´ andez, A. Birk Hellenes, Z. Jansa,H. Reichlov ´ a, Z. ˇSob´ aˇ n, R. D. Gonzalez Betancourt, P. Wadley, J. Sinova, D. Kriegner, J. Min ´ ar, J. H. Dil, and T. Jungwirth, Al...

2024
[8]

O. J. Amin, A. Dal Din, E. Golias, Y. Niu, A. Zakharov, S. C. Fromage, C. J. B. Fields, S. L. Heywood, R. B. Cousins, F. Maccherozzi, J. Krempask ´ y, J. H. Dil, D. Kriegner, B. Kiraly, R. P. Campion, A. W. Rushforth, K. W. Edmonds, S. S. Dhesi, L. ˇSmejkal, T. Jungwirth, and P. Wadley, Nanoscale imaging and control of alter- magnetism in MnTe, Nature 636...

2024
[9]

Jiang, M

B. Jiang, M. Hu, J. Bai, Z. Song, C. Mu, G. Qu, W. Li, W. Zhu, H. Pi, Z. Wei, Y.-J. Sun, Y. Huang, X. Zheng, Y. Peng, L. He, S. Li, J. Luo, Z. Li, G. Chen, H. Li, H. Weng, and T. Qian, A metallic room-temperature d-wave altermagnet, Nature Physics 21, 754 (2025)

2025
[10]

Zhang, X

F. Zhang, X. Cheng, Z. Yin, C. Liu, L. Deng, Y. Qiao, Z. Shi, S. Zhang, J. Lin, Z. Liu, M. Ye, Y. Huang, X. Meng, C. Zhang, T. Okuda, K. Shimada, S. Cui, Y. Zhao, G.- H. Cao, S. Qiao, J. Liu, and C. Chen, Crystal-symmetry- paired spin–valley locking in a layered room-temperature metallic altermagnet candidate, Nature Physics 21, 760 (2025)

2025
[11]

Kun Wu, Jianting Dong, Meng Zhu, Fanxing Zheng and Jia Zhang, Magnon Splitting and Magnon Spin Trans- port in Altermagnets, Chinese Phys. Lett. 42, 070702 (2025)

2025
[12]

Hugo Dil, Junwei Liu, Xianzhe Chen, and Feng Pan, Altermagnets as a new class of functional ma- terials, Nature Reviews Materials 10, 473–485 (2025)

Cheng Song, Hua Bai, Zhiyuan Zhou, Lei Han, Helena Reichlova, J. Hugo Dil, Junwei Liu, Xianzhe Chen, and Feng Pan, Altermagnets as a new class of functional ma- terials, Nature Reviews Materials 10, 473–485 (2025)

2025
[13]

Tomas Jungwirth, Jairo Sinova, Rafael M. Fernandes, Qi- hang Liu, Hikaru Watanabe, Shuichi Murakami, Satoru Nakatsuji, and ˇSmejkal, Symmetry, microscopy and spectroscopy signatures of altermagnetism, Nature 649, 837–847 (2026)

2026
[14]

Xinnuo Zhang, Jiayu Liu, Wencheng Huang, Fayuan Zhang, Ming-Yuan Zhu, Yu-Peng Zhu, Chaoyu Chen, Chang Liu, Changyong Kim, Dawei Shen, ARPES Stud- ies of Spin-Splitting Antiferromagnets, Chin. Phys. Lett. 43, 050709 (2026)

2026
[15]

supplementary information in [10] (https://doi.org/10.1038/s41567-025-02864-2)

work page doi:10.1038/s41567-025-02864-2
[16]

Guowei Yang, Ruihan Chen, Changchao Liu, Jing Li, Ze Pan, Liwei Deng, Naifu Zheng, Yu Tang, Hao Zheng, Weifan Zhu, Yifu Xu, Xin Ma, Xiaoping Wang, Sheng- tao Cui, Zhe Sun, Zhengtai Liu, Mao Ye, Chao Cao, Ming Shi, Lunhui Hu, Qihang Liu, Shan Qiao, Guanghan Cao, Yu Song, Yang Liu, Observation of hidden altermag- netism in Cs 1−δV2Te2O, arXiv:2512.00972 (2025)

work page internal anchor Pith review arXiv 2025
[17]

S. D. Guo, Hidden altermagnetism, Front. Phys. 21025201 (2026); arXiv:2411.13795 (2024)

work page arXiv 2026
[18]

Ablimit, Y

A. Ablimit, Y. -L. Sun, H. Jiang, S. -Q. Wu, Y. -B. Liu, and G. -H. Cao, Weak metal-metal transition in the vanadium oxytelluride Rb 1−δV2Te2O, Phys. Rev. B 97, 214517 (2018)

2018
[19]

Zhenhong Tan, Zhiduo Li, Dong Zhang, Jingjing Ma, Wu Xie, Wenhai Ji, Yanyan Wu, Takashi Kamiyama, Ping Miao, Radial collimator with ultra-wide scattering angle coverage for high-resolution neutron diffractometer TREND, Nucl. Instrum. Methods Phys. Res. A, 1083, 171096 (2026)

2026
[20]

Yanyan Wu, Wu Xie, Jingjing Ma, Dong Zhang, Hui Cheng, Zhenhong Tan, Wenhai Ji, Yuqin Yin, and Ping Miao, Design of an oscillating platform system for the high-resolution neutron diffractometer compatible with high magnetic field sample environment at the China Spallation Neutron Source, Instrumentation Science & Technology, DOI: 10.1080/10739149.2025.2500592

work page doi:10.1080/10739149.2025.2500592 2025
[21]

Jingjing Ma, Wenhai Ji, Donghai Yu, Zhenhong Tan, Wu Xie, Yanyan Wu, Yongji Yu, Zhiduo Li, Tong Wang, Zhiyong Ke, Wen Yin, Yandong Wang, Takashi Kamiyama, Ping Miao, Curved neutron beam window for large vacuum chamber of neutron diffractometer, Rev. Sci. Instrum. 96, 063305 (2025)

2025
[22]

Jiajun Zhong, Dong Zhang, Hao Wang, Zhenhong Tan, Wu Xie, Wenhai Ji, Yikun Li, Haichuan Guo, Ping Miao, Junrong Zhang, Rong Du, Advanced time focusing in the high-resolution neutron diffractometer at CSNS, Nucl. Instrum. Methods Phys. Res. A, 1082, 170928 (2026)

2026
[23]

Rodríguez-Carvajal, Recent advances in magnetic structure determination by neutron powder diffraction, Phys

J. Rodríguez-Carvajal, Recent advances in magnetic structure determination by neutron powder diffraction, Phys. B: Condens. Matter 192, 55 (1993). 6

1993
[24]

S. V. Gallego, E. S. Tasci, G. d. l. Flor, J. M. Pérez-Mato, and M. I. Aroyo, Magnetic symmetry in the Bilbao Crys- tallographic Server: a computer program to provide sys- tematic absences of magnetic neutron diffraction. Journal of Applied Crystallography, 45(6), 1236-1247 (2012)

2012
[25]

Momma and F

K. Momma and F. Izumi, VESTA 3 for three-dimensional visualization of crystal, volumetric and morphology data, J. Appl. Crystallogr., 44, 1272-1276 (2011)

2011
[26]

Yethiraj, Pure and doped vanadium sesquioxide: A brief experimental review, J

M. Yethiraj, Pure and doped vanadium sesquioxide: A brief experimental review, J. Sol. St. Chem., 88, 53(1990)

1990
[27]

Y. Sun, Y. Huang, J. Cheng, S. Zhang, Z. Li, H. Luo, X. Ma, W. Yang, J. Yang, D. Chen, K. Sun, M. Gutmann, S. C. Capelli, F. Shen, J. Hao, L. He, G. Chen, and S. Li, Antiferromagnetic structure of KV 2Se2O: A neutron diffraction study, Phys. Rev. B 112, 184416 (2025)

2025
