ZSG-IAD: A Multimodal Framework for Zero-Shot Grounded Industrial Anomaly Detection
Pith reviewed 2026-05-10 05:37 UTC · model grok-4.3
The pith
ZSG-IAD detects industrial anomalies zero-shot by grounding language descriptions in multimodal sensor data to produce masks and explanatory reports.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
ZSG-IAD is a multimodal vision-language framework for zero-shot grounded industrial anomaly detection. Given RGB images, sensor images, and 3D point clouds, it generates structured anomaly reports and pixel-level masks via a language-guided two-hop grounding module that selects evidence-like latent slots for coarse spatial support and then modulates feature maps with channel-spatial gating and a decoder for fine masks, further stabilized by Executable-Rule GRPO to enforce output structure, region consistency, and reasoning coherence.
What carries the argument
Language-guided two-hop grounding module that uses anomaly-related sentences to select latent slots from multimodal features for coarse support, then applies channel-spatial gating to modulate those features into fine-grained anomaly masks.
If this is right
- Zero-shot operation permits detection of previously unseen defect types across multiple benchmarks using only the provided multimodal inputs.
- Structured reports and masks supply physically grounded explanations that increase transparency over prior black-box detectors.
- Multimodal fusion of RGB, sensor, and 3D data improves both localization accuracy and explanatory coherence.
- Executable-Rule GRPO yields outputs that maintain anomaly-region consistency and reasoning-conclusion alignment without extra labeled data.
Where Pith is reading between the lines
- The same two-hop grounding pattern could be tested on other sensor-rich domains such as autonomous driving or medical imaging where explanations are required.
- Integration with robotic arms might allow the generated masks to trigger automated repair actions directly from the detected regions.
- The method suggests a path toward reducing reliance on large labeled defect datasets in quality-control pipelines by shifting the burden to language-based feature selection.
Load-bearing premise
Anomaly-related language sentences can reliably select and modulate multimodal features into accurate pixel masks and coherent reports without any task-specific training or fine-tuning.
What would settle it
On an industrial anomaly benchmark the model produces masks with low overlap to ground-truth defect regions or reports that contradict the visible evidence in the input data.
Figures

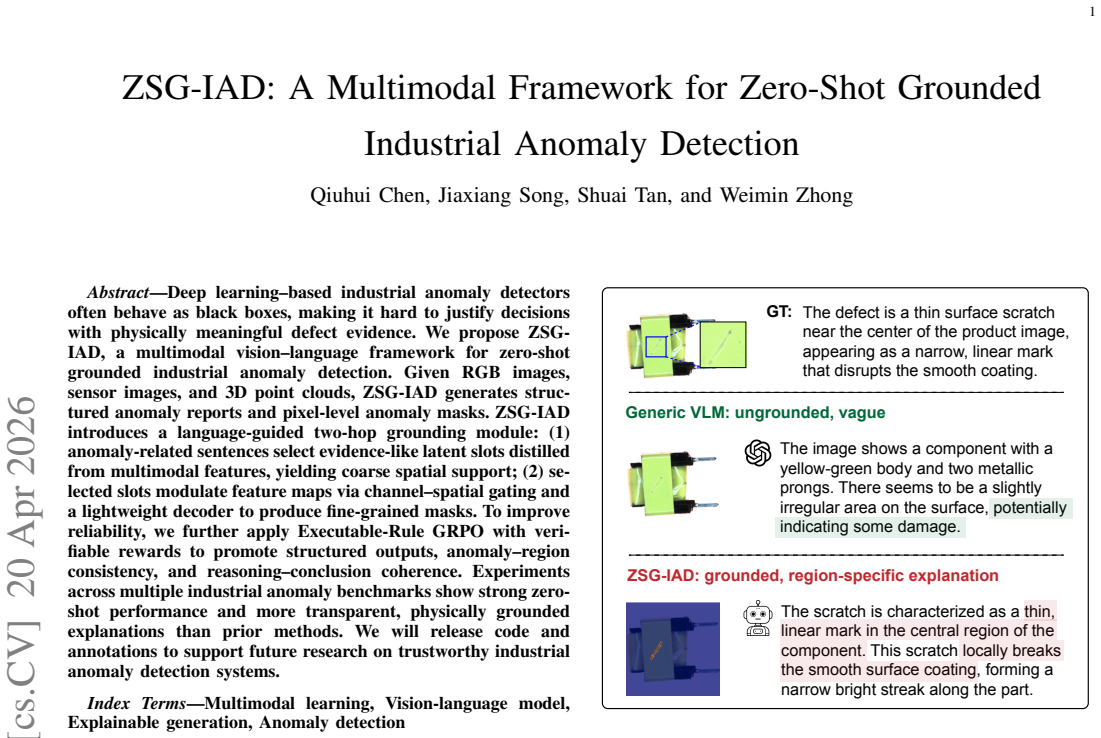

read the original abstract
Deep learning-based industrial anomaly detectors often behave as black boxes, making it hard to justify decisions with physically meaningful defect evidence. We propose ZSG-IAD, a multimodal vision-language framework for zero-shot grounded industrial anomaly detection. Given RGB images, sensor images, and 3D point clouds, ZSG-IAD generates structured anomaly reports and pixel-level anomaly masks. ZSG-IAD introduces a language-guided two-hop grounding module: (1) anomaly-related sentences select evidence-like latent slots distilled from multimodal features, yielding coarse spatial support; (2) selected slots modulate feature maps via channel-spatial gating and a lightweight decoder to produce fine-grained masks. To improve reliability, we further apply Executable-Rule GRPO with verifiable rewards to promote structured outputs, anomaly-region consistency, and reasoning-conclusion coherence. Experiments across multiple industrial anomaly benchmarks show strong zero-shot performance and more transparent, physically grounded explanations than prior methods. We will release code and annotations to support future research on trustworthy industrial anomaly detection systems.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes ZSG-IAD, a multimodal vision-language framework for zero-shot grounded industrial anomaly detection. It takes RGB images, sensor images, and 3D point clouds as input and outputs structured anomaly reports together with pixel-level masks. The core technical contribution is a language-guided two-hop grounding module: anomaly-related sentences first select evidence-like latent slots from multimodal features to produce coarse spatial support; these slots then modulate feature maps through channel-spatial gating and a lightweight decoder to yield fine-grained masks. An Executable-Rule GRPO stage with verifiable rewards is added to enforce output structure, anomaly-region consistency, and reasoning-conclusion coherence. The abstract states that experiments on multiple industrial anomaly benchmarks demonstrate strong zero-shot performance and more transparent, physically grounded explanations than prior methods.
Significance. If the zero-shot claims hold with rigorous quantitative support, the work would advance trustworthy industrial inspection by replacing black-box detectors with interpretable, multimodal systems that link decisions to physically meaningful evidence without task-specific fine-tuning. Releasing code and annotations would further strengthen its utility for the community.
major comments (3)
- [Abstract] Abstract: the central claim of 'strong zero-shot performance' is asserted without any quantitative metrics, benchmark scores, ablation tables, or implementation details. This absence prevents evaluation of whether the two-hop grounding and GRPO components actually deliver the promised gains over baselines.
- [Method (language-guided two-hop grounding)] Method description of the two-hop grounding module: the claim that pre-trained vision-language models can reliably select anomaly-related sentences and modulate multimodal (RGB/sensor/3D) features into accurate masks rests on an untested assumption that natural-image alignments transfer to subtle, texture-specific, or geometry-dependent industrial defects. No evidence is supplied that this selection step produces usable coarse support without domain adaptation.
- [Method (Executable-Rule GRPO)] Executable-Rule GRPO stage: the use of verifiable rewards for structure and coherence is presented as preserving strict zero-shot operation, yet the reward computation itself may constitute a form of adaptation or optimization that requires clarification on whether any task-specific data or tuning is involved.
minor comments (2)
- The promise to release code and annotations is noted positively and should be retained.
- Notation for multimodal feature distillation and slot selection could be made more explicit with a diagram or pseudocode to aid reproducibility.
Simulated Author's Rebuttal
We thank the referee for the constructive comments. We address each major point below and have revised the manuscript accordingly.
read point-by-point responses
-
Referee: [Abstract] Abstract: the central claim of 'strong zero-shot performance' is asserted without any quantitative metrics, benchmark scores, ablation tables, or implementation details. This absence prevents evaluation of whether the two-hop grounding and GRPO components actually deliver the promised gains over baselines.
Authors: We agree that the abstract would benefit from quantitative support. In the revised manuscript we have updated the abstract to report key zero-shot metrics (average AUROC and AUPRO across the evaluated industrial benchmarks) and to note the contributions of the two-hop grounding and GRPO stages. Full tables, ablations, and implementation details remain in the main text. revision: yes
-
Referee: [Method (language-guided two-hop grounding)] Method description of the two-hop grounding module: the claim that pre-trained vision-language models can reliably select anomaly-related sentences and modulate multimodal (RGB/sensor/3D) features into accurate masks rests on an untested assumption that natural-image alignments transfer to subtle, texture-specific, or geometry-dependent industrial defects. No evidence is supplied that this selection step produces usable coarse support without domain adaptation.
Authors: The framework is designed to operate strictly zero-shot, using off-the-shelf pre-trained VLMs with no domain adaptation or fine-tuning on industrial data. While transfer from natural-image pre-training is an assumption, the paper's experiments on multiple industrial benchmarks show that the selected latent slots yield effective coarse support, as reflected in the final mask accuracy and qualitative results. We have added a short discussion in the method section on this design choice together with additional qualitative examples of the intermediate coarse support on industrial images. revision: partial
-
Referee: [Method (Executable-Rule GRPO)] Executable-Rule GRPO stage: the use of verifiable rewards for structure and coherence is presented as preserving strict zero-shot operation, yet the reward computation itself may constitute a form of adaptation or optimization that requires clarification on whether any task-specific data or tuning is involved.
Authors: The Executable-Rule GRPO stage applies deterministic, rule-based verifiable rewards that evaluate output structure, anomaly-region consistency, and reasoning coherence directly from the generated text and masks. No task-specific data, labels, or parameter tuning are used; the rules are fixed and general. We have revised the method section to state this explicitly and to confirm that the procedure remains strictly zero-shot. revision: yes
Circularity Check
No mathematical derivation chain present; framework is descriptive with experimental validation
full rationale
The paper describes a multimodal vision-language framework for zero-shot grounded industrial anomaly detection, including a language-guided two-hop grounding module and Executable-Rule GRPO for structured outputs. No equations, derivations, or first-principles predictions appear in the provided text. Central claims rest on experimental results across industrial anomaly benchmarks rather than any self-referential reductions, fitted parameters renamed as predictions, or self-citation chains that collapse the argument. The approach is self-contained as a proposed architecture whose performance is evaluated externally, with no load-bearing step equivalent to its inputs by construction.
Axiom & Free-Parameter Ledger
Reference graph
Works this paper leans on
-
[1]
A. Hurst, A. Lerer, A. P. Goucher, A. Perelman, A. Ramesh, A. Clark, A. Ostrow, A. Welihinda, A. Hayes, A. Radfordet al., “Gpt-4o system card,”arXiv preprint arXiv:2410.21276, 2024
work page internal anchor Pith review Pith/arXiv arXiv 2024
-
[2]
Learning transfer- able visual models from natural language supervision,
A. Radford, J. W. Kim, C. Hallacy, A. Rameshet al., “Learning transfer- able visual models from natural language supervision,” inProceedings of the 38th International Conference on Machine Learning (ICML), 2021, pp. 8748–8763
2021
-
[3]
Gpt-4 technical report,
OpenAI, “Gpt-4 technical report,” 2023
2023
-
[4]
Mvtec ad – a comprehensive real-world dataset for unsupervised anomaly detection,
P. Bergmann, M. Fauser, D. Sattlegger, and C. Steger, “Mvtec ad – a comprehensive real-world dataset for unsupervised anomaly detection,” inProceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), June 2019, pp. 9592–9600
2019
-
[5]
Cutpaste: Self-supervised learning for anomaly detection and localization,
C.-L. Li, K. Sohn, J. Yoon, and T. Pfister, “Cutpaste: Self-supervised learning for anomaly detection and localization,” inProceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), June 2021, pp. 9664–9674
2021
-
[6]
Towards total recall in industrial anomaly detection,
K. Roth, L. Pemula, J. Zepeda, B. Sch ¨olkopf, T. Brox, and P. Gehler, “Towards total recall in industrial anomaly detection,” inProceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), June 2022, pp. 14 318–14 328
2022
-
[7]
Multimodal industrial anomaly detection via hybrid fusion,
Y . Wang, J. Peng, J. Zhang, R. Yi, Y . Wang, and C. Wang, “Multimodal industrial anomaly detection via hybrid fusion,” inProceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), June 2023, pp. 8032–8041
2023
-
[8]
Real-iad d3: A real- world 2d/pseudo-3d/3d dataset for industrial anomaly detection,
W. Zhu, L. Wang, Z. Zhou, C. Wanget al., “Real-iad d3: A real- world 2d/pseudo-3d/3d dataset for industrial anomaly detection,” in Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), June 2025, pp. 15 214–15 223
2025
-
[9]
Multi-sensor object anomaly detection: Unifying appearance, geometry, and internal properties,
W. Li, B. Zheng, X. Xu, J. Gan, F. Lu, X. Li, N. Ni, Z. Tian, X. Huang, S. Gao, and Y . Wu, “Multi-sensor object anomaly detection: Unifying appearance, geometry, and internal properties,” inProceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), June 2025, pp. 9984–9993
2025
-
[10]
Enhancing trans- parency and trust in AI-powered manufacturing: A survey of explainable AI (XAI) applications in smart manufacturing in the era of industry 4.0/5.0,
L. Nikiforidis, M. Kyrtsoglou, and A. Vafeiadis, “Enhancing trans- parency and trust in AI-powered manufacturing: A survey of explainable AI (XAI) applications in smart manufacturing in the era of industry 4.0/5.0,”ICT Express, vol. 11, no. 1, pp. 135–148, 2025
2025
-
[11]
Explainable AI for industrial fault diagnosis: A systematic review,
J. Cac ¸˜ao, J. Santos, and M. Antunes, “Explainable AI for industrial fault diagnosis: A systematic review,”Journal of Industrial Information Integration, vol. 47, p. 100905, Sep. 2025
2025
-
[12]
A semantic framework for condition monitoring in industry 4.0 based on evolving knowledge bases,
F. Giustozzi, J. Saunier, and C. Zanni-Merk, “A semantic framework for condition monitoring in industry 4.0 based on evolving knowledge bases,”Semantic Web, vol. 15, no. 3, pp. 583–611, 2024. [Online]. Available: https://doi.org/10.3233/SW-233481
-
[13]
Grounded language-image pre-training,
L. H. Li, P. Zhang, H. Zhang, J. Yang, C. Li, Y . Zhong, L. Wang, L. Yuan, L. Zhang, J.-N. Hwang, K.-W. Chang, and J. Gao, “Grounded language-image pre-training,” inProceedings of the IEEE/CVF Confer- ence on Computer Vision and Pattern Recognition (CVPR), June 2022, pp. 10 965–10 975
2022
-
[14]
Image segmentation using text and image prompts,
T. L ¨uddecke and A. Ecker, “Image segmentation using text and image prompts,” inProceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), June 2022, pp. 7086–7096
2022
-
[15]
Denseclip: Language-guided dense prediction with context-aware prompting,
Y . Rao, W. Zhao, G. Chen, Y . Tang, Z. Zhu, G. Huang, J. Zhou, and J. Lu, “Denseclip: Language-guided dense prediction with context-aware prompting,” inProceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), June 2022, pp. 18 082–18 091
2022
-
[16]
Lavt: Language-aware vision transformer for referring image segmentation,
Z. Yang, J. Wang, Y . Tang, K. Chen, H. Zhao, and P. H. Torr, “Lavt: Language-aware vision transformer for referring image segmentation,” inProceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), June 2022, pp. 18 155–18 165
2022
-
[17]
Towards open set deep networks,
A. Bendale and T. E. Boult, “Towards open set deep networks,” in Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2016
2016
-
[18]
Recent advances in open set recognition: A survey,
C. Geng, S.-J. Huang, and S. Chen, “Recent advances in open set recognition: A survey,”IEEE Transactions on Pattern Analysis and Machine Intelligence, vol. 43, no. 10, pp. 3614–3631, 2021
2021
-
[19]
Winclip: Zero-/few-shot anomaly classification and segmentation,
J. Jeong, Y . Zou, T. Kim, D. Zhang, A. Ravichandran, and O. Dabeer, “Winclip: Zero-/few-shot anomaly classification and segmentation,” in Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), June 2023, pp. 19 606–19 616
2023
-
[20]
Aa-clip: Enhancing zero-shot anomaly detection via anomaly- aware clip,
W. Ma, X. Zhang, Q. Yao, F. Tang, C. Wu, Y . Li, R. Yan, Z. Jiang, and S. Zhou, “Aa-clip: Enhancing zero-shot anomaly detection via anomaly- aware clip,” inProceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), June 2025, pp. 4744–4754
2025
-
[21]
Learning to dispatch for job shop scheduling via deep reinforcement learning,
C. Zhang, W. Song, Z. Cao, J. Zhang, P. S. Tan, and C. Xu, “Learning to dispatch for job shop scheduling via deep reinforcement learning,” inAdvances in Neural Information Processing Systems 33 (NeurIPS 2020), 2020. [Online]. Available: https://proceedings.neurips.cc/paper/ 2020/hash/11958dfee29b6709f48a9ba0387a2431-Abstract.html
2020
-
[22]
Delay- aware microservice coordination in mobile edge computing: A rein- forcement learning approach,
S. Wang, Y . Guo, N. Zhang, P. Yang, A. Zhou, and X. Shen, “Delay- aware microservice coordination in mobile edge computing: A rein- forcement learning approach,”IEEE Transactions on Mobile Computing, vol. 20, no. 3, pp. 939–951, 2021
2021
-
[23]
Training language models to follow instructions with human feedback,
L. Ouyang, J. Wu, X. Jiang, D. Almeida, C. Wainwright, P. Mishkin, C. Zhang, S. Agarwal, K. Slama, A. Rayet al., “Training language models to follow instructions with human feedback,” inAdvances in Neural Information Processing Systems (NeurIPS), 2022
2022
-
[24]
Direct preference optimization: Your language model is secretly a reward model,
R. Rafailov, A. Sharma, E. Mitchell, C. D. Manning, S. Ermon, and C. Finn, “Direct preference optimization: Your language model is secretly a reward model,” inAdvances in Neural Information Processing Systems (NeurIPS), 2023
2023
-
[25]
Proximal Policy Optimization Algorithms
J. Schulman, F. Wolski, P. Dhariwal, A. Radford, and O. Klimov, “Prox- imal policy optimization algorithms,”arXiv preprint arXiv:1707.06347, 2017
work page internal anchor Pith review Pith/arXiv arXiv 2017
-
[26]
DeepSeekMath: Pushing the Limits of Mathematical Reasoning in Open Language Models
Z. Shao, P. Wang, Q. Zhu, R. Xu, J. Song, X. Bi, H. Zhang, M. Zhang, Y . K. Li, Y . Wu, and D. Guo, “Deepseekmath: Pushing the limits of mathematical reasoning in open language models,” 2024. [Online]. Available: https://arxiv.org/abs/2402.03300
work page internal anchor Pith review Pith/arXiv arXiv 2024
-
[27]
Object-centric learning with slot attention,
F. Locatello, D. Weissenborn, T. Unterthiner, A. Mahendran, G. Heigold, J. Uszkoreit, A. Dosovitskiy, and T. Kipf, “Object-centric learning with slot attention,”Advances in neural information processing systems, vol. 33, pp. 11 525–11 538, 2020
2020
-
[28]
P. He, J. Gao, and W. Chen, “Debertav3: Improving deberta using electra-style pre-training with gradient-disentangled embedding shar- ing,”arXiv preprint arXiv:2111.09543, 2021
work page internal anchor Pith review arXiv 2021
-
[29]
Blip: Bootstrapping language-image pre-training for unified vision-language understanding and generation,
J. Li, D. Li, C. Xiong, and S. Hoi, “Blip: Bootstrapping language-image pre-training for unified vision-language understanding and generation,” inInternational Conference on Machine Learning. PMLR, 2022, pp. 12 888–12 900
2022
-
[30]
P. Bergmann, X. Jin, D. Sattlegger, and C. Steger, “The mvtec 3d-ad dataset for unsupervised 3d anomaly detection and localization,”arXiv preprint arXiv:2112.09045, 2021
-
[31]
The eyecandies dataset for unsupervised multimodal anomaly detection and localization,
L. Bonfiglioli, M. Toschi, D. Silvestri, N. Fioraio, and D. De Gregorio, “The eyecandies dataset for unsupervised multimodal anomaly detection and localization,” inProceedings of the 16th Asian Conference on Computer Vision (ACCV), 2022
2022
-
[32]
LLaVA-OneVision: Easy Visual Task Transfer
B. Li, Y . Zhang, D. Guo, R. Zhang, F. Li, H. Zhang, K. Zhang, P. Zhang, Y . Li, Z. Liu, and C. Li, “Llava-onevision: Easy visual task transfer,”arXiv preprint arXiv:2408.03326, 2024. [Online]. Available: https://arxiv.org/abs/2408.03326
work page Pith review arXiv 2024
-
[33]
Qwen2-VL: Enhancing Vision-Language Model's Perception of the World at Any Resolution
P. Wang, S. Bai, S. Tanet al., “Qwen2-vl: Enhancing vision- language model’s perception of the world at any resolution,” arXiv preprint arXiv:2409.12191, 2024. [Online]. Available: https: //arxiv.org/abs/2409.12191
work page internal anchor Pith review Pith/arXiv arXiv 2024
-
[34]
Internvl2: Better than the best—expanding performance boundaries of open-source multimodal models with the progressive scaling strategy,
OpenGVLab Team, “Internvl2: Better than the best—expanding performance boundaries of open-source multimodal models with the progressive scaling strategy,” Jul 2024, accessed: 2025-12-24. [Online]. Available: https://internvl.github.io/blog/2024-07-02-InternVL-2.0/
2024
- [36]
-
[37]
J. Yu, Y . Zheng, X. Wang, W. Li, Y . Wu, R. Zhao, and L. Wu, “Fastflow: Unsupervised anomaly detection and localization via 2d normalizing flows,”arXiv preprint arXiv:2111.07677, 2021
-
[38]
Efficientad: Accurate visual anomaly detection at millisecond-level latencies,
K. Batzner, L. Heckler, and R. K ¨onig, “Efficientad: Accurate visual anomaly detection at millisecond-level latencies,” inProceedings of the IEEE/CVF Winter Conference on Applications of Computer Vision (WACV), 2024
2024
-
[39]
A. G. et al., “The llama 3 herd of models,” 2024. [Online]. Available: https://arxiv.org/abs/2407.21783
work page internal anchor Pith review Pith/arXiv arXiv 2024
-
[40]
Lora: Low-rank adaptation of large language models
E. J. Hu, Y . Shen, P. Wallis, Z. Allen-Zhu, Y . Li, S. Wang, L. Wang, W. Chenet al., “Lora: Low-rank adaptation of large language models.” ICLR, vol. 1, no. 2, p. 3, 2022
2022
-
[41]
Point transformer,
H. Zhao, L. Jiang, J. Jia, P. H. Torr, and V . Koltun, “Point transformer,” inProceedings of the IEEE/CVF international conference on computer vision, 2021, pp. 16 259–16 268
2021
