Security Risks of VOA-Induced Luminescence in Chip-Based quantum key distribution

Zijian Li , Chenyu Xu , Xin Hua , Yongqiang Du , Xin Liu , Tao Lin , Xi Xiao , Kejin Wei This is my paper

Pith reviewed 2026-05-10 04:11 UTC · model grok-4.3

classification 🪐 quant-ph physics.optics
keywords quantum key distributionintegrated photonicsside channel attackvariable optical attenuatorimplementation securityspontaneous luminescencewavelength-splitting
0
0 comments X

The pith

Electrically biased p-n junction VOAs emit luminescence at 1107 nm enabling wavelength-splitting attacks in chip-based QKD.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that p-n junction-based variable optical attenuators in integrated quantum key distribution systems produce spontaneous luminescence when electrically biased. This emission peaks at 1107 nm, far from the C-band wavelengths used for quantum signals. The separation allows an attacker to divert the luminescence photons separately from the signal, extracting information about the key without disturbing the quantum states. Analysis shows that even tiny amounts of this light produce detectable leakage in the secret key rate. This finding matters because it identifies a hardware-level flaw in components assumed to be passive and secure for scalable photonic QKD.

Core claim

Biased p-n junction VOAs emit spontaneous luminescence centered around 1107 nm. This light is spectrally separable from C-band QKD signals and uncorrelated with the encoded quantum states. The resulting wavelength-resolved side channel permits potential attacks that extract information without directly interacting with the signal photons. Incorporating the measured emission into security analysis demonstrates non-negligible information leakage even from extremely weak sources.

What carries the argument

Spontaneous luminescence emitted by electrically biased p-n junction variable optical attenuators, which serves as an unintended source of photons separable by wavelength from the quantum signal.

Load-bearing premise

The luminescence originates intrinsically from the biased p-n junction and remains spectrally separable and uncorrelated with the quantum-encoded states.

What would settle it

An experiment showing that the VOA emission is either absent under bias, correlated with the quantum state encoding, or inseparable from the C-band signal by wavelength filtering would disprove the side-channel risk.

Figures

Figures reproduced from arXiv: 2604.18422 by Chenyu Xu, Kejin Wei, Tao Lin, Xin Hua, Xin Liu, Xi Xiao, Yongqiang Du, Zijian Li.

Figure 1
Figure 1. Figure 1: Cross-sectional schematic of a silicon photonic VOA on an SOI [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

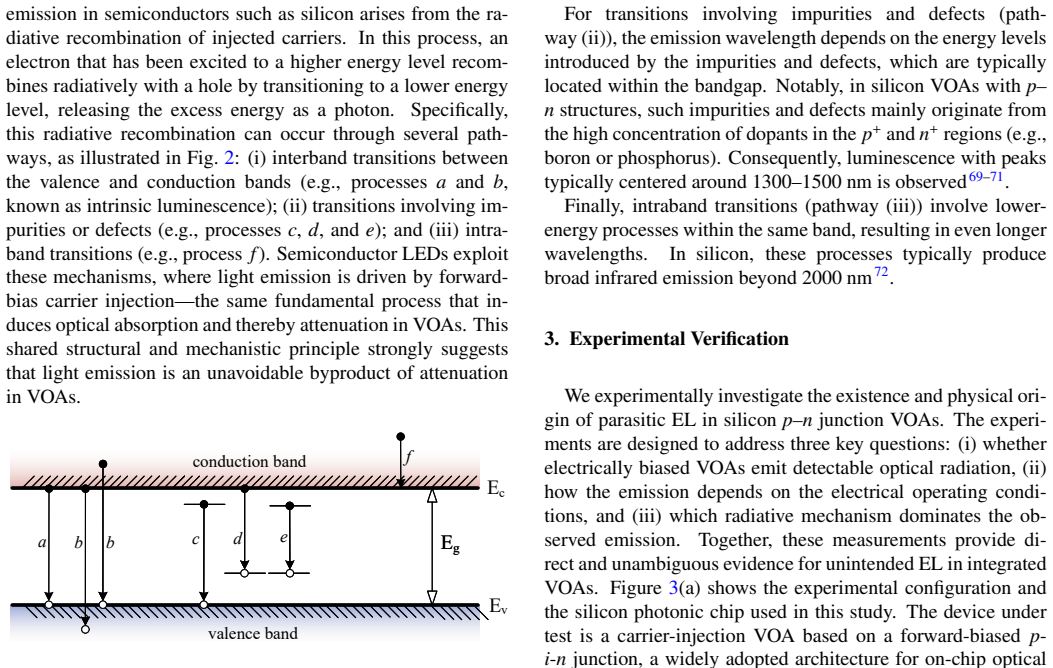

Figure 2. Figure 2: Schematic diagram of the main electron transition processes in a [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

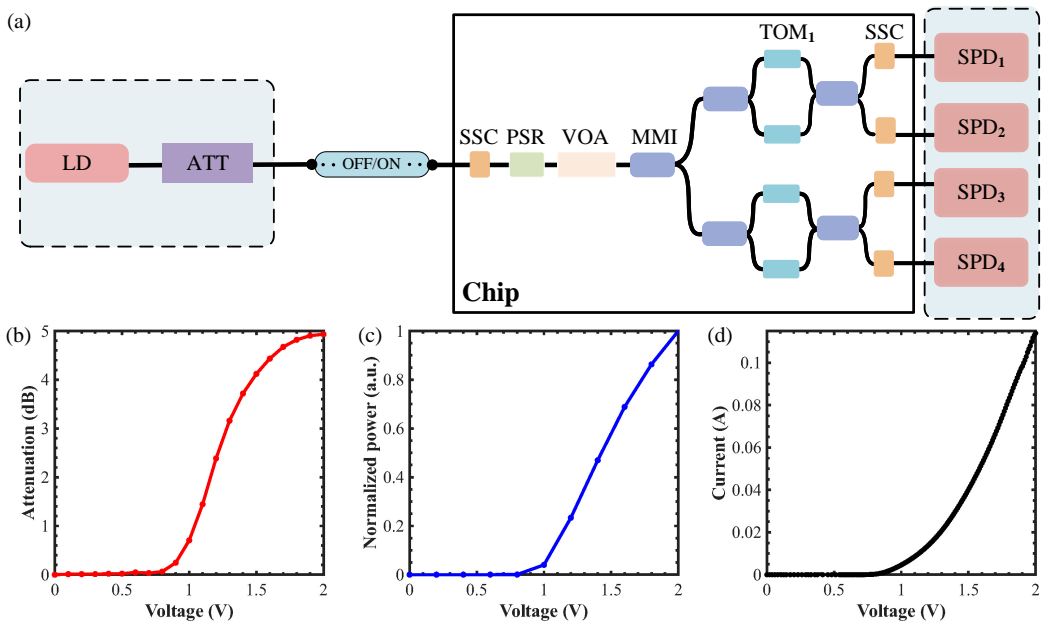

Figure 3. Figure 3: Schematic diagram of the experimental setup. The setup comprises o [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

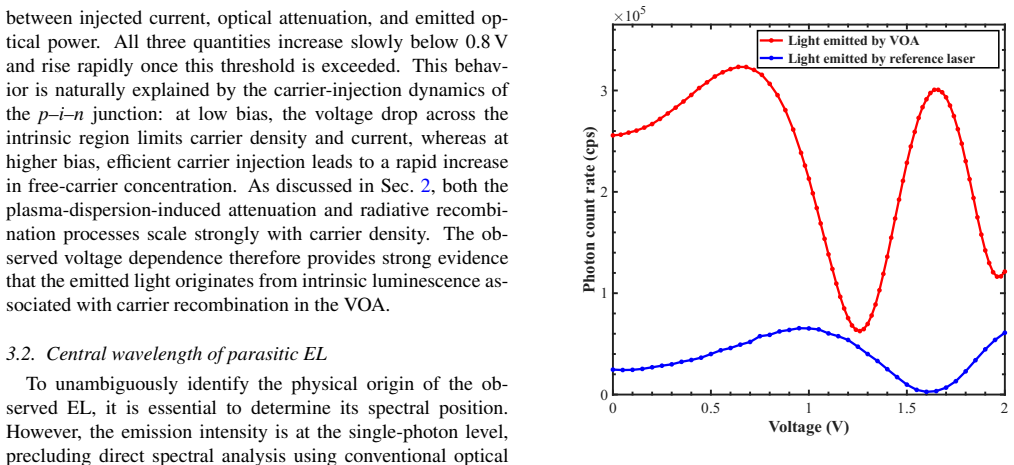

Figure 4. Figure 4: Photon count rates recorded by the SPD1 as a function of the drive voltage applied to the TOM1 in the equal-arm MZI for the VOA emission and a 1550.82 nm reference laser. The count rates exhibit periodic variations with the applied voltage due to interference in the MZI. The filled circles represent the measured data, and the solid lines serve as guides to the eye connecting the data points. The red filled… view at source ↗
Figure 5

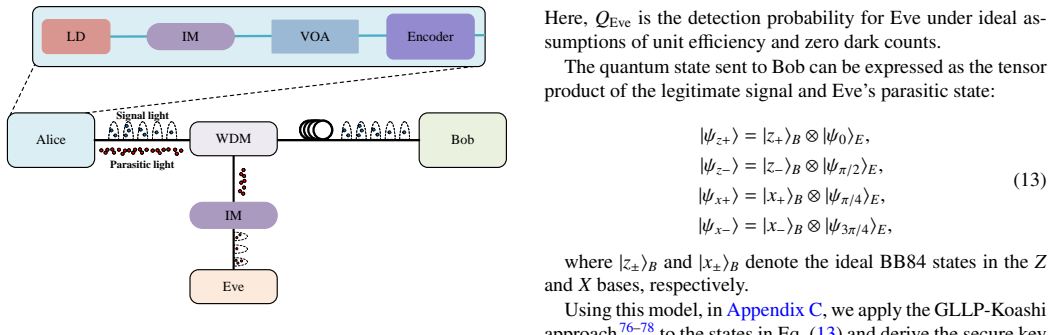

Figure 5. Figure 5: Schematic diagram illustrating the photonic transmitter chip architec [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Simulated secret key rate versus transmission distance for the two [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: Secure key rate as a function of transmission distance considering [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
read the original abstract

Integrated photonics is widely regarded as a key enabler for scalable quantum key distribution (QKD), offering compactness, stability, and compatibility with semiconductor fabrication. Despite rapid advances in chip-based QKD, the implementation security of integrated photonic components remains insufficiently understood. Here we present the first systematic study of an implementation-level security vulnerability associated with p-n junction-based variable optical attenuators (VOAs), a ubiquitous component in integrated QKD transmitters. We theoretically and experimentally demonstrate that electrically biased p-n junction VOAs emit spontaneous luminescence. Using a single-photon-sensitive spectral measurement technique, we identify the emission wavelength to be centered around 1107 nm, well separated from the C-band quantum signals. This spectral separation gives rise to a previously unrecognized wavelength-resolved side channel, enabling potential wavelength-splitting attacks without directly disturbing the encoded quantum states. By incorporating the measured luminescence into a quantitative security analysis, we show that even extremely weak emission can lead to non-negligible information leakage. Our findings reveal a fundamental and previously overlooked security risk in photonic integrated QKD systems and highlight the necessity of security-aware device design for future integrated quantum communication technologies.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript claims that p-n junction VOAs, common in integrated QKD transmitters, emit spontaneous luminescence centered at ~1107 nm when electrically biased. This emission is spectrally separated from C-band quantum signals, creating a wavelength-resolved side channel that enables splitting attacks without disturbing encoded states. Theoretical modeling combined with single-photon spectral measurements shows that even weak emission produces non-negligible information leakage, revealing an overlooked implementation security risk in chip-based QKD.

Significance. If the guided forward-propagating component of the luminescence is rigorously demonstrated, the result would be significant for QKD security: it identifies a concrete, previously unrecognized vulnerability in a ubiquitous integrated component and quantifies its impact on secret-key rates. The single-photon-sensitive spectral technique and the direct incorporation of measured values into the security analysis are strengths that could influence device characterization standards.

major comments (2)
  1. [Experimental measurement section] Experimental measurement section: the single-photon spectral measurement captures emission centered at 1107 nm, but the manuscript does not report the fraction of this luminescence that is guided forward in the output waveguide versus scattered or backward-directed light. Spontaneous emission from a reverse-biased p-n junction is typically isotropic; without a measured guided-power fraction or a direct fiber-coupled measurement, the effective rate available for wavelength demultiplexing in the transmission fiber could be orders of magnitude lower than the value used in the leakage bound.
  2. [Security analysis section] Security analysis section: the quantitative leakage estimate folds the measured count rate directly into the side-channel bound. It is unclear whether this rate is treated as an independent, externally calibrated parameter or whether it is derived from the same dataset used to claim the attack feasibility, raising the possibility that the bound is not fully independent of the experimental observations.
minor comments (1)
  1. A figure overlaying the VOA luminescence spectrum with the C-band signal spectrum and the fiber transmission window would make the claimed spectral separation visually explicit and easier to assess.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We appreciate the referee's insightful comments, which have helped us improve the clarity and rigor of our manuscript. Below, we provide detailed responses to the major comments and indicate the revisions we will make.

read point-by-point responses

  1. Referee: [Experimental measurement section] Experimental measurement section: the single-photon spectral measurement captures emission centered at 1107 nm, but the manuscript does not report the fraction of this luminescence that is guided forward in the output waveguide versus scattered or backward-directed light. Spontaneous emission from a reverse-biased p-n junction is typically isotropic; without a measured guided-power fraction or a direct fiber-coupled measurement, the effective rate available for wavelength demultiplexing in the transmission fiber could be orders of magnitude lower than the value used in the leakage bound.

    Authors: We agree with the referee that quantifying the guided forward fraction is crucial for accurately assessing the side-channel leakage. Our single-photon spectral measurements were performed by collecting light directly from the output waveguide of the chip using a fiber coupler, thus capturing the forward-guided component. However, we acknowledge that an explicit measurement of the guided versus total emitted power was not reported. In the revised manuscript, we will include additional data from total power measurements and waveguide coupling efficiency calculations based on the p-n junction geometry and mode profiles. This will provide a conservative estimate of the guided fraction and confirm that the leakage remains non-negligible even after accounting for collection losses. revision: yes

  2. Referee: [Security analysis section] Security analysis section: the quantitative leakage estimate folds the measured count rate directly into the side-channel bound. It is unclear whether this rate is treated as an independent, externally calibrated parameter or whether it is derived from the same dataset used to claim the attack feasibility, raising the possibility that the bound is not fully independent of the experimental observations.

    Authors: The count rate used in the security analysis is derived from separate experimental characterizations of the VOA luminescence under various bias conditions, conducted independently of the QKD protocol simulations or attack feasibility claims. These measurements provide a device-specific parameter that is then incorporated into the theoretical bound as a worst-case scenario. To eliminate any ambiguity, we will revise the security analysis section to explicitly state the independence of the experimental dataset and include a brief description of the measurement protocol separate from the attack model. revision: yes

Circularity Check

0 steps flagged

No significant circularity in the derivation chain

full rationale

The paper presents direct experimental measurements of VOA luminescence spectra and single-photon count rates, then applies those measured values to standard QKD security models to bound information leakage. No step reduces a claimed prediction or result to its own fitted inputs by construction, nor does any load-bearing premise rely on self-citation chains, imported uniqueness theorems, or ansatzes smuggled from prior author work. The central security claim is an empirical observation plus application of independent external models, making the derivation self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on experimental observation of luminescence and standard QKD security models; no free parameters or invented entities are explicitly introduced in the abstract.

axioms (1)
  • domain assumption Electrically biased p-n junction VOAs emit spontaneous luminescence centered at 1107 nm, separable from C-band quantum signals.
    Stated as demonstrated by single-photon-sensitive spectral measurement.

pith-pipeline@v0.9.0 · 5515 in / 1113 out tokens · 29500 ms · 2026-05-10T04:11:47.964345+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.
