arxiv: 2604.18937 · v1 · submitted 2026-04-21 · 🪐 quant-ph

A robust laser cavity platform for NV-diamond singlet infrared absorption magnetometry

Shao Qi Lim , Alexander A. Wood , Brett C. Johnson , Qiang Sun , Jan Jeske , Hiroshi Abe , Takeshi Ohshima , David J. Ottaway
show 4 more authors
Heike Ebendorff-Heidepriem Robert E. Scholten Andrew D. Greentree Brant C. Gibson
This is my paper

Pith reviewed 2026-05-10 03:32 UTC · model grok-4.3

classification 🪐 quant-ph
keywords NV centermagnetometryODMRlaser thresholddiamondsinglet absorptionexternal cavity diode laserthreshold magnetometry
0
0 comments X

The pith

Integrating an NV-diamond into a compact external cavity diode laser yields stable threshold current for singlet infrared absorption ODMR, with fivefold contrast gain near threshold.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that embedding a diamond containing negatively charged nitrogen-vacancy centers inside a compact laser cavity produces unusually steady threshold current. This stability lets researchers read out the magnetic resonance signal directly from changes in the threshold current itself. Operating the laser near its threshold point increases the contrast of the optically detected magnetic resonance signal by a factor of five. The highest magnetic-field sensitivity of 7.6 nanotesla per square root hertz is recorded well above threshold, while performance near threshold is held back by extra noise from the probe laser. The work therefore supplies a mechanically simple and robust alternative to free-space laser cavities for ambient-condition NV magnetometry.

Core claim

Placing an NV-diamond crystal inside an external cavity diode laser creates a system with exceptional threshold-current stability. This stability permits optically detected magnetic resonance to be performed by monitoring the threshold current in the singlet infrared absorption regime. Running near threshold delivers a five-fold increase in ODMR contrast relative to operation well above threshold. The best achieved magnetic-field sensitivity is 7.6 nT per square root hertz over DC to 500 Hz when the laser runs above threshold; closer to threshold the same noise increase in the probe laser offsets the contrast improvement.

What carries the argument

The external-cavity diode laser that contains the NV-diamond crystal and supplies the stable threshold current used as the ODMR readout parameter.

If this is right

  • The compact cavity design removes the need for high pump powers and precise free-space alignment that have limited earlier laser-threshold magnetometry demonstrations.
  • Threshold current becomes a usable readout channel for singlet infrared absorption ODMR because of the observed current stability.
  • Five-fold contrast enhancement near threshold is directly measured and quantified in the singlet absorption regime.
  • Magnetic-field sensitivity reaches its best reported value of 7.6 nT per square root hertz (DC-500 Hz) when the laser operates well above threshold.
  • Increased probe-laser noise near threshold is identified as the factor that currently limits sensitivity gains from the contrast boost.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same cavity approach could be adapted to other laser-based quantum sensors that rely on threshold behavior for readout.
  • Engineering lower intrinsic laser noise might allow the contrast advantage near threshold to translate into sensitivity better than the 7.6 nT per square root hertz already achieved.
  • The mechanical robustness of the integrated cavity suggests the platform could operate in field settings where free-space optics would be impractical.
  • Extending the frequency range beyond 500 Hz would test whether the same contrast-noise trade-off persists at higher bandwidths.

Load-bearing premise

The demonstrated threshold stability and contrast gain will produce a net improvement in practical sensitivity even though probe-laser noise rises near threshold.

What would settle it

A measurement showing that total noise near threshold still exceeds the above-threshold noise floor enough to keep sensitivity worse than 7.6 nT per square root hertz would disprove net practical gains from threshold operation.

Figures

Figures reproduced from arXiv: 2604.18937 by Alexander A. Wood, Andrew D. Greentree, Brant C. Gibson, Brett C. Johnson, David J. Ottaway, Heike Ebendorff-Heidepriem, Hiroshi Abe, Jan Jeske, Qiang Sun, Robert E. Scholten, Shao Qi Lim, Takeshi Ohshima.

Figure 1

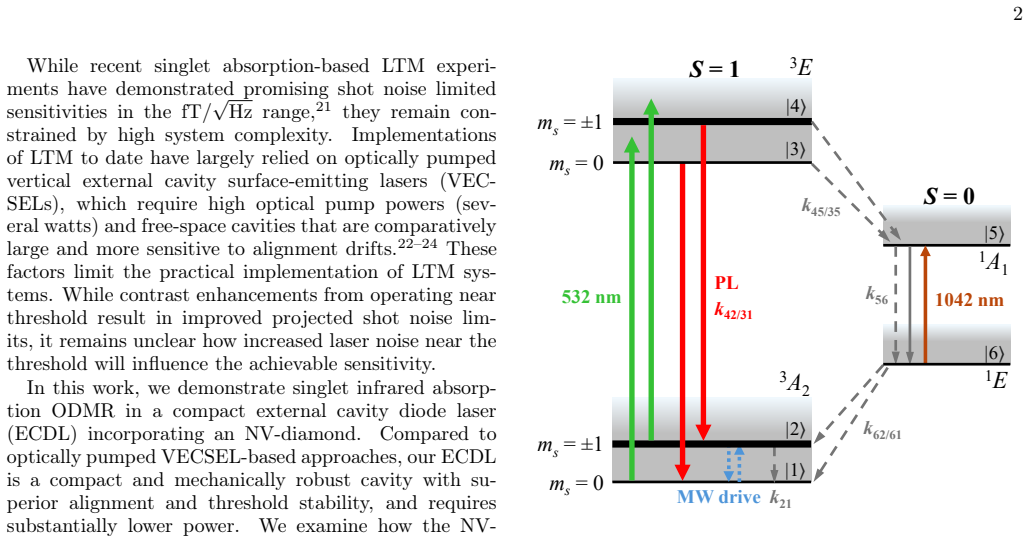

Figure 1. Figure 1: FIG. 1. Diamond NV energy levels at zero magnetic field. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. (a) Laser cavity setup for diamond NV singlet in [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. (a) Diamond-integrated cat-eye ECDL forward P-I curve measured under various conditions (zero magnetic field). [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. (a) Singlet ODMR spectrum collected at zero magnetic field and far above the laser threshold. The solid blue circles [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5

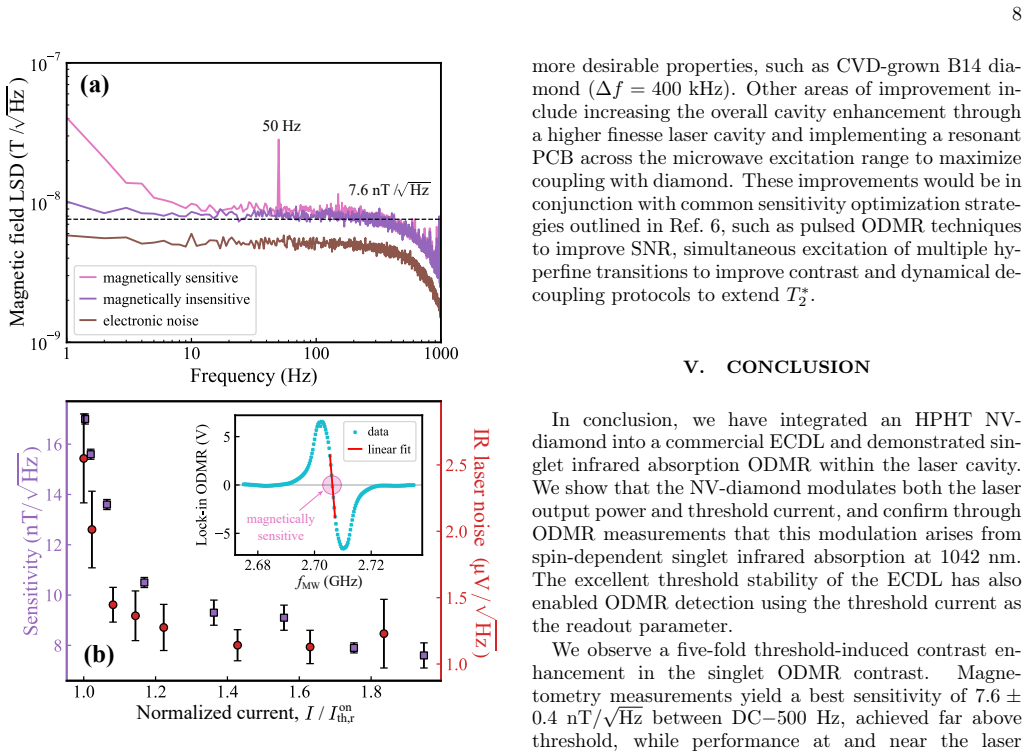

Figure 5. Figure 5: FIG. 5. (a) Magnetic field LSD measured far above thresh [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
read the original abstract

The negatively charged nitrogen-vacancy center (NV$^-$) in diamond is a versatile platform for quantum magnetometry under ambient conditions. Recently, laser threshold magnetometry (LTM) has been proposed as a means to significantly enhance the sensitivity of NV-based magnetometers by incorporating a diamond hosting NV$^-$ centers within a laser cavity and operating near threshold. While demonstrations have validated the concept, practical implementations remain technically demanding, requiring high pump powers and precise alignment of free-space cavities. It remains unclear whether the benefits of operating near threshold will outpace increased laser noise. In this work, we integrate an NV-diamond with a high NV$^-$ content into a compact external cavity diode laser and demonstrate singlet infrared absorption optically detected magnetic resonance (ODMR). The system exhibits exceptional threshold current stability, enabling ODMR using the threshold current as the read-out parameter. We report a five-fold enhancement in the ODMR contrast by operating near threshold. The best magnetic field sensitivity of $7.6~\mathrm{nT/\sqrt{Hz}}$ (DC-500 Hz) is achieved well above threshold, while near threshold sensitivity is limited by increased probe laser noise. These results establish a compact and mechanically robust platform for singlet absorption-based NV$^-$ magnetometry and highlight key trade-offs between contrast enhancement and laser noise near threshold.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 0 minor

Summary. The manuscript presents a compact external-cavity diode laser platform that integrates an NV-diamond sample for singlet infrared absorption ODMR magnetometry. It demonstrates exceptional threshold-current stability sufficient to use I_th as the readout variable, reports a five-fold ODMR contrast enhancement when operating near threshold, and achieves a best magnetic-field sensitivity of 7.6 nT/√Hz (DC-500 Hz) well above threshold, while noting that near-threshold sensitivity is limited by increased probe-laser noise. The work explicitly discusses the trade-offs between contrast gain and laser noise.

Significance. If the reported measurements hold, the work supplies a mechanically robust, compact implementation of laser-threshold magnetometry that avoids the alignment and power demands of free-space cavities. The explicit experimental demonstration of threshold-current readout and the quantified contrast enhancement constitute concrete strengths; the balanced reporting of noise limitations near threshold supplies practical guidance for the community.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive evaluation of our manuscript, including the recognition of the compact external-cavity diode laser platform, the threshold-current readout demonstration, the five-fold contrast enhancement, and the balanced discussion of noise trade-offs near threshold. We appreciate the recommendation for minor revision.

Circularity Check

0 steps flagged

No significant circularity: experimental demonstration only

full rationale

The manuscript is a direct experimental report of measured performance metrics (threshold-current stability, 5-fold ODMR contrast increase near threshold, and 7.6 nT/√Hz sensitivity) in a compact external-cavity diode laser integrated with NV-diamond. No derivations, first-principles predictions, parameter fits, or ansatzes are present; all claims rest on laboratory observations rather than any chain that could reduce to its own inputs by construction. Self-citations, if any, are not load-bearing for the reported results.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The paper is an experimental demonstration and introduces no free parameters, axioms, or invented entities.
