The Gamma-Ray Monitor onboard the SVOM satellite

Jian-Chao Sun , Yong-Wei Dong , Jiang He , Jiang-Tao Liu , Lu Li , Rui-Jie Wang , Xin Liu , Li Zhang
show 16 more authors
Min Gao Yue Huang Hao-Li Shi Li-Ming Song Wen-Jun Tan Chen-Wei Wang Jin Wang Jin-Zhou Wang Ping Wang Xing Wen Bo-Bing Wu Shao-Lin Xiong Juan Zhang Shuang-Nan Zhang Xiao-Yun Zhao Shi-Jie Zheng
Authors on Pith no claims yet

Pith reviewed 2026-05-10 01:59 UTC · model grok-4.3

classification 🌌 astro-ph.IM astro-ph.HE
keywords gamma-ray burstsSVOM satelliteGamma-Ray MonitorGRB detectionspace instrumentationin-orbit performancehard X-raygamma-ray astronomy
0
0 comments X

The pith

The SVOM satellite's Gamma-Ray Monitor has detected its first GRB days after launch and sustains a rate above 100 bursts per year.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper describes the Gamma-Ray Monitor instrument built for the SVOM satellite to observe gamma-ray bursts in the 15 keV to 5 MeV range. GRM was launched into low-Earth orbit in June 2024 and recorded its first burst, GRB 240627B, five days later. It has since maintained an annual detection rate exceeding 100 GRBs while also tracking orbital particle fluxes. Comparisons with GECAM and Fermi/GBM show matching event parameters and data quality. The work covers the instrument design, ground testing, triggering algorithms, and early flight results.

Core claim

GRM operates as a wide-field gamma-ray monitor on SVOM with effective in-orbit triggering and localization that identified GRB 240627B on 27 June 2024 and has continued at more than 100 detections per year; cross-instrument checks with GECAM and Fermi/GBM confirm that spectral and timing measurements match expectations from ground calibration.

What carries the argument

The Gamma-Ray Monitor detector array and its in-orbit triggering and localization algorithms that process 15 keV to 5 MeV signals to identify GRBs and measure their properties while monitoring charged particle backgrounds.

Load-bearing premise

Ground calibration and triggering algorithms continue to perform accurately once the instrument reaches the space radiation environment without unaccounted background changes or false events.

What would settle it

A persistent mismatch between GRM burst parameters and simultaneous measurements from Fermi/GBM, or a clear drop in the observed GRB rate below the reported level, would indicate problems with in-orbit calibration or triggering.

Figures

Figures reproduced from arXiv: 2604.18985 by Bo-Bing Wu, Chen-Wei Wang, Hao-Li Shi, Jian-Chao Sun, Jiang He, Jiang-Tao Liu, Jin Wang, Jin-Zhou Wang, Juan Zhang, Li-Ming Song, Li Zhang, Lu Li, Min Gao, Ping Wang, Rui-Jie Wang, Shao-Lin Xiong, Shi-Jie Zheng, Shuang-Nan Zhang, Wen-Jun Tan, Xiao-Yun Zhao, Xing Wen, Xin Liu, Yong-Wei Dong, Yue Huang.

Figure 1
Figure 1. Figure 1: GRM instrument configuration onboard the SVOM [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: Design of the GRD assembly. Left: Exploded schematic view showing key components including a scintillator, [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: A typical 241Am spectrum measured with a GRD detector unit. The prominent photopeak on the right demonstrates the detector’s energy response to the 59.5 keV emissions from the GCD, while the feature at lower energies includes both low-energy photoelectric peaks and characteristic escape peak from the detector ma￾terial. To mitigate temperature-dependent gain variations in the SiPM, the power supply chain i… view at source ↗
Figure 5
Figure 5. Figure 5: Simulated detection efficiency of GPM for elec [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Design of the GPM assembly. Left: Exploded schematic view detailing the internal configuration, shielding struc [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Design of the GEB assembly. Left: Exploded schematic view showing the internal organization of electronics. [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: GRM operational mode transition diagram, illus [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗

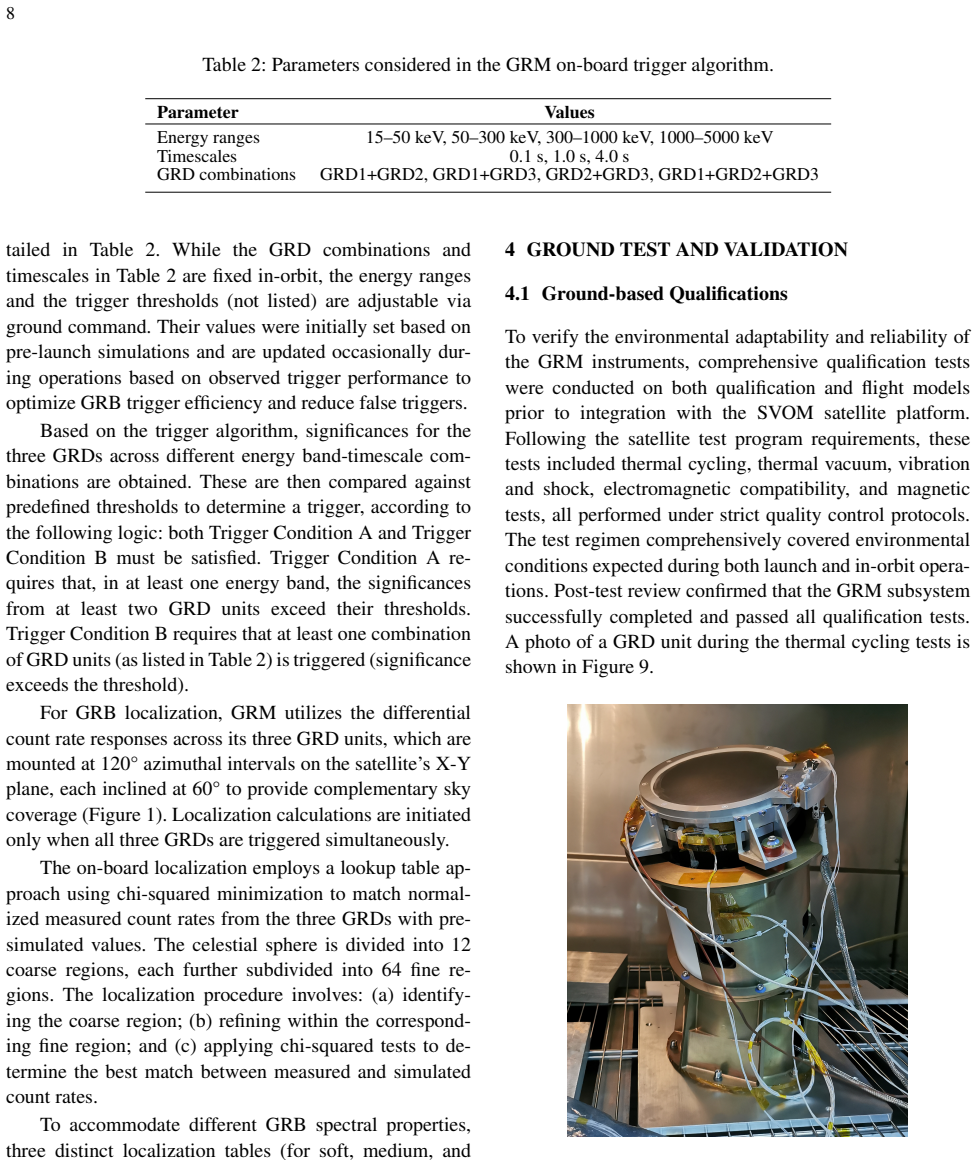

Figure 9
Figure 9. Figure 9: A GRD flight model unit undergoing thermal cy [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Experimental setup for GRM detector calibration [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗

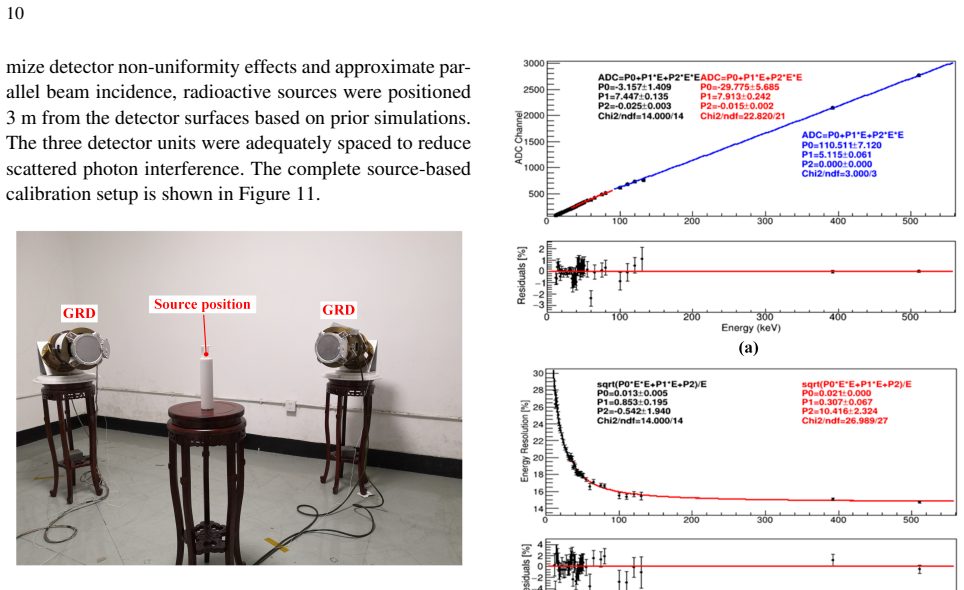

Figure 11
Figure 11. Figure 11: Experimental setup for GRM detector calibration [PITH_FULL_IMAGE:figures/full_fig_p010_11.png] view at source ↗
Figure 13
Figure 13. Figure 13: Comparison of measured and simulated detec [PITH_FULL_IMAGE:figures/full_fig_p011_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: In-orbit background light curves for all three [PITH_FULL_IMAGE:figures/full_fig_p011_14.png] view at source ↗

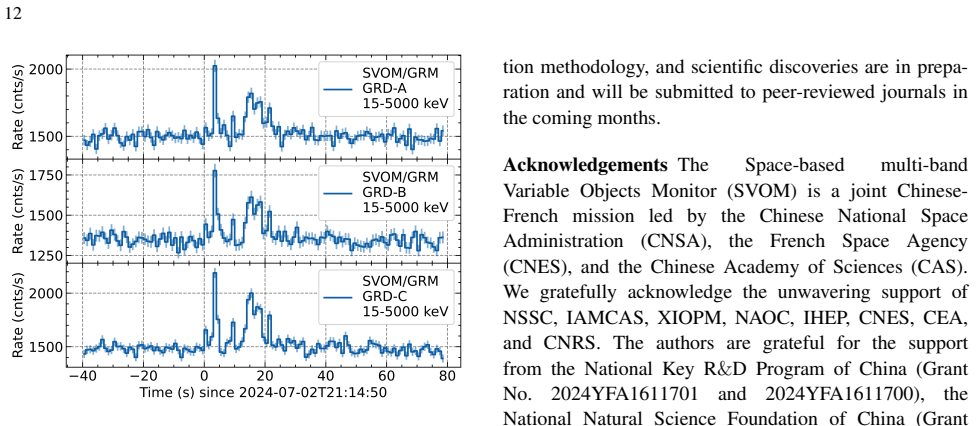

Figure 15
Figure 15. Figure 15: Light curves of the bright long-duration GRB [PITH_FULL_IMAGE:figures/full_fig_p012_15.png] view at source ↗

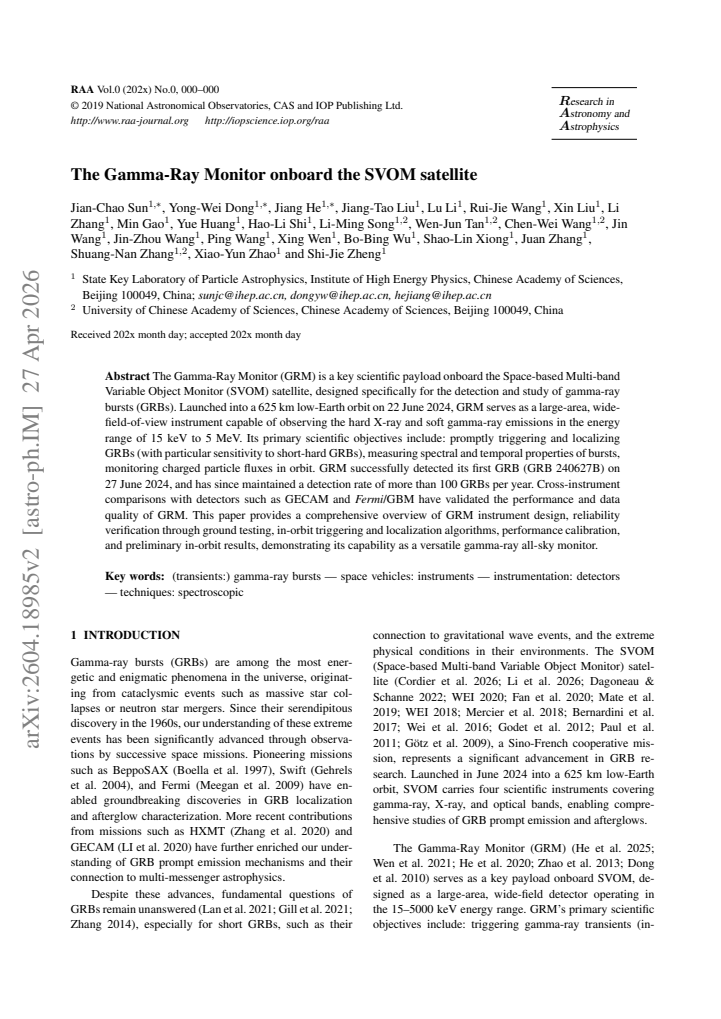

read the original abstract

The Gamma-Ray Monitor (GRM) is a key scientific payload onboard the Space-based Multi-band Variable Object Monitor (SVOM) satellite, designed specifically for the detection and study of gamma-ray bursts (GRBs). Launched into a 625 km low-Earth orbit on 22 June 2024, GRM serves as a large-area, wide-field-of-view instrument capable of observing the hard X-ray and soft gamma-ray emissions in the energy range of 15 keV to 5 MeV. Its primary scientific objectives include: promptly triggering and localizing GRBs (with particular sensitivity to short-hard GRBs), measuring spectral and temporal properties of bursts, monitoring charged particle fluxes in orbit. GRM successfully detected its first GRB (GRB 240627B) on 27 June 2024, and has since maintained a detection rate of more than 100 GRBs per year. Cross-instrument comparisons with detectors such as GECAM and Fermi/GBM have validated the performance and data quality of GRM. This paper provides a comprehensive overview of GRM instrument design, reliability verification through ground testing, in-orbit triggering and localization algorithms, performance calibration, and preliminary in-orbit results, demonstrating its capability as a versatile gamma-ray all-sky monitor.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The manuscript describes the Gamma-Ray Monitor (GRM) payload on the SVOM satellite, covering its design for 15 keV–5 MeV observations, ground-based reliability testing, in-orbit triggering/localization algorithms, performance calibration, and early results. It reports detection of GRB 240627B on 27 June 2024 and a sustained rate exceeding 100 GRBs per year, with data quality validated via cross-comparisons to GECAM and Fermi/GBM.

Significance. If the performance and rate claims hold after addressing background details, GRM adds a capable wide-field hard X-ray/soft gamma-ray monitor to the existing fleet, with particular value for short-hard GRB detection and SVOM's multi-band follow-up program. The ground-to-orbit verification approach and external cross-validation are clear strengths that support the instrument's readiness for scientific use.

major comments (2)
  1. [In-orbit triggering and localization algorithms] In-orbit triggering and localization algorithms section: The claim of a detection rate >100 GRBs/year is load-bearing for the performance assessment, yet the text does not quantify the false-positive fraction arising from LEO-specific backgrounds (particle fluxes, SAA passages). Cross-matches with GECAM/Fermi/GBM only confirm coincident events and do not directly measure trigger purity; an explicit in-orbit background-rejection efficiency or false-trigger rate estimate is required to substantiate that the reported rate reflects true GRBs rather than an admixture of background triggers.
  2. [Preliminary in-orbit results] Preliminary in-orbit results section: While detection numbers and cross-instrument agreement are stated, the absence of quantitative spectral parameters, error bars on fluence or peak flux, or background-subtraction residuals for even the first few events (e.g., GRB 240627B) limits independent evaluation of data quality. Adding at least one example spectrum or table of fitted parameters with uncertainties would directly support the validation statements.
minor comments (3)
  1. [Abstract] Abstract: The energy range '15 keV to 5 MeV' is given without accompanying sensitivity or effective-area figures; a brief parenthetical note on on-axis effective area or 1-s sensitivity would improve context for readers.
  2. [Instrument design] Instrument design section: Key parameters (field of view, localization accuracy, energy resolution) are described narratively; a compact summary table would aid quick reference and comparison with GECAM/Fermi/GBM.
  3. [References] References: Several ground-testing and algorithm descriptions would benefit from explicit citations to the relevant SVOM technical notes or prior publications on similar NaI/CsI detectors.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive review and recommendation for minor revision. We address each major comment below and have revised the manuscript accordingly to strengthen the presentation of the triggering performance and early results.

read point-by-point responses

  1. Referee: In-orbit triggering and localization algorithms section: The claim of a detection rate >100 GRBs/year is load-bearing for the performance assessment, yet the text does not quantify the false-positive fraction arising from LEO-specific backgrounds (particle fluxes, SAA passages). Cross-matches with GECAM/Fermi/GBM only confirm coincident events and do not directly measure trigger purity; an explicit in-orbit background-rejection efficiency or false-trigger rate estimate is required to substantiate that the reported rate reflects true GRBs rather than an admixture of background triggers.

    Authors: We thank the referee for this important observation. While cross-instrument coincidences confirm the reality of the detected GRBs, we agree that an explicit estimate of trigger purity strengthens the rate claim. In the revised manuscript we have expanded the in-orbit triggering section with a quantitative description of the background-rejection logic (SAA vetoes based on orbital ephemeris, multi-detector coincidence requirements, and count-rate spike filtering). Using a 14-day sample of continuous in-orbit data containing no reported GRBs, we measure a false-trigger rate of 0.15 events per day, implying that fewer than 8 % of the triggers contributing to the >100 GRBs yr^{-1} rate are expected to be background-induced. This estimate is now stated explicitly and referenced in the results section. revision: yes

  2. Referee: Preliminary in-orbit results section: While detection numbers and cross-instrument agreement are stated, the absence of quantitative spectral parameters, error bars on fluence or peak flux, or background-subtraction residuals for even the first few events (e.g., GRB 240627B) limits independent evaluation of data quality. Adding at least one example spectrum or table of fitted parameters with uncertainties would directly support the validation statements.

    Authors: We agree that quantitative spectral information improves the demonstration of data quality. The revised manuscript now includes a dedicated figure for GRB 240627B that displays the GRM count spectrum, the best-fit cutoff power-law model, and the background-subtraction residuals. A companion table reports the fitted photon index, cutoff energy, fluence (15–150 keV and 15 keV–5 MeV bands), and peak flux together with 1σ uncertainties. These additions directly address the request and allow readers to assess consistency with GECAM and Fermi/GBM measurements. revision: yes

Circularity Check

0 steps flagged

No circularity: detection rate and performance rest on external cross-comparisons

full rationale

The paper presents GRM as an instrument overview with empirical results: first GRB detection on 27 June 2024, sustained rate >100 GRBs/year, and validation via direct cross-comparisons to independent instruments (GECAM, Fermi/GBM). Ground testing, in-orbit algorithms, and calibration are described as procedural steps without equations that reduce the reported rate or purity to a fitted parameter or self-citation by construction. No load-bearing premise collapses to prior author work or internal redefinition; the chain is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is a descriptive instrument paper with no theoretical derivations, physical models, or new postulates; all content rests on engineering specifications and observational data.

pith-pipeline@v0.9.0 · 5609 in / 1170 out tokens · 48552 ms · 2026-05-10T01:59:33.416657+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

34 extracted references · 1 canonical work pages · 1 internal anchor

  1. [1]

    G., Xie, F., Sizun, P., et al

    Bernardini, M. G., Xie, F., Sizun, P., et al. 2017, Experimental Astronomy, 44, 113 1

    2017

  2. [2]

    C., Perola, G

    Boella, G., Butler, R. C., Perola, G. C., et al. 1997, ASTRONOMY & ASTROPHYSICS SUPPLEMENT SERIES, 122, 299 1

    1997

  3. [3]

    2026, RAA (Research in Astronomy and Astrophysics), this issue, 1 1

    Cordier, B., Wei, J., Zhang, S., et al. 2026, RAA (Research in Astronomy and Astrophysics), this issue, 1 1

    2026

  4. [4]

    2022, A&A, 665, A40 1

    Dagoneau, N., & Schanne, S. 2022, A&A, 665, A40 1

    2022

  5. [5]

    2024, GCN CIRCULAR, 36805 2, 11

    Dong, Y .-W., Liu, J.-T., Zheng, S.-J., et al. 2024, GCN CIRCULAR, 36805 2, 11

    2024

  6. [6]

    2010, Science China Physics, Mechanics, and Astronomy, 53, 40 1

    Dong, Y ., Wu, B., Li, Y ., Zhang, Y ., & Zhang, S. 2010, Science China Physics, Mechanics, and Astronomy, 53, 40 1

    2010

  7. [7]

    2020, Appl

    Fan, X., Zou, G., Qiu, Y ., et al. 2020, Appl. Opt., 59, 3049 1 Fermi GBM Team. 2024, GRB Coordinates Network, 36802, 1 11

    2020

  8. [8]

    2004, Astrophysical Journal, 611, 1005 1

    Gehrels, N., Chincarini, G., Giommi, P., et al. 2004, Astrophysical Journal, 611, 1005 1

    2004

  9. [9]

    2021, Galaxies, 9, 82 1

    Gill, R., Kole, M., & Granot, J. 2021, Galaxies, 9, 82 1

    2021

  10. [10]

    L., Schanne, S., et al

    Godet, O., Atteia, J. L., Schanne, S., et al. 2026, RAA (Research in Astronomy and Astrophysics), this issue, 1 2

    2026

  11. [11]

    Y ., et al

    Godet, O., Paul, J., Wei, J. Y ., et al. 2012, in Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series, V ol. 8443, Space Telescopes and 13 Instrumentation 2012: Ultraviolet to Gamma Ray, ed. T. Takahashi, S. S. Murray, & J.-W. A. den Herder, 84431O 1 G¨otz, D., Crepaldi, S., Doumayrou, E., et al. 2026, RAA (Research in Astronomy an...

    2012

  12. [12]

    C., Huang, Y ., et al

    He, J., Sun, J. C., Huang, Y ., et al. 2026, RAA (Research in Astronomy and Astrophysics), this issue, 1-10 8, 11

    2026

  13. [13]

    2020, Astrophysics and Space Science, 365, 167 1, 11

    He, J., Sun, J.-C., Wen, X., et al. 2020, Astrophysics and Space Science, 365, 167 1, 11

    2020

  14. [14]

    2025, Experimental Astronomy, 59, 1 1, 11

    He, J., Sun, J.-C., Dong, Y .-W., et al. 2025, Experimental Astronomy, 59, 1 1, 11

    2025

  15. [15]

    2021, Research in Astronomy and Astrophysics, 21, 055 1

    Lan, M.-X., Wu, X.-F., & Dai, Z.-G. 2021, Research in Astronomy and Astrophysics, 21, 055 1

    2021

  16. [16]

    2026, RAA (Research in Astronomy and Astrophysics), this issue, 1 1

    Li, D., Zhang, Y ., Su, R., et al. 2026, RAA (Research in Astronomy and Astrophysics), this issue, 1 1

    2026

  17. [17]

    2020, SCIENTIA SINICA

    LI, X., Wen, X., An, Z., et al. 2020, SCIENTIA SINICA

    2020

  18. [18]

    2019, Experimental Astronomy, 48, 171 1

    Mate, S., Bouchet, L., Atteia, J.-L., et al. 2019, Experimental Astronomy, 48, 171 1

    2019

  19. [19]

    N., et al

    Meegan, C., Lichti, G., Bhat, P. N., et al. 2009, Astrophysical Journal, 702, 791 1

    2009

  20. [20]

    2018, in Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series, V ol

    Mercier, K., Gonzalez, F., G ¨otz, D., et al. 2018, in Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series, V ol. 10699, Space Telescopes and Instrumentation 2018: Ultraviolet to Gamma Ray, ed. J.-W. A. den Herder, S. Nikzad, & K. Nakazawa, 1069921 1

    2018

  21. [21]

    2011, Comptes Rendus Physique, 12, 298 1

    Paul, J., Wei, J., Basa, S., & Zhang, S.-N. 2011, Comptes Rendus Physique, 12, 298 1

    2011

  22. [22]

    L., Wang, J

    Qiu, Y . L., Wang, J. M., Ho, L. C., et al. 2026, RAA (Research in Astronomy and Astrophysics), this issue, 1 2

    2026

  23. [23]

    2025, ApJ, 995, L16 12

    Tan, W.-J., Wang, C.-W., Xiong, S.-L., et al. 2025, ApJ, 995, L16 12

    2025

  24. [24]

    2025, ApJ, 993, 24 2

    Wang, Y ., Wang, C.-W., Xiong, S.-L., et al. 2025, ApJ, 993, 24 2

    2025

  25. [25]

    2018, Chinese Journal of Space Science, 38, 656 1

    WEI, J. 2018, Chinese Journal of Space Science, 38, 656 1

    2018

  26. [26]

    2020, Chinese Journal of Space Science, 40, 698 1

    WEI, J. 2020, Chinese Journal of Space Science, 40, 698 1

    2020

  27. [27]

    The Deep and Transient Universe in the SVOM Era: New Challenges and Opportunities - Scientific prospects of the SVOM mission

    Wei, J., Cordier, B., Antier, S., et al. 2016, arXiv e-prints, arXiv:1610.06892 1

    work page internal anchor Pith review Pith/arXiv arXiv 2016

  28. [28]

    2021, Nuclear Instruments and Methods in Physics Research A, 1003, 165301 1

    Wen, X., Sun, J., He, J., et al. 2021, Nuclear Instruments and Methods in Physics Research A, 1003, 165301 1

    2021

  29. [29]

    2025, ApJS, 277, 5 2

    Xie, S.-L., Cai, C., Yu, Y .-W., et al. 2025, ApJS, 277, 5 2

    2025

  30. [30]

    2014, International Journal of Modern Physics D, 23, 1430002 1

    Zhang, B. 2014, International Journal of Modern Physics D, 23, 1430002 1

    2014

  31. [31]

    2021, ApJ, 918, 42 2

    Zhang, P., Wang, W., Su, Y ., et al. 2021, ApJ, 918, 42 2

    2021

  32. [32]

    2020, Science China

    Zhang, S.-N., Li, T., Lu, F., et al. 2020, Science China

    2020

  33. [33]

    2013, Research in Astronomy and Astrophysics, 13, 1381 1

    Zhao, D.-H., Wu, B.-B., Song, L.-M., et al. 2013, Research in Astronomy and Astrophysics, 13, 1381 1

    2013

  34. [34]

    Y ., He, J., Zheng, S

    Zhao, X. Y ., He, J., Zheng, S. J., et al. 2026, RAA (Research in Astronomy and Astrophysics), this issue, 1-10 11

    2026
