Unveiling Fine-Grained Visual Traces: Evaluating Multimodal Interleaved Reasoning Chains in Multimodal STEM Tasks

Jing Jin , Hao Liu , Yan Bai , Yihang Lou , Zhenke Wang , Tianrun Yuan , Juntong Chen , Yongkang Zhu
show 3 more authors
Fanhu Zeng Xuanyu Zhu Yige Xu
Authors on Pith no claims yet

Pith reviewed 2026-05-11 01:49 UTC · model grok-4.3

classification 💻 cs.CV
keywords multimodal reasoningSTEM benchmarkMLLMs evaluationinterleaved reasoning chainsvisual-text complementaritystep-level evaluationdynamic programming alignment
0
0 comments X

The pith

Multimodal models reach just 38% on new visual STEM benchmark

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces StepSTEM, a benchmark of 283 graduate-level STEM problems where text and visuals must complement each other to prevent unimodal shortcuts. It also presents a step-level evaluation framework that uses dynamic programming to align model-generated reasoning chains with reference solutions. Experiments across many MLLMs demonstrate that even leading models like Gemini 3.1 Pro and Claude Opus 4.6 achieve only 38.29% accuracy, indicating primary reliance on textual reasoning. This establishes substantial room for improvement in true cross-modal reasoning for STEM tasks.

Core claim

The paper establishes that current MLLMs still rely heavily on textual reasoning in STEM tasks, achieving only 38.29% accuracy on StepSTEM even for top models, because the benchmark enforces strict complementarity between textual and visual inputs through its curation pipeline and measures interleaved reasoning at the step level via dynamic programming alignment.

What carries the argument

The StepSTEM benchmark, built via a rigorous curation pipeline that enforces strict textual-visual complementarity, together with the dynamic programming framework for aligning predicted reasoning steps against multiple references in both text-only and interleaved image-text chains.

If this is right

  • Text-only chain-of-thought methods fall short when visual details are required for verification in STEM.
  • Step-level metrics diagnose integration failures more precisely than final-answer accuracy alone.
  • Existing benchmarks likely overestimate multimodal capabilities due to modality redundancy.
  • StepSTEM provides a concrete testbed to track genuine progress in cross-modal STEM reasoning.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Training data for MLLMs may require more examples where visual information resolves textual ambiguities.
  • The complementarity requirement could extend to other domains such as medical imaging or legal evidence analysis.
  • Current scaling approaches may not close the gap without targeted curation of visually necessary problems.

Load-bearing premise

The assumption that the curation pipeline successfully creates problems where visual inputs are indispensable and no unimodal text-only shortcut is possible.

What would settle it

A model achieving markedly higher accuracy on StepSTEM by demonstrably incorporating essential visual information into its step-by-step reasoning would indicate that heavy textual reliance is not universal.

Figures

Figures reproduced from arXiv: 2604.19697 by Fanhu Zeng, Hao Liu, Jing Jin, Juntong Chen, Tianrun Yuan, Xuanyu Zhu, Yan Bai, Yige Xu, Yihang Lou, Yongkang Zhu, Zhenke Wang.

Figure 1
Figure 1. Figure 1: Overview of the STEPSTEM construction workflow. The left panel illustrates the data curation pipeline. The right panel illustrates the multi-solution construction pipeline. largely centered on general-purpose visual genera￾tion rather than task-oriented image generation for downstream reasoning, which limits their effective￾ness in reasoning-focused applications. 2.2 Multimodal Reasoning Dataset In paralle… view at source ↗
Figure 2
Figure 2. Figure 2: (2) For the evaluation phase, our frame￾work assesses both final-answer correctness and intermediate reasoning quality. We evaluate answer correctness, local and global reasoning quality, and their fusion, selecting the best score across multi￾ [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Illustration of fine-grained evaluation protocol for S [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

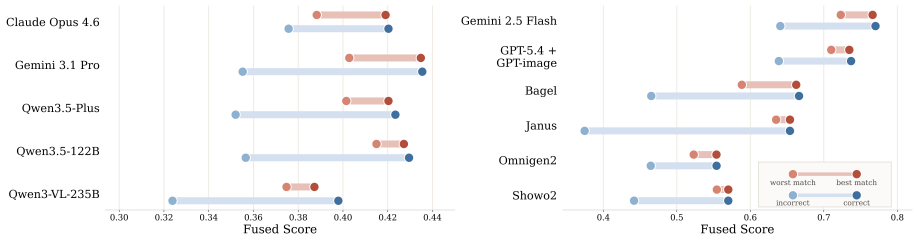

Figure 4
Figure 4. Figure 4: Comparison of the fused process score Sfused across different model architectures. The red lines represent the gap between the best-matched and worst-matched ground truth solutions. The blue lines indicate the score difference between trajectories with correct and incorrect final answers. dicating that stronger reasoning performance is ac￾companied by better intermediate trajectories. A similar trend is vi… view at source ↗
Figure 5
Figure 5. Figure 5: A qualitative case study demonstrating the model’s predicted reasoning trajectory versus the ground-truth [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
read the original abstract

Multimodal large language models (MLLMs) have shown promising reasoning abilities, yet evaluating their performance in specialized domains remains challenging. STEM reasoning is a particularly valuable testbed because it provides highly verifiable feedback, but existing benchmarks often permit unimodal shortcuts due to modality redundancy and focus mainly on final-answer accuracy, overlooking the reasoning process itself. To address this challenge, we introduce StepSTEM: a graduate-level benchmark of 283 problems across mathematics, physics, chemistry, biology, and engineering for fine-grained evaluation of cross-modal reasoning in MLLMs. StepSTEM is constructed through a rigorous curation pipeline that enforces strict complementarity between textual and visual inputs. We further propose a general step-level evaluation framework for both text-only chain-of-thought and interleaved image-text reasoning, using dynamic programming to align predicted reasoning steps with multiple reference solutions. Experiments across a wide range of models show that current MLLMs still rely heavily on textual reasoning, with even Gemini 3.1 Pro and Claude Opus 4.6 achieving only 38.29% accuracy. These results highlight substantial headroom for genuine cross-modal STEM reasoning and position StepSTEM as a benchmark for fine-grained evaluation of multimodal reasoning. Source code is available at https://github.com/lll-hhh/STEPSTEM.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces StepSTEM, a benchmark of 283 graduate-level problems in mathematics, physics, chemistry, biology, and engineering, constructed via a curation pipeline that enforces strict complementarity between text and images to prevent unimodal shortcuts. It proposes a step-level evaluation framework that uses dynamic programming to align predicted interleaved reasoning chains against multiple reference solutions, and reports experimental results showing that even top MLLMs (Gemini 3.1 Pro, Claude Opus 4.6) reach only 38.29% accuracy, interpreted as evidence that current models rely heavily on textual reasoning with substantial headroom for genuine cross-modal STEM reasoning.

Significance. If the curation successfully eliminates text-only solutions, the benchmark and its step-level DP alignment framework would provide a valuable, verifiable testbed for fine-grained multimodal reasoning evaluation beyond final-answer metrics. The public code release supports reproducibility and enables follow-up work on interleaved chains.

major comments (2)
  1. [§3 (Benchmark Construction)] §3 (Benchmark Construction / Curation Pipeline): The manuscript states that the pipeline 'enforces strict complementarity between textual and visual inputs' but provides no description of concrete mechanisms such as automated text-only solvability checks, redundancy detection procedures, or any reported text-only LLM baselines on the 283 problems. Without these, the headline accuracies cannot be unambiguously attributed to failure at cross-modal reasoning rather than overall problem difficulty.
  2. [§5 (Experiments)] §5 (Experiments): No ablation is presented that measures performance drop when images are removed from the inputs, nor is there a quantitative error analysis breaking down failures into visual-interpretation errors versus textual-reasoning errors. Such data are load-bearing for the claim that models 'still rely heavily on textual reasoning.'
minor comments (2)
  1. [Abstract and §5] Model names in the abstract and results ('Gemini 3.1 Pro', 'Claude Opus 4.6') appear non-standard; confirm exact versions and include parameter counts or release dates for reproducibility.
  2. [§4 (Evaluation Framework)] The dynamic-programming alignment procedure is described at a high level; adding pseudocode, alignment cost function, and handling of multiple reference solutions would improve clarity of the evaluation framework.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. We have revised the manuscript to address the concerns about benchmark construction details and experimental analyses. Our point-by-point responses follow.

read point-by-point responses

  1. Referee: [§3 (Benchmark Construction)] The manuscript states that the pipeline 'enforces strict complementarity between textual and visual inputs' but provides no description of concrete mechanisms such as automated text-only solvability checks, redundancy detection procedures, or any reported text-only LLM baselines on the 283 problems. Without these, the headline accuracies cannot be unambiguously attributed to failure at cross-modal reasoning rather than overall problem difficulty.

    Authors: We agree that more explicit details on the curation mechanisms are needed to substantiate the complementarity claim. In the revised manuscript, we have substantially expanded Section 3 to describe the concrete procedures: automated text-only solvability checks (using LLMs to attempt solving each problem from text alone and retaining only those with low text-only success), redundancy detection via embedding-based overlap analysis between text and image content, and text-only LLM baselines now reported for the full 283 problems. These additions demonstrate that the benchmark requires cross-modal reasoning and allow the headline results to be interpreted accordingly. revision: yes

  2. Referee: [§5 (Experiments)] No ablation is presented that measures performance drop when images are removed from the inputs, nor is there a quantitative error analysis breaking down failures into visual-interpretation errors versus textual-reasoning errors. Such data are load-bearing for the claim that models 'still rely heavily on textual reasoning.'

    Authors: We acknowledge that these analyses are important for supporting the interpretation of model behavior. In the revised Section 5, we have added an ablation evaluating all models on text-only inputs (images removed), which shows a clear performance drop relative to the full multimodal setting. We have also added a quantitative error analysis on a sampled set of failures, with manual categorization into visual-interpretation errors versus textual-reasoning errors (including inter-annotator agreement). These revisions provide direct evidence for the claim that current models rely heavily on textual reasoning while still facing multimodal integration challenges. revision: yes

Circularity Check

0 steps flagged

Empirical benchmark construction with no derivational circularity

full rationale

The paper introduces the StepSTEM benchmark of 283 problems and evaluates MLLMs on interleaved reasoning using a step-level alignment framework based on dynamic programming. No mathematical derivations, equations, or predictions are claimed that reduce to the paper's own inputs by construction. The curation pipeline is presented as a methodological process to enforce complementarity, but this is an empirical construction step rather than a self-referential derivation. Model accuracy results (e.g., 38.29%) are direct measurements on the benchmark, not outputs forced by fitted parameters or self-citations. This is self-contained empirical work with no load-bearing steps matching the enumerated circularity patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that the curation pipeline successfully produces problems requiring both modalities; no free parameters or invented entities are introduced.

axioms (1)
  • domain assumption The curation pipeline enforces strict complementarity between textual and visual inputs.
    This assumption is invoked to guarantee that unimodal shortcuts are prevented and is stated as part of the rigorous curation process.
