arxiv: 2604.20523 · v1 · submitted 2026-04-22 · 💻 cs.SE · cs.AI

Early-Stage Product Line Validation Using LLMs: A Study on Semi-Formal Blueprint Analysis

Viet-Man Le , Thi Ngoc Trang Tran , Sebastian Lubos , Alexander Felfernig , Damian Garber This is my paper

Pith reviewed 2026-05-09 23:56 UTC · model grok-4.3

classification 💻 cs.SE cs.AI
keywords large language modelsfeature modelssoftware product linesanalysis operationssemi-formal blueprintsvariability validationearly validationmodel analysis
0
0 comments X

The pith

Large language models achieve 88-89% accuracy performing analysis operations on semi-formal feature model blueprints, approaching solver performance.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tests whether LLMs can execute standard feature model analysis operations directly on concise textual blueprints that describe feature hierarchies and constraints in constrained language. It evaluates twelve current models against the FLAMA solver oracle across sixteen operations and multiple blueprints. Reasoning-optimized models reach 88-89% average accuracy, indicating they could serve as quick checks during the earliest phases of software product line scoping before formal models are built. The work also documents recurring errors in how models parse structure and reason about constraints, plus trade-offs between accuracy and inference cost. These results frame LLMs as accessible, low-overhead aids rather than replacements for dedicated solvers.

Core claim

The paper establishes that reasoning-optimized large language models achieve an average accuracy of 88-89% when performing sixteen standard analysis operations on semi-formal textual blueprints of feature models. These blueprints provide concise descriptions of feature hierarchies and constraints. By comparing LLM outputs to those from the solver-based tool FLAMA, the study shows that top models approach solver correctness. The findings also catalog common error types and accuracy versus cost considerations for model choice. This supports using LLMs as lightweight aids for validating variability early in software product line scoping.

What carries the argument

LLM execution of analysis operations on semi-formal blueprints, where models read constrained-language text describing feature hierarchies and constraints and produce outputs for operations such as consistency checking or dead-feature detection, benchmarked directly against a solver oracle.

If this is right

  • Early variability checks become feasible without first building a complete formal feature model.
  • Teams can choose specific models by balancing the observed accuracy levels against their inference costs.
  • Common error patterns in parsing and constraint reasoning point to targeted prompt or fine-tuning improvements.
  • The approach lowers the expertise threshold for initial product line validation steps.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same blueprint style could be applied to other semi-formal artifacts such as early requirements documents.
  • Hybrid pipelines that route quick LLM scans to a solver only when needed may become practical.
  • Accuracy on larger or more intricate blueprints will likely rise as reasoning capabilities in models continue to advance.
  • Real industry blueprints would provide a stronger test of whether the 88-89% figure holds outside the selected cases.

Load-bearing premise

That success on the chosen blueprints and sixteen operations will carry over to real early-stage product line scoping work.

What would settle it

A follow-up evaluation on a fresh set of industry blueprints in which the strongest LLMs produce incorrect results on more than 15 percent of operations relative to the solver.

Figures

Figures reproduced from arXiv: 2604.20523 by Alexander Felfernig, Damian Garber, Sebastian Lubos, Thi Ngoc Trang Tran, Viet-Man Le.

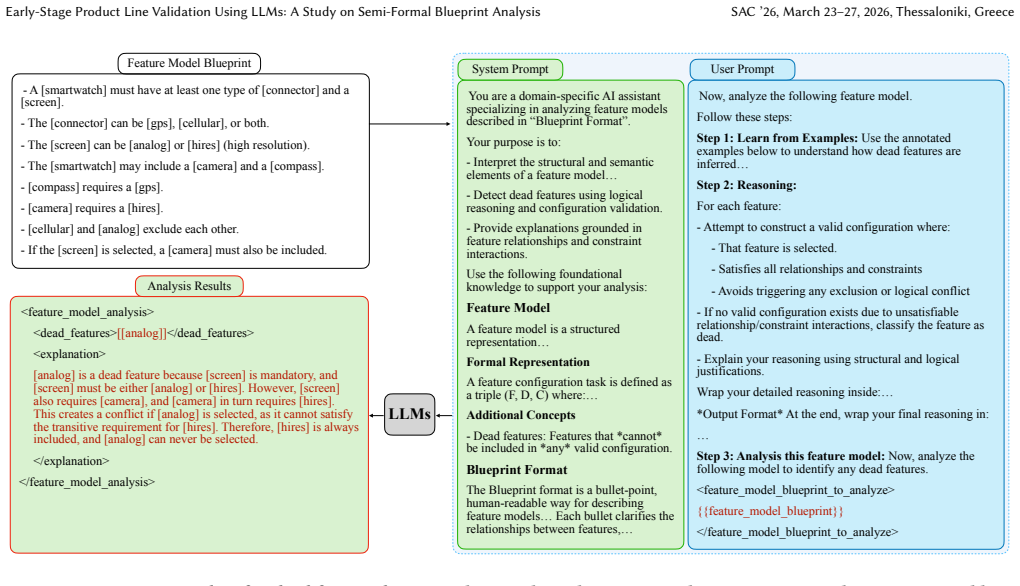

Figure 1
Figure 1. Figure 1: Prompting pipeline for dead feature detection, showing how the system and user prompts guide reasoning and how the LLM outputs XML results for solver comparison. 4.6 Baseline Oracle and Implementation We use FLAMA 2.0.1 [12] as the solver-based oracle, executing AOs on UVL inputs through the Glucose3 SAT solver and the DD library to obtain exact and reproducible ground-truth results for all comparisons. Th… view at source ↗

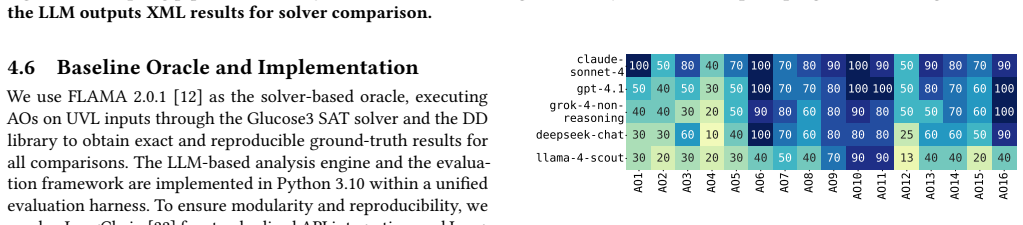

Figure 2
Figure 2. Figure 2: Accuracy (%) of general-purpose LLMs across AOs. [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

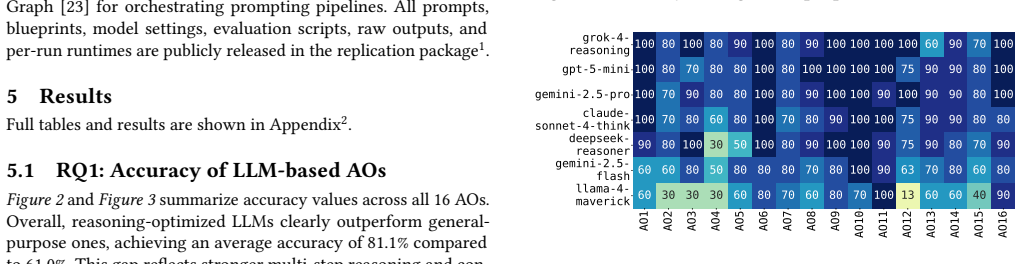

Figure 3
Figure 3. Figure 3: Accuracy (%) of reasoning-opt. LLMs across AOs. [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Accuracy (%) of general-purpose LLMs on 16 AOs [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
read the original abstract

We study whether Large Language Models (LLMs) can perform feature model analysis operations (AOs) directly on semi-formal textual blueprints, i.e., concise constrained-language descriptions of feature hierarchies and constraints, enabling early validation in Software Product Line scoping. Using 12 state-of-the-art LLMs and 16 standard AOs, we compare their outputs against the solver-based oracle FLAMA. Results show that reasoning-optimized models (e.g., Grok 4 Fast Reasoning, Gemini 2.5 Pro) achieve 88-89% average accuracy across all evaluated blueprints and operations, approaching solver correctness. We identify systematic errors in structural parsing and constraint reasoning, and highlight accuracy-cost trade-offs that inform model selection. These findings position LLMs as lightweight assistants for early variability validation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript investigates whether LLMs can execute 16 standard feature model analysis operations directly on semi-formal textual blueprints (concise constrained-language descriptions of feature hierarchies and constraints) to support early validation during software product line scoping. It evaluates 12 LLMs against the independent FLAMA solver oracle on 12 blueprints, reports that reasoning-optimized models (e.g., Grok 4 Fast Reasoning, Gemini 2.5 Pro) reach 88-89% average accuracy, identifies systematic errors in structural parsing and constraint reasoning, and discusses accuracy-cost trade-offs for model selection.

Significance. If the accuracy generalizes, the work could enable lightweight, solver-free initial checks on variability descriptions, lowering the barrier to early SPL scoping. Credit is due for the use of an external independent oracle (FLAMA) yielding concrete accuracy figures and for explicitly cataloging error categories rather than treating LLMs as black boxes.

major comments (2)
  1. [Evaluation] Evaluation section: the central claim that reasoning-optimized LLMs approach solver correctness (88-89% accuracy) and can serve as practical early-validation assistants rests on the assumption that the 12 chosen blueprints and 16 operations are representative of real early-stage product-line scoping; the manuscript provides no data on feature counts, constraint densities, or ambiguity levels spanned by the blueprints, leaving generalizability unproven.
  2. [Results] Results and abstract: the reported accuracy figures are presented without accompanying statistical tests, full prompt-engineering details, or a complete per-operation/per-model error breakdown, which weakens the evidential support for the headline performance numbers and the identified systematic errors.
minor comments (1)
  1. [Abstract] Abstract: the opening sentence would be clearer if it stated the exact number of blueprints (12) alongside the 12 LLMs and 16 operations.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. The comments highlight important aspects of evaluation design and result presentation that we will address to improve the manuscript's rigor and transparency.

read point-by-point responses

  1. Referee: [Evaluation] Evaluation section: the central claim that reasoning-optimized LLMs approach solver correctness (88-89% accuracy) and can serve as practical early-validation assistants rests on the assumption that the 12 chosen blueprints and 16 operations are representative of real early-stage product-line scoping; the manuscript provides no data on feature counts, constraint densities, or ambiguity levels spanned by the blueprints, leaving generalizability unproven.

    Authors: We agree that the manuscript lacks explicit quantitative characterization of the blueprints. In the revision we will add a dedicated table in the Evaluation section reporting, for each of the 12 blueprints, the number of features, number of cross-tree constraints, constraint density, and a brief qualitative indicator of ambiguity arising from the constrained-language formulation. While the blueprints were chosen to reflect typical early-stage scoping artifacts (hierarchies with moderate constraints), these metrics will allow readers to assess representativeness directly and will support the generalizability discussion without changing the experimental design or results. revision: yes

  2. Referee: [Results] Results and abstract: the reported accuracy figures are presented without accompanying statistical tests, full prompt-engineering details, or a complete per-operation/per-model error breakdown, which weakens the evidential support for the headline performance numbers and the identified systematic errors.

    Authors: We acknowledge that the current presentation of results is not fully supported by statistical analysis or exhaustive breakdowns. We will revise the Results section and abstract to include (1) statistical tests (paired Wilcoxon signed-rank tests and 95% confidence intervals) comparing LLM accuracies to the FLAMA oracle, (2) expanded prompt-engineering details (exact templates, few-shot examples, and temperature settings) placed in an appendix, and (3) a complete per-operation and per-model error breakdown table that quantifies the frequency of structural-parsing versus constraint-reasoning errors. These additions will strengthen the evidential basis for the 88-89% accuracy claim and the error taxonomy. revision: yes

Circularity Check

0 steps flagged

No circularity detected in empirical evaluation

full rationale

The paper is a straightforward empirical study: it selects 12 blueprints and 16 standard analysis operations, runs 12 LLMs on them, and measures accuracy by direct comparison to outputs from the independent external solver FLAMA. No equations, derivations, fitted parameters, or predictions are presented whose results reduce to the inputs by construction. Central claims (e.g., 88-89% accuracy for reasoning-optimized models) are computed from these oracle matches without self-definitional loops, self-citation load-bearing premises, or ansatzes smuggled via prior work. The evaluation is self-contained against the external benchmark.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the representativeness of the 16 operations and the assumption that textual blueprints serve as valid early proxies for formal feature models; no free parameters or invented entities are introduced.

axioms (1)
  • domain assumption The 16 analysis operations are standard and representative for feature model validation.
    Invoked as the benchmark set without derivation or justification in the abstract.

pith-pipeline@v0.9.0 · 5445 in / 1179 out tokens · 51170 ms · 2026-05-09T23:56:20.744650+00:00 · methodology
