Photometric Identification of Unresolved Binary Stars in Nearby Open Star Clusters
Pith reviewed 2026-05-09 23:32 UTC · model grok-4.3
The pith
Empirical isochrones revise binary fraction estimates downward in open clusters.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
We show that an empirical isochrones approach is an effective method to explore a wider primary-mass interval, in particular for the region of low-mass sources. Applying this to eight clusters we obtain binary fraction estimates in the range 0.16-0.36 and 0.21-0.44 depending on the adopted method, demonstrating that previous studies overestimated the binary fraction. The mode of the component mass ratio q distribution is in the range 0.43-0.83 and 0.38-0.63 for Gaia and infrared-visible photometry, respectively.
What carries the argument
Empirical isochrones built from observed Gaia data and used as reference sequences in the (H-W2)-W1 versus W2-(BP-K) photometric diagram to separate single stars from unresolved binaries.
If this is right
- Binary fractions in the studied clusters are 0.16-0.36 or 0.21-0.44 depending on method.
- The technique extends reliably to low-mass primary stars.
- Mass ratio q modes fall between 0.38-0.83 depending on the photometry used.
- Previous binary fraction values were overestimated due to reliance on theoretical isochrones.
- Differences in spatial resolution across Gaia, 2MASS, and WISE catalogs do not affect the precision of the binary fraction estimate.
Where Pith is reading between the lines
- The method could be extended to a larger sample of clusters to test whether binary fractions vary systematically with cluster age or density.
- Lower fractions may require updates to dynamical models that use binary populations to explain mass segregation or evaporation rates.
- Mass ratio preferences could be compared against predictions from different binary formation channels in star-forming regions.
- Radial velocity monitoring of the photometrically selected candidates would provide an independent check on completeness.
Load-bearing premise
Empirical isochrones built from the observed data accurately represent the locus of single stars without contamination from unresolved binaries.
What would settle it
Spectroscopic or radial-velocity follow-up of a sample of stars classified as binaries or singles by the photometric diagram that shows a high mismatch rate in binarity confirmation would indicate the separation technique is unreliable.
Figures

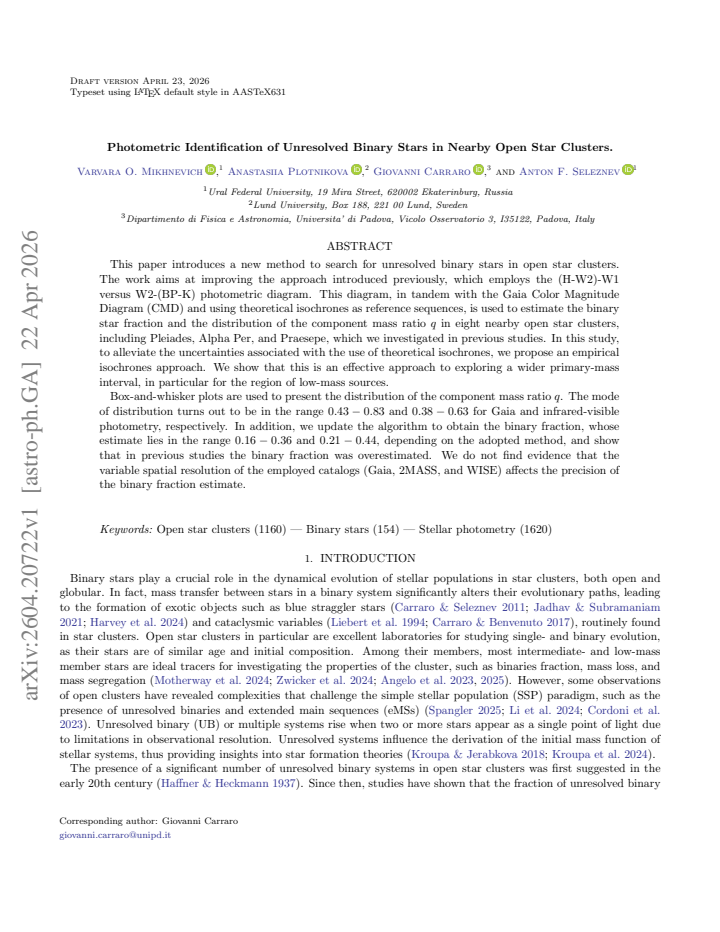

read the original abstract
This paper introduces a new method to search for unresolved binary stars in open star clusters. The work aims at improving the approach introduced previously, which employs the (H-W2)-W1 versus W2-(BP-K) photometric diagram. This diagram, in tandem with the Gaia Color Magnitude Diagram (CMD) and using theoretical isochrones as reference sequences, is used to estimate the binary star fraction and the distribution of the component mass ratio $q$ in eight nearby open star clusters, including Pleiades, Alpha Per, and Praesepe, which we investigated in previous studies. In this study, to alleviate the uncertainties associated with the use of theoretical isochrones, we propose an empirical isochrones approach. We show that this is an effective approach to exploring a wider primary-mass interval, in particular for the region of low-mass sources. Box-and-whisker plots are used to present the distribution of the component mass ratio $q$. The mode of distribution turns out to be in the range $0.43-0.83$ and $0.38-0.63$ for Gaia and infrared-visible photometry, respectively. In addition, we update the algorithm to obtain the binary fraction, whose estimate lies in the range $0.16 - 0.36$ and $0.21 - 0.44$, depending on the adopted method, and show that in previous studies the binary fraction was overestimated. We do not find evidence that the variable spatial resolution of the employed catalogs (Gaia, 2MASS, and WISE) affects the precision of the binary fraction estimate.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper introduces a photometric method for identifying unresolved binaries in eight nearby open clusters (including Pleiades, Alpha Per, and Praesepe) by replacing theoretical isochrones with empirical ones derived from Gaia CMD data combined with the (H-W2)-W1 versus W2-(BP-K) diagram. It reports binary fractions of 0.16-0.36 (Gaia) and 0.21-0.44 (IR-visible), q-distribution modes of 0.43-0.83 and 0.38-0.63 respectively, and claims the approach extends reliably to low-mass primaries while showing that earlier studies overestimated binary fractions.
Significance. If the empirical isochrones can be shown to be uncontaminated, the method offers a practical way to reduce model-dependent uncertainties and extend binary statistics to lower primary masses than theoretical-isochrone approaches typically allow. The use of box-and-whisker plots for q and the updated binary-fraction algorithm are concrete improvements over the authors' prior work.
major comments (3)
- [Methods (empirical isochrone construction)] The construction of the empirical isochrones (described in the methods) is not shown to exclude unresolved binaries from the input sample used to define the single-star locus. Without an explicit cleaning step, iteration, or contamination test, the reference sequence may be broadened or shifted, directly weakening the photometric separation for q < 0.5 systems and the reported binary fractions.
- [Results and discussion] The assertion that prior studies overestimated binary fractions is load-bearing for the paper's comparative claim but is presented without a side-by-side quantitative re-analysis of the same clusters using both the old theoretical-isochrone and new empirical methods, including uncertainties and statistical significance.
- [Results (low-mass sources)] The performance at low primary masses is asserted to be an advantage, yet no specific validation (e.g., recovery tests on synthetic binaries injected into the low-mass regime or comparison of separation quality versus primary mass) is provided to support the claim that the (H-W2)-W1 vs W2-(BP-K) diagram reliably identifies binaries there.
minor comments (2)
- [Abstract and Results] The abstract states that box-and-whisker plots are used to present the q distribution; the main text should explicitly describe how the mode is extracted from these plots and whether the reported ranges reflect inter-quartile or full-range values.
- [Discussion] The statement that variable spatial resolution of Gaia/2MASS/WISE does not affect the binary-fraction precision would benefit from a short quantitative test (e.g., resolution-matched subsamples) rather than a qualitative assertion.
Simulated Author's Rebuttal
We thank the referee for the constructive and detailed report. The comments identify areas where the manuscript can be strengthened, particularly regarding transparency in method details, quantitative comparisons, and validation. We address each major comment below, with planned revisions to the next version of the manuscript.
read point-by-point responses
-
Referee: [Methods (empirical isochrone construction)] The construction of the empirical isochrones (described in the methods) is not shown to exclude unresolved binaries from the input sample used to define the single-star locus. Without an explicit cleaning step, iteration, or contamination test, the reference sequence may be broadened or shifted, directly weakening the photometric separation for q < 0.5 systems and the reported binary fractions.
Authors: We agree that explicit documentation of sample cleaning is necessary for robustness. The empirical isochrones were derived from Gaia-selected cluster members, with the locus defined via median fitting after basic membership cuts, but without a dedicated binary-exclusion step described. In the revised manuscript we will expand the Methods section to detail the construction procedure, including sigma-clipping around the main sequence, use of proper-motion and parallax membership probabilities to reduce field contamination, and a quantitative estimate of residual binary impact on the locus (based on the reported binary fractions themselves). We will also add a brief contamination simulation to show the effect on q < 0.5 separation. revision: yes
-
Referee: [Results and discussion] The assertion that prior studies overestimated binary fractions is load-bearing for the paper's comparative claim but is presented without a side-by-side quantitative re-analysis of the same clusters using both the old theoretical-isochrone and new empirical methods, including uncertainties and statistical significance.
Authors: The statement is based on direct numerical comparison between the new empirical results and the binary fractions we previously published for the same eight clusters using theoretical isochrones. To make the comparison fully transparent and quantitative, the revised manuscript will include a new table listing, for each cluster, the binary fraction obtained with the theoretical-isochrone method (re-derived on the current sample for consistency), the empirical-isochrone result, bootstrap uncertainties on both, and a simple significance metric for the difference. This directly addresses the request for side-by-side analysis. revision: yes
-
Referee: [Results (low-mass sources)] The performance at low primary masses is asserted to be an advantage, yet no specific validation (e.g., recovery tests on synthetic binaries injected into the low-mass regime or comparison of separation quality versus primary mass) is provided to support the claim that the (H-W2)-W1 vs W2-(BP-K) diagram reliably identifies binaries there.
Authors: The empirical approach demonstrably extends the primary-mass range because it avoids reliance on theoretical models that become increasingly uncertain at low masses. We will revise the Results and Discussion sections to include a binned analysis showing the fraction of sources classified as binaries as a function of primary mass (or absolute magnitude), together with the quality of photometric separation in the two diagrams for different mass bins. This provides an empirical check on performance across the mass range. Full end-to-end synthetic recovery tests with injected binaries are a natural next step but lie outside the scope of the present work; we will note this limitation explicitly. revision: partial
Circularity Check
Minor self-citation to prior cluster studies; new empirical isochrone method and binary-fraction estimates derived from fresh data processing without reduction to inputs.
full rationale
The paper replaces theoretical isochrones with empirical ones constructed from the observed Gaia CMD and (H-W2)-W1 vs W2-(BP-K) diagram, then applies the updated algorithm to derive binary fractions (0.16-0.44) and q-mode ranges for eight clusters. References to the authors' own prior work on Pleiades, Alpha Per, and Praesepe appear only as context for the clusters studied; the central claims rest on the new empirical construction and box-and-whisker analysis of the current dataset. No quoted step shows a fitted parameter renamed as prediction, a self-definitional loop, or a load-bearing uniqueness theorem imported from overlapping authors. The derivation therefore remains self-contained against the external photometric catalogs.
Axiom & Free-Parameter Ledger
free parameters (2)
- Binary identification thresholds in photometric diagram
- Mass ratio q distribution parameters
axioms (2)
- domain assumption The (H-W2)-W1 versus W2-(BP-K) diagram separates single and binary stars effectively when combined with Gaia CMD.
- ad hoc to paper Empirical isochrones can be constructed to represent single-star sequences without binary contamination.
Reference graph
Works this paper leans on
-
[1]
Alexander, J. S., & Albrow, M. D. 2025, MNRAS, 536, 471, doi: 10.1093/mnras/stae2636
-
[2]
Maia, F. F. S. 2025, arXiv e-prints, arXiv:2504.06362, doi: 10.48550/arXiv.2504.06362
-
[3]
Corradi, W. J. B. 2023, MNRAS, 522, 956, doi: 10.1093/mnras/stad1038 Astropy Collaboration, Robitaille, T. P., Tollerud, E. J., et al. 2013, A&A, 558, A33, doi: 10.1051/0004-6361/201322068 Astropy Collaboration, Price-Whelan, A. M., Lim, P. L., et al. 2022, ApJ, 935, 167, doi: 10.3847/1538-4357/ac7c74 Bardalez Gagliuffi, D. C., Burgasser, A. J., Gelino, C...
-
[4]
Bate, M. R. 2012, MNRAS, 419, 3115, doi: 10.1111/j.1365-2966.2011.19955.x
-
[5]
1990, MNRAS, 245, 15, doi: 10.1093/mnras/245.1.15
Bonifazi, A., Fusi-Pecci, F., Romeo, G., & Tosi, M. 1990, MNRAS, 245, 15, doi: 10.1093/mnras/245.1.15
-
[6]
2012, MNRAS, 427, 127, doi: 10.1111/j.1365-2966.2012.21948.x
Bressan, A., Marigo, P., Girardi, L., et al. 2012, MNRAS, 427, 127, doi: 10.1111/j.1365-2966.2012.21948.x Photometric identification of unresolved binaries in open clusters23
-
[7]
Astronomy & Astrophysics , author =
Cantat-Gaudin, T., Anders, F., Castro-Ginard, A., et al. 2020, A&A, 640, A1, doi: 10.1051/0004-6361/202038192
-
[8]
Carraro, G., & Benvenuto, O. G. 2017, ApJL, 841, L10, doi: 10.3847/2041-8213/aa7131
-
[9]
Carraro, G., & Seleznev, A. F. 2011, MNRAS, 412, 1361, doi: 10.1111/j.1365-2966.2010.17996.x
-
[10]
Childs, A. C., & Geller, A. M. 2025, arXiv e-prints, arXiv:2506.20889, doi: 10.48550/arXiv.2506.20889
-
[11]
Childs, A. C., Geller, A. M., von Hippel, T., Motherway, E., & Zwicker, C. 2024, ApJ, 962, 41, doi: 10.3847/1538-4357/ad18c0
-
[12]
2024, AJ, 168, 156, doi: 10.3847/1538-3881/ad7025
Chulkov, D. 2024, AJ, 168, 156, doi: 10.3847/1538-3881/ad7025
-
[13]
2025, AJ, 169, 145, doi: 10.3847/1538-3881/ada564
Chulkov, D., Strakhov, I., & Safonov, B. 2025, AJ, 169, 145, doi: 10.3847/1538-3881/ada564
-
[14]
Cohen, R. E., Geller, A. M., & von Hippel, T. 2020, AJ, 159, 11, doi: 10.3847/1538-3881/ab59d7
-
[15]
Cordoni, G., Milone, A. P., Marino, A. F., et al. 2023, A&A, 672, A29, doi: 10.1051/0004-6361/202245457
-
[16]
Danilov, V. M., & Seleznev, A. F. 2020, Astrophysical Bulletin, 75, 407, doi: 10.1134/S1990341320040045
-
[17]
Monthly Notices of the Royal Astronomical Society , author =
Dias, W. S., Monteiro, H., Moitinho, A., et al. 2021, MNRAS, 504, 356, doi: 10.1093/mnras/stab770
-
[18]
Donada, J., Anders, F., Jordi, C., et al. 2023, A&A, 675, A89, doi: 10.1051/0004-6361/202245219
-
[19]
1991, A&A, 248, 485
Duquennoy, A., & Mayor, M. 1991, A&A, 248, 485
1991
-
[20]
2019, MNRAS, 489, 5822, doi: 10.1093/mnras/stz2480
El-Badry, K., Rix, H.-W., Tian, H., Duchˆ ene, G., & Moe, M. 2019, MNRAS, 489, 5822, doi: 10.1093/mnras/stz2480
-
[21]
Fisher, J., Schr¨ oder, K.-P., & Smith, R. C. 2005, MNRAS, 361, 495, doi: 10.1111/j.1365-2966.2005.09193.x Gaia Collaboration, Vallenari, A., Brown, A. G. A., et al. 2023, A&A, 674, A1, doi: 10.1051/0004-6361/202243940
-
[22]
The Astronomical Journal , author =
Geller, A. M., Mathieu, R. D., Latham, D. W., et al. 2021, AJ, 161, 190, doi: 10.3847/1538-3881/abdd23
-
[23]
Ginsburg, A., Sip˝ ocz, B. M., Brasseur, C. E., et al. 2019, AJ, 157, 98, doi: 10.3847/1538-3881/aafc33
-
[24]
Griggio, M., Salaris, M., Bedin, L. R., & Cassisi, S. 2023, MNRAS, 523, 5148, doi: 10.1093/mnras/stad1754
-
[25]
1937, Veroeffentlichungen der Universitaets-Sternwarte zu Goettingen, 0004, 77
Haffner, H., & Heckmann, O. 1937, Veroeffentlichungen der Universitaets-Sternwarte zu Goettingen, 0004, 77
1937
-
[26]
2024, Research Notes of the American Astronomical Society, 8, 191, doi: 10.3847/2515-5172/ad686e
Harvey, A., Sahu, Y., & Flores, E. 2024, Research Notes of the American Astronomical Society, 8, 191, doi: 10.3847/2515-5172/ad686e
-
[27]
2022, ApJ, 938, 42, doi: 10.3847/1538-4357/ac8b08
He, C., Sun, W., Li, C., et al. 2022, ApJ, 938, 42, doi: 10.3847/1538-4357/ac8b08
-
[28]
Astronomy & Astrophysics , author =
Hunt, E. L., & Reffert, S. 2024, A&A, 686, A42, doi: 10.1051/0004-6361/202348662
-
[29]
V., Roy, K., Joshi, N., & Subramaniam, A
Jadhav, V. V., Roy, K., Joshi, N., & Subramaniam, A. 2021, AJ, 162, 264, doi: 10.3847/1538-3881/ac2571
-
[30]
Jadhav, V. V., & Subramaniam, A. 2021, MNRAS, 507, 1699, doi: 10.1093/mnras/stab2264
-
[31]
2024, ApJ, 971, 71, doi: 10.3847/1538-4357/ad5344
Jiang, Y., Zhong, J., Qin, S., et al. 2024, ApJ, 971, 71, doi: 10.3847/1538-4357/ad5344
-
[32]
2013, MNRAS, 434, 3236, doi: 10.1093/mnras/stt1239
Khalaj, P., & Baumgardt, H. 2013, MNRAS, 434, 3236, doi: 10.1093/mnras/stt1239
-
[33]
Kounkel, M., Covey, K., Moe, M., et al. 2019, AJ, 157, 196, doi: 10.3847/1538-3881/ab13b1
-
[34]
Kouwenhoven, M. B. N., Brown, A. G. A., Goodwin, S. P., Portegies Zwart, S. F., & Kaper, L. 2009, A&A, 493, 979, doi: 10.1051/0004-6361:200810234
-
[35]
Kroupa, P. 2001, MNRAS, 322, 231, doi: 10.1046/j.1365-8711.2001.04022.x
-
[36]
Kroupa, P., Gjergo, E., Jerabkova, T., & Yan, Z. 2024, arXiv e-prints, arXiv:2410.07311, doi: 10.48550/arXiv.2410.07311
-
[37]
2018, arXiv e-prints, arXiv:1806.10605
Kroupa, P., & Jerabkova, T. 2018, arXiv e-prints, arXiv:1806.10605. https://arxiv.org/abs/1806.10605
-
[38]
Kroupa, P., Tout, C. A., & Gilmore, G. 1993, MNRAS, 262, 545, doi: 10.1093/mnras/262.3.545
-
[39]
Li, C., Milone, A. P., Sun, W., & de Grijs, R. 2024, arXiv e-prints, arXiv:2401.08062, doi: 10.48550/arXiv.2401.08062
-
[40]
Liebert, J., Saffer, R. A., & Green, E. M. 1994, AJ, 107, 1408, doi: 10.1086/116954
-
[41]
2025, AJ, 169, 116, doi: 10.3847/1538-3881/ada380
Liu, R., Shao, Z., & Li, L. 2025, AJ, 169, 116, doi: 10.3847/1538-3881/ada380
-
[42]
Lodieu, N., P´ erez-Garrido, A., Smart, R. L., & Silvotti, R. 2019, A&A, 628, A66, doi: 10.1051/0004-6361/201935533
-
[43]
2023, ApJS, 268, 30, doi: 10.3847/1538-4365/ace5af
Long, L., Bi, S., Zhang, J., et al. 2023, ApJS, 268, 30, doi: 10.3847/1538-4365/ace5af
-
[44]
, archivePrefix = "arXiv", eprint =
Mainzer, A., Bauer, J., Grav, T., et al. 2011, ApJ, 731, 53, doi: 10.1088/0004-637X/731/1/53
-
[45]
2010, in EAS Publications Series, Vol
Malkov, O., Mironov, A., & Sichevskij, S. 2010, in EAS Publications Series, Vol. 45, EAS Publications Series, 409–412, doi: 10.1051/eas/1045071
-
[46]
2011, Ap&SS, 335, 105, doi: 10.1007/s10509-011-0613-1
Malkov, O., Mironov, A., & Sichevskij, S. 2011, Ap&SS, 335, 105, doi: 10.1007/s10509-011-0613-1
-
[47]
Seleznev, A. F. 2023, AJ, 165, 45, doi: 10.3847/1538-3881/aca666
-
[48]
Malofeeva, A. A., Seleznev, A. F., & Carraro, G. 2022, AJ, 163, 113, doi: 10.3847/1538-3881/ac47a3
-
[49]
Maxted, P. F. L., Jeffries, R. D., Oliveira, J. M., Naylor, T., & Jackson, R. J. 2008, MNRAS, 385, 2210, doi: 10.1111/j.1365-2966.2008.13008.x
-
[50]
2017, arXiv e-prints, arXiv:1705.07321, doi: 10.48550/arXiv.1705.07321
McInnes, L., & Healy, J. 2017, arXiv e-prints, arXiv:1705.07321, doi: 10.48550/arXiv.1705.07321
-
[51]
URLhttps://doi.org/10.21105/joss.00205
McInnes, L., Healy, J., & Astels, S. 2017, The Journal of Open Source Software, 2, doi: 10.21105/joss.00205 24Mikhnevich et al
-
[52]
Mikhnevich, V., Plotnikova, A., Seleznev, A., & Carraro, G. 2024, in Modern Astronomy: From the Early Universe to Exoplanets and Black Holes (VAK2024, 443–449, doi: 10.26119/VAK2024.070
-
[53]
Mikhnevich, V. O., & Seleznev, A. F. 2024, Astronomy Reports, 68, 121, doi: 10.1134/S1063772924700161
-
[54]
Motherway, E., Geller, A. M., Childs, A. C., Zwicker, C., & von Hippel, T. 2024, ApJL, 962, L9, doi: 10.3847/2041-8213/ad18bf
-
[55]
Muratore, F., Milone, A. P., D’Antona, F., et al. 2024, A&A, 692, A135, doi: 10.1051/0004-6361/202451310
-
[56]
2020, AJ, 160, 142, doi: 10.3847/1538-3881/aba753
Carraro, G. 2020, AJ, 160, 142, doi: 10.3847/1538-3881/aba753
-
[57]
2020, ApJ, 903, 93, doi: 10.3847/1538-4357/abb8d6
Niu, H., Wang, J., & Fu, J. 2020, ApJ, 903, 93, doi: 10.3847/1538-4357/abb8d6
-
[58]
Patience, J., Ghez, A. M., Reid, I. N., & Matthews, K. 2002, AJ, 123, 1570, doi: 10.1086/338431
-
[59]
The Astronomical Journal , author =
Price-Whelan, A. M., Sip˝ ocz, B. M., G¨ unther, H. M., et al. 2018, AJ, 156, 123, doi: 10.3847/1538-3881/aabc4f
-
[60]
A Survey of Stellar Families: Multiplicity of Solar-Type Stars
Raghavan, D., McAlister, H. A., Henry, T. J., et al. 2010, ApJS, 190, 1, doi: 10.1088/0067-0049/190/1/1
-
[61]
M., Bouy, H., Berihuete, A., et al
Sarro, L. M., Bouy, H., Berihuete, A., et al. 2014, A&A, 563, A45, doi: 10.1051/0004-6361/201322413
-
[62]
2016, MNRAS, 457, 1028, doi: 10.1093/mnras/stw059
Sheikhi, N., Hasheminia, M., Khalaj, P., et al. 2016, MNRAS, 457, 1028, doi: 10.1093/mnras/stw059
-
[63]
Skrutskie, M. F., Cutri, R. M., Stiening, R., et al. 2006, Astronomical Journal, 131, 1163, doi: 10.1086/498708
-
[64]
Spangler, S. R. 2025, Research Notes of the American Astronomical Society, 9, 34, doi: 10.3847/2515-5172/adb48a
-
[65]
Tagaev, D. I., & Seleznev, A. F. 2025, Astronomy Reports, 69, 457, doi: 10.1134/S1063772925701884 The 2MASS Team. 2006, 2MASS All-Sky Data Release Explanatory Supplement: User’s Guide, Infrared Processing and Analysis Center, California Institute of Technology, and University of Massachusetts. https://irsa.ipac.caltech.edu/data/2MASS/docs/ releases/allsky...
-
[66]
Torres, G., Latham, D. W., & Quinn, S. N. 2021, ApJ, 921, 117, doi: 10.3847/1538-4357/ac1585 van Leeuwen, F., de Bruijne, J., Babusiaux, C., et al. 2021, Gaia EDR3 documentation, Gaia EDR3 documentation, European Space Agency; Gaia Data Processing and Analysis Consortium. https://gea.esac.esa.int/archive/ documentation/GEDR3/index.html
-
[67]
2023, ApJ, 949, 53, doi: 10.3847/1538-4357/accae0
Wang, L., Li, C., Wang, L., He, C., & Wang, C. 2023, ApJ, 949, 53, doi: 10.3847/1538-4357/accae0
-
[68]
Wright, E. L., Eisenhardt, P. R. M., Mainzer, A. K., et al. 2010, Astronomical Journal, 140, 1868, doi: 10.1088/0004-6256/140/6/1868
work page internal anchor Pith review doi:10.1088/0004-6256/140/6/1868 2010
-
[69]
Wright, N. J. 2020, NewAR, 90, 101549, doi: 10.1016/j.newar.2020.101549
-
[70]
Zwicker, C., Geller, A. M., Childs, A. C., Motherway, E., & von Hippel, T. 2024, ApJ, 967, 44, doi: 10.3847/1538-4357/ad39c6
