Geometry, Not Calorimetry, Drives the Radio/Infrared/Gamma-Ray Correlation

Troy A. Porter , Igor V. Moskalenko , Gudlaugur Johannesson
Authors on Pith no claims yet

Pith reviewed 2026-05-09 21:35 UTC · model grok-4.3

classification 🌌 astro-ph.HE astro-ph.GA
keywords radio-infrared-gamma-ray correlationgeometric projectionstar-forming galaxiescosmic ray calorimetryline-of-sight integrationMilky Way modelsgalactic structureviewing angle
0
0 comments X

The pith

The radio-infrared-gamma-ray correlation in star-forming galaxies is driven by geometric projection rather than local cosmic-ray calorimetry.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper asks whether the radio-infrared-gamma-ray correlation in star-forming galaxies arises from local cosmic-ray calorimetry or from the way emissions project along lines of sight. Synthetic observations generated from 3D Milky Way models normalized to local data show that a tight correlation emerges naturally from integrating through the structured disc. This holds even without local calorimetry and depends on the viewing angle, breaking for edge-on perspectives due to stratification. The authors conclude the correlation is mainly a geometric effect, implying its scatter reflects structure and orientation rather than measurement noise.

Core claim

A grid of three-dimensional Milky Way models normalized to local cosmic-ray data produces synthetic external observations exhibiting a tight quasi-linear radio-infrared-gamma-ray correlation from line-of-sight integration through the radially-structured disc, even absent local calorimetry. The correlation's form depends on viewing geometry, holding for moderate inclinations but failing in edge-on views where components stratify.

What carries the argument

Line-of-sight integration through radially structured galactic discs in externally viewed 3D Milky Way models.

Load-bearing premise

That three-dimensional Milky Way models, when normalized only to local cosmic-ray data and projected externally, accurately represent the emission distributions and viewing geometries of other star-forming galaxies.

What would settle it

Finding that the radio-infrared-gamma-ray correlation strength does not vary with galaxy inclination angle, or that it remains tight in edge-on systems, would contradict the geometric projection explanation.

Figures

Figures reproduced from arXiv: 2604.21224 by Gudlaugur Johannesson, Igor V. Moskalenko, Troy A. Porter.

Figure 1
Figure 1. Figure 1: Correlation plots of (top) 1.4 GHz RC and (bottom) 100µm IR vs. γ-ray intensity for the SA0-GP2D-F98-BE (left) and SA100- J18-R12-BP (right) modelling configurations for an observer located at 50 kpc looking facedown toward the GC of the MW. For the γ-ray intensities, the correlations are separated into production processes: gas/π 0 -decay, green; ISRF/Compton, black; total, orange. For each of these, the … view at source ↗
Figure 2

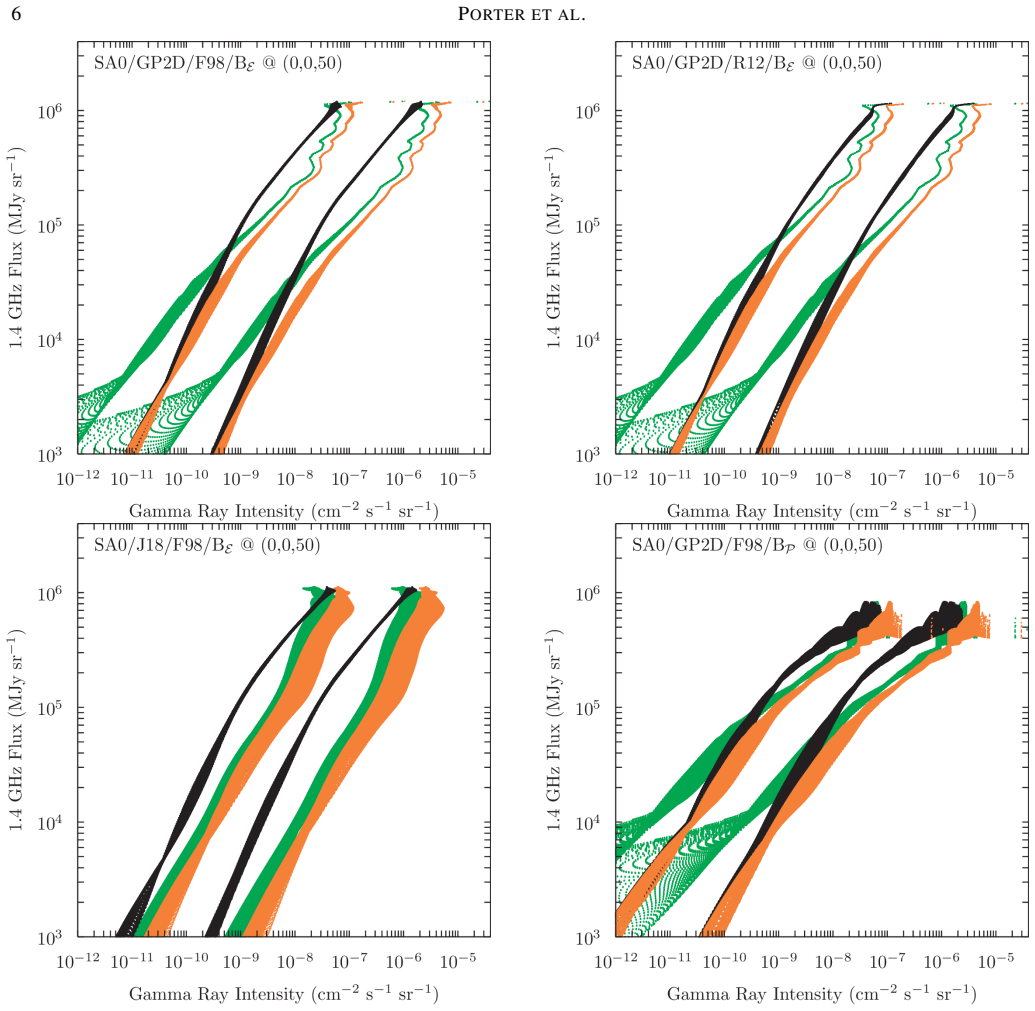

Figure 2. Figure 2: Correlation plots of (top) 1.4 GHz RC vs. γ-ray intensity for the benchmark SA0-GP2D-F98-BE configuration (top left) with variations in the individual Galactic components: F98→R12 (top right), GP2D→J18 (bottom left), and BE→BP (bottom right) for an observer located at 50 kpc looking facedown toward the GC of the MW. For the γ-ray intensities, the correlations are separated into production processes: gas/π … view at source ↗
Figure 3

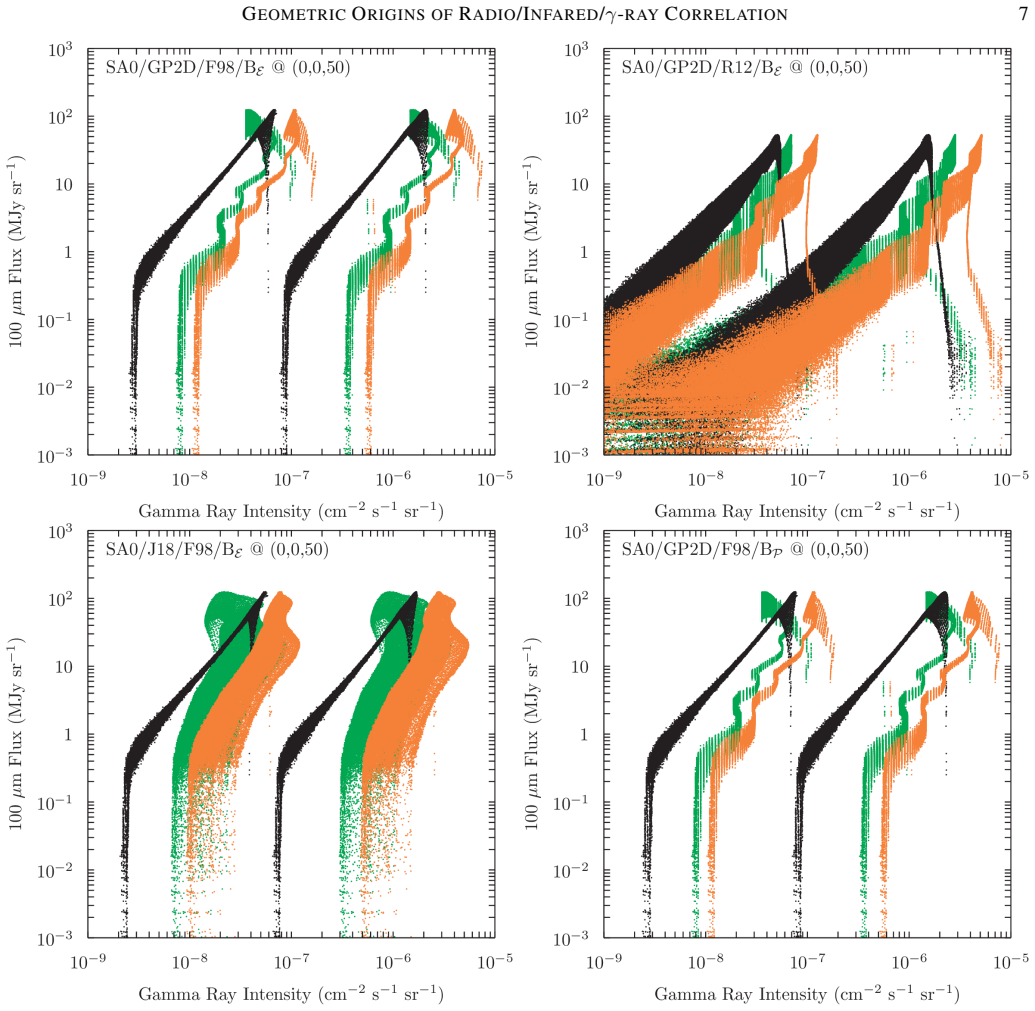

Figure 3. Figure 3: Correlation plots of (top) 100 µm IR flux vs. γ-ray intensity for the benchmark SA0-GP2D-F98-BE configuration (top left) with variations in the individual Galactic components: F98→R12 (top right), GP2D→J18 (bottom left), and BE→BP (bottom right) for an observer located at 50 kpc looking facedown toward the GC of the MW. For the γ-ray intensities, the correlations are separated into production processes: ga… view at source ↗
Figure 4
Figure 4. Figure 4: Correlation plots of (top) 1.4 GHz RC and (bottom) 100 µm IR flux vs. γ-ray intensity for the SA50-GP2D-F98-BE (left) and SA100-GP2D-F98-BE (right) modelling configurations for an observer located at 50 kpc looking facedown toward the GC of the MW. For the γ-ray intensities, the correlations are separated into production processes: gas/π 0 -decay, green; ISRF/Compton, black; total, orange. For each of thes… view at source ↗
Figure 5
Figure 5. Figure 5: Correlation plots of (top) 1.4 GHz RC and (bottom) 100 µm IR flux vs. γ-ray intensity for the SA0-GP2D-F98-BE (left) and SA100- J18-R12-BP (right) modelling configurations for an observer located at 50 kpc at an inclination of 45◦ from the Galactic plane looking toward the GC of the MW. For the γ-ray intensities, the correlations are separated into production processes: gas/π 0 -decay, green; ISRF/Compton,… view at source ↗
Figure 6
Figure 6. Figure 6: Correlation plots of (top) 1.4 GHz RC and (bottom) 100 µm IR flux vs. γ-ray intensity for the SA0-GP2D-F98-BE (left) and SA100- J18-R12-BP (right) modelling configurations for an observer located at 50 kpc at an inclination of 90◦ (edge-on) looking toward the GC of the MW. For the γ-ray intensities, the correlations are separated into production processes: gas/π 0 -decay, green; ISRF/Compton, black; total,… view at source ↗
Figure 7

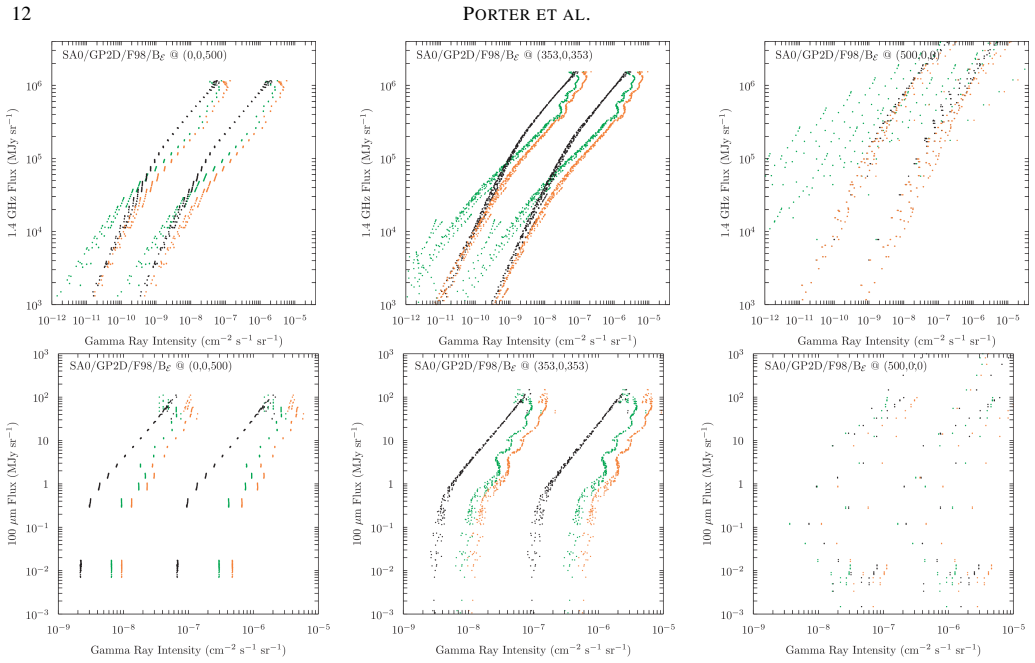

Figure 7. Figure 7: Correlation plots of (top) 1.4 GHZ flux vs. γ-ray intensity for the SA0-GP2D-F98-BE and (bottom) 100 µm IR flux vs. γ-ray intensity for observer located 500 kpc from the MW centre looking face-down (left), at 45◦ inclination (middle), and edge-on (right). For the γ-ray intensities, the correlations are separated into production processes: gas/π 0 -decay, green; ISRF/Compton, black; total, orange. For each … view at source ↗
Figure 8
Figure 8. Figure 8: Correlation plots of (top) 1.4 GHZ flux vs. γ-ray intensity for the SA100-J18-R12-BP and (bottom) 100 µm IR flux vs. γ-ray intensity for observer located 500 kpc from the MW centre looking face-down (left), at 45◦ inclination (middle), and edge-on (right). For the γ-ray intensities, the correlations are separated into production processes: gas/π 0 -decay, green; ISRF/Compton, black; total, orange. For each… view at source ↗
Figure 9
Figure 9. Figure 9: Correlation plots of 1.4 GHZ flux vs. 100µm flux for the SA0-GP2D-F98-BE (top) and SA100-J18-R12-BP (bottom) configurations for observer located at 50 kpc (left) and 500 kpc (right) from the MW centre looking face-down (cyan), at 45◦ inclination (black), and 90◦ inclination (red). tion. With the recent, careful separation of thermal and non￾thermal radio emission in the SMC (Hassani et al. 2022), the data … view at source ↗
read the original abstract

We investigate whether the observed radio-infrared-$\gamma$-ray correlation in star-forming galaxies is a geometric effect rather than a signature of local cosmic-ray (CR) calorimetry. Using the GALPROP framework, we generate synthetic observations for external viewers from a grid of 3D Milky Way models with varied CR source, gas, interstellar radiation, and magnetic field distributions, all normalised to reproduce local CR data. We find that a tight, quasi-linear correlation arises naturally from line-of-sight integration through the extended, radially-structured disc, even when local calorimetry is absent. The correlation's properties depend strongly on viewing geometry, preserving its form under moderate inclination but breaking down in edge-on views where galactic components are stratified. We conclude that the correlation is primarily an emergent property of geometric projection, not local physics. This implies that its scatter is likely not random noise but a diagnostic of underlying galactic structure and viewing angle.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper claims that the tight radio/infrared/gamma-ray correlation observed in star-forming galaxies is primarily an emergent geometric effect arising from line-of-sight integration through an extended, radially structured galactic disc, rather than a signature of local cosmic-ray calorimetry. Using the GALPROP code, the authors generate a grid of 3D Milky Way models with varied CR source, gas, ISRF, and magnetic-field distributions, all normalized to reproduce local CR data at the solar position; synthetic observations are then produced for external viewers at different inclinations. They report that a quasi-linear correlation emerges naturally from projection effects, with its form preserved under moderate inclinations but breaking down in edge-on views due to stratification of galactic components.

Significance. If the central result holds, it would substantially revise the interpretation of multi-wavelength correlations in galaxies by shifting emphasis from local CR calorimetry to global geometric projection. This could turn the observed scatter into a diagnostic of underlying galactic structure and viewing angle rather than random noise. A strength of the work is the normalization of all models to independent local CR data, which keeps circularity low and allows the correlation to arise without assuming calorimetry; the approach is falsifiable through comparison with observed inclination-dependent scatter in external galaxies.

major comments (2)
  1. [Modeling and synthetic observations] The central claim that the correlation is 'primarily an emergent property of geometric projection, not local physics' (abstract) rests on the assumption that Milky Way structural templates (radial decline, scale height, spiral structure) are representative of the diverse population of star-forming galaxies. No tests with non-MW geometries, such as more compact discs or irregular morphologies common at high redshift, are described; this limits the generality of the conclusion.
  2. [Abstract] The abstract asserts that 'a tight, quasi-linear correlation arises naturally' but reports no quantitative results (e.g., fitted slopes, Pearson coefficients, or scatter values) from the synthetic observations, nor any error analysis on the model grid choices. This leaves the strength of support for the geometric interpretation only moderately quantified in the summary of the work.
minor comments (2)
  1. Specify the exact ranges and sampling of the normalization factors for CR sources, gas, ISRF, and magnetic field in the model grid, and clarify how these choices affect the robustness of the emergent correlation.
  2. Provide more detail on the inclination sampling and the quantitative dependence of correlation properties (slope, scatter) on viewing angle, including any figures showing edge-on versus face-on cases.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thoughtful and constructive comments on our manuscript. We address each of the major comments in detail below, providing our responses and indicating the revisions we will make.

read point-by-point responses

  1. Referee: [Modeling and synthetic observations] The central claim that the correlation is 'primarily an emergent property of geometric projection, not local physics' (abstract) rests on the assumption that Milky Way structural templates (radial decline, scale height, spiral structure) are representative of the diverse population of star-forming galaxies. No tests with non-MW geometries, such as more compact discs or irregular morphologies common at high redshift, are described; this limits the generality of the conclusion.

    Authors: We agree that our models are constructed using Milky Way structural templates, selected because they are the most tightly constrained by local cosmic-ray data and permit normalization without assuming calorimetry. The geometric effect we identify arises from line-of-sight integration through a radially declining disc, a structural feature shared by many star-forming galaxies. We nevertheless recognize that the absence of explicit tests with non-MW geometries (compact discs or irregular systems) limits the direct generality of the conclusions, particularly for high-redshift populations. In the revised manuscript we will add a paragraph in the discussion section that addresses this limitation, including a qualitative assessment of how deviations from MW-like radial profiles would be expected to modify the correlation strength and scatter. revision: partial

  2. Referee: [Abstract] The abstract asserts that 'a tight, quasi-linear correlation arises naturally' but reports no quantitative results (e.g., fitted slopes, Pearson coefficients, or scatter values) from the synthetic observations, nor any error analysis on the model grid choices. This leaves the strength of support for the geometric interpretation only moderately quantified in the summary of the work.

    Authors: The main text already reports quantitative measures from the synthetic observations, including fitted slopes near unity, Pearson coefficients above 0.9 for moderate inclinations, and scatter values across the model grid (detailed in Section 3 and the associated figures). To strengthen the abstract as a standalone summary, we will revise it to include representative quantitative statements (e.g., typical slope range and scatter) while keeping it concise. We will also ensure that the robustness with respect to model-grid variations is more explicitly noted. revision: yes

Circularity Check

0 steps flagged

No circularity: correlation emerges from independent normalization and line-of-sight integration

full rationale

The paper constructs a grid of 3D Milky Way models in GALPROP, normalizes them exclusively to local cosmic-ray measurements at the solar position (an external dataset), and then performs forward line-of-sight integrations to produce synthetic radio/IR/gamma-ray maps for external observers. The resulting correlation is an output of this numerical projection step rather than an input assumption or a fitted parameter renamed as a prediction. No self-citation is invoked as a load-bearing uniqueness theorem, no ansatz is smuggled through prior work, and no quantity is defined in terms of the target correlation itself. The derivation therefore remains self-contained: the models are constrained only by local data, and the geometric emergence is demonstrated by explicit computation rather than by algebraic identity or circular fitting.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the GALPROP propagation framework and the assumption that Milky Way-like distributions generalize to external galaxies when normalized to local data.

free parameters (1)
  • normalization factors for CR sources, gas, ISRF, and magnetic field
    All models are normalized to reproduce local CR data before generating external synthetic observations.
axioms (1)
  • domain assumption GALPROP accurately captures cosmic-ray propagation and emission processes in a 3D galactic disc
    The framework is used to generate all synthetic observations.
