Quantum limits on squeezing

Pith reviewed 2026-05-08 11:53 UTC · model grok-4.3

classification 🪐 quant-ph cond-mat.mes-hall
keywords squeezingbosonic modescanonical commutation relationsreservoir engineeringdissipative squeezingDuan criterionelectromechanical systemsquantum limits
0
0 comments X

The pith

Canonical commutation relations impose a lower bound of 1 on total steady-state squeezing in reservoir-engineered bosonic networks.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that for networks of bosonic modes, the coefficients connecting input fields to internal modes must satisfy constraints from the canonical commutation relations. These constraints produce a lower bound on the sum of the optimally squeezed quadrature variances, each normalized to its input variance. The bound equals 1 and is reached in the strong-coupling limit whenever a stable steady state exists. Adding independent parametric driving to each mode alters the noise-gain balance and yields a tighter bound that approaches 1/2. The same commutation constraints also allow the Duan inseparability criterion for three-mode systems to be rewritten as a single parameter-dependent quantity. The results are directly applicable to existing electromechanical and nanomechanical devices, where two-mode versions of the bound may be testable even at room temperature.

Core claim

For a network of bosonic modes, canonical commutation relations constrain the coefficients relating input and internal modes. These constraints imply that the sum of mode-optimal quadrature variances, each normalized to the corresponding input variance, cannot fall below 1 in any stable steady-state reservoir-engineered squeezing scheme. The bound is saturated in the strong-coupling limit. Independent parametric driving terms for each mode change the quantum noise-gain balance and produce a distinct optimum bound approaching 1/2. The same constraints permit reformulating the Duan inseparability criterion for a three-mode bosonic system in terms of a single parameter-dependent figure of merit

What carries the argument

Constraints on coefficients relating input and internal modes that follow directly from canonical commutation relations and enforce the bound on the sum of normalized quadrature variances

If this is right

  • The bound of 1 on the sum of normalized variances is saturated in the strong-coupling limit for any reservoir-engineered squeezing scheme.
  • Adding independent parametric driving terms for each mode changes the noise-gain balance and yields a distinct optimum bound approaching 1/2.
  • The commutation constraints allow the Duan inseparability criterion for three-mode bosonic systems to be expressed as a single parameter-dependent figure of merit.
  • The derived bounds apply directly to current electromechanical and nanomechanical experiments and indicate that two-mode versions can be approached even at room temperature.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Experiments could directly test the bound by summing measured normalized variances across modes in strong-coupling regimes.
  • Hybrid schemes that combine reservoir engineering with per-mode parametric driving may reach closer to the improved 1/2 limit.
  • The single-parameter reformulation of the Duan criterion could simplify experimental verification of entanglement in multi-mode bosonic systems.

Load-bearing premise

The coefficients relating input and internal modes are constrained solely by canonical commutation relations in a way that directly produces the stated bound on the sum of normalized variances, with stability ensuring a steady state exists.

What would settle it

Measuring a sum of normalized quadrature variances below 1 in a stable steady-state reservoir-engineered experiment in the strong-coupling limit would falsify the bound.

Figures

Figures reproduced from arXiv: 2604.22500 by Francesco Massel, Xin Zhou.

Figure 1
Figure 1. Figure 1: Squeezing power two-mode purely dissipative setup, as a function of 𝒢 = √𝐺2 − − 𝐺2 + for different values of 𝜉 = arctanh[𝐺+/𝐺−] (a) and as a function of 𝜉 for different values of 𝒢 . From Eq. (5) we can deduce the following equations of motion for the quadratures 𝑋1,2 = (𝑎† 1,2 + 𝑎1,2)/√ 2, 𝑌1,2 = 𝑖(𝑎† 1,2 − 𝑎1,2)/√ 2 𝑑 𝑑𝑡 [ 𝑋1 𝑌2 ] = [−𝛾1 −/2 𝐺Δ −𝐺Σ −𝛾2+/2] ⏟⏟⏟⏟⏟⏟⏟⏟⏟ 𝐴1 [ 𝑋1 𝑌2 ] + [√ √ 𝛾1 𝑋1,in 𝛾2 𝑌2,in … view at source ↗
Figure 2

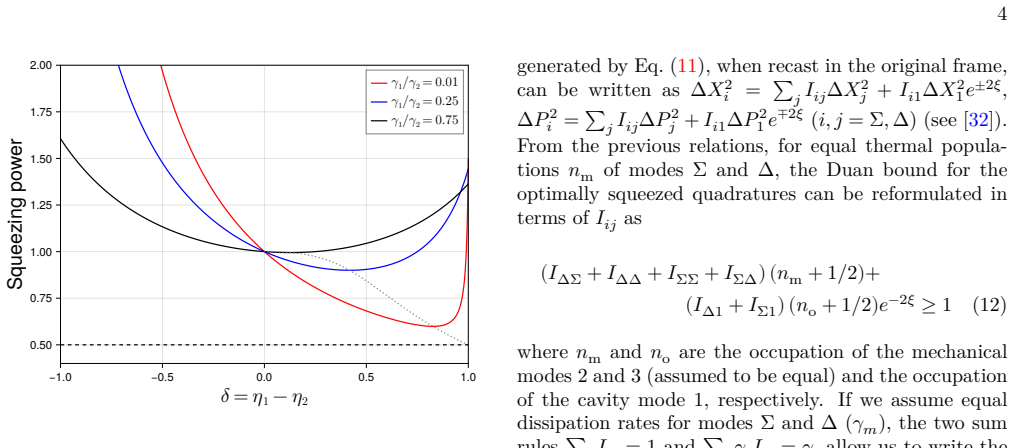

Figure 2. Figure 2: Squeezing power in the presence of degenerate para￾metric terms. The dotted line corresponds to the minimum attainable squeezing power as a function of Δ = 𝜂1 − 𝜂2 for different values of ratio 𝛾1/𝛾2 . the analysis performed in Refs. [20, 27] where entan￾glement of modes 2 and 3 is verified by ascertaining the violation of the Duan bound [28], stating that, for a separable state, the following inequality m… view at source ↗
Figure 3

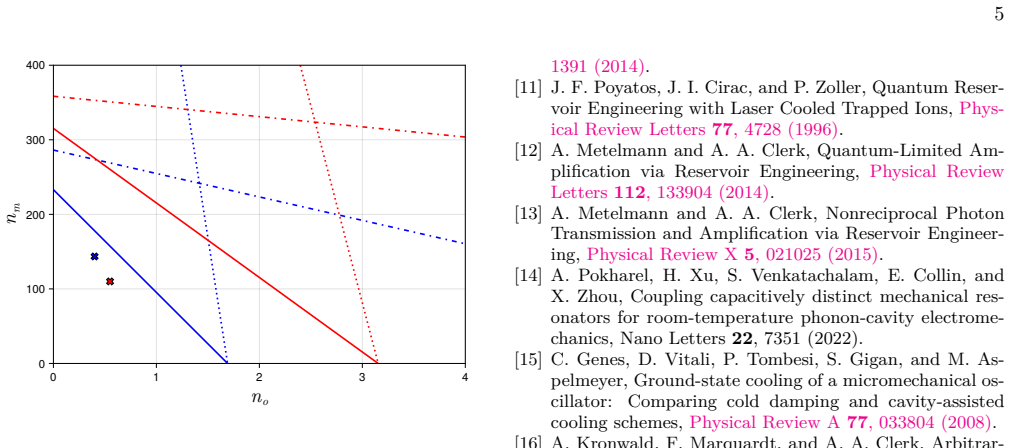

Figure 3. Figure 3: Entanglement limits for the experimental parame￾ters of [27]. The red and blue curves correspond to the sep￾arability boundary for dataset A and B of [27], respectively. Continuous lines depict the boundary for the parameters used in the experiment 𝒢 = 𝒢𝑒𝑥𝑝, dotted lines indicate the bound￾ary for 𝒢 = 𝒢𝑜𝑝𝑡 (with 𝜉 = 𝜉𝑒𝑥𝑝), and dash-dotted lines cor￾respond to 𝒢 = 𝒢𝑒𝑥𝑝 and 𝜉 = 2𝜉𝑒𝑥𝑝. The crosses indicate th… view at source ↗
read the original abstract

In our work, we show how, for a network of bosonic modes, canonical commutation relations constrain the coefficients relating input and internal modes. Based on these constraints, we derive a lower bound on the total steady-state squeezing achievable in reservoir-engineered (dissipative) squeezing schemes, quantified by the sum of mode-optimal quadrature variances normalized to its corresponding input variance. The bound follows solely from canonical commutation relations and stability, and is saturated in the strong-coupling limit at 1. Furthermore, we show that adding independent parametric driving terms for each mode changes the quantum noise-gain balance and yields a distinct optimum bound, approaching 1/2. In addition, we show how these constraints allow us to reformulate the Duan inseparability criterion for a three-mode bosonic system in terms of a single parameter-dependent figure of merit. Our results apply directly to current electromechanical and nanomechanical experiments and indicate that the two-mode bounds can be experimentally approached even at room temperature.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript derives a lower bound of 1 on the sum of mode-optimal quadrature variances (normalized to corresponding input variances) for steady-state squeezing in reservoir-engineered bosonic networks. The bound follows solely from canonical commutation relations constraining the linear coefficients in the steady-state input-output map, together with stability of the drift matrix. Saturation occurs in the strong-coupling limit. Independent parametric driving per mode yields a distinct bound approaching 1/2. The constraints also permit a single-parameter reformulation of the Duan inseparability criterion for three-mode systems. The results are stated to apply directly to electromechanical and nanomechanical experiments, including at room temperature.

Significance. If the central claim holds, the work establishes a parameter-free quantum limit on dissipative squeezing that depends only on CCR and stability, without additional dynamical assumptions or fitted parameters. This is a clear strength: the derivation is direct from the symplectic constraints on Bogoliubov coefficients in the input-output map, the saturation result is consistent with those constraints, and the reformulation of the Duan criterion offers a practical figure of merit. The room-temperature applicability claim for two-mode bounds provides concrete guidance for current experiments in electromechanics and nanomechanics.

minor comments (3)
  1. Abstract: the phrasing 'normalized to its corresponding input variance' is slightly ambiguous for the multi-mode sum; a brief parenthetical definition of the normalization (e.g., each variance divided by its own input variance) would improve immediate clarity.
  2. The stability condition on the drift matrix is invoked to guarantee a steady state, but the manuscript does not explicitly show how this condition is satisfied in the strong-coupling limit discussed in the saturation result; adding one sentence or a short appendix remark would strengthen the presentation.
  3. Notation: the symbols for the input-output map coefficients and the normalized variances are introduced without a consolidated table or list of definitions; a short notation table would aid readers.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive assessment of the manuscript and for recommending minor revision. We are pleased that the central result—a parameter-free lower bound on the sum of normalized quadrature variances derived solely from canonical commutation relations and drift-matrix stability—is recognized as a strength, along with the saturation in the strong-coupling limit, the effect of independent parametric driving, and the reformulation of the Duan criterion.

Circularity Check

0 steps flagged

No significant circularity; derivation follows from external commutation relations

full rationale

The central result—a lower bound of 1 on the sum of normalized quadrature variances—is derived directly from the canonical commutation relations that constrain the linear coefficients relating input and internal modes in the steady-state input-output map, together with the stability condition on the drift matrix. No parameters are fitted, no self-citations are invoked to establish the bound itself, and the saturation at 1 in the strong-coupling limit emerges as an algebraic consequence of the symplectic structure rather than by redefinition or renaming of inputs. The reformulation of the Duan criterion and the shift to 1/2 under parametric driving are likewise direct consequences of the same commutation constraints. The derivation chain is therefore self-contained against standard quantum mechanics and does not reduce to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard quantum mechanics commutation relations for bosonic operators and the assumption of system stability in the steady state; no free parameters or new entities are introduced in the abstract.

axioms (2)
  • standard math Canonical commutation relations constrain the coefficients relating input and internal modes
    Invoked to derive the lower bound on the sum of normalized quadrature variances.
  • domain assumption The system reaches a stable steady state
    Required for the existence of steady-state squeezing and the applicability of the bound.
