arxiv: 2604.22560 · v1 · submitted 2026-04-24 · 💻 cs.CV · cs.AI

Cross-Stage Coherence in Hierarchical Driving VQA: Explicit Baselines and Learned Gated Context Projectors

Gautam Kumar Jain , Carsten Markgraf , Julian St\"ahler This is my paper

Pith reviewed 2026-05-08 12:36 UTC · model grok-4.3

classification 💻 cs.CV cs.AI
keywords cross-stage coherencehierarchical VQAgated context projectorsdriving visual question answeringDriveLM-nuScenesNLI evaluationQLoRA adaptersstage-wise consistency
0
0 comments X

The pith

Gated context projectors reduce planning-stage contradictions by 34% and raise cross-stage entailment by 50% in hierarchical driving visual question answering.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper studies how to maintain consistency across perception, prediction, and planning stages in visual question answering for autonomous driving. It compares an explicit prompt-based conditioning approach that requires no extra training against an implicit method that trains small gated projectors to pass information between stages. The explicit variant establishes a zero-training baseline that lowers NLI contradiction by as much as 42.6 percent. The implicit variant, trained with stage-specific adapters while updating roughly 0.5 percent of parameters, delivers a statistically significant 34 percent drop in planning contradictions and a 50 percent rise in entailment when scored by a multilingual NLI model. The two approaches are presented as complementary because they rely on different base models.

Core claim

The central claim is that gated context projectors, which extract a hidden-state vector from one stage and inject a normalized gated projection into the next stage's input embeddings, produce measurable semantic gains when jointly trained with QLoRA adapters on an 8B VLM. On DriveLM-nuScenes this yields a 34 percent reduction in planning-stage NLI contradiction and a 50 percent increase in cross-stage entailment, while the explicit prompt-based baseline on a 4B model reduces contradiction by up to 42.6 percent without training.

What carries the argument

Gated context projectors that extract a hidden-state vector from one stage and inject a normalized, gated projection into the next stage's input embeddings.

If this is right

  • Planning language quality improves, with CIDEr scores rising 30.3 percent under the implicit method.
  • Lexical overlap and structural consistency can degrade when the implicit projectors are added to a general-purpose model without driving-domain pretraining.
  • Explicit prompt conditioning supplies a strong training-free baseline for surface-level consistency.
  • The implicit approach suggests that domain adaptation could further close the gap in lexical and structural metrics.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Running both variants on the same base model size would isolate the contribution of the projectors from model-capacity differences.
  • If NLI gains align with reduced planning errors in simulation, the projectors could be tested as a lightweight consistency layer in other staged reasoning systems.
  • The degradation in lexical overlap points to a need for task-specific pretraining even when only 0.5 percent of parameters are updated.

Load-bearing premise

Natural language inference scores on mixed-language outputs serve as a valid proxy for cross-stage semantic consistency and downstream driving safety, even though the two variants rely on different base models.

What would settle it

A head-to-head test of both explicit and implicit methods on the identical base model, followed by human rating of plan consistency or evaluation inside a driving simulator, would show whether the reported NLI improvements correspond to safer or more coherent planning decisions.

Figures

Figures reproduced from arXiv: 2604.22560 by Carsten Markgraf, Gautam Kumar Jain, Julian St\"ahler.

Figure 1
Figure 1. Figure 1: Context passing mechanisms for hierarchical driving VQA. (a) Shared setup: six surround-view cameras and three stage-specific questions. (b) Flat: each stage pro￾cesses image and question independently. (c) History-chain: prior answers flow as con￾versational history. (d) Injection-chain: prior answers are prepended as structured text prefixes. (e) Proposed framework: learned context vectors (perception to… view at source ↗
Figure 2
Figure 2. Figure 2: Architecture of the implicit variant. The frozen InternVL3-8B-Instruct backbone carries three stage-specific LoRA adapters. After each stage, a gated context projector extracts the hidden state at the final prompt token and injects a normalized, gated projection into the input embeddings of the next stage. The full three-stage chain executes in a single inference pipeline. where Wk ∈ RD×D is a learnable we… view at source ↗

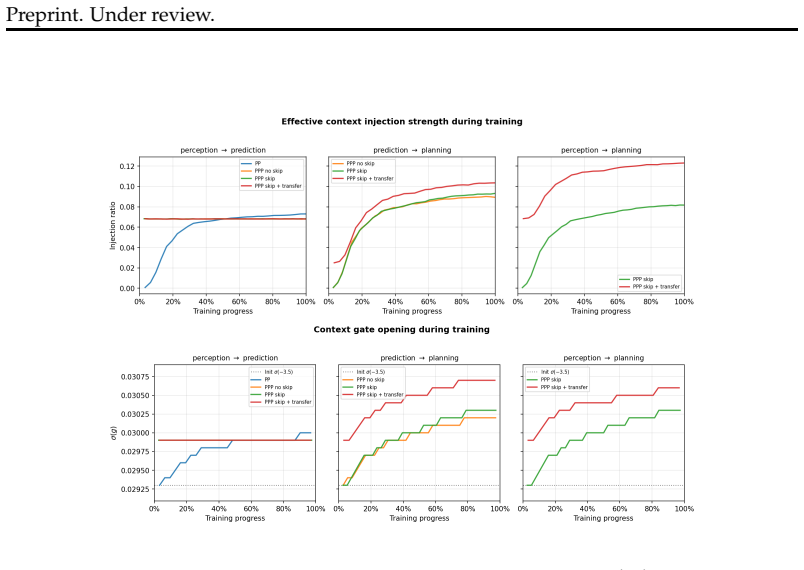

Figure 3
Figure 3. Figure 3: Effective context injection strength (top) and gate opening view at source ↗

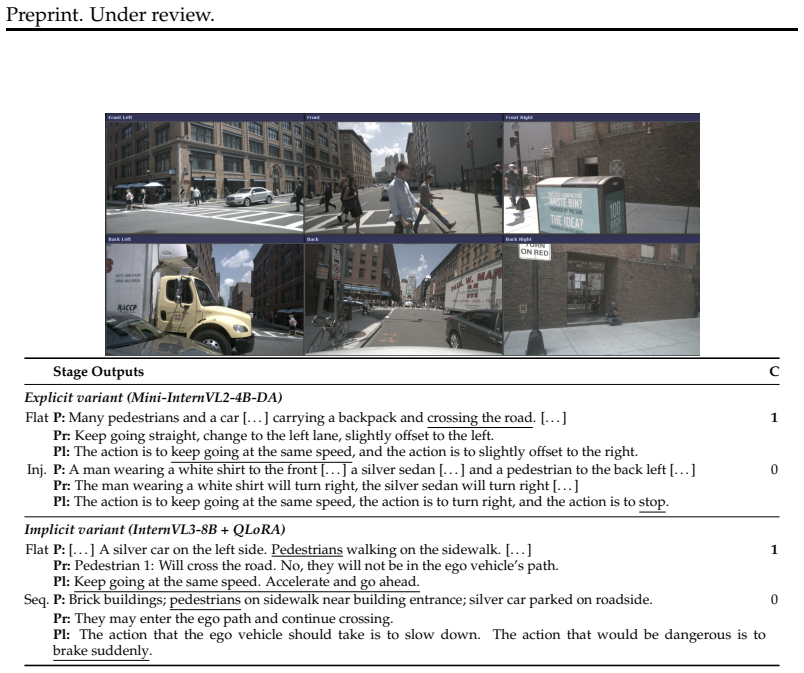

Figure 4
Figure 4. Figure 4: Success case for Scene 162. Stage outputs ( view at source ↗
Figure 5
Figure 5. Figure 5: Surround-view input for Scene 48 (DriveLM-nuScenes). Explicit variant success view at source ↗

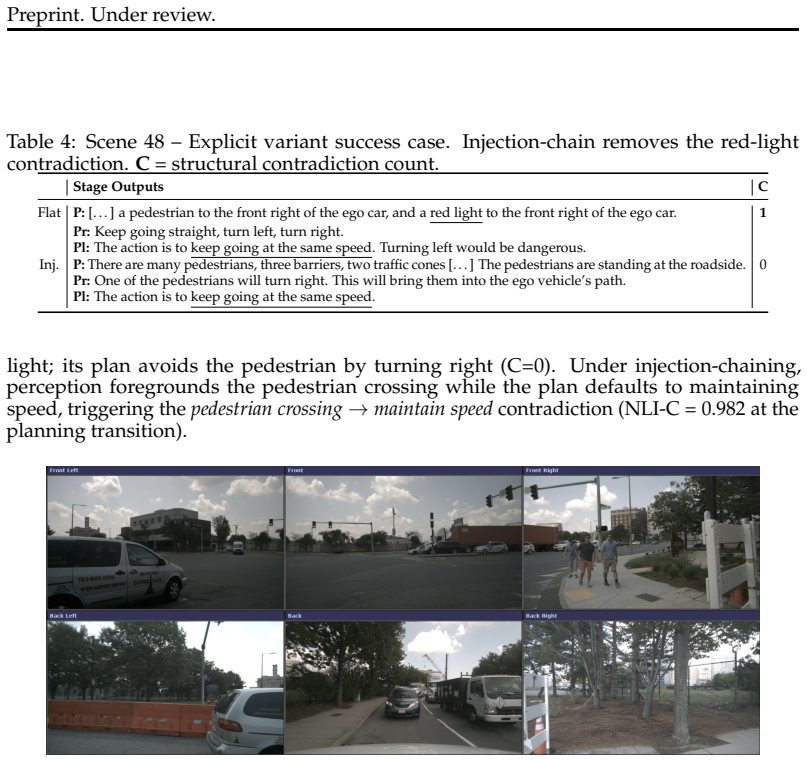

Figure 6
Figure 6. Figure 6: Surround-view input for Scene 489 (DriveLM-nuScenes). Explicit variant failure view at source ↗
Figure 7
Figure 7. Figure 7: Surround-view input for Scene 120 (DriveLM-nuScenes). Implicit variant success view at source ↗
Figure 8
Figure 8. Figure 8: Surround-view input for Scene 360 (DriveLM-nuScenes). Implicit variant failure view at source ↗
read the original abstract

Graph Visual Question Answering (GVQA) for autonomous driving organizes reasoning into ordered stages, namely Perception, Prediction, and Planning, where planning decisions should remain consistent with the model's own perception. We present a comparative study of cross-stage context passing on DriveLM-nuScenes using two complementary mechanisms. The explicit variant evaluates three prompt-based conditioning strategies on a domain-adapted 4B VLM (Mini-InternVL2-4B-DA-DriveLM) without additional training, reducing NLI contradiction by up to 42.6% and establishing a strong zero-training baseline. The implicit variant introduces gated context projectors, which extract a hidden-state vector from one stage and inject a normalized, gated projection into the next stage's input embeddings. These projectors are jointly trained with stage-specific QLoRA adapters on a general-purpose 8B VLM (InternVL3-8B-Instruct) while updating only approximately 0.5% of parameters. The implicit variant achieves a statistically significant 34% reduction in planning-stage NLI contradiction (bootstrap 95% CIs, p < 0.05) and increases cross-stage entailment by 50%, evaluated with a multilingual NLI classifier to account for mixed-language outputs. Planning language quality also improves (CIDEr +30.3%), but lexical overlap and structural consistency degrade due to the absence of driving-domain pretraining. Since the two variants use different base models, we present them as complementary case studies: explicit context passing provides a strong training-free baseline for surface consistency, while implicit gated projection delivers significant planning-stage semantic gains, suggesting domain adaptation as a plausible next ingredient for full-spectrum improvement.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper conducts a comparative empirical study of cross-stage context passing for hierarchical Graph Visual Question Answering (GVQA) in autonomous driving on DriveLM-nuScenes. It evaluates an explicit prompt-based conditioning approach on a domain-adapted 4B VLM (reducing NLI contradiction by up to 42.6% with no training) against an implicit approach using jointly trained gated context projectors and stage-specific QLoRA adapters on an 8B general VLM (achieving a statistically significant 34% reduction in planning-stage NLI contradiction with bootstrap 95% CIs and p<0.05, plus 50% increase in cross-stage entailment). The variants are presented as complementary case studies due to differing base models, with additional gains noted in planning language quality (CIDEr +30.3%).

Significance. If the NLI-based metrics prove to be a reliable proxy for driving-relevant semantic consistency and the gains can be attributed to the proposed mechanisms rather than model scale or domain adaptation differences, the work would provide useful training-free baselines and a parameter-efficient implicit method for improving coherence in staged VLMs for driving tasks. The bootstrap confidence intervals and statistical testing add rigor to the empirical claims.

major comments (2)
  1. [Abstract] Abstract: The central claim of a statistically significant 34% reduction in planning-stage NLI contradiction (and 50% rise in entailment) for the implicit gated projectors is confounded by the use of different base models (domain-adapted 4B for explicit vs. general 8B for implicit). Without an ablation holding the base model fixed, it is not possible to attribute the improvement specifically to the projectors rather than the jump in model capacity and the addition of QLoRA fine-tuning.
  2. [Abstract] Abstract and results sections: The multilingual NLI classifier is used as the primary metric for cross-stage semantic consistency, yet the manuscript provides no human validation, correlation with downstream driving safety metrics, or ablation showing that detected contradictions/entailments reflect driving-relevant inconsistencies rather than surface-level language mixing or lexical artifacts.
minor comments (1)
  1. [Abstract] The abstract notes that lexical overlap and structural consistency degrade for the implicit variant due to lack of driving-domain pretraining; this observation could be expanded with quantitative breakdowns in the results to better contextualize the trade-offs.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our comparative study of cross-stage context passing in hierarchical GVQA for driving. We address each major comment below with honest responses and indicate where revisions will be made to the manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim of a statistically significant 34% reduction in planning-stage NLI contradiction (and 50% rise in entailment) for the implicit gated projectors is confounded by the use of different base models (domain-adapted 4B for explicit vs. general 8B for implicit). Without an ablation holding the base model fixed, it is not possible to attribute the improvement specifically to the projectors rather than the jump in model capacity and the addition of QLoRA fine-tuning.

    Authors: We agree that the differing base models (domain-adapted 4B vs. general 8B) and the presence of QLoRA fine-tuning in the implicit case introduce a potential confound that prevents isolating the projectors' contribution from scale and adaptation effects. The manuscript already presents the variants as complementary case studies rather than a head-to-head comparison, with the 34% reduction and statistical tests reported strictly within the implicit 8B experiments. To strengthen clarity, we will revise the abstract, introduction, and results sections to explicitly state this limitation, avoid any cross-model attribution language, and note that a fixed-base-model ablation is planned for future work but requires resources beyond the current study. revision: partial

  2. Referee: [Abstract] Abstract and results sections: The multilingual NLI classifier is used as the primary metric for cross-stage semantic consistency, yet the manuscript provides no human validation, correlation with downstream driving safety metrics, or ablation showing that detected contradictions/entailments reflect driving-relevant inconsistencies rather than surface-level language mixing or lexical artifacts.

    Authors: We acknowledge that the multilingual NLI serves as a proxy without accompanying human validation, safety-metric correlations, or explicit ablations against lexical artifacts in the current manuscript. This metric was chosen for its language-agnostic handling of mixed outputs in DriveLM-nuScenes. We will add a limitations subsection discussing these aspects, including the proxy status of NLI, and outline future human evaluation and downstream driving-task correlations. We also already report CIDEr gains as supporting evidence for planning quality, which we will highlight more prominently to contextualize the NLI results. revision: yes

Circularity Check

0 steps flagged

No circularity: purely empirical comparison without derivation chain

full rationale

The paper is an empirical comparative study of explicit prompt-based conditioning versus implicit gated context projectors on DriveLM-nuScenes. All central claims (34% NLI contradiction reduction, 50% entailment increase, CIDEr gains) are direct experimental measurements using bootstrap CIs and a multilingual NLI classifier. No equations, ansatzes, uniqueness theorems, or self-citations are invoked to derive results; the two variants are explicitly presented as complementary case studies on different base models (4B domain-adapted vs. 8B general). Results rest on external dataset evaluation and statistical testing rather than any reduction to fitted inputs or prior self-work by construction. This is the standard honest finding for a measurement-driven paper.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 1 invented entities

The central claims rest on the introduction of gated context projectors and the assumption that NLI metrics capture semantic consistency; no free parameters are fitted in a derivation sense, and no new physical or mathematical axioms are invoked.

invented entities (1)
  • gated context projectors no independent evidence
    purpose: Extract a hidden-state vector from one reasoning stage and inject a normalized, gated projection into the next stage's input embeddings
    New architectural component introduced for the implicit variant to enable learned cross-stage context passing.
