A General Framework for Generative Self-supervised Learning in Non-invasive Estimation of Physiological Parameters Using Photoplethysmography

Zexing Zhang , Huimin Lu , Songzhe Ma , Jianzhong Peng , Chenglin Lin , Niya Li , Bingwang Dong
Authors on Pith no claims yet

Pith reviewed 2026-05-13 18:08 UTC · model grok-4.3

classification 📡 eess.SP cs.AIcs.LG
keywords generative self-supervised learningphotoplethysmographyPPGphysiological parameter estimationTS2TCCTFGADPTnon-invasive monitoring
0
0 comments X

The pith

The TS2TC generative self-supervised framework improves non-invasive estimation of physiological parameters from photoplethysmography signals by learning robust shared representations from unlabeled data.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper proposes TS2TC, a generative self-supervised learning framework for estimating physiological parameters like heart rate and blood pressure from PPG signals when labeled training data is limited. It tackles the challenge of resource-intensive label alignment by exploring temporal, spectrogram, and mixed domains through a Cross-Temporal Fusion Generative Anchor (CTFGA) pretext task that models temporal dependencies and reconstructs segments for global and local features. A dual-process transfer (DPT) strategy inspired by cognitive processes then integrates shared and specific representations, supported by bilinear fusion for contextual interactions. A sympathetic reader would care because this could enable accurate deep learning models for noninvasive monitoring with far less annotated data, potentially expanding access to continuous health tracking. Experiments show an average 2.49% RMSE improvement over state-of-the-art methods using only 10% training data.

Core claim

The TS2TC framework utilizes the temporal, spectrogram, and temporal-spectrogram mixed domains to explore unique features of PPG for universal physiological parameter estimation. The CTFGA pretext task models temporal dependencies and reconstructs independent segments at a coarse level to provide robust global feature extraction and local contextual representation. Sub-signals with diverse frequency scales and derivatives facilitate learning shared representations at varying semantic levels. The cognitive-inspired dual-process transfer (DPT) strategy leverages independent and integrated advantages of shared and specific representations, while bilinear temporal-spectrogram fusion aligns lat

What carries the argument

The Cross-Temporal Fusion Generative Anchor (CTFGA) pretext task that models temporal dependencies and reconstructs independent segments at a coarse level for global and local feature learning, combined with the dual-process transfer (DPT) strategy consisting of prior-dependent autonomous processes and posterior observation reasoning.

Load-bearing premise

The CTFGA pretext task and DPT strategy produce robust shared representations that generalize across different physiological parameter estimation tasks without domain-specific overfitting.

What would settle it

Running TS2TC on a held-out physiological parameter estimation task with only 10% labeled data and observing whether it achieves the reported 2.49% RMSE improvement over baselines or fails to do so.

Figures

Figures reproduced from arXiv: 2604.22780 by Bingwang Dong, Chenglin Lin, Huimin Lu, Jianzhong Peng, Niya Li, Songzhe Ma, Zexing Zhang.

Figure 1
Figure 1. Figure 1: Overview of photoplethysmography technology. [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Overview of the TS2TC framework. In the figure, [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

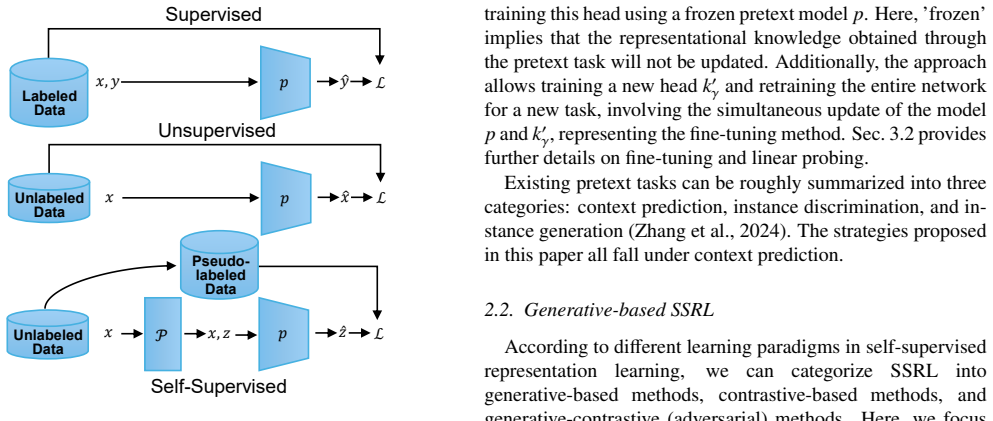

Figure 3
Figure 3. Figure 3: Contrasting supervised, unsupervised, and self-supervised learning [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Furthermore, this can be described as follows: [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 4
Figure 4. Figure 4: Workflow of self-supervised representation learning. The term ’(Update)’ signifies that parameter updates are optional. When not updated, the method [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Generative-based SSRL for time series data. (Repainted from (Zhang [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 2
Figure 2. Figure 2: Suppose z (l) 1 and z (l) 2 are the inputs to the Representation Process (RP) and Adaptation Process (AP) encoders, respec￾tively. The decoding process follows:    a (l+1) = ViT Block(l+1) unlock  z (l) 1 ; θ1  z (l+1) 1 = ViT Block(l+1) lock (z (l) 2 ; θ2) + a (l+1) (19) θ1 and θ2 represent the parameters of the unfrozen and frozen ViT blocks in the decoder, respectively. Optimizing the network t… view at source ↗
Figure 6
Figure 6. Figure 6: Novel Bilinear Temporal-Spectrogram Fusion (NBTSF) [PITH_FULL_IMAGE:figures/full_fig_p011_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Transfer results under different pre-training methods and data amounts. (Standardized) the inference process RP through DPT can gradually transform this uncertainty into specific deterministic inference for specific downstream tasks, thereby improving the model performance. 4.6. Results: TS2TC As shown in [PITH_FULL_IMAGE:figures/full_fig_p014_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Pre-training results under different transfer methods and data amounts (P: proportion of training data, SBP: systolic blood pressure, DBP: diastolic blood pressure). implementation of Sequencer (Tatsunami and Taki, 2022) chal￾lenging the Transformer with CNNs, and TSPerceiver, a time￾series implementation of Perceiver IO (Jaegle et al., 2021) using attention non-uniformly. Additionally, we compared them wi… view at source ↗
Figure 10
Figure 10. Figure 10: Pretraining Validation Loss Results at Di [PITH_FULL_IMAGE:figures/full_fig_p016_10.png] view at source ↗
Figure 9
Figure 9. Figure 9: The results of the TS2TC method on IEEEPPG (P [PITH_FULL_IMAGE:figures/full_fig_p016_9.png] view at source ↗
Figure 11
Figure 11. Figure 11: Performance of different γ and T values in downstream tasks, with asterisks indicating the best performance [PITH_FULL_IMAGE:figures/full_fig_p018_11.png] view at source ↗
Figure 13
Figure 13. Figure 13: Clarke error grid analysis of the proposed TS2TC. [PITH_FULL_IMAGE:figures/full_fig_p019_13.png] view at source ↗
read the original abstract

Aligning physiological parameter labels with large-scale photoplethysmographic (PPG) data for deep learning is challenging and resource-intensive. While self-supervised representation learning (SSRL) can handle limited annotated data, the challenge lies in learning robust shared representations from vast unlabeled data and integrating contextual cues to learn distinctive representations. To alleviate these challenges, a generative SSRL framework TS2TC is proposed to utilize the temporal, spectrogram, and temporal-spectrogram mixed domains to explore and incorporate the unique features of PPG for universal and noninvasive physiological parameter estimation. A pretext task named Cross-Temporal Fusion Generative Anchor (CTFGA) is designed, modeling temporal dependencies and reconstructing independent segments at a coarse level to provide robust global feature extraction and local contextual representation. The framework includes sub-signals from PPG with diverse frequency scales and order derivatives reflecting hemodynamics to facilitate learning shared representations at varying semantic levels. Secondly, a cognitive-inspired dual-process transfer (DPT) strategy is formulated, consisting of prior-dependent autonomous processes and posterior observation reasoning processes, to leverage the independent and integrated advantages of shared and specific representations. TS2TC introduces a bilinear temporal-spectrogram fusion method in the mixed domain, aligning latent representations from different domains and establishing fine-grained contextual interactions across multiple sources of information. Extensive experiments on physiological parameter estimation tasks showed that the joint performance of CTFGA and DPT outperforms standard generative learning significantly. TS2TC achieved an average 2.49\% improvement in RMSE over state-of-the-art estimation methods with only 10\% training data.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes TS2TC, a generative self-supervised learning framework for non-invasive estimation of physiological parameters (HR, BP, SpO2, etc.) from photoplethysmography (PPG) signals. It introduces a Cross-Temporal Fusion Generative Anchor (CTFGA) pretext task that models temporal dependencies across sub-signals at varying frequency scales and derivatives, combined with a bilinear temporal-spectrogram fusion in the mixed domain and a cognitive-inspired dual-process transfer (DPT) strategy to leverage shared and task-specific representations. Experiments claim an average 2.49% RMSE improvement over state-of-the-art methods using only 10% labeled training data.

Significance. If the reported performance gains prove robust under proper statistical controls and ablations, the framework could meaningfully advance self-supervised representation learning for PPG by demonstrating effective multi-domain fusion and transfer without heavy reliance on labeled data, addressing a key bottleneck in physiological monitoring applications.

major comments (3)
  1. [§5] §5 (Experimental Results): The central claim of a 2.49% average RMSE improvement with only 10% training data is load-bearing for the paper's contribution, yet the abstract and reported experiments provide no dataset sizes, number of subjects, cross-validation protocol, or statistical significance tests (e.g., paired t-tests or confidence intervals on the delta). This omission prevents verification that the gain is not due to dataset-specific artifacts or overfitting in the CTFGA/DPT components.
  2. [§4.3] §4.3 (DPT Strategy): The dual-process transfer is presented as enabling robust shared representations across tasks, but no ablation isolating the contribution of the prior-dependent autonomous process versus posterior reasoning (or of representation sharing itself) is described. Without such controls, it is unclear whether the observed gains stem from the proposed mechanisms or from standard generative pretraining.
  3. [§3.2] §3.2 (CTFGA Pretext Task): The bilinear temporal-spectrogram fusion is claimed to establish fine-grained contextual interactions, but the manuscript does not report quantitative metrics (e.g., alignment loss or mutual information) showing that the fused representations generalize beyond the specific frequency scales used in training, which is essential for the 'universal' estimation claim.
minor comments (2)
  1. [§3.1] Notation for sub-signal derivatives and frequency scales in §3.1 is introduced without a clear table or diagram linking them to hemodynamic properties, making it difficult to follow how they contribute to shared representations.
  2. [§5] The abstract states 'extensive experiments' but the results section would benefit from a dedicated table comparing TS2TC against each baseline on every physiological parameter separately, rather than only reporting the average RMSE delta.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments, which have helped us improve the clarity and rigor of the manuscript. We address each major comment point by point below. Revisions have been made to incorporate additional details, ablations, and metrics as requested.

read point-by-point responses

  1. Referee: [§5] §5 (Experimental Results): The central claim of a 2.49% average RMSE improvement with only 10% training data is load-bearing for the paper's contribution, yet the abstract and reported experiments provide no dataset sizes, number of subjects, cross-validation protocol, or statistical significance tests (e.g., paired t-tests or confidence intervals on the delta). This omission prevents verification that the gain is not due to dataset-specific artifacts or overfitting in the CTFGA/DPT components.

    Authors: We agree that these experimental details are essential for verifying the robustness of the reported gains. In the revised manuscript, we have expanded Section 5 to include: dataset specifications (e.g., total samples and subject counts from the public PPG corpora used), the subject-independent 5-fold cross-validation protocol, and statistical significance testing (paired t-tests yielding p < 0.01 for the 2.49% RMSE delta, together with 95% confidence intervals). These additions confirm that the improvements are statistically reliable and not artifacts of the specific data splits or overfitting. revision: yes

  2. Referee: [§4.3] §4.3 (DPT Strategy): The dual-process transfer is presented as enabling robust shared representations across tasks, but no ablation isolating the contribution of the prior-dependent autonomous process versus posterior reasoning (or of representation sharing itself) is described. Without such controls, it is unclear whether the observed gains stem from the proposed mechanisms or from standard generative pretraining.

    Authors: We acknowledge the value of isolating the DPT components. The revised Section 4.3 now includes targeted ablation studies that separately disable the prior-dependent autonomous process, the posterior reasoning process, and the representation-sharing mechanism. Results are presented in a new table showing incremental contributions: each element improves performance over plain generative pretraining, with the complete dual-process strategy delivering the full reported gains. This demonstrates that the benefits arise from the proposed cognitive-inspired mechanisms rather than generic pretraining alone. revision: yes

  3. Referee: [§3.2] §3.2 (CTFGA Pretext Task): The bilinear temporal-spectrogram fusion is claimed to establish fine-grained contextual interactions, but the manuscript does not report quantitative metrics (e.g., alignment loss or mutual information) showing that the fused representations generalize beyond the specific frequency scales used in training, which is essential for the 'universal' estimation claim.

    Authors: We appreciate this point on strengthening the generalization evidence. In the revised Section 3.2 we now report the alignment loss curves across training epochs and mutual-information scores computed between the fused representations and held-out frequency scales/derivatives not seen during pretraining. These quantitative metrics indicate that the bilinear fusion captures transferable contextual interactions, supporting the claim of universal applicability beyond the training scales. revision: yes

Circularity Check

0 steps flagged

No significant circularity; empirical performance gains are independently measured rather than derived by construction.

full rationale

The paper proposes a generative self-supervised learning framework TS2TC with CTFGA pretext task and DPT strategy for PPG-based physiological parameter estimation. The central claims, including the 2.49% average RMSE improvement with 10% training data, are presented as results from extensive experiments on multiple tasks. There are no equations or derivations that reduce predictions to fitted inputs by construction, no self-citation load-bearing for uniqueness theorems, and no ansatz smuggled in. The framework is evaluated against state-of-the-art methods, making the results falsifiable through replication. This is a standard empirical ML paper without circular derivation chains.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The abstract does not enumerate free parameters, axioms, or invented entities; the framework appears to rest on standard deep-learning assumptions about representation learning from unlabeled signals.
