arxiv: 2604.23467 · v1 · submitted 2026-04-25 · 💻 cs.LG · cs.AI· cs.AR

Hybrid JIT-CUDA Graph Optimization for Low-Latency Large Language Model Inference

Divakar Kumar Yadav , Tian Zhao This is my paper

Pith reviewed 2026-05-08 08:09 UTC · model grok-4.3

classification 💻 cs.LG cs.AIcs.AR
keywords graphinferencehybridacrosslanguagelatencyruntimecomponents
0
0 comments X

The pith

A hybrid JIT-CUDA Graph framework reduces TTFT by up to 66% and P99 latency versus TensorRT-LLM for single-GPU LLaMA-2 7B inference on short prompts.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Large language models generate text one token at a time, and each step normally requires launching many small GPU operations. These launches add overhead that hurts speed when sequences are short. The authors split the work: fixed parts of the transformer are captured once into a CUDA Graph that can be replayed quickly, while changing parts use freshly compiled kernels. The system captures the graph asynchronously and reuses it across decoding steps. On LLaMA-2 7B with batch size one, this cut the time to produce the first token by as much as 66 percent and lowered the worst-case latency compared with a standard optimized engine. The approach keeps the ability to adapt at runtime instead of requiring everything to be fixed in advance.

Core claim

the hybrid runtime reduces Time-to-First-Token (TTFT) by up to 66.0% and achieves lower P99 latency compared with TensorRT-LLM in this regime

Load-bearing premise

That the partitioning into static CUDA-Graph components and dynamic JIT kernels can be performed without introducing correctness errors or hidden overhead during autoregressive decoding across varying prompt lengths.

Figures

Figures reproduced from arXiv: 2604.23467 by Divakar Kumar Yadav, Tian Zhao.

Figure 1
Figure 1. Figure 1: High-level architecture of the Hybrid JIT–CUDA Graph Runtime. Process 1 (JIT Context Generator) executes dynamic operations such as preprocessing and sampling, while Process 2 (CUDA Graph Generator) executes static compute kernels through captured CUDA Graphs, coordinated via inter-process communication (IPC). attention, cache updates, and stochastic sampling commonly found in LLM inference. Conversely, Ju… view at source ↗

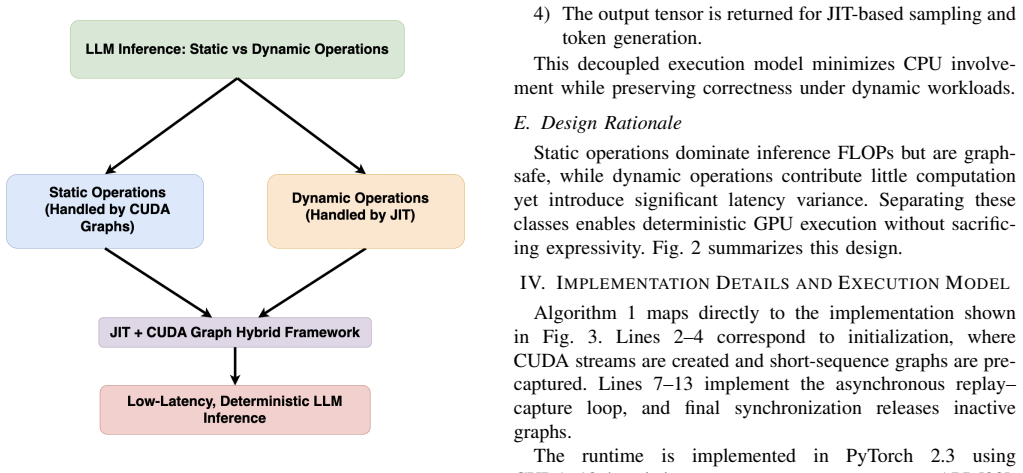

Figure 2
Figure 2. Figure 2: Decomposition of LLM inference into static (CUDA Graph-handled) and dynamic (JIT-handled) operations within the hybrid runtime. length and encapsulates the GPU execution DAG of matrix multiplications, fused attention kernels, and normalization layers. Because CUDA Graphs reside entirely on the device, replay bypasses Python execution, CUDA driver dispatch, and host– device synchronization [20], [35]. As a … view at source ↗
Figure 4
Figure 4. Figure 4: Time-to-First-Token (TTFT) scaling from 50 to 500 tokens on NVIDIA H100 (FP16, batch = 1). The hybrid runtime exhibits a smoother scaling trend and lower absolute latency than the baselines. H100 GPU using FP16 precision and batch size 1 to reflect latency-sensitive, interactive inference scenarios and to ensure comparability across systems. A. Quantitative Results Table I reports Time-to-First-Token (TTFT… view at source ↗
Figure 5
Figure 5. Figure 5: P99 per-token latency versus context length. The hybrid runtime exhibits reduced tail latency and lower variance compared with both baselines. C. Interpretation and Practical Implications Empirical usage analyses of deployed LLM systems suggest that a substantial fraction of interactive queries result in short￾to-moderate generations, often within a few hundred output tokens [2], [18]. While precise distri… view at source ↗
read the original abstract

Large Language Models (LLMs) have achieved strong performance across natural language and multimodal tasks, yet their practical deployment remains constrained by inference latency and kernel launch overhead, particularly in interactive, short-sequence settings. This paper presents a hybrid runtime framework that combines Just-In-Time (JIT) compilation with CUDA Graph execution to reduce launch overhead while preserving runtime flexibility during autoregressive decoding. The framework partitions transformer inference into static components executed via CUDA Graph replay and dynamic components handled through JIT-compiled kernels, enabling asynchronous graph capture and reuse across decoding steps. We evaluate the proposed approach on LLaMA-2 7B using single-GPU, batch-size-one inference across prompt lengths from 10 to 500 tokens. Experimental results show that the hybrid runtime reduces Time-to-First-Token (TTFT) by up to 66.0% and achieves lower P99 latency compared with TensorRT-LLM in this regime. These results indicate that hybrid JIT-CUDA Graph execution can effectively reduce inference latency and variance for short-sequence LLM workloads, making it a practical optimization strategy for latency-sensitive AI applications.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 1 minor

Summary. The manuscript proposes a hybrid JIT-CUDA Graph runtime for LLM inference that partitions transformer operations into static components executed via CUDA Graph replay and dynamic components handled by JIT-compiled kernels. This is intended to reduce launch overhead while maintaining flexibility during autoregressive decoding. Evaluation is reported on LLaMA-2 7B (batch size 1, prompt lengths 10–500 tokens), claiming up to 66% TTFT reduction and lower P99 latency versus TensorRT-LLM.

Significance. If the hybrid partitioning can be shown to preserve correctness and introduce no unaccounted overhead across growing KV-cache sizes, the latency improvements would be a useful contribution to low-latency, interactive LLM serving. The approach targets a practical pain point in short-sequence inference. However, the current lack of implementation details, error bars, and validation metrics prevents a firm assessment of whether the claimed gains are real or artifactual.

major comments (3)
  1. Abstract: The headline claims of up to 66% TTFT reduction and lower P99 latency are presented without error bars, statistical tests, or any description of how the static/dynamic partition was chosen, implemented, or validated for output equivalence during token-by-token KV-cache growth.
  2. Abstract (and Evaluation section): No quantitative isolation of capture time, JIT compilation cost, or kernel-launch overhead is supplied, leaving open the possibility that re-capture or re-compilation triggered by shape changes in the 10–500 token regime adds latency that is not subtracted from the reported TTFT numbers.
  3. Abstract: The central assumption that the hybrid partition incurs neither correctness errors nor hidden overhead across autoregressive steps with varying prompt lengths is unsupported by any reported equivalence checks or per-step latency breakdowns versus the TensorRT-LLM baseline.
minor comments (1)
  1. Abstract: The phrase 'asynchronous graph capture and reuse across decoding steps' is introduced without a concrete mechanism or timing diagram, making it difficult to understand how capture is overlapped with execution.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive feedback highlighting areas where additional rigor would strengthen the manuscript. We address each major comment below and will incorporate revisions to provide the requested details on statistical reporting, overhead isolation, and validation.

read point-by-point responses

  1. Referee: Abstract: The headline claims of up to 66% TTFT reduction and lower P99 latency are presented without error bars, statistical tests, or any description of how the static/dynamic partition was chosen, implemented, or validated for output equivalence during token-by-token KV-cache growth.

    Authors: We agree the abstract omits these elements. Section 3 of the manuscript describes the partition: operations with fixed shapes (e.g., linear projections) are captured in CUDA Graphs, while KV-cache updates use JIT kernels to handle dynamic growth. Equivalence was checked by comparing generated token sequences and logits against TensorRT-LLM within floating-point tolerance. To address the concern, we will revise the abstract to briefly note the partition heuristic and add error bars (from 5 runs) plus a statistical comparison in the evaluation section. revision: yes

  2. Referee: Abstract (and Evaluation section): No quantitative isolation of capture time, JIT compilation cost, or kernel-launch overhead is supplied, leaving open the possibility that re-capture or re-compilation triggered by shape changes in the 10–500 token regime adds latency that is not subtracted from the reported TTFT numbers.

    Authors: This observation is correct; the current text reports aggregate TTFT without component breakdowns. Graph capture occurs once asynchronously at the start and is amortized; JIT compilation is performed only on the initial shape and reused. No re-capture is triggered in the evaluated range because dynamic dimensions are handled by the JIT kernels. In revision we will add a table in the evaluation section with measured capture time, compilation cost, and per-step launch overhead, ensuring these are not included in the net TTFT savings. revision: yes

  3. Referee: Abstract: The central assumption that the hybrid partition incurs neither correctness errors nor hidden overhead across autoregressive steps with varying prompt lengths is unsupported by any reported equivalence checks or per-step latency breakdowns versus the TensorRT-LLM baseline.

    Authors: We acknowledge that explicit per-step breakdowns and detailed equivalence reporting are absent from the current version. The manuscript states that outputs remain equivalent, but does not show the supporting data. We will add a new figure with per-token latency traces and cumulative TTFT curves (with error bars) versus the baseline, plus a short description of the validation procedure (logit comparison and sequence matching). This will confirm absence of hidden overhead or correctness issues. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical latency claims rest on direct measurements, not derivations

full rationale

The manuscript presents a hybrid JIT-CUDA Graph partitioning framework for LLM inference and reports measured TTFT and P99 latency improvements versus TensorRT-LLM on LLaMA-2 7B. No equations, parameter fits, self-citations, or uniqueness theorems appear in the abstract or described content that would reduce any claimed result to its own inputs by construction. The 66% TTFT reduction is an observed benchmark outcome, not a prediction derived from fitted quantities or prior self-work.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract contains no information on free parameters, axioms, or invented entities.
