arxiv: 2604.24019 · v2 · submitted 2026-04-27 · ❄️ cond-mat.mtrl-sci

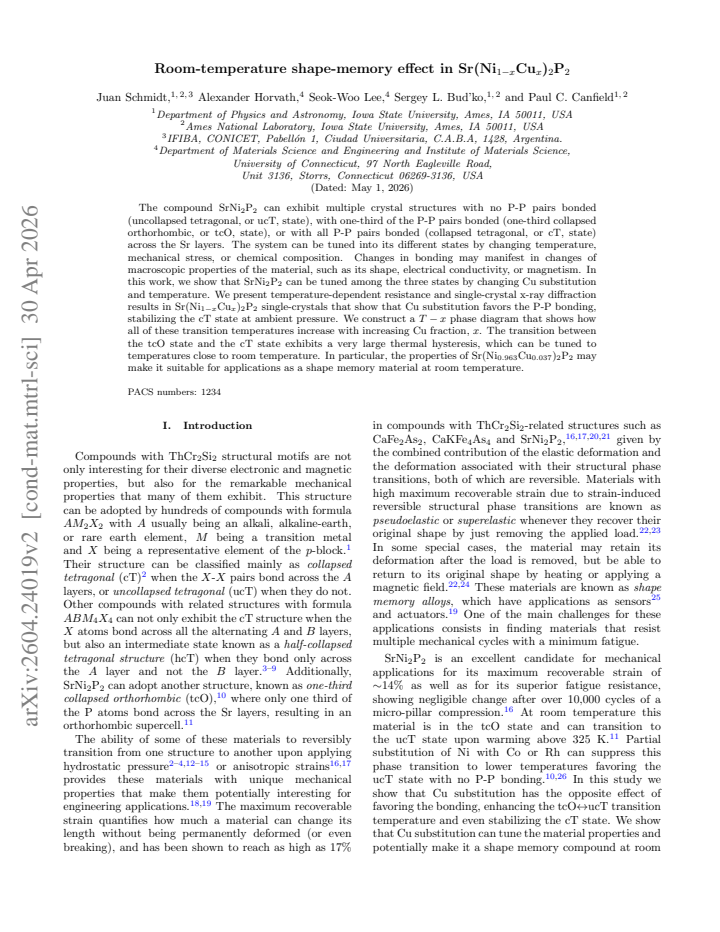

Room-temperature shape-memory effect in Sr(Ni_(1-x)Cu_x)₂P₂

Juan Schmidt , Alexander J. Horvarth , Seok-Woo Lee , Sergey L. Bud'ko , Paul C. Canfield This is my paper

Pith reviewed 2026-05-08 03:22 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords shape memory effectstructural phase transitionsSrNi2P2copper dopingthermal hysteresiscollapsed tetragonalpnictide compoundsphase diagram
0
0 comments X

The pith

Substituting a few percent copper into SrNi2P2 tunes its structural transitions so the material can recover its shape at room temperature.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that adding copper to SrNi2P2 raises the temperatures at which the crystal changes between its three P-P bonding states: uncollapsed tetragonal, one-third collapsed orthorhombic, and fully collapsed tetragonal. Resistance and x-ray measurements on single crystals map out how these transition temperatures increase with copper content and how the gap between the partially and fully collapsed states grows into a wide thermal hysteresis. For a narrow range of copper fractions this hysteresis window can be shifted to include room temperature, so the material can be deformed in one state and return to its original shape when heated or cooled through the transition. A reader would care because this offers a route to shape-memory behavior that works without special cooling or heating equipment. The work constructs the full temperature-composition phase diagram and identifies a specific composition near 3.7 percent copper as the practical target.

Core claim

In Sr(Ni1-xCux)2P2, copper substitution stabilizes P-P bonding across the Sr layers and therefore raises all three structural transition temperatures; the tcO-to-cT transition in particular develops a large thermal hysteresis that widens and moves upward with increasing x. Single-crystal resistance and diffraction data show this hysteresis can be positioned so that room temperature lies inside the loop, allowing the crystal to switch reversibly between the one-third collapsed and fully collapsed structures. The authors conclude that the composition Sr(Ni0.963Cu0.037)2P2 therefore exhibits the prerequisites for a room-temperature shape-memory effect driven by the macroscopic volume change of

What carries the argument

The three P-P bonding configurations (uncollapsed tetragonal ucT, one-third collapsed orthorhombic tcO, collapsed tetragonal cT) whose transitions are shifted upward by copper substitution, creating a tunable, wide thermal hysteresis between tcO and cT.

If this is right

  • Transition temperatures from ucT to tcO and from tcO to cT both increase steadily with copper fraction x.
  • The thermal hysteresis between tcO and cT becomes large enough to be tuned across room temperature for small x.
  • Electrical resistance jumps and x-ray lattice-parameter changes track the structural switches and confirm the hysteresis loop.
  • The specific composition with x = 0.037 places the hysteresis so that room-temperature cycling can drive repeated shape recovery.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same bonding-driven volume change could be exploited in other 122 pnictides by choosing dopants that similarly favor or disfavor P-P pair formation.
  • Because the transitions respond to both temperature and applied stress, the material may also function as a stress-actuated switch near room temperature.
  • Testing whether the hysteresis survives repeated mechanical deformation would directly address whether the effect remains usable after many cycles.

Load-bearing premise

The large thermal hysteresis between the tcO and cT states produces a reversible macroscopic shape change rather than only microscopic structural or resistance changes.

What would settle it

Measure the physical length or shape of a Sr(Ni0.963Cu0.037)2P2 crystal while cycling temperature across the hysteresis window near room temperature and check whether a reversible macroscopic expansion or contraction occurs on each pass.

Figures

Figures reproduced from arXiv: 2604.24019 by Alexander J. Horvarth, Juan Schmidt, Paul C. Canfield, Seok-Woo Lee, Sergey L. Bud'ko.

Figure 2
Figure 2. Figure 2: FIG. 2. Main panel: temperature-dependent resistance view at source ↗
Figure 1
Figure 1. Figure 1: shows the atomic fraction of Cu quantified by EDS, xEDS, as a function of the nominal atomic fraction of Cu, xnominal, in the high-temperature solution from which the crystals were grown. The dependence is approximately linear with a slope of 0.19(1) as indicated by the linear fit shown with a red line, indicating that the crystals grow with less Cu than what is available in the solution. This reduced Cu f… view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. (a) Temperature-dependent magnetization view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5. (a-h) Temperature-dependent lattice parameters and (i-p) P-P distances of Sr(Ni view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. Temperature-composition phase diagram of view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8. Uniaxial stress versus strain curves measured view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9. Combined view at source ↗
Figure 10
Figure 10. Figure 10: FIG. 10. Combined view at source ↗
read the original abstract

The compound SrNi$_2$P$_2$ can exhibit multiple crystal structures with no P-P pairs bonded (uncollapsed tetragonal, or ucT, state), with one-third of the P-P pairs bonded (one-third collapsed orthorhombic, or tcO, state), or with all P-P pairs bonded (collapsed tetragonal, or cT, state) across the Sr layers. The system can be tuned into its different states by changing temperature, mechanical stress, or chemical composition. Changes in bonding may manifest in changes of macroscopic properties of the material, such as its shape, electrical conductivity, or magnetism. In this work, we show that SrNi$_2$P$_2$ can be tuned among the three states by changing Cu substitution and temperature. We present temperature-dependent resistance and single-crystal x-ray diffraction results in Sr(Ni$_{1-x}$Cu$_x$)$_2$P$_2$ single-crystals that show that Cu substitution favors the P-P bonding, stabilizing the cT state at ambient pressure. We construct a $T-x$ phase diagram that shows how all of these transition temperatures increase with increasing Cu fraction, $x$. The transition between the tcO state and the cT state exhibits a very large thermal hysteresis, which can be tuned to temperatures close to room temperature. In particular, the properties of Sr(Ni$_{0.963}$Cu$_{0.037}$)$_2$P$_2$ may make it suitable for applications as a shape memory material at room temperature.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports temperature-dependent resistance and single-crystal X-ray diffraction measurements on Sr(Ni_{1-x}Cu_x)_2P_2 single crystals. Cu substitution is shown to stabilize the collapsed tetragonal (cT) state, raising all transition temperatures and producing a large thermal hysteresis between the one-third-collapsed orthorhombic (tcO) and cT phases that can be tuned near room temperature at x ≈ 0.037. A T-x phase diagram is constructed from these data, and the authors suggest that the hysteresis and structural changes may enable room-temperature shape-memory functionality.

Significance. If the macroscopic reversibility claim is substantiated, the work would identify a chemically tunable, ambient-pressure platform for room-temperature shape-memory behavior in a ThCr_2Si_2-type compound, with potential implications for actuator or sensor applications. The direct experimental mapping of the phase boundaries via resistance and diffraction constitutes a clear strength; the absence of parameter fitting or circular derivations in the phase diagram is also positive.

major comments (2)
  1. [Abstract and Results] The central claim that Sr(Ni_{0.963}Cu_{0.037})_2P_2 'may make it suitable for applications as a shape memory material at room temperature' (abstract) rests on the observed tcO–cT hysteresis but is not supported by any direct measurement of macroscopic strain recovery. No dilatometry, strain-gauge, or optical microscopy data quantifying reversible length/volume change upon thermal cycling are presented in the results or discussion sections.
  2. [Discussion] While single-crystal XRD confirms the structural switch between tcO and cT states, the manuscript does not address whether the lattice-parameter jumps translate to usable macroscopic deformation under the constraints typical of polycrystalline or twinned samples (e.g., grain-boundary accommodation or applied stress). This gap directly affects the load-bearing application claim.
minor comments (2)
  1. [Figure 2 and associated text] Error bars are not shown on the resistance or transition-temperature data points used to construct the T-x phase diagram; their inclusion would strengthen the reported hysteresis widths.
  2. [Introduction] The notation for the three structural states (ucT, tcO, cT) is introduced clearly but could be reinforced with a brief schematic in the introduction for readers unfamiliar with ThCr_2Si_2 bonding variants.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive evaluation of our experimental data and phase diagram, as well as for the constructive comments. We respond point by point to the major concerns below.

read point-by-point responses

  1. Referee: [Abstract and Results] The central claim that Sr(Ni_{0.963}Cu_{0.037})_2P_2 'may make it suitable for applications as a shape memory material at room temperature' (abstract) rests on the observed tcO–cT hysteresis but is not supported by any direct measurement of macroscopic strain recovery. No dilatometry, strain-gauge, or optical microscopy data quantifying reversible length/volume change upon thermal cycling are presented in the results or discussion sections.

    Authors: We agree that the manuscript contains no direct macroscopic strain measurements (dilatometry, strain gauges, or optical microscopy). The suggestion of room-temperature shape-memory suitability is based on the large, tunable tcO–cT thermal hysteresis combined with single-crystal XRD confirmation of the associated lattice-parameter changes. In single crystals these structural shifts produce reversible deformation upon thermal cycling through the hysteresis loop. To address the concern, we will revise the abstract and add a clarifying sentence in the discussion to state explicitly that the application potential is suggested by the microscopic and transport data and would benefit from future direct macroscopic verification. revision: yes

  2. Referee: [Discussion] While single-crystal XRD confirms the structural switch between tcO and cT states, the manuscript does not address whether the lattice-parameter jumps translate to usable macroscopic deformation under the constraints typical of polycrystalline or twinned samples (e.g., grain-boundary accommodation or applied stress). This gap directly affects the load-bearing application claim.

    Authors: Our study is restricted to single-crystal samples, which allow unambiguous mapping of the structural transitions and hysteresis without grain-boundary effects. The quantified lattice-parameter jumps in the XRD data correspond to volume changes that would produce macroscopic shape changes in unconstrained single crystals. We acknowledge that polycrystalline or twinned specimens would introduce additional constraints (grain-boundary accommodation, twinning stresses) that could affect reversibility and load-bearing performance; this is outside the present scope focused on establishing the chemically tunable phase behavior. We will add a brief paragraph in the discussion noting this limitation and identifying it as a topic for future work. revision: partial

Circularity Check

0 steps flagged

No circularity: experimental phase diagram and transition data are directly measured

full rationale

The paper reports temperature-dependent resistance measurements and single-crystal x-ray diffraction data on Sr(Ni1-xCux)2P2 crystals for several Cu fractions. Transition temperatures are identified directly from features in these datasets (resistance jumps, lattice-parameter changes), and the T-x phase diagram is assembled by plotting those observed temperatures versus x. The room-temperature shape-memory suggestion follows from the measured large thermal hysteresis in the tcO-cT transition for x=0.037, without any equations, fitted parameters, or self-referential definitions that would make a claimed result equivalent to its inputs by construction. No self-citations are invoked as load-bearing uniqueness theorems, and no ansatz or renaming of known results occurs.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The work is experimental and rests on standard assumptions about crystal structure identification via x-ray diffraction and resistance as a proxy for phase; no new entities are postulated and the only free parameters are the discrete Cu concentrations chosen for growth.

free parameters (1)
  • Cu fraction x
    Discrete values of x (including 0.037) are selected for crystal growth and phase-diagram construction; these are experimental choices rather than fitted constants.
axioms (1)
  • domain assumption Resistance changes and x-ray diffraction patterns reliably identify the ucT, tcO, and cT structural states.
    Invoked throughout the temperature-dependent measurements to construct the T-x diagram.
