arxiv: 2604.24235 · v1 · submitted 2026-04-27 · 💻 cs.CV

Touchless Intraoperative Image Access System Based on Vision-Based Hand Tracking

Yin Lin , Domenico Aquino , Alberto Redaelli , Massimiliano Del Bene , Riccardo Barbieri , Simona Ferrante This is my paper

Pith reviewed 2026-05-08 04:29 UTC · model grok-4.3

classification 💻 cs.CV
keywords touchless interactionhand gesture recognitionintraoperative imagingvision-based trackingmedical image navigationsurgical sterilityRGB camera systemreal-time control
0
0 comments X

The pith

A single RGB camera enables touchless hand-gesture control of medical images during surgery without added hardware or training.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to establish that surgeons can navigate and manipulate medical images using natural hand gestures captured by an ordinary video camera alone. This would matter in the operating room because sterility must be preserved yet image access often forces breaks in workflow or reliance on assistants. The approach detects hand positions in real time and maps simple movements directly to commands for translating, rotating, and zooming the displayed images, with the whole system designed to work independently of any particular viewer software. Laboratory measurements of response speed and steadiness indicate the controls remain fluid enough for practical use. The result shows that a low-cost, camera-only solution can meet the basic requirements for intraoperative image interaction.

Core claim

The authors show that real-time hand position data from a single camera can be interpreted through straightforward gesture mappings to deliver continuous translation, rotation, and zoom operations on medical images, achieving latency and stability levels consistent with fluid interaction, all without extra sensors, user calibration, or changes to the visualization software.

What carries the argument

Real-time mapping of detected hand positions and movements to continuous image manipulation commands for translation, rotation, and zoom.

Load-bearing premise

Hand tracking stays accurate and the selected gestures remain intuitive under the variable lighting, partial hand occlusions, and time pressure of a real operating room without any user-specific calibration or training.

What would settle it

A controlled test in which tracking accuracy or command responsiveness drops sharply when the camera faces typical operating-room lighting, gloved hands, and routine obstructions by instruments or personnel would show the approach does not yet meet surgical conditions.

Figures

Figures reproduced from arXiv: 2604.24235 by Alberto Redaelli, Domenico Aquino, Massimiliano Del Bene, Riccardo Barbieri, Simona Ferrante, Yin Lin.

Figure 1
Figure 1. Figure 1: Overview of the gesture-based interaction pipeline view at source ↗
Figure 2

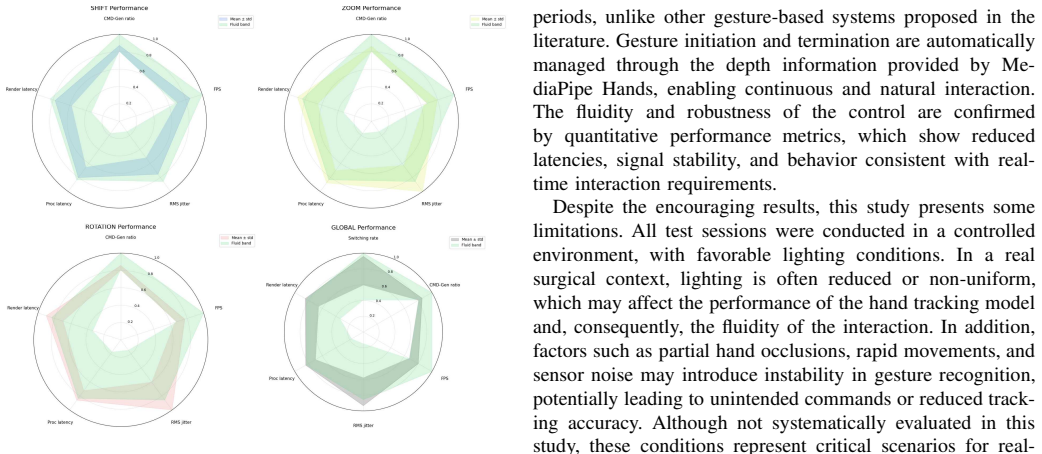

Figure 2. Figure 2: Global performance radar plot showing the mean norma view at source ↗
read the original abstract

Touchless interaction with medical images is becoming increasingly important in the surgical field, where sterility and continuity of the operational workflow are essential requirements. This work presents a vision-based system for intraoperative navigation of medical images through hand gestures acquired using a single RGB camera. Unlike many existing solutions, the system does not require additional hardware or user-specific training. Hand tracking is performed in real time using MediaPipe Hands, which provides a 2.5D estimation of hand landmarks. Simple and intuitive gestures are then mapped into translation, rotation, and zoom commands, enabling continuous and natural interaction with the image viewer. The system architecture is independent from the visualization software and, for implementation simplicity, in this study it was integrated with PyVista. Performance was evaluated through frame-level logging and quantitative analysis of latency, stability, and interaction robustness metrics. Experimental results highlight real-time behavior, with reduced latencies and stable control, in line with the requirements of fluid interaction. The system demonstrates the feasibility of a low-cost touchless solution for intraoperative access to medical images, laying the groundwork for future clinical evaluations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper describes a vision-based touchless system for intraoperative medical image navigation using a single RGB camera and MediaPipe Hands for real-time 2.5D hand landmark tracking. Simple gestures are mapped to translation, rotation, and zoom commands in a PyVista-integrated viewer. The architecture requires no additional hardware or user-specific training/calibration. Performance is assessed via frame-level logging and quantitative metrics on latency, stability, and robustness, with the central claim being a demonstration of feasibility for a low-cost sterile solution that supports fluid interaction and grounds future clinical work.

Significance. If the reported real-time performance and stability hold under realistic conditions, the work offers a practical, low-cost integration of off-the-shelf vision tools for sterile image access in surgery, potentially reducing workflow interruptions. The calibration-free design and software independence are practical strengths for prototyping, though the absence of detailed numerical results and robustness data limits immediate impact.

major comments (2)
  1. [Abstract; evaluation section] Abstract and evaluation section: the manuscript states that 'quantitative analysis of latency, stability, and interaction robustness metrics' was performed and that results show 'real-time behavior, with reduced latencies and stable control,' yet supplies no numerical values, standard deviations, test conditions (e.g., frame rate, hardware, distance), or baseline comparisons. This directly weakens support for the feasibility claim.
  2. [Evaluation section] Evaluation section: only aggregate metrics from (presumably) controlled conditions are reported; no quantitative breakdown of MediaPipe landmark detection accuracy, gesture misclassification rate, or end-to-end task success under OR-typical perturbations (variable lighting, partial occlusions by gloves/instruments, surgeon movement) is provided. Because the system explicitly avoids calibration or retraining, any degradation in 2.5D estimates directly undermines the 'stable control' and 'intuitive interaction' assertions required for even a feasibility demonstration.
minor comments (2)
  1. [Abstract] The abstract claims 'in line with the requirements of fluid interaction' without citing specific clinical latency thresholds or prior literature values for comparison.
  2. [System architecture] Notation for gesture-to-command mapping and the exact PyVista integration interface could be clarified with a diagram or pseudocode for reproducibility.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the insightful comments on our manuscript. We provide point-by-point responses to the major comments and have updated the manuscript to address the concerns where possible.

read point-by-point responses

  1. Referee: [Abstract; evaluation section] the manuscript states that 'quantitative analysis of latency, stability, and interaction robustness metrics' was performed and that results show 'real-time behavior, with reduced latencies and stable control,' yet supplies no numerical values, standard deviations, test conditions (e.g., frame rate, hardware, distance), or baseline comparisons. This directly weakens support for the feasibility claim.

    Authors: We agree that the absence of specific numerical values weakens the presentation of our results. In the revised manuscript, we will include the quantitative metrics obtained from our frame-level logging, such as the measured latencies, stability, and robustness values along with the corresponding standard deviations, test conditions including hardware setup, frame rate, and camera distance, as well as baseline comparisons to support the feasibility claim. revision: yes

  2. Referee: [Evaluation section] only aggregate metrics from (presumably) controlled conditions are reported; no quantitative breakdown of MediaPipe landmark detection accuracy, gesture misclassification rate, or end-to-end task success under OR-typical perturbations (variable lighting, partial occlusions by gloves/instruments, surgeon movement) is provided. Because the system explicitly avoids calibration or retraining, any degradation in 2.5D estimates directly undermines the 'stable control' and 'intuitive interaction' assertions required for even a feasibility demonstration.

    Authors: We recognize the importance of detailed breakdowns for validating the system's performance. We will add a quantitative breakdown of MediaPipe landmark detection accuracy and gesture misclassification rates from our experiments in controlled conditions to the Evaluation section. Regarding OR-typical perturbations, the current study was conducted in a controlled lab environment to demonstrate basic feasibility. We have added a discussion on the potential impact of such perturbations on the calibration-free system and plan to address full robustness testing in future clinical work. This partial revision strengthens the current claims while acknowledging limitations. revision: partial

standing simulated objections not resolved
  • Quantitative evaluation of end-to-end task success under realistic operating room perturbations such as variable lighting and occlusions, since these were not part of the original experiments.

Circularity Check

0 steps flagged

No circularity: system integration paper with no derivations or fitted predictions

full rationale

The manuscript describes a vision-based hand-tracking system using MediaPipe, simple gesture-to-command mappings, and integration with PyVista. No equations, parameter fitting, or predictive claims appear in the provided text. Performance metrics (latency, stability) are reported from direct experiments rather than derived from prior fitted quantities. No self-citations form load-bearing premises, and the feasibility claim rests on empirical logging rather than any self-referential reduction. This is a standard engineering integration report whose central assertions do not collapse into their own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the assumption that an off-the-shelf hand tracker will deliver usable landmarks in an operating-room setting and that a small set of hand gestures can be mapped to viewer controls without calibration. No free parameters are introduced in the abstract, and no new physical entities are postulated.

axioms (2)
  • domain assumption MediaPipe Hands supplies sufficiently accurate and stable 2.5D hand landmarks in real time for gesture recognition without user-specific training.
    Invoked when the paper states that hand tracking is performed in real time using MediaPipe Hands and that simple gestures are mapped to commands.
  • domain assumption The chosen gestures are intuitive and do not require training for surgeons.
    Stated in the abstract as enabling continuous and natural interaction.

pith-pipeline@v0.9.0 · 5499 in / 1436 out tokens · 46348 ms · 2026-05-08T04:29:24.511169+00:00 · methodology
