arxiv: 2604.24930 · v1 · submitted 2026-04-27 · 💻 cs.NI · cs.PF

On the Benefits of Traffic "Reprofiling" -- The Multiple Hops Case -- Part II

Jiaming Qiu , Roch Guerin This is my paper

Pith reviewed 2026-05-07 17:43 UTC · model grok-4.3

classification 💻 cs.NI cs.PF
keywords traffic reprofilingdelay guaranteesmulti-hop networksstatic priority schedulerFIFO schedulerbandwidth optimizationtraffic shapingnetwork schedulers
0
0 comments X

The pith

Reprofiling flows enables simple schedulers to meet hard delay guarantees with less bandwidth in multi-hop networks.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines whether proactively reshaping traffic flows before they enter the network can help enforce strict delay bounds while consuming less bandwidth overall. It restricts attention to basic static priority and FIFO schedulers rather than complex ones. A joint optimization framework is introduced to choose reprofiling parameters and hop-by-hop bandwidth allocations together, and efficient algorithms are developed to solve the resulting problem. Extensive tests on both realistic and synthetic topologies show that reprofiling produces measurable bandwidth reductions and that stronger schedulers can exploit more elaborate reprofiling choices. The result is relevant for time-critical applications that need reliable end-to-end timing without over-provisioning links.

Core claim

Jointly optimizing flow reprofiling and per-hop bandwidth allocation allows static priority and FIFO schedulers to enforce hard delay guarantees at lower total bandwidth than is possible without reprofiling. This holds across realistic and synthetic multi-hop topologies, and the evaluations reveal a direct relationship between a scheduler's ability to handle complex arrival curves and its capacity to benefit from more intricate reprofiling solutions.

What carries the argument

A joint optimization framework that simultaneously selects reprofiling parameters for each flow and the bandwidth reservations required by the chosen scheduler at every hop.

If this is right

  • Reprofiling yields bandwidth savings for simple schedulers comparable to those reported for more advanced schedulers.
  • Scheduler capability and reprofiling complexity are coupled: stronger schedulers can leverage more sophisticated shaping profiles.
  • Efficient algorithms exist that solve the joint problem at the scale of realistic network topologies.
  • The approach extends single-hop reprofiling benefits to the multi-hop case while preserving the same qualitative gains.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the framework scales to online operation, network controllers could periodically recompute reprofiling profiles as traffic patterns change.
  • The observed scheduler-reprofiling coupling suggests that future scheduler designs could include explicit support for profiled traffic curves to amplify the savings.
  • Deployment in production networks would need to verify that the modeled savings survive variable cross-traffic and imperfect clock synchronization.

Load-bearing premise

The optimization framework and its algorithms correctly capture real multi-hop network dynamics and produce solutions that deliver actual bandwidth savings without hidden interference or timing mismatches.

What would settle it

A side-by-side measurement in a real multi-hop testbed that applies the computed reprofiling versus no reprofiling and checks whether observed delays stay within the guaranteed bounds while bandwidth usage matches the predicted reduction.

Figures

Figures reproduced from arXiv: 2604.24930 by Jiaming Qiu, Roch Guerin.

Figure 1

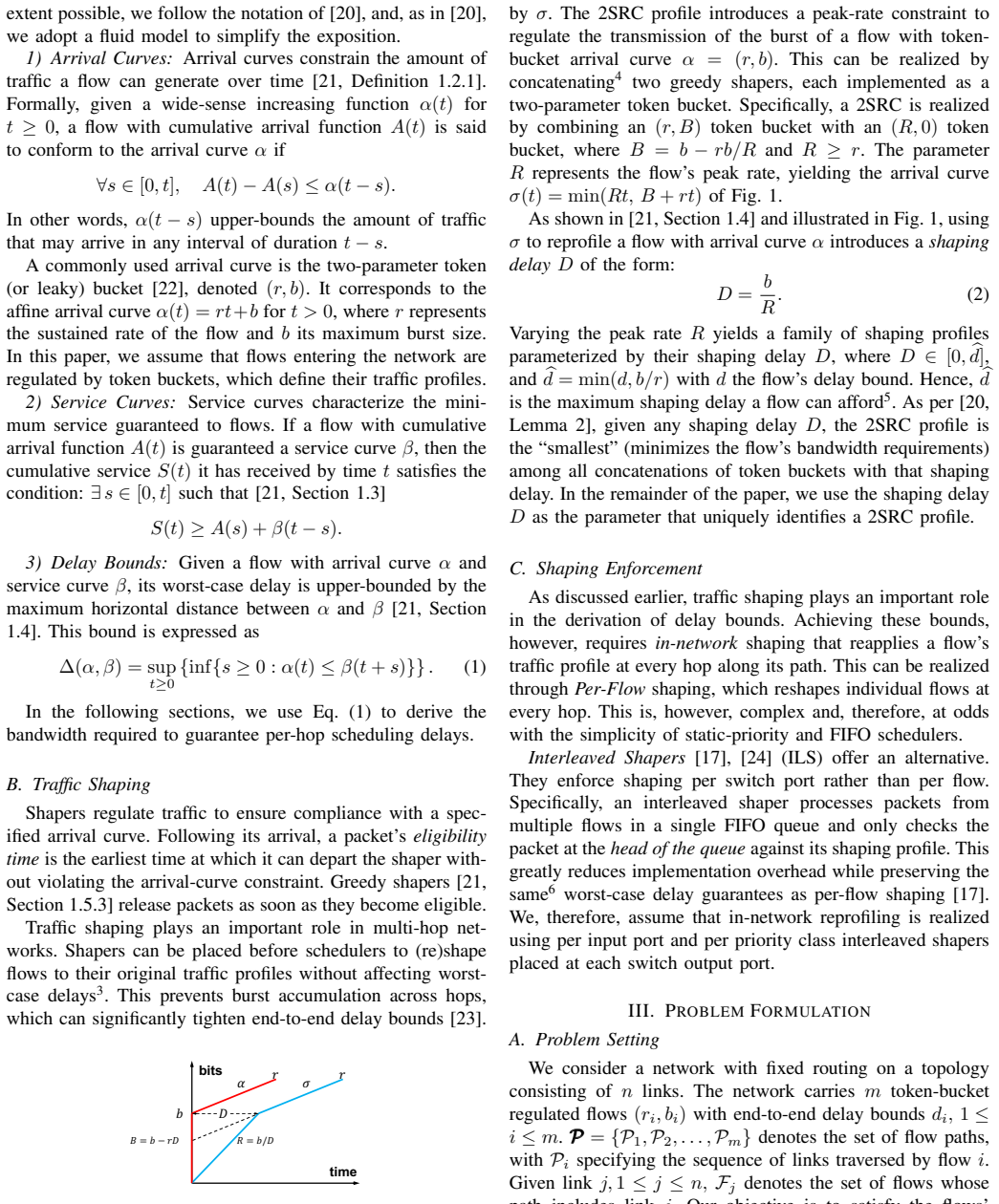

Figure 1. Figure 1: Two-Slope Reprofiling Curve (2SRC). In this paper, we consider the shaping strategy of [20] based on a Two-Slope Reprofiling Curve (2SRC), denoted 3Based on the Pay Bursts Only Once (PBOO) property [21, Section 1.4.3]. by σ. The 2SRC profile introduces a peak-rate constraint to regulate the transmission of the burst of a flow with token￾bucket arrival curve α = (r, b). This can be realized by concatenating… view at source ↗
Figure 2

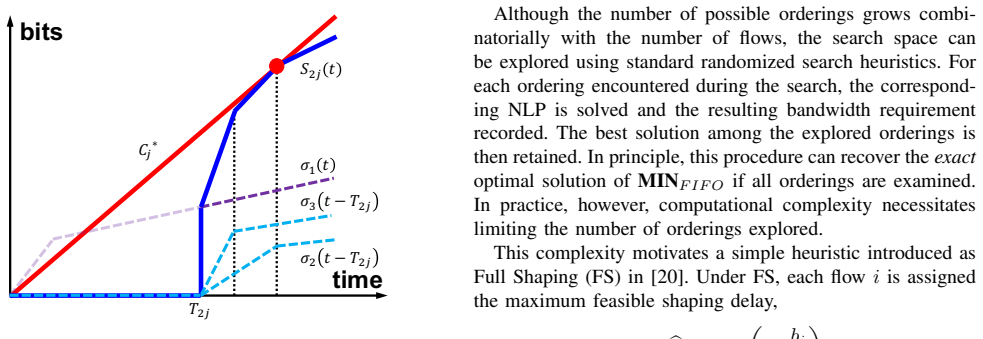

Figure 2. Figure 2: Minimal service function and required link bandwidth. view at source ↗
Figure 3

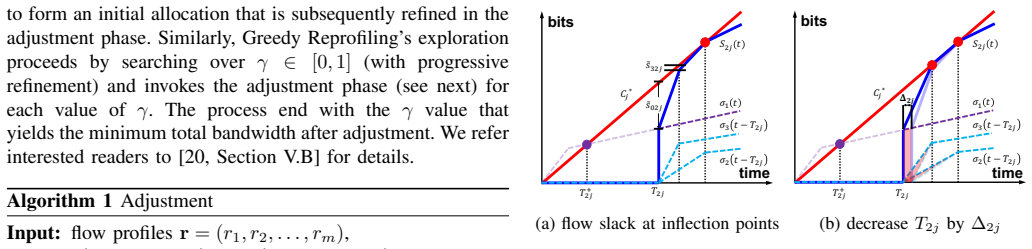

Figure 3. Figure 3: Greedy Reprofiling adjustment. local deadlines Teij , i.e., Teij ≤ Tei ′j for i ≤ i ′ . Then there exists a priority assignment Γ ∗ j that minimizes the required link bandwidth Cj while satisfying all local deadlines, such that a flow i is assigned a strictly higher priority than flow i ′ only if Teij < Tei ′j . In other words, a flow with a larger deadline should never be assigned to a strictly higher pri… view at source ↗
Figure 4

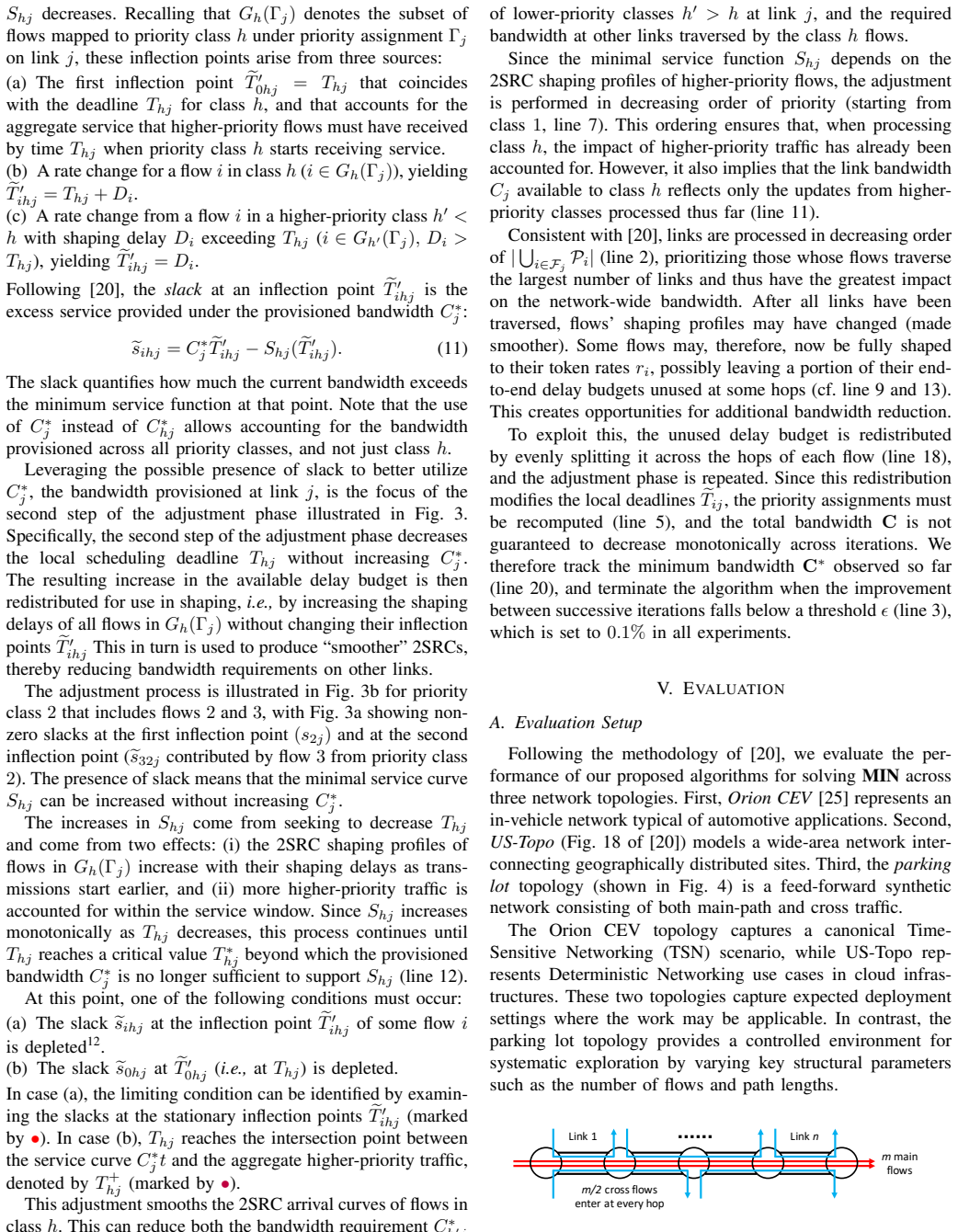

Figure 4. Figure 4: Parking lot topology. 6 view at source ↗
Figure 5

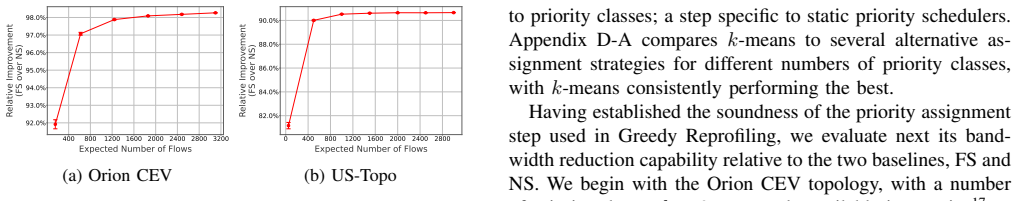

Figure 5. Figure 5: Bandwidth improvement of FS over NS under FIFO. view at source ↗

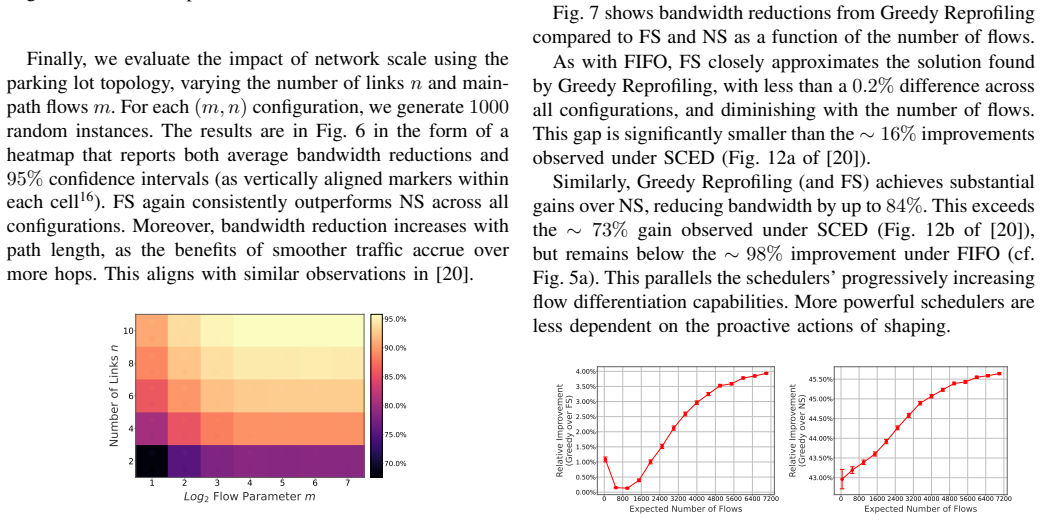

Figure 6
Figure 6. Figure 6: Bandwidth improvement of FS over NS under FIFO view at source ↗

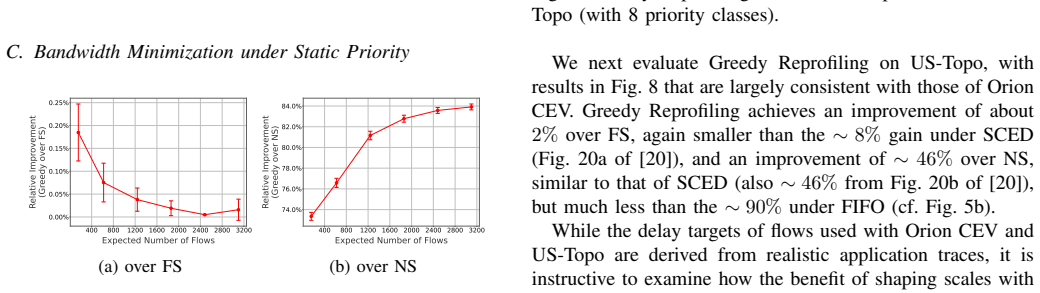

Figure 7
Figure 7. Figure 7: Greedy Reprofiling’s bandwidth improvement on Orion view at source ↗
Figure 9

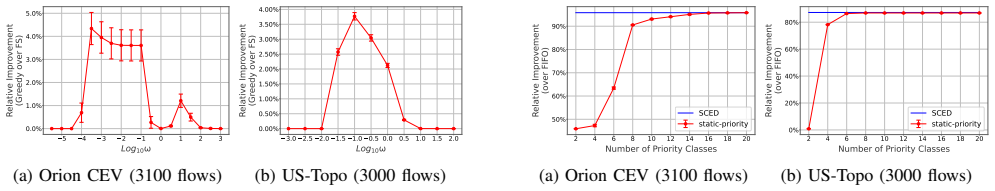

Figure 9. Figure 9: Bandwidth improvement of Greedy Reprofiling over FS view at source ↗
Figure 10

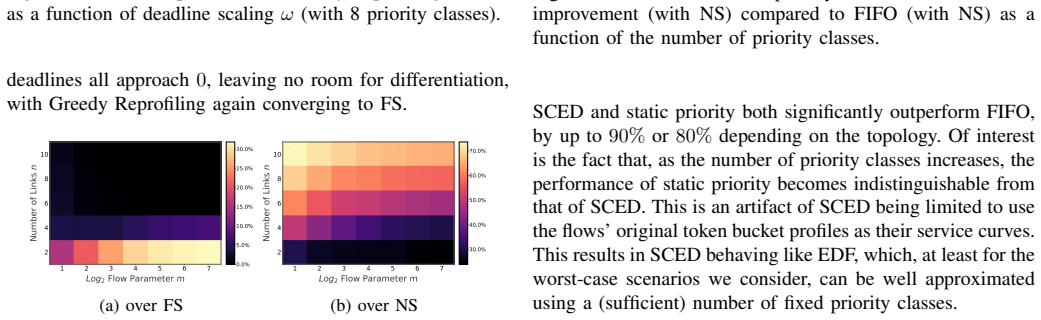

Figure 10. Figure 10: Greedy Reprofiling’s bandwidth improvement on view at source ↗
Figure 12

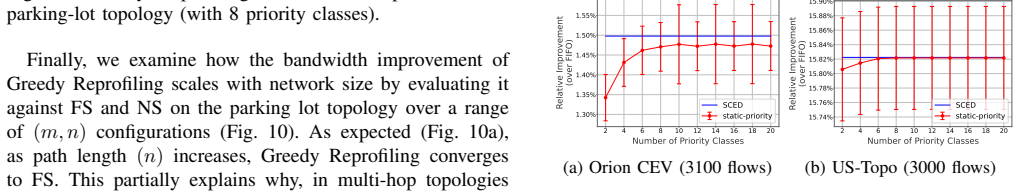

Figure 12. Figure 12: SCED and static priority schedulers’ bandwidth view at source ↗

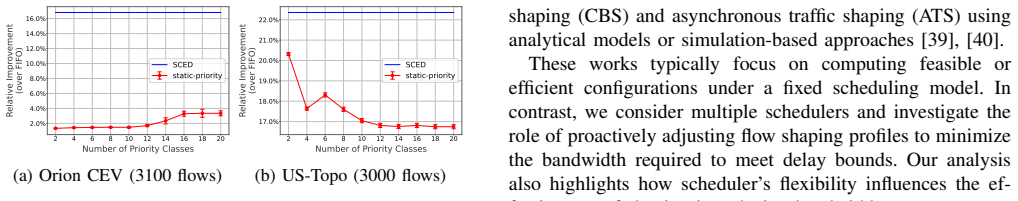

Figure 13
Figure 13. Figure 13: SCED and static priority schedulers’ bandwidth view at source ↗
Figure 14
Figure 14. Figure 14: Distributions on the percentage of random assignments outperformed across different priority assignment strategies. view at source ↗
Figure 15
Figure 15. Figure 15: Shaping ratio for each priority class from Greedy Re view at source ↗
Figure 16
Figure 16. Figure 16: Performance gap between static priority and SCED view at source ↗
read the original abstract

Delivering hard delay guarantees over packet networks is increasingly important to applications ranging from automotive systems, avionics, industrial control, etc. Traffic control and schedulers play an essential role in enforcing such guarantees. In this paper, we focus on ``simple'' static priority and FIFO schedulers, and explore how reprofiling flows entering the network, i.e., proactively shaping them to a different traffic profile, can deliver delay guarantees with less bandwidth. To that end, we formulate a joint optimization framework and develop efficient algorithms to solve it. Extensive evaluations across both realistic and synthetic topologies demonstrate that, as with more sophisticated schedulers, reprofiling flows is beneficial. They also highlight an intuitive coupling between a scheduler's capability and its ability to leverage more complex reprofiling solutions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper claims that jointly optimizing reprofiling profiles for flows entering multi-hop networks equipped with static-priority or FIFO schedulers can enforce hard end-to-end delay guarantees while using less total bandwidth than the no-reprofiling baseline. It develops efficient algorithms for the resulting optimization problem and reports extensive numerical evaluations on both realistic and synthetic topologies that demonstrate bandwidth savings, together with an observed coupling between scheduler capability and the complexity of beneficial reprofiling solutions.

Significance. If the multi-hop composition of arrival and service curves is shown to be tight, the work would usefully extend single-hop reprofiling results to the practically relevant multi-hop setting for real-time applications (automotive, avionics, industrial control). The reported evaluations already indicate that even simple schedulers can exploit reprofiling, which could influence scheduler and shaper design choices.

major comments (2)
  1. [§4.1–4.3] §4.1–4.3 and Eq. (8)–(12): the joint optimization appears to compose per-hop arrival curves by feeding the output curve of hop k directly as the input to hop k+1, but it is unclear whether the formulation fully accounts for scheduler-induced jitter and cross-flow interference that accumulate across hops under static priority or FIFO. If the bounds remain independent per hop or rely on loose network-calculus envelopes, the computed bandwidth savings may be optimistic; a concrete counter-example or tightness proof for a two-hop tandem would strengthen the central claim.
  2. [§5.2–5.3] §5.2–5.3, Tables 2–4: the reported bandwidth reductions are presented without accompanying optimality gaps for the developed algorithms or explicit rules for excluding infeasible instances. Because the central claim rests on the numerical evidence that reprofiling yields savings, the absence of these diagnostics makes it difficult to judge whether the gains are robust or artifacts of the solver tolerances and topology selection.
minor comments (2)
  1. [Abstract / §1] The abstract and introduction refer to “Part I” but do not explicitly state which single-hop results are being generalized; a one-sentence recap of the Part I findings would help readers.
  2. [§3] Notation for the reprofiling parameters (e.g., burst and rate after reprofiling) is introduced in §3 but reused with slight variations in the multi-hop extension; a consolidated table of symbols would improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thoughtful and constructive report. The comments help clarify how to better present the multi-hop composition and the numerical evidence. We address each major comment below.

read point-by-point responses

  1. Referee: [§4.1–4.3] §4.1–4.3 and Eq. (8)–(12): the joint optimization appears to compose per-hop arrival curves by feeding the output curve of hop k directly as the input to hop k+1, but it is unclear whether the formulation fully accounts for scheduler-induced jitter and cross-flow interference that accumulate across hops under static priority or FIFO. If the bounds remain independent per hop or rely on loose network-calculus envelopes, the computed bandwidth savings may be optimistic; a concrete counter-example or tightness proof for a two-hop tandem would strengthen the central claim.

    Authors: The formulation propagates the output arrival curve of hop k as the input arrival curve to hop k+1. By the definition of network calculus, this propagation incorporates the cumulative jitter and cross-flow interference produced by the scheduler at each hop; the per-hop service curves themselves are derived from the static-priority or FIFO discipline and therefore already embed the interference from other flows present at that hop. The resulting end-to-end bounds are therefore not computed independently per hop. To make this explicit and to address the request for tightness evidence, we will add a short subsection containing a two-hop tandem example that demonstrates the bounds are tight for both schedulers under the traffic profiles considered in the paper. revision: partial

  2. Referee: [§5.2–5.3] §5.2–5.3, Tables 2–4: the reported bandwidth reductions are presented without accompanying optimality gaps for the developed algorithms or explicit rules for excluding infeasible instances. Because the central claim rests on the numerical evidence that reprofiling yields savings, the absence of these diagnostics makes it difficult to judge whether the gains are robust or artifacts of the solver tolerances and topology selection.

    Authors: We agree that reporting optimality gaps (or sub-optimality bounds for any heuristic steps) and the precise rules used to retain or discard instances would improve the transparency of the evaluation. In the revised manuscript we will augment Tables 2–4 with an additional column or footnote that states the optimality gap for each reported solution and we will add a paragraph in §5.2 that details the feasibility filter (instances are retained only when a feasible solution exists under the given delay bounds and topology). revision: yes

Circularity Check

0 steps flagged

No significant circularity in joint optimization framework

full rationale

The paper formulates a joint optimization framework for reprofiling flows across multiple hops under static-priority and FIFO schedulers, develops algorithms to solve it, and validates benefits via evaluations on realistic and synthetic topologies. No self-definitional steps, fitted inputs renamed as predictions, or load-bearing self-citations that reduce the central claim to its own inputs are present. The derivation relies on standard network calculus composition of arrival and service curves, which is independent of the target results. This is the common honest outcome for papers whose core contribution is an optimization model plus empirical validation.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Based on abstract only; no explicit free parameters, axioms, or invented entities are detailed. The optimization framework likely relies on standard network traffic models and delay bound assumptions from prior work.
