arxiv: 2604.25007 · v1 · submitted 2026-04-27 · 🧮 math.OC

A Constraint-Lifting Framework for Safe and Stable Nonlinear Control

Jhon Manuel Portella Delgado , Ankit Goel This is my paper

Pith reviewed 2026-05-08 02:33 UTC · model grok-4.3

classification 🧮 math.OC
keywords nonlinear controlsafety constraintsdiffeomorphic mappingLyapunov stabilitysigmoid functionsforward invarianceexplicit control law
0
0 comments X

The pith

Sigmoid mapping lifts safety constraints into unbounded space to yield explicit stabilizing controllers for nonlinear systems.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops a method to create explicit controllers for nonlinear systems that drive the state to a desired equilibrium while keeping it inside a user-specified safe region at all times. Standard approaches such as control barrier functions or model predictive control typically require solving optimization problems repeatedly during operation. The new framework instead applies a smooth sigmoid-based change of coordinates that stretches the safe region into an infinite domain, designs the controller there using special integral Lyapunov functions, and maps the result back to the original coordinates. Stability and safety are then proved using the Barbashin-Krasovskii-LaSalle invariance principle, with the approach illustrated on an attitude-control example.

Core claim

The central claim is that a sigmoid-based diffeomorphic mapping transforms the constrained state space into an unbounded domain. In the new coordinates a controller is synthesized with sigmoid integral functions serving as Lyapunov candidates, then mapped back to produce an explicit law that asymptotically stabilizes the equilibrium and renders the original safe set forward invariant. The proof establishes both properties for the considered class of nonlinear systems.

What carries the argument

The sigmoid-based diffeomorphic mapping that converts the constrained safe set into an unbounded domain, paired with sigmoid integral functions as Lyapunov candidates in the transformed coordinates.

If this is right

  • The resulting control law is explicit and requires no online optimization.
  • Asymptotic convergence to the equilibrium occurs while the safe set remains forward invariant.
  • Numerical conditioning near the boundary is handled by the choice of Lyapunov functions.
  • The guarantees hold for the class of systems where the mapping and Lyapunov candidates are valid.
  • The method is demonstrated on a safe attitude-control problem.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same lifting idea could be tested on systems with model uncertainty to check whether safety remains enforced under disturbances.
  • Implementation on embedded hardware might become simpler because no solver is needed at runtime.
  • Extending the mapping to time-varying safe sets would require checking whether the diffeomorphism and invariance proof still hold.

Load-bearing premise

The nonlinear system must admit the sigmoid diffeomorphism as a valid global coordinate change and the sigmoid integral functions must function as valid Lyapunov candidates without introducing new instabilities.

What would settle it

A simulation or experiment in which the closed-loop trajectory under the derived control law exits the prescribed safe set or fails to converge to the equilibrium would disprove the claimed guarantees.

Figures

Figures reproduced from arXiv: 2604.25007 by Ankit Goel, Jhon Manuel Portella Delgado.

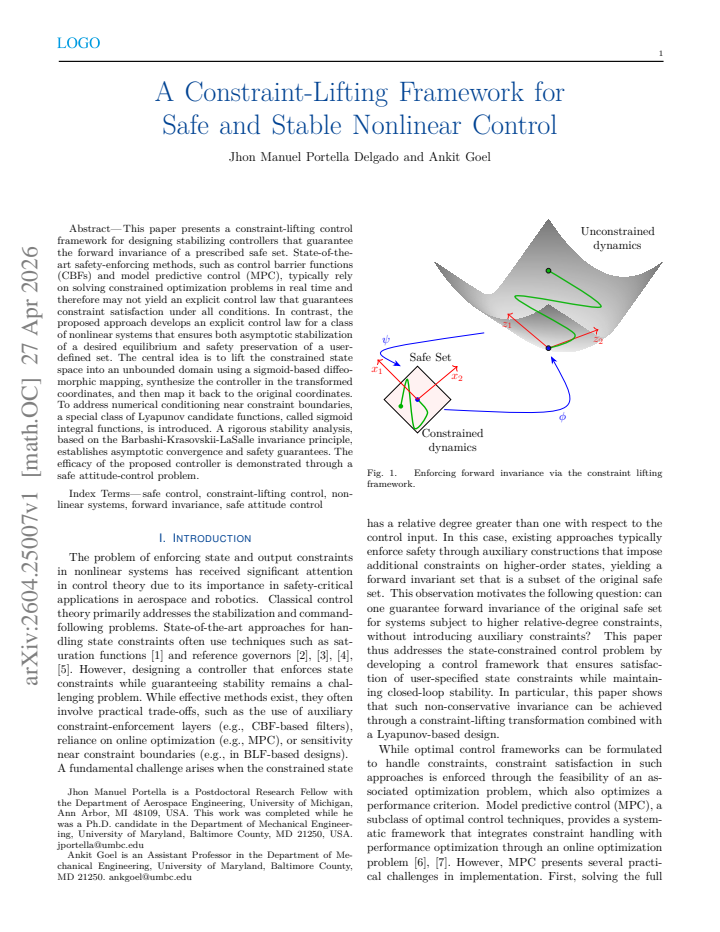

Figure 1
Figure 1. Figure 1: Enforcing forward invariance via the constraint lifting framework. has a relative degree greater than one with respect to the control input. In this case, existing approaches typically enforce safety through auxiliary constructions that impose additional constraints on higher-order states, yielding a forward invariant set that is a subset of the original safe set. This observation motivates the following q… view at source ↗

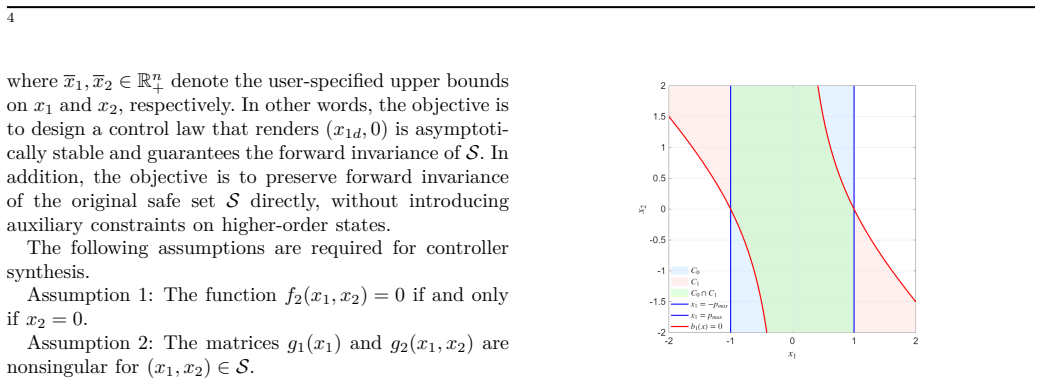

Figure 2
Figure 2. Figure 2: Forward invariant set for the double integrator under a higher-order barrier construction. The admissible set is C0 ∩ C1, which may be a strict subset of C0. forward invariant set is defined by the intersection of mul￾tiple constraint sets, each corresponding to a higher-order derivative condition. This intersection imposes additional restrictions on higher-order states, such as velocities, even when the o… view at source ↗

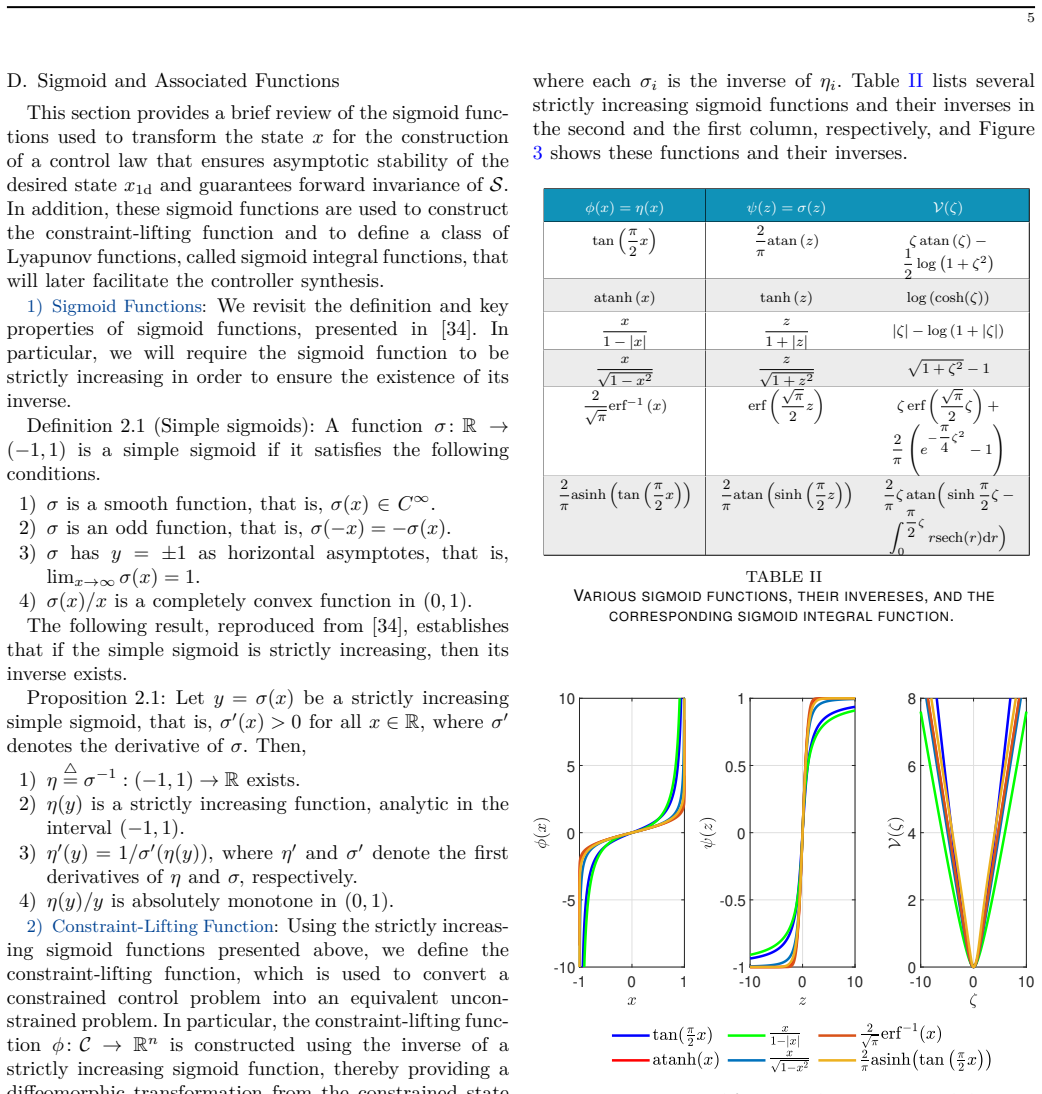

Figure 3
Figure 3. Figure 3: Various sigmoid functions, their invereses, and the corre￾sponding sigmoid integral function. Note that the legend includes only the ϕ(x) functions, while the associated ψ(z) and V(ζ) functions are shown using the same color scheme to maintain visual consistency. Remark 3: For the controller synthesis in Section III and the example in Section V, the same constraint-lifting function is used for both state v… view at source ↗

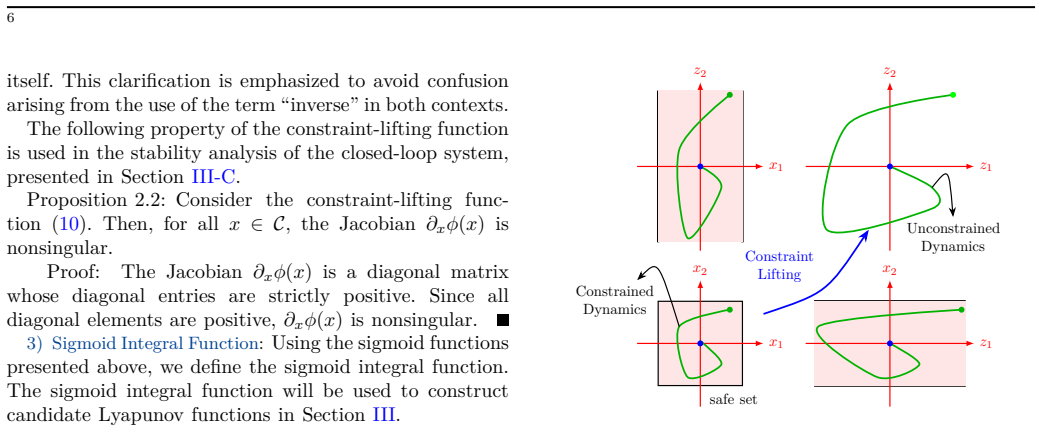

Figure 4
Figure 4. Figure 4: Illustration of the constraint-lifting concept, where the constrained dynamics in the original state space (x1, x2) are trans￾formed into equivalent unconstrained dynamics in the lifted state space (z1, z2). x1d. Finally, an additional transformation from (z1, z2) to (ζ1, ζ2) is introduced to simplify the notation used in mapping z back to x as well as the stability analysis. The state transformations from… view at source ↗

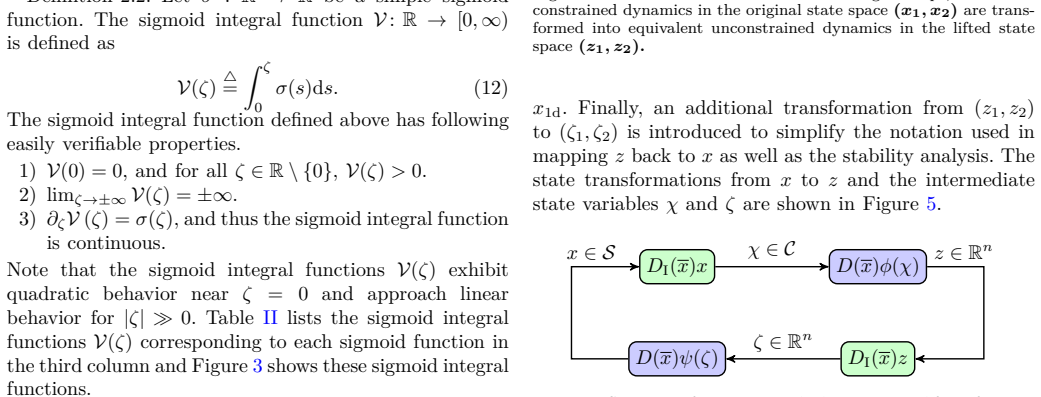

Figure 5
Figure 5. Figure 5: State transformations with the constraint-lifting function and its inverse used in the control synthesis. Define χ1 △ = DI(x1)x1, (13) χ2 △ = DI(x2)x2. (14) Note that the state variables χ1 and χ2 are defined to map the constraint boundaries to ±1, that is, when the constraints are satisfied, then, χ1, χ2 ∈ C. Next, define z1 △ = D(x1)ϕ(χ1), (15) z2 △ = D(x2)ϕ(χ2), (16) where ϕ: C → R n is a constraint-lif… view at source ↗

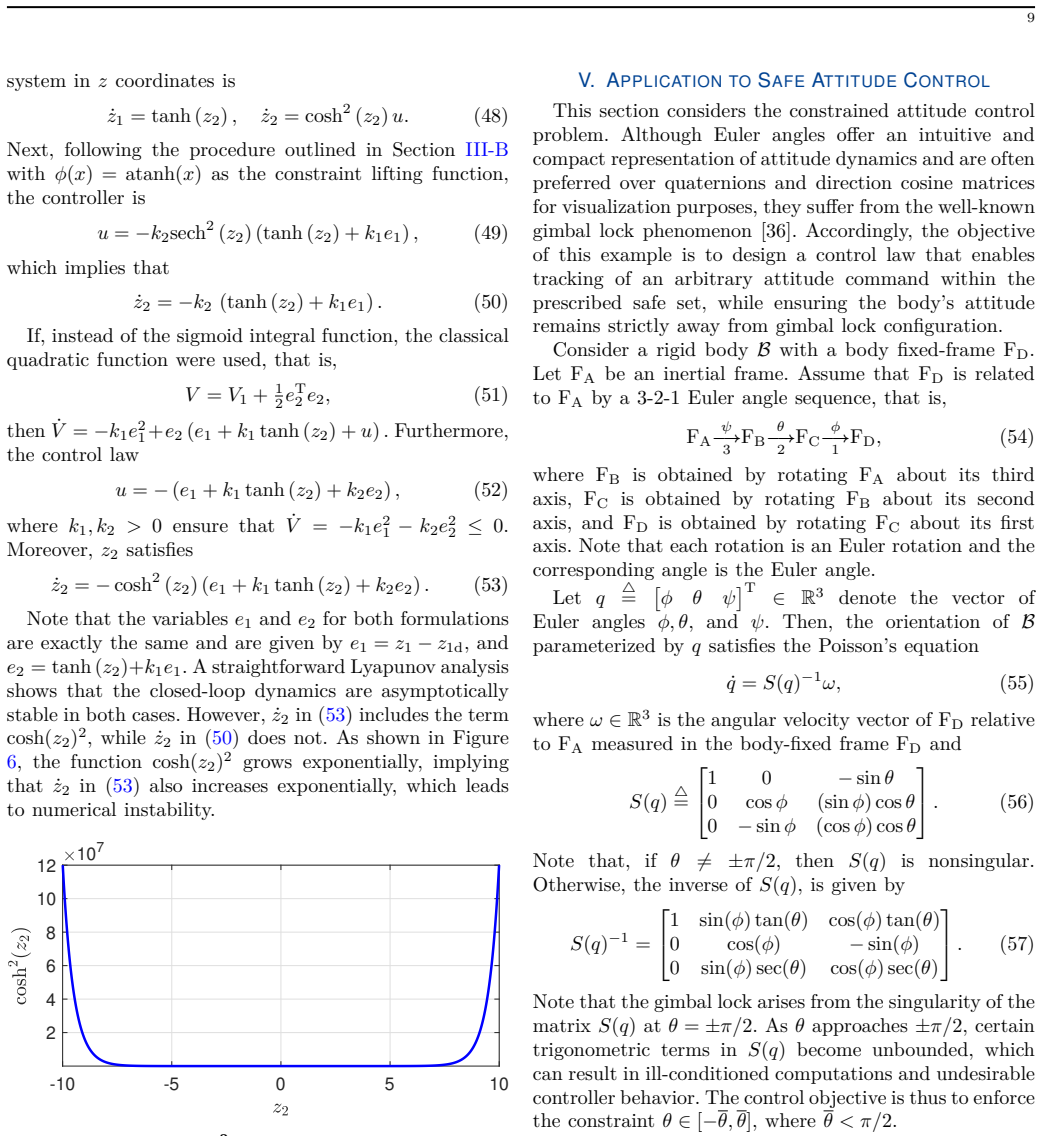

Figure 6
Figure 6. Figure 6: The function cosh2(z2). Note the exponential growth in cosh2(z2). For a value of z2 ≈ 10, cosh2(z2) ≈ 107. We emphasize that both controllers theoretically guar￾antee asymptotic stability, as established by the Lyapunov analysis. However, the corresponding closed-loop dynam￾ics exhibit numerical instability, which imposes practical limitations on implementation. This behavior has been consistently observed… view at source ↗
Figure 8
Figure 8. Figure 8: presents a geometric illustration of the closed￾loop angular velocity trajectories under multiple initial conditions. The yellow-shaded region represents the pre￾scribed safe set, and all trajectories remain confined within this set, demonstrating forward invariance. The initial angular velocities are marked by triangles, and the desired equilibrium (zero angular velocity) is marked at the origin. As expec… view at source ↗
Figure 7
Figure 7. Figure 7: presents a geometric illustration of the closed￾loop Euler angle trajectories under multiple initial condi￾tions and reference commands. The pink-shaded region represents the prescribed safe set, and all trajectories remain confined within this set, demonstrating forward invariance. For each trajectory, the initial attitude is marked by a triangle, and the corresponding desired value is indicated by a squa… view at source ↗
Figure 9
Figure 9. Figure 9: Closed-loop responses of the attitude dynamics: angles (ϕ, θ, ψ) and angular velocities (ω1, ω2, ω3) over time for ran￾domly initialized and commanded trajectories, and control inputs (τ1, τ2, τ3) generated by the control law (38). Note that the angle and angular responses are always contained within the desired safe set S. constructed using strictly increasing sigmoid functions. A class of Lyapunov candid… view at source ↗
read the original abstract

This paper presents a constraint-lifting control framework for designing stabilizing controllers that guarantee the forward invariance of a prescribed safe set. State-of-the-art safety-enforcing methods, such as control barrier functions (CBFs) and model predictive control (MPC), typically rely on solving constrained optimization problems in real time and therefore may not yield an explicit control law that guarantees constraint satisfaction under all conditions. In contrast, the proposed approach develops an explicit control law for a class of nonlinear systems that ensures both asymptotic stabilization of a desired equilibrium and safety preservation of a user-defined set. The central idea is to lift the constrained state space into an unbounded domain using a sigmoid-based diffeomorphic mapping, synthesize the controller in the transformed coordinates, and then map it back to the original coordinates. To address numerical conditioning near constraint boundaries, a special class of Lyapunov candidate functions, called sigmoid integral functions, is introduced. A rigorous stability analysis, based on the Barbashi-Krasovskii-LaSalle invariance principle, establishes asymptotic convergence and safety guarantees. The efficacy of the proposed controller is demonstrated through a safe attitude-control problem.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes a constraint-lifting framework for nonlinear control that maps a user-defined safe set to an unbounded domain via a sigmoid-based diffeomorphism, synthesizes an explicit stabilizing controller in the lifted coordinates, and pulls the law back to the original coordinates. It introduces sigmoid integral functions as Lyapunov candidates to mitigate numerical ill-conditioning near boundaries and invokes the Barbashin-Krasovskii-LaSalle invariance principle to prove asymptotic stability to a desired equilibrium while guaranteeing forward invariance of the safe set. The approach is illustrated on a safe attitude-control example.

Significance. If the technical conditions on the diffeomorphism and Lyapunov functions hold for the stated class, the framework supplies an explicit control law that simultaneously enforces safety and asymptotic stability without online optimization, offering a computationally lightweight alternative to CBF or MPC methods. The sigmoid-integral construction addresses a practical numerical issue that arises in many coordinate-lifting schemes.

major comments (2)
  1. [Introduction and the section defining the sigmoid diffeomorphism] The abstract and introduction refer to results holding for 'a class of nonlinear systems,' yet the precise membership conditions (e.g., the safe set being star-shaped or diffeomorphic to an open ball so that the sigmoid map is a global C^1-diffeomorphism onto R^n) are not stated. Without these conditions or an explicit verification that the mapping and its inverse are C^1 and that no additional invariant sets are created by the closed-loop dynamics in lifted coordinates, the applicability of the Barbashin-Krasovskii-LaSalle principle and the safety guarantee cannot be confirmed. This is load-bearing for the central claim.
  2. [The section on sigmoid integral functions and stability analysis] The claim that the introduced sigmoid integral functions are positive-definite, proper Lyapunov candidates whose derivatives are non-positive with zero set containing only the target equilibrium rests on the validity of the coordinate change and the closed-loop vector field. The abstract invokes the invariance principle but does not provide the explicit computation of the derivative or the characterization of the largest invariant set; if these steps are omitted or rely on unstated assumptions about the safe-set geometry, the stability proof is incomplete.
minor comments (2)
  1. [Abstract] The abstract contains a typographical error: 'Barbashi-Krasovskii-LaSalle' should read 'Barbashin-Krasovskii-LaSalle'.
  2. [Preliminaries] Notation for the sigmoid mapping and the integral functions should be introduced with explicit domain and range statements to avoid ambiguity when the safe set is not the unit ball.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive review. The comments correctly identify areas where additional clarity on assumptions and explicit proof details would strengthen the manuscript. We address each major comment below and will incorporate the indicated revisions.

read point-by-point responses

  1. Referee: [Introduction and the section defining the sigmoid diffeomorphism] The abstract and introduction refer to results holding for 'a class of nonlinear systems,' yet the precise membership conditions (e.g., the safe set being star-shaped or diffeomorphic to an open ball so that the sigmoid map is a global C^1-diffeomorphism onto R^n) are not stated. Without these conditions or an explicit verification that the mapping and its inverse are C^1 and that no additional invariant sets are created by the closed-loop dynamics in lifted coordinates, the applicability of the Barbashin-Krasovskii-LaSalle principle and the safety guarantee cannot be confirmed. This is load-bearing for the central claim.

    Authors: We agree that the precise membership conditions for the class of systems and safe sets must be stated explicitly to support the central claims. In the revised manuscript we will insert a new paragraph immediately after the problem formulation in the introduction and expand the sigmoid-diffeomorphism section to specify that the safe set is a bounded, open, star-shaped domain (with respect to the origin) that is C^1-diffeomorphic to the open unit ball. Under this geometry the proposed sigmoid map and its inverse are globally C^1, and we will add a short lemma verifying that the closed-loop vector field in lifted coordinates introduces no additional invariant sets beyond the origin. These additions will directly justify the invocation of the Barbashin-Krasovskii-LaSalle principle and the forward-invariance guarantee. revision: yes

  2. Referee: [The section on sigmoid integral functions and stability analysis] The claim that the introduced sigmoid integral functions are positive-definite, proper Lyapunov candidates whose derivatives are non-positive with zero set containing only the target equilibrium rests on the validity of the coordinate change and the closed-loop vector field. The abstract invokes the invariance principle but does not provide the explicit computation of the derivative or the characterization of the largest invariant set; if these steps are omitted or rely on unstated assumptions about the safe-set geometry, the stability proof is incomplete.

    Authors: The stability-analysis section already derives the Lie derivative of the sigmoid-integral Lyapunov function along the closed-loop dynamics and characterizes the largest invariant set on which the derivative vanishes as containing only the target equilibrium. Nevertheless, we acknowledge that these steps can be presented with greater explicitness. In the revision we will (i) write out the full expression for the derivative, (ii) detail the application of the invariance principle step by step, and (iii) explicitly connect the star-shaped geometry assumption to the positive-definiteness, properness, and the zero set of the derivative. This will render the proof self-contained without altering its substance. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation relies on standard tools

full rationale

The paper introduces a sigmoid-based diffeomorphic mapping to lift the safe set and proposes sigmoid integral functions as Lyapunov candidates, then applies the standard Barbashin-Krasovskii-LaSalle invariance principle in the transformed coordinates to conclude asymptotic stability and forward invariance. No load-bearing step reduces by construction to a fitted parameter, self-citation chain, or renamed known result; the central claims are conditional on the mapping being a global C1-diffeomorphism and the integral functions being valid Lyapunov candidates for the stated class of systems, which are presented as modeling assumptions rather than derived from the outputs. The framework is self-contained against external mathematical benchmarks (diffeomorphisms, Lyapunov theory, invariance principle) with no visible self-referential loops in the provided derivation outline.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 1 invented entities

The framework depends on the existence of a global diffeomorphism induced by the sigmoid map and on the validity of the new integral functions as Lyapunov candidates; these are introduced without external verification in the abstract.

axioms (2)
  • domain assumption The sigmoid-based mapping is a diffeomorphism from the constrained state space onto an unbounded domain.
    Invoked to lift the original constrained problem into an unbounded coordinate system where standard stabilization techniques apply.
  • ad hoc to paper Sigmoid integral functions are valid Lyapunov candidates that remain well-conditioned near constraint boundaries.
    New class of functions introduced specifically to handle numerical issues at the boundary of the safe set.
invented entities (1)
  • sigmoid integral functions no independent evidence
    purpose: Lyapunov candidates that address numerical conditioning near constraint boundaries
    Introduced in the abstract to enable the stability proof; no independent evidence of their properties is supplied.
