Stabilizers for Compiling Logical Circuits under Hardware Constraints

Jack Weinberg , Narayanan Rengaswamy

Authors on Pith no claims yet

Pith reviewed 2026-05-08 03:49 UTC · model grok-4.3

classification 🪐 quant-ph cs.ITmath.IT

keywords quantum error correctioncircuit compilationhardware constraintsstabilizer codesleast squares optimizationspecial unitary groupfault-tolerant quantum computing

0 comments

The pith

Error-correcting codes let compilers pick physically distinct yet logically equivalent operators that fit hardware constraints directly.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that the redundancy built into quantum error-correcting codes creates classes of physically different operators that perform the same logical action. This freedom lets one replace a target operator with an alternative that matches the device's native connections and operations, such as skipping swap gates for limited qubit connectivity. The central technical step is to recast the search for the best such alternative as a least-squares problem inside the special unitary group and to solve it in closed form. A reader cares because this directly links the machinery of fault tolerance to the practical problem of circuit compilation on real devices. The approach is worked out for the [[4,2,2]] code and points toward compressed-sensing techniques for scaling it up.

Core claim

Treating fault tolerance through error-correcting codes supplies redundancy that renders physically distinct operators logically indistinguishable. In the general setting of the special unitary group this redundancy is used to reduce the problem of selecting a compilation-preferred physical operator to a least-squares optimization whose solution is available in closed form. Using this construction it becomes possible to realize a logical target via a distinct physical Hamiltonian that is already native to the hardware, thereby avoiding the insertion of costly swaps required by connectivity constraints.

What carries the argument

The stabilizer-induced logical equivalence classes of operators, which convert the hardware-constrained choice into a least-squares problem over the special unitary group with an explicit closed-form solution.

If this is right

Compilers can replace a desired logical gate by any other member of its stabilizer equivalence class to match the device's native Hamiltonian terms.
Hardware-connectivity violations can be resolved without adding swap layers by selecting an alternative physical realization.
The same least-squares construction extends to arbitrary stabilizer codes beyond the [[4,2,2]] example used for illustration.
Links to compressed sensing suggest a route to scalable selection among the many equivalent operators supplied by larger codes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The method could be folded into existing quantum compilers so that logical-circuit optimization automatically explores the physical-operator orbit.
It may generalize to additional hardware restrictions such as restricted gate libraries or known noise channels by changing the objective function inside the least-squares problem.
For near-term devices the approach offers a way to lower the overhead of fault-tolerant implementations by reducing the number of inserted routing operations.

Load-bearing premise

The redundancy introduced by an error-correcting code always supplies at least one physically distinct yet logically equivalent operator that the target hardware can implement without extra swaps or gates.

What would settle it

A concrete counter-example: a target logical operator together with a given hardware connectivity graph for which every operator in its logical equivalence class requires at least one swap or non-native gate.

Figures

Figures reproduced from arXiv: 2604.25042 by Jack Weinberg, Narayanan Rengaswamy.

**Figure 1.** Figure 1: Toy Connectivity Graph Hamiltonians Hj - furnishing a basis for su(2n) - with weights wj for j in index set J : Definition III.29. J : C 2 n×2 n −→ C 2 n×2 n γ 7−→ X j∈J wj projHj γ (50) Our cost function becomes: ∥J(CA(Hstabilizer)C †+ C view at source ↗

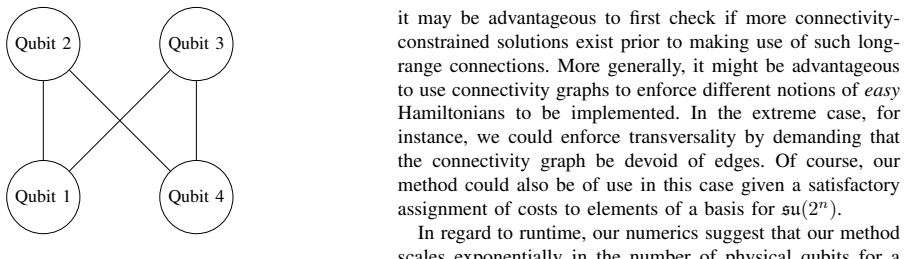

**Figure 2.** Figure 2: Non-Trivial Connectivity Graph The na¨ıve Hamiltonian implementation of CNOT is then HCNOT1→2 = CK (Hlogical ⊕ 012) K†C † . (64) We find that the na¨ıve implementation of CNOT on the [[4, 2, 2]] code is not accessible. However, by applying Theorem III.20 we find that the SWAP Hamiltonian HSWAP2↔4 ∝ X2X4 + Y2Y4 + Z2Z4 (65) is indeed an accessible implementation of CNOT. B. Non-Trivial Example Consider the … view at source ↗

read the original abstract

To implement quantum algorithms on a quantum computer, we must overcome the twin problems of fault-tolerance -- how can we realize a relatively noiseless computation by cleverly combining noisy components? -- and compilation -- how can we realize an arbitrary quantum algorithm given the basic operations available on the quantum device at hand? We show how treating the former problem via error-correcting codes enables greater flexibility in resolving the latter. Specifically, we explicitly leverage the fact that error-correcting codes introduce redundancy which renders physically distinct operators logically indistinguishable. In terms of computation, it suffices to implement any operator logically equivalent to some target, yet from a compilation perspective, certain choices may be preferable to others. Our novel contribution is making this intuition precise in the general setting of the special unitary group. In particular, we describe how to reduce the problem of making a compilation-ideal choice to a least squares problem and provide a closed form solution thereof. Using our framework, it is possible to circumvent inserting costly swaps to adhere to hardware connectivity; instead, we could realize the logical target through a distinct physical Hamiltonian that is natively accessible. We elucidate our approach using the $[[4,2,2]]$ code. We discuss connections to compressed sensing that may pave the way to efficient compilation leveraging physical degrees of freedom.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper turns stabilizer redundancy into a least-squares problem over the special unitary group with a closed-form solution, shown on the [[4,2,2]] code to pick hardware-native logical operators.

read the letter

The main thing is that they formalize picking among logically equivalent operators as a least-squares minimization in the special unitary group and give a closed-form answer. This lets you substitute a different physical Hamiltonian that matches the device's native connectivity instead of adding swaps. The [[4,2,2]] example makes the payoff concrete by showing an alternative operator that avoids extra gates while staying logically identical. That part is useful and directly tied to real hardware limits. They also keep the compressed-sensing link as future work rather than overclaiming efficiency now. The reduction itself lines up with standard Lie-algebra treatments of gauge freedom in stabilizers, so the central framing holds up without obvious contradictions. The soft spots are limited. The abstract skips the derivation steps, which makes it hard to judge how general the closed form really is or what error bounds come with it. It is also unclear how often the solution lands on a truly native term across larger codes or different connectivities. These are normal gaps at this stage rather than load-bearing problems. This is for people who work on fault-tolerant compilation and want to exploit code redundancy for hardware matching. A reader comfortable with group methods or optimization will see the value quickly. The idea is coherent, the example is worked out, and the thinking engages the literature honestly, so it deserves a serious referee to check the math and test it on more cases. I would send it to peer review.

Referee Report

0 major / 3 minor

Summary. The manuscript develops a framework for quantum circuit compilation under hardware constraints by exploiting the redundancy in quantum error-correcting codes. It observes that stabilizer codes allow multiple physically distinct operators to act identically on the logical code space, and reduces the task of selecting a compilation-friendly representative (e.g., one realizable by native hardware terms without swaps) to a least-squares problem over the special unitary group, for which a closed-form solution is supplied. The method is illustrated on the [[4,2,2]] code and connections to compressed sensing are noted.

Significance. If the claimed closed-form solution is correctly derived, the work supplies a systematic, Lie-algebra-based procedure for using code-space gauge freedom to mitigate connectivity overhead in fault-tolerant compilation. The explicit reduction to least squares and the link to compressed sensing constitute concrete strengths that could enable more efficient exploitation of physical degrees of freedom.

minor comments (3)

[Abstract] Abstract: the statement that a closed-form solution exists would be strengthened by including the explicit expression or at least the key matrix equation that defines the solution.
[§3] The least-squares formulation (presumably in §3) should explicitly state the inner product or norm used on the Lie algebra and confirm that the solution remains within the stabilizer coset.
[§4] In the [[4,2,2]] example, a side-by-side comparison of gate count or depth with and without the stabilizer-based choice would make the practical benefit clearer.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their positive and accurate summary of our manuscript, as well as for recommending minor revision. We are pleased that the core technical contributions—the reduction of logical operator selection to a least-squares problem over the special unitary group and the noted connections to compressed sensing—were recognized as strengths.

read point-by-point responses

Referee: The manuscript develops a framework for quantum circuit compilation under hardware constraints by exploiting the redundancy in quantum error-correcting codes. It observes that stabilizer codes allow multiple physically distinct operators to act identically on the logical code space, and reduces the task of selecting a compilation-friendly representative (e.g., one realizable by native hardware terms without swaps) to a least-squares problem over the special unitary group, for which a closed-form solution is supplied. The method is illustrated on the [[4,2,2]] code and connections to compressed sensing are noted.

Authors: We thank the referee for this concise and faithful summary of the manuscript. The description correctly captures our use of stabilizer redundancy to recast the choice of physical operator as a least-squares problem with closed-form solution, as well as the illustrative example and compressed-sensing discussion. revision: no
Referee: If the claimed closed-form solution is correctly derived, the work supplies a systematic, Lie-algebra-based procedure for using code-space gauge freedom to mitigate connectivity overhead in fault-tolerant compilation. The explicit reduction to least squares and the link to compressed sensing constitute concrete strengths that could enable more efficient exploitation of physical degrees of freedom.

Authors: We appreciate the referee's assessment of the potential impact. The closed-form solution is derived in Section III of the manuscript via the geometry of the special unitary group and the projection onto the stabilizer coset; the derivation is self-contained and we believe it is correct. No changes are required. revision: no

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper frames the choice among logically equivalent operators (enabled by code redundancy) as a least-squares minimization over the special unitary group and supplies a closed-form solution derived from that group structure. This is a direct mathematical reduction from the stabilizer formalism and hardware connectivity constraints, not a self-referential definition, a fitted parameter renamed as a prediction, or a result justified only by self-citation. No equations in the abstract or described derivation chain collapse the output back to the input by construction, and the method remains externally falsifiable against standard Lie-algebra treatments of gauge freedom in codes.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The framework rests on standard properties of stabilizer codes and the special unitary group; no new entities or fitted parameters are introduced in the abstract.

axioms (2)

domain assumption Error-correcting codes introduce redundancy that renders physically distinct operators logically indistinguishable.
Explicitly invoked in the abstract as the enabling fact for greater compilation flexibility.
standard math The structure of the special unitary group permits reduction of operator selection to a least-squares problem.
Stated as the general setting in which the closed-form solution is derived.
