Correlation Between Lunar Surface and Exospheric Sodium: Effects of Albedo-Driven Temperature on Multilayer Sodium Reservoirs Rather Than Surface Abundance Variations

A. Devaraj , S. Narendranath , Sreeja. S. Kartha , Netra S. Pillai

Authors on Pith no claims yet

Pith reviewed 2026-05-07 14:24 UTC · model grok-4.3

classification 🌌 astro-ph.EP astro-ph.SR

keywords lunar exospheresodiumthermal desorptionalbedosurface temperaturemultilayer reservoirsrelease efficiencyexospheric distribution

0 comments

The pith

Lunar exospheric sodium distribution follows surface temperature and albedo patterns through temperature-dependent release from multilayer reservoirs rather than variations in surface sodium abundance.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper combines surface sodium abundance data with exospheric measurements and surface temperature records to test what controls sodium in the Moon's thin atmosphere. It shows that exospheric sodium is enhanced over darker, warmer surface regions even though measured surface sodium levels do not differ significantly between those regions and brighter highlands. Surface sodium itself depletes in sunlight and builds up at night, consistent with release from loosely bound surface layers whose desorption rate rises with temperature. This points to spatial differences in how efficiently sodium leaves the surface, driven by albedo-influenced heating, as the main driver of exospheric structure. The result matters because it shifts emphasis from static surface composition to dynamic thermo-physical release processes when modeling how volatiles escape airless bodies.

Core claim

Surface sodium abundance measurements show no substantial compositional contrast between mare and highland terrains, yet exospheric sodium column densities exhibit clear longitudinal enhancements above low-albedo mare regions. These exospheric patterns align closely with surface temperature and albedo distributions. The alignment indicates that thermal desorption from weakly bound multilayer sodium reservoirs, whose efficiency varies with albedo-driven daytime temperatures, governs sodium release at low altitudes and thereby sets the observed exospheric structure, rather than any spatial differences in total surface sodium content.

What carries the argument

Albedo-driven surface temperature modulating thermal desorption rates from multilayer (>1 ML) sodium reservoirs on the lunar surface

If this is right

Exospheric sodium is preferentially released above low-albedo surfaces because higher daytime temperatures increase desorption from the multilayer reservoirs.
Surface sodium undergoes consistent diurnal depletion and nighttime replenishment across different terrains due to the same temperature-dependent reservoir mechanism.
Thermal desorption dominates sodium supply to the exosphere at low altitudes, while non-thermal processes play lesser roles under the observed conditions.
Models of lunar volatile loss must incorporate albedo and temperature effects on reservoir release to reproduce observed exospheric distributions without invoking surface abundance maps.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same temperature-albedo control on multilayer reservoirs may govern release of other moderately volatile elements such as potassium in the lunar environment.
Exosphere models for other airless bodies could be improved by treating surface thermo-physical properties as primary controls on volatile supply rather than assuming fixed surface inventories.
In-situ measurements of desorption kinetics under varying solar illumination would provide a direct test of the release-efficiency hypothesis.
Over geological time the mechanism implies that sodium retention depends more on surface thermal properties than on initial deposition patterns.

Load-bearing premise

The surface sodium abundance measurements show no real mare-highland compositional differences and that any apparent variations are due only to measurement effects or the multilayer reservoir dynamics rather than actual abundance gradients.

What would settle it

Detection of exospheric sodium enhancements that match measured surface sodium abundance differences even in regions where temperature and albedo are held constant, or direct in-situ confirmation of large surface sodium abundance contrasts that persist independently of temperature cycles.

Figures

Figures reproduced from arXiv: 2604.25281 by A. Devaraj, Netra S. Pillai, S. Narendranath, Sreeja. S. Kartha.

**Figure 1.** Figure 1: The Na abundance (wt%) measured by CLASS onboard Chandrayaan-2 is shown in the figure, with ground tracks overlaid on the global albedo map from the Wide Angle Camera (WAC) of the Lunar Reconnaissance Orbiter (NASA PDS) track. To estimate the abundance of Na, we first identified observation intervals with detectable Mg, Al, and Si XRF signals and constructed integrated 96 s spectra for Na Kα analysis. Usi… view at source ↗

**Figure 2.** Figure 2: The left panel shows the variation of noon-time average surface Na wt% with the corresponding noon-time surface temperature derived from DIVINER observations. The right panel displays the Na wt% averaged across local solar time bins (black pentagons connected with dashed line), along with the bolometric temperature measured by DIVINER as a function of local time for different latitude intervals. The red sh… view at source ↗

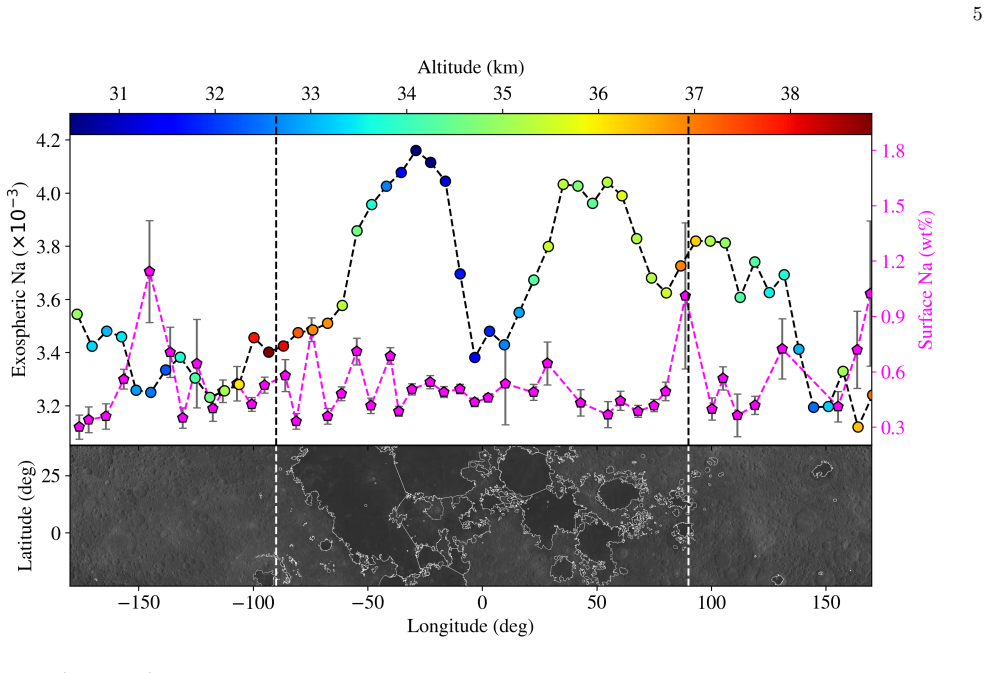

**Figure 3.** Figure 3: (Top panel) Longitudinal variation of Na exospheric line strength and surface Na abundance. Circular markers with black connected dashed line represent exospheric Na variations from LADEE, while magenta pentagon markers with the connected dashed line denote surface Na abundance (wt%) from CLASS. The exospheric data are color-coded by the average altitude of the LADEE spacecraft within each longitude bin. (… view at source ↗

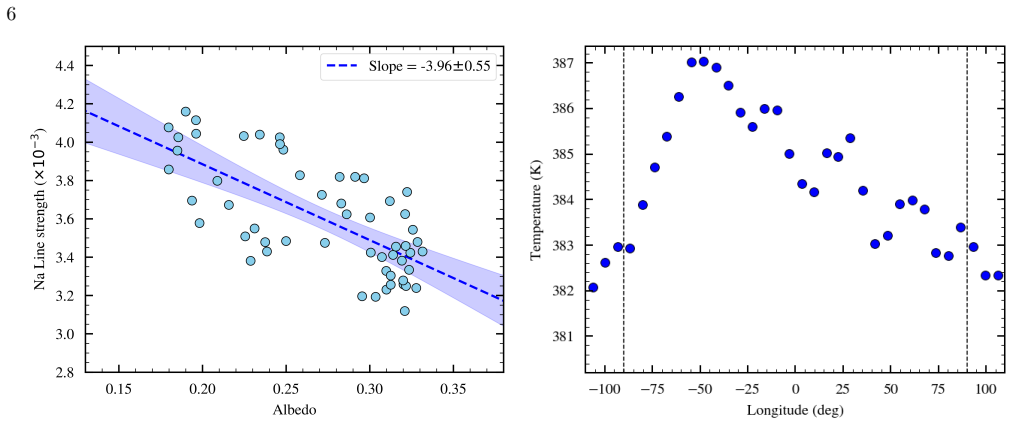

**Figure 4.** Figure 4: The left panel depicts the correlation between Na abundance in the exosphere with the average surface albedo, indicating a negative correlation. The right panel shows the variation of average temperature from DIVINER plotted against Lunar longitude. It shows a peak above the mare region. The dashed black line shows the ±90 degree longitude. This indicates that the exospheric Na is effected by the albedo dr… view at source ↗

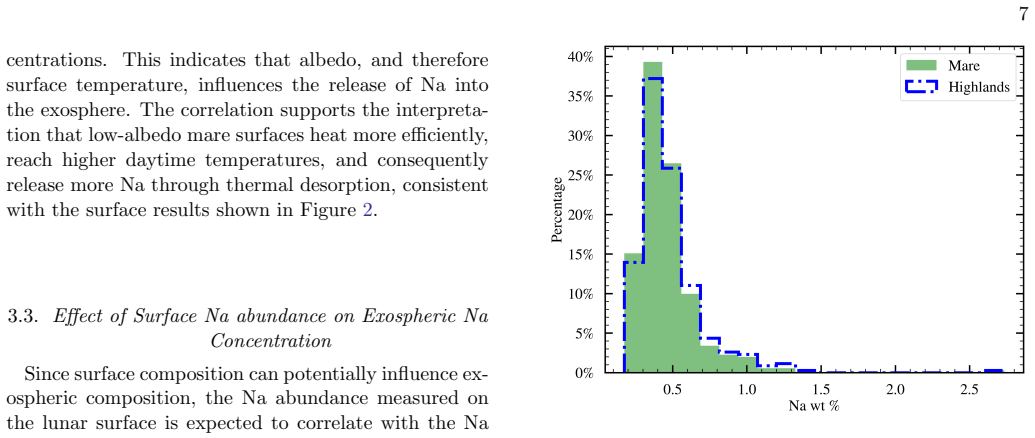

**Figure 5.** Figure 5: The percentage histogram shows the surface Na abundance (wt%) in the mare and highland regions, as measured by CLASS. Both regions exhibit similar Na abundance view at source ↗

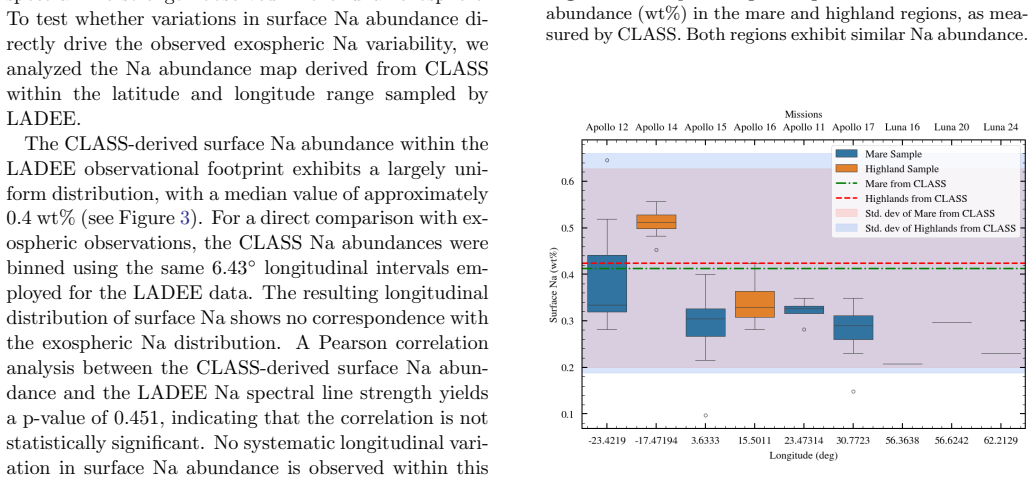

**Figure 6.** Figure 6: The comparison of ground-truth measurements from mare and highlands. The median abundance and standard deviation derived from CLASS are also indicated. 4. DISCUSSION Sodium is a moderately volatile element that is present both on the lunar surface and in the lunar SBE. The sodium population in the lunar environment is governed by a balance between surface release processes and loss mechanisms that remove… view at source ↗

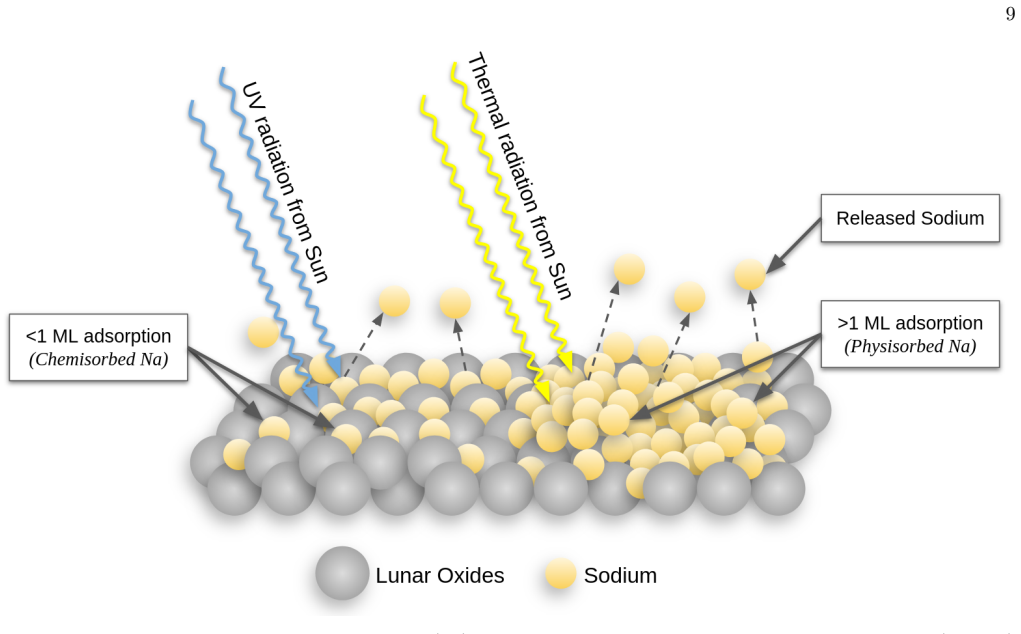

**Figure 7.** Figure 7: The figure illustrates two modes of sodium (Na) adsorption on lunar surface oxides. In the sub-monolayer (< 1 ML) regime, Na is chemisorbed onto oxide surfaces through ionic bonds, which require energies >6 eV to break and are released primarily by solar UV radiation, contributing to the suprathermal exospheric population. In contrast, when available oxygen sites are depleted, Na accumulates in a multilaye… view at source ↗

read the original abstract

Sodium (Na) is a moderately volatile element in the lunar exosphere, released from the surface through thermal and non-thermal processes. We present a combined analysis of Chandrayaan-2 CLASS surface Na abundance, LADEE-UVS exospheric measurements, and DIVINER surface temperature data to investigate the coupling between surface and exospheric Na. Surface Na exhibits a pronounced diurnal modulation, with depletion during lunar daytime and enhancement at dawn and dusk, consistent with thermal desorption from weakly bound multilayer reservoirs (>1 ML). Exospheric Na shows longitudinal enhancements above low-albedo mare regions, whereas CLASS-derived surface abundances reveal no significant compositional differences between mare and highland terrains. The observed exospheric structure correlates strongly with surface temperature and albedo, implicating temperature-dependent thermal desorption as the dominant release mechanism at low altitudes. These findings indicate that the spatial variability of Na release efficiency, rather than surface Na abundance, primarily governs the distribution of lunar exospheric sodium. This study places a new observational evidence on sodium retention on the lunar surface and release mechanisms and demonstrates the dominant influence of surface thermo-physics in controlling the near-surface lunar sodium exosphere.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper uses CLASS, LADEE, and DIVINER data to argue that albedo and temperature control Na release efficiency from multilayer reservoirs more than surface abundance differences, but the uniformity claim rests on unexamined retrieval assumptions.

read the letter

The main point is that exospheric sodium structure tracks surface temperature and albedo patterns rather than compositional differences in surface sodium. By stacking Chandrayaan-2 CLASS abundance maps against LADEE-UVS exosphere observations and DIVINER temperatures, the authors show enhancements over low-albedo mare regions despite CLASS reporting no clear mare-highland sodium contrast. They tie the observed diurnal surface sodium depletion and recovery to thermal desorption from weakly bound multilayer reservoirs instead of real abundance swings. This is a clean observational cross-check that adds a concrete constraint to existing volatile release models without introducing new free parameters or heavy simulations. The multi-instrument layering is the real contribution here; it separates thermo-physical effects from abundance in a way single-dataset studies have not done as directly. The correlations look plausible on the face of it and avoid obvious circularity by relying on independent measurements. The soft spot is exactly where the stress-test note flags: the argument needs CLASS sodium retrievals to be free of albedo or temperature biases, yet the abstract gives no error bars, exclusion rules, or tests for whether the apparent uniformity holds after accounting for those surface properties. If the X-ray or gamma retrieval embeds sensitivity to the very albedo and temperature gradients that differ between mare and highlands, the no-difference result could be an artifact and real abundance variations might still contribute. Diurnal modulation is attributed to reservoirs without shown independence from measurement conditions. This is the sort of incremental observational paper that belongs in a planetary science journal for readers working on lunar exospheres or surface-atmosphere coupling. It is worth sending to referees because the dataset combination is new and the question is live, even though the methods section will need expansion on uncertainties and bias checks before it can be taken as settled.

Referee Report

2 major / 1 minor

Summary. The manuscript presents a combined analysis of Chandrayaan-2 CLASS surface sodium abundance maps, LADEE-UVS exospheric sodium observations, and DIVINER surface temperature data. It reports a diurnal modulation in surface Na consistent with thermal desorption from multilayer reservoirs, finds no significant mare-highland differences in CLASS-derived surface Na abundances, observes exospheric Na enhancements over low-albedo mare regions, and concludes that temperature- and albedo-dependent release efficiency from these reservoirs, rather than spatial variations in surface Na abundance, primarily controls the exospheric sodium distribution.

Significance. If the central interpretation holds, the work provides valuable multi-instrument evidence that surface thermo-physical properties dominate the near-surface lunar sodium exosphere over compositional heterogeneity. The use of three independent datasets (CLASS, LADEE-UVS, DIVINER) to link surface temperature, albedo, and exospheric structure is a notable strength, offering falsifiable predictions for future observations and models of volatile release on airless bodies.

major comments (2)

[Abstract] Abstract: The assertion that 'CLASS-derived surface abundances reveal no significant compositional differences between mare and highland terrains' is load-bearing for the claim that abundance variations do not govern exospheric structure. However, the manuscript provides no details on the statistical methods, error bars, data exclusion criteria, or tests for systematic biases in the CLASS Na retrieval arising from albedo or temperature differences between mare and highlands. This omission leaves open the possibility that apparent uniformity is an artifact of the retrieval.
[Abstract] Abstract and Results: The claim of strong correlation between exospheric Na structure and surface temperature/albedo, implicating temperature-dependent thermal desorption as the dominant mechanism, lacks reported quantitative measures (e.g., correlation coefficients, p-values) or details on how multilayer reservoir assumptions were tested against the data, undermining the statistical support for the interpretation over alternative abundance-driven explanations.

minor comments (1)

[Abstract] The abstract and manuscript would benefit from explicit statements on data processing steps, such as how diurnal modulation was isolated from potential instrumental or viewing geometry effects in CLASS and LADEE-UVS.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive feedback, which highlights important areas for improving the transparency of our statistical analysis. We have revised the manuscript to provide the requested details on methods, error handling, and quantitative metrics. Our point-by-point responses follow.

read point-by-point responses

Referee: [Abstract] Abstract: The assertion that 'CLASS-derived surface abundances reveal no significant compositional differences between mare and highland terrains' is load-bearing for the claim that abundance variations do not govern exospheric structure. However, the manuscript provides no details on the statistical methods, error bars, data exclusion criteria, or tests for systematic biases in the CLASS Na retrieval arising from albedo or temperature differences between mare and highlands. This omission leaves open the possibility that apparent uniformity is an artifact of the retrieval.

Authors: We agree that explicit statistical details are required to substantiate this claim. The revised manuscript adds a new paragraph in the Methods section describing the two-sample statistical tests (Kolmogorov-Smirnov and t-tests) applied to mare versus highland Na abundances, along with reported means, standard errors, and data exclusion criteria based on retrieval signal-to-noise thresholds. We also include results from regression analyses testing for albedo- and temperature-dependent biases in the CLASS retrievals, which show no significant trends. These additions demonstrate that the uniformity is not an artifact. revision: yes
Referee: [Abstract] Abstract and Results: The claim of strong correlation between exospheric Na structure and surface temperature/albedo, implicating temperature-dependent thermal desorption as the dominant mechanism, lacks reported quantitative measures (e.g., correlation coefficients, p-values) or details on how multilayer reservoir assumptions were tested against the data, undermining the statistical support for the interpretation over alternative abundance-driven explanations.

Authors: We accept this criticism and have added the missing quantitative support. The revised text reports Pearson correlation coefficients and p-values for exospheric Na versus temperature and albedo. We have also expanded the Results and Methods to describe the multilayer reservoir tests, including forward modeling of desorption rates for varying reservoir thicknesses and direct comparison to the observed diurnal exospheric variations. These changes provide the statistical grounding requested and reinforce the temperature-driven interpretation. revision: yes

Circularity Check

0 steps flagged

No significant circularity; claims rest on direct comparison of independent datasets

full rationale

The paper derives its central conclusion—that exospheric Na distribution is governed by temperature-dependent release efficiency from multilayer reservoirs rather than spatial abundance variations—through direct observational comparison of three external datasets: Chandrayaan-2 CLASS surface Na maps, LADEE-UVS exospheric measurements, and DIVINER surface temperatures. The key statement that CLASS shows 'no significant compositional differences between mare and highland terrains' is presented as an empirical finding from the data, not as a fitted parameter or self-defined input. No equations, predictions, or uniqueness theorems are invoked that reduce by construction to the paper's own inputs, self-citations, or ansatzes. The argument remains self-contained against external benchmarks without load-bearing internal loops.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The interpretive claim rests on the assumption that CLASS surface measurements faithfully represent true Na abundance without terrain-dependent biases and that observed diurnal and longitudinal patterns arise from thermal desorption physics rather than other unmodeled processes.

axioms (1)

domain assumption Thermal desorption from weakly bound multilayer reservoirs (>1 ML) is the dominant low-altitude release mechanism for lunar sodium.
Invoked to explain diurnal modulation and correlation with temperature without quantitative modeling shown in the abstract.
