Elucidating mechanism of optical cavities in superconducting strip single photon detectors using transmission line and impedance models

Hiroki Kutsuma , Taro Yamashita This is my paper

Pith reviewed 2026-05-07 16:59 UTC · model grok-4.3

classification 🪐 quant-ph cond-mat.supr-conphysics.optics
keywords SSPDoptical cavitiesimpedance matchingabsorptancetransmission line modelsuperconducting detectors
0
0 comments X

The pith

SSPDs with optical cavities maximize absorptance when input impedance matches the impedance of the input medium.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper uses transmission line models to derive exact analytical formulas for light absorptance in superconducting strip single photon detectors equipped with single-side, double-side, or multilayer optical cavities. These formulas match results from numerical simulations to high accuracy. An impedance model then shows that maximum absorptance occurs exactly when the combined input impedance of the SSPD and cavity equals the impedance of the incident medium. This matching supplies a direct design rule for cavity geometry and material choices. The same principle is stated to extend to other superconducting detectors such as microwave kinetic inductance detectors and transition-edge sensors.

Core claim

SSPDs with optical cavities achieve the maximum absorptance when their input impedance matches the impedance of the input medium.

What carries the argument

The impedance model, which identifies maximum absorptance as the condition of impedance matching between the SSPD-cavity structure and the input medium.

If this is right

  • Analytical absorptance formulas enable rapid design of single-side, double-side, and dielectric multilayer cavities without repeated numerical simulations.
  • Impedance matching supplies an explicit criterion for choosing cavity thickness, dielectric constants, and strip geometry.
  • The same matching principle applies to the design of microwave kinetic inductance detectors and transition-edge sensors.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Impedance matching may function as a general optimization rule for cavity-enhanced superconducting sensors across different wavelengths.
  • Measuring input impedance on fabricated devices with intentionally varied cavity parameters would test whether the ideal matching condition survives real fabrication tolerances.
  • Adding small resistive or dispersive terms to the models could quantify how far real devices depart from the predicted maximum absorptance.

Load-bearing premise

The transmission line and impedance models capture all relevant optical and electrical behavior of the real SSPD-cavity system without significant unmodeled losses, dispersion, or fabrication imperfections.

What would settle it

Fabricate or simulate an SSPD-cavity device whose measured input impedance deviates from the input-medium impedance and show that absorptance is not at its predicted maximum.

Figures

Figures reproduced from arXiv: 2604.25425 by Hiroki Kutsuma, Taro Yamashita.

Figure 1
Figure 1. Figure 1: Schematics of SSPDs with optical cavities. (a) SSPD with single-side optical cavity. (b) SSPD with double-side optical cavity. (c) SSPD with dielectric multi-layer optical cavity. The two dielectric layers with different refractive indices are stacked in N periods. where γw, ηw, and dw are the propagation constant, characteristic impedance, and thickness of the wire layer, respectvely. Because we have set … view at source ↗
Figure 2

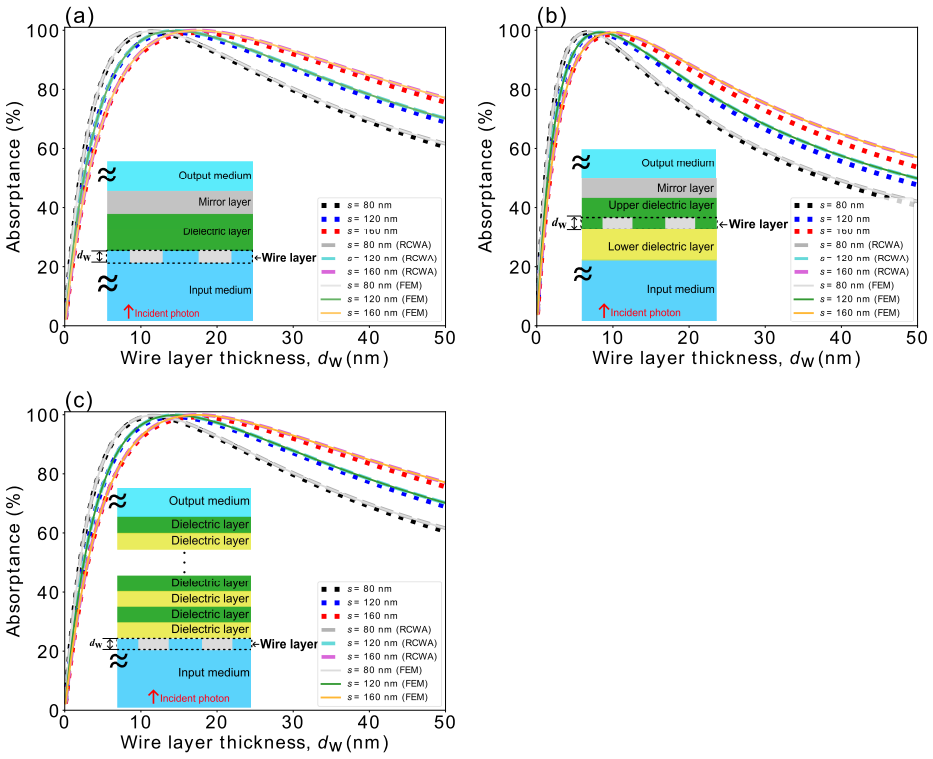

Figure 2. Figure 2: Comparisons of analytical and simulation results. In each figure, the results represented by the dotted lines are calculated using the analytical formulae given by the transmission line model, and those represented by dashed (solid) lines are obtained from the simulations using RCWA (FEM). (a) Dependence of the absorptance on the thickness of the wire layer of SSPDs with single-side optical cavities. (b) D… view at source ↗
Figure 3

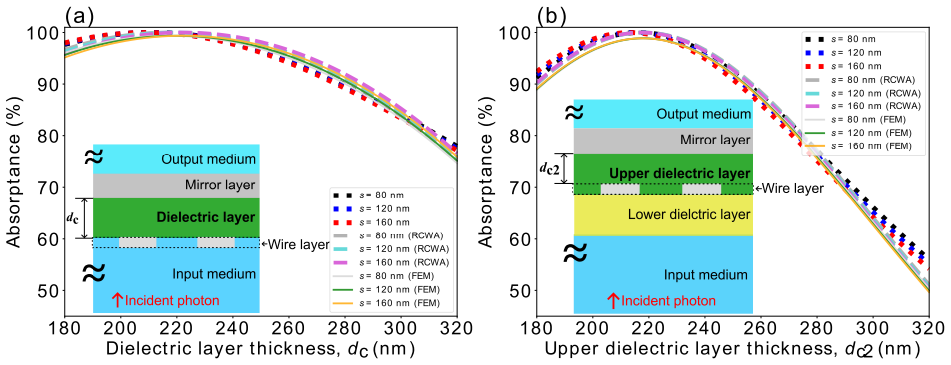

Figure 3. Figure 3: Comparisons between analytical and simulation results. In each figure, the results represented by the dotted lines are calculated using the analytical formula given by the transmission line model, and those represented by the dashed (solid) lines are obtained from simulations using RCWA (FEM). (a) Dependence of the absorptance on the thickness of the dielectric layer of SSPDs with single-side optical cavit… view at source ↗
Figure 4
Figure 4. Figure 4: Dependence of the absorptance and ratio of the input impedance to the impedance of the input media on the thickness of the wire layer. The upper panel of each figure shows the absorptance as a function of the thickness of the wire layer, determined by Eq. (9) in (a), Eq. (17) in (b), and Eq. (34) in (c). The lower panel shows the ratio of the absolute value of the input impedance of SSPDs with the cavities… view at source ↗

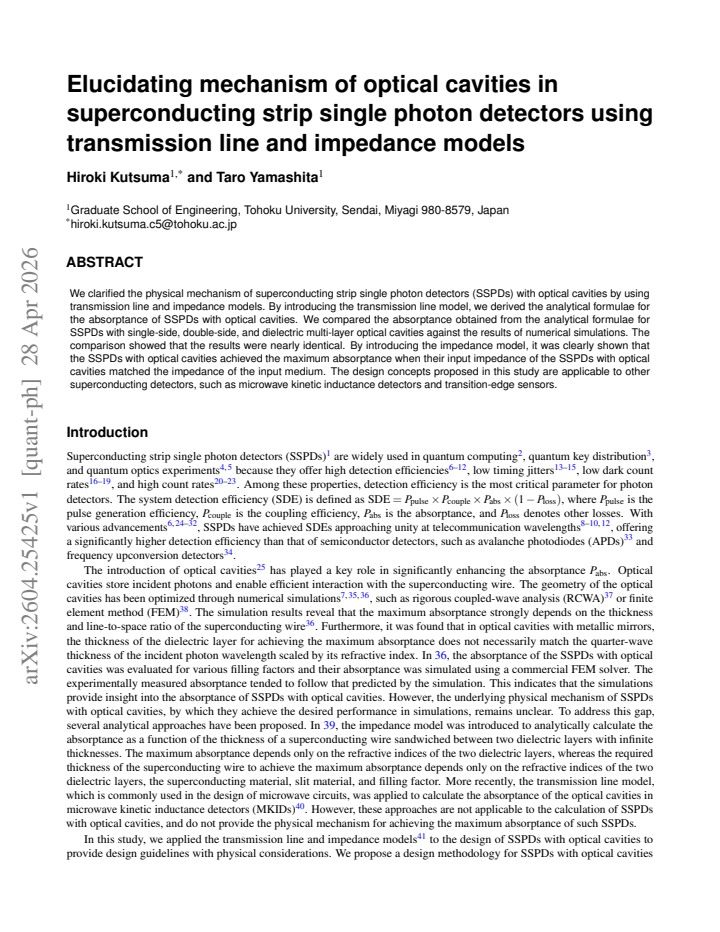

read the original abstract

We clarified the physical mechanism of superconducting strip single photon detectors (SSPDs) with optical cavities by using transmission line and impedance models. By introducing the transmission line model, we derived the analytical formulae for the absorptance of SSPDs with optical cavities. We compared the absorptance obtained from the analytical formulae for SSPDs with single-side, double-side, and dielectric multi-layer optical cavities against the results of numerical simulations. The comparison showed that the results were nearly identical. By introducing the impedance model, it was clearly shown that the SSPDs with optical cavities achieved the maximum absorptance when their input impedance of the SSPDs with optical cavities matched the impedance of the input medium. The design concepts proposed in this study are applicable to other superconducting detectors, such as microwave kinetic inductance detectors and transition-edge sensors.

Editorial analysis
