arxiv: 2604.25757 · v1 · submitted 2026-04-28 · 💻 cs.CR · cs.AI· cs.RO· cs.SY· eess.SY

Recognition: unknown

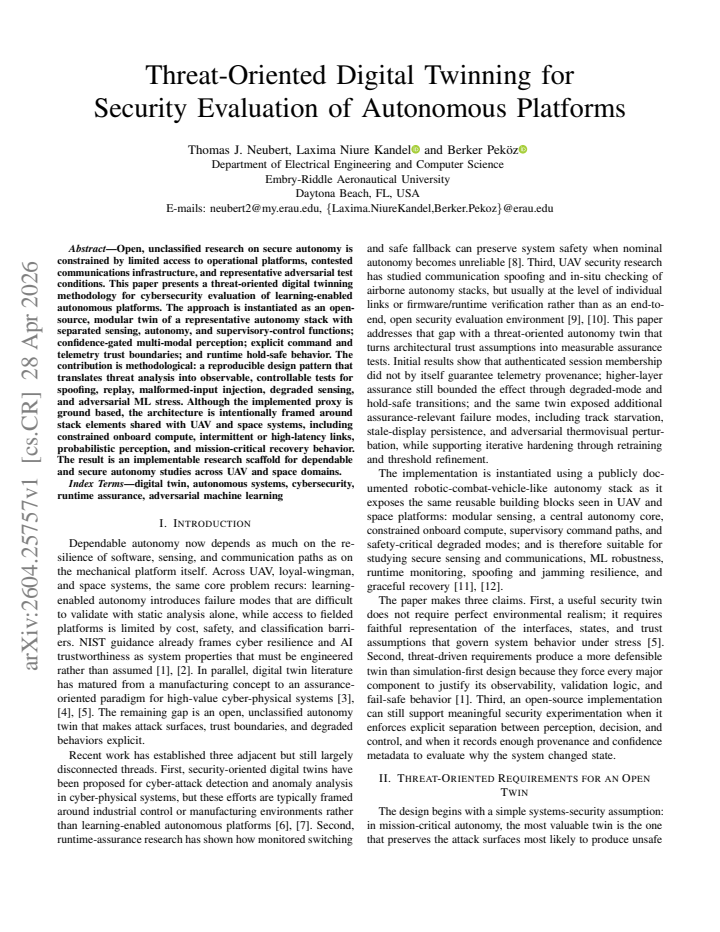

Threat-Oriented Digital Twinning for Security Evaluation of Autonomous Platforms

Thomas J. Neubert , Laxima Niure Kandel , Berker Pek\"oz

Authors on Pith no claims yet

Pith reviewed 2026-05-07 15:45 UTC · model grok-4.3

classification 💻 cs.CR cs.AIcs.ROcs.SYeess.SY

keywords digital twinautonomous systemscybersecurity evaluationthreat modelingspoofing attacksadversarial machine learningUAV securityspace systems

0 comments

The pith

A modular digital twin architecture turns threat models into observable, repeatable security tests for autonomous platforms.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper sets out to solve the practical barrier that open security research on autonomous systems faces: researchers lack routine access to operational platforms, contested links, and realistic adversarial conditions. It does so by defining a threat-oriented digital twinning method that converts high-level threat analysis into concrete, controllable experiments. The method is realized as an open-source twin that isolates sensing, autonomy, and supervisory control, adds explicit trust boundaries and hold-safe recovery, and supports tests for spoofing, replay, input injection, sensor degradation, and adversarial machine-learning inputs. Because the twin is deliberately built around stack elements shared with UAV and space systems, the authors claim it supplies a reusable research scaffold that can be used without physical hardware.

Core claim

The paper's central claim is that a threat-oriented digital twin, implemented as a modular open-source autonomy stack with separated sensing-autonomy-supervisory functions, confidence-gated perception, explicit command and telemetry trust boundaries, and runtime hold-safe behavior, provides a reproducible design pattern for translating threat analysis into observable tests for spoofing, replay, malformed-input injection, degraded sensing, and adversarial machine-learning stress.

What carries the argument

The threat-oriented digital twin: an architecture that separates sensing, autonomy, and supervisory-control layers, enforces explicit trust boundaries, and supplies hold-safe recovery so that abstract threats become directly observable and controllable experiments.

If this is right

Threat analysis can be turned directly into executable test cases without requiring access to flight hardware.
Security evaluations become reproducible across research groups because the twin and its test harness are open source.
The same architectural pattern supports studies of constrained-compute and high-latency scenarios typical of UAV and space systems.
Runtime hold-safe behavior can be exercised under adversarial conditions to measure recovery effectiveness.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The twin could serve as a common baseline for comparing different autonomy stacks or defense mechanisms across independent labs.
Extending the twin with hardware-in-the-loop interfaces would let researchers move from simulation to partial physical validation without rebuilding the entire testbed.
The explicit separation of trust boundaries may highlight where current autonomy designs implicitly assume benign inputs.

Load-bearing premise

The ground-based proxy accurately reproduces the security-relevant behaviors and constraints of real autonomous platforms that operate with limited onboard compute and intermittent communications.

What would settle it

A controlled comparison in which the same set of attacks is run on both the twin and an equivalent real UAV or spacecraft platform, showing that the twin misses or fabricates vulnerabilities that appear (or do not appear) on the physical system.

Figures

Figures reproduced from arXiv: 2604.25757 by Berker Pek\"oz, Laxima Niure Kandel, Thomas J. Neubert.

**Figure 1.** Figure 1: State transition diagram and decision logic implemented on the digital twin used for initial evaluation. view at source ↗

**Figure 2.** Figure 2: Threat-oriented digital twin architecture and trust boundaries. view at source ↗

**Figure 3.** Figure 3: Threat-to-test mapping diagram for communication attacks. view at source ↗

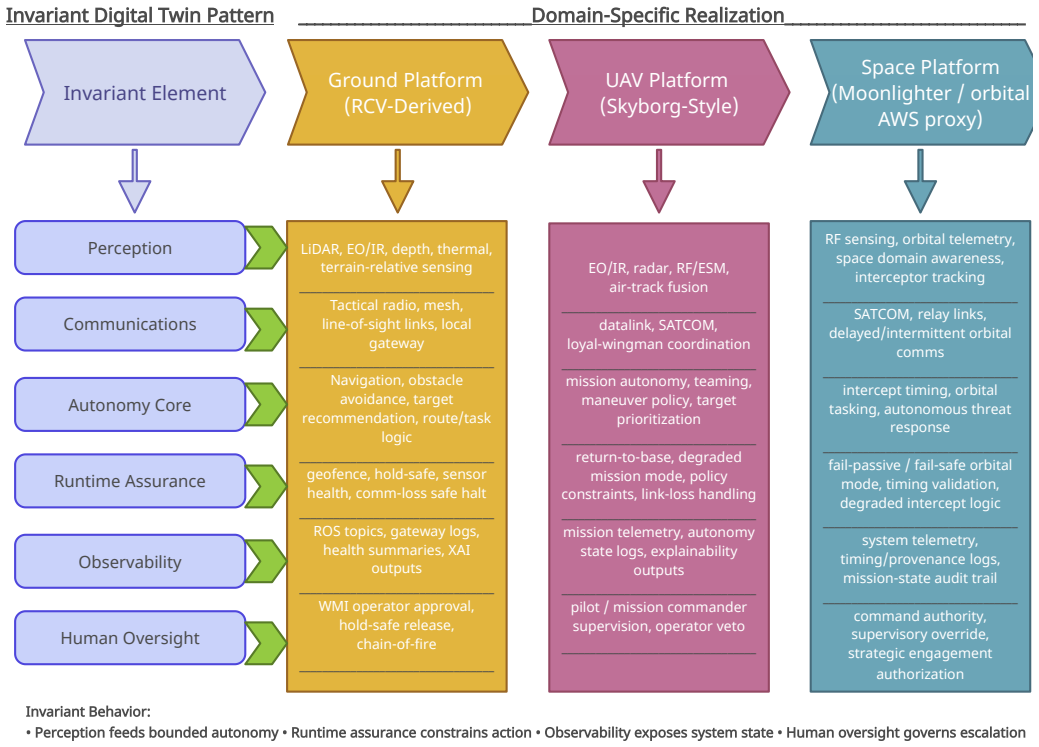

**Figure 4.** Figure 4: The universal autonomous-weapon-system digital twin pattern and its domain-specific realizations across ground, air, and space. view at source ↗

read the original abstract

Open, unclassified research on secure autonomy is constrained by limited access to operational platforms, contested communications infrastructure, and representative adversarial test conditions. This paper presents a threat-oriented digital twinning methodology for cybersecurity evaluation of learning-enabled autonomous platforms. The approach is instantiated as an open-source, modular twin of a representative autonomy stack with separated sensing, autonomy, and supervisory-control functions; confidence-gated multi-modal perception; explicit command and telemetry trust boundaries; and runtime hold-safe behavior. The contribution is methodological: a reproducible design pattern that translates threat analysis into observable, controllable tests for spoofing, replay, malformed-input injection, degraded sensing, and adversarial ML stress. Although the implemented proxy is ground based, the architecture is intentionally framed around stack elements shared with UAV and space systems, including constrained onboard compute, intermittent or high-latency links, probabilistic perception, and mission-critical recovery behavior. The result is an implementable research scaffold for dependable and secure autonomy studies across UAV and space domains.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

A methodological design pattern for threat-oriented digital twinning that offers a reproducible scaffold but supplies no results or constraint modeling to back the claims.

read the letter

The key takeaway is that this paper outlines a new design pattern for digital twinning aimed at security testing of autonomous platforms, but it provides no data to show the approach delivers on its promises. What is actually new is the threat-oriented methodology instantiated as a modular, open-source autonomy stack twin. It separates sensing, autonomy, and supervisory-control functions, incorporates confidence-gated multi-modal perception, sets up explicit trust boundaries for commands and telemetry, and includes runtime hold-safe behavior. This setup allows turning threat analysis into specific, observable tests for spoofing, replay, malformed-input injection, degraded sensing, and adversarial ML stress. The framing around shared stack elements with UAV and space systems adds to the contribution. The paper does a good job making the architecture reproducible and accessible for researchers who can't easily access operational platforms or contested environments. The soft spots center on the missing validation. No empirical results, error analysis, or details on how the tests ran are included. The ground-based proxy uses continuous high-bandwidth connectivity and desktop resources, which clashes with the emphasized constraints of intermittent links and limited compute in the target domains. The stress-test point stands: without explicit modeling or measurements of those constraints during the tests, the behaviors observed may not carry over to UAV or space systems. This leaves the central claim about translating threat analysis into controllable tests unproven for the intended applications. This paper is for people in the secure autonomy subfield who are looking for practical methods to run adversarial evaluations in constrained settings. A reader interested in design patterns or open-source tools for cybersecurity assessment would find value in the modular structure. It deserves a serious referee because the idea is focused and could be strengthened with added evidence, making it worth the time for reviewers to provide feedback on how to validate the proxy. I would recommend peer review rather than a desk reject.

Referee Report

1 major / 2 minor

Summary. The paper presents a threat-oriented digital twinning methodology for cybersecurity evaluation of learning-enabled autonomous platforms. It is instantiated as an open-source, modular ground-based proxy of a representative autonomy stack featuring separated sensing/autonomy/supervisory-control functions, confidence-gated multi-modal perception, explicit command/telemetry trust boundaries, and runtime hold-safe behavior. The central claim is methodological: a reproducible design pattern that translates threat analysis into observable, controllable tests for spoofing, replay, malformed-input injection, degraded sensing, and adversarial ML stress, with the architecture framed around elements shared with UAV and space systems (constrained compute, intermittent links, probabilistic perception, mission-critical recovery).

Significance. If the design pattern is sound and the proxy adequately represents target-domain behaviors, the work could supply a valuable open research scaffold for secure autonomy studies in domains where operational platforms and representative adversarial conditions are inaccessible. The emphasis on reproducibility, modularity, and explicit trust boundaries is a strength for the field.

major comments (1)

[Architecture description] Architecture description (and abstract): the claim that the ground-based instantiation provides a valid proxy for UAV and space platforms is load-bearing for the methodological contribution, yet the text notes continuous high-bandwidth connectivity and desktop-class resources while the architecture description highlights constrained onboard compute and intermittent/high-latency links. No explicit modeling, measurement, or sensitivity analysis of these constraints appears in the spoofing, replay, or adversarial-ML test descriptions, leaving generalizability unproven.

minor comments (2)

[Abstract and methodology] The abstract and methodology sections supply no empirical results, validation data, error analysis, or implementation metrics (e.g., latency under hold-safe activation), which is consistent with a purely methodological contribution but reduces the ability to assess whether the design pattern produces the intended observable behaviors.
[Methodology] Notation for trust boundaries and confidence-gating could be clarified with a diagram or pseudocode example to make the reproducible design pattern easier to instantiate.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive feedback and the recommendation for major revision. The comment identifies an important point regarding the scope and generalizability of the proposed methodology. We address it directly below and commit to revisions that clarify the manuscript without misrepresenting the work.

read point-by-point responses

Referee: [Architecture description] Architecture description (and abstract): the claim that the ground-based instantiation provides a valid proxy for UAV and space platforms is load-bearing for the methodological contribution, yet the text notes continuous high-bandwidth connectivity and desktop-class resources while the architecture description highlights constrained onboard compute and intermittent/high-latency links. No explicit modeling, measurement, or sensitivity analysis of these constraints appears in the spoofing, replay, or adversarial-ML test descriptions, leaving generalizability unproven.

Authors: We agree that this distinction is critical and that the current text does not include explicit modeling, measurement, or sensitivity analysis of compute and link constraints within the attack test descriptions. The implemented proxy uses desktop-class resources and continuous connectivity to support open, reproducible experimentation, while the architecture description intentionally emphasizes shared elements (constrained compute, intermittent links, probabilistic perception, and mission-critical recovery) that appear in UAV and space systems. The methodological contribution centers on the threat-oriented design pattern and modular twin that translates threat analysis into controllable tests; the ground-based instantiation serves as a practical scaffold rather than a direct hardware replica. To strengthen the presentation, we will revise the abstract and architecture section to explicitly delineate the proxy's implementation differences, add a dedicated discussion subsection on generalizability (including how the modular components can simulate latency, bandwidth throttling, and resource limits), and note the absence of sensitivity analysis as a limitation with directions for future extension. These changes will be textual and will not alter the reported results or experiments. revision: yes

Circularity Check

0 steps flagged

No circularity: methodological design pattern with no fitted predictions or self-referential reductions

full rationale

The paper frames its contribution explicitly as a reproducible design pattern that translates threat analysis into observable tests for spoofing, replay, malformed inputs, degraded sensing, and adversarial ML. No equations, fitted parameters, or predictions appear in the provided text; the ground-based proxy is presented as an intentional instantiation of shared architectural elements (constrained compute, intermittent links, probabilistic perception) rather than a derivation that reduces to its own inputs by construction. Self-citations, if present, are not load-bearing for any uniqueness theorem or ansatz. The derivation chain remains self-contained against external benchmarks of threat modeling and autonomy stacks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Based solely on the abstract, no free parameters, axioms, or invented entities are explicitly detailed; the contribution is a methodological design pattern rather than a parameterized model or new physical entity.

pith-pipeline@v0.9.0 · 5482 in / 1159 out tokens · 51249 ms · 2026-05-07T15:45:36.865878+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

24 extracted references · 15 canonical work pages · 1 internal anchor

[1]

The NIST Cybersecurity Framework (CSF) 2.0

R. Ross, V . Pillitteri, R. Graubart, D. Bodeau, and R. Mc- Quaid, “Developing cyber-resilient systems: A systems security engineering approach,” National Institute of Standards and Technology, NIST Special Publication 800-160 V ol. 2 Rev. 1, Dec. 2021.DOI: 10.6028/NIST. SP.800-160v2r1

work page doi:10.6028/nist 2021
[2]

Artificial intelligence risk management framework (AI RMF 1.0),

E. Tabassi, “Artificial intelligence risk management framework (AI RMF 1.0),” National Institute of Stan- dards and Technology, NIST AI 100-1, Jan. 26, 2023. DOI: 10.6028/NIST.AI.100-1 Validator: Sequence / Timestamp Check Duplicate / stale frame detected Drop frame + log anomaly Unauthorized session attempt is rejected, and the intrusion is logged after ...

work page doi:10.6028/nist.ai.100-1 2023
[3]

Air force vehicles

E. H. Glaessgen and D. S. Stargel, “The digital twin paradigm for future NASA and U.S. air force vehicles,” in53rd AIAA/ASME/ASCE/AHS/ASC Structures, Struc- tural Dynamics and Materials Conference, Apr. 23, 2012. DOI: 10.2514/6.2012-1818

work page doi:10.2514/6.2012-1818 2012
[4]

Digital twin in industry: State-of-the-art,

F. Tao, H. Zhang, A. Liu, and A. Y . C. Nee, “Digital twin in industry: State-of-the-art,”IEEE Transactions on Industrial Informatics, vol. 15, no. 4, pp. 2405–2415, Apr. 2019.DOI: 10.1109/TII.2018.2873186

work page doi:10.1109/tii.2018.2873186 2019
[5]

Security and trust considerations for digital twin technology,

J. V oas, P. Mell, P. Laplante, and V . Piroumian, “Security and trust considerations for digital twin technology,” National Institute of Standards and Technology, NIST Interagency/Internal Report 8356, Feb. 14, 2025.DOI: 10.6028/NIST.IR.8356

work page doi:10.6028/nist.ir.8356 2025
[6]

Digital twin-based cyber-attack detection framework for cyber-physical manufacturing systems,

E. C. Balta, M. Pease, J. Moyne, D. M. Tilbury, and K. Barton, “Digital twin-based cyber-attack detection framework for cyber-physical manufacturing systems,” IEEE Transactions on Automation Science and Engi- neering, vol. 21, no. 2, pp. 1695–1712, 2024.DOI: 10.1109/TASE.2023.3243147

work page doi:10.1109/tase.2023.3243147 2024
[7]

1109/SEEDA-CECNSM53056.2021.9566277

D. R. Holmes, M. Papathanasaki, L. Maglaras, M. A. Ferrag, and H. Janicke, “Digital twins and cyber security – solution or challenge?” In2021 6th South-East Eu- rope Design Automation, Computer Engineering, Com- puter Networks and Social Media Conference (SEEDA- CECNSM), 2021, pp. 1–8.DOI: 10 . 1109 / SEEDA - CECNSM53056.2021.9566277

work page arXiv 2021
[8]

Soter: A runtime assurance framework for programming safe robotics systems,

A. Desai, S. Ghosh, S. A. Seshia, N. Shankar, and A. Tiwari, “Soter: A runtime assurance framework for programming safe robotics systems,” in2019 49th An- nual IEEE/IFIP International Conference on Dependable Systems and Networks (DSN), 2019, pp. 138–150.DOI: 10.1109/DSN.2019.00027

work page doi:10.1109/dsn.2019.00027 2019
[9]

Combating the con- trol signal spoofing attack in UA V systems,

K.-W. Huang and H. -M. Wang, “Combating the con- trol signal spoofing attack in UA V systems,”IEEE Transactions on V ehicular Technology, vol. 67, no. 8, pp. 7769–7773, 2018.DOI: 10.1109/TVT.2018.2830345

work page doi:10.1109/tvt.2018.2830345 2018
[10]

Avis: In- situ model checking for unmanned aerial vehicles,

M. Taylor, H. Chen, F. Qin, and C. Stewart, “Avis: In- situ model checking for unmanned aerial vehicles,” in 2021 51st Annual IEEE/IFIP International Conference on Dependable Systems and Networks (DSN), 2021, pp. 471–483.DOI: 10.1109/DSN48987.2021.00057

work page doi:10.1109/dsn48987.2021.00057 2021
[11]

The army’s robotic combat vehicle (RCV) program,

A. Feickert, “The army’s robotic combat vehicle (RCV) program,” Congressional Research Service, Tech. Rep. IF11876, May 20, 2025. Accessed: Mar. 29, 2026. [Online]. Available: https : / / www. congress . gov / crs - product/IF11876

2025
[12]

Autonomy in weapon sys- tems,

U.S. Department of Defense, “Autonomy in weapon sys- tems,” Department of Defense Directive DoDD 3000.09, Jan. 25, 2023. Accessed: Mar. 29, 2026. [Online]. Available: https : / / media . defense . gov / 2023 / Jan / 25 / 2003149928/ - 1/ - 1 / 0 / DOW- DIRECTIVE - 3000 . 09 - AUTONOMY-IN-WEAPON-SYSTEMS.PDF

2023
[13]

Explaining and Harnessing Adversarial Examples

I. Goodfellow, J. Shlens, and C. Szegedy, “Explaining and harnessing adversarial examples,” inInternational Conference on Learning Representations, 2015. [Online]. Available: http://arxiv.org/abs/1412.6572

work page internal anchor Pith review arXiv 2015
[14]

Reid, and Silvio Savarese

K. Eykholt et al., “Robust physical-world attacks on deep learning visual classification,” in2018 IEEE/CVF Conference on Computer Vision and Pattern Recognition Ground Platform (RCV-Derived) LiDAR, EO/IR, depth, thermal, terrain-relative sensing __________________________________ Tactical radio, mesh, line-of-sight links, local gateway ___________________...

work page doi:10.1109/cvpr 2018
[15]

Shostack,Threat Modeling: Designing for Security, 1st

A. Shostack,Threat Modeling: Designing for Security, 1st. Wiley Publishing, 2014,ISBN: 1118809998

2014
[16]

MITRE ATT&CK,

MITRE. “MITRE ATT&CK,” Accessed: Mar. 29, 2026. [Online]. Available: https://www.mitre.org/focus-areas/ cybersecurity/mitre-attack

2026
[17]

MITRE ATLAS: Adversarial threat landscape for artificial-intelligence systems,

MITRE. “MITRE ATLAS: Adversarial threat landscape for artificial-intelligence systems,” Accessed: Mar. 29,
[18]

Available: https://atlas.mitre.org/

[Online]. Available: https://atlas.mitre.org/
[19]

Skyborg ACS has successful first flight,

D. Mayer. “Skyborg ACS has successful first flight,” Air Force Research Laboratory / Air Force Life Cycle Management Center, Accessed: Mar. 29, 2026. [Online]. Available: https://www.afrl.af.mil/News/Article-Display/ Article / 2596154 / skyborg - acs - has - successful - first - flight/

2026
[20]

ROS 2 Security,

ROS 2 Project. “ROS 2 Security,” Accessed: Mar. 29,
[21]

Available: https : / / docs

[Online]. Available: https : / / docs . ros . org / en / humble/Tutorials/Advanced/Security/Introducing-ros2- security.html
[22]

SROS2: Usable cyber security tools for ROS 2,

V . Mayoral-Vilches, R. White, G. Caiazza, A. Her- nandez Cordero, Q. Carluer, and J. Gonzalez-Jimenez, “SROS2: Usable cyber security tools for ROS 2,” in2022 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), Oct. 23, 2022, pp. 11 253–11 259. DOI: 10.1109/IROS47612.2022.9982129

work page doi:10.1109/iros47612.2022.9982129 2022
[23]

The marathon 2: A navigation system,

S. Macenski, F. Mart’in, R. White, and J. G. Clavero, “The marathon 2: A navigation system,” in2020 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), Oct. 24, 2020, pp. 2718–2725.DOI: 10.1109/IROS45743.2020.9341207

work page doi:10.1109/iros45743.2020.9341207 2020
[24]

2020.Zero Trust Architecture

S. Rose, O. Borchert, S. Mitchell, and S. Connelly, “Zero trust architecture,” National Institute of Standards and Technology, NIST Special Publication 800-207, Aug. 11, 2020.DOI: 10.6028/NIST.SP.800-207

work page doi:10.6028/nist.sp.800-207 2020
