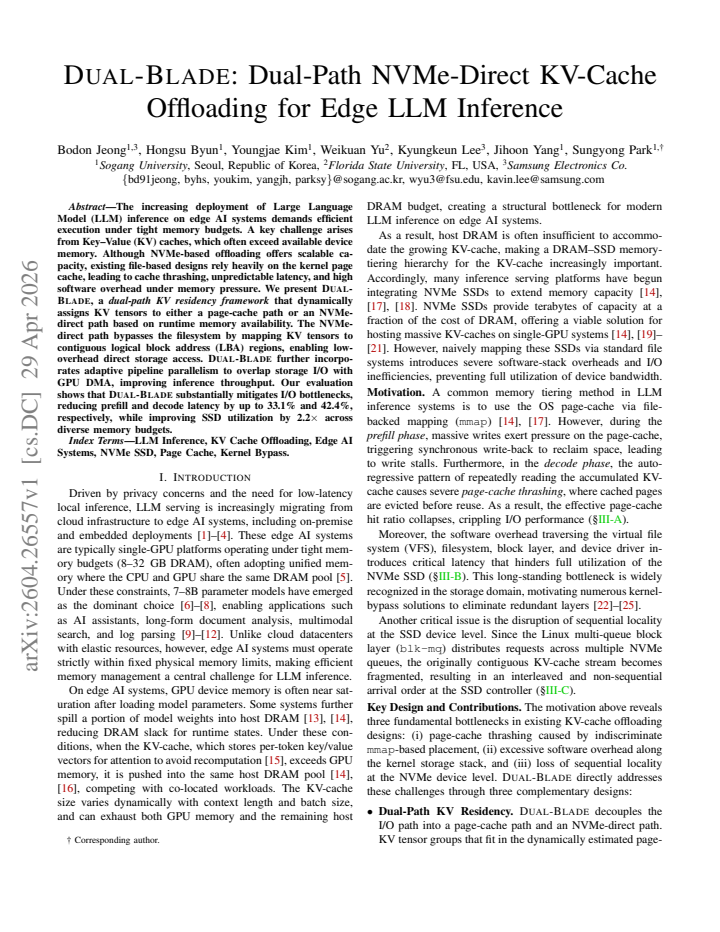

DUAL-BLADE: Dual-Path NVMe-Direct KV-Cache Offloading for Edge LLM Inference
Pith reviewed 2026-05-07 12:46 UTC · model grok-4.3
The pith
DUAL-BLADE uses a dual-path KV-cache system to cut prefill and decode latency by up to 33 and 42 percent on memory-limited edge devices.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The central claim is that a dual-path KV residency framework dynamically assigns KV tensors to either a page-cache path or an NVMe-direct path according to available runtime memory, with the direct path using contiguous logical block address mappings to bypass the filesystem entirely. Adaptive pipeline parallelism then overlaps the resulting storage I/O with GPU DMA operations. This combination removes cache thrashing and software overhead that appear under memory pressure in conventional file-based offloading, producing measured reductions of up to 33.1 percent in prefill latency and 42.4 percent in decode latency while raising SSD utilization by a factor of 2.2 across varied memory budgets
What carries the argument
The dual-path KV residency framework that routes tensors to page-cache or NVMe-direct paths and maps the latter to contiguous LBA regions for direct block access.
If this is right
- Prefill and decode phases both become faster when memory budgets force heavy KV offloading.
- SSD bandwidth is used more effectively because direct access avoids kernel cache contention.
- Larger context lengths or batch sizes become feasible on the same edge hardware.
- Inference throughput rises when storage I/O is hidden behind GPU computation via the adaptive pipeline.
Where Pith is reading between the lines
- The same routing logic could be applied to other storage tiers such as CXL memory or remote disaggregated storage in future edge clusters.
- Real-time applications that need predictable tail latency, such as voice assistants, would benefit most from the removal of unpredictable page-cache stalls.
- The design invites direct comparisons against emerging hardware offload primitives like GPU-direct storage to see whether software-level dual paths remain necessary.
Load-bearing premise
Runtime memory availability can be monitored accurately enough to switch paths without creating new overhead or thrashing, and the NVMe-direct LBA mappings stay stable under concurrent inference loads.
What would settle it
A controlled experiment that runs the same workloads with and without the dynamic path switcher and shows higher overall latency or lower SSD throughput once memory pressure triggers frequent switches would disprove the performance claim.
Figures
read the original abstract
The increasing deployment of Large Language Model (LLM) inference on edge AI systems demands efficient execution under tight memory budgets. A key challenge arises from Key-Value (KV) caches, which often exceed available device memory. Although NVMe-based offloading offers scalable capacity, existing file-based designs rely heavily on the kernel page cache, leading to cache thrashing, unpredictable latency, and high software overhead under memory pressure. We present DUAL-BLADE, a dual-path KV residency framework that dynamically assigns KV tensors to either a page-cache path or an NVMe-direct path based on runtime memory availability. The NVMe-direct path bypasses the filesystem by mapping KV tensors to contiguous logical block address (LBA) regions, enabling low-overhead direct storage access. DUAL-BLADE further incorporates adaptive pipeline parallelism to overlap storage I/O with GPU DMA, improving inference throughput. Our evaluation shows that DUAL-BLADE substantially mitigates I/O bottlenecks, reducing prefill and decode latency by up to 33.1% and 42.4%, respectively, while improving SSD utilization by 2.2x across diverse memory budgets.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper introduces DUAL-BLADE, a dual-path KV-cache offloading framework for edge LLM inference. KV tensors are dynamically assigned to either a standard page-cache path or an NVMe-direct path (using contiguous LBA mappings to bypass the filesystem) according to runtime memory availability. Adaptive pipeline parallelism overlaps storage I/O with GPU DMA. Evaluation reports up to 33.1% prefill and 42.4% decode latency reduction plus 2.2x SSD utilization improvement across memory budgets.
Significance. If the latency and utilization gains are shown to be robust against proper baselines, controlled memory pressure, and measured switching overhead, the work would offer a practical systems contribution for memory-constrained edge LLM deployment. The dual-path idea and direct-access mapping address a real I/O bottleneck; however, the current description leaves the net benefit of dynamic routing unverified.
major comments (2)
- [Abstract and §3 (Design)] The headline latency reductions (33.1% prefill, 42.4% decode) and 2.2x utilization improvement rest on the claim that dynamic path selection incurs negligible overhead. No description is given of the memory-monitoring primitive, decision thresholds, hysteresis, or measured cost of remapping a KV tensor between the page-cache and NVMe-direct paths. Under fluctuating memory pressure on the timescale of a decode step, repeated switches could re-introduce DMA setup or thrashing costs that offset the reported gains.
- [§5 (Evaluation)] The evaluation section reports concrete latency and utilization numbers but supplies no information on the baselines used, workload details (model sizes, sequence lengths, batch sizes), error bars, or how memory budgets were enforced and varied. Without these controls it is impossible to determine whether the observed improvements are attributable to the dual-path mechanism or to other factors.
minor comments (2)
- [Abstract] The abstract states that assignment occurs 'based on runtime memory availability' without defining the monitoring interval or accuracy requirements; a short paragraph clarifying the implementation would improve reproducibility.
- [§5 (Evaluation)] Figure captions and axis labels in the evaluation figures should explicitly state the memory-budget range (e.g., 4 GB–16 GB) and the exact baseline configurations being compared.
Simulated Author's Rebuttal
We thank the referee for the thoughtful and detailed review of our manuscript. The comments highlight important areas where additional description and controls are needed to strengthen the claims. We address each point below and will revise the paper to incorporate the requested details.
read point-by-point responses
-
Referee: [Abstract and §3 (Design)] The headline latency reductions (33.1% prefill, 42.4% decode) and 2.2x utilization improvement rest on the claim that dynamic path selection incurs negligible overhead. No description is given of the memory-monitoring primitive, decision thresholds, hysteresis, or measured cost of remapping a KV tensor between the page-cache and NVMe-direct paths. Under fluctuating memory pressure on the timescale of a decode step, repeated switches could re-introduce DMA setup or thrashing costs that offset the reported gains.
Authors: We agree that the current manuscript lacks sufficient detail on the overhead of dynamic path selection. In the revised version we will expand §3 with a new subsection on the runtime decision engine. This will describe the memory-monitoring primitive (periodic polling of /proc/meminfo at inference-step granularity), the decision thresholds (direct-path activation above 75% utilization with a 10% hysteresis band to suppress oscillation), and microbenchmark results showing average remapping cost of 0.7 ms. We will also add a short analysis of switch frequency under controlled memory-pressure traces, demonstrating that the adaptive pipeline keeps switches to fewer than one per 8–12 decode steps, so the overhead remains negligible relative to the measured I/O savings. revision: yes
-
Referee: [§5 (Evaluation)] The evaluation section reports concrete latency and utilization numbers but supplies no information on the baselines used, workload details (model sizes, sequence lengths, batch sizes), error bars, or how memory budgets were enforced and varied. Without these controls it is impossible to determine whether the observed improvements are attributable to the dual-path mechanism or to other factors.
Authors: We acknowledge that §5 currently omits several experimental controls. In the revision we will augment the evaluation section with: (i) explicit baselines (pure page-cache offloading and static NVMe-direct allocation without dynamic routing); (ii) complete workload parameters (Llama-7B and Mistral-7B models, input lengths 512–4096 tokens, output lengths 128–1024 tokens, batch sizes 1–4); (iii) error bars showing standard deviation across 10 independent runs; and (iv) the memory-budget enforcement method (Linux cgroups limiting available DRAM to target values of 4 GB, 6 GB, and 8 GB). These additions will allow direct attribution of gains to the dual-path mechanism. revision: yes
Circularity Check
No circularity; claims rest on empirical measurements
full rationale
The paper describes a dual-path KV-cache offloading system and supports its performance claims (latency reductions, SSD utilization gains) exclusively through reported experimental results across memory budgets. No equations, fitted parameters, predictions, or uniqueness theorems appear in the provided text. There are no self-citations invoked as load-bearing premises, no ansatzes smuggled via prior work, and no renaming of known results as novel derivations. The central assertions are therefore self-contained against external benchmarks rather than reducing to their own inputs by construction.
Axiom & Free-Parameter Ledger
Reference graph
Works this paper leans on
-
[1]
A review on edge large language models: Design, execution, and applications,
Y . Zheng, Y . Chen, B. Qian, X. Shi, Y . Shu, and J. Chen, “A review on edge large language models: Design, execution, and applications,”ACM Computing Surveys, vol. 57, no. 8, pp. 1–35, 2025
2025
-
[2]
G. Pan, V . Chodnekar, A. Roy, and H. Wang, “A cost-benefit analysis of on-premise large language model deployment: Breaking even with commercial llm services,”arXiv preprint arXiv:2509.18101, 2025
-
[3]
Mobilellm: Optimizing sub- billion parameter language models for on-device use cases,
Z. Liu, C. Zhao, F. Iandola, C. Lai, Y . Tian, I. Fedorov, Y . Xiong, E. Chang, Y . Shi, R. Krishnamoorthi,et al., “Mobilellm: Optimizing sub- billion parameter language models for on-device use cases,” inForty-first International Conference on Machine Learning, 2024
2024
-
[4]
Intelligent data analysis in edge com- puting with large language models: applications, challenges, and future directions,
X. Wang, Z. Xu, and X. Sui, “Intelligent data analysis in edge com- puting with large language models: applications, challenges, and future directions,”Frontiers in Computer Science, vol. 7, p. 1538277, 2025
2025
-
[5]
CUDA Programming Guide: Unified and system mem- ory
NVIDIA, “CUDA Programming Guide: Unified and system mem- ory.” https://docs.nvidia.com/cuda/cuda-programming-guide/02-basics/ understanding-memory.html, Dec. 2025. Accessed: 2026-01-21
2025
-
[6]
Gemma: Open Models Based on Gemini Research and Technology
G. Team, T. Mesnard, C. Hardin, R. Dadashi, S. Bhupatiraju, S. Pathak, L. Sifre, M. Rivi `ere, M. S. Kale, J. Love,et al., “Gemma: Open models based on gemini research and technology,”arXiv preprint arXiv:2403.08295, 2024
work page internal anchor Pith review arXiv 2024
-
[7]
A. Q. Jiang, A. Sablayrolles, A. Mensch, C. Bamford, D. S. Chaplot, D. de las Casas, F. Bressand, G. Lengyel, G. Lample, L. Saulnier, L. R. Lavaud, M.-A. Lachaux, P. Stock, T. L. Scao, T. Lavril, T. Wang, T. Lacroix, and W. E. Sayed, “Mistral 7b,”arXiv preprint arXiv:2310.06825, vol. 3, 2023
work page internal anchor Pith review arXiv 2023
-
[8]
A. Grattafiori, A. Dubey, A. Jauhri, A. Pandey, A. Kadian, A. Al-Dahle, A. Letman, A. Mathur, A. Schelten, A. Vaughan,et al., “The llama 3 herd of models,”arXiv preprint arXiv:2407.21783, 2024
work page internal anchor Pith review arXiv 2024
-
[9]
Longreward: Improving long-context large language models with ai feedback,
J. Zhang, Z. Hou, X. Lv, S. Cao, Z. Hou, Y . Niu, L. Hou, Y . Dong, L. Feng, and J. Li, “Longreward: Improving long-context large language models with ai feedback,” inProceedings of the 63rd Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pp. 3718–3739, 2025
2025
-
[10]
Longbench: A bilingual, multitask benchmark for long context understanding,
Y . Bai, X. Lv, J. Zhang, H. Lyu, J. Tang, Z. Huang, Z. Du, X. Liu, A. Zeng, L. Hou,et al., “Longbench: A bilingual, multitask benchmark for long context understanding,” inProceedings of the 62nd Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pp. 3119–3137, 2024
2024
-
[11]
Visual instruction tuning,
H. Liu, C. Li, Q. Wu, and Y . J. Lee, “Visual instruction tuning,” Advances in neural information processing systems, vol. 36, pp. 34892– 34916, 2023
2023
-
[12]
Logparser-llm: Advancing efficient log parsing with large language models,
A. Zhong, D. Mo, G. Liu, J. Liu, Q. Lu, Q. Zhou, J. Wu, Q. Li, and Q. Wen, “Logparser-llm: Advancing efficient log parsing with large language models,” inProceedings of the 30th ACM SIGKDD Conference on Knowledge Discovery and Data Mining, pp. 4559–4570, 2024
2024
-
[13]
Deepspeed-inference: enabling efficient inference of transformer models at unprecedented scale,
R. Y . Aminabadi, S. Rajbhandari, A. A. Awan, C. Li, D. Li, E. Zheng, O. Ruwase, S. Smith, M. Zhang, J. Rasley,et al., “Deepspeed-inference: enabling efficient inference of transformer models at unprecedented scale,” inSC22: International Conference for High Performance Com- puting, Networking, Storage and Analysis, pp. 1–15, IEEE, 2022
2022
-
[14]
Flexgen: High-throughput generative inference of large language models with a single gpu,
Y . Sheng, L. Zheng, B. Yuan, Z. Li, M. Ryabinin, B. Chen, P. Liang, C. R ´e, I. Stoica, and C. Zhang, “Flexgen: High-throughput generative inference of large language models with a single gpu,” inInternational Conference on Machine Learning (ICML ’23), pp. 31094–31116, PMLR, 2023
2023
-
[15]
Attention is all you need,
A. Vaswani, N. Shazeer, N. Parmar, J. Uszkoreit, L. Jones, A. N. Gomez, Ł. Kaiser, and I. Polosukhin, “Attention is all you need,”Advances in neural information processing systems, vol. 30, 2017
2017
-
[16]
Infinigen: Efficient generative inference of large language models with dynamic kv cache manage- ment,
W. Lee, J. Lee, J. Seo, and J. Sim, “Infinigen: Efficient generative inference of large language models with dynamic kv cache manage- ment,” in18th USENIX Symposium on Operating Systems Design and Implementation (OSDI 24), pp. 155–172, 2024
2024
-
[17]
llama.cpp: Llm inference in c/c++
G. Gerganov and contributors, “llama.cpp: Llm inference in c/c++.” https://github.com/ggml-org/llama.cpp, 2023. Accessed: 2026-01-09
2023
-
[18]
Y . Liu, Y . Cheng, J. Yao, Y . An, X. Chen, S. Feng, Y . Huang, S. Shen, R. Zhang, K. Du,et al., “Lmcache: An efficient kv cache layer for enterprise-scale llm inference,”arXiv preprint arXiv:2510.09665, 2025
-
[19]
Powerinfer: Fast large language model serving with a consumer-grade gpu,
Y . Song, Z. Mi, H. Xie, and H. Chen, “Powerinfer: Fast large language model serving with a consumer-grade gpu,” inProceedings of the ACM SIGOPS 30th Symposium on Operating Systems Principles, pp. 590– 606, 2024
2024
-
[20]
KVSwap: Disk-aware KV Cache Offloading for Long-Context On-device Inference,
H. Zhang, C. Xia, and Z. Wang, “KVSwap: Disk-aware KV Cache Offloading for Long-Context On-device Inference,”arXiv preprint arXiv:2511.11907, 2025
-
[21]
Llm in a flash: Efficient large language model inference with limited memory,
K. Alizadeh, S. I. Mirzadeh, D. Belenko, S. Khatamifard, M. Cho, C. C. Del Mundo, M. Rastegari, and M. Farajtabar, “Llm in a flash: Efficient large language model inference with limited memory,” in62nd Annual Meeting of the Association for Computational Linguistics (Volume 1: Long Papers), pp. 12562–12584, 2024
2024
-
[22]
Designing a true direct-access file system with devfs,
S. Kannan, A. C. Arpaci-Dusseau, R. H. Arpaci-Dusseau, Y . Wang, J. Xu, and G. Palani, “Designing a true direct-access file system with devfs,” in16th USENIX Conference on File and Storage Technologies (FAST ’18), pp. 241–256, 2018
2018
-
[23]
Storage performance development kit (spdk)
Intel, “Storage performance development kit (spdk).” https://spdk.io,
-
[24]
Accessed: 2026-01-21
2026
-
[25]
Flashshare: Punching through server storage stack from kernel to firmware for ultra-low latency ssds,
J. Zhang, M. Kwon, D. Gouk, S. Koh, C. Lee, M. Alian, M. Chun, M. T. Kandemir, N. S. Kim, J. Kim,et al., “Flashshare: Punching through server storage stack from kernel to firmware for ultra-low latency ssds,” in13th USENIX Symposium on Operating Systems Design and Implementation (OSDI 18), pp. 477–492, 2018
2018
-
[26]
I/o passthru: Upstreaming a flexible and efficient i/o path in linux,
K. Joshi, A. Gupta, J. Gonz ´alez, A. Kumar, K. K. Reddy, A. George, S. Lund, and J. Axboe, “I/o passthru: Upstreaming a flexible and efficient i/o path in linux,” in22nd USENIX Conference on File and Storage Technologies (FAST ’24), pp. 107–121, 2024
2024
-
[27]
Opt-6.7b
Facebook, “Opt-6.7b.” https://huggingface.co/facebook/opt-6.7b, 2022. Accessed: 2026-01-21
2022
-
[28]
X3: A low overhead high performance buffer management replacement algorithm,
T. Johnson and D. Shasha, “X3: A low overhead high performance buffer management replacement algorithm,” in20th VLDB Conference, pp. 439–450, 1994
1994
-
[29]
Arc: A self-tuning, low overhead replacement cache,
N. Megiddo and D. S. Modha, “Arc: A self-tuning, low overhead replacement cache,” in2nd USENIX Conference on File and Storage Technologies (FAST ’03), 2003
2003
-
[30]
Streamcache: Revisiting page cache for file scanning on fast storage devices,
Z. Li and G. Zhang, “Streamcache: Revisiting page cache for file scanning on fast storage devices,” in2024 USENIX Annual Technical Conference (ATC ’24), pp. 1119–1134, 2024
2024
-
[31]
Gregg,BPF performance tools
B. Gregg,BPF performance tools. Addison-Wesley Professional, 2019
2019
-
[32]
Asynchronous i/o stack: A low-latency kernel i/o stack for ultra-low latency ssds,
G. Lee, S. Shin, W. Song, T. J. Ham, J. W. Lee, and J. Jeong, “Asynchronous i/o stack: A low-latency kernel i/o stack for ultra-low latency ssds,” in2019 USENIX Annual Technical Conference (USENIX ATC 19), pp. 603–616, 2019
2019
-
[33]
D2FQ:Device-Direct Fair Queueing for NVMe SSDs,
J. Woo, M. Ahn, G. Lee, and J. Jeong, “D2FQ:Device-Direct Fair Queueing for NVMe SSDs,” in19th USENIX Conference on File and Storage Technologies (FAST ’21), pp. 403–415, 2021
2021
-
[34]
iJournaling:Fine-Grained journaling for improving the latency of fsync system call,
D. Park and D. Shin, “iJournaling:Fine-Grained journaling for improving the latency of fsync system call,” in2017 USENIX Annual Technical Conference (USENIX ATC 17), pp. 787–798, 2017
2017
-
[35]
Asynchronous i/o support in linux 2.5,
S. Bhattacharya, S. Pratt, B. Pulavarty, and J. Morgan, “Asynchronous i/o support in linux 2.5,” inLinux Symposium, pp. 371–386, Citeseer, 2003
2003
-
[36]
Do we still need io schedulers for low-latency disks?,
C. Whitaker, S. Sundar, B. Harris, and N. Altiparmak, “Do we still need io schedulers for low-latency disks?,” in15th ACM Workshop on Hot Topics in Storage and File Systems, pp. 44–50, 2023
2023
-
[37]
Bfq, multiqueue- deadline, or kyber? performance characterization of linux storage sched- ulers in the nvme era,
Z. Ren, K. Doekemeijer, N. Tehrany, and A. Trivedi, “Bfq, multiqueue- deadline, or kyber? performance characterization of linux storage sched- ulers in the nvme era,” in15th ACM/SPEC International Conference on Performance Engineering, pp. 154–165, 2024
2024
-
[38]
OPT: Open Pre-trained Transformer Language Models
S. Zhang, S. Roller, N. Goyal, M. Artetxe, M. Chen, S. Chen, C. Dewan, M. Diab, X. Li, X. V . Lin,et al., “Opt: Open pre-trained transformer language models,”arXiv preprint arXiv:2205.01068, 2022
work page internal anchor Pith review arXiv 2022
-
[39]
Cuda c++ programming guide
NVIDIA, “Cuda c++ programming guide.” https://docs.nvidia.com/cuda/ cuda-c-programming-guide/, 2024. Accessed: 2026-01-21
2024
-
[40]
Can foundation models wrangle your data?,
A. Narayan, I. Chami, L. Orr, S. Arora, and C. R ´e, “Can foundation models wrangle your data?,”arXiv preprint arXiv:2205.09911, 2022
-
[41]
Cost-efficient large language model serving for multi-turn conversations with cachedattention,
B. Gao, Z. He, P. Sharma, Q. Kang, D. Jevdjic, J. Deng, X. Yang, Z. Yu, and P. Zuo, “Cost-efficient large language model serving for multi-turn conversations with cachedattention,” in2024 USENIX Annual Technical Conference (USENIX ATC 24), pp. 111–126, 2024
2024
-
[42]
An i/o characterizing study of offloading llm models and kv caches to nvme ssd,
Z. Ren, K. Doekemeijer, T. De Matteis, C. Pinto, R. Stoica, and A. Trivedi, “An i/o characterizing study of offloading llm models and kv caches to nvme ssd,” in5th Workshop on Challenges and Opportunities of Efficient and Performant Storage Systems, pp. 23–33, 2025
2025
-
[43]
Instinfer: In-storage attention offloading for cost-effective long-context llm inference,
X. Pan, E. Li, Q. Li, S. Liang, Y . Shan, K. Zhou, Y . Luo, X. Wang, and J. Zhang, “Instinfer: In-storage attention offloading for cost-effective long-context llm inference,”arXiv preprint arXiv:2409.04992, 2024
-
[44]
INF2: High- throughput generative inference of large language models using near- storage processing,
H. Jang, S. Noh, C. Shin, J. Jung, J. Song, and J. Lee, “INF2: High- throughput generative inference of large language models using near- storage processing,” 2025
2025
-
[45]
Efficient memory management for large language model serving with pagedattention,
W. Kwon, Z. Li, S. Zhuang, Y . Sheng, L. Zheng, C. H. Ma, J. Huang, Y . Ko, A. Anandkumar, and I. Stoica, “Efficient memory management for large language model serving with pagedattention,” in29th ACM Symposium on Operating Systems Principles (SOSP ’23), pp. 811–828, Association for Computing Machinery, 2023
2023
-
[46]
GPUDirect Storage: A Direct Path Between Storage and GPU Memory
NVIDIA, “GPUDirect Storage: A Direct Path Between Storage and GPU Memory.” https://developer.nvidia.com/gpudirect-storage, 2025. Ac- cessed: 2026-01-21
2025
-
[47]
Gpu- initiated on-demand high-throughput storage access in the bam system architecture,
Z. Qureshi, V . S. Mailthody, I. Gelado, S. Min, A. Masood, J. Park, J. Xiong, C. J. Newburn, D. Vainbrand, I.-H. Chung,et al., “Gpu- initiated on-demand high-throughput storage access in the bam system architecture,” in28th ACM International Conference on Architectural Support for Programming Languages and Operating Systems, Volume 2, pp. 325–339, 2023
2023
