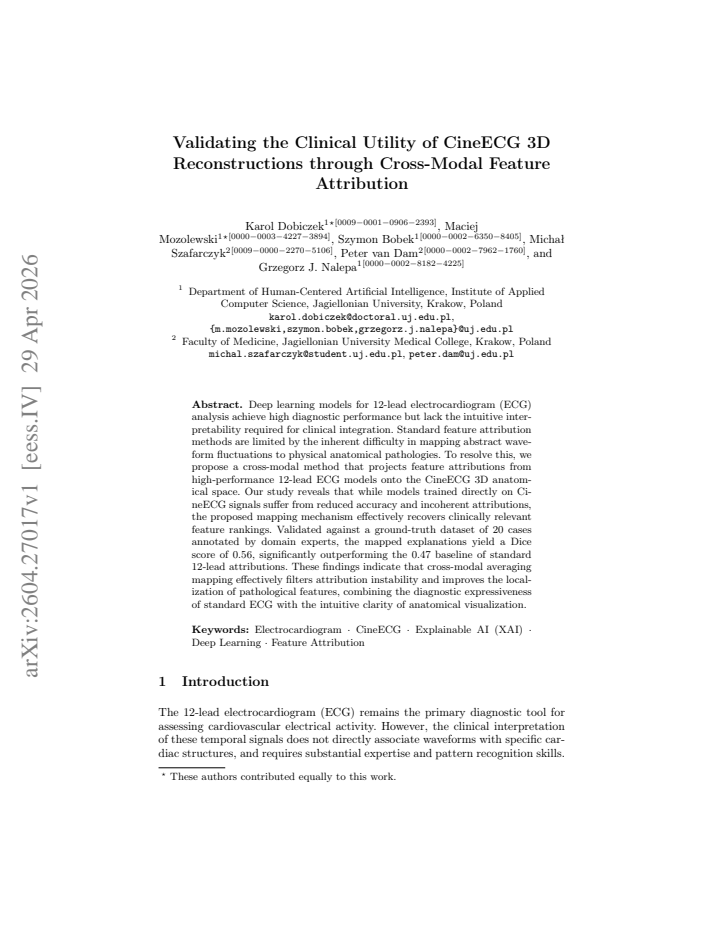

Validating the Clinical Utility of CineECG 3D Reconstructions through Cross-Modal Feature Attribution

Karol Dobiczek , Maciej Mozolewski , Szymon Bobek , Micha{\l} Szafarczyk , Peter van Dam , Grzegorz J. Nalepa

Authors on Pith no claims yet

Pith reviewed 2026-05-07 11:34 UTC · model grok-4.3

classification 📡 eess.IV cs.LGstat.ML

keywords ECG analysisfeature attribution3D reconstructioncross-modal mappingclinical interpretabilitydeep learningpathology localization

0 comments

The pith

Projecting feature attributions from 12-lead ECG models onto CineECG 3D reconstructions improves alignment with expert-annotated pathological locations.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a cross-modal method that takes explanations generated by high-performing models on standard 12-lead ECG signals and projects them into three-dimensional heart anatomy derived from CineECG. This step aims to translate abstract waveform changes into concrete anatomical positions, overcoming the instability of direct attribution techniques that struggle to connect signals to physical heart structures. Direct models trained on CineECG data alone produce lower diagnostic accuracy and less coherent maps. When tested on 20 expert-annotated cases, the mapped attributions reach a Dice score of 0.56, exceeding the 0.47 score from unmapped 12-lead attributions and demonstrating better localization of disease features.

Core claim

While models trained directly on CineECG signals suffer from reduced accuracy and incoherent attributions, the proposed cross-modal averaging mapping effectively recovers clinically relevant feature rankings from standard 12-lead ECG models and achieves a Dice score of 0.56 against expert ground truth, outperforming the 0.47 baseline of standard 12-lead attributions.

What carries the argument

cross-modal averaging mapping that projects feature attributions from 12-lead ECG models onto CineECG 3D anatomical reconstructions

If this is right

The mapping recovers clinically relevant feature rankings even when direct CineECG models underperform.
Cross-modal averaging filters attribution instability and improves localization of pathological features.
The approach combines the diagnostic expressiveness of standard ECG models with the intuitive clarity of anatomical visualization.
Clinical integration of ECG AI becomes more feasible when explanations are grounded in 3D heart anatomy.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Cardiologists could use the 3D visualizations to cross-check AI predictions against visible heart structures during diagnosis.
The method might extend to other signal-to-image modalities for broader multi-modal diagnostic support.
Larger validation cohorts could reveal whether the Dice improvement holds across more varied patient populations and annotation styles.

Load-bearing premise

The 20 expert-annotated cases form a reliable ground-truth set and the CineECG 3D reconstructions accurately capture the anatomical locations relevant to the ECG attributions without systematic mapping errors.

What would settle it

An independent test set of expert-annotated cases in which the mapped attributions show no Dice score improvement or perform worse than standard 12-lead attributions would falsify the claim of improved localization.

Figures

Figures reproduced from arXiv: 2604.27017 by Grzegorz J. Nalepa, Karol Dobiczek, Maciej Mozolewski, Micha{\l} Szafarczyk, Peter van Dam, Szymon Bobek.

**Figure 1.** Figure 1: Separate models are trained on ECG and CineECG data. Model feature view at source ↗

**Figure 2.** Figure 2: XAI-optimized 1D-ResNet architecture designed for variable-length ECG view at source ↗

**Figure 3.** Figure 3: Expert annotation compared to model attributions (IG, absolute values) view at source ↗

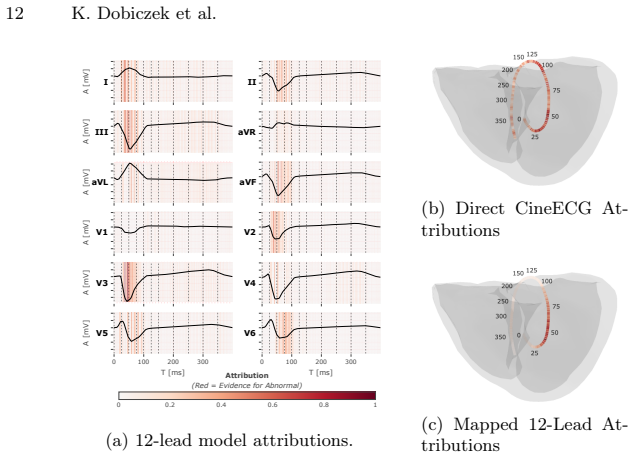

**Figure 4.** Figure 4: Comparison of multimodal attributions for case FID 18315. (a) 12-lead view at source ↗
