VTBench: A Multimodal Framework for Time-Series Classification with Chart-Based Representations

Madhumitha Venkatesan , Xuyang Chen , Dongyu Liu
Authors on Pith no claims yet

Pith reviewed 2026-05-07 10:30 UTC · model grok-4.3

classification 💻 cs.CV cs.LG
keywords time-series classificationmultimodal fusionchart visualizationsUCR datasetsvisual-numerical fusioninterpretable representationsfusion strategies
0
0 comments X

The pith

Fusing simple chart images with raw time series data yields competitive classification accuracy when the visuals supply non-redundant cues.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents VTBench as a framework to test whether rendering time series as everyday charts can serve as useful inputs for classification models alongside or instead of the original numbers. Experiments on 31 standard datasets reveal that models using only the charts perform well especially on smaller collections, that mixing several chart styles captures extra visual details to raise accuracy, and that combining charts with raw sequences succeeds only when the images bring fresh information rather than repeating what the numbers already show. This matters because most current time-series work sticks to raw inputs or uses abstract image encodings that demand extra steps, whereas charts stay intuitive and lightweight. The work also extracts concrete rules for picking chart types and fusion methods based on dataset size and redundancy checks.

Core claim

VTBench generates line, area, bar, and scatter plots from each time series and feeds them into modular fusion architectures alongside the raw sequence. On 31 UCR datasets, chart-only models prove competitive with raw-input baselines particularly on smaller sets; multi-chart combinations raise accuracy by supplying complementary visual patterns; and full multimodal fusion improves or preserves performance when the visual branch adds information absent from the numbers but lowers accuracy when the charts merely duplicate existing signals.

What carries the argument

The VTBench modular architecture that renders time series into line, area, bar, and scatter charts and supports single-chart, multi-chart, and full visual-numerical fusion strategies for classification.

If this is right

  • Chart-only pipelines become a viable option for smaller datasets where raw-data deep models risk overfitting.
  • Combining multiple chart types allows models to draw on different visual encodings of the same signal without additional preprocessing.
  • Multimodal fusion should be applied selectively after checking that visual features do not duplicate information already present in the raw sequence.
  • The distilled guidelines offer direct rules for choosing chart types, fusion method, and configuration on new time-series problems.
  • VTBench supplies a reusable testbed for exploring other interpretable visual representations in time-series work.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same chart-fusion idea could be tested on forecasting or anomaly detection tasks where visual trend or outlier cues in plots might add value.
  • Adopting human-readable charts may lower reliance on specialized preprocessing pipelines that many current time-series models require.
  • Pre-trained vision models could be swapped into the chart branch to see whether transfer learning amplifies the observed gains.
  • Because the inputs remain directly viewable plots, the approach opens a route toward more inspectable time-series classifiers.

Load-bearing premise

The selected chart types deliver non-redundant visual features that standard fusion can exploit without injecting noise or needing extensive extra preprocessing.

What would settle it

A collection of UCR datasets on which every multimodal chart-plus-raw configuration produces lower accuracy than the raw-only baseline across all fusion variants and dataset sizes.

Figures

Figures reproduced from arXiv: 2604.27259 by Dongyu Liu, Madhumitha Venkatesan, Xuyang Chen.

Figure 1
Figure 1. Figure 1: VTBench converts a univariate time-series input view at source ↗
Figure 2
Figure 2. Figure 2: Examples of chart-based visual representations across four chart types (line, area, bar, scatter) and four visual settings view at source ↗
Figure 3

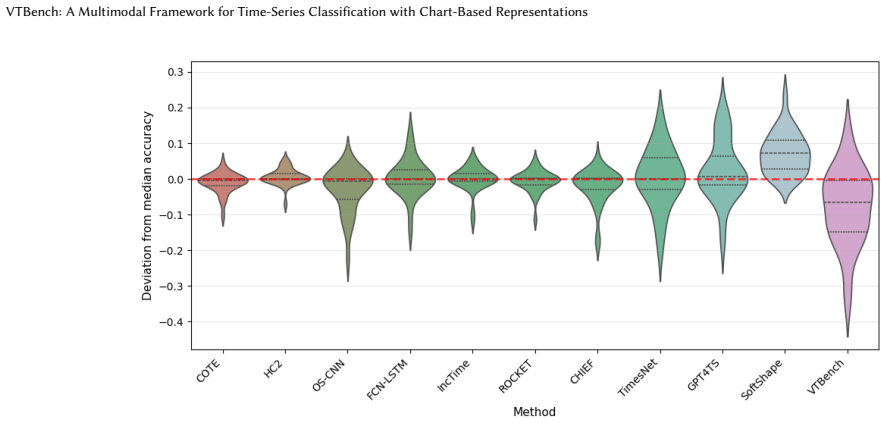

Figure 3. Figure 3: Violin plots showing the deviation of each classifier’s accuracy from the dataset-wise median performance across view at source ↗
Figure 4

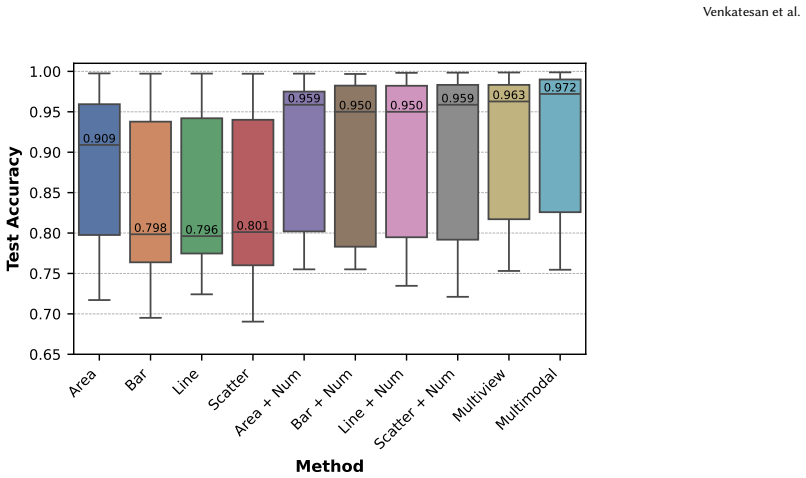

Figure 4. Figure 4: Exploratory results on 9 UCR datasets using fixed 640 view at source ↗
read the original abstract

Time-series classification (TSC) has advanced significantly with deep learning, yet most models rely solely on raw numerical inputs, overlooking alternative representations. While texture-based encodings such as Gramian Angular Fields (GAF) and Recurrence Plots (RP) convert time series into 2D images, they often require heavy preprocessing and yield less intuitive representations. In contrast, chart-based visualizations offer more interpretable alternatives and show promise in specific domains; however, their effectiveness remains underexplored, with limited systematic evaluation across chart types, visual encoding choices, and datasets. In this work, we introduce VTBench, a systematic and extensible framework that re-examines TSC through multimodal fusion of raw sequences and chart-based visualizations. VTBench generates lightweight, human-interpretable plots -- line, area, bar, and scatter, providing complementary views of the same signal. We develop a modular architecture supporting multiple fusion strategies, including single-chart visual-numerical fusion, multi-chart visual fusion, and full multimodal fusion with raw inputs. Through experiments across 31 UCR datasets, we show that: (1) chart-only models are competitive in selected settings, particularly on smaller datasets; (2) combining multiple chart types can improve accuracy by capturing complementary visual cues; and (3) multimodal models improve or maintain performance when visual features provide non-redundant information, but may degrade accuracy when they introduce redundancy. We further distill practical guidelines for selecting chart types, fusion strategies, and configurations. VTBench establishes a unified foundation for interpretable and effective multimodal time-series classification.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces VTBench, a multimodal framework for time-series classification (TSC) that converts univariate series into lightweight chart visualizations (line, area, bar, scatter) and fuses them with raw numerical inputs via modular early/late/hybrid strategies. Experiments across 31 UCR datasets support three claims: (1) chart-only models are competitive, especially on smaller datasets; (2) multi-chart combinations improve accuracy by exploiting complementary visual cues; and (3) full multimodal fusion improves or maintains performance when visuals add non-redundant information but can degrade it when redundant. The work also distills practical guidelines for chart-type and fusion-strategy selection.

Significance. If the empirical patterns hold under rigorous controls, the contribution is moderately significant: it supplies a systematic, interpretable alternative to texture encodings such as GAF/RP and offers conditional evidence on when visual modalities help or hurt TSC. The practical guidelines and extensible modular design could influence follow-up work on multimodal time-series pipelines, though the absence of novel theory or large-scale gains limits broader impact.

major comments (2)
  1. [Experiments] Experimental section (results on 31 UCR datasets): the three numbered claims rest on comparisons of chart-only, multi-chart, and multimodal models, yet the manuscript supplies no architecture diagrams, layer counts, optimizer settings, learning-rate schedules, or number of runs with error bars. Without these, it is impossible to verify whether the reported accuracy patterns are robust or merely artifacts of under-specified training.
  2. [Fusion strategies] Fusion-strategy subsection: the claim that multimodal models 'improve or maintain performance when visual features provide non-redundant information' is load-bearing for claim (3), but the text does not quantify redundancy (e.g., via mutual information between chart embeddings and raw-series features) or show ablation results that isolate the redundancy effect from simple capacity differences.
minor comments (2)
  1. [Abstract] Abstract: the phrase 'lightweight, human-interpretable plots' is repeated without specifying chart resolution, axis scaling, or color-mapping choices; these parameters affect both reproducibility and the 'complementary visual cues' argument.
  2. [Introduction] Related-work paragraph: prior chart-based TSC papers (e.g., those using line plots with CNNs) are mentioned only in passing; a short table contrasting VTBench against them would clarify the incremental contribution.

Simulated Author's Rebuttal

2 responses · 0 unresolved

Thank you for the constructive feedback on our manuscript. We address each major comment point by point below and describe the planned revisions to strengthen the work.

read point-by-point responses

  1. Referee: [Experiments] Experimental section (results on 31 UCR datasets): the three numbered claims rest on comparisons of chart-only, multi-chart, and multimodal models, yet the manuscript supplies no architecture diagrams, layer counts, optimizer settings, learning-rate schedules, or number of runs with error bars. Without these, it is impossible to verify whether the reported accuracy patterns are robust or merely artifacts of under-specified training.

    Authors: We agree that the experimental details provided are insufficient for full reproducibility and independent verification of robustness. The original manuscript emphasized the framework and aggregate results across the 31 UCR datasets but omitted granular implementation specifications. In the revised version we will add architecture diagrams for the visual encoders (ResNet-style for charts) and numerical encoder (1D CNN or Transformer), exact layer counts and dimensions, optimizer choice (Adam), learning-rate schedules, batch sizes, and training epochs. We will also report all accuracy figures as means and standard deviations over five independent runs with different random seeds. These changes will directly support verification of the three claims. revision: yes

  2. Referee: [Fusion strategies] Fusion-strategy subsection: the claim that multimodal models 'improve or maintain performance when visual features provide non-redundant information' is load-bearing for claim (3), but the text does not quantify redundancy (e.g., via mutual information between chart embeddings and raw-series features) or show ablation results that isolate the redundancy effect from simple capacity differences.

    Authors: We acknowledge that the current support for claim (3) relies primarily on empirical performance differences rather than explicit redundancy quantification. While the observed patterns across fusion strategies and chart types provide indicative evidence, we agree that stronger isolation is needed. In revision we will add (i) estimates of mutual information between the chart-derived embeddings and the raw time-series features and (ii) capacity-controlled ablations that match total parameter counts across fusion variants. These additions will better separate redundancy effects from mere increases in model capacity. revision: yes

Circularity Check

0 steps flagged

No significant circularity: purely empirical framework

full rationale

The paper introduces VTBench as an empirical multimodal TSC framework that generates standard chart visualizations (line/area/bar/scatter) from UCR time series and evaluates fusion strategies via controlled experiments on 31 public benchmarks. No derivation chain, equations, fitted parameters renamed as predictions, or load-bearing self-citations appear in the abstract or described methodology. All reported results (chart-only competitiveness on small data, multi-chart complementarity, conditional multimodal gains) are direct outcomes of the stated experimental design against external datasets, making the work self-contained without reduction to its own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract supplies no explicit free parameters, axioms, or invented entities; the work rests on standard deep-learning components and the UCR archive.
