arxiv: 2604.27289 · v2 · submitted 2026-04-30 · 💻 cs.AI

Recognition: unknown

Mechanized Foundations of Structural Governance: Machine-Checked Proofs for Governed Intelligence

Alan L. McCann

Authors on Pith no claims yet

Pith reviewed 2026-05-07 09:50 UTC · model grok-4.3

classification 💻 cs.AI

keywords structural governancegoverned intelligencemechanized proofssufficiency theoremcognitive systemssafety predicatesformal verificationintelligent workflows

0 comments

The pith

Four atomic primitives suffice to express and govern any discrete intelligent system, as shown by machine-checked theorems.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper works to establish a formal basis for structural governance in cognitive workflow systems by proving several key properties through mechanized and paper proofs. It defines a safety property that applies to infinite executions and shows this property stays consistent no matter how deeply systems refer to themselves. The central result is that any discrete intelligent behavior can be constructed from just four basic operations, with further proofs identifying what must be present for semantic tasks and confirming that a real implementation matches the model under heavy testing. A sympathetic reader would care because this approach offers a way to build controllable intelligent systems from the bottom up using verifiable components rather than post-hoc restrictions.

Core claim

The Sufficiency Theorem proves that four atomic primitives are expressively complete for any discrete intelligent system by establishing their compositional closure. This sits alongside the Coinductive Safety Predicate, which tracks governance safety for infinite behaviors via a permission flag, and the Governance Invariance Theorem, which shows governance at each level reduces directly to the level below by type equality. Additional results include a canonical decomposition into alternating layers, a necessity proof for the semantic component via reduction to an undecidability result, and a verified runtime specification checked against thousands of test cases.

What carries the argument

The four atomic primitives (code, reason, memory, call) that generate the full set of behaviors for discrete intelligent systems under governance.

If this is right

Any discrete intelligent behavior reduces to compositions of the four primitives.
Governance safety applies to every infinite execution when the permission flag is set.
Governance at each higher level of recursion is identical to governance at the base level.
Tasks needing semantic judgment require an architecturally opaque reason primitive.
The runtime implementation agrees with the formal specification on all tested inputs.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

System designers could restrict implementations to these primitives to enforce governance by construction rather than by monitoring.
The uniform invariance result suggests governance checks can be applied once at the base level and automatically hold higher up.
The necessity of an opaque component indicates that fully transparent systems cannot handle every form of intelligent reasoning.
The testing approach could be strengthened by targeting specific classes of inputs that the random generation might under-sample.

Load-bearing premise

That any discrete intelligent system can be built from compositions of the four primitives and that random testing of many directive sequences is enough to confirm the runtime matches the formal specification in every case.

What would settle it

A concrete counterexample would be any discrete intelligent system whose full range of behaviors cannot be generated by composing the four primitives, or a single directive sequence where the actual runtime produces an outcome different from what the formal model requires.

Figures

Figures reproduced from arXiv: 2604.27289 by Alan L. McCann.

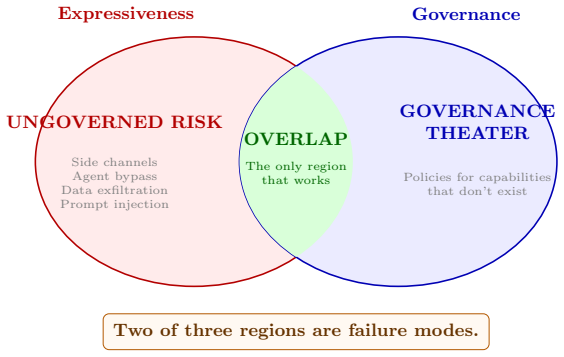

**Figure 1.** Figure 1: Non-coterminous governance: expressiveness and governance boundaries are misaligned, view at source ↗

**Figure 2.** Figure 2: Coterminous governance in Mashin: expressiveness and governance share the same view at source ↗

read the original abstract

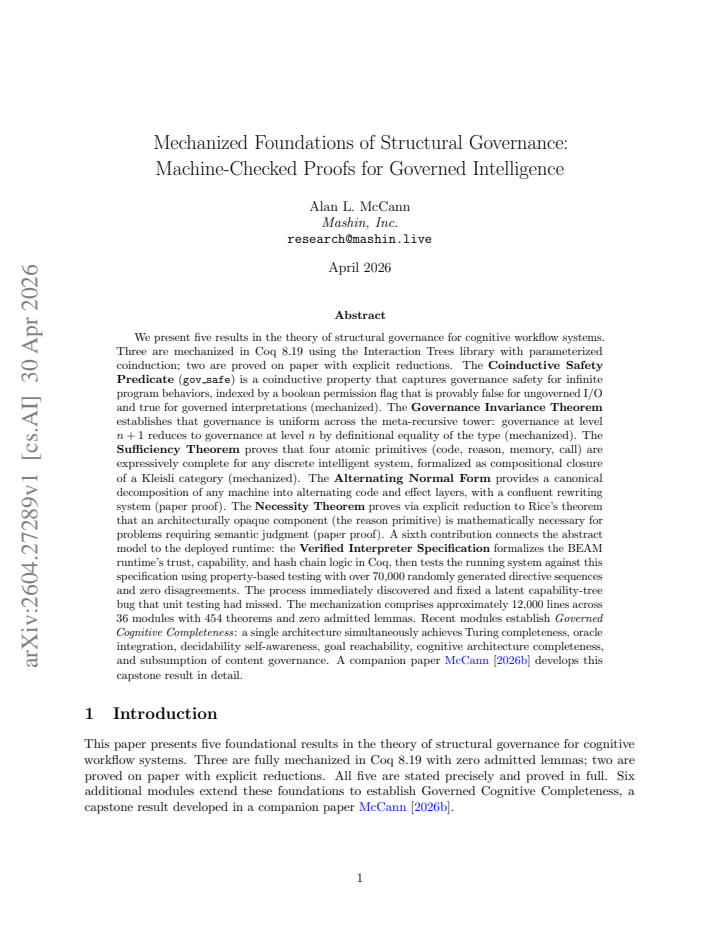

We present five results in the theory of structural governance for cognitive workflow systems. Three are mechanized in Coq 8.19 using the Interaction Trees library with parameterized coinduction; two are proved on paper with explicit reductions. The Coinductive Safety Predicate (gov_safe) is a coinductive property that captures governance safety for infinite program behaviors, indexed by a boolean permission flag that is provably false for ungoverned I/O and true for governed interpretations (mechanized). The Governance Invariance Theorem establishes that governance is uniform across the meta-recursive tower: governance at level n+1 reduces to governance at level n by definitional equality of the type (mechanized). The Sufficiency Theorem proves that four atomic primitives (code, reason, memory, call) are expressively complete for any discrete intelligent system, formalized as compositional closure of a Kleisli category (mechanized). The Alternating Normal Form provides a canonical decomposition of any machine into alternating code and effect layers, with a confluent rewriting system (paper proof). The Necessity Theorem proves via explicit reduction to Rice's theorem that an architecturally opaque component (the reason primitive) is mathematically necessary for problems requiring semantic judgment (paper proof). A sixth contribution connects the abstract model to the deployed runtime: the Verified Interpreter Specification formalizes the BEAM runtime's trust, capability, and hash chain logic in Coq, then tests the running system against this specification using property-based testing with over 70,000 randomly generated directive sequences and zero disagreements. The mechanization comprises approximately 12,000 lines across 36 modules with 454 theorems and zero admitted lemmas.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper mechanizes governance safety and invariance in Coq plus a Kleisli-based sufficiency result, but the leap from category closure to completeness for any discrete intelligent system stays informal.

read the letter

The main takeaway is that this work ships a substantial Coq development formalizing governance properties for discrete systems. It defines a coinductive safety predicate that tracks permission flags across infinite behaviors, proves invariance of governance across recursion levels by definitional equality, and mechanizes a sufficiency result showing four primitives close under Kleisli composition. On paper it reduces necessity to Rice's theorem and gives an alternating normal form with a confluent rewrite system. It also formalizes the BEAM runtime spec and runs property-based tests on 70,000 random directive sequences with no mismatches reported. The 12k-line development with 454 theorems and zero admitted lemmas is concrete evidence of effort that stands out.

Referee Report

2 major / 2 minor

Summary. The paper presents five results on structural governance for cognitive workflow systems: a mechanized Coinductive Safety Predicate (gov_safe) capturing governance safety for infinite behaviors; a mechanized Governance Invariance Theorem showing uniformity across meta-recursive levels; a mechanized Sufficiency Theorem establishing expressive completeness of four primitives (code, reason, memory, call) via Kleisli category closure; a paper proof of Alternating Normal Form with confluent rewriting; and a paper proof of the Necessity Theorem reducing to Rice's theorem. It also includes a Verified Interpreter Specification for the BEAM runtime, validated by property-based testing on over 70,000 directive sequences with zero disagreements, all supported by 12,000 lines of Coq code with 454 theorems and zero admitted lemmas.

Significance. If the results hold, the work supplies a mechanized foundation for safety and governance in discrete intelligent systems, with notable strengths in the Coq mechanization of three core theorems using Interaction Trees and coinduction, the explicit reductions in the paper proofs, and the large-scale property-based testing linking the model to a deployed runtime. These elements provide reproducible formal evidence that could support verifiable AI architectures.

major comments (2)

[Abstract, Sufficiency Theorem] Abstract, Sufficiency Theorem: The mechanized result establishes that the four primitives generate all morphisms via compositional closure of the Kleisli category (using Interaction Trees and coinduction), but the headline claim of expressive completeness for any discrete intelligent system requires an additional unmechanized representation or embedding step showing that arbitrary such systems admit faithful modeling in this framework. This modeling assumption is load-bearing for the central claim and is not addressed by a mechanized lemma.
[Abstract, Verified Interpreter Specification] Abstract, Verified Interpreter Specification: The claim that property-based testing on 70,000 random directive sequences validates the BEAM runtime specification against all possible behaviors lacks detail on test generation, coverage of edge cases, or error-handling paths; without these, the testing provides only partial support for the runtime trust and capability logic.

minor comments (2)

[Abstract] Abstract: The dense listing of results and metrics could be restructured for improved readability, e.g., by separating the mechanized theorems from the runtime contribution.
[Abstract] Abstract: The Necessity Theorem's reduction to Rice's theorem is described only at high level; a brief outline of the key steps in the explicit reduction would aid comprehension even though it is a paper proof.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading and constructive comments on our manuscript. We address each of the major comments in turn below, providing clarifications and indicating the revisions we will make.

read point-by-point responses

Referee: [Abstract, Sufficiency Theorem] Abstract, Sufficiency Theorem: The mechanized result establishes that the four primitives generate all morphisms via compositional closure of the Kleisli category (using Interaction Trees and coinduction), but the headline claim of expressive completeness for any discrete intelligent system requires an additional unmechanized representation or embedding step showing that arbitrary such systems admit faithful modeling in this framework. This modeling assumption is load-bearing for the central claim and is not addressed by a mechanized lemma.

Authors: We concur that the Sufficiency Theorem, as mechanized, demonstrates the closure of the four primitives under composition within the Kleisli category of Interaction Trees, but does not include a mechanized proof that every discrete intelligent system can be embedded into this category. The claim of expressive completeness for 'any' such system therefore rests on a modeling assumption that arbitrary systems admit faithful representation via the primitives and the Alternating Normal Form. This assumption is not discharged by a mechanized lemma in the current development. In the revised manuscript, we will add an explicit discussion of this modeling step, including a high-level outline of how the representation can be constructed for typical cognitive workflow systems, while acknowledging that a fully general mechanized embedding theorem lies beyond the scope of the present work. We will also reference the paper proof of the Alternating Normal Form as supporting the canonical decomposition needed for such embeddings. revision: partial
Referee: [Abstract, Verified Interpreter Specification] Abstract, Verified Interpreter Specification: The claim that property-based testing on 70,000 random directive sequences validates the BEAM runtime specification against all possible behaviors lacks detail on test generation, coverage of edge cases, or error-handling paths; without these, the testing provides only partial support for the runtime trust and capability logic.

Authors: The referee correctly identifies that the manuscript provides limited detail on the property-based testing procedure. While we report the number of sequences tested and the absence of disagreements, we do not describe the generators used, the specific invariants checked (such as permission flag consistency under recursion, capability monotonicity, and hash chain validity), the handling of error cases, or quantitative coverage metrics. We will revise the section on the Verified Interpreter Specification to include these elements: a description of the QuickCheck-style test generators for directive sequences, the list of properties verified against the Coq specification, and an analysis of edge cases including malformed inputs and boundary conditions in the trust and capability logic. This expansion will provide stronger evidence for the correspondence between the mechanized model and the deployed runtime. revision: yes

Circularity Check

0 steps flagged

No significant circularity; results rest on mechanized Coq proofs and external runtime validation.

full rationale

The paper's derivation chain consists of mechanized theorems in Coq (Coinductive Safety Predicate, Governance Invariance Theorem, Sufficiency Theorem as Kleisli compositional closure) plus paper proofs for Alternating Normal Form and Necessity Theorem via Rice's theorem reduction. The Verified Interpreter Specification is validated by property-based testing on 70,000+ random sequences with zero disagreements. No quoted step equates a claimed prediction or completeness result to a fitted parameter, self-defined quantity, or load-bearing self-citation by construction. The formalization of discrete intelligent systems as Kleisli arrows is an explicit modeling choice supported by the mechanization rather than a definitional loop. This is self-contained against external benchmarks (Coq kernel, Interaction Trees library, runtime testing).

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 1 invented entities

The paper relies on standard Coq coinduction libraries and Interaction Trees; it introduces domain assumptions about what counts as a discrete intelligent system and governance safety without external empirical grounding.

axioms (2)

standard math Standard coinductive definitions and parameterized coinduction rules in Coq
Used to define and prove properties of the gov_safe predicate for infinite behaviors.
domain assumption Compositional closure of the Kleisli category generated by the four primitives
Central assumption for the Sufficiency Theorem claiming expressive completeness.

invented entities (1)

Structural governance model with atomic primitives code, reason, memory, call no independent evidence
purpose: To serve as a minimal, expressively complete basis for any discrete intelligent system
Postulated without independent evidence outside the formalization itself.

pith-pipeline@v0.9.0 · 5595 in / 1470 out tokens · 67299 ms · 2026-05-07T09:50:14.543580+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

17 extracted references · 16 canonical work pages · 1 internal anchor

[1]

Constitutional AI: Harmlessness from AI Feedback

Yuntao Bai, Saurav Kadavath, Sandipan Kundu, Amanda Askell, Jackson Kernion, Andy Jones, Anna Chen, Anna Goldie, Azalia Mirhoseini, Cameron McKinnon, et al. Constitutional AI: Harmlessness from AI feedback.arXiv preprint arXiv:2212.08073,

work page internal anchor Pith review arXiv
[2]

doi: 10.1007/978-3-319-96142-2

work page doi:10.1007/978-3-319-96142-2
[3]

Dennis and Earl C

doi: 10.1145/365230.365252. Brendan Fong and David I. Spivak.An Invitation to Applied Category Theory: Seven Sketches in Compositionality. Cambridge University Press,

work page doi:10.1145/365230.365252
[4]

doi: 10.1017/9781108668804. David K. Gifford and John M. Lucassen. Integrating functional and imperative programming. InACM Conference on LISP and Functional Programming, pages 28–38,

work page doi:10.1017/9781108668804
[5]

Gifford and John M

doi: 10.1145/319838.319848. Ronghui Gu, Zhong Shao, Hao Chen, Xiongnan Wu, Jieung Kim, Vilhelm Sj¨ oberg, and David Costanzo. CertiKOS: An extensible architecture for building certified concurrent OS kernels. In USENIX Symposium on Operating Systems Design and Implementation (OSDI), pages 653–669,

work page doi:10.1145/319838.319848
[6]

25 Chung-Kil Hur, Georg Neis, Derek Dreyer, and Viktor Vafeiadis

doi: 10.1007/BFb0053567. 25 Chung-Kil Hur, Georg Neis, Derek Dreyer, and Viktor Vafeiadis. The power of parameterization in coinductive proof. InProceedings of the ACM on Programming Languages (POPL), pages 193–206,

work page doi:10.1007/bfb0053567
[7]

Hans H¨ uttel, Ivan Lanese, Vasco T

doi: 10.1145/2429069.2429093. Hans H¨ uttel, Ivan Lanese, Vasco T. Vasconcelos, Lu´ ıs Caires, Marco Carbone, Pierre-Malo Deni´ elou, Dimitris Mostrous, Luca Padovani, Ant´ onio Ravara, Emilio Tuosto, et al. Foundations of session types and behavioural contracts.ACM Computing Surveys, 49(1):1–36,

work page doi:10.1145/2429069.2429093
[8]

Andr´ e Joyal and Ross Street

doi: 10.1145/2873052. Oleg Kiselyov and Hiromi Ishii. Freer monads, more extensible effects. InACM SIGPLAN Haskell Symposium, pages 94–105,

work page doi:10.1145/2873052
[9]

doi: 10.1145/2804302.2804319. Gerwin Klein, Kevin Elphinstone, Gernot Heiser, June Andronick, David Cock, Philip Derrin, Dhammika Elkaduwe, Kai Engelhardt, Rafal Kolanski, Michael Norrish, Thomas Sewell, Harvey Tuch, and Simon Winwood. seL4: Formal verification of an OS kernel. InACM Symposium on Operating Systems Principles (SOSP), pages 207–220,

work page doi:10.1145/2804302.2804319
[10]

doi: 10.1145/1629575.1629596. John E. Laird, Christian Lebiere, and Paul S. Rosenbloom. A standard model of the mind: Toward a common computational framework across artificial intelligence, cognitive science, neuroscience, and robotics.AI Magazine, 38(4):13–26,

work page doi:10.1145/1629575.1629596
[11]

Type directed compilation of row-typed algebraic effects

doi: 10.1145/3009837.3009872. Andrea Leopardi. StreamData: Data generation and property-based testing for Elixir. https: //github.com/whatyouhide/stream_data,

work page doi:10.1145/3009837.3009872
[12]

Martin Leucker and Christian Schallhart

doi: 10.1145/1538788.1538814. Martin Leucker and Christian Schallhart. A brief account of runtime verification.Journal of Logic and Algebraic Programming, 78(5):293–303,

work page doi:10.1145/1538788.1538814
[13]

doi: 10.1016/j.jlap.2008.08.004. Alan L. McCann. Algebraic semantics of governed execution: Monoidal categories, effect algebras, and coterminous boundaries, 2026a. arXiv preprint (to appear). Alan L. McCann. Effect-transparent governance for AI workflow architectures: Semantic preservation, expressive minimality, and decidability boundaries, 2026b. arXiv...

work page doi:10.1016/j.jlap.2008.08.004 2008
[14]

Long Ouyang, Jeff Wu, Xu Jiang, Diogo Almeida, Carroll L

1975 ACM Turing Award Lecture. Long Ouyang, Jeff Wu, Xu Jiang, Diogo Almeida, Carroll L. Wainwright, Pamela Mishkin, Chong Zhang, Sandhini Agarwal, Katarina Slama, Alex Ray, et al. Training language models to follow instructions with human feedback.Advances in Neural Information Processing Systems, 35: 27730–27744,

1975
[15]

doi: 10.1007/978-3-642-00590-9

work page doi:10.1007/978-3-642-00590-9
[16]

Pierce, and Steve Zdancewic

doi: 10.1145/3371119. Yannick Zakowski, Calvin Beck, Irene Yoon, Ilia Zaichuk, Vadim Zaliva, and Steve Zdancewic. Modular, compositional, and executable formal semantics for LLVM IR.Proceedings of the ACM on Programming Languages, 5(ICFP):1–30,

work page doi:10.1145/3371119
[17]

doi: 10.1145/3473572. 27

work page doi:10.1145/3473572
