arxiv: 2604.28045 · v2 · submitted 2026-04-30 · 💻 cs.CV

Recognition: no theorem link

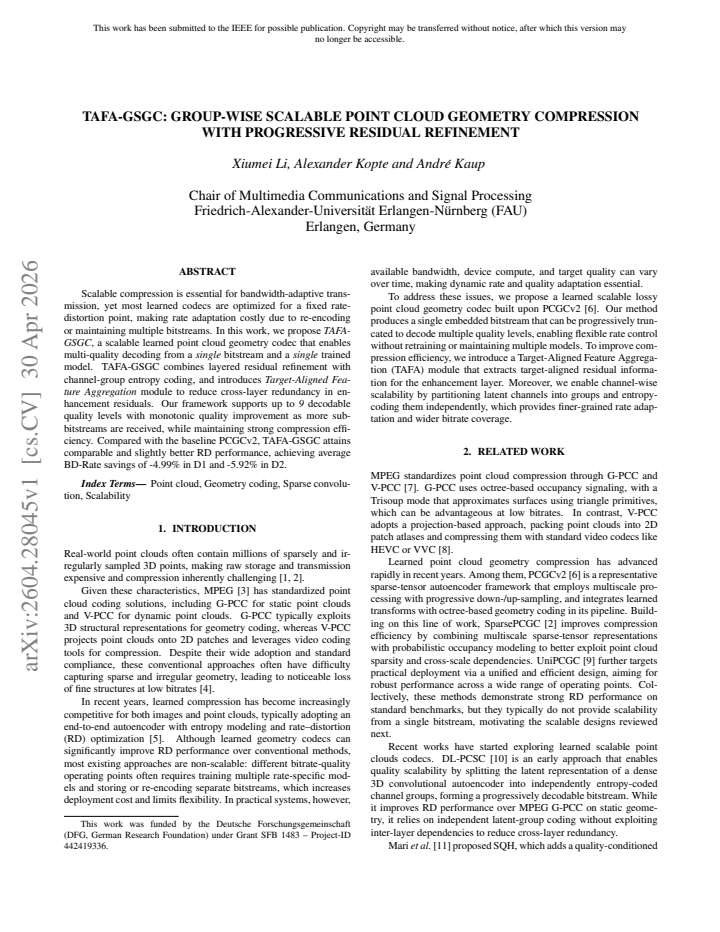

TAFA-GSGC: Group-wise Scalable Point Cloud Geometry Compression with Progressive Residual Refinement

Xiumei Li , Alexander Kopte , Andr\'e Kaup

Authors on Pith no claims yet

Pith reviewed 2026-05-14 21:05 UTC · model grok-4.3

classification 💻 cs.CV

keywords point cloud geometry compressionscalable codinglearned compressionresidual refinementprogressive decodingfeature aggregationrate-distortion performance

0 comments

The pith

TAFA-GSGC enables up to nine progressive quality levels for point cloud geometry from a single bitstream and single trained model.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces TAFA-GSGC, a learned codec for point cloud geometry compression that supports scalable decoding. It uses layered residual refinement together with channel-group entropy coding so that quality improves as additional subbitstreams arrive. A Target-Aligned Feature Aggregation module is added to reduce redundancy across enhancement layers. This design avoids re-encoding or multiple stored bitstreams when bandwidth changes, while still showing better rate-distortion results than the PCGCv2 baseline.

Core claim

TAFA-GSGC supports up to 9 decodable quality levels with monotonic quality improvement as more subbitstreams are received, while maintaining strong compression efficiency. Compared with the PCGCv2 baseline, TAFA-GSGC demonstrates improved RD performance, achieving average BD-rate reductions of 4.99% and 5.92% in terms of D1-PSNR and D2-PSNR, respectively, through layered residual refinement and the Target-Aligned Feature Aggregation module.

What carries the argument

Layered residual refinement paired with the Target-Aligned Feature Aggregation module, which aligns features to cut cross-layer redundancy in the enhancement residuals.

If this is right

Bandwidth-adaptive transmission becomes possible without re-encoding the point cloud or maintaining separate bitstreams.
Each added subbitstream produces a strictly higher quality reconstruction.
The single model suffices for all nine quality levels while still beating the fixed-rate PCGCv2 baseline in rate-distortion terms.
Channel-group entropy coding allows the bitstream to be split into independently decodable layers.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Storage systems could serve one compressed file that meets many different downstream quality needs.
The residual-refinement pattern may transfer to scalable compression of other dense 3D representations.
Further experiments on diverse real-world captures would test whether the monotonic gains remain stable.

Load-bearing premise

A single trained model using layered residual refinement and the Target-Aligned Feature Aggregation module can deliver consistent monotonic quality gains across all supported levels without hidden performance drops or overfitting to the tested point cloud datasets.

What would settle it

Observing a quality drop or non-monotonic change when a new subbitstream is added on point clouds outside the training distribution would show the scalability claim does not hold.

read the original abstract

Scalable compression is essential for bandwidth-adaptive transmission, yet most learned codecs are optimized for a fixed rate-distortion point, making rate adaptation costly due to re-encoding or maintaining multiple bitstreams. In this work, we propose TAFA-GSGC, a scalable learned point cloud geometry codec that enables multi-quality decoding from a single bitstream and a single trained model. TAFA-GSGC combines layered residual refinement with channel-group entropy coding, and introduces a Target-Aligned Feature Aggregation module to reduce cross-layer redundancy in enhancement residuals. Our framework supports up to 9 decodable quality levels with monotonic quality improvement as more subbitstreams are received, while maintaining strong compression efficiency. Compared with the PCGCv2 baseline, TAFA-GSGC demonstrates improved RD performance, achieving average BD-rate reductions of 4.99% and 5.92% in terms of D1-PSNR and D2-PSNR, respectively.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

TAFA-GSGC adds a Target-Aligned Feature Aggregation module on top of layered residuals and group-wise coding to let one model serve up to nine quality levels from a single bitstream, with modest BD-rate gains over PCGCv2.

read the letter

The paper's main advance is a practical way to make learned point cloud geometry compression scalable without training separate models or shipping multiple bitstreams. It stacks progressive residual refinement on channel-group entropy coding and introduces the TAFA module to cut redundant features across layers. This setup lets a decoder pull successive subbitstreams for steadily better reconstruction, which matches real needs in bandwidth-variable settings like AR or vehicle sensors. The reported average BD-rate savings of 4.99% on D1-PSNR and 5.92% on D2-PSNR versus PCGCv2 show the combination is at least competitive on the tested data. The architecture description is clear enough that someone could reimplement the core flow. The experiments appear to cover standard point cloud sets and use the usual D1/D2 metrics, so the efficiency numbers are easy to compare with prior work. The soft spot is the scalability claim itself. The abstract states monotonic quality gains across all nine levels, yet the results section does not include a per-level breakdown table or plot that would let a reader check for any intermediate drops. An ablation that removes TAFA would also help isolate whether the new module is what prevents non-monotonic behavior or whether the layered residuals alone would suffice. Training details and hyperparameter choices are present but could be expanded to reduce the chance that gains are tied to specific dataset quirks. This paper is for people already working on learned 3D codecs who need rate-adaptive extensions rather than a broad audience. It is a straightforward incremental step that builds directly on PCGCv2, so it is worth a serious referee who can ask for the missing per-level checks and ablations. I would send it to review.

Referee Report

2 major / 2 minor

Summary. The paper proposes TAFA-GSGC, a learned scalable point cloud geometry codec combining layered residual refinement with channel-group entropy coding and a Target-Aligned Feature Aggregation (TAFA) module. It claims support for up to 9 decodable quality levels from a single trained model and bitstream, with strictly monotonic quality improvement as additional subbitstreams are received, while delivering average BD-rate reductions of 4.99% (D1-PSNR) and 5.92% (D2-PSNR) relative to the PCGCv2 baseline.

Significance. If the empirical claims hold under rigorous validation, the single-model progressive refinement approach would represent a practical advance for bandwidth-adaptive point-cloud transmission, eliminating the need to maintain multiple models or re-encode at different rates while preserving competitive rate-distortion efficiency.

major comments (2)

[Experiments / Results] The central claim of monotonic quality improvement across all 9 levels is load-bearing yet unsupported by any table or plot of the individual per-level D1/D2-PSNR values on the test point clouds; without these data it is impossible to confirm the absence of hidden non-monotonic drops or dataset-specific behavior.
[Method / Ablation studies] No ablation is reported that isolates the TAFA module's contribution to cross-layer redundancy reduction or to the observed monotonicity; the performance gain over PCGCv2 could therefore be attributable to other factors such as training schedule or entropy model details.

minor comments (2)

[Abstract] The abstract states average BD-rate figures but does not specify the exact number or identity of the test point clouds, nor the precise training/validation split used.
[Method] Notation for the group-wise entropy coding and residual refinement layers should be introduced with explicit equations in the method section to improve reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We agree that additional empirical details are needed to substantiate the central claims and will revise the manuscript accordingly. Point-by-point responses are provided below.

read point-by-point responses

Referee: [Experiments / Results] The central claim of monotonic quality improvement across all 9 levels is load-bearing yet unsupported by any table or plot of the individual per-level D1/D2-PSNR values on the test point clouds; without these data it is impossible to confirm the absence of hidden non-monotonic drops or dataset-specific behavior.

Authors: We acknowledge the absence of explicit per-level metrics in the current manuscript. In the revised version we will add a new table reporting D1-PSNR and D2-PSNR values for each of the nine quality levels on all test point clouds (MPEG and ShapeNet). We will also include a supplementary plot of cumulative rate-distortion curves under progressive decoding to allow direct verification of strict monotonicity across the full set of sequences. revision: yes
Referee: [Method / Ablation studies] No ablation is reported that isolates the TAFA module's contribution to cross-layer redundancy reduction or to the observed monotonicity; the performance gain over PCGCv2 could therefore be attributable to other factors such as training schedule or entropy model details.

Authors: We agree that isolating the TAFA module's contribution is necessary. The revised manuscript will include an ablation study comparing the full TAFA-GSGC model against an otherwise identical variant that replaces the Target-Aligned Feature Aggregation with standard concatenation-based aggregation. This will quantify the module's effect on both overall BD-rate savings and the preservation of monotonic quality progression. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical claims rest on external baseline comparison

full rationale

The paper describes a neural architecture (layered residual refinement + TAFA module + group-wise entropy coding) and reports empirical RD gains versus the external PCGCv2 baseline (BD-rate reductions of 4.99% D1-PSNR and 5.92% D2-PSNR). No derivation chain exists that reduces a claimed result to its own fitted inputs or self-citations by construction. The monotonicity claim across 9 levels is presented as an observed experimental outcome, not a mathematical identity or renamed fit. No self-definitional equations, uniqueness theorems imported from the same authors, or ansatz smuggling via citation appear in the text. The work is therefore self-contained against an external benchmark and receives the default non-circularity finding.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 1 invented entities

The central claim rests on standard deep-learning assumptions about point-cloud distributions plus a new architectural module; many neural-network weights act as free parameters fitted to training data.

free parameters (1)

neural network weights and hyperparameters
All model parameters are fitted during training on point cloud datasets to achieve the reported rate-distortion performance.

axioms (1)

domain assumption Point cloud geometry can be effectively represented and compressed via learned hierarchical residual refinement and entropy coding.
Invoked throughout the design of the scalable codec layers.

invented entities (1)

Target-Aligned Feature Aggregation module no independent evidence
purpose: Reduce cross-layer redundancy in enhancement residuals for better scalable performance.
New component introduced by the authors with no independent evidence outside this work.

pith-pipeline@v0.9.0 · 5469 in / 1483 out tokens · 45527 ms · 2026-05-14T21:05:40.208512+00:00 · methodology

Review history (2 revisions) →

discussion (0)

Reference graph

Works this paper leans on

31 extracted references · 31 canonical work pages · 2 internal anchors

[1]

Given these characteristics, MPEG [3] has standardized point cloud coding solutions, including G-PCC for static point clouds and V-PCC for dynamic point clouds

INTRODUCTION Real-world point clouds often contain millions of sparsely and ir- regularly sampled 3D points, making raw storage and transmission expensive and compression inherently challenging [1, 2]. Given these characteristics, MPEG [3] has standardized point cloud coding solutions, including G-PCC for static point clouds and V-PCC for dynamic point cl...

work page
[2]

TAFA-GSGC: Group-wise Scalable Point Cloud Geometry Compression with Progressive Residual Refinement

RELATED WORK MPEG standardizes point cloud compression through G-PCC and V-PCC [7]. G-PCC uses octree-based occupancy signaling, with a Trisoup mode that approximates surfaces using triangle primitives, which can be advantageous at low bitrates. In contrast, V-PCC adopts a projection-based approach, packing point clouds into 2D patch atlases and compressi...

work page internal anchor Pith review Pith/arXiv arXiv 2026
[3]

1, left)

SCALABLE FRAMEWORK Motivated by PCGCv2, we propose TAFA-GSGC, a group-wise scalable point cloud geometry compression framework with progres- sive residual refinement (Fig. 1, left). The framework consists of a base layer, two residual enhancement layers, and channel-wise scal- ability mechanism. The base layer adopts the backbone of PCGCv2 to produce a co...

work page
[4]

Specifically, the training set is constructed from dense point clouds sampled from ShapeNet [17] containing approx- imately 26,000 models

EXPERIMENTAL SETUP Since our method builds upon PCGCv2 and augments it with a scal- able coding mechanism, we follow the same training data and pre- processing pipeline as PCGCv2 to enable a controlled and repro- ducible comparison. Specifically, the training set is constructed from dense point clouds sampled from ShapeNet [17] containing approx- imately ...

work page
[5]

For entropy coding, we adopt a Table 1

for sparse 3D convolutions. For entropy coding, we adopt a Table 1. Average BD-Rate and BD-PSNR (D1/D2) of TAFA-GSGC relative to PCGCv2 and G-PCC anchors on standard dense point cloud datasets. Dataset Metric PCGCV2 G-PCC OctreeG-PCC Trisoup D1 D2 D1 D2 D1 D2 8iVFB BD-Rate(%) −5.43 −5.33 – −76.22 −31.77 −30.88 BD-PSNR(dB) 0.25 0.32 9.08 7.90 1.60 1.46 MVU...

work page
[6]

For a fair and reproducible comparison, we use the same voxelized test assets as PCGCv2

RESULTS We compare against the learned anchor PCGCv2 and the standard- ized MPEG G-PCC anchors (Octree and Trisoup) using the refer- ence implementation TMC13-v23 [24] with CTC-compliant config- urations. For a fair and reproducible comparison, we use the same voxelized test assets as PCGCv2. Distortion is measured using both point-to-point distance (D1) ...

work page
[7]

A single trained model enables multi-level decoding by progressively truncating a single bitstream

CONCLUSION We propose TAFA-GSGC, a scalable learned point cloud geome- try codec built on the PCGCv2 backbone. A single trained model enables multi-level decoding by progressively truncating a single bitstream. Experiments on standard dense point cloud datasets show that TAFA-GSGC substantially outperforms G-PCC anchors and achieves comparable or slightly...

work page
[8]

Survey on deep learning-based point cloud compression,

Maurice Quach, Jiahao Pang, Dong Tian, Giuseppe Valenzise, and Fr ´ed´eric Dufaux, “Survey on deep learning-based point cloud compression,”Frontiers in Signal Processing, vol. 2, pp. 846972, 2022

work page 2022
[9]

Sparse tensor-based multi- scale representation for point cloud geometry compression,

Jianqiang Wang, Dandan Ding, Zhu Li, Xiaoxing Feng, Chuntong Cao, and Zhan Ma, “Sparse tensor-based multi- scale representation for point cloud geometry compression,” IEEE Transactions on Pattern Analysis and Machine Intelli- gence, vol. 45, no. 7, pp. 9055–9071, 2022

work page 2022
[10]

Emerging mpeg standards for point cloud compression,

Sebastian Schwarz, Marius Preda, Vittorio Baroncini, Mad- hukar Budagavi, Pablo Cesar, Philip A Chou, Robert A Cohen, Maja Krivoku´ca, S´ebastien Lasserre, Zhu Li, et al., “Emerging mpeg standards for point cloud compression,”IEEE Journal on Emerging and Selected Topics in Circuits and Systems, vol. 9, no. 1, pp. 133–148, 2018

work page 2018
[11]

Compression of sparse and dense dynamic point clouds—methods and standards,

Chao Cao, Marius Preda, Vladyslav Zakharchenko, Euee S Jang, and Titus Zaharia, “Compression of sparse and dense dynamic point clouds—methods and standards,”Proceedings of the IEEE, vol. 109, no. 9, pp. 1537–1558, 2021

work page 2021
[12]

Learningpcc: A pytorch library for learning-based point cloud compression,

Liang Xie and Wei Gao, “Learningpcc: A pytorch library for learning-based point cloud compression,” inProceedings of the 32nd ACM International Conference on Multimedia, 2024, pp. 11234–11238

work page 2024
[13]

Multi- scale point cloud geometry compression,

Jianqiang Wang, Dandan Ding, Zhu Li, and Zhan Ma, “Multi- scale point cloud geometry compression,” in2021 Data Com- pression Conference (DCC). IEEE, 2021, pp. 73–82

work page 2021
[14]

An overview of ongoing point cloud compression standardization activities: Video-based (v-pcc) and geometry-based (g-pcc),

Danillo Graziosi, Ohji Nakagami, Satoru Kuma, Alexandre Za- ghetto, Teruhiko Suzuki, and Ali Tabatabai, “An overview of ongoing point cloud compression standardization activities: Video-based (v-pcc) and geometry-based (g-pcc),”APSIPA Transactions on Signal and Information Processing, vol. 9, pp. e13, 2020

work page 2020
[15]

Mpeg video-based point cloud compression (v-pcc) standard,

Ge Li, Wei Gao, and Wen Gao, “Mpeg video-based point cloud compression (v-pcc) standard,” inPoint Cloud Com- pression: Technologies and Standardization, pp. 199–218. Springer, 2024

work page 2024
[16]

Unipcgc: Towards practical point cloud geometry compression via an efficient unified approach,

Kangli Wang and Wei Gao, “Unipcgc: Towards practical point cloud geometry compression via an efficient unified approach,” inProceedings of the AAAI Conference on Artificial Intelli- gence, 2025, vol. 39, pp. 12721–12729

work page 2025
[17]

Point cloud geometry scalable coding with a sin- gle end-to-end deep learning model,

Andr ´e FR Guarda, Nuno MM Rodrigues, and Fernando Pereira, “Point cloud geometry scalable coding with a sin- gle end-to-end deep learning model,” in2020 IEEE Interna- tional Conference on Image Processing (ICIP). IEEE, 2020, pp. 3354–3358

work page 2020
[18]

Point cloud geometry scalable coding with a quality-conditioned latents probability estimator,

Daniele Mari, Andr ´e FR Guarda, Nuno MM Rodrigues, Si- mone Milani, and Fernando Pereira, “Point cloud geometry scalable coding with a quality-conditioned latents probability estimator,” in2024 IEEE International Conference on Image Processing (ICIP). IEEE, 2024, pp. 3410–3416

work page 2024
[19]

It/ist/ipleiria response to the call for proposals on jpeg pleno point cloud coding,

Andr ´e FR Guarda, Nuno MM Rodrigues, Manuel Ruivo, Lu´ıs Coelho, Abdelrahman Seleem, and Fernando Pereira, “It/ist/ipleiria response to the call for proposals on jpeg pleno point cloud coding,”arXiv preprint arXiv:2208.02716, 2022

work page arXiv 2022
[20]

Grasp- net: Geometric residual analysis and synthesis for point cloud compression,

Jiahao Pang, Muhammad Asad Lodhi, and Dong Tian, “Grasp- net: Geometric residual analysis and synthesis for point cloud compression,” inProceedings of the 1st International Work- shop on Advances in Point Cloud Compression, Processing and Analysis, 2022, pp. 11–19

work page 2022
[21]

Deep probabilistic model for lossless scalable point cloud attribute compression,

Dat Thanh Nguyen, Kamal Gopikrishnan Nambiar, and Andr ´e Kaup, “Deep probabilistic model for lossless scalable point cloud attribute compression,” inICASSP 2023-2023 IEEE In- ternational Conference on Acoustics, Speech and Signal Pro- cessing (ICASSP). IEEE, 2023, pp. 1–5

work page 2023
[22]

Bits-to-photon: End- to-end learned scalable point cloud compression for direct ren- dering,

Yueyu Hu, Ran Gong, and Yao Wang, “Bits-to-photon: End- to-end learned scalable point cloud compression for direct ren- dering,” in2025 IEEE International Conference on Image Pro- cessing (ICIP). IEEE, 2025, pp. 953–958

work page 2025
[23]

Roi-guided point cloud geometry compression towards human and ma- chine vision,

Liang Xie, Wei Gao, Huiming Zheng, and Ge Li, “Roi-guided point cloud geometry compression towards human and ma- chine vision,” inProceedings of the 32nd ACM International Conference on Multimedia, 2024, pp. 3741–3750

work page 2024
[24]

ShapeNet: An Information-Rich 3D Model Repository

Angel X Chang, Thomas Funkhouser, Leonidas Guibas, Pat Hanrahan, Qixing Huang, Zimo Li, Silvio Savarese, Manolis Savva, Shuran Song, Hao Su, et al., “Shapenet: An information-rich 3d model repository,”arXiv preprint arXiv:1512.03012, 2015

work page internal anchor Pith review Pith/arXiv arXiv 2015
[25]

Jpeg pleno point cloud coding common test conditions v3.2,

ISO/IEC JTC 1/SC 29/WG 1 (JPEG), “Jpeg pleno point cloud coding common test conditions v3.2,” JPEG document, 2020, Doc. N87037, 87th Meeting (Online), 25–30 Apr. 2020. Editor: Stuart Perry

work page 2020
[26]

8i voxelized full bodies - a voxelized point cloud dataset,

Eugene d’Eon, Bob Harrison, Taos Myers, and Philip A. Chou, “8i voxelized full bodies - a voxelized point cloud dataset,” ISO/IEC JTC1/SC29 Joint WG11/WG1 (MPEG/JPEG) input document, 2017, Doc. WG11m40059/WG1m74006, Geneva, January 2017

work page 2017
[27]

Owlii dynamic human mesh sequence dataset,

Yi Xu, Yao Lu, and Ziyu Wen, “Owlii dynamic human mesh sequence dataset,” ISO/IEC JTC1/SC29/WG11 input docu- ment, 2017, Doc. m41658, 120th MPEG Meeting, Macau, October 2017

work page 2017
[28]

Microsoft voxelized upper bodies - a voxelized point cloud dataset,

Charles Loop, Qin Cai, Sergio Orts-Escolano, and Philip A. Chou, “Microsoft voxelized upper bodies - a voxelized point cloud dataset,” ISO/IEC JTC1/SC29 Joint WG11/WG1 (MPEG/JPEG) input document, 2016, Doc. m38673/M72012, Geneva, May 2016

work page 2016
[29]

4d spatio-temporal convnets: Minkowski convolutional neural networks,

Christopher Choy, JunYoung Gwak, and Silvio Savarese, “4d spatio-temporal convnets: Minkowski convolutional neural networks,” inProceedings of the IEEE/CVF conference on computer vision and pattern recognition, 2019, pp. 3075– 3084

work page 2019
[30]

Compressai: a pytorch library and evalua- tion platform for end-to-end compression research.arXiv preprint arXiv:2011.03029, 2020

Jean B ´egaint, Fabien Racap ´e, Simon Feltman, and Akshay Pushparaja, “Compressai: a pytorch library and evaluation platform for end-to-end compression research,”arXiv preprint arXiv:2011.03029, 2020

work page arXiv 2011
[31]

mpeg-pcc-tmc13,

MPEG, “mpeg-pcc-tmc13,” GitHub repository, G-PCC refer- ence software (TMC13), Version v23.0-rc2, accessed 2026-02- 03

work page 2026
