arxiv: 2604.28095 · v1 · submitted 2026-04-30 · 💻 cs.CV

Recognition: unknown

UHR-Net: An Uncertainty-Aware Hypergraph Refinement Network for Medical Image Segmentation

Authors on Pith no claims yet

Pith reviewed 2026-05-07 04:53 UTC · model grok-4.3

classification 💻 cs.CV
keywords medical image segmentationhypergraph refinementuncertainty estimationlesion boundaryinstance contrastive pretrainingambiguous region handlingsmall lesion detection
0
0 comments X

The pith

UHR-Net refines lesion boundaries by splitting hyperedge prototypes according to an entropy uncertainty map.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents UHR-Net to improve segmentation of lesions that blend into surrounding tissue or are too small for standard multi-scale features to capture reliably. It begins with Uncertainty-Oriented Instance Contrastive pretraining that combines geometry-aware copy-paste augmentation and hard-negative mining of lesion-like background patches. The core addition is the Uncertainty-Guided Hypergraph Refinement block, which builds an entropy map from a coarse prediction and uses it to separate hyperedge prototypes into distinct foreground and background groups. This separation prevents mixed interactions during higher-order refinement and focuses attention on ambiguous transition zones. If the approach holds, automated outlines become more consistent in exactly the regions clinicians find hardest to judge.

Core claim

The paper claims that deriving an entropy-based uncertainty map from an initial coarse probability map and then splitting hyperedge prototypes into separate foreground and background groups inside the Uncertainty-Guided Hypergraph Refinement block decouples higher-order relations, allowing targeted refinement of ill-defined boundaries and small-lesion cues that would otherwise be diluted.

What carries the argument

The Uncertainty-Guided Hypergraph Refinement block, which constructs an entropy uncertainty map to partition hyperedge prototypes into foreground and background groups so that refinement operates on decoupled higher-order interactions.

If this is right

  • Segmentation of small lesions and boundary zones becomes measurably more accurate without increasing model size.
  • Predictions in transition regions between lesion and healthy tissue gain stability across multiple imaging modalities.
  • The pretraining stage alone reduces under-segmentation of visually similar background patches.
  • Consistent gains on five public lesion datasets indicate the pattern can transfer to new clinical tasks.
  • Clinical tools gain a built-in focus on the most uncertain pixels rather than uniform post-processing.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same uncertainty-driven prototype split could be inserted into other graph-based refinement modules for non-medical images with fuzzy edges.
  • Pairing the entropy map with additional uncertainty signals such as model ensembles might further reduce error propagation.
  • Deploying the network in real-time diagnostic pipelines would test whether the refined boundaries change downstream clinical decisions.
  • The pretraining strategy might serve as a drop-in module for any segmentation backbone that struggles with instance discrimination.

Load-bearing premise

The entropy map computed from the coarse probability map reliably marks the precise regions that need refinement and that feeding this map into the hypergraph does not carry forward mistakes made in the coarse stage.

What would settle it

If a controlled ablation that removes the entropy-guided splitting of hyperedge prototypes into foreground and background groups produces equal or better Dice and boundary scores on the same five benchmarks, the central mechanism would be shown to add no value.

Figures

Figures reproduced from arXiv: 2604.28095 by Jinghao Shi, Kun Sun, Shuokun Cheng.

Figure 1

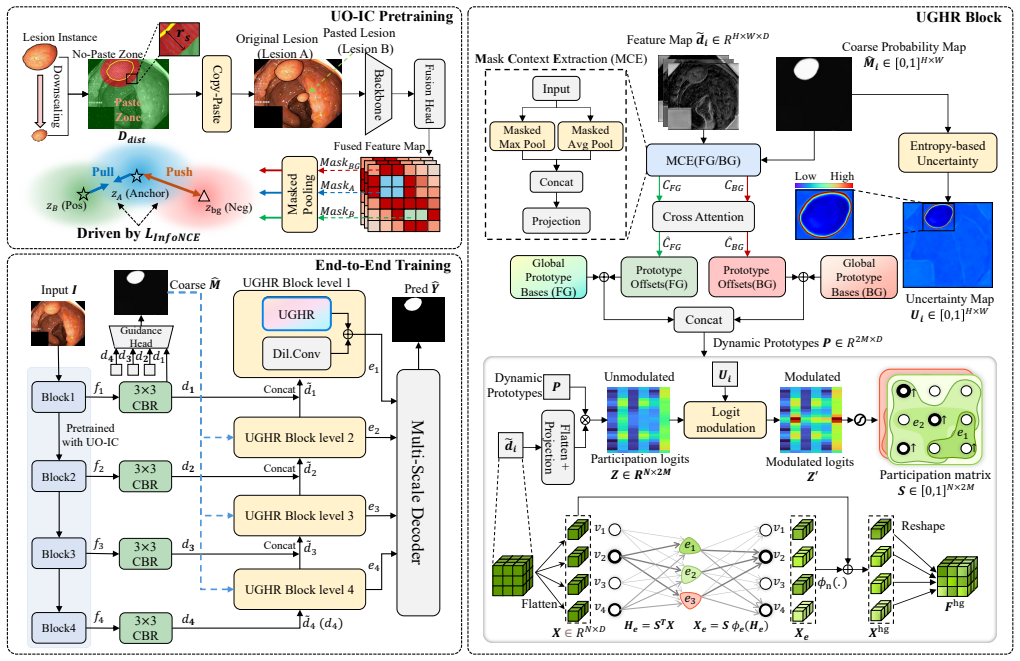

Figure 1. Figure 1: Overall framework of the proposed UHR-Net. The upper left part is the UO-IC pretraining stage. The lower left part is the end-to-end training view at source ↗
Figure 2
Figure 2. Figure 2: Qualitative comparisons on ISIC-2016 and Kvasir-SEG. Columns show Image, U-Net++, ESPNet, CMUNeXt, ConDSeg, Ours, and Ground Truth view at source ↗
Figure 3
Figure 3. Figure 3: t-SNE visualization of representations learned with and without view at source ↗
Figure 4
Figure 4. Figure 4: Visualization of entropy-based uncertainty maps derived from the view at source ↗
read the original abstract

Accurate lesion segmentation is crucial for clinical diagnosis and treatment planning. However, lesions often resemble surrounding tissues and exhibit ill-defined boundaries, leading to unstable predictions in boundary/transition regions. Moreover, small-lesion cues can be diluted by multi-scale feature extraction, causing under- or over-segmentation. To address these challenges, we propose an Uncertainty-Aware Hypergraph Refinement Network (UHR-Net). First, we introduce an Uncertainty-Oriented Instance Contrastive (UO-IC) pretraining strategy that couples geometry-aware copy-paste augmentation with hard-negative mining of lesion-like background regions to improve instance-level discrimination for small and visually ambiguous lesions. Second, we design an Uncertainty-Guided Hypergraph Refinement (UGHR) block, which derives an entropy-based uncertainty map from a coarse probability map to guide hypergraph refinement. By splitting hyperedge prototypes into foreground and background groups, UGHR decouples higher-order interactions and improves refinement in ambiguous regions. Experiments on five public benchmarks demonstrate consistent gains over strong baselines. Code is available at: https://github.com/CUGfreshman/UHR-Net.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 3 minor

Summary. The paper proposes UHR-Net for medical image segmentation to handle ill-defined lesion boundaries and small lesions. It introduces an Uncertainty-Oriented Instance Contrastive (UO-IC) pretraining strategy using geometry-aware copy-paste augmentation and hard-negative mining of lesion-like regions, plus an Uncertainty-Guided Hypergraph Refinement (UGHR) block that computes an entropy-based uncertainty map from a coarse probability output to split hyperedge prototypes into foreground/background groups, decoupling higher-order interactions for refinement in ambiguous areas. The authors report consistent gains over strong baselines on five public benchmarks, with code released.

Significance. If the empirical improvements hold under rigorous validation, the work could advance uncertainty-aware refinement techniques in medical segmentation by combining contrastive pretraining for small-lesion discrimination with hypergraph modeling of higher-order relations. The public code release supports reproducibility and is a clear strength.

major comments (3)
  1. [Section 3.2] UGHR block (Section 3.2): The entropy-based uncertainty map is derived directly from the coarse probability map and used to split hyperedge prototypes into foreground and background groups. This guidance assumes the coarse map reliably flags true ambiguities without inheriting its own boundary or small-lesion errors; if the initial prediction under-segments transition zones, the hypergraph refinement risks amplifying mistakes rather than correcting them. The manuscript should add ablations (e.g., UGHR with vs. without uncertainty splitting, or with deliberately perturbed coarse maps) and qualitative comparisons of uncertainty maps against ground-truth error regions to substantiate that the mechanism improves rather than propagates errors.
  2. [Experiments section] Results (Tables 1–5 and associated text): The claim of 'consistent gains' on five benchmarks is central but currently lacks reported standard deviations across runs, statistical significance tests (e.g., paired t-tests or Wilcoxon), and detailed per-dataset metrics with error bars. Without these, it is impossible to determine whether improvements exceed baseline variability or arise from post-hoc choices; the paper must include these to support the performance claims.
  3. [Section 3.1] UO-IC pretraining (Section 3.1): The hard-negative mining thresholds and hypergraph construction parameters are free parameters. The manuscript should specify their selection procedure across the five datasets and report sensitivity analysis, as these choices directly affect the instance-level discrimination for small lesions and could influence the downstream UGHR performance.
minor comments (3)
  1. [Abstract / Introduction] The abstract and introduction should explicitly name the five public benchmarks early for clarity.
  2. [Method] Notation for hyperedge prototypes, uncertainty map, and splitting operation would benefit from explicit equations or a clear algorithmic listing.
  3. [Figure 1] Network architecture diagrams could include annotations for the UO-IC and UGHR components to improve readability.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the thorough review and valuable suggestions. We have addressed all major comments by providing clarifications, additional analyses, and revisions to the manuscript. Below we respond point-by-point to the major comments.

read point-by-point responses
  1. Referee: [Section 3.2] UGHR block (Section 3.2): The entropy-based uncertainty map is derived directly from the coarse probability map and used to split hyperedge prototypes into foreground and background groups. This guidance assumes the coarse map reliably flags true ambiguities without inheriting its own boundary or small-lesion errors; if the initial prediction under-segments transition zones, the hypergraph refinement risks amplifying mistakes rather than correcting them. The manuscript should add ablations (e.g., UGHR with vs. without uncertainty splitting, or with deliberately perturbed coarse maps) and qualitative comparisons of uncertainty maps against ground-truth error regions to substantiate that the mechanism improves rather than propagates errors.

    Authors: We agree that validating the uncertainty guidance is crucial to ensure it does not propagate errors. The design of UGHR uses the uncertainty map to identify ambiguous regions and decouple the hypergraph interactions accordingly, which is intended to focus refinement efforts where the coarse prediction is least reliable. To substantiate this, we have added new ablation studies in the revised manuscript comparing the full UGHR with variants that disable the uncertainty-based splitting. We also include qualitative comparisons showing the uncertainty maps overlaid with ground-truth error regions, demonstrating that high-uncertainty areas correspond to boundary and small-lesion errors, and that refinement corrects them effectively. These additions confirm the mechanism's benefit. revision: yes

  2. Referee: [Experiments section] Results (Tables 1–5 and associated text): The claim of 'consistent gains' on five benchmarks is central but currently lacks reported standard deviations across runs, statistical significance tests (e.g., paired t-tests or Wilcoxon), and detailed per-dataset metrics with error bars. Without these, it is impossible to determine whether improvements exceed baseline variability or arise from post-hoc choices; the paper must include these to support the performance claims.

    Authors: We acknowledge the importance of statistical rigor in reporting results. In the revised version, we have rerun the experiments with multiple random seeds to compute standard deviations for all metrics across the five datasets. We have added these to Tables 1-5 along with error bars in the associated figures. Furthermore, we performed paired t-tests between UHR-Net and the baselines, reporting p-values to demonstrate statistical significance of the improvements. This strengthens the evidence for consistent gains. revision: yes

  3. Referee: [Section 3.1] UO-IC pretraining (Section 3.1): The hard-negative mining thresholds and hypergraph construction parameters are free parameters. The manuscript should specify their selection procedure across the five datasets and report sensitivity analysis, as these choices directly affect the instance-level discrimination for small lesions and could influence the downstream UGHR performance.

    Authors: The parameters for hard-negative mining (e.g., similarity threshold) and hypergraph construction (e.g., number of hyperedges) were determined through grid search on the validation sets of each dataset to optimize the pretraining loss. We have expanded Section 3.1 to detail this cross-validation-based selection procedure for all five benchmarks. Additionally, we have included a sensitivity analysis in the supplementary material, varying each parameter over a range and showing the impact on downstream segmentation performance, which indicates robustness to moderate variations. revision: yes

Circularity Check

0 steps flagged

No circularity; empirical architecture proposal with independent validation

full rationale

The paper introduces UHR-Net as a novel segmentation architecture featuring UO-IC pretraining and the UGHR block. The UGHR block derives an entropy-based uncertainty map from a coarse probability map to split hyperedge prototypes, but this is an explicit design choice for guiding refinement rather than a derivation that reduces to its own inputs by construction. No equations are presented that equate a 'prediction' to a fitted parameter, no load-bearing self-citations justify uniqueness theorems, and no ansatz is smuggled via prior work. The central claims rest on experimental gains across five benchmarks, which are externally falsifiable and do not collapse to self-referential quantities. The derivation chain is self-contained as a proposed method with stated assumptions about uncertainty guidance.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 2 invented entities

The central claim rests on the empirical effectiveness of two newly introduced mechanisms whose internal hyperparameters and the reliability of the entropy-derived uncertainty signal are not independently verified outside the reported benchmarks.

free parameters (2)
  • hypergraph construction parameters
    Number of hyperedges, prototype splitting thresholds, and entropy weighting factors are chosen during design or tuning and directly affect the refinement behavior.
  • contrastive mining thresholds
    Hard-negative selection criteria and copy-paste geometry parameters are set to improve discrimination for small lesions.
axioms (2)
  • domain assumption A coarse probability map yields an entropy map that accurately flags boundary and transition regions without systematic bias.
    Invoked to justify using the uncertainty map to guide hypergraph refinement.
  • domain assumption Higher-order pixel interactions can be usefully decoupled by splitting hyperedge prototypes into foreground and background groups.
    Core design choice of the UGHR block.
invented entities (2)
  • Uncertainty-Guided Hypergraph Refinement (UGHR) block no independent evidence
    purpose: To refine segmentation predictions in ambiguous regions by using an entropy uncertainty map to split and process hyperedges separately for foreground and background.
    New architectural module introduced by the paper; no independent evidence outside the reported experiments.
  • Uncertainty-Oriented Instance Contrastive (UO-IC) pretraining strategy no independent evidence
    purpose: To improve instance-level discrimination for small and visually ambiguous lesions via geometry-aware copy-paste augmentation and hard-negative mining.
    New pretraining procedure introduced by the paper; no independent evidence outside the reported experiments.
