arxiv: 2605.00422 · v1 · submitted 2026-05-01 · 💻 cs.LG · cs.AI

Recognition: unknown

BWLA: Breaking the Barrier of W1AX Post-Training Quantization for LLMs

Zhixiong Zhao , Zukang Xu , Dawei Yang

Authors on Pith no claims yet

Pith reviewed 2026-05-09 19:56 UTC · model grok-4.3

classification 💻 cs.LG cs.AI

keywords post-training quantizationLLM binarizationweight quantizationactivation quantizationmodel compressioninference accelerationlarge language models

0 comments

The pith

A post-training method achieves accurate 1-bit weight and low-bit activation quantization for large language models.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces BWLA, a framework for quantizing LLM weights to 1 bit and activations to around 6 bits after training is complete. It does this while keeping the model's accuracy close to the original full-precision version. Existing approaches struggle with activation heavy tails and require higher precision activations, limiting speed gains. By learning an orthogonal mapping to symmetrize weights and reduce activation problems, followed by low-rank refinement, it overcomes these barriers. This matters because it could make running powerful language models much more efficient in memory and computation on standard hardware.

Core claim

BWLA is the first post-training quantization framework that preserves high accuracy while achieving 1-bit weight quantization together with low-bit activations such as 6 bits. The Orthogonal-Kronecker Transformation learns an orthogonal mapping via EM minimization to convert unimodal weights into symmetric bimodal forms while suppressing activation tails and incoherence. The Proximal SVD Projection then performs lightweight low-rank refinement to further enhance quantizability.

What carries the argument

The Orthogonal-Kronecker Transformation (OKT), which learns an orthogonal mapping via expectation-maximization to reshape weight distributions into symmetric bimodal forms and mitigate activation heavy tails and incoherence.

If this is right

On Qwen3-32B, it reaches a Wikitext2 perplexity of 11.92 under 6-bit activations, far better than the 38 from state-of-the-art methods.
It improves performance on five zero-shot tasks by more than 70%.
It delivers 3.26 times inference speedup.
This enables practical end-to-end acceleration for LLM deployment with reduced memory and compute demands.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

If the transformation generalizes, similar techniques might apply to other neural network types like vision models.
Combining BWLA with hardware-specific optimizations could further increase speedups on edge devices.
The method's post-training nature suggests it can be applied to already-trained models from various sources without access to original training data.

Load-bearing premise

The learned Orthogonal-Kronecker Transformation can consistently convert weight distributions and control activation outliers in post-training without retraining or significant accuracy loss on downstream tasks.

What would settle it

Running BWLA on a different large language model and observing either a large increase in perplexity on language modeling benchmarks or no actual reduction in inference time on compatible hardware would falsify the effectiveness claim.

Figures

Figures reproduced from arXiv: 2605.00422 by Dawei Yang, Zhixiong Zhao, Zukang Xu.

**Figure 2.** Figure 2: (a) Before applying BWLA, activations contain substantial outliers that hinder low-bit quantization, and [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

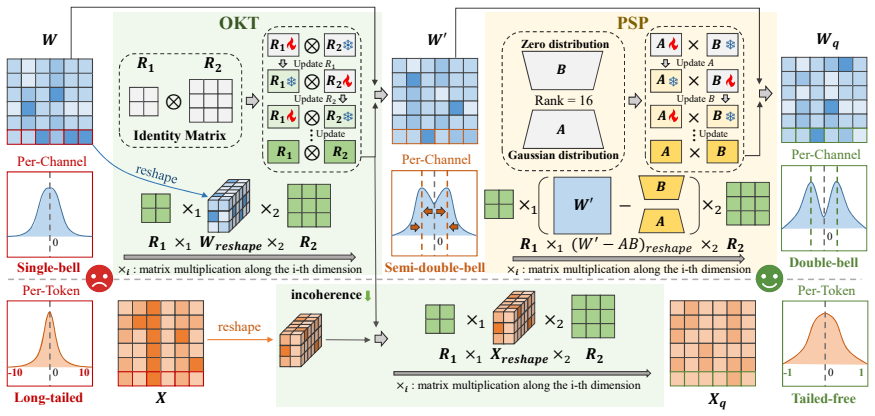

**Figure 3.** Figure 3: Illustration of the proposed BWLA. The Orthogonal-Kronecker Transformation (OKT) applies an orthogonal Kronecker rotation to reshape weights into a symmetric bimodal space while jointly suppressing longtailed activation outliers. The Proximal SVD Projection (PSP) further strengthens the bimodal structure through a lightweight truncated SVD refinement, producing weight distributions explicitly optimized fo… view at source ↗

**Figure 4.** Figure 4: Ablation of the Overhead–Performance trade-off for OKT and PSP. The results show that the optimal [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗

**Figure 5.** Figure 5: Efficiency Analysis. (a) Comparison of throughput (Tokens/Sec) and memory consumption across FP16, [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗

**Figure 6.** Figure 6: Perplexity of Qwen3-14B using calibration data sampled with different number or seeds from WikiText2. [PITH_FULL_IMAGE:figures/full_fig_p020_6.png] view at source ↗

**Figure 7.** Figure 7: Loss trajectories of the OKT and PSP optimization procedures for the Q, K, V, and O projections in Layers [PITH_FULL_IMAGE:figures/full_fig_p021_7.png] view at source ↗

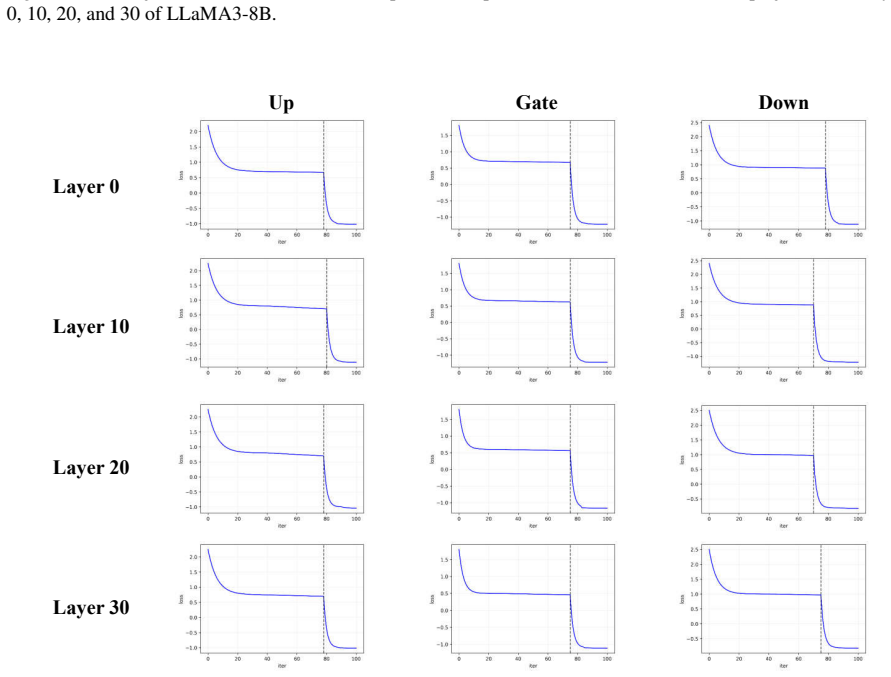

**Figure 8.** Figure 8: Loss trajectories of the OKT and PSP optimization procedures for the up, gate, and down projections in [PITH_FULL_IMAGE:figures/full_fig_p021_8.png] view at source ↗

**Figure 9.** Figure 9: The weight distribution of the 12th layer in Qwen3-8B before and after BWLA. [PITH_FULL_IMAGE:figures/full_fig_p023_9.png] view at source ↗

**Figure 10.** Figure 10: The activation distribution of the 12th layer in Qwen3-8B before and after BWLA. [PITH_FULL_IMAGE:figures/full_fig_p024_10.png] view at source ↗

read the original abstract

Large language models (LLMs) have driven major progress in NLP, yet their substantial memory and compute demands still hinder practical deployment. Binarization can compress weights to 1 bit, fundamentally lowering compute and bandwidth cost. However, existing methods cannot address activation heavy tails and thus must keep activations in high precision, preventing true end-to-end acceleration. To overcome this limitation, we propose BWLA (Binarized Weights and Low-bit Activations), the first post-training quantization framework that preserves high accuracy while achieving 1-bit weight quantization together with low-bit activations (e.g., 6 bits). The Orthogonal-Kronecker Transformation (OKT) learns an orthogonal mapping via EM minimization, converting unimodal weights into symmetric bimodal forms while suppressing activation tails and incoherence. The Proximal SVD Projection (PSP) then performs lightweight low-rank refinement through proximal SVD projection, further enhancing quantizability with minimal overhead. On Qwen3-32B, BWLA reaches a Wikitext2 perplexity of 11.92 under 6-bit activations (vs. 38 from SOTA), improves five zero-shot tasks by more than 70%, and delivers 3.26 times inference speedup, demonstrating strong potential for real-world LLM compression and acceleration.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

BWLA claims to enable 1-bit weights with low-bit activations in post-training LLM quantization via OKT and EM minimization, with strong reported gains, but the core distributional transformation step has limited supporting detail.

read the letter

The headline takeaway is that this paper presents BWLA as the first post-training quantization approach for LLMs that achieves 1-bit weights together with low-bit activations like 6 bits, by introducing an Orthogonal-Kronecker Transformation optimized via EM to reshape distributions and reduce tails, plus a proximal SVD step. What stands out as new is the focus on handling activation heavy tails and incoherence in a strictly post-training setting without any retraining. Prior work apparently had to keep activations high precision, so this combination could enable better end-to-end low-precision inference if it works. The paper does well in reporting specific gains on a large model like Qwen3-32B, with Wikitext2 perplexity down to 11.92 from 38, over 70 percent improvement on zero-shot tasks, and 3.26 times speedup. Those numbers suggest real practical potential for memory and compute savings. The soft spots are around the central mechanism. The description of how the OKT via EM minimization converts unimodal weights to symmetric bimodal forms and suppresses activation tails is stated but not backed by derivations, guarantees, or detailed ablations in the provided text. Without seeing how the calibration set is used or whether the optimization converges reliably across different models, it's unclear if this step is robust or if the results depend on specific tuning. The stress-test concern about this being the least secured part seems fair based on the abstract. This paper is aimed at the model efficiency and quantization community. Someone working on LLM deployment or compression would find the empirical claims useful to examine, even if they need to verify the method themselves. Overall, it deserves a serious referee to check the full experiments and math, because the problem it addresses matters and the reported improvements are substantial.

Referee Report

3 major / 2 minor

Summary. The manuscript introduces BWLA, a post-training quantization (PTQ) framework for LLMs that achieves 1-bit weight binarization together with low-bit activations (e.g., 6 bits) while preserving accuracy. The method relies on an Orthogonal-Kronecker Transformation (OKT) learned via EM minimization to reshape unimodal weight distributions into symmetric bimodal forms and to suppress activation heavy tails plus incoherence, followed by a Proximal SVD Projection (PSP) step for lightweight low-rank refinement. Experiments on Qwen3-32B report Wikitext2 perplexity of 11.92 (vs. 38 for prior SOTA), >70% average improvement on five zero-shot tasks, and 3.26× inference speedup.

Significance. If the central claims hold and the method generalizes beyond the reported model and calibration set, BWLA would represent a substantial advance in LLM compression by enabling true end-to-end low-precision inference with binarized weights. The magnitude of the reported perplexity reduction and speedup indicates potential practical impact for deployment, provided the distributional transformations are shown to be robust and reproducible.

major comments (3)

[method section (OKT/EM)] The description of the Orthogonal-Kronecker Transformation (OKT) and its EM minimization procedure (method section) supplies no explicit objective function, update rules, or convergence analysis. Without these, it is impossible to verify whether the claimed mapping from unimodal weights to symmetric bimodal forms and the simultaneous suppression of activation tails can be achieved reliably in a strictly post-training regime using only a small calibration set.
[§5 / Table 1] The experimental results (Table 1 and §5) report large gains (Wikitext2 PPL 11.92 vs. 38, >70% task improvement) but provide no error bars, multiple random seeds, or ablation isolating the contribution of OKT versus PSP. This leaves open whether the headline improvements are robust or sensitive to the particular calibration data and model.
[§3.2 / Figure 3] The claim that OKT simultaneously addresses weight bimodality, activation heavy tails, and incoherence is load-bearing for the “first W1A6 PTQ framework” assertion, yet no quantitative before/after distribution statistics (e.g., kurtosis, symmetry metrics) or activation histograms are shown to confirm the transformation actually occurs on real LLM activations.

minor comments (2)

[§3.1] Notation for the Kronecker product and orthogonal constraint in the OKT definition should be stated explicitly with matrix dimensions to avoid ambiguity.
[§5.2] The abstract states “five zero-shot tasks” but the main text should list the exact tasks and report per-task scores rather than only the aggregate >70% improvement.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the thorough and constructive review. The comments highlight important areas for improving clarity, rigor, and empirical support. We address each major comment below and will revise the manuscript accordingly.

read point-by-point responses

Referee: [method section (OKT/EM)] The description of the Orthogonal-Kronecker Transformation (OKT) and its EM minimization procedure (method section) supplies no explicit objective function, update rules, or convergence analysis. Without these, it is impossible to verify whether the claimed mapping from unimodal weights to symmetric bimodal forms and the simultaneous suppression of activation tails can be achieved reliably in a strictly post-training regime using only a small calibration set.

Authors: We agree that the OKT and EM procedure require a more explicit mathematical formulation. In the revised manuscript, we will expand the method section to state the objective function (an EM-based minimization that aligns transformed weights to a target symmetric bimodal distribution while penalizing activation tail mass and incoherence), provide the E-step and M-step update rules for the orthogonal mapping, and include a brief convergence discussion based on the monotonicity of the objective under orthogonal constraints. These additions will confirm the procedure operates reliably in the post-training setting with limited calibration data. revision: yes
Referee: [§5 / Table 1] The experimental results (Table 1 and §5) report large gains (Wikitext2 PPL 11.92 vs. 38, >70% task improvement) but provide no error bars, multiple random seeds, or ablation isolating the contribution of OKT versus PSP. This leaves open whether the headline improvements are robust or sensitive to the particular calibration data and model.

Authors: We acknowledge that the current results would benefit from additional statistical controls. In the revision, we will add error bars derived from multiple random seeds on calibration subset selection, include a dedicated ablation study that isolates the individual contributions of OKT and PSP, and report results across varied calibration sets to demonstrate robustness. These changes will be incorporated into Section 5 and Table 1. revision: yes
Referee: [§3.2 / Figure 3] The claim that OKT simultaneously addresses weight bimodality, activation heavy tails, and incoherence is load-bearing for the “first W1A6 PTQ framework” assertion, yet no quantitative before/after distribution statistics (e.g., kurtosis, symmetry metrics) or activation histograms are shown to confirm the transformation actually occurs on real LLM activations.

Authors: We agree that direct quantitative evidence of the distributional changes would strengthen the central claim. In the revised version, we will augment Section 3.2 and Figure 3 with before/after statistics (kurtosis for tail heaviness, symmetry and bimodality metrics for weights, and incoherence measures) together with activation histograms that illustrate tail suppression. This will provide concrete confirmation that the OKT transformations occur as described on real LLM data. revision: yes

Circularity Check

0 steps flagged

No significant circularity; new transformations presented as independent post-training methods.

full rationale

The paper introduces OKT (learned via EM minimization to convert weight distributions and suppress activation tails) and PSP (proximal SVD projection for low-rank refinement) as novel components in a post-training regime. No equations, fitted parameters renamed as predictions, or self-citations are visible in the provided text that would reduce the claimed accuracy preservation or speedup to the inputs by construction. The central claims rest on empirical results (e.g., Wikitext2 perplexity and zero-shot tasks on Qwen3-32B) rather than definitional equivalence or load-bearing self-references. This is the expected self-contained case for a methods paper proposing new algorithmic steps.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Review performed on abstract only; no explicit free parameters, axioms, or invented entities can be extracted. OKT and PSP are presented as novel algorithmic components but their internal assumptions and any fitted quantities are not described.
