arxiv: 2605.00936 · v1 · submitted 2026-05-01 · 💻 cs.LG · cs.AI

EventADL: Open-Box Anomaly Detection and Localization Framework for Events in Cloud-Based Service Systems

Luan Pham , Victor Nicolet , Joey Dodds , Hui Guan , Daniel Kroening This is my paper

Pith reviewed 2026-05-09 19:30 UTC · model grok-4.3

classification 💻 cs.LG cs.AI
keywords anomaly detectionroot cause localizationcloud systemsevent datapattern learningintervention graphservice reliability
0
0 comments X

The pith

Event data from cloud systems reveals anomalies and their root causes by learning normal interaction patterns and their frequencies.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper seeks to establish that event streams contain enough structure to support both detection of anomalies and automatic localization of their causes in cloud service systems. It grounds the claim in a study of hundreds of real incidents showing how problems appear as departures from usual entity interactions and occurrence rates. If the approach works, operators could use the abundant but previously underused event logs for reliable, interpretable monitoring without labels or opaque models. The method proceeds by training on historical events, flagging online deviations, and tracing causes through a graph of recent interactions.

Core claim

Normal behavior is captured first as Event Semantic Patterns that record expected interactions between system entities and then as Event Frequency Patterns that record how often those interactions occur. Significant departures from either pattern in a live event stream mark anomalies. Root cause localization follows by constructing an Intervention Graph that links recent interactions to the anomaly and identifies the most likely origin.

What carries the argument

Event Semantic Patterns and Event Frequency Patterns, which encode normal entity interactions and their rates, together with the Intervention Graph that relates recent interactions to flagged anomalies for cause identification.

If this is right

  • Event streams alone become sufficient for real-time anomaly detection in cloud environments.
  • Root causes become traceable automatically through the relationships modeled in the intervention graph.
  • The process works with unlabeled historical data and yields interpretable results for operators.
  • The same learned patterns support ongoing monitoring across multiple production cloud services.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The pattern-based approach might extend to other distributed systems where event logs are the primary observable data.
  • Hybrid systems could combine these event patterns with metric or log signals to catch anomalies that appear in only one data type.
  • One could test whether the learned patterns remain effective after software updates or hardware changes within the same service.

Load-bearing premise

Deviations from the learned semantic and frequency patterns will mark genuine anomalies and the intervention graph will recover the correct root cause from the surrounding events.

What would settle it

A real cloud incident in which the event stream matches the learned patterns yet a failure occurs, or in which the intervention graph selects an incorrect component as the origin.

Figures

Figures reproduced from arXiv: 2605.00936 by Daniel Kroening, Hui Guan, Joey Dodds, Luan Pham, Victor Nicolet.

Figure 1
Figure 1. Figure 1: An event in the OCSF schema [38]. Limitations of Existing Work. While ADL has been ac￾tively studied for metrics [9, 17, 18, 28, 41, 42] and un￾structured logs [1, 13, 22, 23, 29, 33], event-based ADL re￾mains underexplored. Metric-based methods [28, 41, 42] capture frequency-based anomalies but fail to detect point￾wise anomalies (i.e., an individual anomalous event). Log￾based methods such as DeepLog [13… view at source ↗

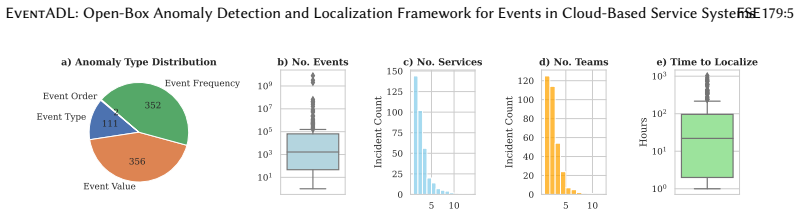

Figure 2
Figure 2. Figure 2: Insights from real-world incidents. (a) Distribution of anomaly types. (b) Number of events analyzed. [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

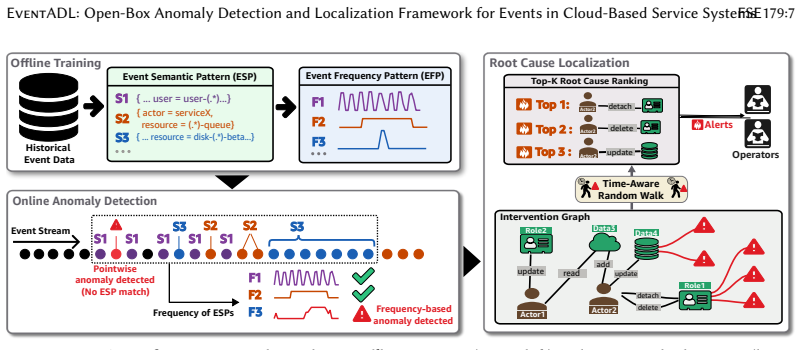

Figure 3
Figure 3. Figure 3: Overview of EventADL. Three phases: offline training (upper left), online anomaly detection (lower left), and RCL (right). Offline, EventADL learns ESPs and EFPs from historical events. Online, events are evaluated against these patterns: ESP identifies pointwise anomalies, while EFP detects frequency-based anomalies. Upon detection, EventADL constructs an Intervention Graph encoding causal links between i… view at source ↗

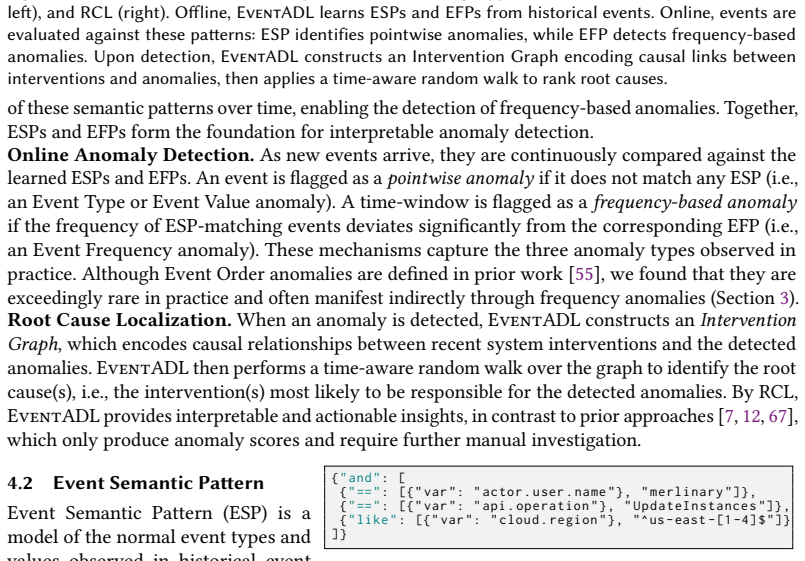

Figure 4
Figure 4. Figure 4: An ESP in the jsonLogic [56] schema. Event Semantic Pattern (ESP) is a model of the normal event types and values observed in historical event data. They serve two purposes: a set of ESPs is used to detect pointwise anomalies (i.e., single events that are anomalous on their own), and they allow labeling normal events with a specific ESP, which is then used to compute EFPs (Section 4.3). Event Type and Even… view at source ↗

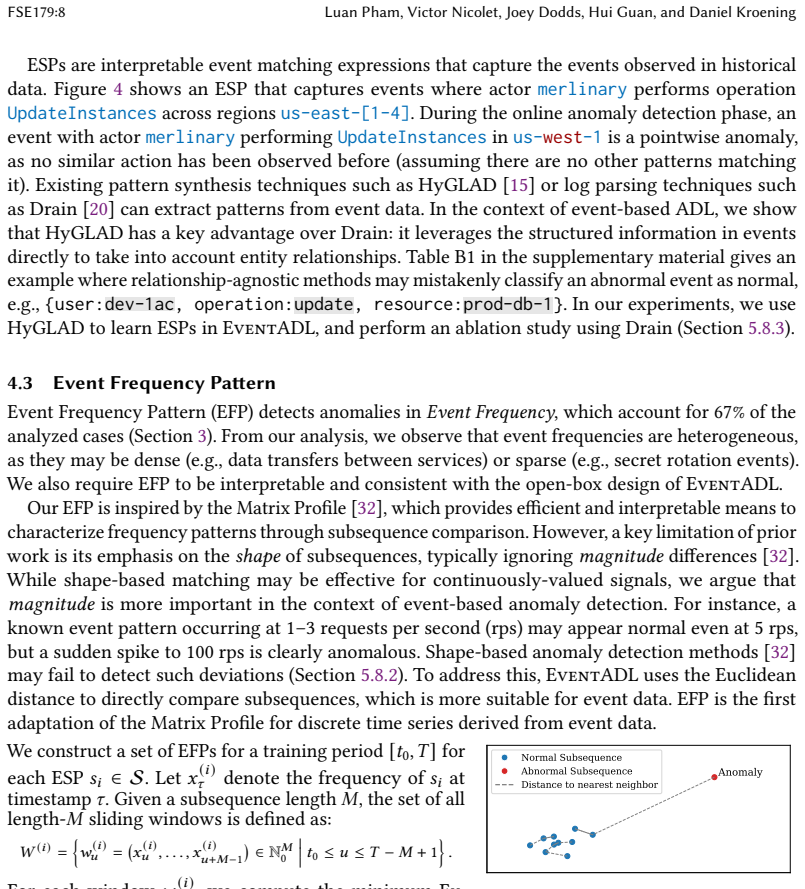

Figure 5
Figure 5. Figure 5: Detecting anomalies with EFP. Each subsequence 𝑤 (𝑖) 𝑢 is a point in Euclidean space and linked to its nearest non-trivial neighbor 𝑤 (𝑖) 𝑣 . The set of distances {𝑑 (𝑖) 𝑢 } forms the Event Frequency Pattern (EFP) 𝑓𝑖 ∈ F. The abnormal subsequence lies far from the cluster of normal subsequences, as it has a statistically large distance to its near￾est neighbor, indicating a potential anomaly. The set of al… view at source ↗

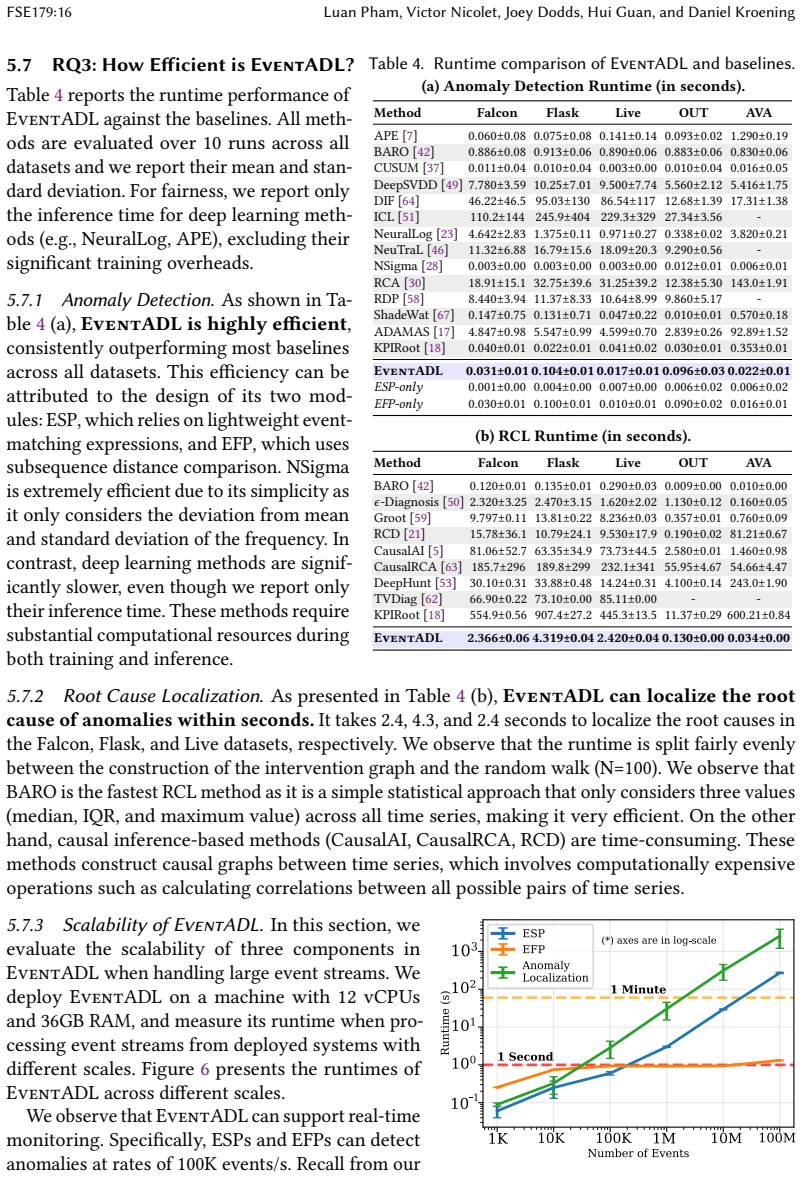

Figure 6
Figure 6. Figure 6: Scalability of EventADL. 5.7.3 Scalability of EventADL. In this section, we evaluate the scalability of three components in EventADL when handling large event streams. We deploy EventADL on a machine with 12 vCPUs and 36GB RAM, and measure its runtime when pro￾cessing event streams from deployed systems with different scales [PITH_FULL_IMAGE:figures/full_fig_p016_6.png] view at source ↗

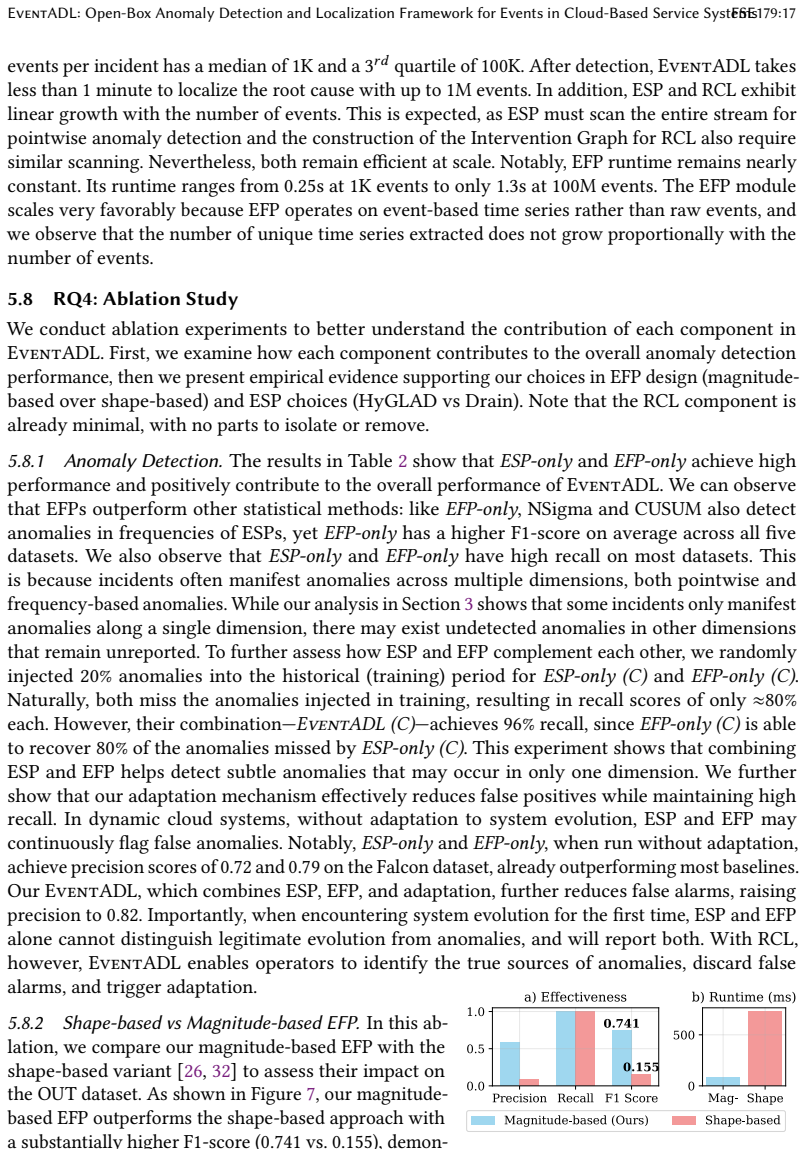

Figure 7
Figure 7. Figure 7: Magnitude-based vs. shape-based EFP. 5.8.2 Shape-based vs Magnitude-based EFP. In this ab￾lation, we compare our magnitude-based EFP with the shape-based variant [26, 32] to assess their impact on the OUT dataset. As shown in [PITH_FULL_IMAGE:figures/full_fig_p017_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Robustness analysis of EventADL w.r.t. different parameters and noise levels on the Falcon dataset. 5.9 RQ5: Robustness of EventADL 5.9.1 Robustness to Parameter Settings. In this section, we conduct a robustness analysis to un￾derstand how the performance of EventADL varies under different parameter settings. We refer readers to [15] for information about parameters for ESP. EFP has two parameters: (1) th… view at source ↗
read the original abstract

Anomaly detection and localization (ADL) is critical for maintaining reliability and availability in cloud systems. Recent ADL developments focus on metric and log data, leaving event data unexplored. To address this gap, we propose EventADL, the first open-box event-based ADL framework for cloud-based service systems. To motivate the design of our framework, we conduct a systematic analysis on 520 real-world incidents, and provide insights into how anomalies and their root causes manifest through event data. EventADL has three phases: offline training, online anomaly detection, and root cause localization. During the training phase, EventADL first learns Event Semantic Patterns (ESPs), which capture normal interactions between system entities using historical event data, and then learns Event Frequency Patterns (EFPs), which capture the normal frequency of known ESPs. In the online anomaly detection phase, any data in the event stream that deviates significantly from either pattern is identified as anomalous. For localization, EventADL constructs an Intervention Graph that models the relationships between recent system interactions and the detected anomalies for automatic root cause localization. The framework is designed to operate efficiently with unlabeled data and to produce interpretable anomalies with their corresponding root causes. Our evaluation on three real cloud service systems and two real-world incidents demonstrates that EventADL outperforms existing methods, achieving F1-scores of at least 90% for anomaly detection and 100% top-3 accuracy in root cause localization.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript presents EventADL, an open-box framework for anomaly detection and localization (ADL) in cloud-based service systems using event data. Motivated by a systematic analysis of 520 real-world incidents, the framework learns Event Semantic Patterns (ESPs) capturing normal entity interactions and Event Frequency Patterns (EFPs) for normal frequencies during offline training. Online, it detects significant deviations from these patterns as anomalies. For localization, it constructs an Intervention Graph modeling relationships between recent interactions and detected anomalies. Evaluation on three real cloud systems and two incidents reports F1-scores of at least 90% for detection and 100% top-3 accuracy for root cause localization, outperforming existing methods.

Significance. If the claims hold, the work is significant for filling the gap in event-based ADL for cloud systems, offering an interpretable, open-box alternative to black-box approaches. The use of real incident data for motivation and evaluation on actual systems strengthens its practical relevance. The framework's design for unlabeled data and efficiency is a positive aspect. However, the limited scope of the localization evaluation tempers the overall impact.

major comments (3)
  1. [Evaluation section (and abstract)] Evaluation section (and abstract): The root cause localization claim of 100% top-3 accuracy is supported by results from only two real-world incidents. With no reported statistical significance, variance, cross-validation, incident selection criteria, or failure mode analysis, this small sample size does not provide load-bearing evidence for the effectiveness or generalizability of the Intervention Graph approach.
  2. [§3 (Framework description)] §3 (Framework description): The paper lacks sufficient details on the algorithms, parameters, or methods used to learn ESPs and EFPs from historical data, as well as the specific deviation thresholds or statistical tests for identifying anomalies in the online phase. This makes the training procedure and the reported F1-scores difficult to reproduce or assess for robustness.
  3. [Abstract and evaluation] Abstract and evaluation: The claim that EventADL 'outperforms existing methods' does not specify the baseline methods, how they were adapted to event data, or include quantitative comparison details (e.g., tables with metrics). This weakens the ability to evaluate the superiority asserted for both detection and localization.
minor comments (2)
  1. [Abstract] The abstract could briefly name the compared methods or key technical innovations to better frame the performance numbers.
  2. [Throughout] Ensure consistent definition of acronyms (e.g., ESP, EFP) on first use in the main body and consider adding a limitations section discussing scalability with high-volume event streams.

Simulated Author's Rebuttal

3 responses · 1 unresolved

We thank the referee for the constructive comments on our manuscript. We address each major comment point by point below, with proposed revisions to improve reproducibility, clarity, and transparency of our evaluation.

read point-by-point responses

  1. Referee: Evaluation section (and abstract): The root cause localization claim of 100% top-3 accuracy is supported by results from only two real-world incidents. With no reported statistical significance, variance, cross-validation, incident selection criteria, or failure mode analysis, this small sample size does not provide load-bearing evidence for the effectiveness or generalizability of the Intervention Graph approach.

    Authors: We acknowledge that the root cause localization results are based on only two real-world incidents, which limits the strength of generalizability claims. These incidents were selected as representative examples from the 520 analyzed incidents to illustrate the Intervention Graph in practice. In the revised manuscript, we will add the incident selection criteria, describe the key characteristics of each incident, include a failure mode discussion, and explicitly note the limitations of the small sample size in both the evaluation section and abstract. We will also discuss why statistical significance testing is not applicable with n=2. revision: partial

  2. Referee: §3 (Framework description): The paper lacks sufficient details on the algorithms, parameters, or methods used to learn ESPs and EFPs from historical data, as well as the specific deviation thresholds or statistical tests for identifying anomalies in the online phase. This makes the training procedure and the reported F1-scores difficult to reproduce or assess for robustness.

    Authors: We thank the referee for highlighting the need for greater reproducibility. In the revised manuscript, we will expand §3 with pseudocode for the ESP and EFP learning procedures, list all hyperparameters and thresholds (including deviation criteria and any statistical tests used for anomaly detection), and provide implementation-level details on the online phase. These additions will make the training and detection processes fully reproducible and allow better assessment of result robustness. revision: yes

  3. Referee: Abstract and evaluation: The claim that EventADL 'outperforms existing methods' does not specify the baseline methods, how they were adapted to event data, or include quantitative comparison details (e.g., tables with metrics). This weakens the ability to evaluate the superiority asserted for both detection and localization.

    Authors: We agree that the comparison claims require more explicit support. We will revise the abstract to name the baseline methods and update the evaluation section to include a detailed table with all metrics for both anomaly detection and localization. The revised text will also describe how each baseline was adapted to event data and provide the quantitative results that support the outperformance claims. revision: yes

standing simulated objections not resolved
  • The limited number of available real-world incidents (only two) for root cause localization prevents expanding the sample size, performing cross-validation, or reporting variance/statistical significance for that component of the evaluation.

Circularity Check

0 steps flagged

No circularity in EventADL derivation chain

full rationale

The paper's core chain consists of offline learning of Event Semantic Patterns (ESPs) and Event Frequency Patterns (EFPs) from historical unlabeled event data, followed by online deviation detection and construction of an Intervention Graph from recent interactions plus detected anomalies. These are standard pattern-learning and graph-construction steps with no equations shown that equate outputs to inputs by definition. The 520-incident analysis is used only for design motivation, not as a fitted input renamed as prediction. Evaluation F1 scores and top-3 accuracy are measured on separate real systems and two incidents, not forced by the training procedure itself. No self-citations, uniqueness theorems, or ansatzes are invoked as load-bearing elements.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review supplies no explicit free parameters, axioms, or invented entities; all modeling choices (pattern definitions, deviation thresholds, graph edges) are implicit and unstated.
