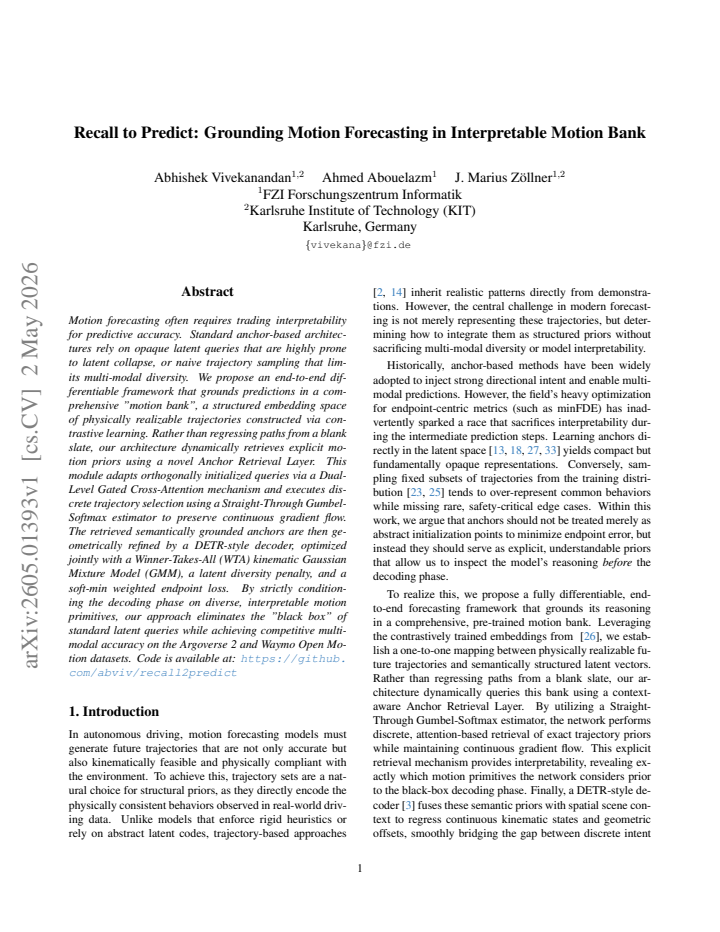

Recall to Predict: Grounding Motion Forecasting in Interpretable Motion Bank
Pith reviewed 2026-05-09 15:08 UTC · model grok-4.3
The pith
Conditioning motion forecasts on retrieved primitives from a contrastively learned motion bank removes opaque latent queries while matching competitive multi-modal accuracy.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
By strictly conditioning the decoding phase on diverse, interpretable motion primitives from a contrastively learned motion bank, the architecture eliminates the black box of standard latent queries and achieves competitive multi-modal accuracy on the Argoverse 2 and Waymo Open Motion datasets through the use of an Anchor Retrieval Layer with Dual-Level Gated Cross-Attention and Straight-Through Gumbel-Softmax.
What carries the argument
The motion bank, a structured embedding space of physically realizable trajectories constructed via contrastive learning, together with the Anchor Retrieval Layer that adapts queries via dual-level gated cross-attention and executes discrete selection via straight-through Gumbel-Softmax to preserve gradient flow.
If this is right
- Decoding becomes directly conditioned on explicit, semantically grounded anchors instead of latent variables prone to collapse.
- Multi-modal diversity is preserved through the latent diversity penalty and soft-min weighted endpoint loss.
- Joint optimization with a kinematic Gaussian Mixture Model enforces both accuracy and physical feasibility.
- Performance stays competitive with prior methods on Argoverse 2 and Waymo Open Motion datasets.
- Predictions become traceable to specific motion primitives, supporting inspection and debugging.
Where Pith is reading between the lines
- The discrete selection step may allow easier hybridization with rule-based planners that can inspect or override chosen primitives.
- If the bank can be updated incrementally, the method might adapt to new environments without full retraining.
- Testing coverage on rare edge-case motions would directly probe whether the finite bank assumption holds in practice.
- Similar retrieval mechanisms could transfer to other sequence tasks where explicit priors aid interpretability.
Load-bearing premise
A contrastively learned motion bank of finite size will contain sufficiently diverse and physically realizable trajectories for all relevant scenarios, and the Anchor Retrieval Layer will reliably select appropriate anchors.
What would settle it
A held-out test set of motion patterns outside the span of the learned bank where accuracy drops below latent-query baselines or where the retrieval layer repeatedly selects implausible anchors.
Figures
read the original abstract
Motion forecasting often requires trading interpretability for predictive accuracy. Standard anchor-based architectures rely on opaque latent queries that are highly prone to latent collapse, or naive trajectory sampling that limits multi-modal diversity. We propose an end-to-end differentiable framework that grounds predictions in a comprehensive "motion bank", a structured embedding space of physically realizable trajectories constructed via contrastive learning. Rather than regressing paths from a blank slate, our architecture dynamically retrieves explicit motion priors using a novel Anchor Retrieval Layer. This module adapts orthogonally initialized queries via a Dual-Level Gated Cross-Attention mechanism and executes discrete trajectory selection using a Straight-Through Gumbel-Softmax estimator to preserve continuous gradient flow. The retrieved semantically grounded anchors are then geometrically refined by a DETR-style decoder, optimized jointly with a Winner-Takes-All (WTA) kinematic Gaussian Mixture Model (GMM), a latent diversity penalty, and a soft-min weighted endpoint loss. By strictly conditioning the decoding phase on diverse, interpretable motion primitives, our approach eliminates the "black box" of standard latent queries while achieving competitive multi-modal accuracy on the Argoverse 2 and Waymo Open Motion datasets. Code is available at: https://github.com/abviv/recall2predict
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper proposes an end-to-end differentiable motion forecasting framework that constructs an interpretable 'motion bank' of physically realizable trajectories via contrastive learning. Predictions are grounded by retrieving anchors through a novel Anchor Retrieval Layer (Dual-Level Gated Cross-Attention + Straight-Through Gumbel-Softmax), followed by DETR-style geometric refinement. Training uses a Winner-Takes-All kinematic GMM loss, latent diversity penalty, and soft-min endpoint loss. The central claim is that this eliminates the black-box latent queries of prior methods while delivering competitive multi-modal accuracy on Argoverse 2 and Waymo Open Motion datasets.
Significance. If validated, the approach would meaningfully advance interpretable motion prediction for autonomous driving by replacing opaque latent queries with explicit, retrievable motion primitives. This addresses a key tension between accuracy and explainability. The public code release is a clear strength for reproducibility. Significance depends on demonstrating that the finite motion bank provides adequate coverage without introducing new failure modes in retrieval or refinement.
major comments (3)
- [Abstract] Abstract: The claim of 'competitive multi-modal accuracy' and elimination of latent collapse is asserted without any quantitative results, tables, ablation studies, or error bars. This is load-bearing for the empirical contribution and must be supported by explicit benchmark numbers, comparisons to baselines, and statistical significance tests in the experiments section.

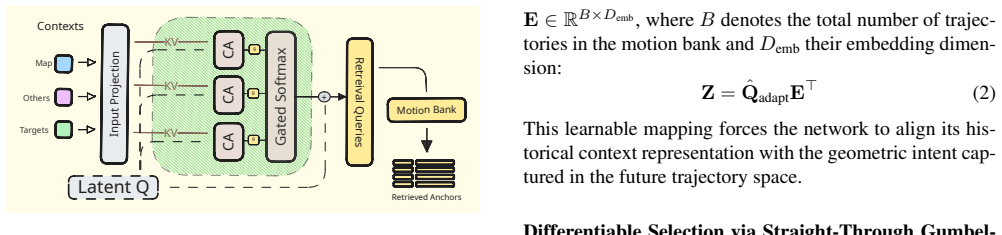

- [Anchor Retrieval Layer] Anchor Retrieval Layer (and motion bank construction): The central interpretability claim rests on the assumption that a finite contrastively-learned motion bank supplies sufficiently diverse, physically realizable primitives for all relevant scenarios, including rare maneuvers. No coverage analysis, diversity metrics, or failure-case evaluation on low-frequency trajectories is described; without this, retrieval failures would reintroduce opacity and undermine the 'eliminates the black box' assertion.
- [Optimization and Losses] Optimization section: The Straight-Through Gumbel-Softmax discretization for anchor selection can introduce selection bias or gradient artifacts absent from continuous latent queries. No ablation isolating this choice versus alternatives (e.g., soft attention or REINFORCE) is mentioned, leaving open whether the claimed gains are due to the motion bank itself or the discretization mechanism.
minor comments (2)
- The description of the Dual-Level Gated Cross-Attention would benefit from an explicit equation or diagram distinguishing the two gating levels from standard cross-attention to improve clarity for readers.
- Figure captions should explicitly label retrieved anchors versus refined trajectories and indicate whether examples are from training or held-out validation sets.
Simulated Author's Rebuttal
Thank you for the detailed and constructive referee report. We appreciate the recognition of our approach's potential to advance interpretable motion forecasting. We address each major comment point by point below, with clarifications from the manuscript and commitments to revisions where the feedback identifies areas for strengthening.
read point-by-point responses
-
Referee: [Abstract] Abstract: The claim of 'competitive multi-modal accuracy' and elimination of latent collapse is asserted without any quantitative results, tables, ablation studies, or error bars. This is load-bearing for the empirical contribution and must be supported by explicit benchmark numbers, comparisons to baselines, and statistical significance tests in the experiments section.
Authors: The manuscript's Experiments section (Section 4) presents quantitative benchmark results on Argoverse 2 and Waymo Open Motion, including comparisons to baselines, ablations on key components, and performance metrics with error bars. The abstract summarizes these findings at a high level. To address the concern directly, we will revise the abstract to explicitly include key competitive accuracy numbers, baseline comparisons, and a brief reference to the supporting evidence from the experiments, ensuring the claims are quantitatively grounded while remaining concise. revision: yes
-
Referee: [Anchor Retrieval Layer] Anchor Retrieval Layer (and motion bank construction): The central interpretability claim rests on the assumption that a finite contrastively-learned motion bank supplies sufficiently diverse, physically realizable primitives for all relevant scenarios, including rare maneuvers. No coverage analysis, diversity metrics, or failure-case evaluation on low-frequency trajectories is described; without this, retrieval failures would reintroduce opacity and undermine the 'eliminates the black box' assertion.
Authors: Section 3.1 details the contrastive learning process used to construct the motion bank from physically realizable trajectories, with the Anchor Retrieval Layer designed to dynamically select from this bank. We agree that explicit validation of coverage would reinforce the interpretability claims. In the revision, we will add a dedicated analysis in the experiments, including diversity metrics (e.g., intra-bank trajectory variance), coverage statistics across the dataset distribution, and retrieval performance on low-frequency/rare maneuvers, to demonstrate adequate coverage and address potential failure modes. revision: yes
-
Referee: [Optimization and Losses] Optimization section: The Straight-Through Gumbel-Softmax discretization for anchor selection can introduce selection bias or gradient artifacts absent from continuous latent queries. No ablation isolating this choice versus alternatives (e.g., soft attention or REINFORCE) is mentioned, leaving open whether the claimed gains are due to the motion bank itself or the discretization mechanism.
Authors: Section 3.2 explains the choice of Straight-Through Gumbel-Softmax to enable discrete, interpretable anchor selection while maintaining end-to-end differentiability. We agree that an isolating ablation would strengthen the analysis. We will add this to the experiments section, comparing Straight-Through Gumbel-Softmax against soft attention and REINFORCE variants in terms of accuracy, training dynamics, and stability, to clarify the contributions of the motion bank versus the discretization approach. revision: yes
Circularity Check
No significant circularity detected; derivation remains self-contained.
full rationale
The architecture learns a finite motion bank via contrastive loss on training trajectories, retrieves anchors via gated cross-attention and Gumbel-Softmax, then refines them with a DETR decoder under WTA-GMM and auxiliary losses. All components are trained end-to-end and evaluated on held-out splits of Argoverse 2 and Waymo; the interpretability claim follows directly from conditioning on explicit retrieved primitives rather than opaque latents. No equation or claim reduces a downstream prediction to a fitted parameter or self-citation by construction, and no uniqueness theorem or ansatz is imported from prior author work.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption A finite motion bank constructed via contrastive learning contains all relevant physically realizable trajectories for the target domain.
invented entities (1)
-
Motion bank
no independent evidence
Reference graph
Works this paper leans on
-
[1]
arXiv preprint arXiv:2506.08228 , year=
Mustafa Baniodeh, Kratarth Goel, Scott Ettinger, Carlos Fuertes, Ari Seff, Tim Shen, Cole Gulino, Chenjie Yang, Ghassen Jerfel, Dokook Choe, Rui Wang, Benjamin Char- row, Vinutha Kallem, Sergio Casas, Rami Al-Rfou, Ben- jamin Sapp, and Dragomir Anguelov. Scaling Laws of Mo- tion Forecasting and Planning – Technical Report, 2025. arXiv:2506.08228 [cs]. 6
-
[2]
PRANK: motion Prediction based on RANKing
Yuriy Biktairov, Maxim Stebelev, Irina Rudenko, Oleh Shli- azhko, and Boris Yangel. PRANK: motion Prediction based on RANKing. InAdvances in Neural Information Processing Systems, pages 2553–2563. Curran Associates, Inc., 2020. 1
work page 2020
-
[3]
End- to-End Object Detection with Transformers
Nicolas Carion, Francisco Massa, Gabriel Synnaeve, Nicolas Usunier, Alexander Kirillov, and Sergey Zagoruyko. End- to-End Object Detection with Transformers. InEuropean Conference on Computer Vision (ECCV), pages 213–229. Springer, 2020. 1, 5
work page 2020
-
[4]
Jie Cheng, Xiaodong Mei, and Ming Liu. Forecast-MAE: Self-supervised pre-training for motion forecasting with masked autoencoders.Proceedings of the IEEE/CVF Inter- national Conference on Computer Vision, 2023. 7
work page 2023
-
[5]
Gorela: Go relative for viewpoint-invariant motion forecasting, 2022
Alexander Cui, Sergio Casas, Kelvin Wong, Simon Suo, and Raquel Urtasun. Gorela: Go relative for viewpoint-invariant motion forecasting, 2022. 7
work page 2022
-
[6]
An image is worth 16x16 words: Transformers for image recognition at scale, 2021
Alexey Dosovitskiy, Lucas Beyer, Alexander Kolesnikov, Dirk Weissenborn, Xiaohua Zhai, Thomas Unterthiner, Mostafa Dehghani, Matthias Minderer, Georg Heigold, Syl- vain Gelly, Jakob Uszkoreit, and Neil Houlsby. An image is worth 16x16 words: Transformers for image recognition at scale, 2021. 5
work page 2021
-
[7]
Scott Ettinger, Shuyang Cheng, Benjamin Caine, Chenxi Liu, Hang Zhao, Sabeek Pradhan, Yuning Chai, Ben Sapp, Charles R. Qi, Yin Zhou, Zoey Yang, Aur’elien Chouard, Pei Sun, Jiquan Ngiam, Vijay Vasudevan, Alexander Mc- Cauley, Jonathon Shlens, and Dragomir Anguelov. Large scale interactive motion forecasting for autonomous driv- ing: The waymo open motion ...
work page 2021
-
[8]
https://arxiv.org/abs/2005.04259
Jiyang Gao, Chen Sun, Hang Zhao, Yi Shen, Dragomir Anguelov, Congcong Li, and Cordelia Schmid. VectorNet: Encoding HD Maps and Agent Dynamics from Vectorized Representation, 2020. arXiv:2005.04259. 3
-
[9]
Densetnt: End-to-end trajectory prediction from dense goal sets
Junru Gu, Chen Sun, and Hang Zhao. Densetnt: End-to-end trajectory prediction from dense goal sets. InProceedings of the IEEE/CVF international conference on computer vision, pages 15303–15312, 2021. 2
work page 2021
-
[10]
Categorical repa- rameterization with gumbel-softmax, 2017
Eric Jang, Shixiang Gu, and Ben Poole. Categorical repa- rameterization with gumbel-softmax, 2017. 2
work page 2017
-
[11]
J ¨ulich Supercomputing Centre. JUWELS Cluster and Booster: Exascale Pathfinder with Modular Supercomputing Architecture at Juelich Supercomputing Centre.Journal of large-scale research facilities, 7(A183), 2021. 9
work page 2021
-
[12]
EDA: Evolving and Distinct Anchors for Multimodal Motion Prediction,
Longzhong Lin, Xuewu Lin, Tianwei Lin, Lichao Huang, Rong Xiong, and Yue Wang. EDA: Evolving and Dis- tinct Anchors for Multimodal Motion Prediction, 2023. arXiv:2312.09501. 2, 7
-
[13]
Wayformer: Motion forecasting via simple & efficient attention networks,
Nigamaa Nayakanti, Rami Al-Rfou, Aurick Zhou, Kratarth Goel, Khaled S. Refaat, and Benjamin Sapp. Wayformer: Motion Forecasting via Simple & Efficient Attention Net- works, 2022. arXiv:2207.05844. 1
-
[14]
and Beijbom, Oscar and Wolff, Eric M
Tung Phan-Minh, Elena Corina Grigore, Freddy A. Boul- ton, Oscar Beijbom, and Eric M. Wolff. CoverNet: Mul- timodal Behavior Prediction using Trajectory Sets, 2020. arXiv:1911.10298. 1
-
[15]
Alexander Prutsch, Horst Bischof, and Horst Possegger. Ef- ficient Motion Prediction: A Lightweight & Accurate Tra- jectory Prediction Model With Fast Training and Inference Speed, 2024. arXiv:2409.16154 [cs]. 7
-
[16]
Qi, Hao Su, Kaichun Mo, and Leonidas J
Charles R. Qi, Hao Su, Kaichun Mo, and Leonidas J. Guibas. Pointnet: Deep learning on point sets for 3d classification and segmentation. InProceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2017. 3, 7
work page 2017
-
[17]
Learning transferable visual models from natural language supervision, 2021
Alec Radford, Jong Wook Kim, Chris Hallacy, Aditya Ramesh, Gabriel Goh, Sandhini Agarwal, Girish Sastry, Amanda Askell, Pamela Mishkin, Jack Clark, Gretchen Krueger, and Ilya Sutskever. Learning transferable visual models from natural language supervision, 2021. 4
work page 2021
-
[18]
Shaoshuai Shi, Li Jiang, Dengxin Dai, and Bernt Schiele. Motion Transformer with Global Intention Localization and Local Movement Refinement, 2023. arXiv:2209.13508. 1, 7
-
[19]
MTR++: Multi-Agent Motion Prediction with Symmetric Scene Modeling and Guided Intention Querying,
Shaoshuai Shi, Li Jiang, Dengxin Dai, and Bernt Schiele. MTR++: Multi-Agent Motion Prediction with Symmet- ric Scene Modeling and Guided Intention Querying, 2024. arXiv:2306.17770. 2, 6, 7
-
[20]
Leslie N. Smith and Nicholay Topin. Super-convergence: Very fast training of neural networks using large learning rates, 2018. 6
work page 2018
-
[21]
Learning to predict vehicle trajectories with model-based planning
Haoran Song, Di Luan, Wenchao Ding, Michael Y Wang, and Qifeng Chen. Learning to predict vehicle trajectories with model-based planning. InConference on Robot Learn- ing, pages 1035–1045. PMLR, 2022. 2 9
work page 2022
-
[22]
Jiawei Sun, Chengran Yuan, Shuo Sun, Shanze Wang, Yuhang Han, Shuailei Ma, Zefan Huang, Anthony Wong, Keng Peng Tee, and Marcelo H. Ang Jr. ControlMTR: Control-Guided Motion Transformer with Scene-Compliant Intention Points for Feasible Motion Prediction, 2024. arXiv:2404.10295. 2, 7
-
[23]
arXiv preprint arXiv:2111.14973 , year=
Balakrishnan Varadarajan, Ahmed Hefny, Avikalp Srivas- tava, Khaled S. Refaat, Nigamaa Nayakanti, Andre Corn- man, Kan Chen, Bertrand Douillard, Chi Pang Lam, Dragomir Anguelov, and Benjamin Sapp. MultiPath++: Effi- cient Information Fusion and Trajectory Aggregation for Be- havior Prediction, 2021. arXiv:2111.14973. 1
-
[24]
Abhishek Vivekanandan and J. Marius Z ¨ollner. Efficient Data Representation for Motion Forecasting: A Scene- Specific Trajectory Set Approach, 2024. arXiv:2407.20732. 2
-
[25]
Abhishek Vivekanandan, Ahmed Abouelazm, Philip Sch¨orner, and J. Marius Z ¨ollner. KI-PMF: Knowledge Integrated Plausible Motion Forecasting. In2024 IEEE Intelligent Vehicles Symposium (IV), pages 176–183, 2024. 1, 2
work page 2024
-
[26]
Abhishek Vivekanandan, Christian Hubschneider, and J. Marius Z ¨ollner. Contrast & Compress: Learning Lightweight Embeddings for Short Trajectories, 2025. arXiv:2506.02571. 1, 2, 7
-
[27]
ProphNet: Efficient Agent-Centric Motion Forecasting with Anchor-Informed Proposals
Xishun Wang, Tong Su, Fang Da, and Xiaodong Yang. ProphNet: Efficient Agent-Centric Motion Forecasting with Anchor-Informed Proposals. In2023 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), pages 21995–22003. IEEE, 2023. 1, 2
work page 2023
-
[28]
Argoverse 2: Next generation datasets for self-driving perception and fore- casting, 2023
Benjamin Wilson, William Qi, Tanmay Agarwal, John Lam- bert, Jagjeet Singh, Siddhesh Khandelwal, Bowen Pan, Rat- nesh Kumar, Andrew Hartnett, Jhony Kaesemodel Pontes, Deva Ramanan, Peter Carr, and James Hays. Argoverse 2: Next generation datasets for self-driving perception and fore- casting, 2023. 6
work page 2023
-
[29]
Decoupling motion forecasting into directional intentions and dynamic states
Bozhou Zhang, Nan Song, and Li Zhang. Decoupling motion forecasting into directional intentions and dynamic states. Advances in Neural Information Processing Systems, 37: 106582–106606, 2024. 2
work page 2024
-
[30]
Demo: Decoupling motion forecasting into directional intentions and dynamic states
Bozhou Zhang, Nan Song, and Li Zhang. Demo: Decoupling motion forecasting into directional intentions and dynamic states. InNeurIPS, 2024. 7
work page 2024
-
[31]
Simpl: A simple and efficient multi-agent motion prediction base- line for autonomous driving, 2024
Lu Zhang, Peiliang Li, Sikang Liu, and Shaojie Shen. Simpl: A simple and efficient multi-agent motion prediction base- line for autonomous driving, 2024. 7
work page 2024
-
[32]
Zhejun Zhang, Alexander Liniger, Christos Sakaridis, Fisher Yu, and Luc Van Gool. Real-Time Motion Prediction via Heterogeneous Polyline Transformer with Relative Pose En- coding, 2023. arXiv:2310.12970 [cs]. 3, 6, 7
-
[33]
TNT: Target-driven Trajectory Prediction
Hang Zhao, Jiyang Gao, Tian Lan, Chen Sun, Ben Sapp, Balakrishnan Varadarajan, Yue Shen, Yi Shen, Yuning Chai, Cordelia Schmid, Congcong Li, and Dragomir Anguelov. TNT: Target-driven Trajectory Prediction. InProceedings of the 2020 Conference on Robot Learning, pages 895–904. PMLR, 2021. 1, 2
work page 2020
-
[34]
Waslander, Hongsheng Li, and Yu Liu
Yang Zhou, Hao Shao, Letian Wang, Steven L. Waslander, Hongsheng Li, and Yu Liu. Smartrefine: A scenario-adaptive refinement framework for efficient motion prediction, 2024. 7 10
work page 2024
-
[35]
Supplementatal 8.1. Physical Grouped-Query Aggregation (PGQA) To process situations whenN q > Kand to maintain a constant computational overhead for the retrieved anchors which are to be used as queries in the decoder, we use Grouped Query Aggregation. This module mainly func- tions to reduce the unnecessary computational overhead when the number of gener...
