arxiv: 2605.01548 · v1 · submitted 2026-05-02 · 💻 cs.LG · cs.CV· eess.SP

ECG-biometrics-bench: A Unified Framework for Reproducible Benchmarking of ECG Biometrics

Pith reviewed 2026-05-09 14:52 UTC · model grok-4.3

classification 💻 cs.LG cs.CVeess.SP
keywords ECG biometricsbenchmarking frameworkrandom split fallacytemporal driftopen-set evaluationwearable authenticationsupervised learning
0
0 comments X

The pith

Random splits within ECG sessions inflate biometric performance that falls when time or subjects change.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

ECG biometrics are promoted for continuous authentication on wearables, but reported results often rely on flawed evaluation. This paper presents a unified framework that applies consistent preprocessing and testing across multiple public datasets. It shows that splitting data randomly from the same recording session produces high accuracy that does not carry over when sessions are separated by time or when new people are tested. The drop occurs across different neural network models, suggesting the issue lies with how features are learned rather than with any single design. Partial recovery is possible by enrolling with data from many sessions and fusing templates dynamically.

Core claim

The core claim is that the Random Split Fallacy leads to overly optimistic results in ECG biometrics because intra-session evaluation protocols mask severe degradation from temporal drift and unseen identities. This failure is not specific to particular models like DeepECG, ResNet1D, or CNN-LSTM but seems built into supervised feature-learning approaches. The introduced benchmarking framework allows testing under cross-session and long-term separation conditions, and a heavy enrollment with lightweight authentication using dynamic multi-session template fusion can partially address the aging effect.

What carries the argument

ECG-biometrics-bench, a modular framework that standardizes preprocessing, segmentation, and evaluation protocols including cross-session and long-term temporal separation across seven public datasets.

If this is right

  • Literature results on ECG biometrics performance are likely inflated.
  • The problem affects multiple common neural architectures, indicating a paradigm-level issue.
  • Template fusion from multiple sessions can reduce some of the temporal degradation.
  • Better protocols are required for assessing real deployment readiness.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar evaluation issues may affect other biometrics that use physiological signals subject to drift.
  • The framework could encourage the development of methods robust to time-based changes in signals.
  • Real-world systems might need to combine ECG with other modalities to achieve reliable performance.

Load-bearing premise

The performance degradation and its independence from specific models will hold more generally, and the cross-session protocols will match real-world conditions without other confounding factors.

What would settle it

Observing sustained high performance from a supervised model on long-term subject-disjoint tests from the datasets without special enrollment strategies would disprove that the degradation is inherent.

Figures

Figures reproduced from arXiv: 2605.01548 by Milad Parvan.

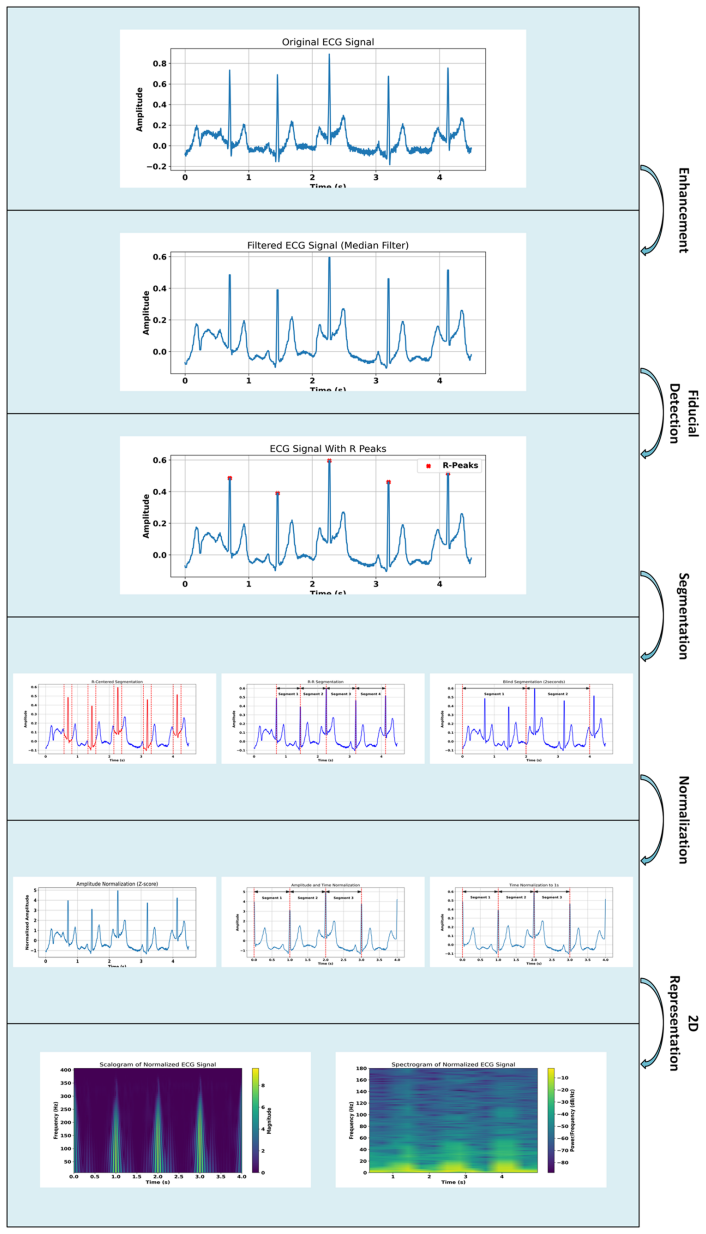

Figure 1
Figure 1. Figure 1: Visual Examples of Preprocessing Methods view at source ↗
Figure 2
Figure 2. Figure 2: Rank-1 Comparison Between Intra-Session and Inter-Session Evaluation view at source ↗
Figure 3
Figure 3. Figure 3: EER Comparison Between Intra-Session and Inter-Session Evaluation view at source ↗

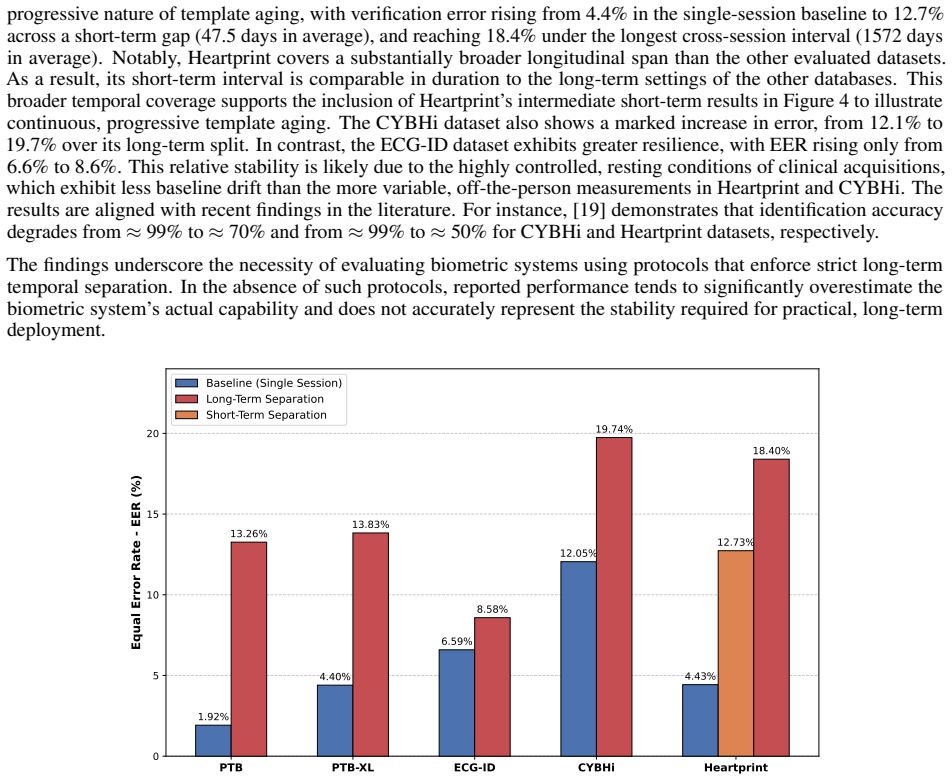

Figure 4
Figure 4. Figure 4: Verification Degradation Over Time: Closed-Set EER Comparison Between Intra-Session Baseline and view at source ↗

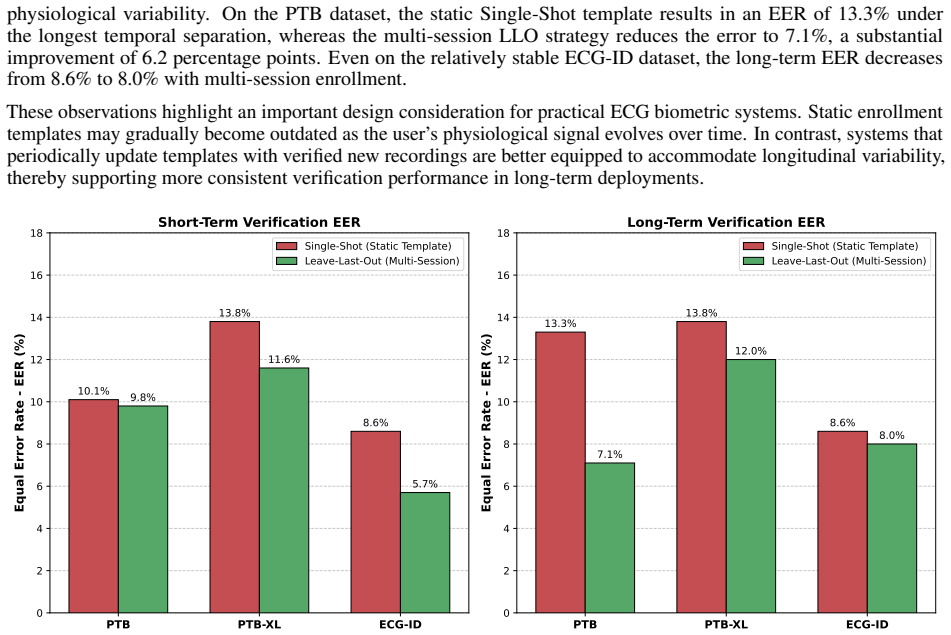

Figure 5
Figure 5. Figure 5: Verification Error Reduction via Multi-Session Enrollment. view at source ↗

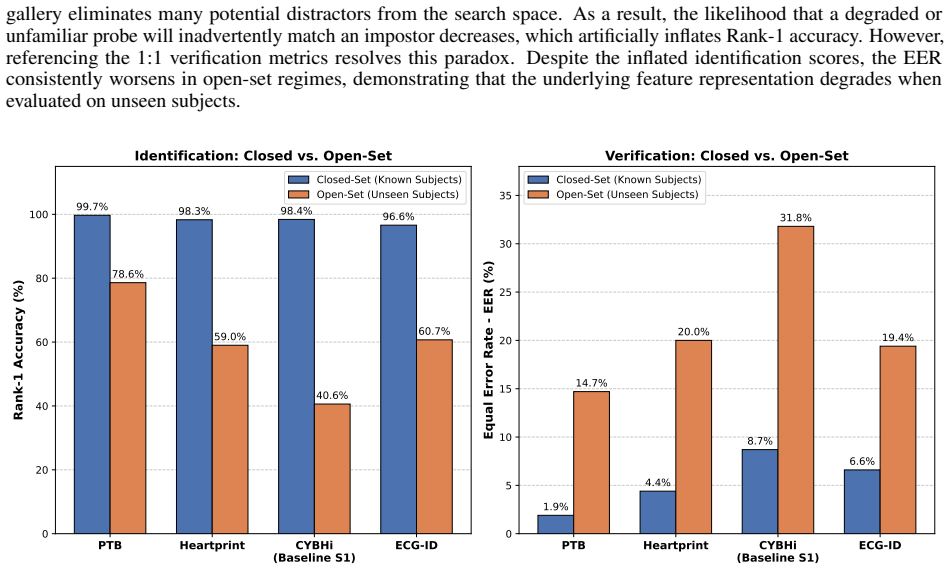

Figure 6
Figure 6. Figure 6: Model Generalizability: Closed-Set vs. Open-Set Performance. view at source ↗
Figure 7
Figure 7. Figure 7: Controlled Hyperparameter Ablation (Single-Session Closed-Set). view at source ↗
Figure 8
Figure 8. Figure 8: Architectural Agnosticism. 5 Limitations and Future Work Although this study establishes a comprehensive framework for reproducible ECG biometric evaluation, several limitations remain that warrant further investigation. Primarily due to the significant computational demands of executing over 6,000 unique hyperparameter grid-search configurations across multiple large-scale datasets, including PTB-XL, the … view at source ↗

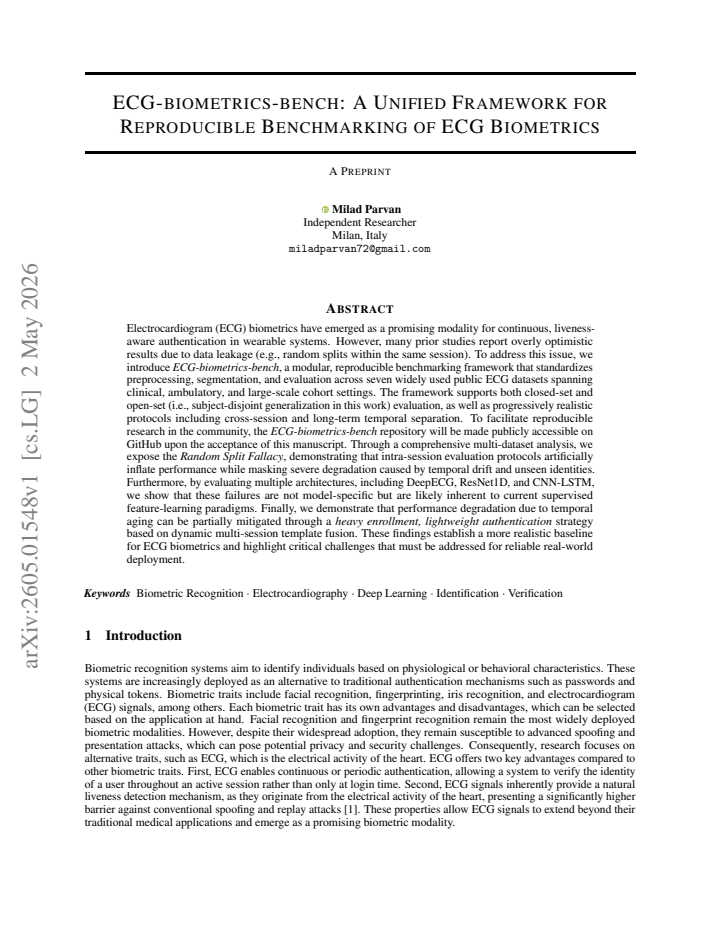

read the original abstract

Electrocardiogram (ECG) biometrics have emerged as a promising modality for continuous, liveness-aware authentication in wearable systems. However, many prior studies report overly optimistic results due to data leakage (e.g., random splits within the same session). To address this issue, we introduce ECG-biometrics-bench, a modular, reproducible benchmarking framework that standardizes preprocessing, segmentation, and evaluation across seven widely used public ECG datasets spanning clinical, ambulatory, and large-scale cohort settings. The framework supports both closed-set and open-set (i.e., subject-disjoint generalization in this work) evaluation, as well as progressively realistic protocols including cross-session and long-term temporal separation. To facilitate reproducible research in the community, the ECG-biometrics-bench repository will be made publicly accessible on GitHub upon the acceptance of this manuscript. Through a comprehensive multi-dataset analysis, we expose the Random Split Fallacy, demonstrating that intra-session evaluation protocols artificially inflate performance while masking severe degradation caused by temporal drift and unseen identities. Furthermore, by evaluating multiple architectures, including DeepECG, ResNet1D, and CNN-LSTM, we show that these failures are not model-specific but are likely inherent to current supervised feature-learning paradigms. Finally, we demonstrate that performance degradation due to temporal aging can be partially mitigated through a heavy enrollment, lightweight authentication strategy based on dynamic multi-session template fusion. These findings establish a more realistic baseline for ECG biometrics and highlight critical challenges that must be addressed for reliable real-world deployment.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper introduces ECG-biometrics-bench, a modular framework for standardized, reproducible benchmarking of ECG biometrics across seven public datasets (clinical, ambulatory, and large-scale). It evaluates closed-set and open-set protocols under intra-session random splits, cross-session, and long-term temporal separations. The central claims are that intra-session random splits produce inflated performance (the 'Random Split Fallacy') that masks degradation from temporal drift and unseen identities; that this degradation occurs consistently across DeepECG, ResNet1D, and CNN-LSTM and is therefore not model-specific but likely inherent to supervised feature-learning paradigms; and that a heavy-enrollment/lightweight-authentication strategy with dynamic multi-session template fusion can partially mitigate temporal aging effects.

Significance. If the results hold after addressing scope limitations, the work would provide a valuable public benchmarking resource and more realistic baselines for ECG biometrics in wearable authentication. The emphasis on reproducibility via planned public code release, use of public datasets, and multi-dataset analysis is a clear strength. The identification of temporal drift as a core challenge could usefully redirect research toward more robust enrollment and adaptation strategies.

major comments (1)
  1. Abstract: The assertion that observed failures are 'likely inherent to current supervised feature-learning paradigms' is not supported by the reported experiments. Only three deep architectures (DeepECG, ResNet1D, CNN-LSTM) are evaluated; no classical supervised baselines (e.g., fiducial-point or wavelet features with SVM, LDA, or random forest) are run on the same cross-session and long-term splits. The data therefore establish only that the degradation is not specific to these three networks, not that it is paradigm-wide. This extrapolation is load-bearing for the paper's strongest claim and requires either additional baselines or a narrowed statement.
minor comments (1)
  1. The manuscript should explicitly state the exact train/validation/test subject splits and session indices used for each protocol in a table or appendix to enable direct reproduction even before the GitHub release.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive and detailed review. The feedback helps clarify the scope of our claims, and we address the major comment below with a commitment to revision.

read point-by-point responses
  1. Referee: Abstract: The assertion that observed failures are 'likely inherent to current supervised feature-learning paradigms' is not supported by the reported experiments. Only three deep architectures (DeepECG, ResNet1D, CNN-LSTM) are evaluated; no classical supervised baselines (e.g., fiducial-point or wavelet features with SVM, LDA, or random forest) are run on the same cross-session and long-term splits. The data therefore establish only that the degradation is not specific to these three networks, not that it is paradigm-wide. This extrapolation is load-bearing for the paper's strongest claim and requires either additional baselines or a narrowed statement.

    Authors: We agree with the referee that the experiments are confined to three deep learning architectures and do not include classical supervised methods such as fiducial or wavelet features paired with SVM, LDA, or random forests. The consistent degradation observed across DeepECG (an ECG-specific model), ResNet1D, and CNN-LSTM under cross-session and long-term protocols indicates that the issue is not an artifact of any single network design. However, we acknowledge that this does not yet establish the phenomenon as inherent to supervised feature-learning paradigms in general. To correct the overstatement, we will revise the abstract, introduction, and discussion to narrow the claim to the evaluated deep supervised approaches, stating that the failures are 'not model-specific among the tested architectures but likely inherent to current deep supervised feature-learning paradigms.' We will also note in the discussion that extending the framework to classical baselines remains valuable future work. These changes will be reflected in the revised manuscript. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical benchmarking study with independent experimental grounding

full rationale

The paper presents an empirical benchmarking framework evaluated on seven public ECG datasets using three deep architectures under controlled protocols (intra-session, cross-session, long-term). No mathematical derivation, parameter fitting, or self-referential definition exists that reduces outputs to inputs by construction. Claims rest on planned public code and reproducible splits rather than self-citation chains or ansatzes. The generalization to 'supervised feature-learning paradigms' is an interpretive extrapolation beyond tested models but does not constitute a circular reduction per the enumerated patterns. This matches the default expectation for non-circular empirical work.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The paper is a methodological benchmarking contribution relying on standard assumptions about public ECG datasets being suitable proxies for real-world use and on conventional supervised learning evaluation practices; no new free parameters, axioms, or invented entities are introduced in the abstract.
