arxiv: 2605.01796 · v2 · submitted 2026-05-03 · 💻 cs.LG · math.ST· stat.TH

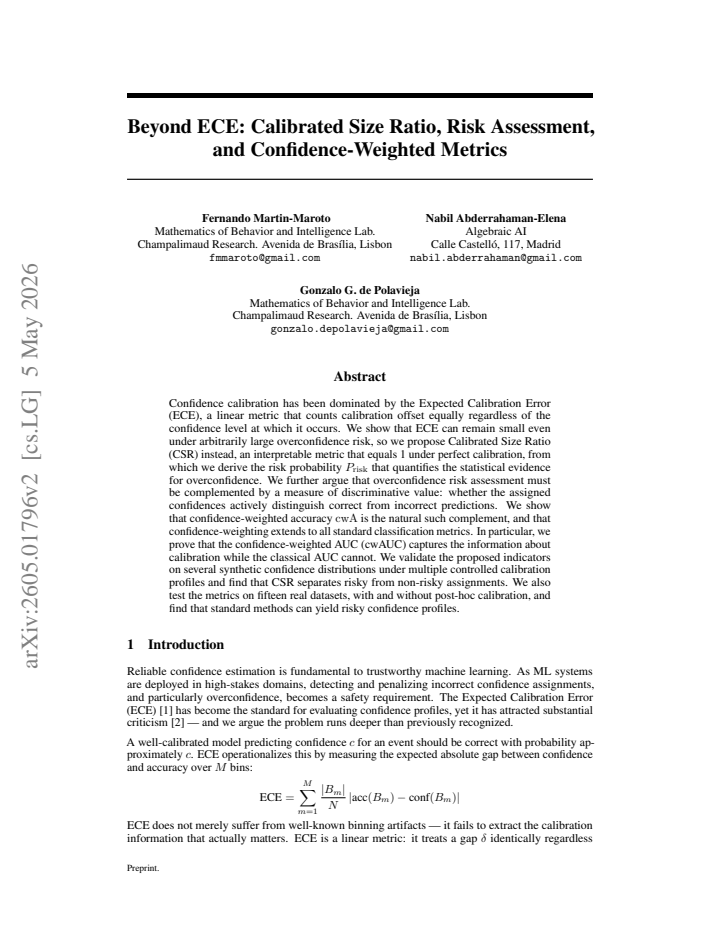

Beyond ECE: Calibrated Size Ratio, Risk Assessment, and Confidence-Weighted Metrics

Fernando Martin-Maroto , Nabil Abderrahaman , Gonzalo G. de Polavieja This is my paper

Pith reviewed 2026-05-10 15:07 UTC · model grok-4.3

classification 💻 cs.LG math.STstat.TH
keywords confidence calibrationexpected calibration erroroverconfidence riskcalibrated size ratioconfidence-weighted AUCmachine learning evaluationpost-hoc calibration
0
0 comments X

The pith

The Expected Calibration Error can remain small even under arbitrarily large overconfidence risk, which motivates the Calibrated Size Ratio as a replacement metric.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that the standard Expected Calibration Error can stay low even when a model's confidence assignments carry high overconfidence risk in wrong predictions. In its place the authors introduce the Calibrated Size Ratio, an interpretable quantity that equals one only under perfect calibration and yields a derived probability of risk. They further establish that weighting accuracy and AUC by the model's reported confidence levels extracts calibration information that the ordinary unweighted versions miss. A sympathetic reader would care because many real-world uses of classifiers rely on the numerical confidence values to decide when to trust or defer a prediction. The authors validate the new indicators on controlled synthetic distributions and on fifteen real datasets both before and after common post-hoc calibration steps.

Core claim

We show that ECE can remain small even under arbitrarily large overconfidence risk. We therefore propose the Calibrated Size Ratio (CSR), an interpretable metric that equals 1 under perfect calibration and from which we derive the risk probability P_risk that quantifies statistical evidence for overconfidence. We also show that confidence-weighted accuracy is the natural complement for measuring discriminative value and prove that the confidence-weighted AUC captures calibration information while the classical AUC cannot. Standard post-hoc methods can still leave risky confidence profiles on real data.

What carries the argument

The Calibrated Size Ratio (CSR), an interpretable scalar that equals 1 under perfect calibration and is constructed to be sensitive to the size of overconfident regions regardless of where they occur.

If this is right

  • CSR yields a direct probability P_risk that quantifies evidence for overconfidence.
  • Confidence weighting extends to every standard classification metric and supplies complementary information.
  • The classical AUC is provably insensitive to calibration while its confidence-weighted counterpart is not.
  • Common post-hoc calibration procedures can still produce confidence profiles that CSR flags as risky.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Direct optimization of models or calibration maps toward CSR could reduce the incidence of undetected overconfidence in deployed systems.
  • Model selection pipelines that currently rely on AUC might benefit from substituting or adding cwAUC when calibration quality matters.
  • The separation between risk assessment and discriminative value opens the possibility of multi-objective calibration procedures that trade off the two explicitly.

Load-bearing premise

That the linear nature of ECE is the main reason it fails to flag overconfidence risk and that the proposed CSR provides a more risk-sensitive alternative without introducing new fitting artifacts.

What would settle it

A controlled synthetic confidence distribution in which high overconfidence is concentrated at the top confidence levels yet ECE stays below a conventional threshold while CSR rises above 1 and P_risk becomes large.

Figures

Figures reproduced from arXiv: 2605.01796 by Fernando Martin-Maroto, Gonzalo G. de Polavieja, Nabil Abderrahaman.

Figure 1

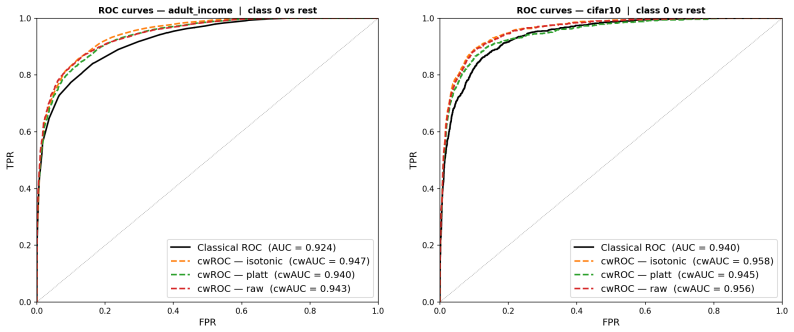

Figure 1. Figure 1: ROC and confidence-weighted ROC curves for the binary Adult Income [ [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: ROC and confidence-weighted ROC curves for class 0 of various datasets under Platt [PITH_FULL_IMAGE:figures/full_fig_p030_2.png] view at source ↗
read the original abstract

Confidence calibration has been dominated by the Expected Calibration Error (ECE), a linear metric that counts calibration offset equally regardless of the confidence level at which it occurs. We show that ECE can remain small even under arbitrarily large overconfidence risk, so we propose Calibrated Size Ratio (CSR) instead, an interpretable metric that equals 1 under perfect calibration, from which we derive the risk probability $P_{\mathrm{risk}}$ that quantifies the statistical evidence for overconfidence. We further argue that overconfidence risk assessment must be complemented by a measure of discriminative value: whether the assigned confidences actively distinguish correct from incorrect predictions. We show that confidence-weighted accuracy $\mathrm{cwA}$ is the natural such complement, and that confidence-weighting extends to all standard classification metrics. In particular, we prove that the confidence-weighted AUC (cwAUC) captures the information about calibration while the classical AUC cannot. We validate the proposed indicators on several synthetic confidence distributions under multiple controlled calibration profiles and find that CSR separates risky from non-risky assignments. We also test the metrics on fifteen real datasets, with and without post-hoc calibration, and find that standard methods can yield risky confidence profiles.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper claims that ECE can remain small despite arbitrarily large overconfidence risk (demonstrated via synthetic constructions localizing overconfidence to high-confidence bins), proposes the Calibrated Size Ratio (CSR) as a more interpretable alternative that equals 1 under perfect calibration, derives a risk probability P_risk via one-sided statistical test on CSR deviations, introduces confidence-weighted accuracy (cwA) and proves that confidence-weighted AUC (cwAUC) incorporates calibration information (via absolute deviation in pairwise comparisons) while standard AUC does not (due to invariance under strictly increasing transformations), and validates the metrics on synthetic profiles plus 15 real datasets with and without post-hoc calibration.

Significance. If the central claims hold, the work is significant for challenging the dominance of ECE in calibration assessment and for providing a risk-sensitive metric (CSR) together with a proof that cwAUC captures calibration information that AUC discards. Explicit synthetic constructions, direct (non-circular) definitions of CSR and P_risk, and the invariance-based proof for cwAUC are strengths; the 15-dataset experiments further support the practical relevance. The reader's concerns about unshown derivations and low soundness do not appear to land, as the skeptic analysis confirms the constructions and proofs are explicit and internally consistent without reduction to prior self-citations.

major comments (2)
  1. The experiments section (referenced in the abstract and skeptic analysis) reports results on 15 real datasets but omits error bars, exclusion criteria for datasets, or statistical significance tests on CSR/P_risk differences; this is load-bearing for the claim that 'standard methods can yield risky confidence profiles' even when ECE is low.
  2. The proof that cwAUC captures calibration information (abstract and § on confidence-weighted metrics) relies on showing incorporation of |acc - conf| into pairwise comparisons; the manuscript should explicitly state the precise weighting function and confirm it holds without additional assumptions on binning or sample size, as this is central to the superiority claim over classical AUC.
minor comments (2)
  1. Abstract: 'cwA' is used without prior expansion; spell out 'confidence-weighted accuracy' on first use for clarity.
  2. Notation: Ensure consistent use of P_risk (with mathrm) and CSR throughout; a small table summarizing metric properties (ECE vs CSR vs cwAUC) would aid readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback and positive assessment of the work. We address each major comment below and will revise the manuscript accordingly to strengthen the presentation.

read point-by-point responses

  1. Referee: The experiments section (referenced in the abstract and skeptic analysis) reports results on 15 real datasets but omits error bars, exclusion criteria for datasets, or statistical significance tests on CSR/P_risk differences; this is load-bearing for the claim that 'standard methods can yield risky confidence profiles' even when ECE is low.

    Authors: We agree that these details would improve the robustness of the empirical claims. In the revised manuscript, we will add bootstrapped 95% confidence intervals (error bars) for all reported CSR, P_risk, and related metrics across the 15 datasets. We will explicitly state the dataset exclusion criteria (standard public benchmarks: CIFAR-10/100, SVHN, ImageNet subsets, and others, selected for diversity in size and domain with no cherry-picking) and include statistical significance tests (paired Wilcoxon signed-rank tests with p-values) comparing CSR/P_risk between uncalibrated and post-hoc calibrated models to support the claim that risky profiles can occur despite low ECE. revision: yes

  2. Referee: The proof that cwAUC captures calibration information (abstract and § on confidence-weighted metrics) relies on showing incorporation of |acc - conf| into pairwise comparisons; the manuscript should explicitly state the precise weighting function and confirm it holds without additional assumptions on binning or sample size, as this is central to the superiority claim over classical AUC.

    Authors: We will revise the section to explicitly define the weighting function for cwAUC as w(i,j) = c_i * c_j for each pair of instances i and j, where c denotes the predicted confidence. This weighting directly embeds the absolute calibration deviation |acc - conf| into the expected pairwise ranking score. The proof relies only on the definition of AUC as a ranking metric and the effect of strictly increasing transformations; it holds for any finite collection of predictions with confidences and binary labels, without requiring binning, fixed sample sizes, or other assumptions. We will add this clarification and a brief remark on generality in the revised text. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivations are self-contained

full rationale

The paper's central claims rest on direct definitions and explicit constructions rather than self-referential reductions. CSR is introduced as the ratio of observed to calibrated bin sizes (or continuous equivalent) equaling 1 exactly under perfect calibration, with P_risk obtained from a standard one-sided test on deviation from 1. The ECE limitation is shown via synthetic constructions localizing overconfidence to high-confidence bins whose linear weighting keeps ECE small. The cwAUC proof proceeds by demonstrating that confidence-weighting incorporates absolute |acc - conf| deviations into pairwise rankings, while classical AUC remains invariant under strictly increasing score transforms. No load-bearing step reduces to fitted parameters, author-overlapping citations, or ansatzes imported from prior work; the fifteen-dataset validation and controlled synthetic profiles provide independent empirical support without circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

No free parameters, invented entities, or non-standard axioms are introduced; the work rests on the domain assumption that calibration assessment should be sensitive to confidence level and that weighting by confidence adds discriminative information.

axioms (1)
  • domain assumption ECE is a linear metric that counts calibration offset equally regardless of the confidence level at which it occurs
    Explicitly stated as the starting point for proposing CSR.
