The pith

Integrating sonar alignment with GPS-IMU EKF optimization reduces seabed mapping drift by 9.5 percent versus sonar-only methods.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a framework for creating accurate maps of the seabed in cloudy, shallow coastal areas like shellfish farms where cameras do not work well. It aligns consecutive sonar images locally using the Fourier-Mellin transform and then optimizes the overall path globally with an extended Kalman filter that combines GPS, motion sensors, and compass readings. Overlapping areas are blended based on image variance to avoid seams. In real tests at an oyster farm, this reduced position drift by 9.5 percent compared to using sonar alignment alone and achieved maps accurate to less than a meter while keeping fine details needed to count oysters.

Core claim

The central claim is that a drift-resilient seabed mapping framework integrating local forward-looking sonar frame alignment via Fourier-Mellin transform with global extended Kalman filter optimization fusing GPS, IMU, and compass data, together with variance-based blending, achieves 9.5% RMSE drift reduction over FMT-only baseline, sub-meter reconstruction accuracy, and preservation of high-resolution textures in field trials on a structured oyster farm site.

What carries the argument

The integration of Fourier-Mellin transform for local forward-looking sonar alignment with extended Kalman filter trajectory optimization fusing GPS, IMU, and compass data, plus variance-based image blending.

If this is right

  • Long-trajectory mapping becomes feasible in low-visibility waters where optical cameras fail.
  • Sub-meter accuracy supports detailed habitat monitoring and infrastructure inspection.
  • Preserved high-resolution textures enable automated inventory estimation such as oyster counts from the maps.
  • The method offers a practical alternative for autonomous surface vehicles in aquaculture and coastal monitoring.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The multi-sensor fusion could be adapted to other autonomous platforms facing similar drift and visibility challenges.
  • Further tests in open coastal or varying-turbidity settings would clarify how far the EKF model extends beyond the tested farm.
  • If accuracy holds, missions could extend longer between GPS updates without losing map quality.

Load-bearing premise

Performance gains from one structured oyster farm site will generalize to other turbid shallow waters and the FMT-only baseline is a fair untuned comparison.

What would settle it

Repeat field trials in other turbid shallow sites that show RMSE drift reduction below 9.5 percent or reconstruction accuracy worse than one meter would disprove the claimed benefits of the fusion.

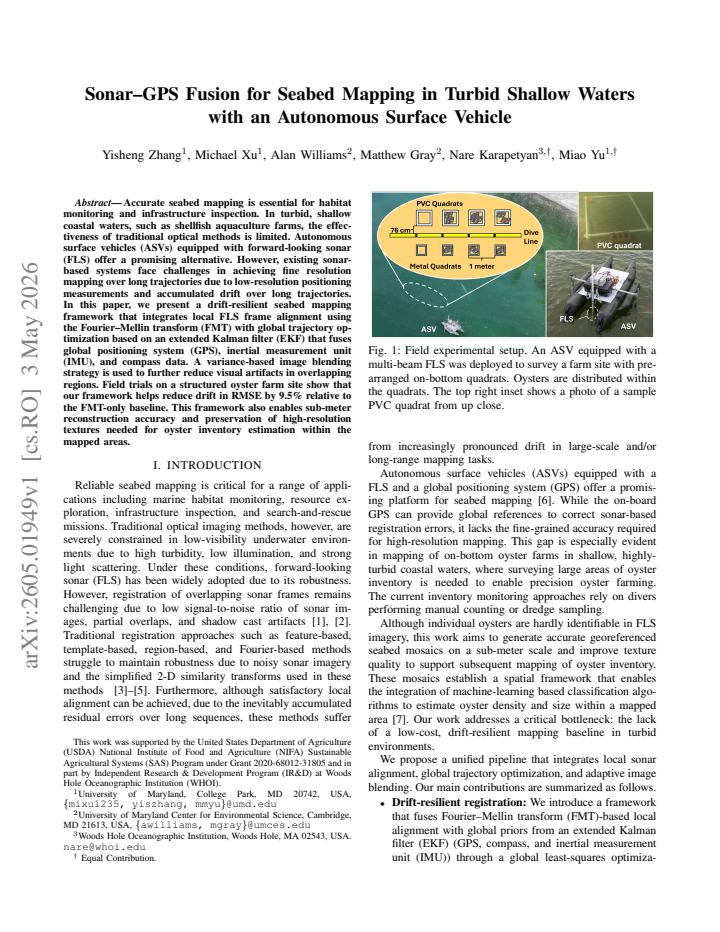

Figures

Figures reproduced from arXiv: 2605.01949 by Alan Williams, Matthew Gray, Miao Yu, Michael Xu, Nare Karapetyan, Yisheng Zhang.

Figure 1

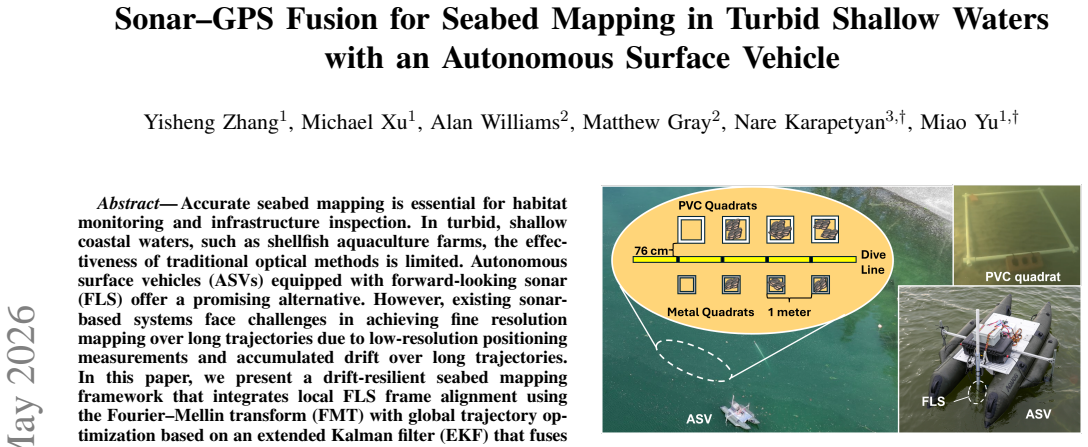

Figure 1. Figure 1: Field experimental setup. An ASV equipped with a view at source ↗
