How Can One Choose the Best CAM-Based Explainability Method for a CNN Model?

Daniel da Silva Costa , Pedro Nuno de Souza Moura , Adriana C. F. Alvim This is my paper

Pith reviewed 2026-05-09 17:24 UTC · model grok-4.3

classification 💻 cs.LG cs.CV
keywords CAMexplainabilitysaliency mapshuman perceptionCNNdistance metricscrowdsourcingRBO
0
0 comments X

The pith

Manhattan and correlation distances can identify which CAM explainability methods produce saliency maps that best match human perception.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines whether distance metrics other than intersection-over-union can better identify class activation mapping methods whose explanations align with how people actually see them. Researchers created saliency maps for chihuahua images using several CAM variants, measured how each map overlapped a human bounding box via multiple distances, and collected separate human rankings of the best-looking maps through crowdsourcing. They then compared the method orderings produced by each distance against the crowdsourced order using rank-biased overlap. Manhattan and correlation distances produced orderings closest to the human votes, and LayerCAM, Score-CAM, and IS-CAM ranked highest for human resemblance.

Core claim

The results indicate the feasibility of our method to find the explainability method that best resembles human perception. In our experiments, the two metrics that best resemble human perception corresponded to Manhattan and Correlation. Besides, the best explainability methods regarding human perception were LayerCAM, Score-CAM, and IS-CAM.

What carries the argument

Ranking of CAM methods by distance between their saliency maps and human bounding boxes, validated by how closely those rankings match crowdsourced human preference rankings measured with rank-biased overlap.

If this is right

  • Manhattan distance produces rankings of explainability methods that align most closely with human votes.
  • Correlation distance produces rankings that also align closely with human votes.
  • LayerCAM, Score-CAM, and IS-CAM generate the saliency maps that humans judge as best.
  • The evaluation procedure can feasibly guide selection of an explainability method for a CNN.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same comparison pipeline could be applied to other image datasets to check whether Manhattan and correlation remain the best distances.
  • Domains that require user trust in model decisions could adopt this human-perception filter before deploying an explainer.
  • Using eye-tracking records instead of bounding boxes might give a more precise ground truth for future comparisons.

Load-bearing premise

Numerical distances between a fixed human box and a variable-shaped saliency map actually reflect how people judge the quality of an explanation.

What would settle it

A fresh crowdsourcing round on the same images that produces a different top distance metric or different top CAM methods would show the current selection does not reliably capture human perception.

Figures

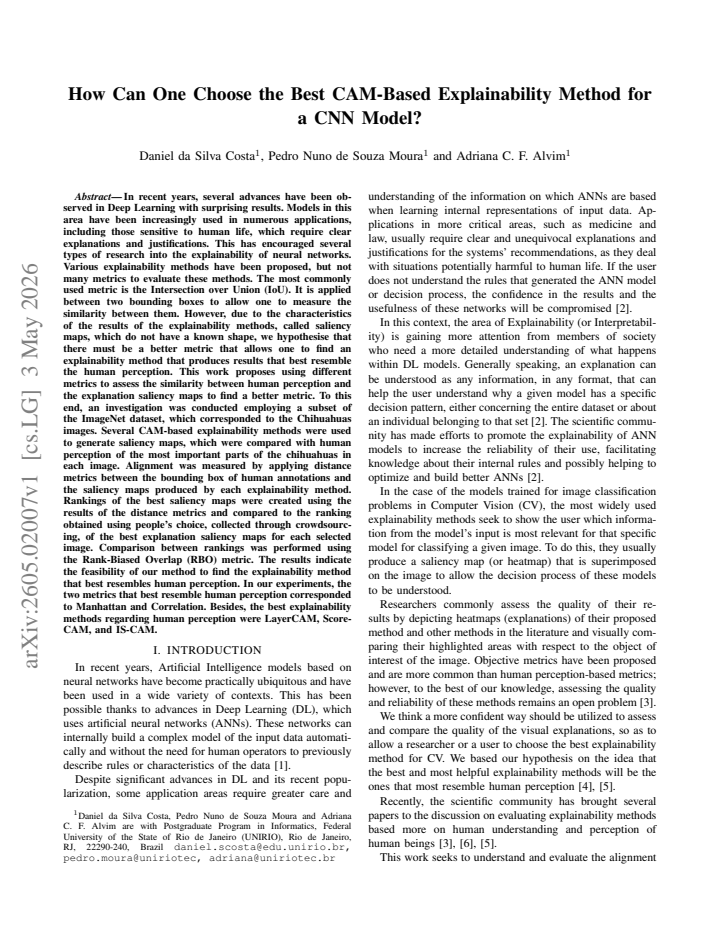

Figures reproduced from arXiv: 2605.02007 by Adriana C. F. Alvim, Daniel da Silva Costa, Pedro Nuno de Souza Moura.

Figure 1

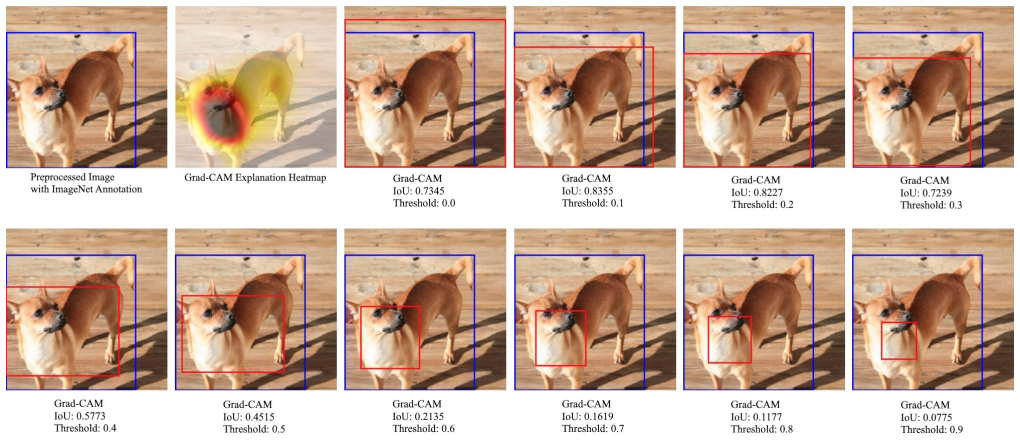

Figure 1. Figure 1: From the top-left corner: firstly, the preprocessed image n02085620 view at source ↗
